4K UHD 18Gbps HDMI Wall Plate Transmitter & Receiver Kit up to 230ft

Configure the Perfect Solution
Get Started

Overview

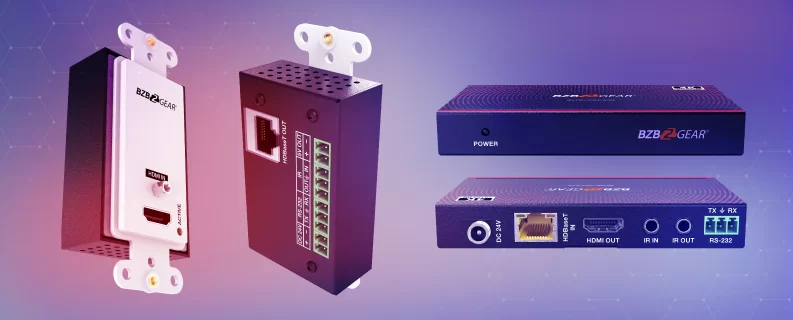

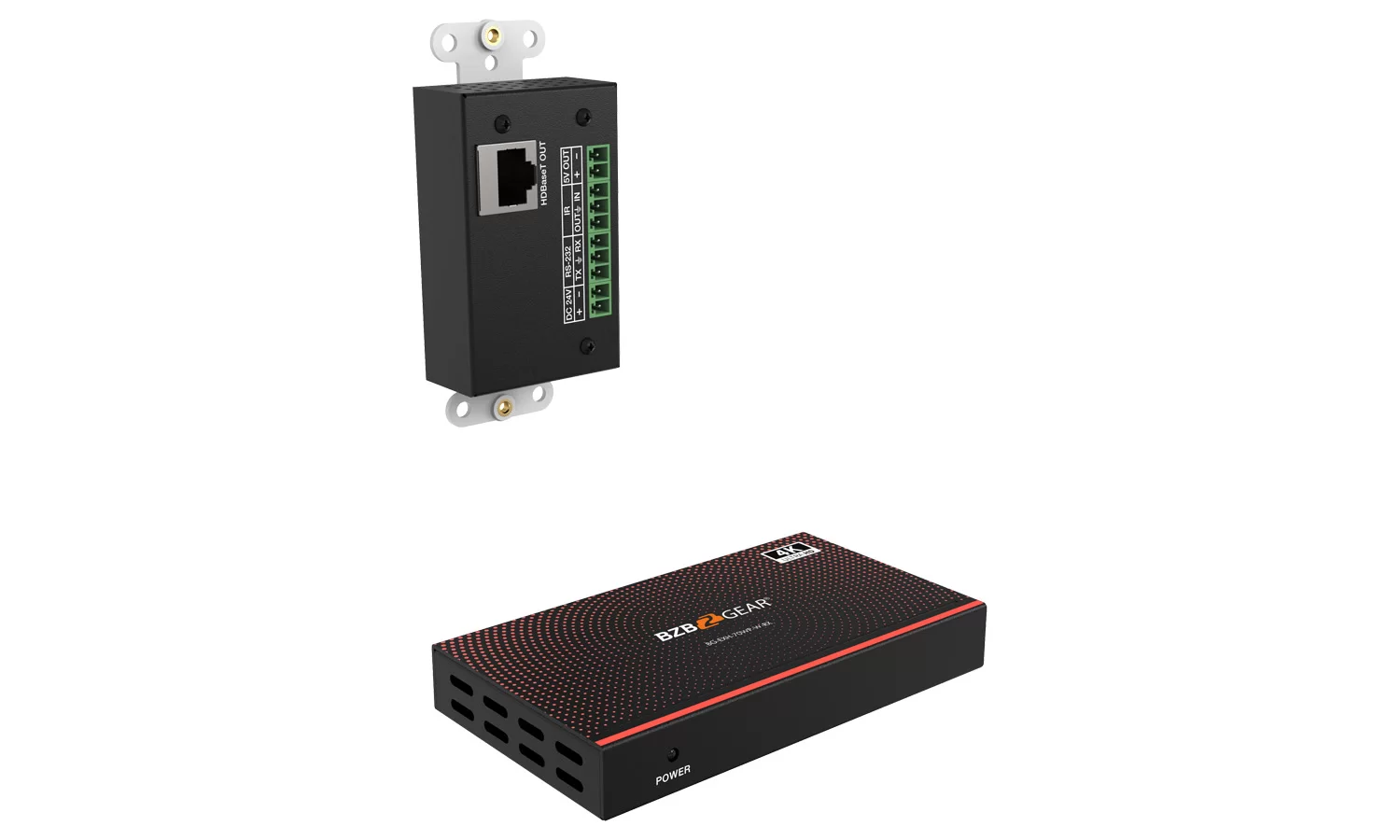

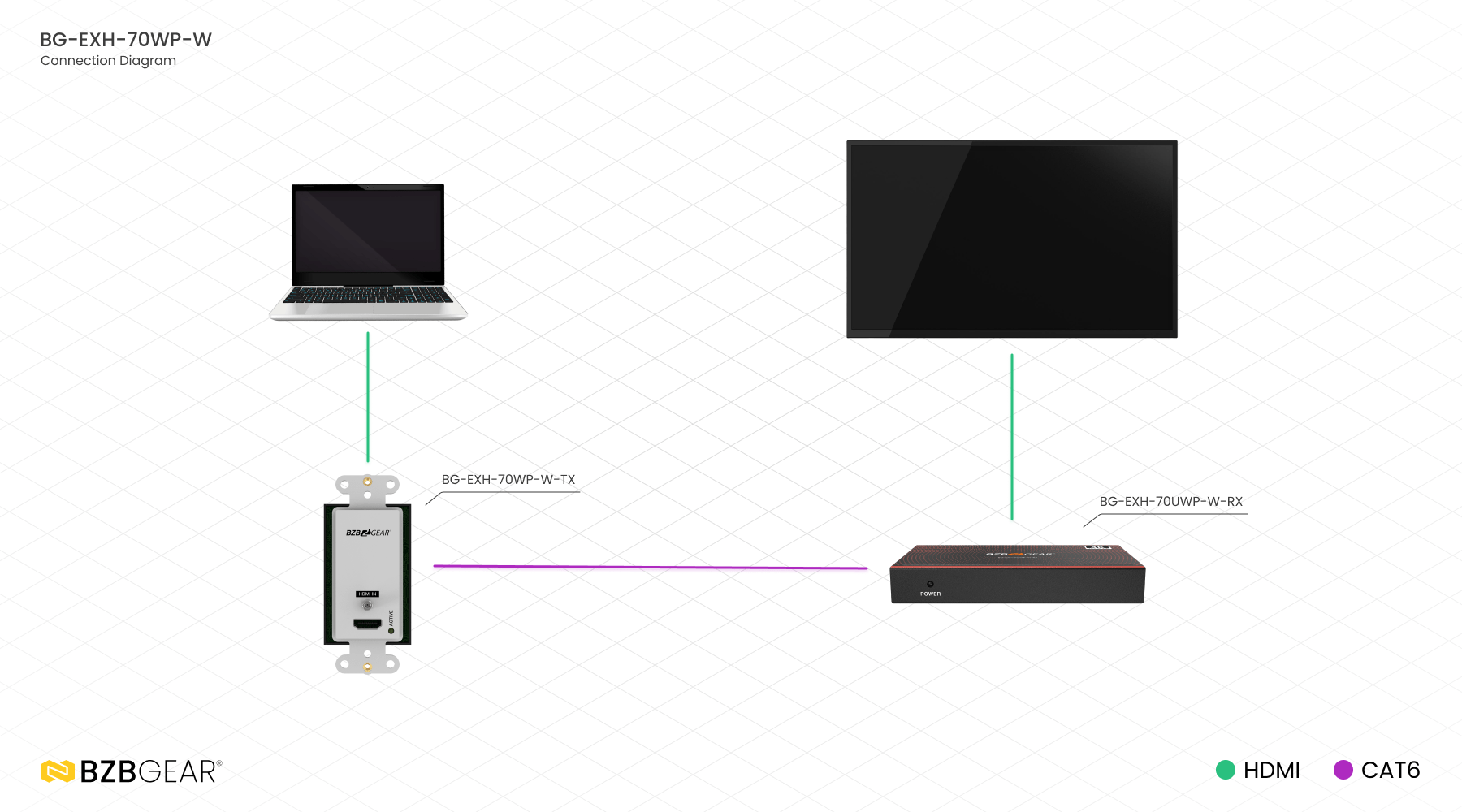

Introducing the BG-EXH-70WP-W HDBaseT Wall Plate Kit, featuring a sophisticated HDBaseT Wall-plate Transmitter and an HDBaseT to HDMI Receiver, designed to elevate your AV experience with seamless signal transmission and exceptional performance.

The transmitter boasts HDMI 2.0b compliance and HDCP 2.2 compatibility, ensuring seamless connectivity and support for high-definition content. With support for resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p@120Hz, it delivers stunning visual clarity and fidelity, making it perfect for a wide range of applications.

Transmitter Overview

The HDBaseT Wall-plate Transmitter in the BG-EXH-70WP-W kit represents the pinnacle of signal transmission technology, offering unparalleled performance and versatility. With HDMI input and HDBaseT output ports, it seamlessly integrates with your existing AV setup, extending video transmission distances of up to 230ft/70m for 1080p resolution and 130ft/40m for 4K resolution over a single CAT6/6a/7 cable.

Additionally, it features Power over Cable (PoC) functionality, eliminating the need for separate power sources and enhancing installation flexibility. Moreover, with support for two-way IR and RS-232 communication, it provides comprehensive control options for seamless integration into your AV system.

Receiver Overview

The HDBaseT to HDMI Receiver included in the BG-EXH-70WP-W kit complements the transmitter's capabilities, ensuring reliable signal reception and seamless integration into your AV setup. Featuring HDBaseT input and HDMI output ports, it effortlessly captures and delivers high-definition content to your display device.

Equipped with indicators for link and data signal status, it provides real-time feedback on connection status for hassle-free operation. With support for DC 24V power input and comprehensive control options including IR and RS-232 ports, it offers versatile connectivity and control options for seamless integration into your AV system. Overall, the receiver delivers exceptional performance and reliability, making it an indispensable component of your AV setup.

Features

  • Compliant
    Standards Compliant
    Supports HDMI 2.0b with a bandwidth of 18Gbps and complies with HDCP 2.2 standards
  • bi_badge-4k
    High-Resolution Support
    Accommodates resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p@120Hz
  • HDMI audio formats
    Audio Capability
    Capable of transmitting up to 7.1 channels of HD audio
  • 3
    Transmission Technology
    Utilizes HDBaseT™ technology over a single CAT 6/6a/7 cable, extending signals up to 230ft/70m
  • Control Options
    Control Features
    Supports two-way IR and RS-232 communication for enhanced control capabilities
  • Plug-and-Play Setup
    Power Management
    Incorporates POC (Power Over Cable) function, where either the transmitter (TX) or receiver (RX) is powered by a 24V1A power supply, reducing reliance on additional power sources. POC power consumption is less than 10W

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 1.4 and HDCP 2.2
Video Bandwidth 18 Gbps
Video Resolution Up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection Human body model—±8kV (Air-gap discharge) & ±4kV(Contact discharge)
Connections
Transmitter Inputs:
1x HDMI Type A [19-pin female]
1x IR INPUT [Phoenix jack]
1x RS-232 [Phoenix jack]
Outputs:
1x HDBaseT OUT [RJ45]
1x IR OUTPUT [Phoenix jack]
1x RS-232 [Phoenix jack]
Receiver Input:
1x HDBaseT IN [RJ45, 8-pin female]
Output:
1x HDMI OUT [Type A, 19-pin female]
Controls:
1x IR in, 1x IR out, 1x RS-232 serial port
Mechanical
Housing Plastic-Front Panel, Metal-Rear Case
Color White-Front Panel, Black-Rear Case
Dimensions (W x D x H) Wall plate:
4.1in x 1.8in x 1.2in [103.5mm  x 46mm  x 30mm]
Receiver:
4.6in x 2.6in x 0.71in [117mm x 66mm x 18mm]
Weight Wall plate: 5.75 oz [163g], Receiver: 7.1 oz [201g]
Power Supply Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 9W (Max)
OperatingTemperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)

Resources

Documents

PACKAGE CONTENTS

  • 1x 18Gbps HDMI Wall Plate Transmitter
  • 1x HDBaseT to HDMI receiver
  • 2x Phoenix connectors (3 pins)
  • 2x Phoenix connectors (2 pins)
  • 1x User Manual

Interfaces

Interfaces image

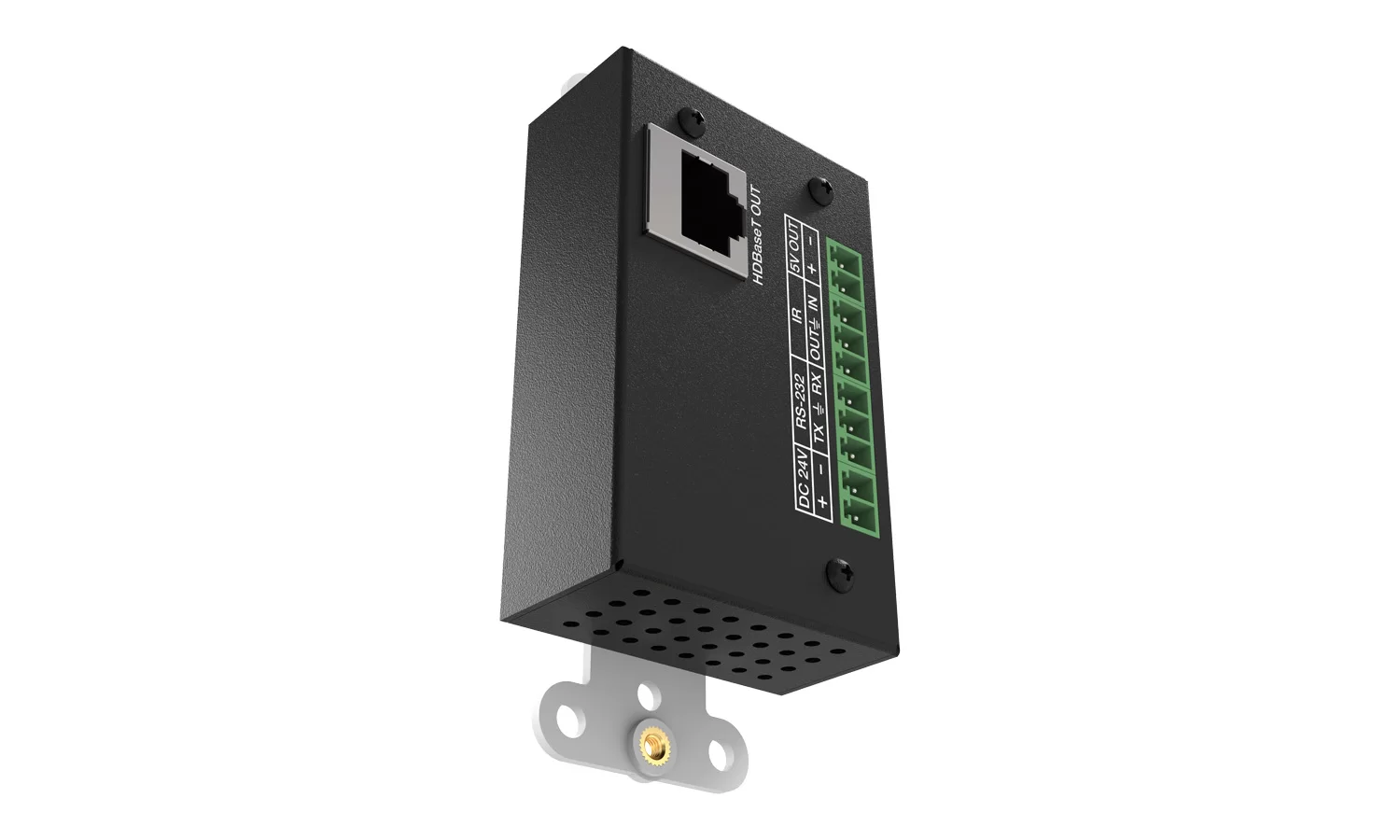

    Transmitter

  1. HDMI IN port: HDMI signal input port, connected to HDMI source device, such as Blu-ray or PS4 player.
  2. ACTIVE LED: When there is signal input, the green LED lights on.
  3. DBaseT OUT: HDBaseT output port, connected to the HDBaseT IN port of Receiver with a CAT6/6a/7 cable.
  4. 5V OUT: Supply 5V power for external IR receiver.
  5. IR IN/OUT: Use the phoenix jack for connect IR input or output.
  6. RS-232: RS-232 serial port, connected to PC or control system for RS-232 control commands transmission.
  7. DC 24V: Use the phoenix jack for connect power supply.

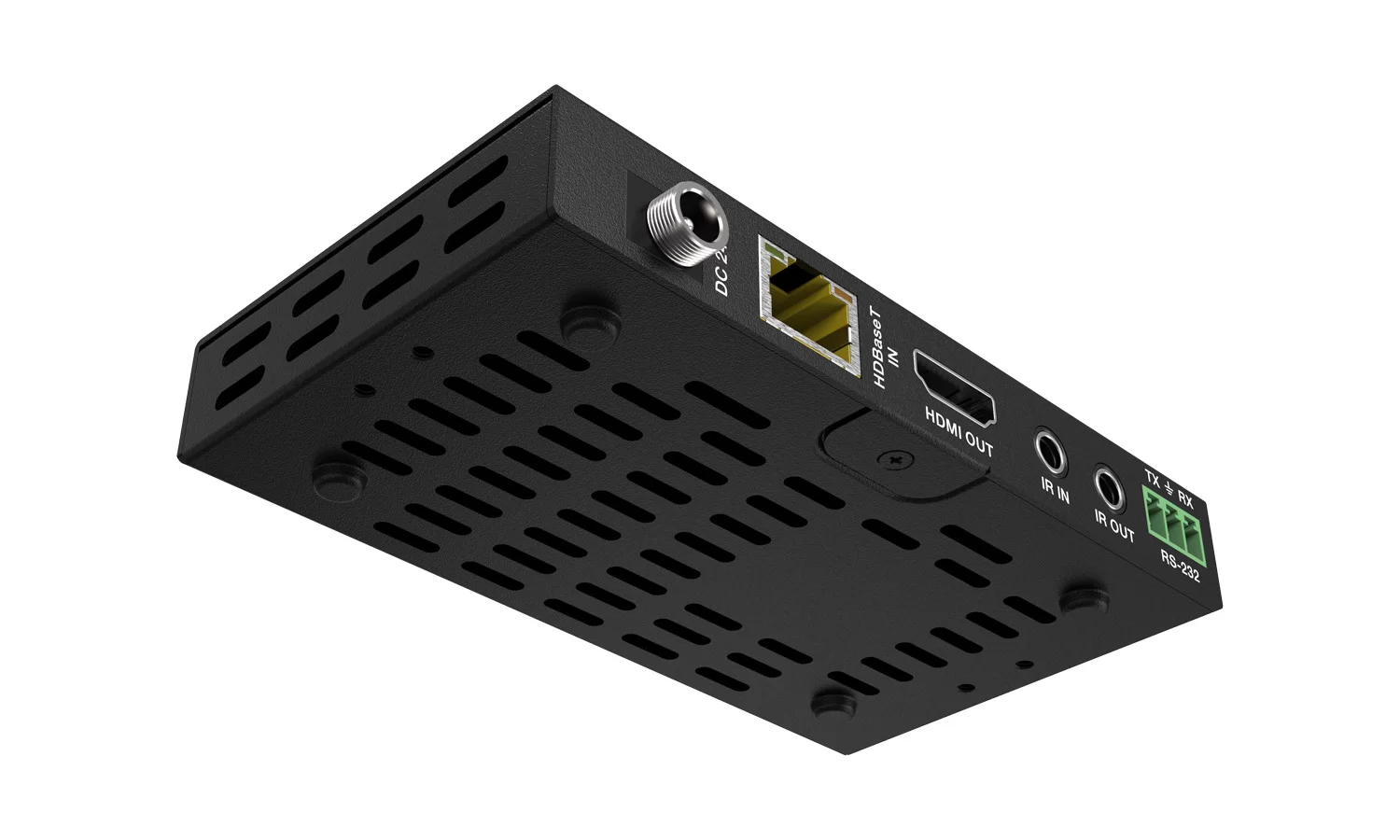

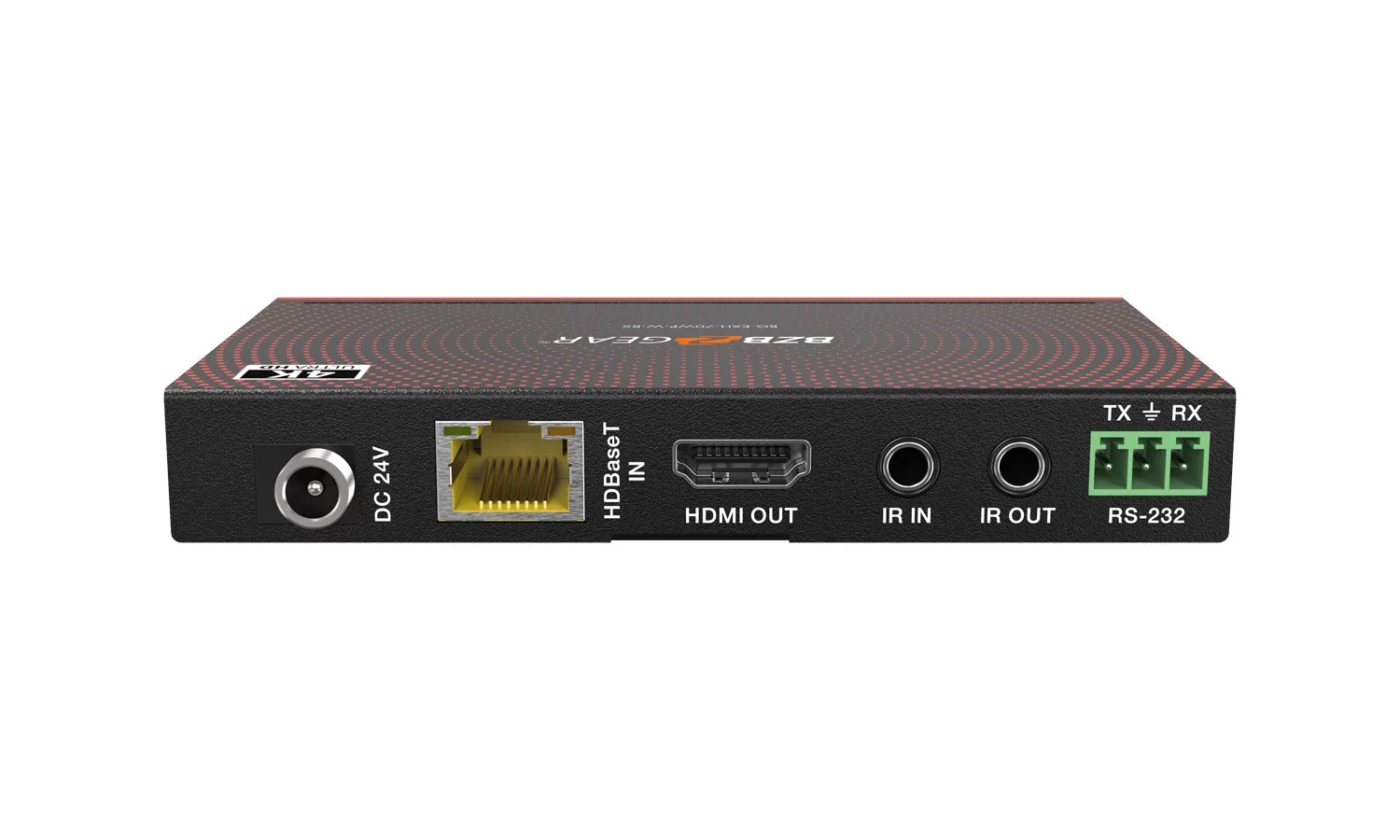

    Receiver

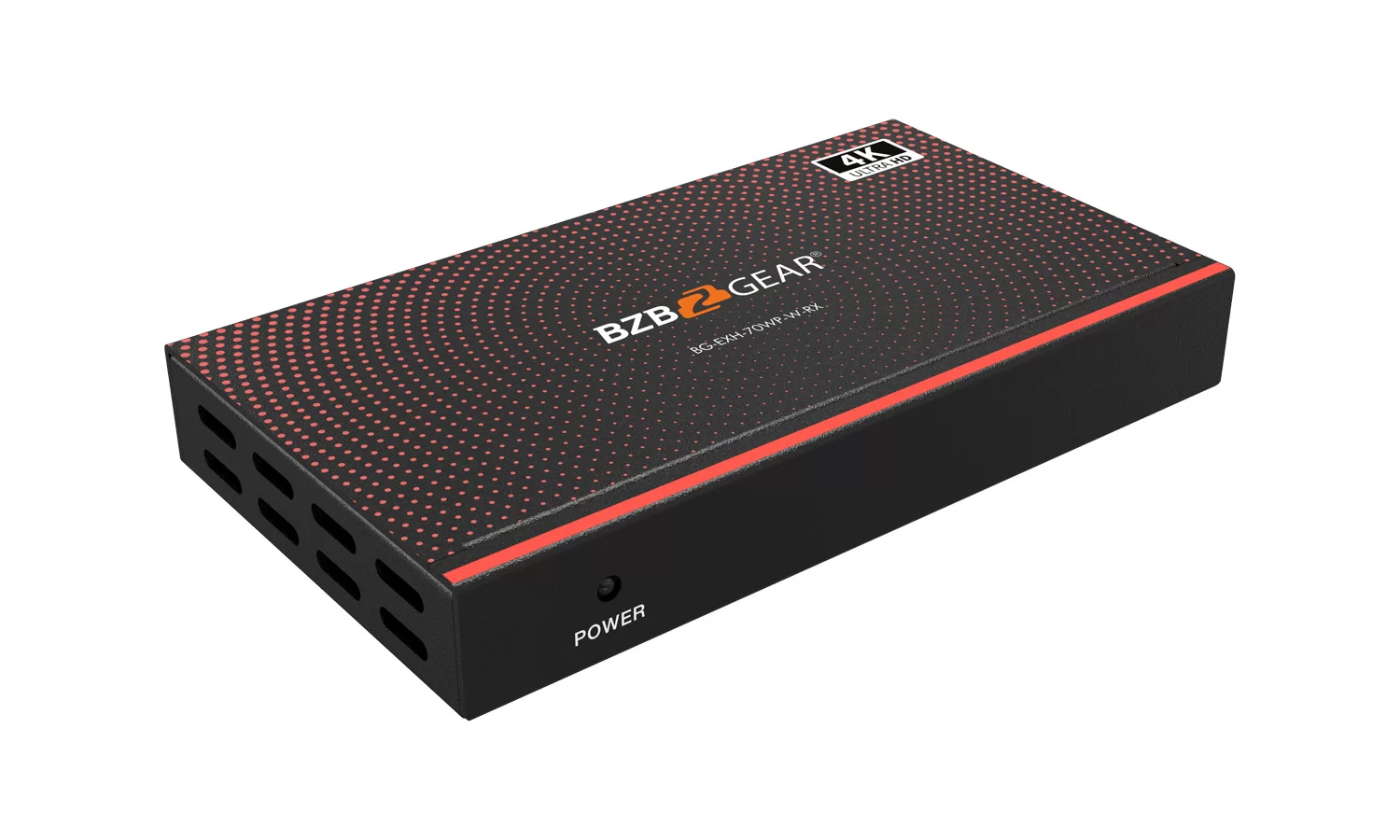

  8. POWER LED: When the product is powered on, the POWER LED will light on.
  9. DC 24V port: DC 24V power supply input port.
  10. HDBaseT IN port: HDBaseT input port, connected to the HDBaseT OUT port of Transmitter with a CAT6/6a/7 cable.
  11. Link Signal Indicator (Green):
    Light on:Transmitter and Receiver are in good connection status.
    Light flashing: Transmitter and Receiver are in poor connection status.
    Light off: Transmitter and Receiver are not connected.
  12. Data Signal Indicator (Yellow):
    Light on: There is HDMI signal transmission with HDCP encryption.
    Light flashing: There is HDMI signal transmission without HDCP encryption.
    Light off: There is no HDMI signal transmission.
  13. HDMI OUT port: HDMI signal output port, connected to HDMI display device, such as TV or monitor.
  14. IR IN: IR signal input port, connected with IR Receiver cable.
  15. IR OUT: IR signal output port, connected with IR Blaster cable.
  16. RS-232: RS-232 serial port, connected to PC or control system for RS-232 control commands transmission.
