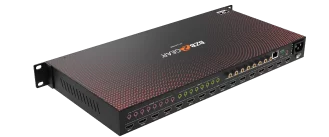

8x8 4K UHD Seamless HDMI Matrix Switcher/Video Wall Processor/MultiViewer with Scaler/IR/Audio/IP and RS-232
Overview
The BG-4K-VP88 supports eight HDMI inputs that can be independently routed to HDMI Outputs. This unit can create video walls, act as a multi-viewer and perform matrix functions! The BG-4K-VP88 supports video wall configurations of up to 7 different modes with each monitor. It can also display eight pictures on the same screen and has multiple split display modes.
Connectivity and Quality
With max resolutions up to 4K@60Hz 4:4:4, the BG-4K-VP88 is capable of producing high-quality imagery with pristine detailing and rich color. All HDMI ports on this unit are HDCP 2.2 compliant. This device also supports analog audio extraction, and audio channels can be switched independently.
Control
The BG-4K-VP88 provides various control methods, including front panel controls, IR remote control, RS-232, and IP control. With the included IR receiver, the unit can be controlled using the provided remote even when placed out of sight, ensuring a neat installation. Additionally, users have the option to utilize the BG-SWITCH-CONTROL app, a proprietary matrix switcher control and management application available for Windows, iOS, Mac, and Android platforms. This software empowers you to effortlessly route sources, manage displays, configure image settings, adjust network settings, and more.
Alongside a comprehensive web interface, the BG-4K-VP88 features control software that can be operated via the RS-232 connection. These interfaces enable users to fine-tune advanced features such as EDID management, mapping, and network settings.
BZBGEAR AWARDS
Features
-
8X8 Matrixing8x HDMI Inputs which can be independently routed to 8 HDMI Outputs -
Video wallSupports Video Wall up to 7 different modes with each monitor -
Multiview CapabilitiesUp to 8 sources can be displayed on each output in different layouts -
HDCP CompliantHDCP 2.2 compliancy ensures copyright protection -
Control OptionsControl via panel button, Remote Control, RS232 Control, TCP/IP Control -
4K@60HzSupports resolution up to 4K@60Hz 4:4:4
- No switching delay or picture loss during transitions
- EDID management: Seamless scaling for the best results
- Supports HDMI audio formats including Dolby-5.1, DTS-5.1
- Analog audio extraction, and the audio can be independently switching
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Seamless Matrix Switching. Experience flawless switching with the BG-4K-VP88. Whether you prefer drag-and-drop, click-to-switch, or serial commands, the BG-4K-VP88 offers a smooth, efficient source-switching experience. Move any source to any output seamlessly, at any time!
Versatile Multiview Presets. Select from a variety of pre-configured multiview layouts or customize your setup by simply dragging and dropping sources. Achieve the perfect multiview display with minimal effort.
Advanced Video Wall Configuration. Choose from an array of pre-configured video wall presets or create a custom configuration to suit your needs. For superior picture quality, use our integrated bezel correction settings to ensure perfect alignment across all displays.
Effortless Audio Integration. The BG-4K-VP88 features eight audio input ports, eight audio output ports, eight S/PDIF outputs, and HDMI audio embedding for unparalleled flexibility in audio routing and integration. Simplify your audio management with this comprehensive setup.

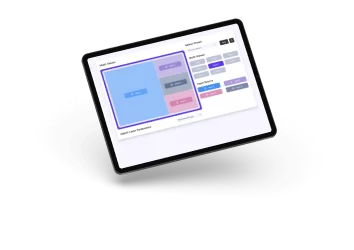

Simplified Audio Management Interface. Manage audio routing and matrixing effortlessly via the intuitive Web GUI. With user-friendly check/uncheck options and easy-to-navigate drop-down menus, you can control your audio setup with just a few clicks.

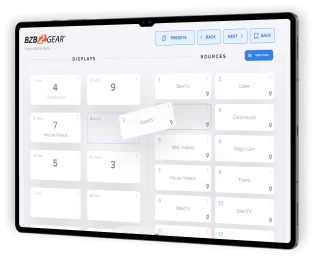

BZBGEAR Switch Control App
- The BG-4K-VP88 is fully compatible with the free BZBGEAR Switch Control App, offering seamless control of matrix switchers, video wall processors, and AVoIP systems.
- Available on Windows, Mac, iOS, and Android, the app brings web interface features to your device, including drag-and-drop switching, video wall creation, and preset configuration—right at your fingertips.
IR Remote Control. Included with the BG-4K-VP88 is an IR remote controller, offering quick access to the main menu for straightforward setup and configuration management.
Serial and IP Commands. The BG-4K-VP88 provides a comprehensive list of commands for easy integration with third-party drivers, enabling control through serial and IP-based systems. Users can request the command list documentation for integration assistance.

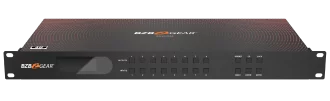

Front Panel Control. The front panel of the BG-4K-VP88 features easy-to-use buttons for basic matrix switching and menu access. An LCD screen displays the current settings being accessed, providing clear visibility for on-site adjustments.
Tech Specifications
| Input ports | 8xHDMI |
| Output ports | 8xHDMI |
| Video Format Supported | 4K@60Hz, YUV4:4:4 8 bit 4K@30Hz/1080P/1080i/720P |
| Audio Formats Supported | HDMI digital audio DTS-5.1/Dolby-5.1 |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Bandwidth | 18 Gbit/s |
| Matrix mode | 8x8 seamless switching |
| Video wall mode | Multiple video wall modes |
| Multi-viewer mode | Multiple multi-viewer modes |
| Power Consumption | 23 Watts (Max.) |
| Operating Temperature Range | 23 to +104°F / -5 to +40°C |
| Storage Temperature Range | -14 to +140°F / -10 to +60°C |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Dimensions | Matrix: 10”(L) x 6.4"(W) x 1.4”(H) [L262 x W163 x H36 mm] |
PACKAGE CONTENTS
- 1x Main Unit (8x8 HDMI Matrix)
- 1x DC 12V/3A power adapter
- 1x Remote control
- 1x Wide-Band IR Receiver cables
- 1x CD for user manual & Command list
- 1x 3 Pin Phoenix terminal plug
Interfaces
- LCD Screen: 192x64-LCD Screen for showing the running data like HDMI Matrix switch in for and menu setting.
- Output 1~8: Black button for Matrix switching, Long press means all selected.
- Input 1~8: Black button for Matrix switching, Long press means all selected.
- Preset: Easy for preset calling.
- UP: Function button: UP.
- Lock: Press over 1s, panel button will be locked. Re-press to unlock.
- Menu: Function button: Menu.
- Down: Function button: Down.
- Enter: Function button: Enter.
- Audio Embedded 1~8: 3.5mm ports, Sampling Rate: 32K~192Khz.
- Audio Extraction 1~8: 3.5mm ports, Sampling Rate: 32K~192Khz.
- SPDIF Extraction 1~8: Coaxial Port, Sampling Rate: 32K~192Khz.
- LAN Port: WEB GUI Control.
- RS232 Port: 3PIN Phoenix port: TX - GND - RX.
- IR EXT: 3.5mm ports, supports 38~52Khz frequency.
- HDMI Inputs 1~8: A type 19 PIN-HDMI Port.
- HDMI Outputs 1~8: A type 19 PIN-HDMI Port.
- Power: AC110V~240V.
