4x1 8K UHD Ultra Slim HDMI 2.1 Switcher (8K60, 4K120Hz 4:4:4 10bit)

Configure the Perfect Solution
Get Started

Overview

The 8K 4x1 HDMI 2.1 switcher is a versatile device that allows you to switch between four HDMI sources and display the selected input on a single HDMI display. It offers support for high-resolution video up to 8K at 60Hz with 4:4:4 chroma subsampling, providing crisp and detailed images with excellent color accuracy. Additionally, the switcher has a high video bandwidth of 48Gbps, which enables it to handle the large amounts of data required for high-quality 8K video.

This switcher is an ideal solution for those who want to be able to easily switch between multiple HDMI sources, such as a gaming console, Blu-ray player, or streaming device. Whether you're watching movies, playing games, or simply want to be able to easily access multiple sources of content, the 8K 4x1 HDMI 2.1 switcher can help ensure that you have access to the best possible video quality.

For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-HS41 can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 4x1 switcher’s support for 4K at 120Hz can help you get the most out of your favorite games.

Features

  • material-symbols_shield-lock-outline
    Secure Content
    HDMI 2.1 and HDCP 2.3 compliant
  • bi_badge-8k
    8K and 4K@120Hz
    8K@60Hz 4:4:4 8/10/12-bit, 8K@60Hz 4:2:0 12-bit, 8K@ 30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support
  • wpf_audio-wave
    Audio formats
    LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • bi_images
    4x1 switching
    Switch sources at the push of a button or enable automatic switching
  • ep_connection
    EDID management
    Seamless scaling for the best results
  • check-square 3
    Compact design
    For easy and flexible installation
  • Support 48Gbps video bandwidth
  • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
  • VRR, FVA, ALLM
  • Built-in Equalizer and Driver

Videos

BZBGEAR Webinar Episode 9: Overview of BZBGEAR 8K Resolution Solutions.
BZBGEAR Webinar Episode 9: Overview of BZBGEAR 8K Resolution Solutions.
Get Your 8K on With BZBGEAR's Lineup of 8K Products at InfoComm 2023!
Get Your 8K on With BZBGEAR's Lineup of 8K Products at InfoComm 2023!
Award Winning 8K Solutions From BZBGEAR | NAB 2023
Award Winning 8K Solutions From BZBGEAR | NAB 2023
Easily Switch Between Multiple HDMI Sources Up To 8K at 60Hz
Easily Switch Between Multiple HDMI Sources Up To 8K at 60Hz
High Performance 4x1 HDMI Switcher Supports 8K Resolution - BG-8K-HS41
High Performance 4x1 HDMI Switcher Supports 8K Resolution - BG-8K-HS41

Tech Specifications

Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth 48Gbps
Video Resolution Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
Color Depth 8-bit, 10-bit, 12-bit
Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Connection
Input 4xHDMI IN [Type A, 19-pin female]
Output 1xHDMI OUT [Type A, 19-pin female]
Mechanical
Housing Plastic Enclosure
Silkscreen Color Black
Dimensions 4.8” (W) x 2.6" (D) x 0.75” (H) [122mm (W) x 65mm (D) x 19mm (H)]
Weight 0.19lbs [88g]
Power Supply Input: AC 100 - 240V 50/60Hz, Output: DC 5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 3.4W (Max)
Operation Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

PACKAGE CONTENTS

  • 1x 8K HDMI 4x1 switcher
  • 1x IR Remote
  • 1x 5V/1A Power Supply
  • 1x User Manual

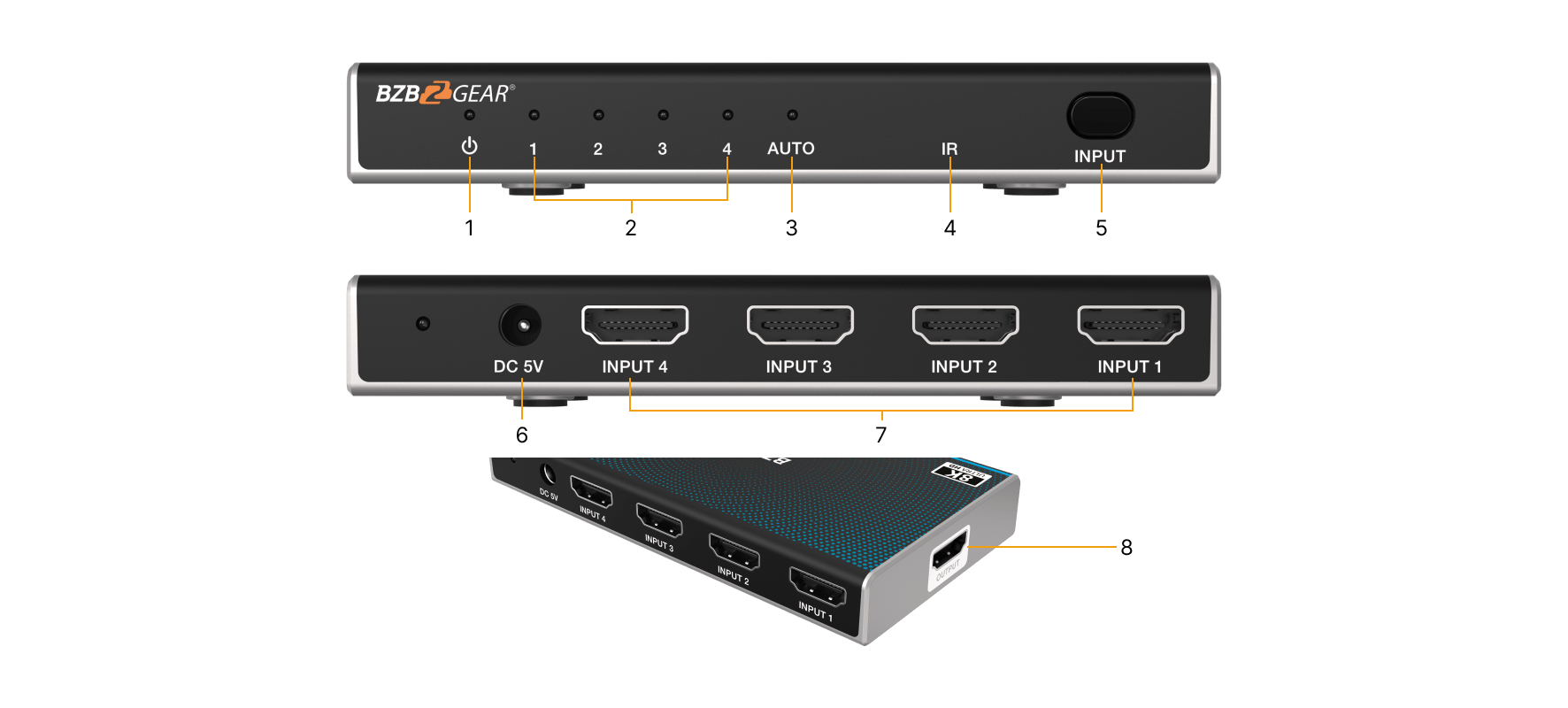

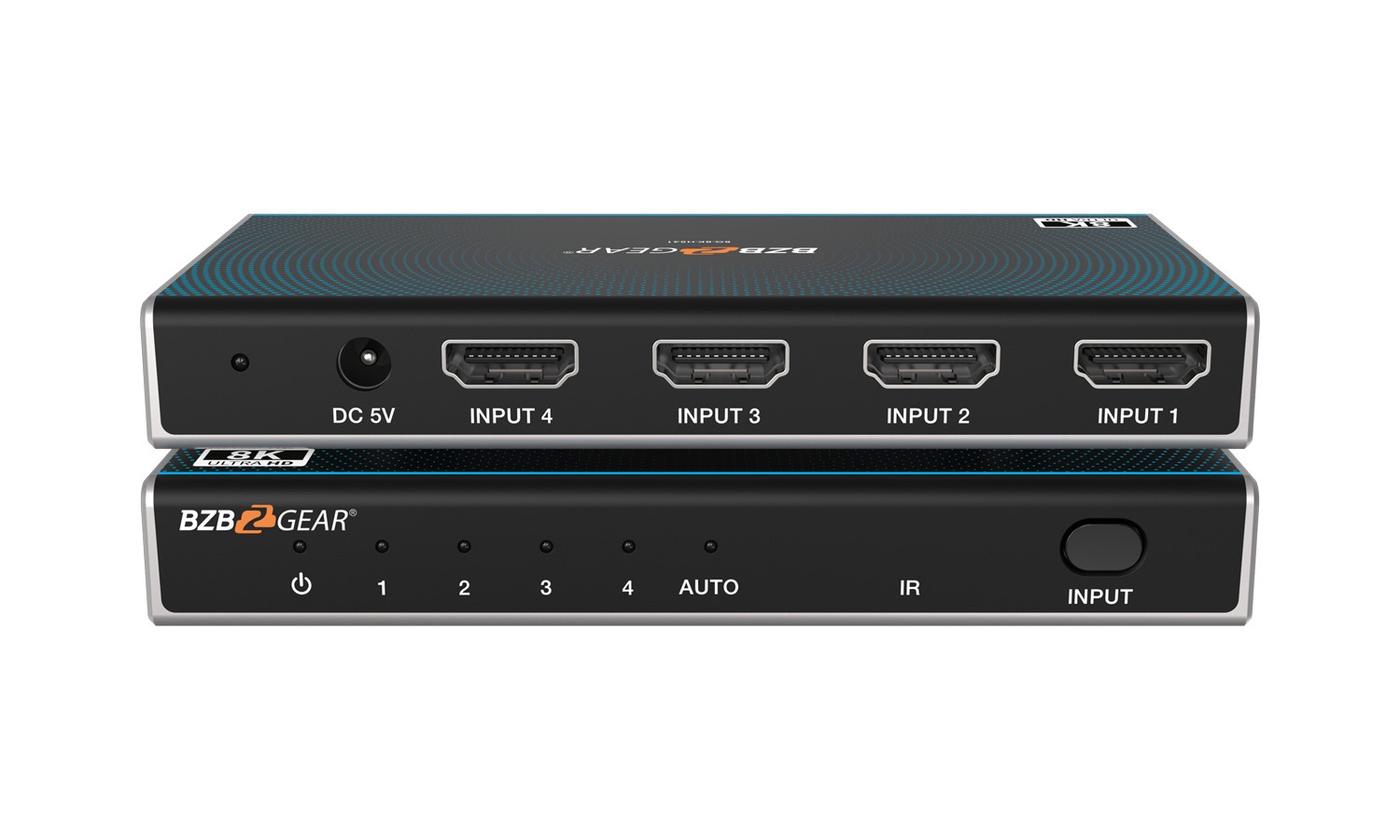

Interfaces

Interfaces image

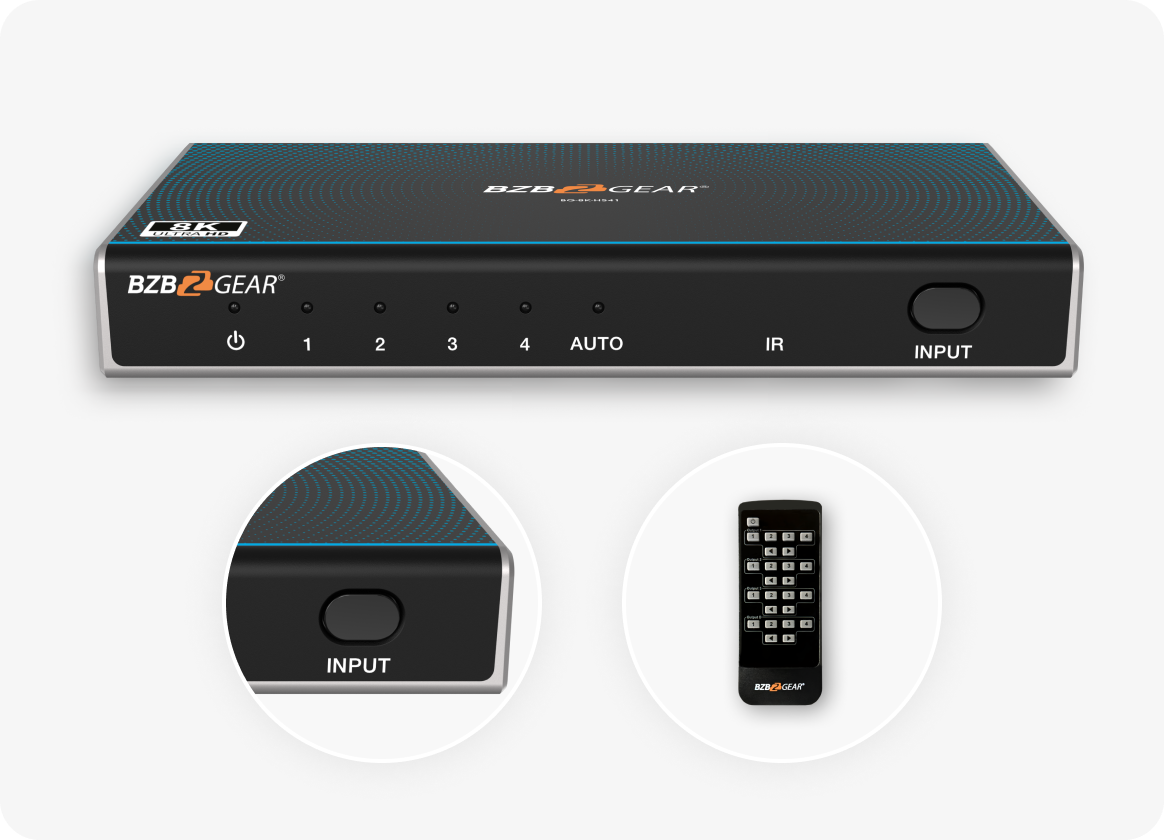

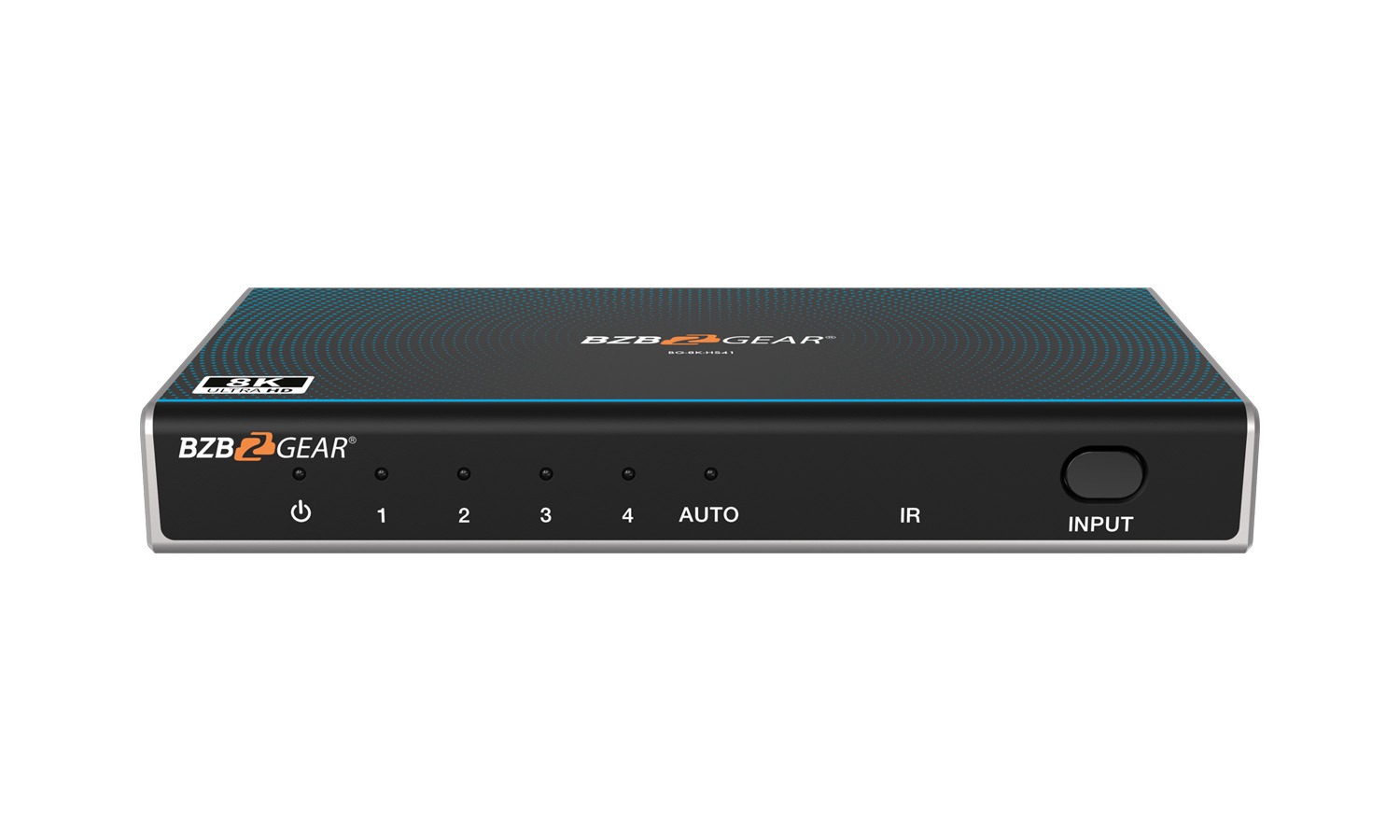

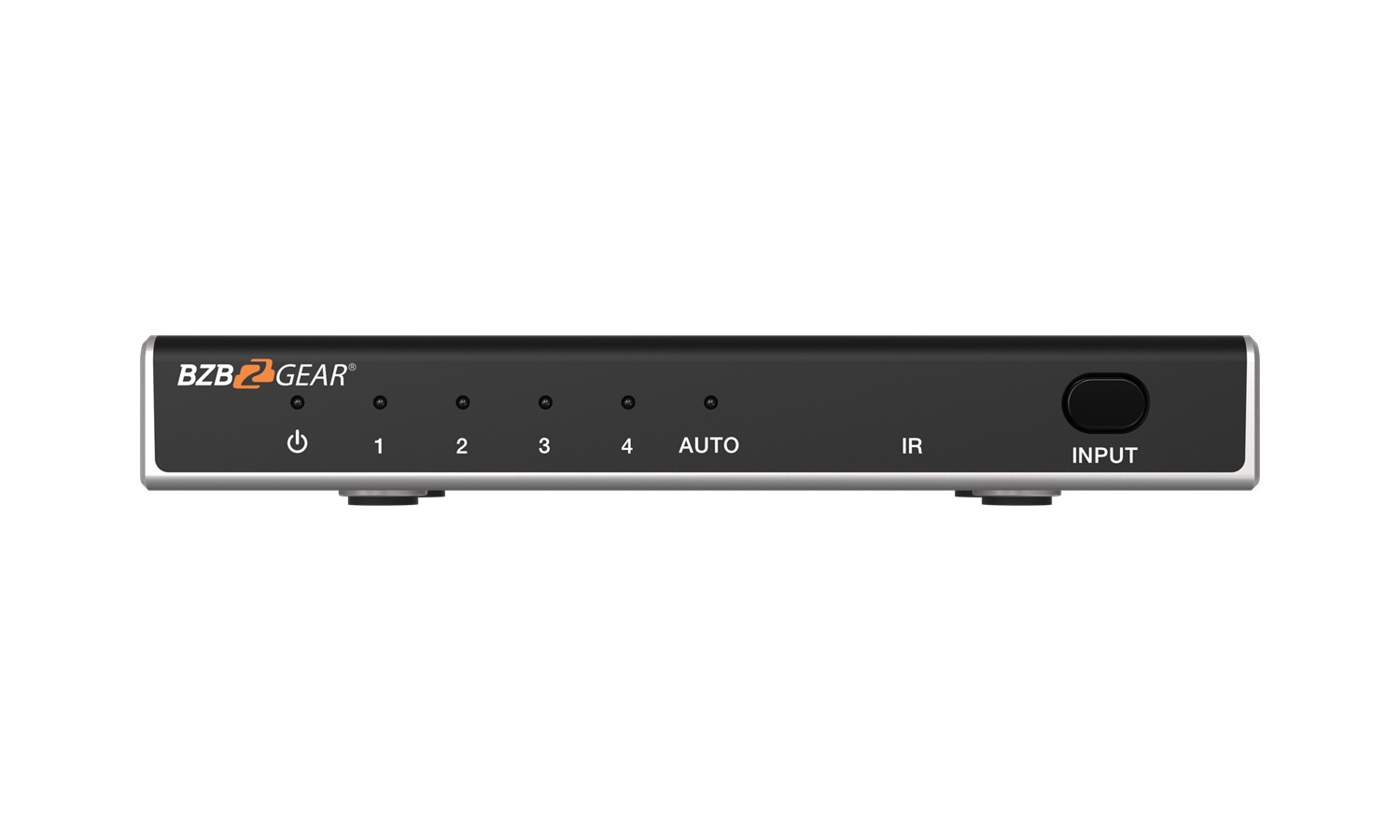

  1. POWER LED: When the device is powered on, the white power LED is on.
  2. INPUT LED (1~4): When the INPUT 1/2/3/4 port is selected as the signal source input channel, the corresponding white LED will be on.
  3. AUTO LED: When the auto switching mode is enabled, the corresponding white LED will be on.
  4. IR Window: IR input signal receiving window.
  5. INPUT button: Short press this button to circularly select signal source.
    Long press this button for 3 seconds to enable the auto switching mode.

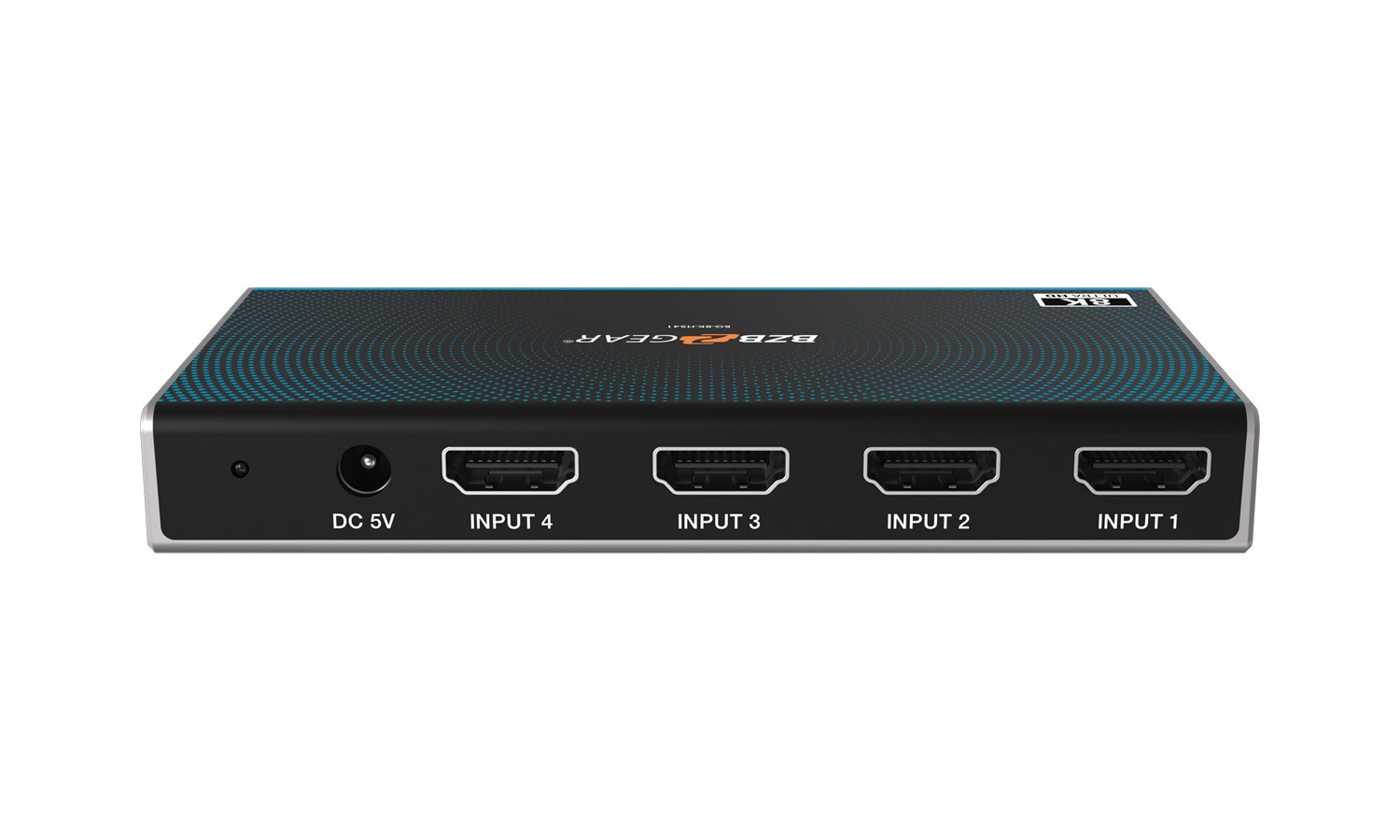

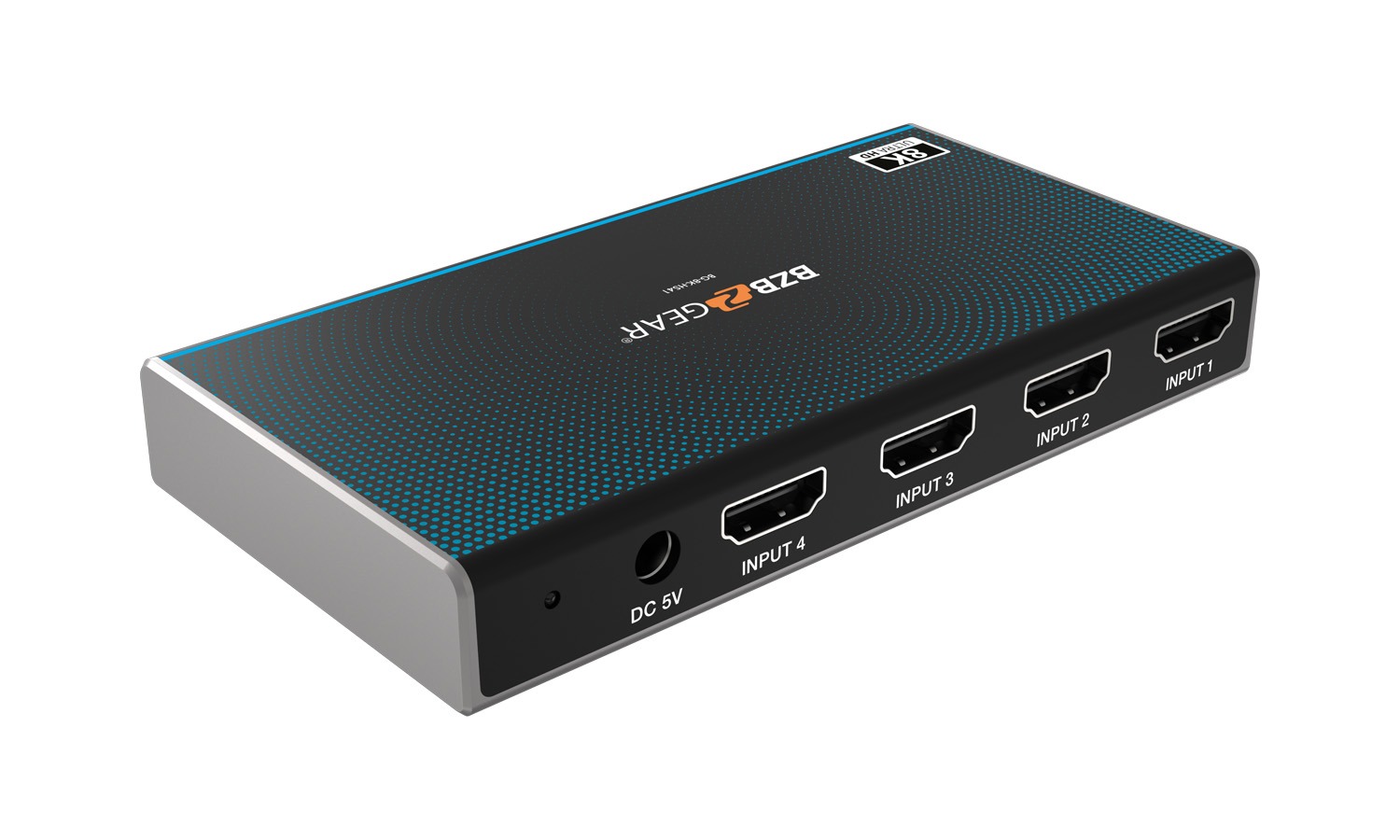

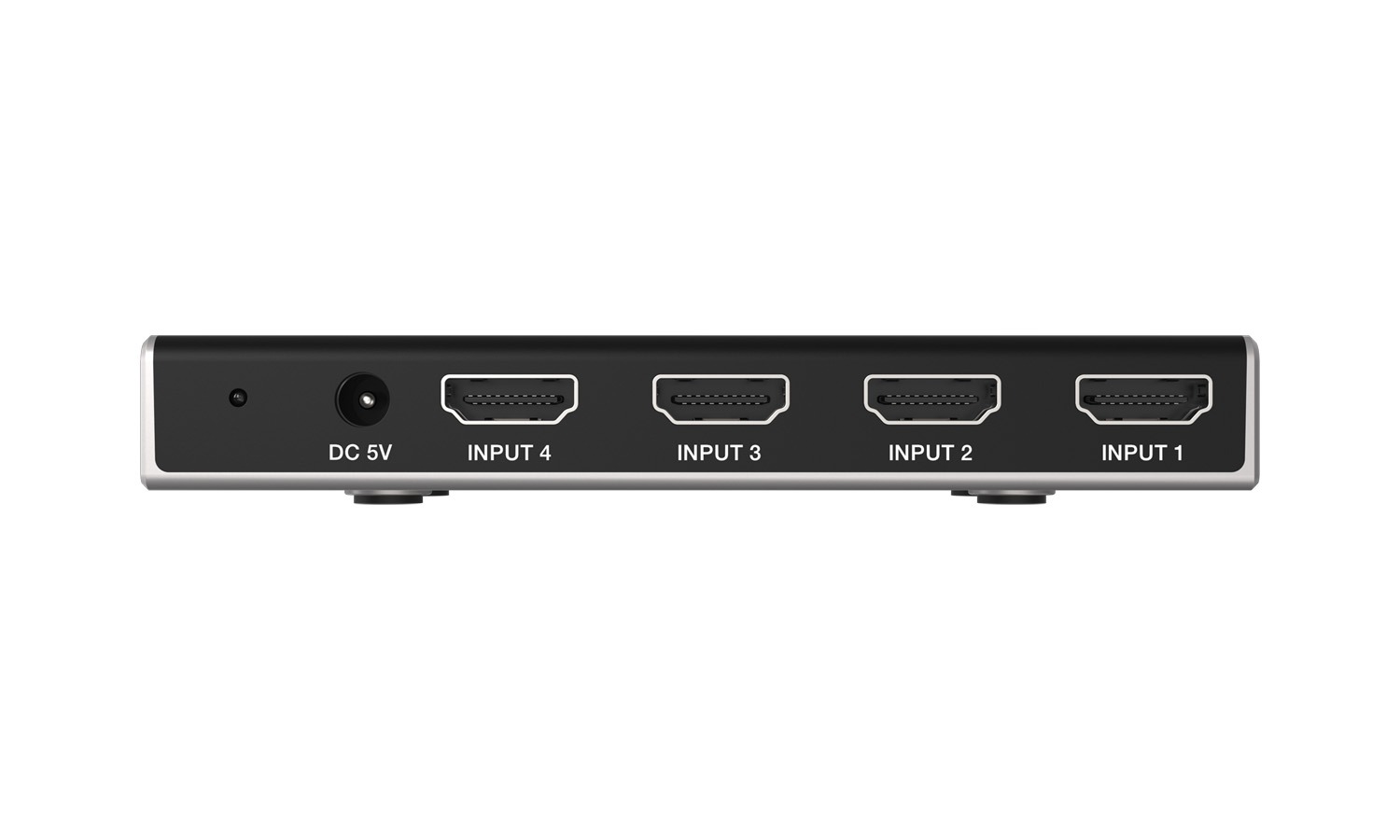

  6. DC 5V: DC 5V/1A Power input port.
  7. INPUT port (1~4): HDMI signal input ports, connected to HDMI source device such as DVD or PS5 with an HDMI cable.

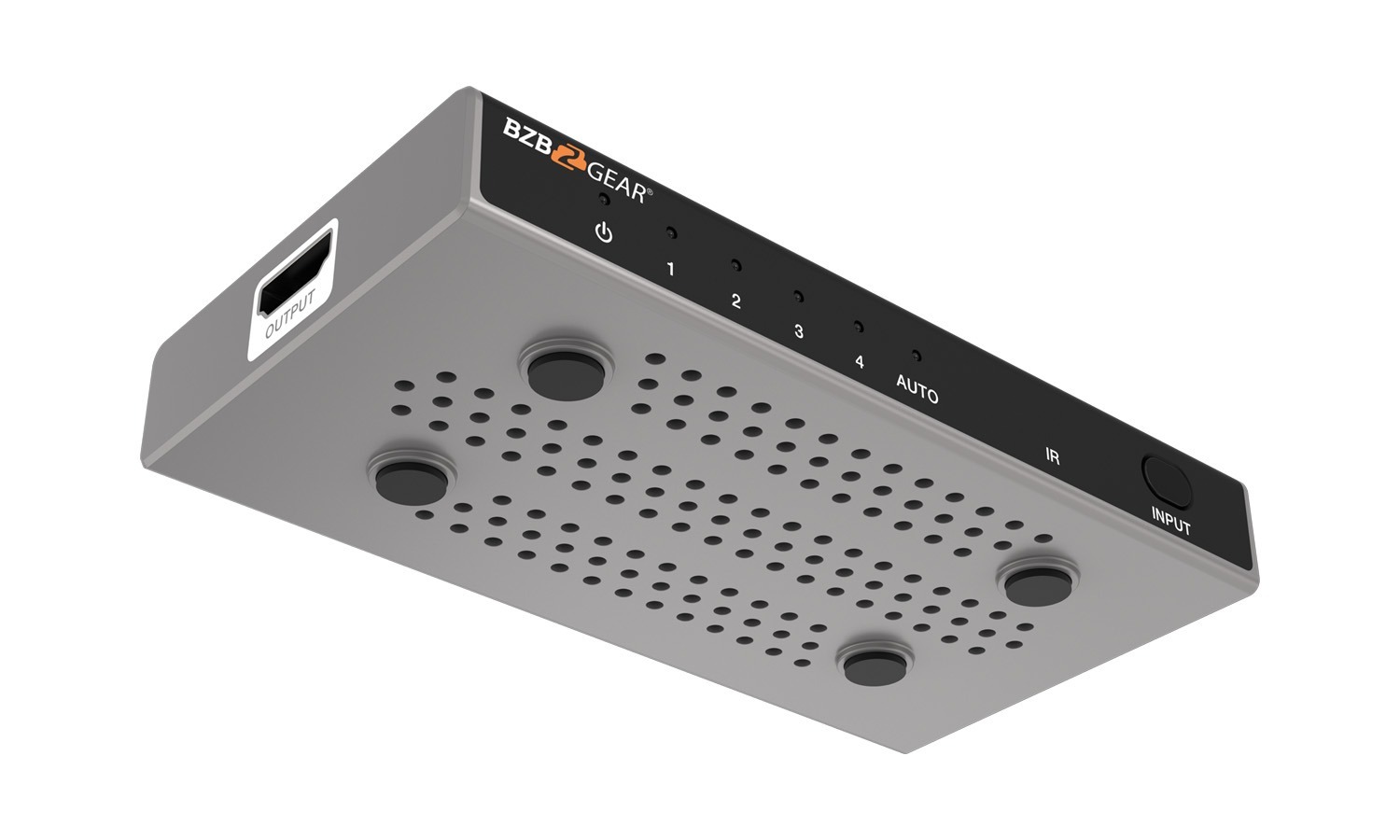

  8. OUTPUT port: HDMI signal output port, connected to HDMI display device such as TV or Monitor with an HDMI cable.
