8x2 4K UHD Seamless Presentation Switcher with HDBaseT

Configure the Perfect Solution
Get Started

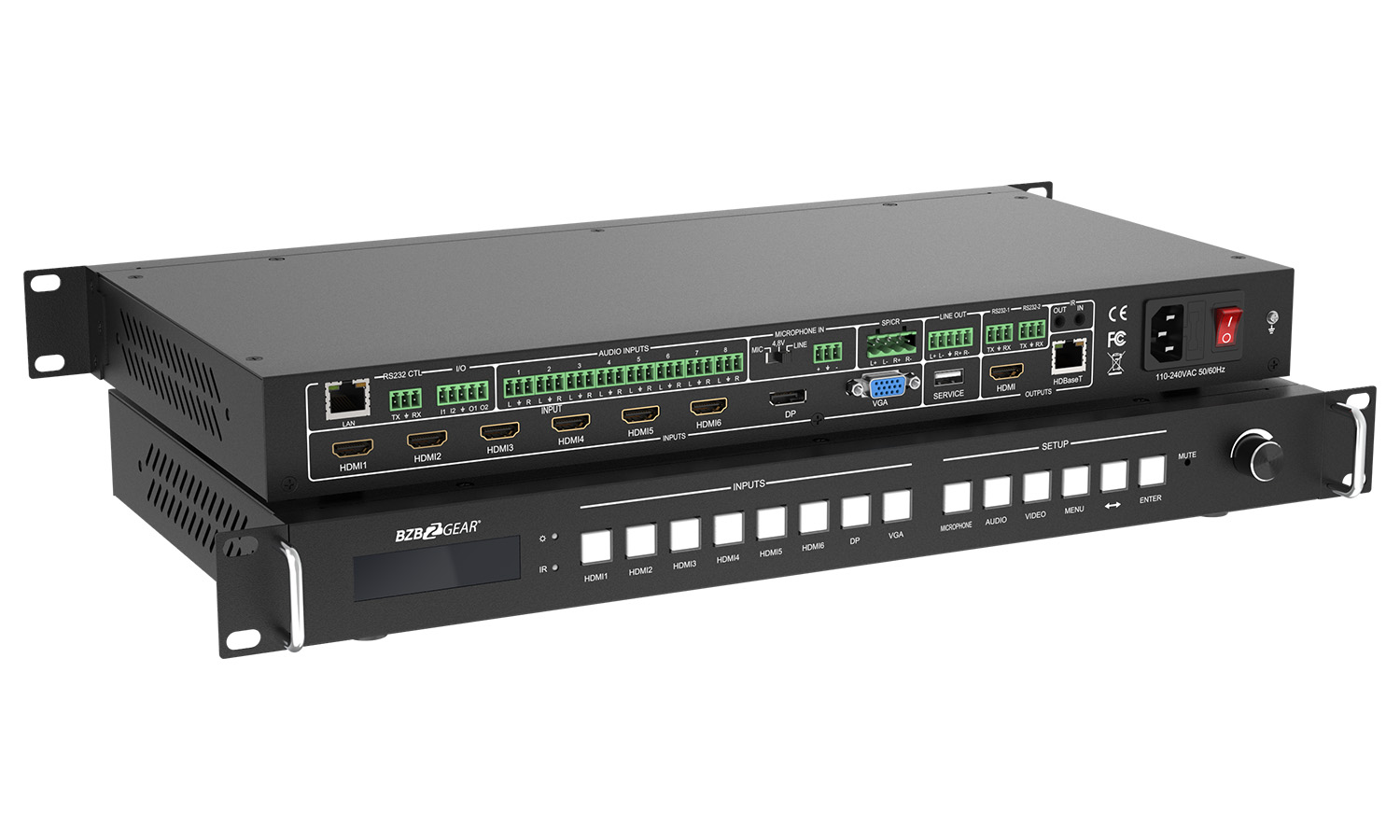

Overview

The BG-PSC8X2HDB is an 18Gbps 8x2 seamless 4K presentation switcher. Equipped with 8 video inputs including 6 HDMI ports, 1 Display Port, and 1 VGA port, this HDMI 2.0, HDCP 2.2 and DP 1.2 compliant unit supports multi-format signal processing for seamless switching between all sources. It features automatic input scaling at resolutions up to 4K@60Hz 4:4:4.

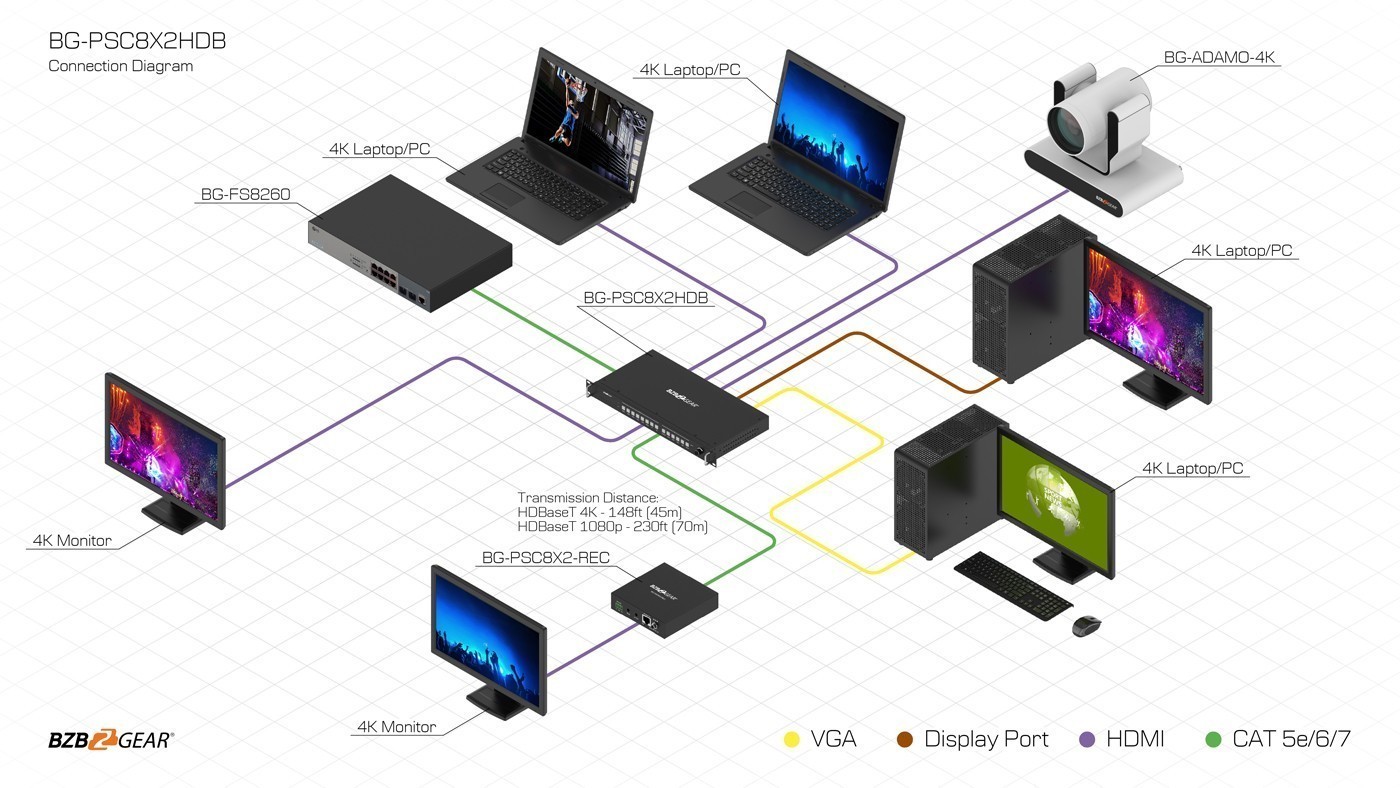

Video output is available via simultaneous HDMI and HDBaseT ports. The HDBaseT output extends signal up to 70 meters at 1080P, or 45 meters at 4K.

Third-party control is supported with bi-directional IR and RS-232 connections and the equipped EDID management helps eliminate video compatibility issues.

Easily embed audio with any of the 8 stereo inputs. The integrated microphone mixer supports adjustable trim and 48V phantom power. Extract audio from the balanced output or power 2 speakers with the 20W stereo output.

Features

  • Bzbgear image
    Crystal Clear Images
    Stunning image quality in 4K@60 4:4:4
  • material-symbols_auto-detect-voice
    Integrated Microphone Mixer
    Features adjustable trim and 48V Phantom Power
  • Wide-Angle 2
    HDBaseT Output
    Extend signal up to 70 meters at 1080P, or 45 meters at 4K
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    Integrated Audio Amplifier
    Power 2 speakers via 20W stereo outputs
  • ep_connection
    EDID Management
    Eliminates video compatibility issues
  • fluent_zoom-fit-24-filled
    Multiple Control Options
    Bi-Directional IR, RS232, and IP Control
  • HDMI 2.0, HDCP 2.2 and DP 1.2 compliant
  • Support seamless switching
  • Support 18 Gbps video bandwidth
  • 8 video inputs: 6 HDMI ports, 1 DP port, 1 VGA port
  • Mirrored output with HDMI and HDBaseT output ports
  • 9 audio source selections (LR1 to LR8 and embedded audio) for HDMI/DP input

Tech Specifications

Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2
DP Version DP 1.2
Video Bandwidth 18Gbps
Video Resolution
Input Video Resolution 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz,
1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz,
1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz,
1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz.
480p,576p,720p, 1920x1080i, 1920x1080p, 3840x2160@
24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/
30Hz/50Hz/60Hz.
Note: This device does not support 4:2:0 color space
Output Video Resolution Auto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz,
1920x1080@60Hz, 1920x1080@50Hz, 1280x720@60Hz,
1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz,
1920x1200@60Hz.
EDID Option Auto, Manual, 3840x2160@60, 3840x2160@30,
1920x1080@60, 1280x720@60, 1920x1200@60
HDMI Amplitude T.M.D.S +/- 0.4Vpp
Differential Impedance 100±15ohm
ESD Protection Human-body Model:
±8kV (Air-gap discharge), ±4kV (Contact discharge)
RS232/Ethernet Control
Baud rate and Protocol Baud rate: 9600, data bit: 8 Stop bit: 1, no parity checking
Ethernet IE10.0+, HTML5
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 16.9"(W) x 8.7”(D) x 1.7"(H) [430mm(W) x 220mm(D) x 44mm(H)]
Weight 7lbs [3.2Kg]
Power Supply AC 110 - 240V
Power Consumption 60W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 158°F / -20°C ~ 70°C
Relative Humidity 10%~50% RH (non-condensing)

PACKAGE CONTENTS

  • 1x 8x2 Seamless UHD Presentation Switcher
  • 1x HDBaseT Receiver
  • 1x AC Power Cord
  • 1x User Manual
  • 2x Mounting Ear & 2x Handle
  • 12x 3-pin Phoenix Connector
  • 1x 4-pin Phoenix Connector
  • 1x 5-pin Phoenix Connector
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Receiver Cable (1.5 meters)

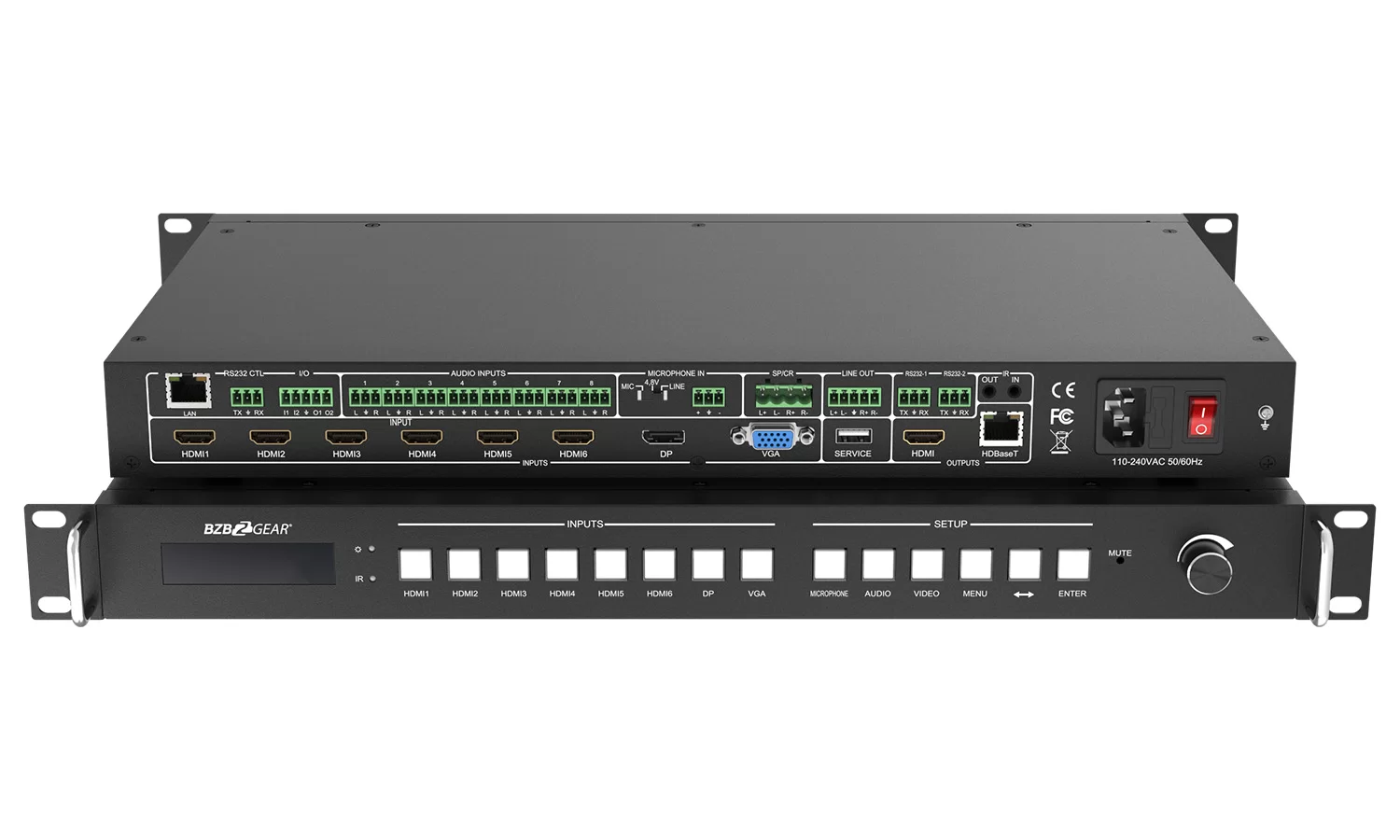

Interfaces

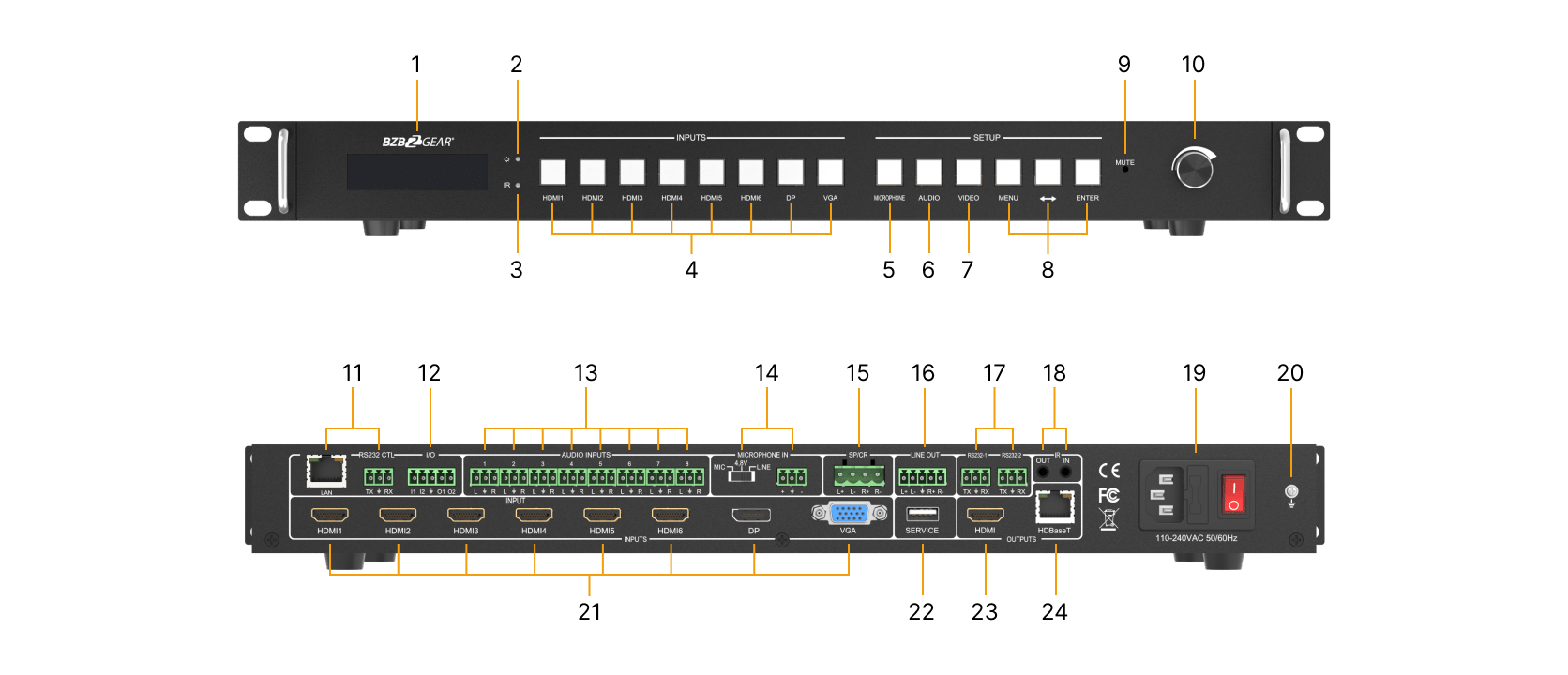

Interfaces image

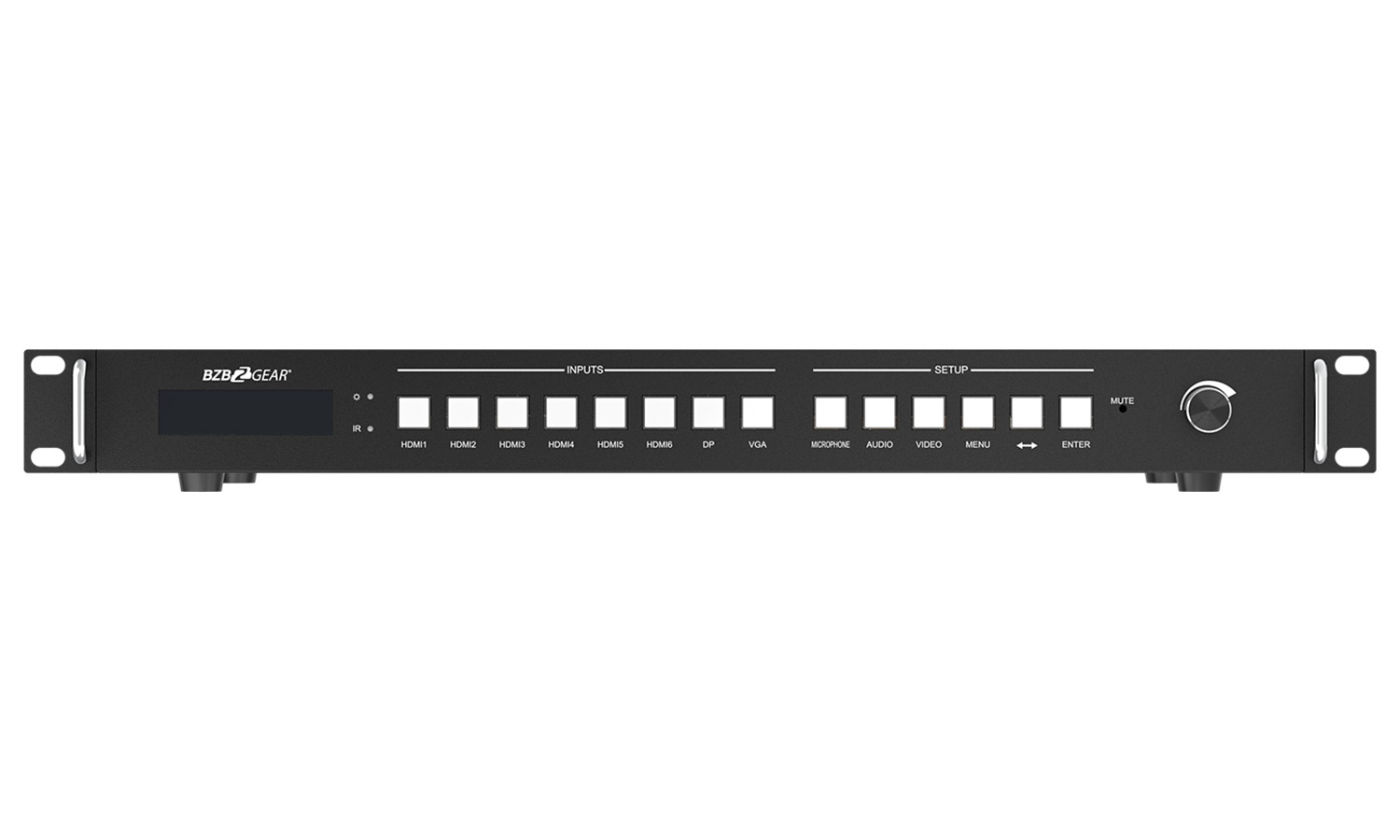

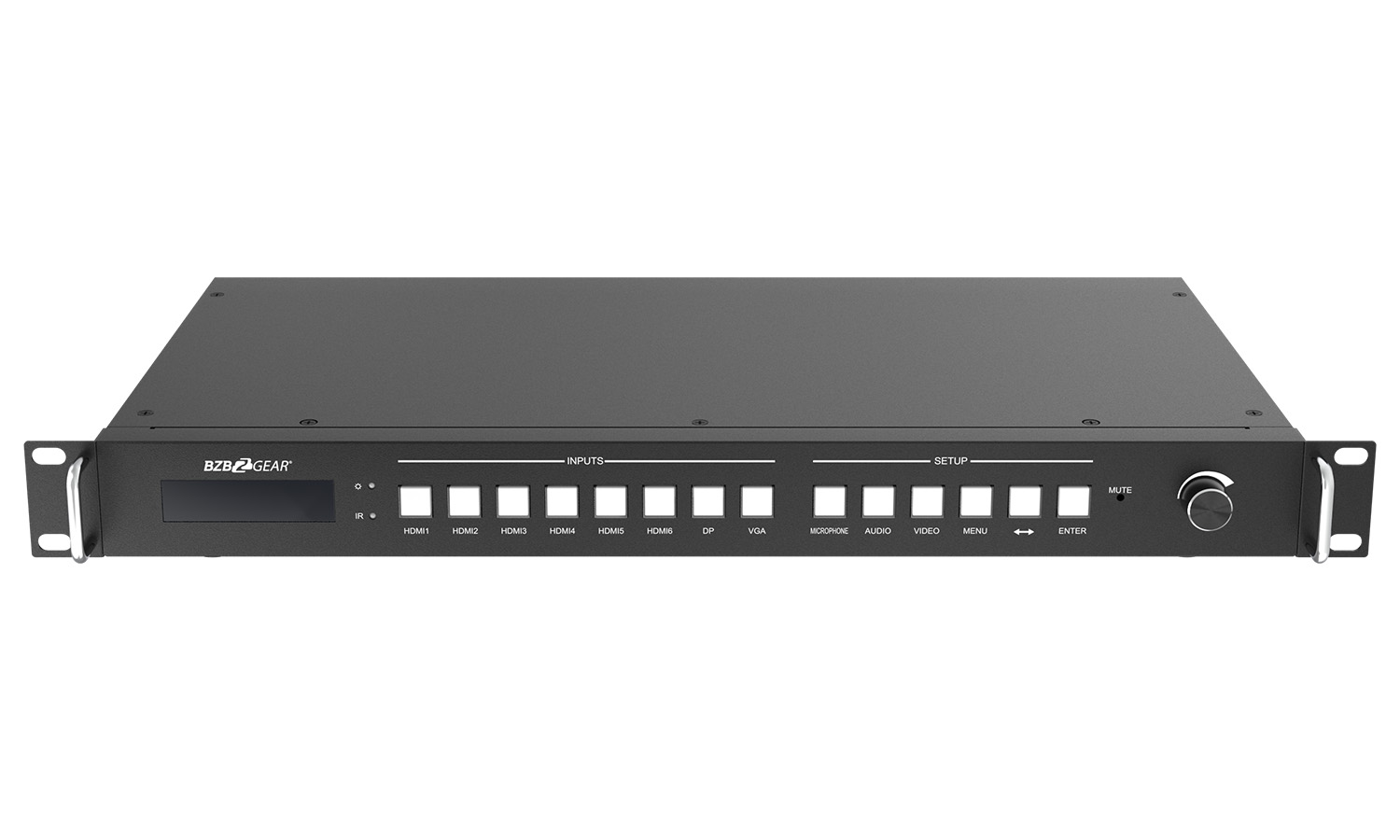

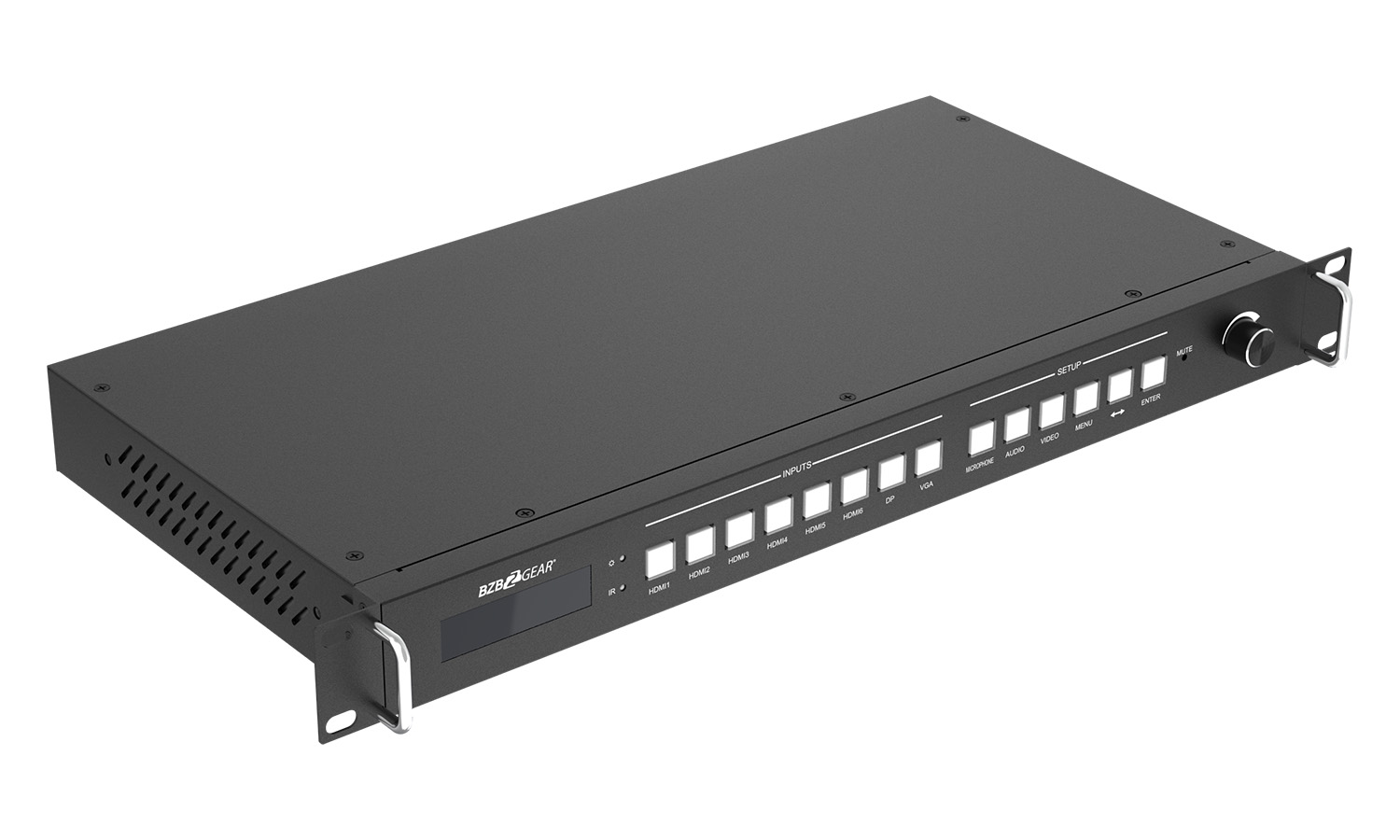

  1. LCM screen: Display EDID, output resolution, audio configuration and other information.
  2. Power LED: When the product is powered on, the red LED will illuminate.
  3. IR: IR LED.
  4. Input buttons: Press these buttons to switch the corresponding HDMI/DP/VGA input source.
  5. Microphone button: Short press the button to switch on/off MIC input. Long press the button the LCM screen will display the MIC volume control interface.
  6. Audio button: Press the button to switch on/off the current audio source except MIC.
  7. Video button: Press the button to switch on/off video input.
  8. MENU, ↔, ENTER button: These three buttons are combination buttons, which can be used to adjust output resolution/EDID management/ audio source selection for each input port/output HDCP mode.
  9. Mute LED: When the speaker is muted, the LED will illuminate.
  10. Volume knob & button: Rotate the knob to adjust speaker volume (range 0~50), press the knob to mute/unmute the speaker. This knob can also be used to control MIC volume.

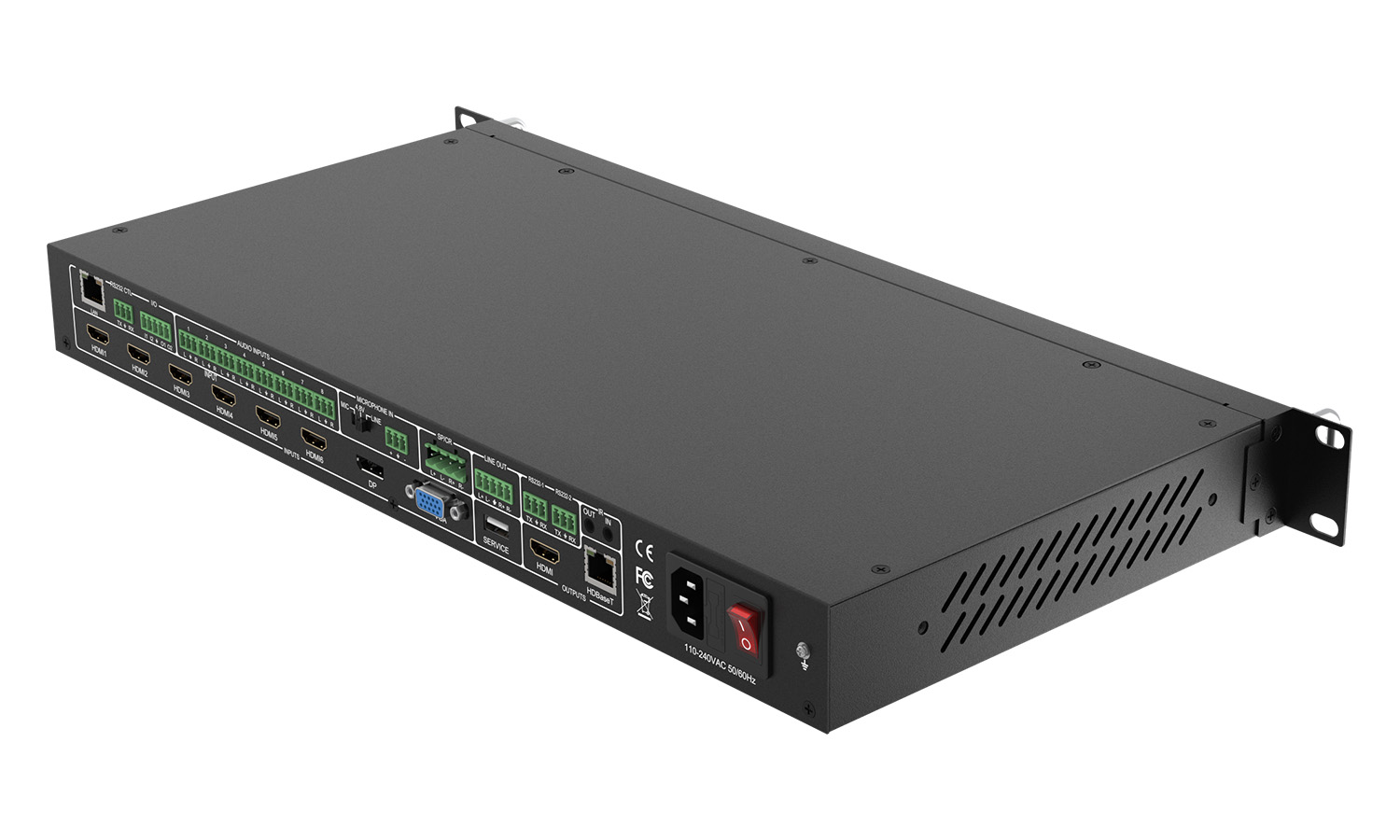

  11. PC control: LAN port: Connect to a router.
    RS-232 CTL: Connect to a PC or control system.
  12. I/O port: I1 & I2 are for input level detecting and O1 & O2 are for output level setting.
  13. Audio Inputs: Audio input ports. Connect to an external audio source device.
  14. Microphone In: Dip switch: Used to switch 48V (Phantom Power)/MIC/LINE microphone modes. Phoenix connector: Used to connect microphone devices.
  15. SPKR port: Audio output port, connect to audio output device such as speaker.
  16. Line Out port: Balanced audio output port. Connect to a speaker.
  17. RS-232 ports: RS-232: Reserved port.
    RS-232 BP: Used to transmit a separate RS-232 signal superimposed on HDBaseT transmission.
  18. IR Out/In: Connect to IR receiver/blaster cable.
  19. Power switch & port: Power switch: Switch on / off the power supply.
    Power port: Connect to 100~240V AC 50/60Hz power cord.
  20. GND: Ground the product housing.

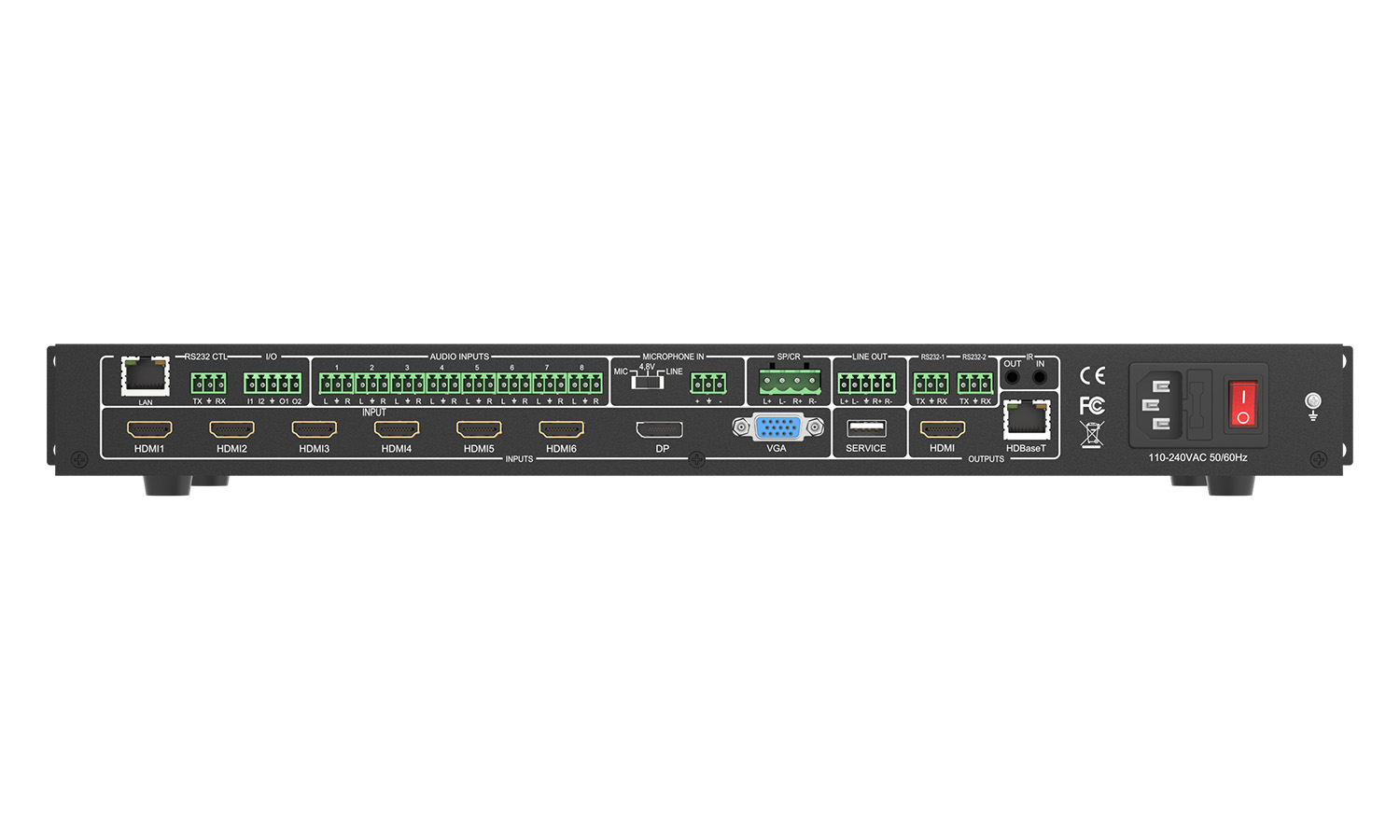

  21. Input ports: 6 HDMI ports, 1 DP port, 1 VGA port. Connect to source devices.
  22. Service port: Firmware update port.
  23. HDMI port: HDMI output port. Connect to an HDMI display device such as a TV or monitor with an HDMI cable.
  24. HDBaseT port: HDBaseT output port. Connect to the HDBaseT Receiver via a CAT cable.
