Tech Specifications
Input Port | 1 x BNC (SDI/HD-SDI/3G-SDI) |
Output Port | 1 x HDMI |
SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
In/Output Resolution |
480i, 576i, 720p@50/59.94,60, 720p@50/59.94,60, 1080i@50/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60 |
Power Supply | DC 5V - 12V |
ESD Protection Human body model |
±8kV (air-gap discharge) ±4kV (contact discharge) |
Dimension | 3.1in x 1.6in x 0.98in [80mm x 41mm x 25mm] |
Weight | 0.33 lbs [150g] |
Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
Relative Humidity | 20 ~ 90% RH (Non-condensing) |
Power Consumption (Max) | 5W |
Resources
Documents
PACKAGE CONTENTS

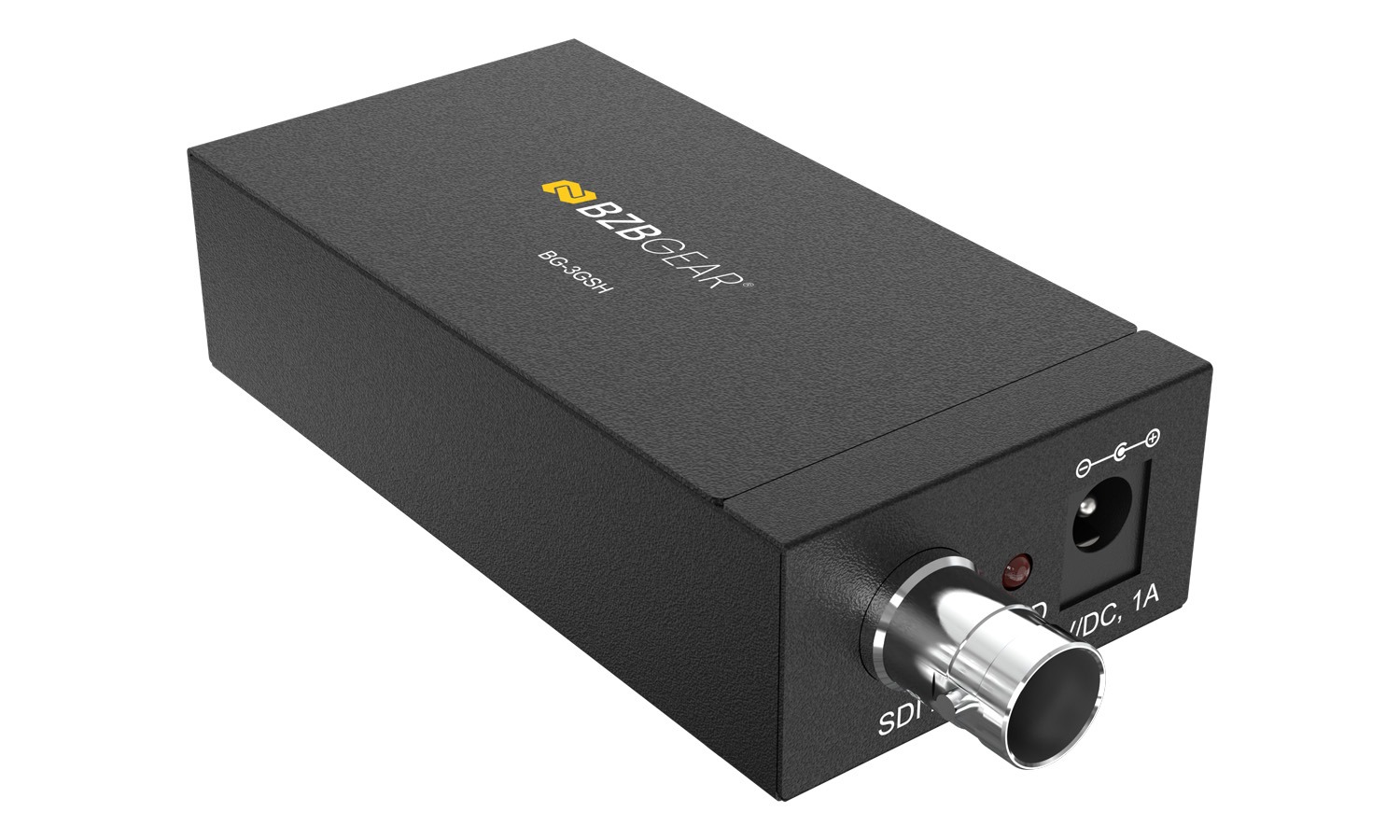

- 1x BG-3GSH 3G SDI to HDMI Converter
- 1x 5V DC Power Supply Adaptor
- 1x User Manual

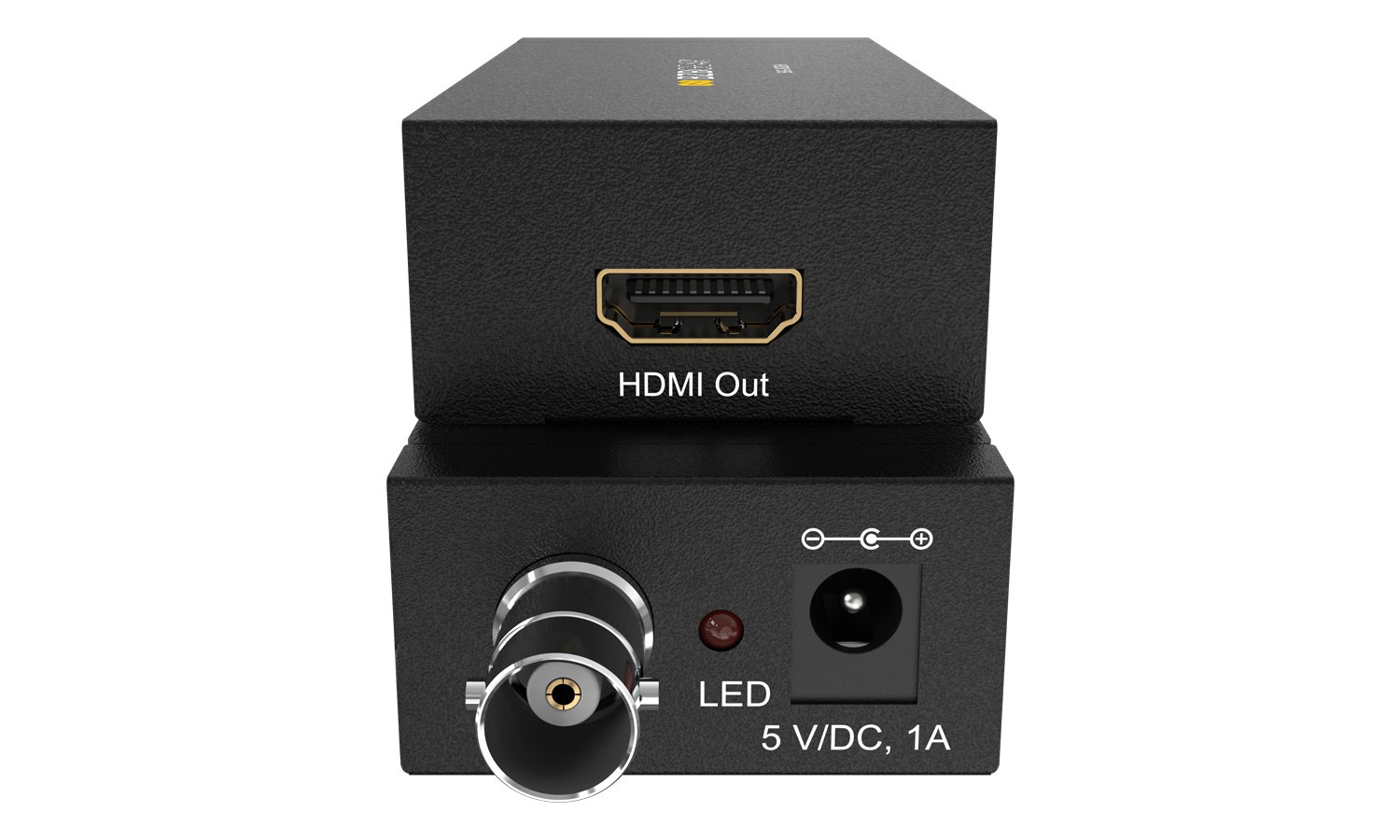

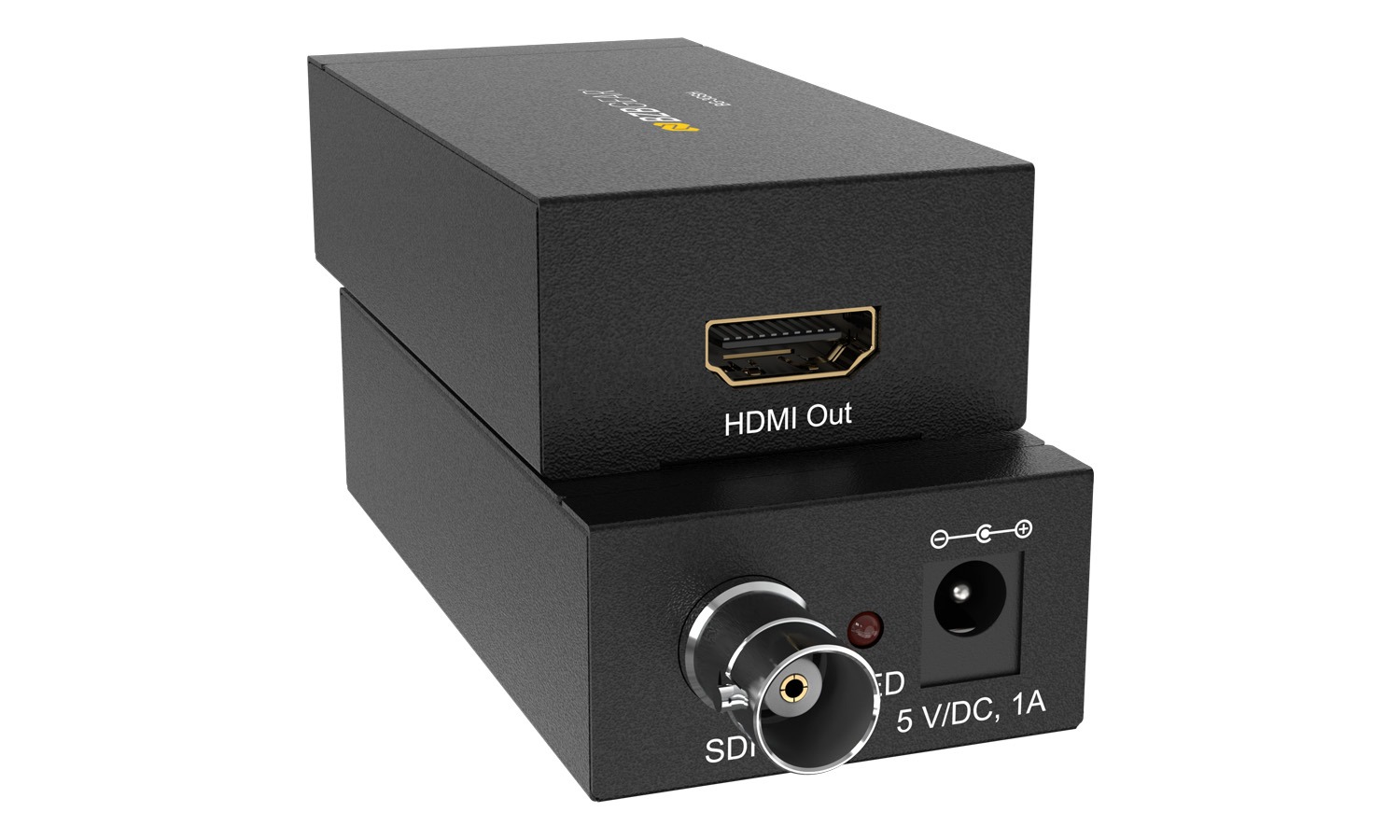

Interfaces

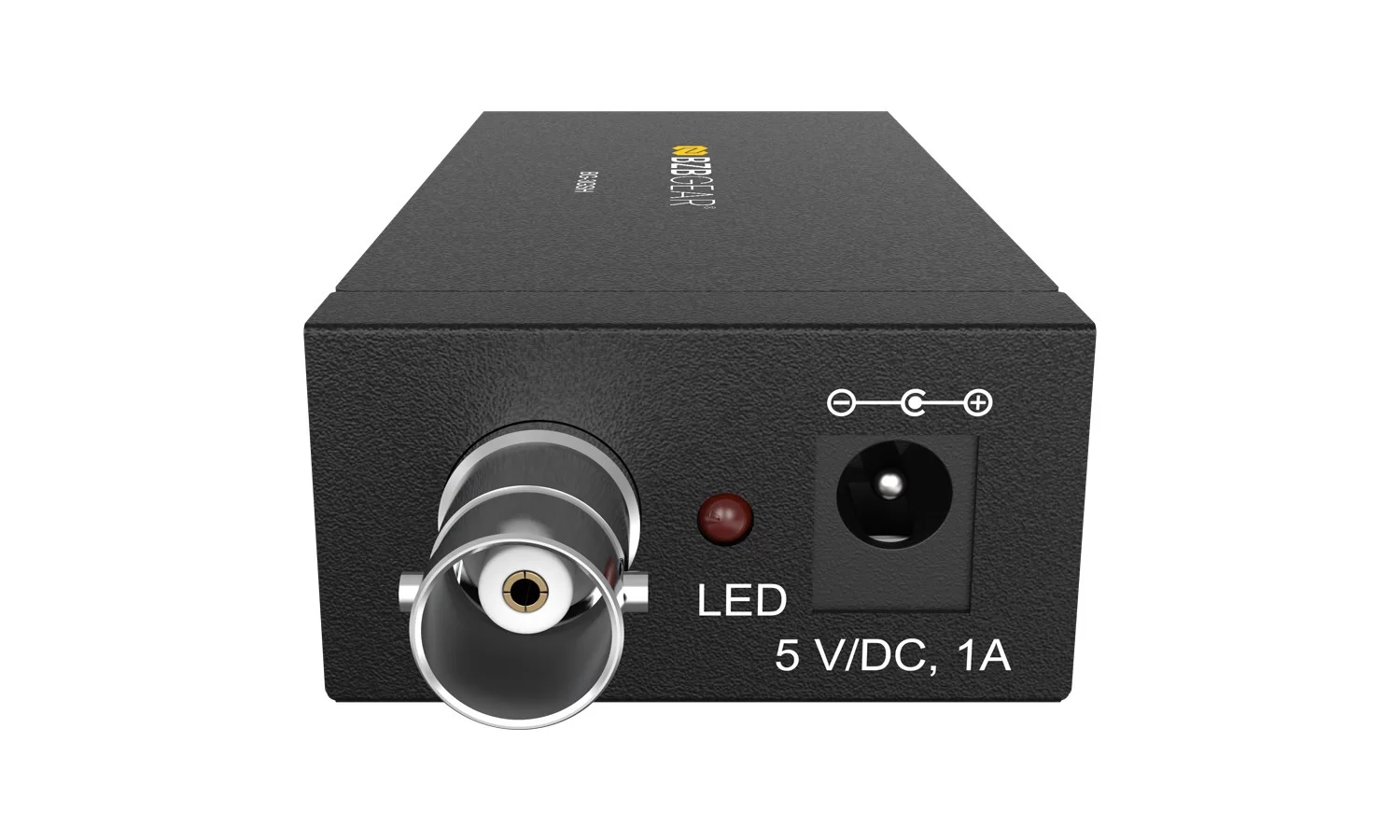

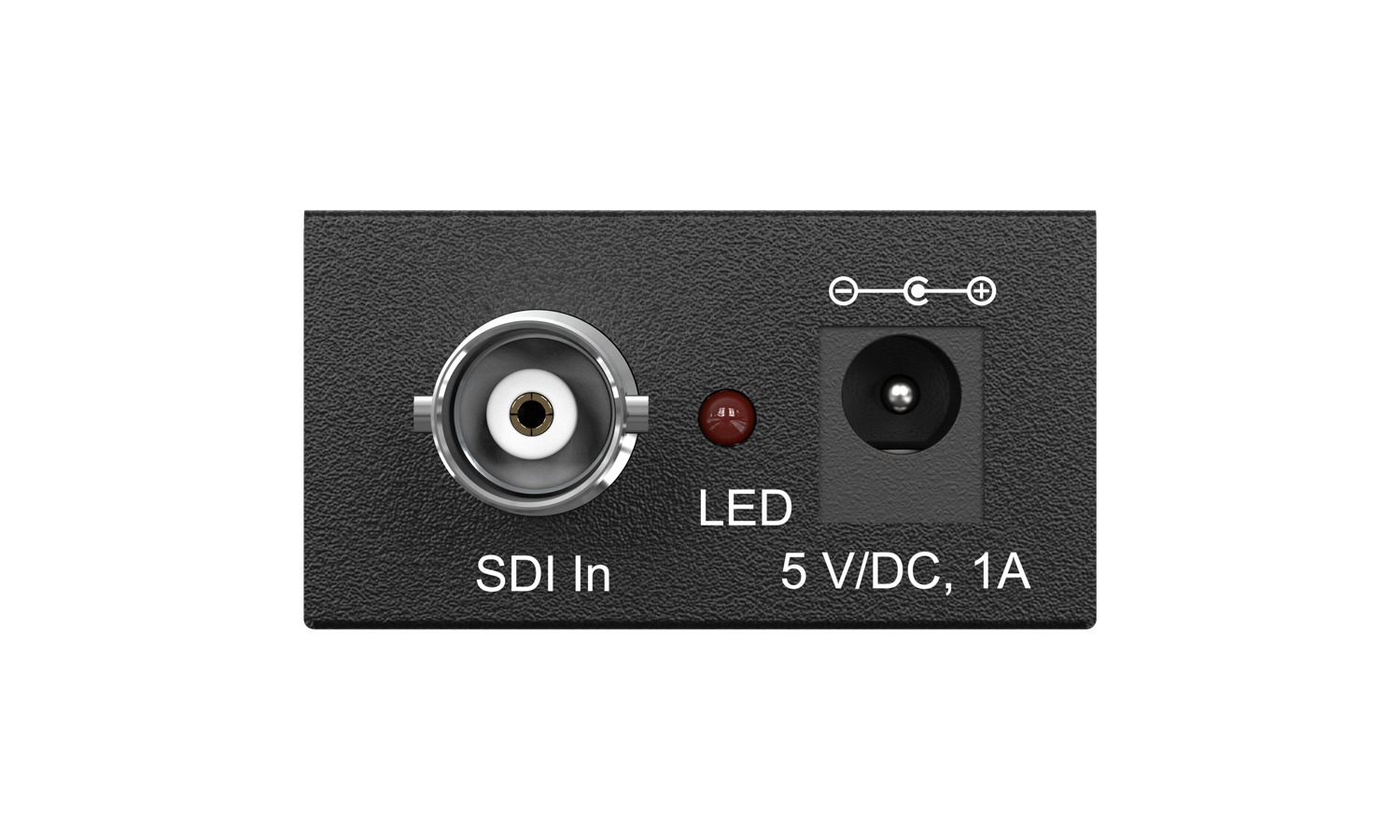

- SDI-IN: Connect the SDI source.
- POWER LED: LED illuminates red when the device is connected with the power supply.
- DC IN: Port for the 5V-12V DC power supply.

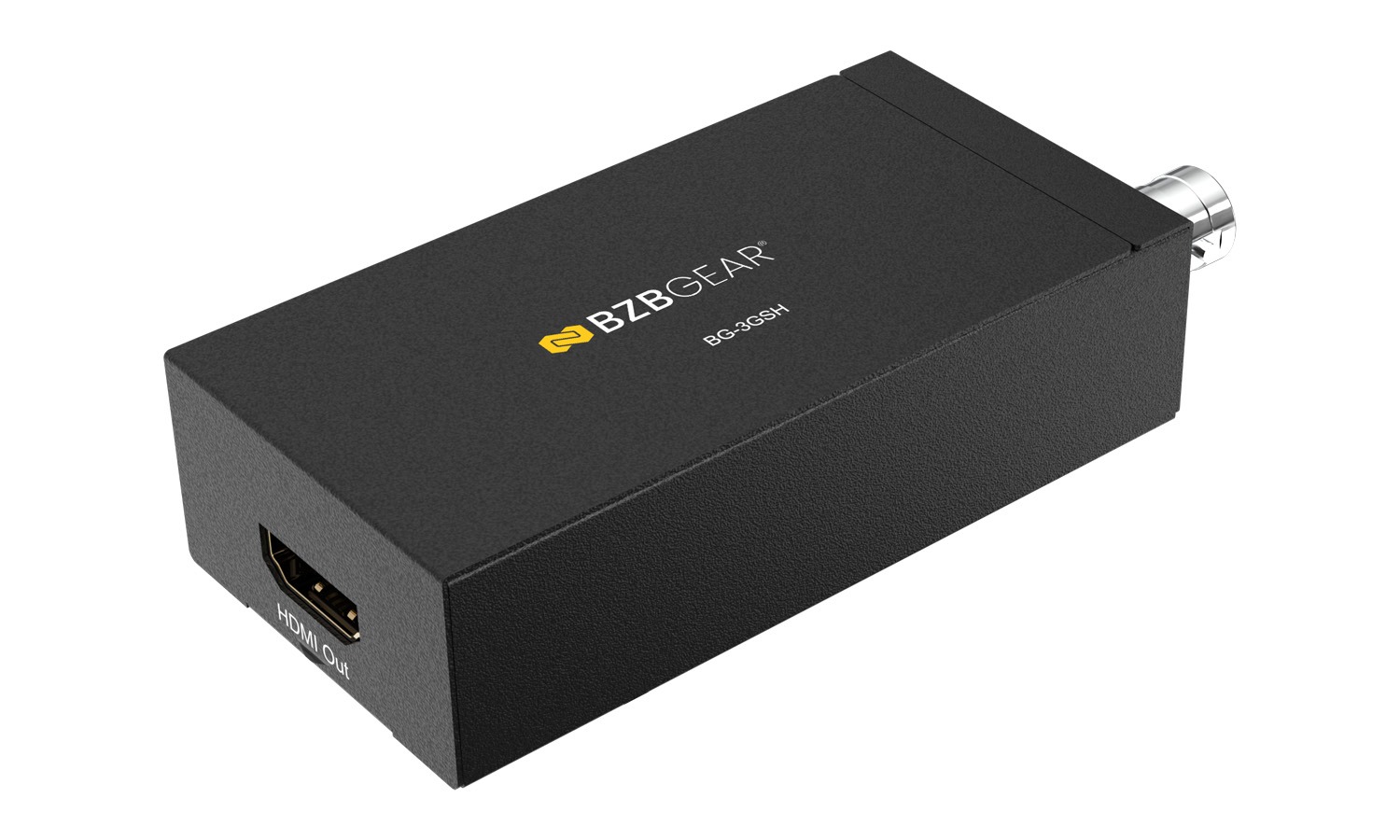

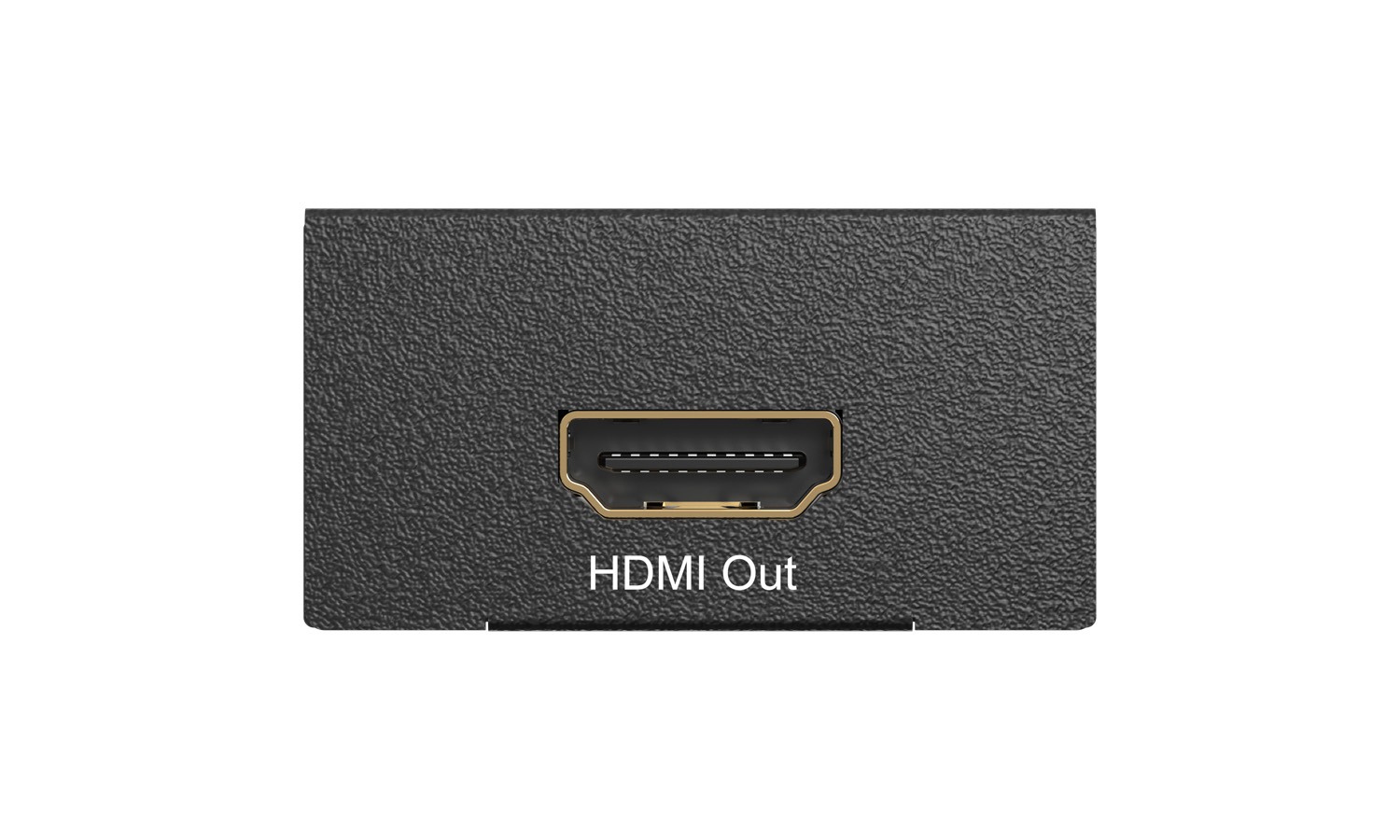

- HDMI OUT: Connect the HDMI display.
