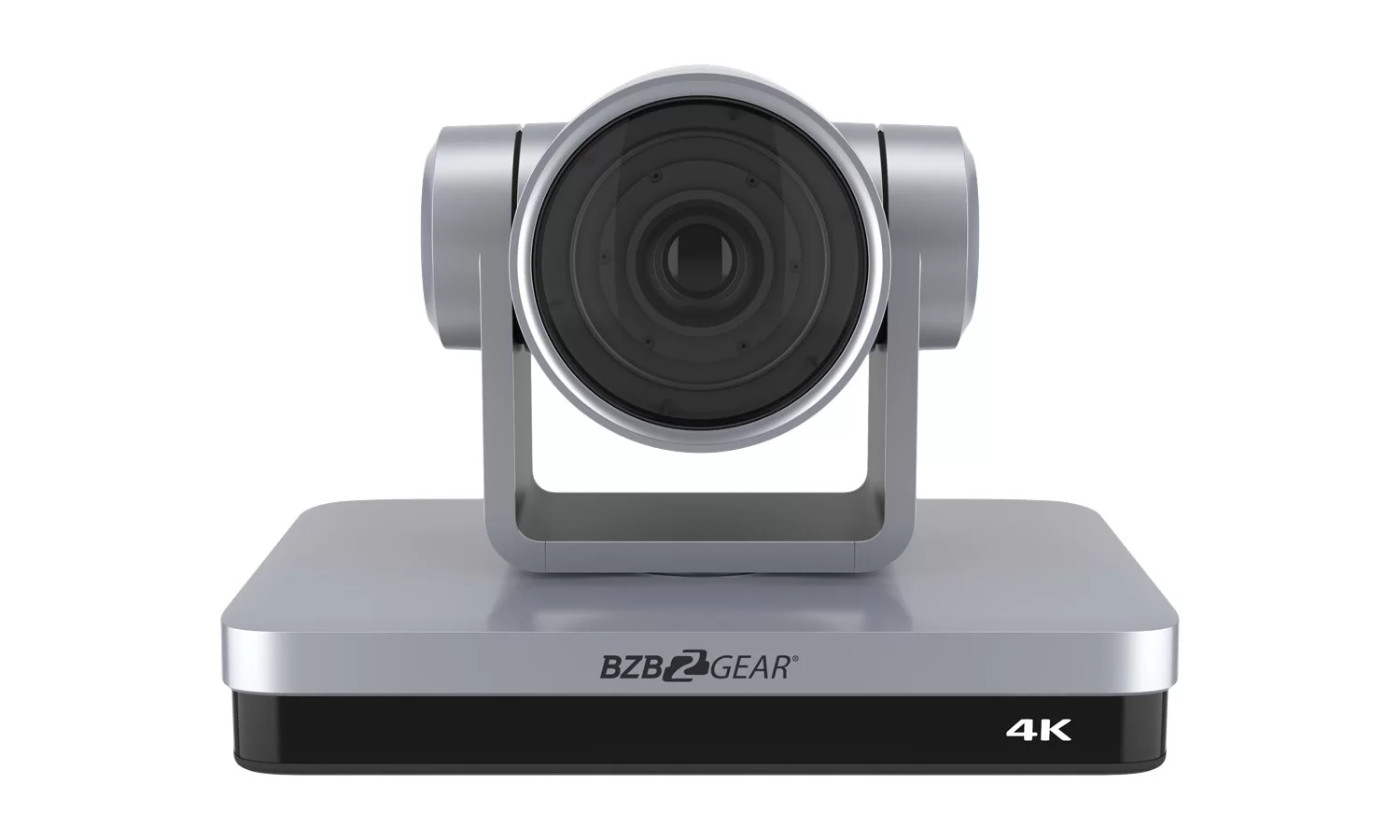

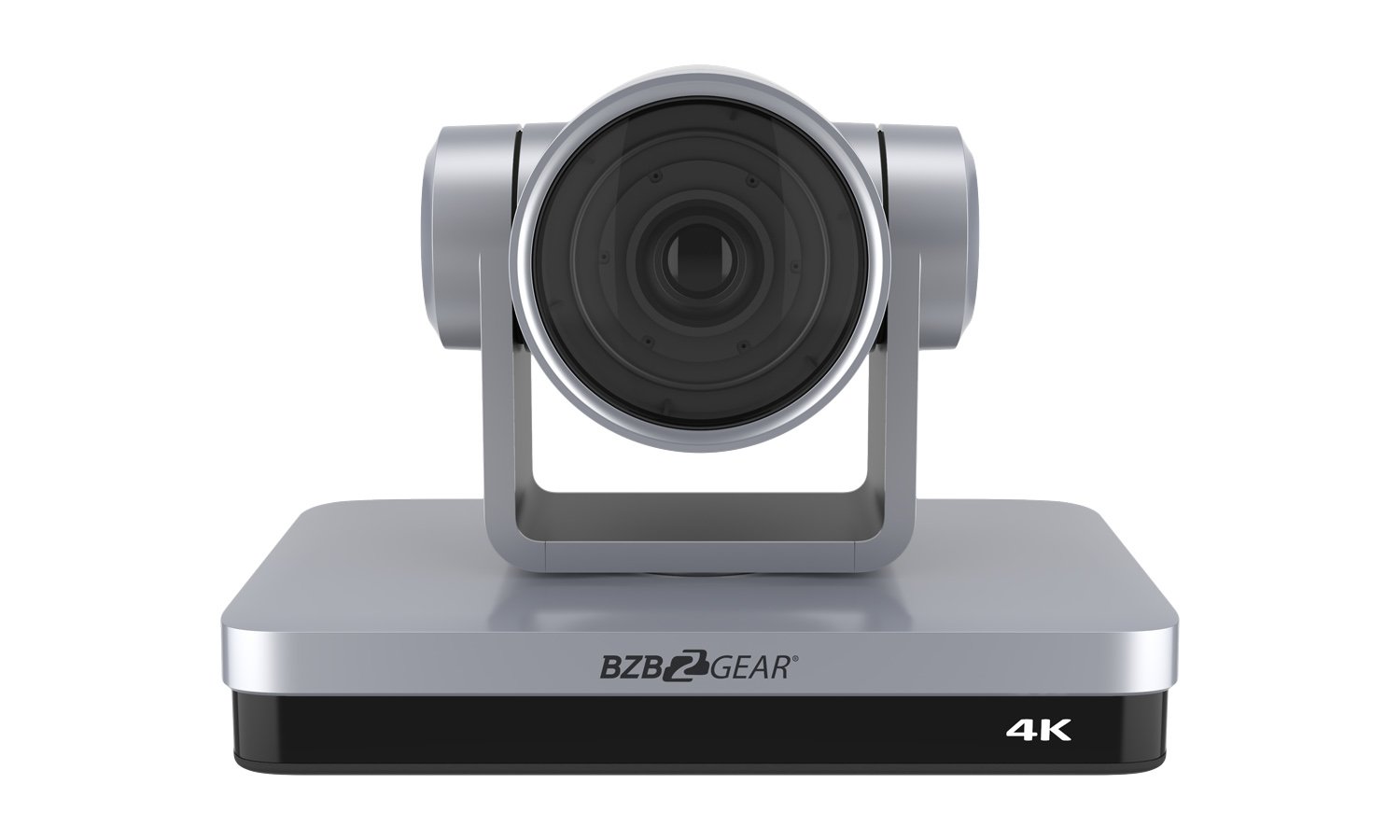

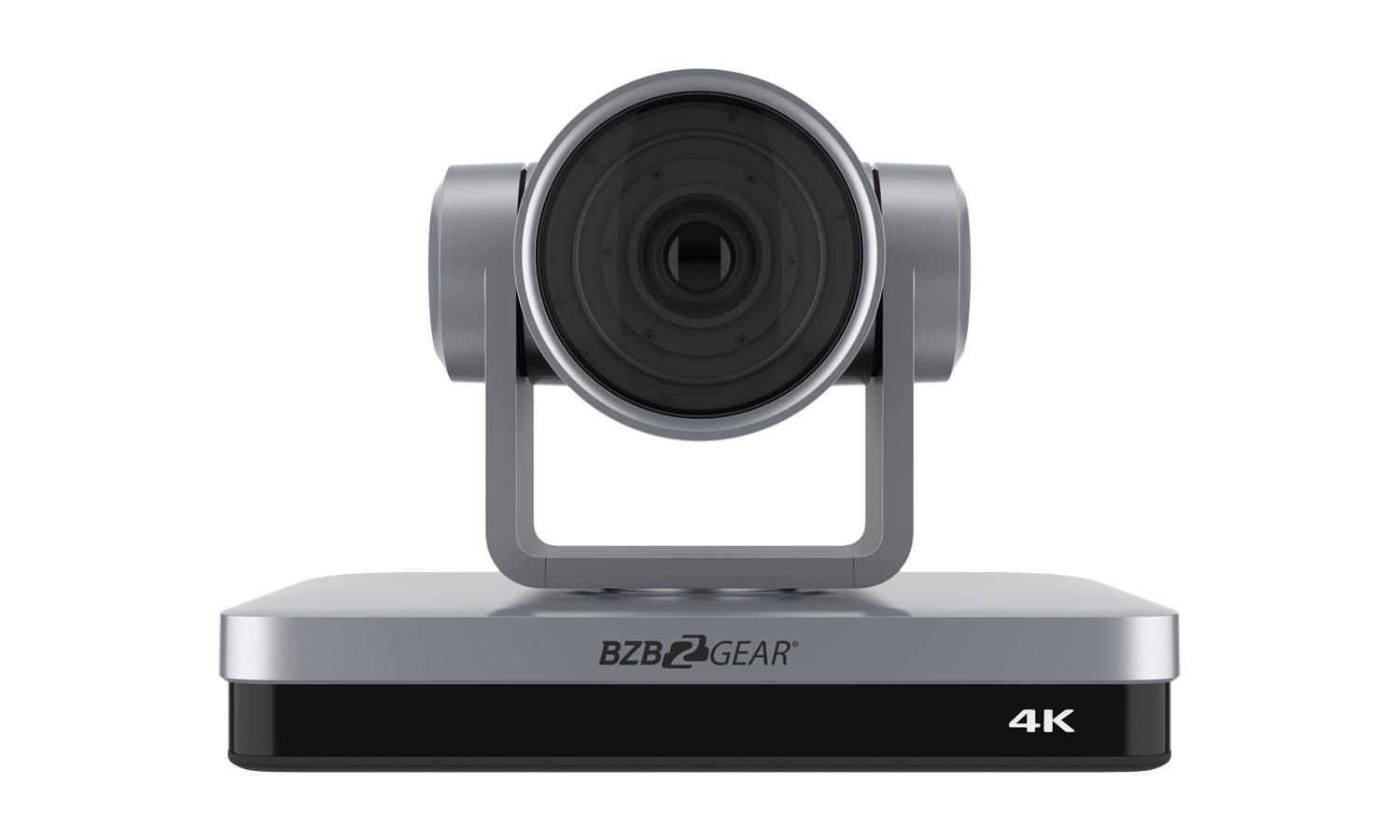

12X PTZ 4K UHD HDMI/USB 3.0 Live Streaming Camera Series With Sony CMOS

Discontinued
Configure the Perfect Solution
Get Started

Overview

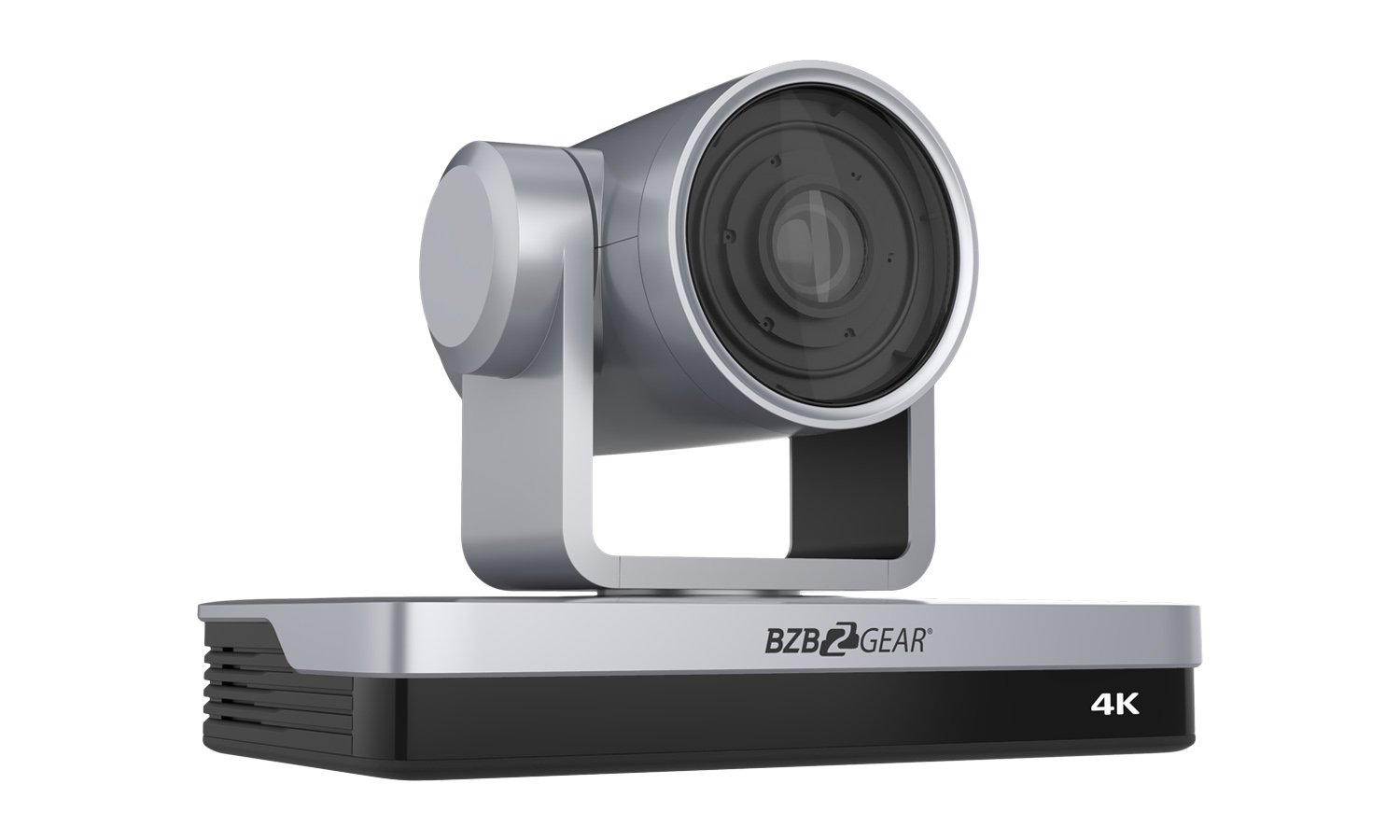

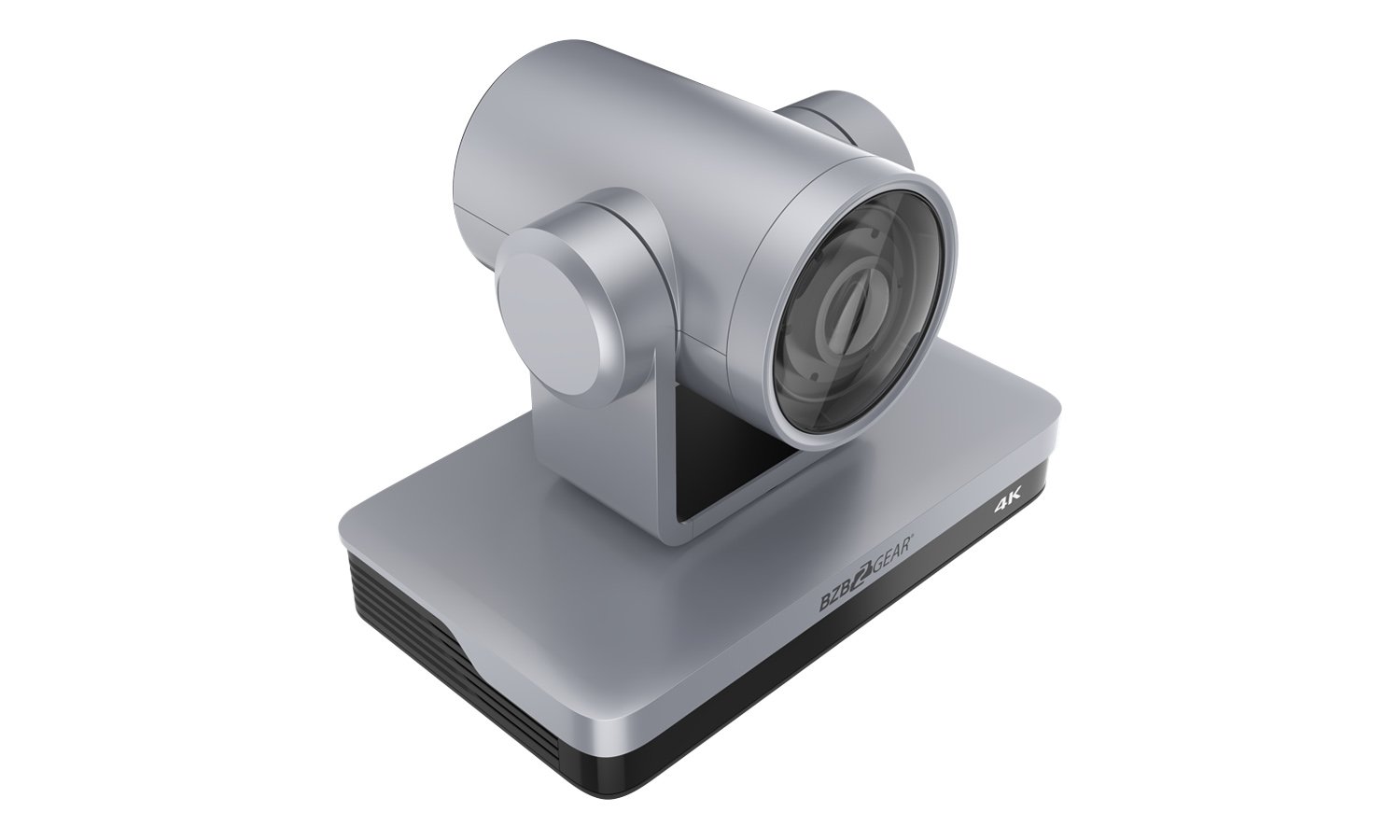

Introducing the BG-4KPTZ-12XUHP high-quality PTZ camera, redefining video production with its 4K60Hz output powered by a 12X motorized zoom lens. Equipped with a 1/2.5 Sony CMOS sensor, it captures brilliance in every frame. The camera's 80.4° field of view and precise auto-focusing ensure both detailed shots and expansive scenes are captured with clarity. It offers USB 3.0, HDMI, and IP streaming simultaneously, supports ONVIF, RTSP, and RTMP protocols, and boasts versatile control options. With 255 presets and adaptable mounting, it's the ultimate choice for premium content creation.

Connectivity & Performance

The BG-4KPTZ-12XUHP is engineered to redefine how you capture visuals. Combining an expansive 80.4° field of view with a powerful 12X optical zoom, this camera is equipped to deliver stunningly detailed shots of individual subjects, all while effortlessly encompassing the entire scene. Its cutting-edge auto-focusing technology ensures rapid and precise focus adjustments, guaranteeing that every moment remains sharply in focus.

Unleash the camera's versatility with its simultaneous USB 3.0, HDMI, and multiple IP stream outputs. This enables you to flexibly broadcast your content across various platforms. Remarkably, the USB 3.0 output supports dual streaming, expanding your streaming possibilities. With a built-in 3.5mm audio jack, you can seamlessly embed stereo audio from the scene into all video outputs, enriching your content with immersive soundscapes.

Harness the efficiency of H.264 and H.265 video compression formats, optimizing both image quality and data transfer. Additionally, the device boasts a LAN port with Power over Ethernet (PoE) support, simplifying installation by delivering power and data through a single category cable.

Control

The BG-4KPTZ-12XUHP camera supports ONVIF, RTSP, and RTMP protocols, enabling the camera to directly stream video to streaming and video platforms like YouTube, Facebook, and Twitch. Operators can control the camera via a web GUI, IR remote, IP VISCA, ONVIF, RS-232 and RS-485 (VISCA/Pelco-P/D). There are 255 preset positions for the camera, with ten of these presets being available via IR remote control. An onboard dial on the camera enables operators to set the output resolution as well. A full suite of exposure and video settings are available to help operators tailor the image for different environments and lighting conditions.

The BG-4KPTZ-12XUHP has ceiling, wall, and tripod mounting options, allowing for great deal of versatility when choosing an installation location.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

Features

  • Bzbgear image
    Stunning 4K60Hz output
    Delivers the ultimate in clarity
  • Power over Ethernet (PoE)
    Power over Ethernet
    Delivers power directly over an ethernet cable
  • material-symbols_settings-input-component
    Multiple Video Outputs
    Simultaneous USB 3.0, HDMI, and IP streaming
  • fluent_zoom-fit-24-filled
    Control
    IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
  • zoomfeatures
    Zoom
    Powerful 12x Zoom Lens
  • ph_cube-focus-fill
    Superb Auto Focus
    Auto focusing algorithms resulting in quick, accurate, and stable focus
  • Dual stream output over USB 3.0
  • Exposure mode options for best shot
  • Ceiling/wall/tripod mounting options
  • Low noise and high SNR (≤50dB)
  • 3.5mm stereo audio input
  • 10M/100M/1000M adaptive ethernet port
  • Multiple audio/video compressions
  • Pan/tilt speed controls
  • Minimum illumination 0.05Lux

Compatible with:

Videos

Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How BZBGEAR PTZ Camera Picture Quality Stacks Up
How BZBGEAR PTZ Camera Picture Quality Stacks Up
BZBGEAR Heads Chris & Steve Talk Tech - Ep. 1 IP PTZ cameras, Live Streaming & Accessories
BZBGEAR Heads Chris & Steve Talk Tech - Ep. 1 IP PTZ cameras, Live Streaming & Accessories
4K PTZ Cameras from BZBGEAR for Live Streaming Produces High Quality Video, Events, & Experiences
4K PTZ Cameras from BZBGEAR for Live Streaming Produces High Quality Video, Events, & Experiences

Mounting Ideas

Click the image below to watch a video

Tech Specifications

Optical Zoom 12X
Focus f=3.85 mm ~ 43.06 mm ±5%
FOV

Horizontal:7.59° (tele) ~ 80.4° (wide)

vertical:4.6° (tele) ~ 50.0° (wide)

Aperture F1.8 ~ F3.56±5%
Image Sensor 1/2.5 Inch SONY CMOS Sensor
Effective pixels 8.51M; 16:9
Video Format

HDMI Video Output Format:

4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50,

1080P30, 1080P25, 720P60, 720P50

USB3.0 Video Output Format:

YUY2/NV12:

1920x1080P30, 1280x720P30,1024x576P30,

960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

MJPEG/H.264:

3840x2160P30,1920x1080P30,1280x720P30,1024x576P30,

960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

USB3.0 downward compatible USB2.0:

YUY2/NV12: 640x360P30, 640x480P30, 320x176P30

MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30, 1024x576P30,

960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

Minimum Illumination 0.05Lux (F1.8,  AGC ON)
DNR 2D&3D DNR
White Balance Auto / Manual / One Push / Specified Color Temperature
Focus Auto / Manual / One Push
Exposure mode Auto / Manual / Shutter Priority / Aperture Priority / Brightness priority
Aperture F1.8 ~ F11, CLOSE
Shutter speed 1/25~1/10000
BLC OFF/ON
Dynamic range OFF/ Dynamic Level Adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR ≥50dB



Interface Features
Interfaces

HDMI, LAN (POE), USB3.0 (Type B, compatible with USB2.0), A-IN, RS232-in & out;

RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch

Video Compression

LAN: H.264,H.265

USB 3.0: MJPG, H264, YUY2, NV12

Audio-in Interface Double track 3.5mm linear Input
Audio out HDMI, LAN, USB3.0
Audio Compression AAC, MP3, G.711A
LAN 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output
Network Protocol RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset
Control Interface RS232-IN, RS232-OUT, RS422 (RS485)
Serial Protocol VISCA/ Pelco-D / Pelco-P; Baud rate: 115200/38400/9600/4800/2400
USB Communication Protocol UVC (video), UAC (audio)
Power Interface HEC3800 (DC12V)
Power Adapter In: AC110V-AC220V; Out: DC12V/2.5A
Input Voltage DC12V±10%
Input Current <1A
Power Consumption <12W



PTZ Parameters
Pan Rotation -170°~+170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1°/s~120°/s
Tilt Control Speed 0.1°/s~80°/s
Preset Speed Pan: 120°/s, Tilt: 80°/s
Preset Number 255 Presets (10 presets by remote control)



Other Parameters
Storage Temperature 14°F ~ 140°F / -10°C ~ +60°C
Storage Humidity 20%~95%
Working Temperature 14°F ~ 122°F / -10°C ~ +50°C
Working Humidity 20%~80%
Dimension 6.2"(L) x 7.4"(W) x 7.9"(H) [157.5mm(L) x 189mm(W) x 201mm(H)]
Weight 5.73 lbs [2.60kg]
Working Environment Indoor Only

PACKAGE CONTENTS

  • 1x BG-4KPTZ-12XUHP
  • 1x IR Remote Control
  • 1x Power adapter
  • 1x Wireless Remote Control
  • 1x RS232 Cable
  • 1x User Manual
  • 1x USB3.0 Cable

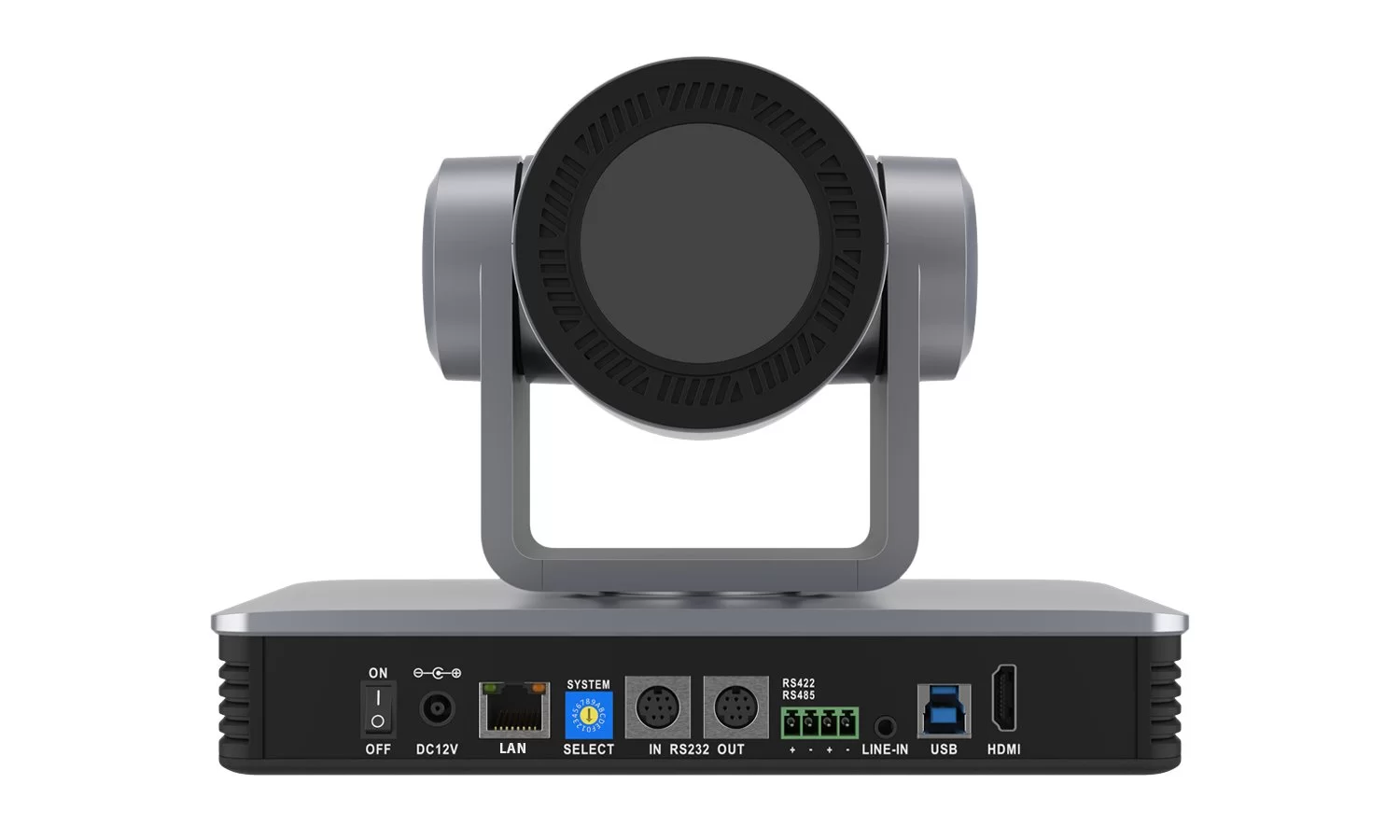

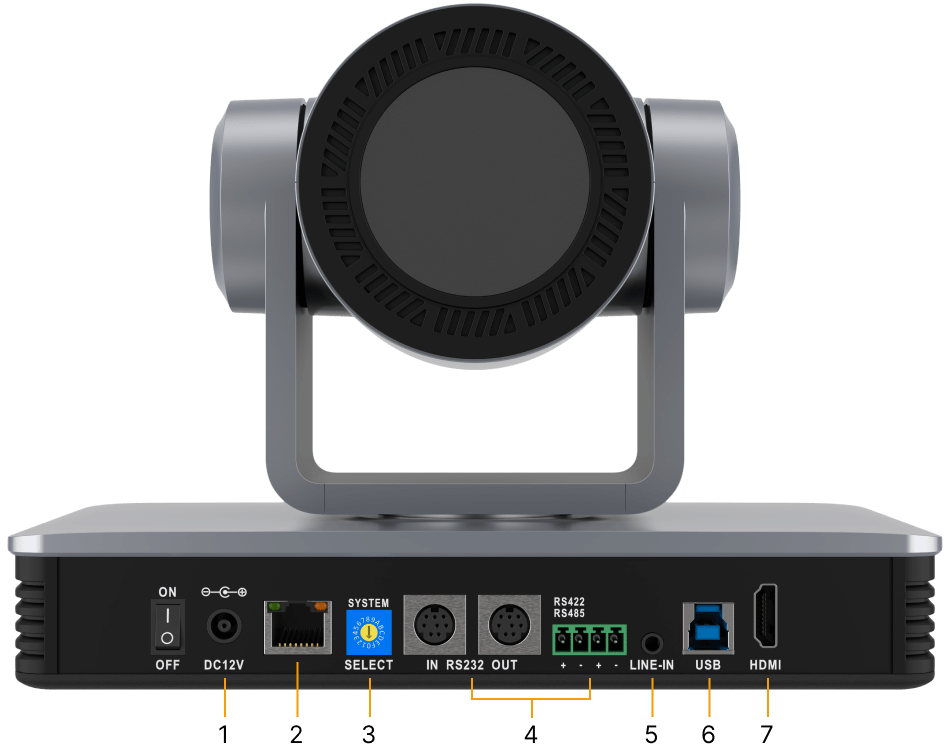

Interfaces

Interfaces image
  1. Power: Connect supplied 12V power adapter.
  2. LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
  3. System Select: Turn this dial to set desired output resolution. See manual for resolution options.
  4. RS-232, RS-422/485: Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
  5. Line In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
  6. USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
  7. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 4K@60Hz.
