16x16 Audio Matrix DSP Processor with 12 Mic/Line In/Out + 2 Dante In/Out. Supports AEC, ANS, Filter, Limiter, EQ, Delay, and Pre-Amp
and engineering support
Overview
The BG-A1616MD Digital Audio Processor is a versatile solution designed for video conferences, distance learning, and telemedicine applications. With its advanced features and intelligent algorithms, this processor delivers exceptional audio quality and seamless control. It is equipped with 12-ch MIC/linear inputs, 12-ch linear outputs, and two DANTE ports for low-latency audio processing. This powerful processor is ready to use immediately, ensuring hassle-free installation and project implementation.
Advanced Audio Processing Features
The BG-A1616MD Digital Audio Processor incorporates a range of advanced audio processing features. It includes full-band Adaptive Echo Cancellation (AEC), which effectively eliminates echoes for clear and resonant sound. The Adaptive Noise Suppression (ANS) technology reduces background noise, ensuring clean audio signals. The Automatic Gain Control (AGC) feature adjusts the microphone input levels automatically, maintaining a consistent volume. Additionally, the Auto Mixer function allows you to prioritize microphone inputs when multiple microphones are used simultaneously. These features work together to provide a high Signal-to-Noise ratio and deliver exceptional audio quality.
Seamless Audio Signal Routing
With the BG-A1616MD, seamless audio signal routing is made easy. It offers 12-ch balanced/unbalanced MIC/linear inputs and 12-ch balanced/unbalanced linear outputs, allowing for efficient and flexible audio routing. The processor is equipped with standard DANTE network audio interfaces, enabling low-latency communication. It also incorporates adaptive feedback suppression, full-band acoustic echo cancellation, and dynamic adaptive noise reduction technologies. These technologies effectively eliminate unwanted audio artifacts and background noise, ensuring clear and pristine audio during conferences, learning sessions, or telemedicine consultations.
Fine-tuning Audio Signals with DSP Modules
The BG-A1616MD provides an array of digital signal processing modules that allow you to fine-tune your audio signals. The processor includes modules such as Expander, Equalizer, Compressor, Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter, and Delay. These modules enable you to customize and optimize the audio to your specific requirements. The intuitive interface facilitates easy configuration, volume adjustment, audio meter monitoring, and scene control. With these features, you have precise control over your audio signals and can create an optimal listening experience.
VERSATILE CONNECTIVITY OPTIONS
The BG-A1616MD offers versatile connectivity options to accommodate various setups. It supports a 48V phantom power supply for all 12-ch MIC inputs, ensuring compatibility with a wide range of microphone types. The processor operates at a 48KHz sampling rate and performs 24-bit A/D or D/A conversion, guaranteeing high-fidelity audio reproduction. Additionally, it provides an 8-ch programmable GPIO function, enhancing flexibility and control in your audio setup. The processor seamlessly integrates with both Windows 7 and Windows 10 platforms, and its standard RJ45 interface control allows for easy integration into existing setups.
ADVANCED CONTROL CAPABILITIES
The BG-A1616MD is equipped with advanced control capabilities through RS-232 serial command control. This feature enables precise and comprehensive control over the audio processor, allowing for fine-grained adjustments and customization.
BZBGEAR AWARDS
Features
-
DANTE PortsTwo DANTE ports for low-latency audio processing -
Auto Mixerfor prioritizing microphone inputs -
Quality ControlAdaptive feedback suppression, full-band acoustic echo cancellation, and dynamic adaptive noise reduction technologies -
DSP ModulesFine-tuning audio signals with DSP modules (Expander, Equalizer, Compressor, Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter, and Delay) -
Windows CompatibilitySeamless compatibility with Windows 7 and Windows 10 platforms -
Advanced controlAdvanced control capabilities through RS-232 serial commands control
- 12-ch MIC/linear inputs
- 12-ch linear outputs
- Seamless audio signal routing with 12-ch balanced/unbalanced MIC/linear inputs and 12-ch balanced/unbalanced linear outputs
- DANTE network audio interfaces
- Intuitive interface for easy configuration, volume control, monitoring, and scene management
- 48V phantom power supply for all 12-ch MIC inputs
- 48KHz sampling rate and 24-bit A/D or D/A conversion for high-fidelity audio reproduction
- 8-ch programmable GPIO function for enhanced flexibility and control
- Standard RJ45 interface control for easy integration into existing setups
- High Signal-to-Noise ratio for a clear, clean, and resonant sound
Videos
Tech Specifications
| Technical | |
| Amplitude-frequency (20Hz~20kHz@+4dBu) |
±0.2dB |
| THD+N (1kHz@+4dBu) | ≤ 0.01% |
| SNR (linear input) | ≥ 90dB |
| Dynamic Range | ≥ 100dB |
| Channel Level Difference | ±0.5dB |
| Channel Isolation | ≥ 80dB |
| Max Input Level | 20dBu |
| Max MIC Gain | 40dB |
| Input Impedance | 20KΩ |
| Output Impedance | 300Ω |
| Sampling Frequency | 48kHz |
| A/D and D/A Conversion | 24Bit |
| Phantom Power | +48 VDC |
| Connection | |
| Inputs | 12 x Balanced MIC/LINE [3-pin phoenix connector] or 6 x Stereo Audio [3-pin phoenix connector] |
| Outputs | 12 x Balanced LINE [3-pin phoenix connector] or 6 x Stereo Audio [3-pin phoenix connector] |
| Controls | 1 x LAN [RJ45] 1 x RS-232 [3-pin phoenix connector] 8 x GIPO [10-pin phoenix connector] |
| Digital Audio Interfaces | 2 x Dante [RJ45] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 17" x 9.8" x 1.8" [440mm (W) x 250mm (D) x 45mm (H)] |
| Weight | 7.4lbs [3.37kg] |
| Power Supply | AC 100 - 240V 50/60Hz |
| Power Consumption | 11W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
PACKAGE CONTENTS
- 1 x Digital Audio Processor with DANTE
- 1 x AC 100~240V 50/60Hz Power Cord
- 1 x 3pin-3.81mm Phoenix Connectors (Male)
- 1 x 10pin-3.81mm Phoenix Connectors (Male)
- 6 x 12pin-3.81mm Phoenix Connectors (Male)
- 2 x Mounting Ears (Wall Mount)
- 8 x Machine Screws (KM3x4)
- 1 x User Manual

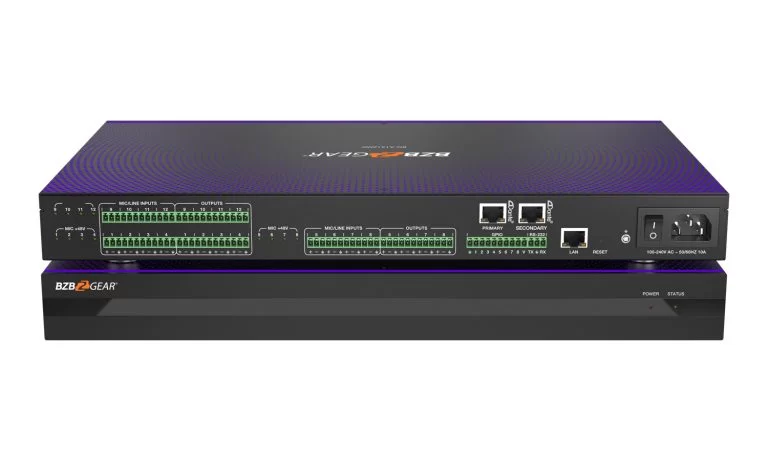

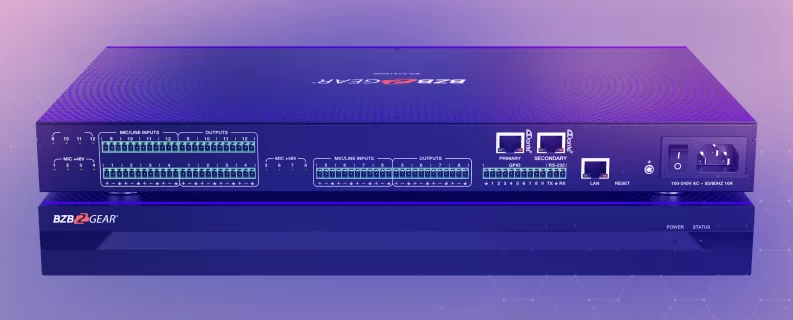

Interfaces
- POWER LED: When the device is powered on, the red LED will illuminate.
- STATUS LED: When the device is running normally, the green STATUS LED will flash.
- MIC +48V: 12 phantom power supply indicators.
- MIC/LINE INPUTS: 12-ch balanced MIC/linear inputs, used for connecting audio source devices via phoenix connectors.
- OUTPUT: 12-ch balanced linear outputs, used for connecting Amplifiers or speakers via phoenix connectors.
- DANTE: 2 Standard DANTE network audio transmission interfaces.
- LAN: Standard RJ45 interface for network connection.
- RESET: Used for resetting the audio processor.
- GND: Connect outer housing to the ground.
- Power Switch & Power Port: Power switch and AC 100-240V power input port.
- GPIO: 8-ch programmable GPIO interfaces.
- RS-232: Connect to PC or control system for transmitting RS-232 control commands.
