4K UHD HDMI Signal Fixer and Audio Embedder & De-embedder

Configure the Perfect Solution
Get Started

Overview

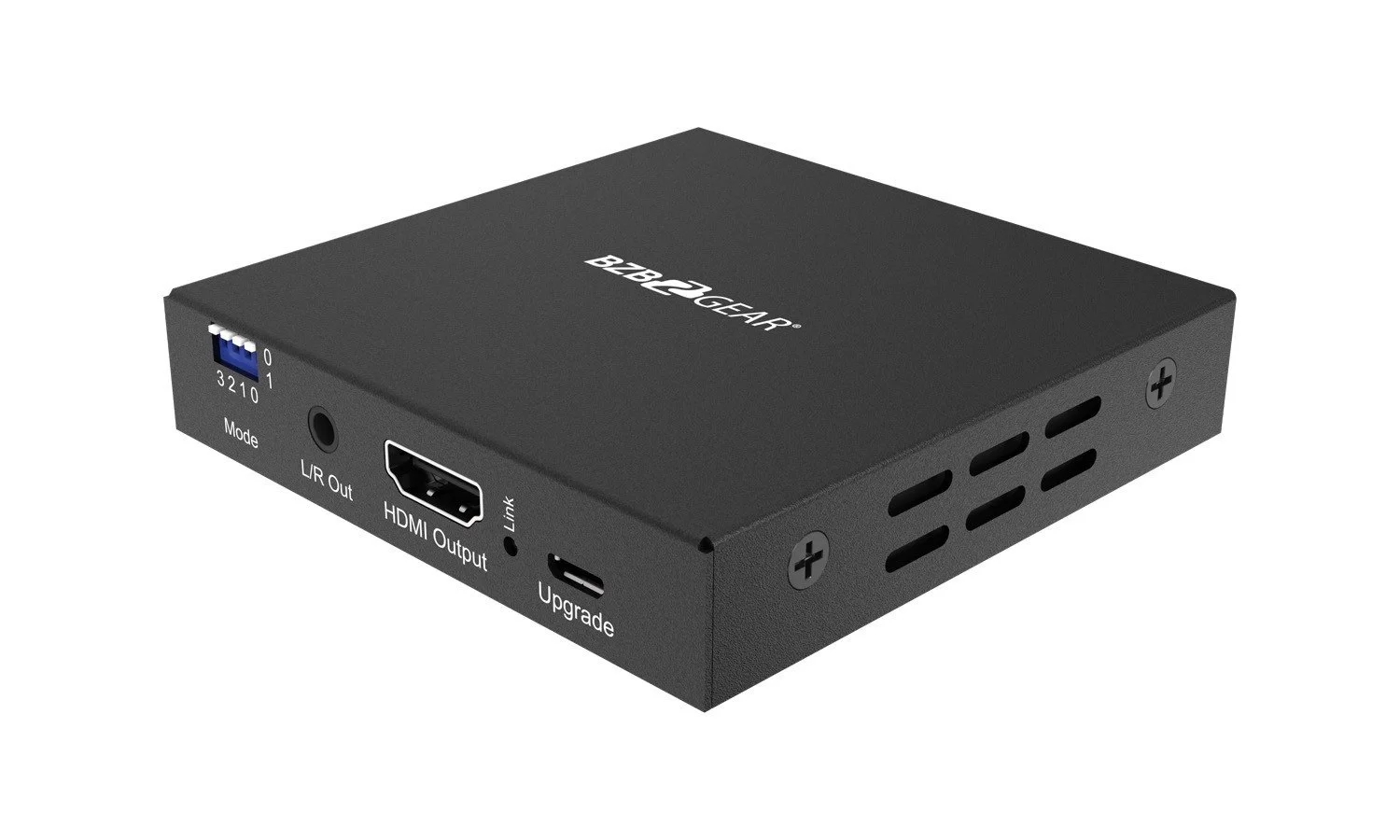

The BG-AEE is a HDMI 2.0 Audio Extractor and Embedder. It has two modes: audio extraction via L/R output from HDMI input source, and the other mode is for removing the original audio of HDMI source and embedding auxiliary audio via L/R input to the HDMI output. It also features EDID dip switches with the ability to lock the video signal to various formats to ensure signal quality.

Features

  • bi_badge-4k
    Stunning 4K@60Hz
    Delivers the ultimate in clarity
  • HDR
    HDR
    Supports HDR for rich colorful images
  • mdi_audio-input-stereo-minijack-1 | IR INPUT
    Audio Embedding
    Embed audio to a video through a 3.5mm mini jack
  • ep_connection
    EDID Control
    Lock in and manage resolutions using EDID dip switches
  • wpf_audio-wave
    Audio Formats
    Supports audio formats PCM, Dolby, and DTS
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • Supports full 3D format
  • Audio embed to HDMI output
  • Audio de-embedded from HDMI input
  • CEC and ARC pass through
  • Relock and enhance output signal quality
  • ESD protection

Videos

Unlocking Audio Magic: Exploring the BG-AEE HDMI 2.0 Audio Extractor and Embedder
Unlocking Audio Magic: Exploring the BG-AEE HDMI 2.0 Audio Extractor and Embedder

Tech Specifications

Bandwidth 18Gbps
Video Input Connectors 1x HDMI Type A, 19-pin, female
Audio Input Connectors 1x 3.5mm stereo earphone jack (L/R)
Video Output Connectors 1x HDMI Type A, 19-pin, female
Audio Output Connectors 1x 3.5mm stereo earphone jack (L/R)
EDID 4-pin DIP Switcher
Mode 4-pin DIP Switcher
Dimensions(W x D x H) 3.3" x 3.3" x 0.7" [83mm x 83mm x 17mm], without feet
Shipping Weight 0.67 lbs [300g]
Operating Temperature 32°F to 104°F / 0°C to 40°C
Storage Temperature - 4°F to 140°F / - 20°C to 60°C
Power Supply 5V/1A DC

PACKAGE CONTENTS

  • 1x BG-AEE
  • 1x 5V/1A Power Supply
  • 1x Pair of Rack-mount Ears

Interfaces

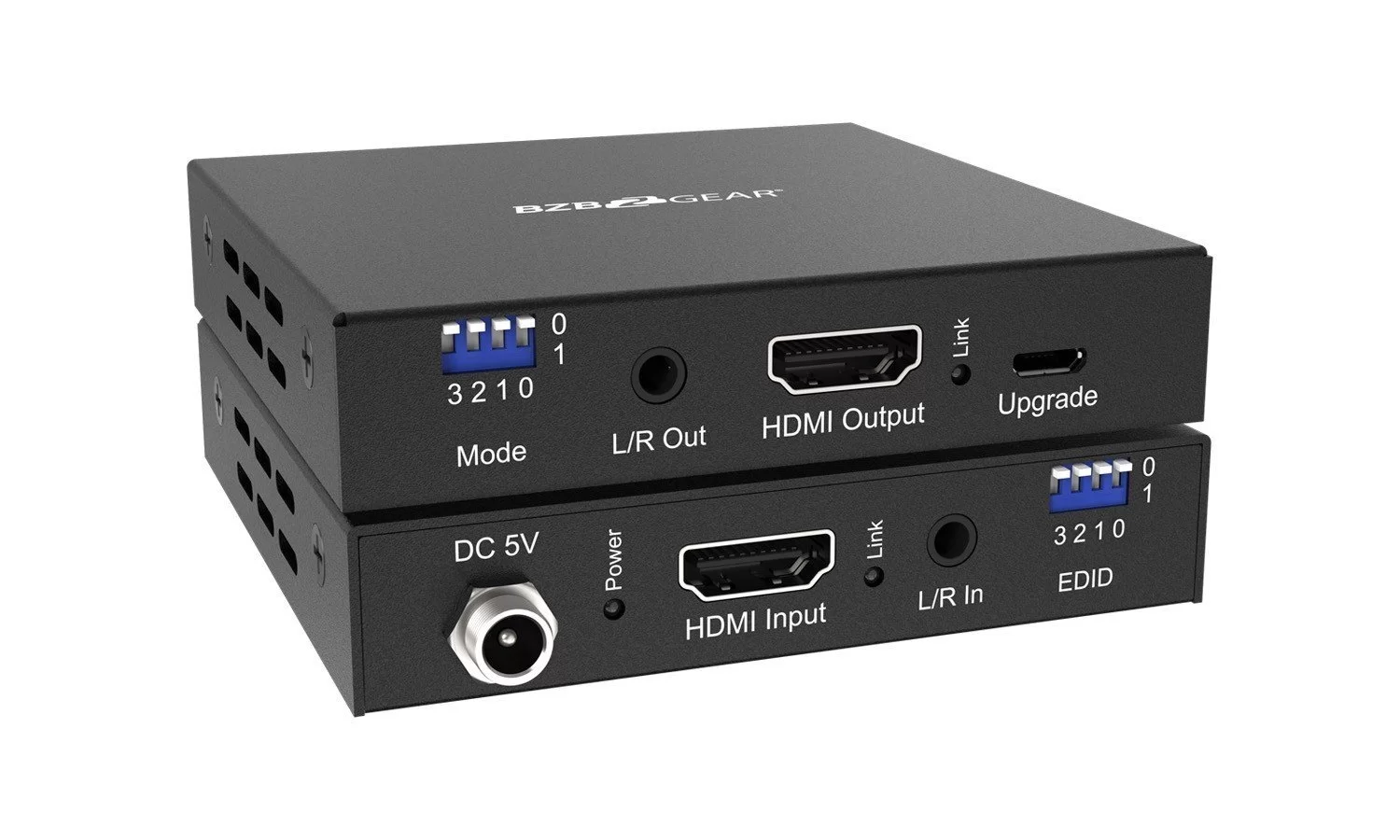

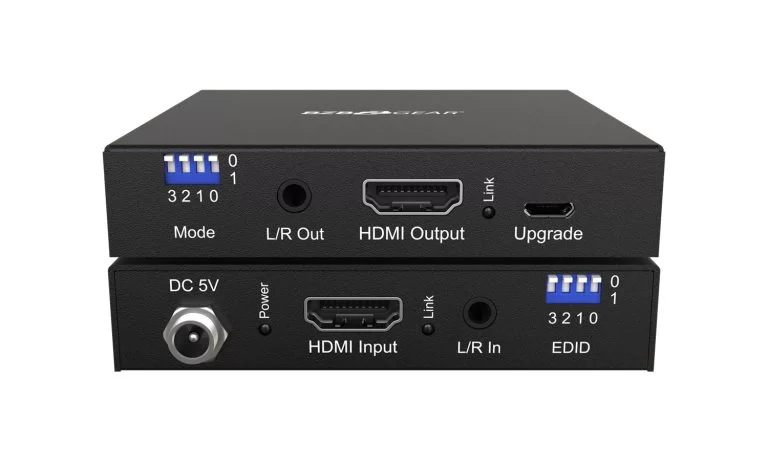

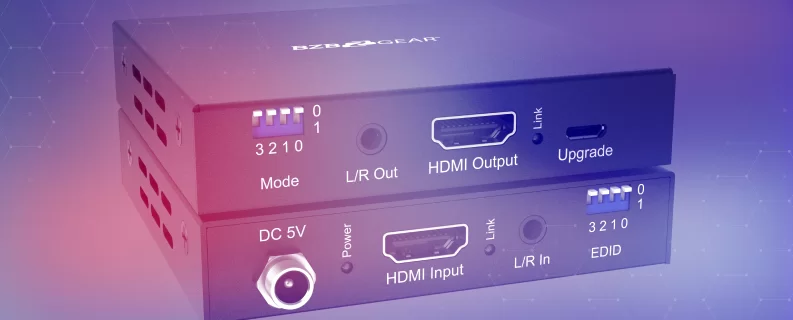

Interfaces image
  1. Mode DIP Switch: The BG-AEE can be configured to perform various tasks using the mode DIP switches (see manual for settings).
  2. L/R Out: Extract the audio from the HDMI input.
  3. HDMI Output: Connect to a HDMI device such as a display or capture card.
  4. LED Link for HDMI output: Lit when detecting an HDMI signal.
  5. Upgrade: Micro USB port for F/M upgrade and terminal API control.
  6. DC Power Input: Screw locking connector, use the included 5V/1A DC adapter to power the unit.
  7. LED Indicator for Power: Illuminated blue when getting power.
  8. HDMI Input: Connect to an HDMI source device.
  9. LED Indicator for HDMI Input: Illuminated when detecting an HDMI signal.
  10. L/R In: Embed audio to the HDMI output.
  11. DIP Switcher: EDID management (see manual for settings).
