2-Channel 40W 70/100V Stereo/Mono Audio Amplifier

ProGear
BG-AMPC40-5 BG-AMPC40-1 BG-AMPC40-2 BG-AMPC40-3 BG-AMPC40-4 BG-AMPC40-6 BG-AMPC40-7 BG-AMPC40-8
BG-AMPC40-5
BG-AMPC40-1
BG-AMPC40-2
BG-AMPC40-3
BG-AMPC40-4
BG-AMPC40-6
BG-AMPC40-7
BG-AMPC40-8
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

The BG-AMPC40 is a 40-Watt digital stereo amplifier (Class-D) with switchable output of 70V or 100V. Inputs include 2 stereo inputs (1x3.5mm port for line in, 2xRCA for L&R), 1 TOSLINK input, and 1 balanced MIC input. The 3-pin MIC input has selectable 48V phantom power, supports balanced or unbalanced signals, and features external noise suppression.

Integrated functions include ducking, EQ control, and MIC mixer. The rotary knob allows users to choose from 16 IR ID codes for easy control of multiple amplifiers. The front panel has controls for input selection, volume level for MIC and Line inputs, and bass/treble adjustment. This amplifier can be controlled with RS232 commands in addition to the front panel buttons and IR commands.

Features

  • mdi_audio-input-stereo-minijack-1 | IR INPUT
    Microphone Input
    3-level Mic input with mixer function
  • dual output
    Amplify Your Sound
    Outputs 40Watts at either 70V or 100V
  • COMPACT DESIGN
    Compact
    Small form factor ideal where full-sized amplifiers will not fit
  • fluent_zoom-fit-24-filled
    Multiple Control Options
    Take control using RS232, IR, or push buttons
  • material-symbols_safety-check
    Durable
    Metal enclosure designed to last for years
  • fluent_app-folder-48-filled
    Bass, Treble, & Volume
    Control bass, treble and volume levels conveniently using integrated push buttons
  • Ducking function
  • Fast switching speed for good performance
  • 16 ID codes for controlling between different amplifiers
  • Convection cooler, fan is not needed
  • MIC port can support balance/unbalance signal, suppress the external noise effectively
  • LED indicator, for power and working status

Videos

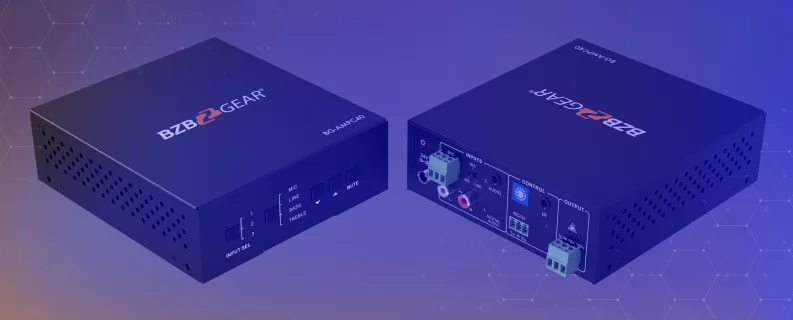

Amplify Your Stereo or Mono Audio Setup With the BG-AMPC40
Amplify Your Stereo or Mono Audio Setup With the BG-AMPC40

Tech Specifications

Audio Input
Input 2x Stereo Audio, 1x MIC, 1x Digital Fiber Audio
Input Connector 2x RCA, 1x 3.5mm Jack, 1x 3-pole 3.81mm Captive Screw Connector, 1x SPF Fiber Connector
Input Impedance >10KΩ
Audio Output
Output 1x Mono Amplifier
Output Connector 1x 3-pole 3.81mm Captive Screw Connector
Output Type Constant voltage 70V or 100V
Audio General
Frequency Response 120Hz ~ 20KHz
CMRR >70dB@20Hz ~ 20KHz
SNR 80dB (Max)
Bandwidth 120Hz ~ 20KHz
Rated Power Output 40Watt
THD + Noise 1%@1KHz, 0.3%@20KHz at nominal level
Voltage Gain 26dB
Control Function
RS232 Control 1x 3-pole 3.81mm Captive Screw Connector
Front Panel Control Buttons
ID Code Control 16 ID Codes for control
Optional IR Remote & TCP/IP controlled by programmable interface
General
Temperature 14 ~ 104°F / -10 ~ +40°C
Humidity 10% ~ 90%
Power Supply DC 24V 2.71A Power Adapter
Standby Power Consumption 5W
Case Dimension (WxHxD) 5.1 x 1.7 x 5.7in [130 x 44 x 144mm] (1U high)
Product Weight 1.9 lbs [860g]

PACKAGE CONTENTS

  • 1x 40 Watt Power Amplifier
  • 2x Mounting ears with 4 Screws
  • 4x Plastic Cushions
  • 2x Pluggable Terminal Blocks
  • 1x RS232 Cable
  • 1x Power Adapter (DC 24V 2.71A)
  • 1x User manual

Interfaces

Interfaces image

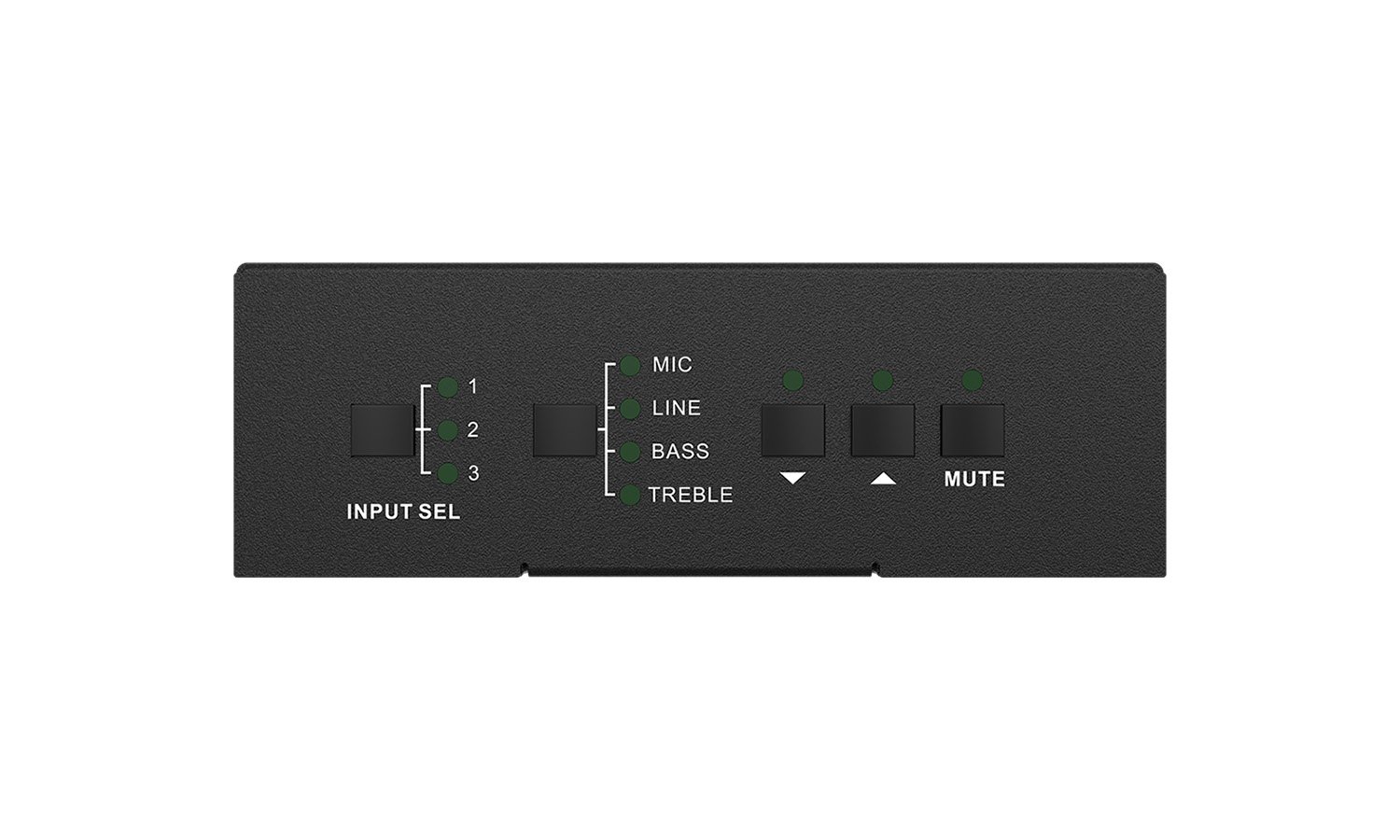

  1. Audio Input Selection: Press the INPUT SEL button to select an input audio source, After choosing an audio source, the corresponding LED indicator will illuminate.
    No.1 is for dual mono audio input (2 RCA connectors for L&R), No.2 is for stereo audio input (3.5mm mini jack), and No.3 is for digital fiber audio input.
  2. Audio Control: Select the MIC, Line, Bass, or Treble with this button to then be able to control their volume levels.
  3. Volume Adjustment: To turn up, down, or mute the selected audio.
    ▽: Turn down the volume
    △: Turn up the volume
    MUTE: Mute the output.
  4. Power Indicator: Illuminates red when power is connected.

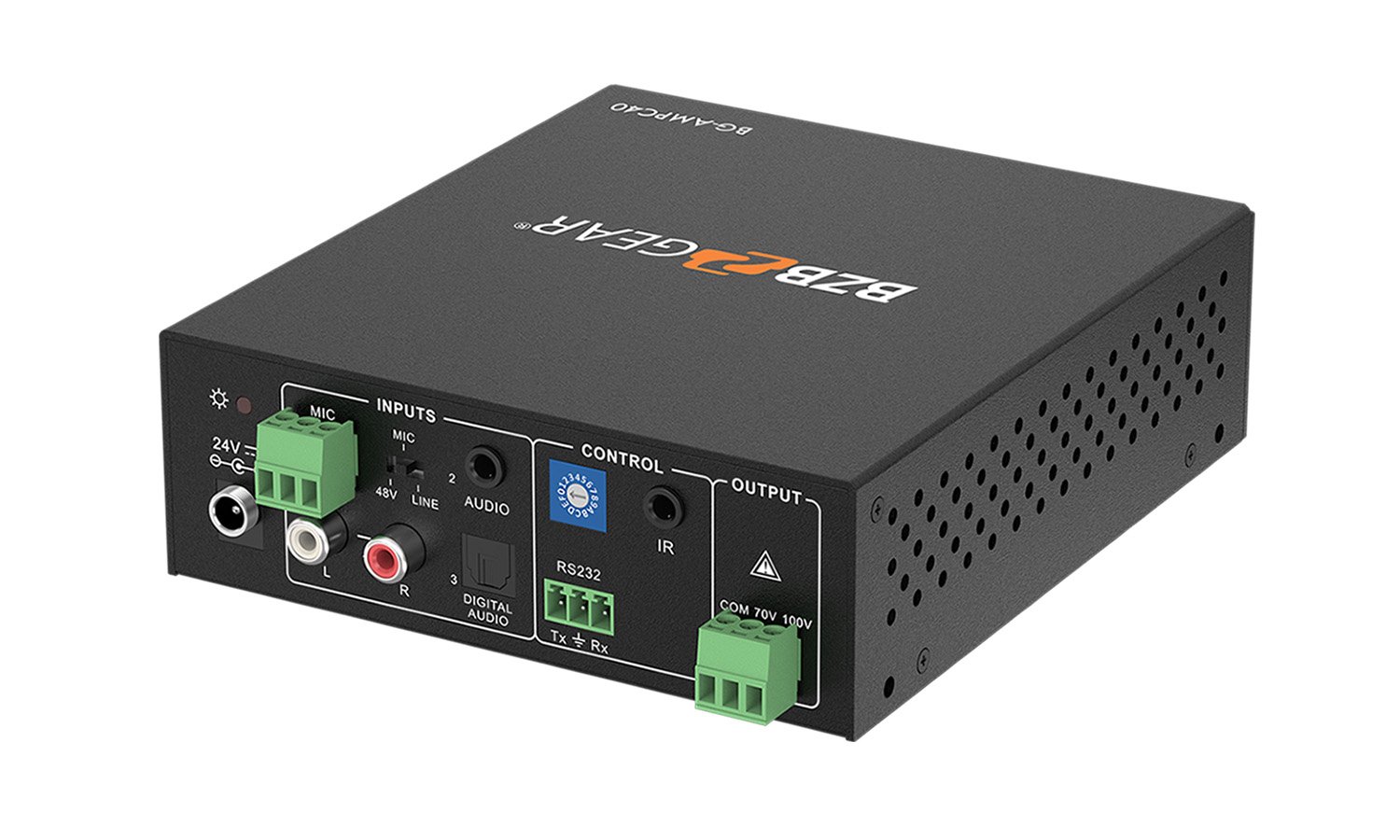

  5. Microphone input port: 3-pin phoenix connector for microphone input. The switch on the right side is used to select the input type: 48V (for condenser microphone), MIC (for dynamic microphone), and LINE (for line audio).
  6. Audio Inputs: 3.5mm mini jack for stereo audio input. It can be connected with audio source devices (e.g., DVD player).
  7. ID Code: Turn the dial to select 1 of 16 codes which range from 0 to F (hexadecimal). It is used to manage multiple units with PC control software.
  8. IR: To connect with the IR receiver. Increases the range of the IR remote if the main unit is out of line of sight.
  9. Power Port: Connect with the power adapter (DC24V).
  10. L+R RCA: Dual-mono audio input.
  11. Digital Audio Input: Fiber connector for digital audio input (PCM format only).
  12. RS-232: 3-phoenix connector for serial control. It can be connected with a PC to control the amplifier.
  13. Audio Output: To connect with audio output devices such as speakers (to select 70V or 100V depends on the input voltage of the speakers). COM is for grounding (GND).
