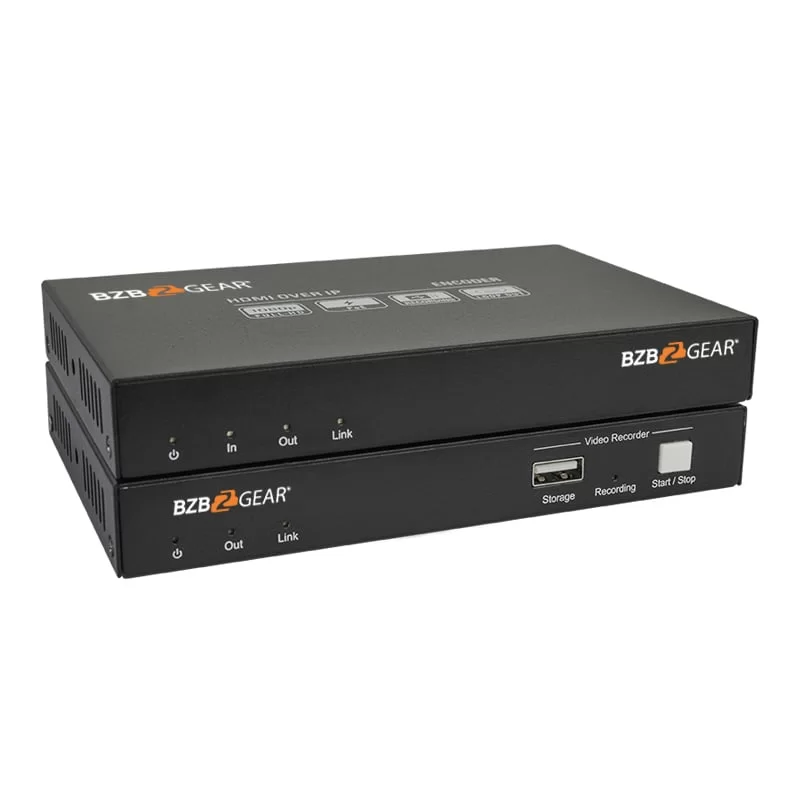

HD Video Over IP System with Live Preview, Recording, Matrix and Audio De-Embedding
SKU: BG-AVIP-HD400
MSRP: $499.00
Status: Out of Stock
Discontinued
Configure the Perfect Solution
Get Started
Overview

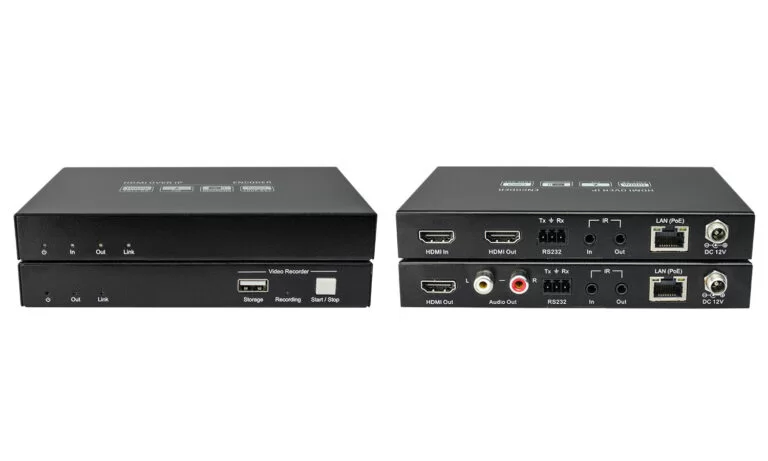

The BG-AVIP-HD400 is an IP Streaming Encoder/Decoder which use H.264 standard to extend HDMI video, IR and RS232 control signals over IP network. Designate a single control PC (Wake on LAN) and one 100Mbps Network Switch for distribution of signals.
The BG-AVIP-HD400 features 1080p HDMI video switching, video matrix, audio de-embedding, audio switching, IR and RS232 transmissions as well as video recording and PoE power. The control software “IP Streaming Management” merge all functions for user control the IP streaming system.
Features
- Supports H.264 encoding and decoding
- Support output video scaling to 720p or 1080p
- Support Video Broadcasting over network
- Supports audio breakout
- 1080p video over IP network
- Supports PoE , Encoder/Decoder can be powered by PoE Switch
- Supports video recording
- Supports RTSP, RTP, HTTPFLV, UDP, TCP Protocol
- Support video extension, video distribution and video matrix
- Support Video Live Preview on the GUI
- The encoder features HDMI loop out
- Supports Unicast and Multicast
