The BG-AVTPG-KIT combines 2 of our best selling HDMI tester/analyzers for a comprehensive toolkit that should be a part of every professional installer’s arsenal. The kit includes one BG-AVTPG-4K and one BG-AVTPG-MINI in a foam-lined protective case built to withstand years of job site abuse. The kit allows for full end-to-end testing of all HDMI-related cabling and gear, allowing installers to quickly identify and correct issues that would otherwise complicate and delay progress.

TAA COMPLIANT PRODUCT

 TAA COMPLIANT PRODUCT.
 This product meets the standards of the Trade Agreement Act (TAA).
 You can find all BZBGEAR TAA Compliant Products on this page.

BG-AVTPG-4K

1080P FHD/4K UHD HDMI 2.0 18GBPS VIDEO TEST PATTERN GENERATOR/TESTER AND ANALYZER WITH ETHERNET

The BG-AVTPG-4K HDMI 2.0 Generator and Analyzer is a versatile and compact test set designed for A/V Professionals. The set allows the user to conduct verification and diagnostic tests of HDMI cables, A/V components and video distribution networks with confidence. Its protective rubberized edges and rechargeable battery make it well-suited for on-site testing virtually anywhere. With the advanced touch panel and USB connection mouse control you can easily access options for video patterns, audio signals, HDCP analyzer, and loop signal testing. The unit supports 8 channel LPCM with selectable sampling rate making it perfect for testing multi-channel audio systems. The BG-AVTPG-4K is a must-have for all AV System Integrators and Technicians.

BG-AVTPG-MINI

1080P FHD/4K UHD HDMI 2.0 18GBPS PORTABLE SIGNAL TEST GENERATOR AND ANALYZER

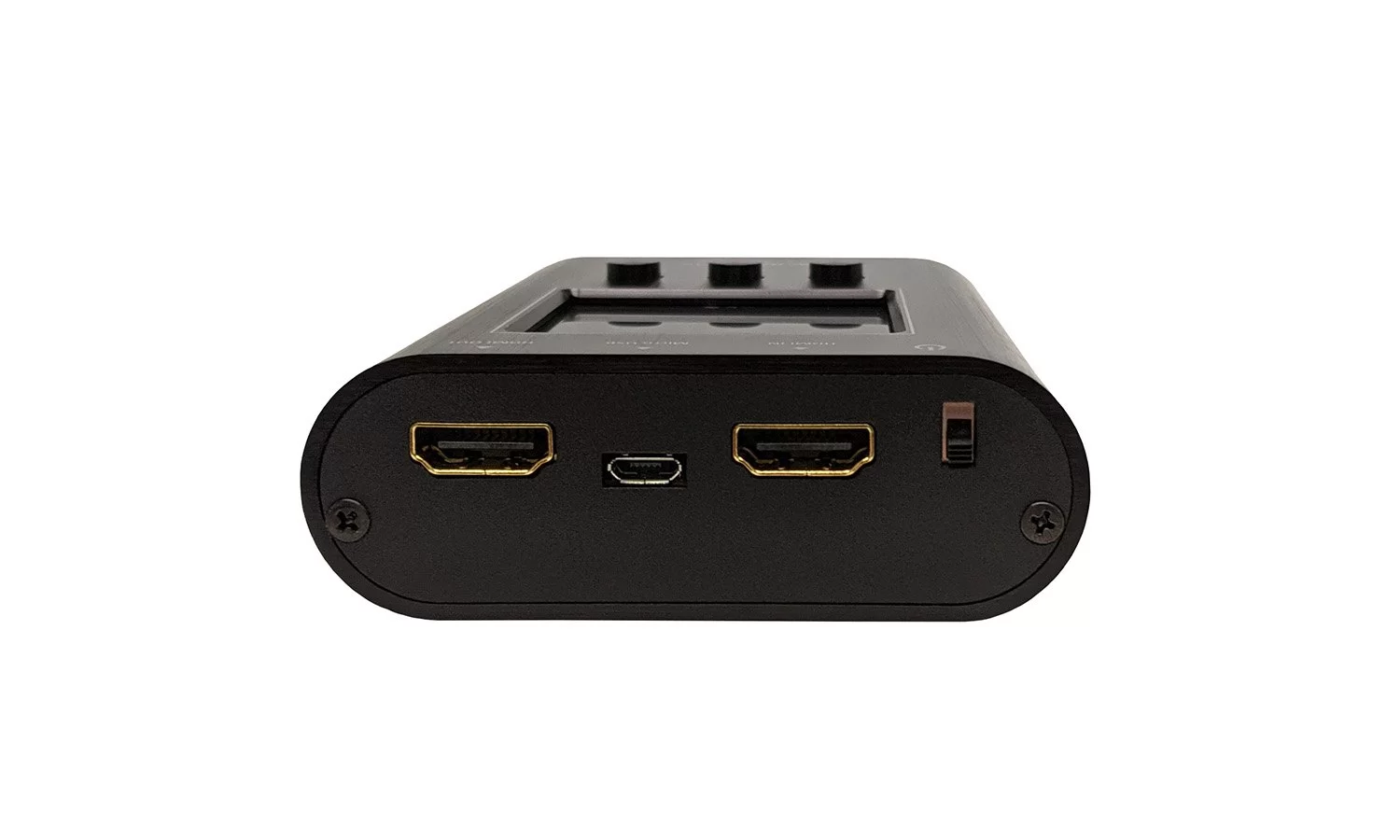

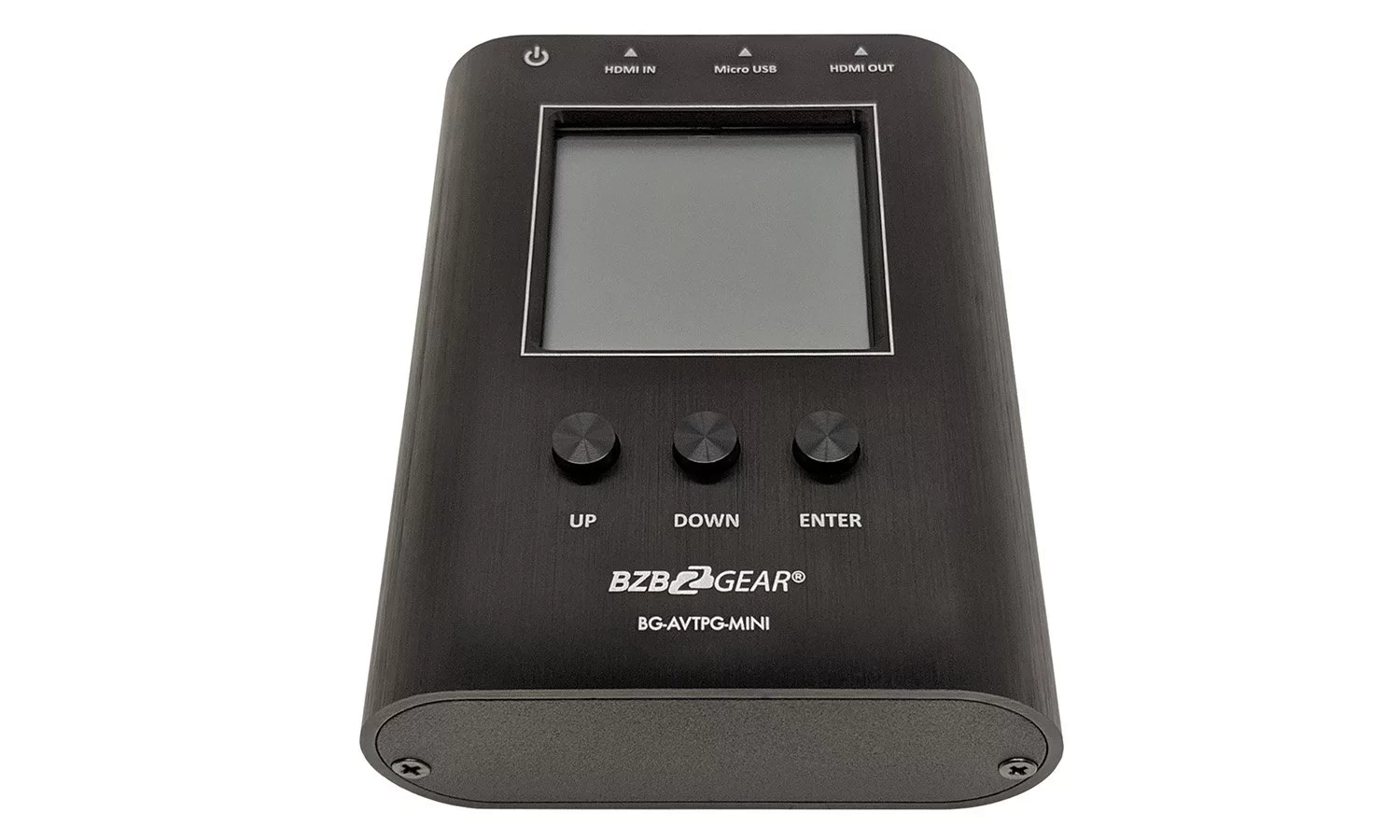

The BG-AVTPG-MINI HDMI 2.0a tester/analyzer is a mobile, hand-held device which can help installers test cable quality by generating HDMI signals and detecting important HDMI features quickly. With this handy and portable tool users will appreciate the built-in 3 hour chargeable battery, video patterns and other features. It features adjustable color depth so installers can instantly test the connected display’s capability. Getting important pieces of information makes troubleshooting a breeze and helps installers take the guess work out of HDMI compatibility issues. With the device’s response time, you will have the answer to a potential problem in less than a minute! The BG-AVTPG-MINI, with its cost and features, is the ideal testing unit for custom and commercial integrators to have on every call!

Features

BG-AVTPG-4K:
  • 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator
  • Supports user control device through Ethernet
  • Embedded LINUX KERNAL system with limitless extension
  • Supports HDMI loop through function
  • Battery powered for portability, it can extend operation time with full load up to 4 hours
  • 4.3 touch panel
  • Firmware update through USB Flash Drive
  • Scrambler supported for videos over 340MHz output wise
  • HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
  • Rechargeable battery design with short charging time about 2 hours
  • Supports mouse control
  • Supports user defined pattern up to 2GB
  • Loop test capability to provide statistics analysis for connection stability
  • Qualified physical layer performance to ensure the best compatibility
BG-AVTPG-MINI:
  • Supports video resolution* outputs up to 4K2K@60 4:4:4 8bit, HDR 10bits**, 12bits, 16bits
  • Fundamental HDMI feature analysis up to 4K2K@60 4:4:4 8bit HDMI 2.0 input
  • Provides statistics analysis for cable quality or connection stability
  • Rechargeable battery design with short charging time about 3 hours
  • Built-in 3 video patterns***
  • HDCP 1.4 & 2.2 compliant
  • Hand-held pocket size
  • Both HDMI input and output support up to HDMI 2.0
  • Tests cable quality
  • Battery powered for portability, it can extend operation time with full load up to 3 hours

Videos

Why Every AV Installer Needs A Test Pattern Generator Kit
Why Every AV Installer Needs A Test Pattern Generator Kit
Mini 4K Test Pattern Generator and Analyzer Perfect for any Job BG-AVTPG-MINI
Mini 4K Test Pattern Generator and Analyzer Perfect for any Job BG-AVTPG-MINI
BG-AVTPG-4K UHD HDMI Video Test Pattern Generator and Analyzer Overview
BG-AVTPG-4K UHD HDMI Video Test Pattern Generator and Analyzer Overview
Seamless Content Capture with 4x2 Multiviewer Presentation Switcher Scaler | NAB Show 2022
Seamless Content Capture with 4x2 Multiviewer Presentation Switcher Scaler | NAB Show 2022
All-in-One HDMI Generator and Analyzer Testing Kit | BZBGEAR BG-AVTPG-KIT
All-in-One HDMI Generator and Analyzer Testing Kit | BZBGEAR BG-AVTPG-KIT
The Ultimate AV Tool for Any Installer/Integrator -BZBGEAR 4K HDR Test Pattern Generator BG-AVTPG-4K
The Ultimate AV Tool for Any Installer/Integrator -BZBGEAR 4K HDR Test Pattern Generator BG-AVTPG-4K

Tech Specifications

BG-AVTPG-4K HDMI 2.0 18Gbps Video Test Pattern Generator/Tester and Analyzer

Technical Specifications
Role of usage Generator / Analyzer
Video bandwidth Single link 600MHz (18Gbps)
HDMI compliance HDMI 2.0 and below
HDCP compliance HDCP 2.2 and below
Video Support Up to 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)
Video Format Support HDMI
Audio support 8ch LPCM up to 192K
Control USB mouse / touch panel / Ethernet
ESD protection Human body model ±15kV [air-gap discharge] & ±8kV [contact discharge]
Input 1x HDMI + 1x USB + 1x RJ-45(Ethernet)
Output 1x HDMI + 1x 3.5mm (Stereo)
USB Support USB 2.0
HDMI connector Type A (19-pin female)
USB Connector Type A
RJ-45 connector WE/SS 8P8C with 2 LED indicators
Mechanical
Housing Metal enclosure
Dimensions (L x W x H) Model 4.1" x 6.6" x 1.7" [105 x 166 x 42mm]
Package 1'5" x 6.7" x 3" [371 x 170 x 77mm]
Carton 1'3" x 1'4" x 1'5" [410 x 368 x 393mm]
Weight Model 27 oz [765g]
Package 2.8 lbs [1294g]
Power supply 12V 5A DC / Battery
Power Consumption 15 Watts
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20-90% RH [no condensation]



BG-AVTPG-MINI HDMI 2.0a Installation Gear

Role of usage HDMI 2.0a Installation Gear
Video bandwidth Single link 600MHz [18Gbps]
HDMI compliance HDMI 2.0 and below
HDCP compliance HDCP 2.2 and below
Video Support up to 4K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Video Format Support HDMI
Input 1x HDMI
Output 1x HDMI
Control Push Button
HDMI connector Type A [19-pin female]
USB Support Firmware update / Recharge
USB connector Micro-USB (Type B)
Mechanical
Enclosure Metal case
Dimensions (L x W x H) Model 5.1" x 3.5" x 0.6" [130 x 89 x 14mm]
Package 7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
Carton 1'4"x 1'3" x 11.8" [420 x 400 x 300mm]
Weight Model 7.8oz [220g]
Package 11.3oz [320g]
Power supply Micro-USB / Battery
Power Consumption 5W [MAX]
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH [no condensation]

PACKAGE CONTENTS

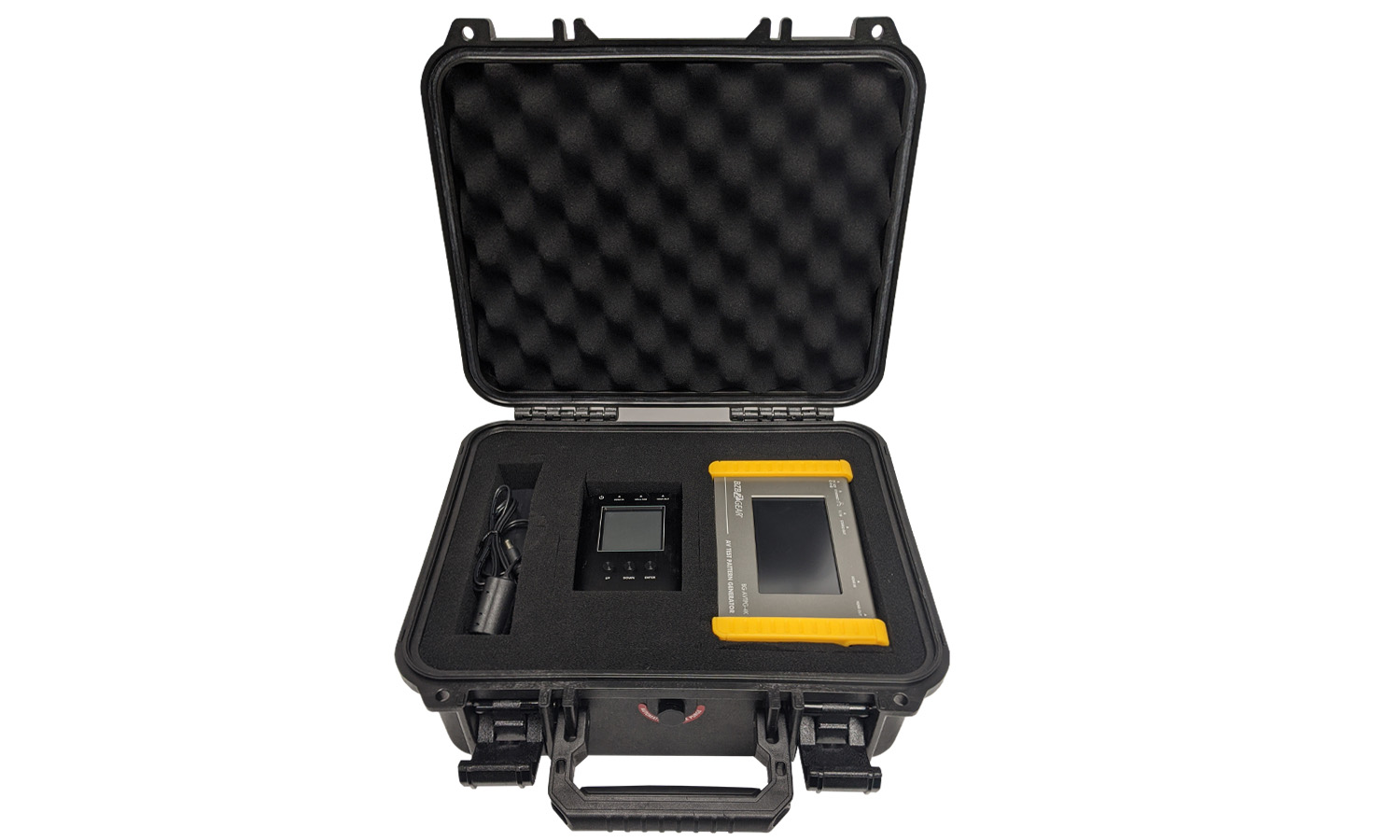

  • 1x BG-AVTPG-4K Video Test Pattern Generator/Tester & Analyzer
  • 1x BG-AVTPG-MINI HDMI 2.0a Installation Gear
  • 1x Power Supply
  • 1x Case
  • 1x User Manual

Interfaces

Interfaces image
  1. OUTPUT: HDMI output.
  2. INPUT: HDMI input.
  3. Stereo Out: Analog audio output.
  4. USB: Connect to a USB device for control or firmware update.
  5. Ethernet: Check if a connection can issue an IP address using DHCP.
  6. +12V DC: 12 V 5A DC power jack.
  7. Power Switch: Power ON/OFF.
  8. Touch screen Display: Control device and displays information.

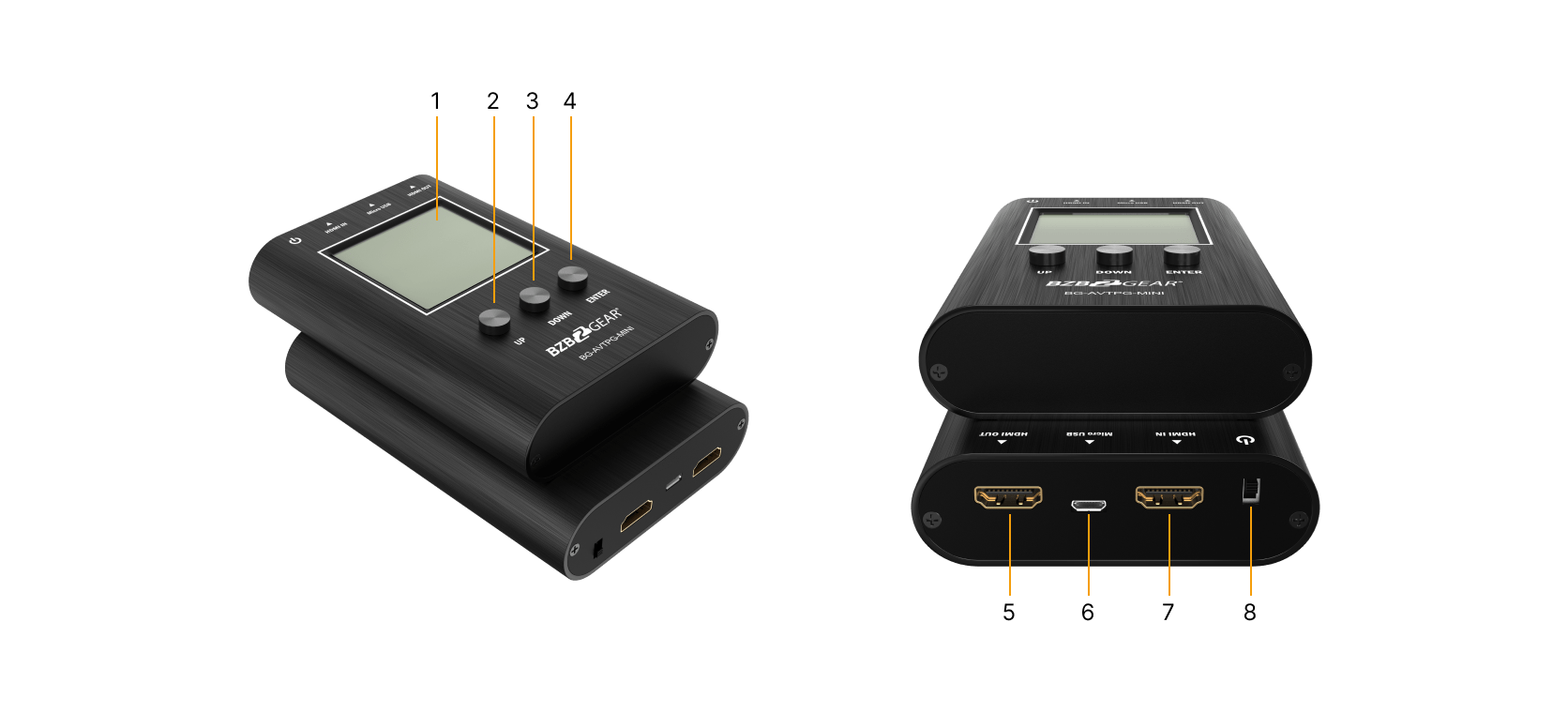

Interfaces image
  1. LCD Display: The data is shown on the display.
  2. Up Button: Move the cursor up.
  3. Down Button: Move the cursor down.
  4. Enter Button: Confirm selection on screen.
  5. OUTPUT: HDMI output.
  6. Micro-USB: Firmware update / Recharge.
  7. INPUT: HDMI input.
  8. Power Switch: Power ON/OFF Switch.
