1080P FHD 20X Zoom Box Camera with 3G-SDI & IP Streaming and Audio input

Configure the Perfect Solution
Get Started

Overview

The BG-B20SA is an 20X optical zoom IP-streaming camera that utilizes a high-quality Sony Exmor 1/2.8” CMOS sensor to deliver crisp HD video signals. Its design provides versatile placement options and ease-of-use in an unobtrusive housing. This camera is a valuable addition to a wide variety of A/V and broadcasting applications including studios, lecture streaming, room monitoring, and more.

Camera

With the ability to output resolutions up to 1080p@60Hz, the BG-B20SA offers exceptional quality. The 20X optical zoom allows crisp image delivery from a wide-angle to tight close-up shots. The camera can simultaneously output 3G-SDI and IP video streams. Stereo audio embedding is supported via the 3.5mm input.

The BG-B20SA supports multiple streaming protocols and compression formats including ONVIF, RTSP, RTMP, and SRT. This enables users to stream the output directly to sites like Facebook and YouTube. The combination of 3G SDI output and captive terminals for power make this camera especially well-suited to long distance cable runs, expanding placement and use case options.

Control

Designed for installation in remote locations, the BG-B20SA can be operated via LAN or serial (RS485) control. The web interface also provides a full suite of image adjustment options. It further supports PELCO-D, PELCO-P, VISCA, and IP-VISCA protocols, providing support for compatible joystick controllers.

Features

  • badge-Full-hd | 1080P HD
    Crystal Clear Video
    Full HD output up to 1080p@60Hz
  • Physical and IP-based Control
    IP Enabled
    Adjust settings and stream over LAN
  • zoomfeatures
    Zoom
    20x Optical Zoom Lens
  • mdi_audio-input-stereo-minijack-1 | IR INPUT
    External Audio Input
    Add a microphone or other audio source
  • mdi_image-auto-adjust
    Versatile
    Set the perfect shooting angle in lecture halls, studios, surveillance and more
  • fluent-mdl2_modeling-view
    Multiple Control Protocols
    Supports ONVIF, PELCO-D, PELCO-P, VISCA, IP-VISCA
  • 1/2.8" high quality CMOS sensor
  • Multi-format video outputs
  • Wide application uses
  • Proprietary tech makes auto-focusing fast
  • H.264/H.264+ video compression
  • Single cable install with coax/power cables
  • Low noise and high SNR with 2D/3D reduction
  • ONVIF, RTSP, RTMP network protocols
  • Remote upgrade, reboot, and reset (IP)

Videos

Up Close and Personal BZBGEAR BG-B20SA Full HD 20X Zoom Camera with Audio Input
Up Close and Personal BZBGEAR BG-B20SA Full HD 20X Zoom Camera with Audio Input

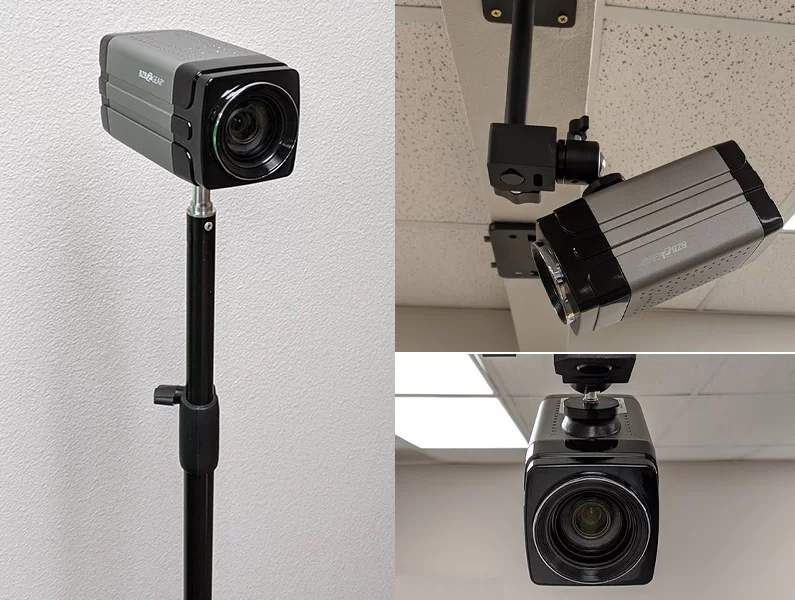

BG-B20SA-mount

Tech Specifications

Camera Parameters
Sensor 1/2.8" high quality HD CMOS sensor
Effective Pixels 16:9, 2.07 Megapixels
Video Format 1080p@60Hz/50/30/25/59.94/29.97
1080i@60Hz/50/59.94
720p@60Hz/50/30/25 /59.94/29.97
Optical Zoom 20X optical zoom, f=5.2~98mm
View Angle 5.5°(tele) - 54.7°(wide)
Aperture F1.6 ~ F3.5
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K / 4000K / 5000K / 6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/output Interface
Video Interfaces Audio In, 3G-SDI
Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Protocol Protocol: VISCA / Pelco-D / Pelco-P Baud Rate: 115200/9600/4800/2400bps
HD IP Interface 100M IP port (10/100BASE-TX), Support Visca protocol control through IP port.
Network Protocol RTSP/RTMP, ONVIF
Power Interface 5.0 Card line socket (DC12V)
Other Parameters
Power Adaptor AC110V-AC220V to DC12V/1A
Input Voltage DC12V±10%
Input Current 400mA(Max)
Consumption 4.8W (Max)
Store Temperature 14° ~ 140°F / -10°C ~ +60°C
Store Humidity 20% – 95%
Working Temperature 14° ~ 122°F / -10°C ~ +50°C
Working Humidity 20%–80%
Dimension 6.2in x 2.8in x 2.8in [155.7mm x 70mm x 70mm]
Weight 1.5 lbs [0.7KG]
Working Environment Indoor Only
Remote Operation (IP) Remote Upgrade, Reboot and Reset


PACKAGE CONTENTS

  • 1x BG-B20SA Camera
  • 1x 12V/1A Power Supply
  • 1x User’s Manual

Interfaces

Interfaces image
  1. Power: Connect supplied 12V power adapter.
  2. RS-485: RS485 interface, support VISCA, PELCO-D, PELCO-P protocol.
  3. LAN: IP Control and streaming interface.
  4. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
  5. HD-SDI: Connect to an SDI device up to 300ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling.
  6. Keyboard: Push this button towards Right or Left to zoom in or zoom out. Push towards Up or Down to adjust manual focus.
