1080P Full HD 3G-SDI Fixed Wide Zoom Box Camera

Discontinued
BG-BFS-3 BG-BFS-1-1.jpg BG-BFS-2-1.jpg BG-BFS-4-1.jpg BG-BFS-5-1.jpg BG-BFS-6-1.jpg BG-BFS-7-1.jpg BG-BFS-8-1.jpg BG-BFS-9-1.jpg
BG-BFS-3
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents

Overview

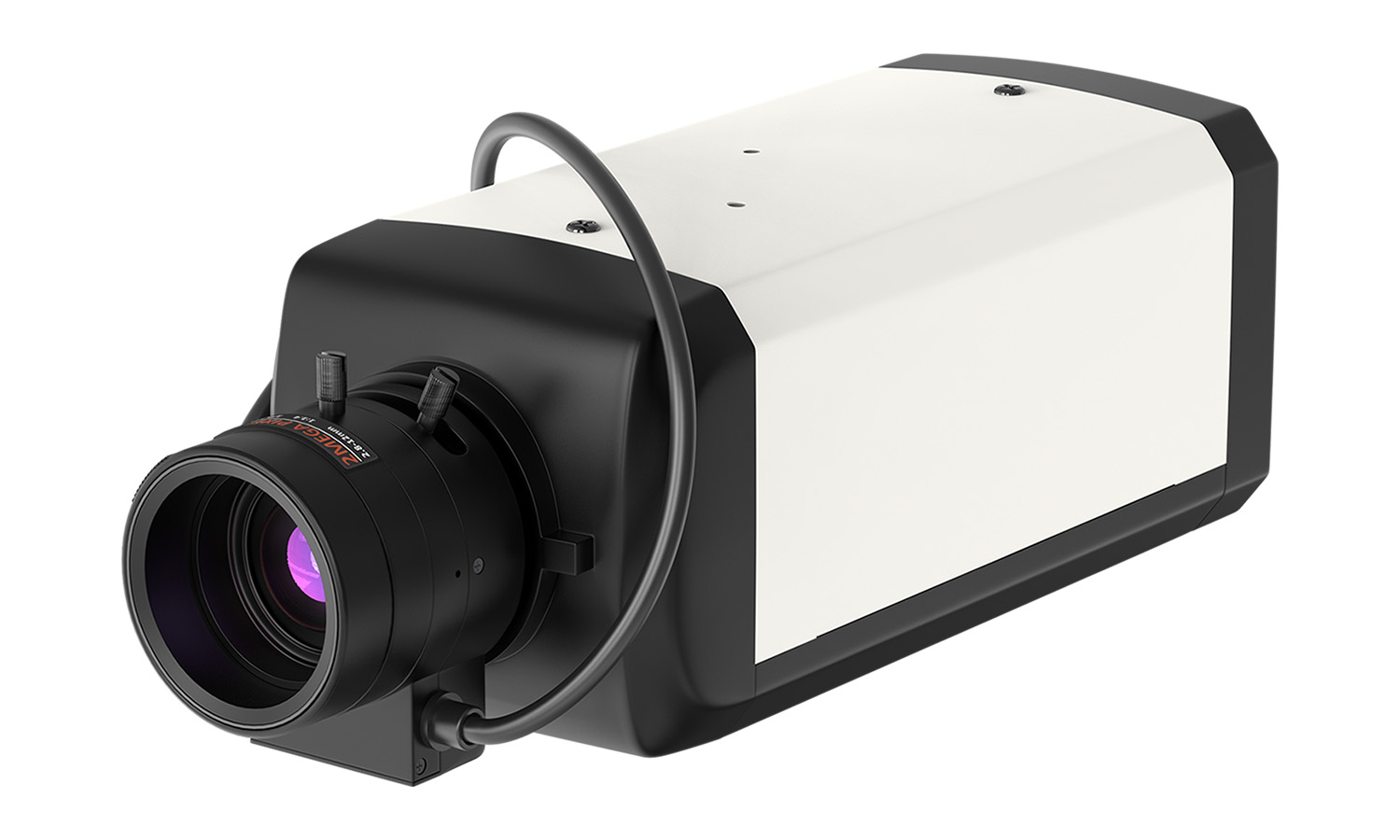

The BG-BFS is a full HD SDI IP Streaming box camera which utilizes a 3G-SDI connection to deliver 1080p@60Hz video at distances up to 300ft. Additionally, the BG-BFS also supports power over ethernet (PoE) functionality. This camera is well suited for use in settings such as manufacturing, lecture halls, retail spaces, studios, and medical facilities. The BG-BFS is a great choice for any application that requires a high-quality image and easy setup from a fixed angle camera.

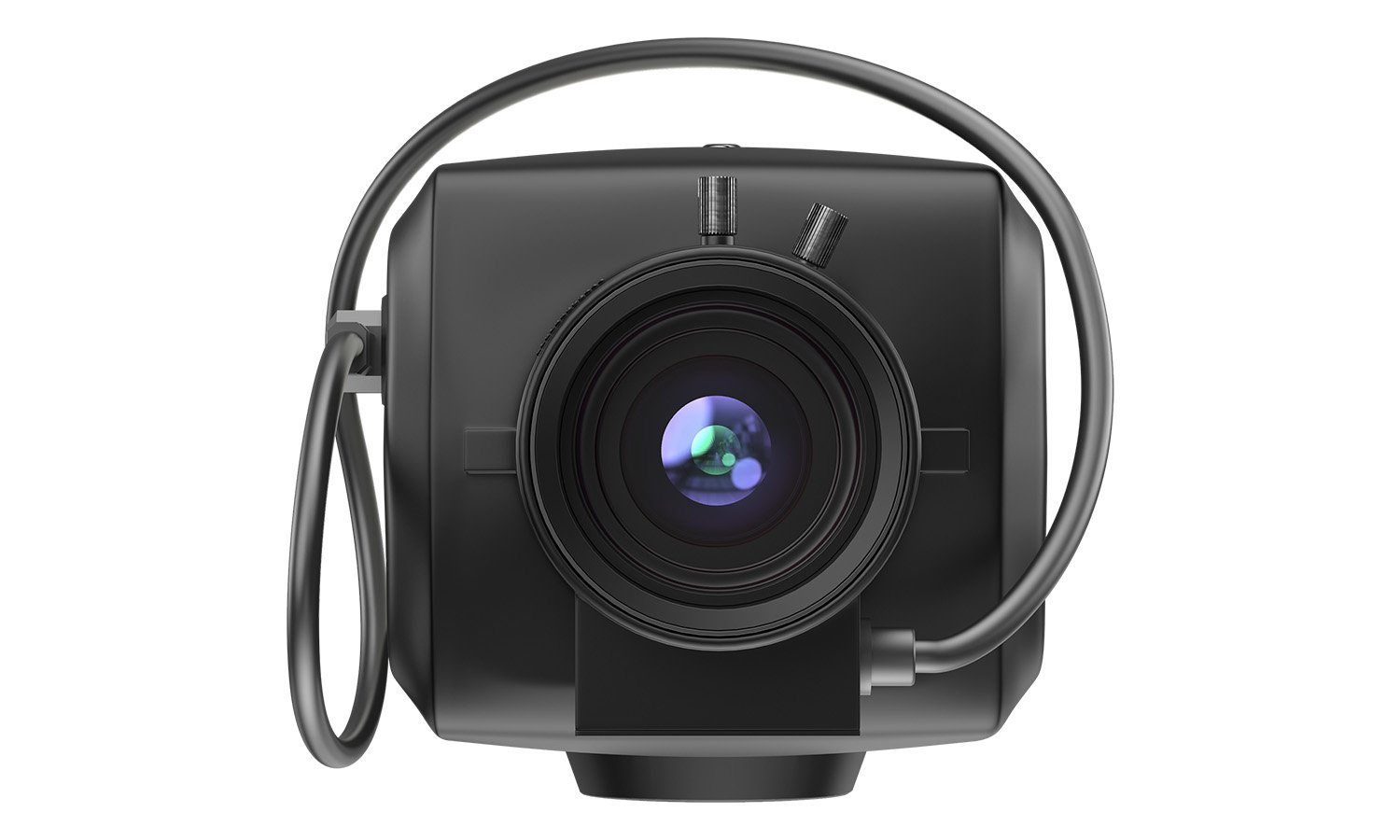

The BG-BFS is equipped with a manual lens featuring 4x optical zoom. The manual adjustments make it ideal for set and forget installation, ensuring precise zoom and focus settings for long-term reliability. The 1/2.8” HD CMOS sensor delivers accurate color reproduction and crisp 1080P HD imaging.

Connectivity and Control

Utilizing Power over Ethernet, a single category can transmit the IP video stream as well as power the camera, greatly simplifying the installation process. A full-featured web interface provides easy access to detailed image settings.

The BG-BFS is equipped with simultaneous 3G-SDI and IP streaming video outputs and supports multiple streaming protocols and compression formats including ONVIF, RTSP, RTMP, and SRT. This enables users to stream the output directly to sites like Facebook and YouTube. The combination of outputs provides a high degree of versatility, allowing the BG-BFS to be easily integrated into most situations.

Revamp Your Camera Remotely: Upgrade, Reboot, Reset!

The ability to remotely upgrade, reboot, and reset the BG-BFS is vital for ensuring the camera's optimal performance, minimizing downtime, reducing operational costs, and enhancing the overall security and accessibility of the camera system. It is a crucial feature for modern surveillance and monitoring applications.



Features

  • zoomfeatures
    Zoom
    4x manual optical zoom
  • mdi_audio-input-stereo-minijack-1 | IR INPUT
    3.5mm Audio Input
    Connect audio mixer output or microphone and embed audio into your live stream
  • Power over Ethernet (PoE)
    Power over Ethernet
    Delivers power directly over an ethernet cable from your PoE enabled network switch
  • badge-Full-hd | 1080P HD
    1080p@60Hz Output
    High framerate ensures fluid motion capture
  • mdi_image-auto-adjust
    Manual Focus
    Dial in a perfect image
  • material-symbols_safety-check
    Reliable
    Designed for years of trouble-free use
  • PoE LAN port allows for single cable installations
  • Supports ONVIF, RTSP, RTMP protocols
  • Simultaneous 3G-SDI and LAN outputs
  • 1/2.8" high quality low noise CMOS sensor
  • Remotely upgrade, reboot, and reset the camera
  • Low noise and high SNR

Compatible with:

Videos

Ultimate Bullet Fixed Wide Zoom Camera for Security & Live Events - BZBGEAR BG-BFS
Ultimate Bullet Fixed Wide Zoom Camera for Security & Live Events - BZBGEAR BG-BFS

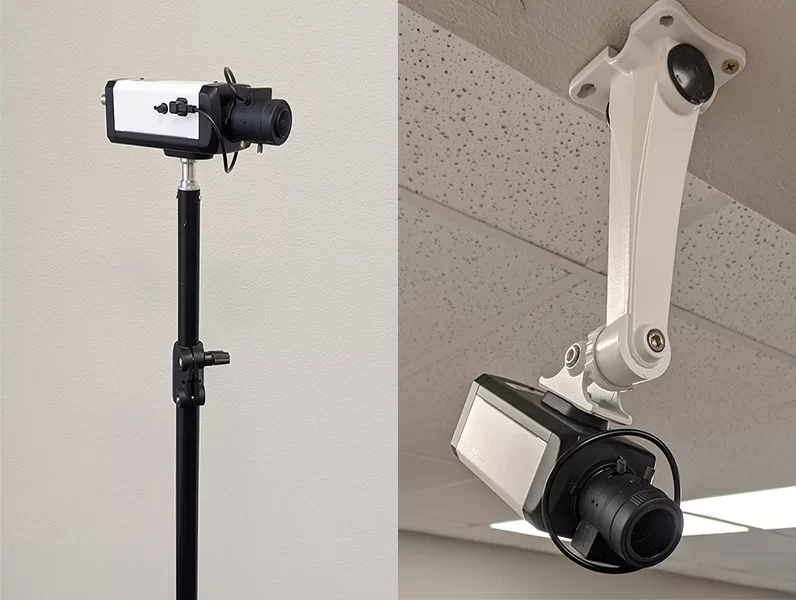

BG-BFS-mount

Tech Specifications

Camera Parameters
Sensor 1/2.8" high quality HD CMOS sensor
Effective Pixels 16:9, 2.07MP
Video Format 1080p@60/50/30/25/59.94/29.97
1080i@60/50/59.94
720p@60/50/30/25 /59.94/29.97
Auto Iris DC driving mode
View Angle 5.5° (tele) - 54.7° (wide)
Zoom 4x manual optical zoom
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto/Manual/One Push/3000K/4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/Dynamic level adjustment
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/output Interface
Video Interfaces 3G-SDI
Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Protocol Protocol: VISCA / Pelco-D / Pelco-P; Baud Rate: 115200/9600/4800/2400bps
HD IP Interface 100M IP port (10/100BASE-TX), Support Visca protocol control through IP port.
Network Protocol RTSP,RTMP,ONVIF,GB/T28181
Power Interface HEC3800 power socket (DC12V) and Power over Ethernet (PoE)
Other Parameters
Power Adaptor AC110V-AC220V to DC12V/1A, POE power supply (optional)
Input Voltage DC12V±10%
Input Current 400mA(Max)
Consumption 4.8W (Max)
Store Temperature 14° ~ 140°F / -10°C ~ +60°C
Store Humidity 20% – 95%
Working Temperature 14° ~ 122°F / -10°C ~ +50°C
Working Humidity 20%–80%
Dimension 5in x 2.2in x 2.3in [126.8mm x 55mm x 58.6mm]
Weight 1.1 lbs [0.5kg]
Working Environment Indoor Only
Remote Operation (IP) Remote Upgrade, Reboot and Reset


PACKAGE CONTENTS

  • BG-BFS Camera
  • 12V/1A Power Supply
  • Lens
  • Wall/Ceiling Mount Bracket
  • User Manual

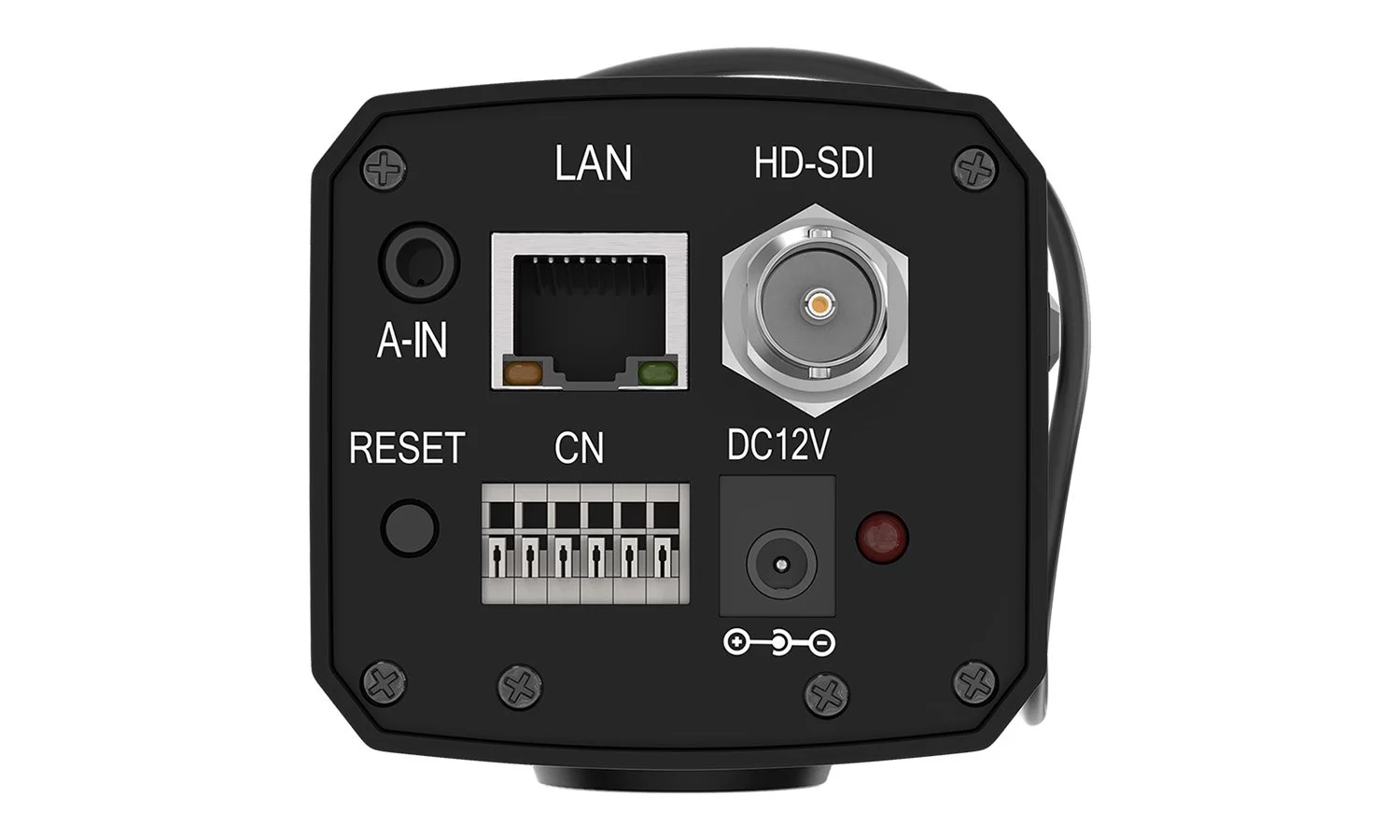

Interfaces

Interfaces image

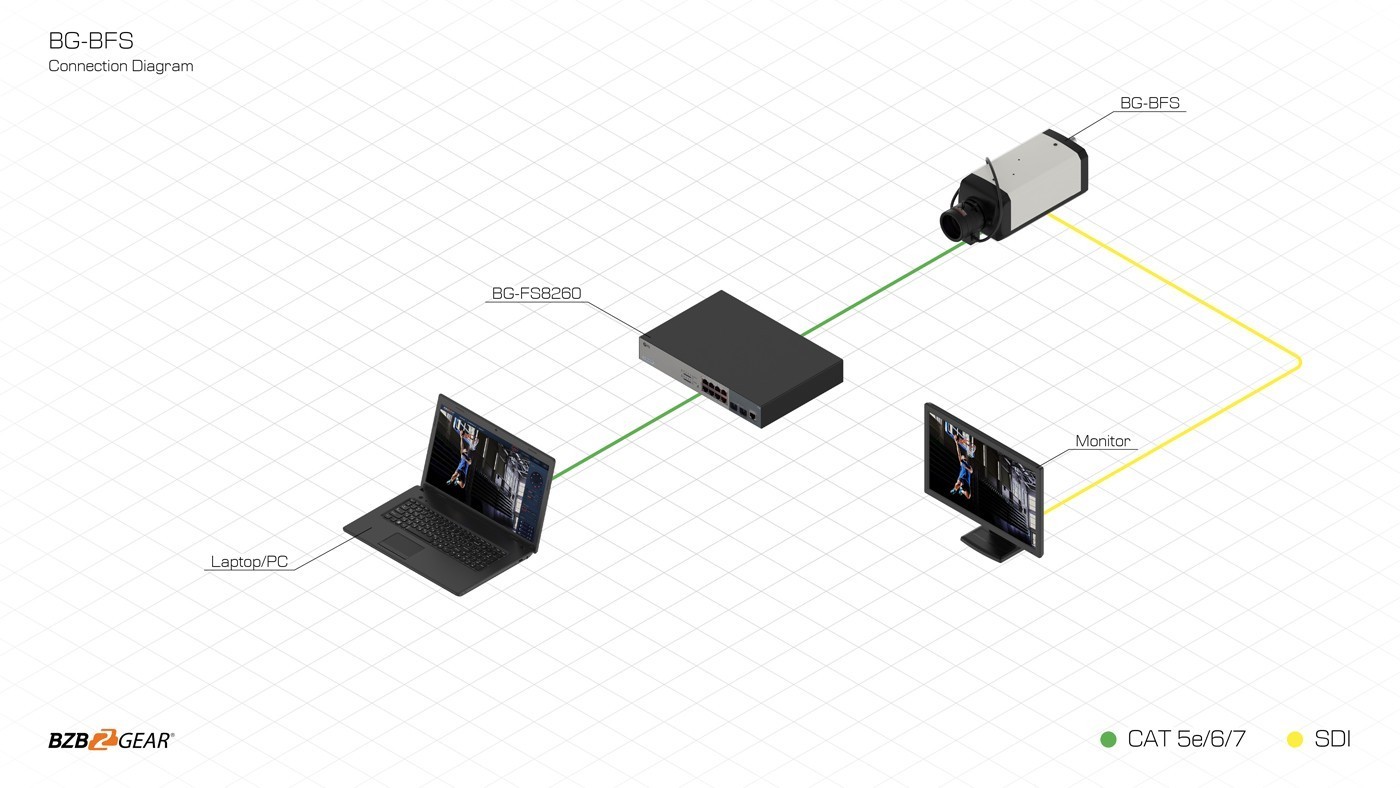

  1. LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
  2. HD-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling.
  3. Power: Connect supplied 12V power adapter.
  4. CN (RS-485): Connect via RS-485 to control the camera with a joystick controller or control software.
  5. Reset: Hold Reset button to factory restore.
  6. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
