PTZ 3X/10X Zoom 1080P FHD USB 2.0/RS232 Huddle Room Camera

Configure the Perfect Solution
Get Started

Overview

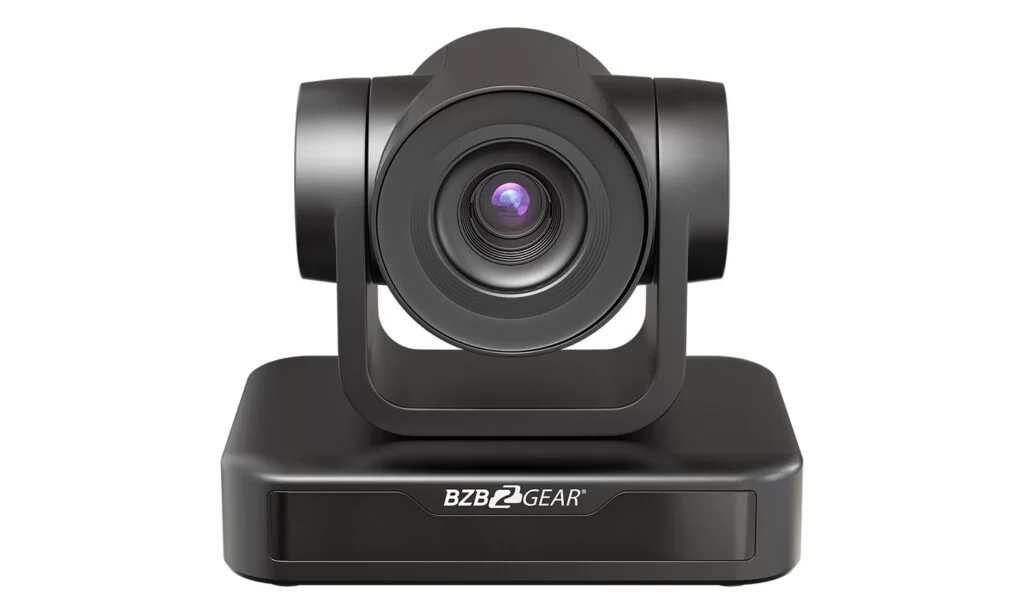

Introducing the BG-BPTZ-XU, a high-quality pan tilt zoom (PTZ) USB camera that offers excellent performance and versatility. With two configurations available - the 3x optical zoom and the 10x optical zoom variant - this camera is ideal for a range of applications, from smaller spaces to larger rooms where individual subjects are located further away but still need to fill the frame.

Both options of the BG-BPTZ-XU camera support resolutions up to 1080p@30Hz, producing high-quality imagery from its 1/2.8” high-quality CMOS sensor. The 3x optical zoom option has a field of view of up to 85°, while the 10x - up to 66°, ensures that users can choose the best option to suit their specific needs.

The BG-BPTZ-XU offers quick and easy plug and play connectivity with USB 2.0 type A, making it compatible with any video conferencing software on your laptop or desktop PC, such as Skype, Zoom, Microsoft Teams, and Google Meet. A step drive motor mechanism and precision motor drive controller ensure that the PTZ operation of the camera is smooth and quiet, avoiding any disruptions during your video conferencing calls.

This PTZ camera supports several video compression formats, including H.264, H.265, and MJPEG, providing greater flexibility and compatibility with a range of devices and applications.

The BG-BPTZ-XU has several control options available, including IR remote, RS-232, RS-485, and UVC (USB). Up to 255 preset positions are available, with 10 accessible via the IR remote. This camera can be mounted to a ceiling, wall, or tripod, increasing the potential for installation in many environments.

Overall, the BG-BPTZ-XU is a high-quality, versatile, and reliable PTZ USB camera that offers a range of advanced features to cater to all your video conferencing needs. Whether you're in the education industry or require video conferencing for remote work or huddle space, the BG-BPTZ-XU is the perfect choice.

Features

  • zoomfeatures
    Zoom
    Available in 3x/10x Optical zoom
  • fluent_zoom-fit-24-filled
    Control
    Cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
  • bi_usb-symbol
    USB2.0 (type A) Output
    Fast and Simple setup
  • badge-Full-hd | 1080P HD
    Full HD Image
    1/2.8" high quality CMOS sensor with resolutions up to 1080p@30Hz
  • ph_cube-focus-fill
    Superb Auto Focus
    Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • fluent_sound-wave-circle-20-regular
    Extremely Quiet PTZ
    Step drive motor mechanism and precision motor drive controller ensure PTZ works smoothly with no noise
  • 1/2.8" high quality CMOS sensor
  • Up to 255 presets (10 presets for IR remote control)
  • Works with Win7-10, Mac osx, and Linux
  • Superb high-definition image
  • Perfect for a multitude of applications
  • MJPG/H264/H265 video compression formats
  • Easy for anyone to operate
  • Advanced 2D/3D noise reduction technology
  • Auto/manual/one push white balance
BG-BPTZ-XU-1-features

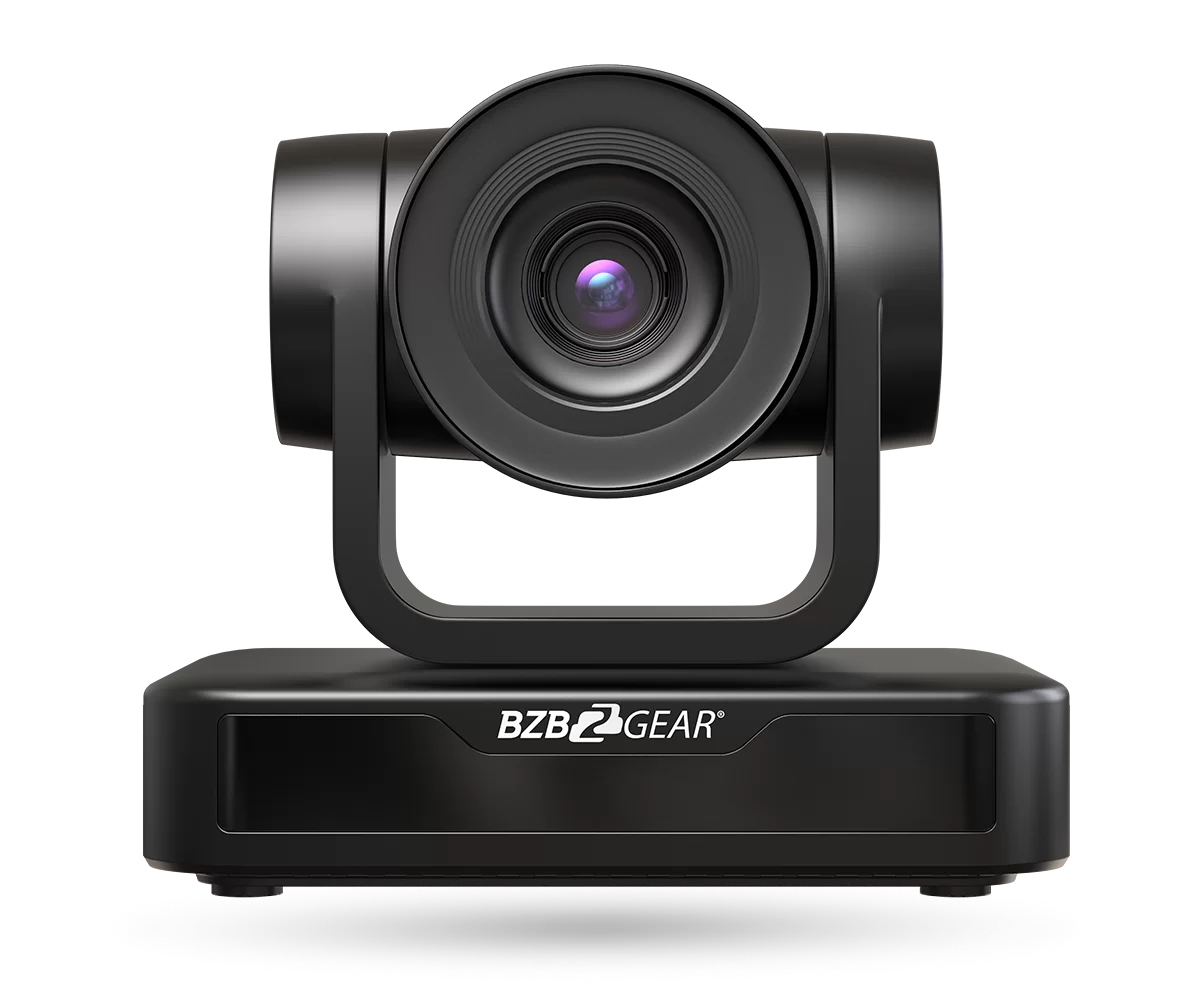

Enhanced Optical Zoom Lens

Experience enhanced optical zoom capabilities that maintain signal quality seamlessly, whether you're capturing mid-range or close-up shots.

BG-BPTZ-XU-2-features

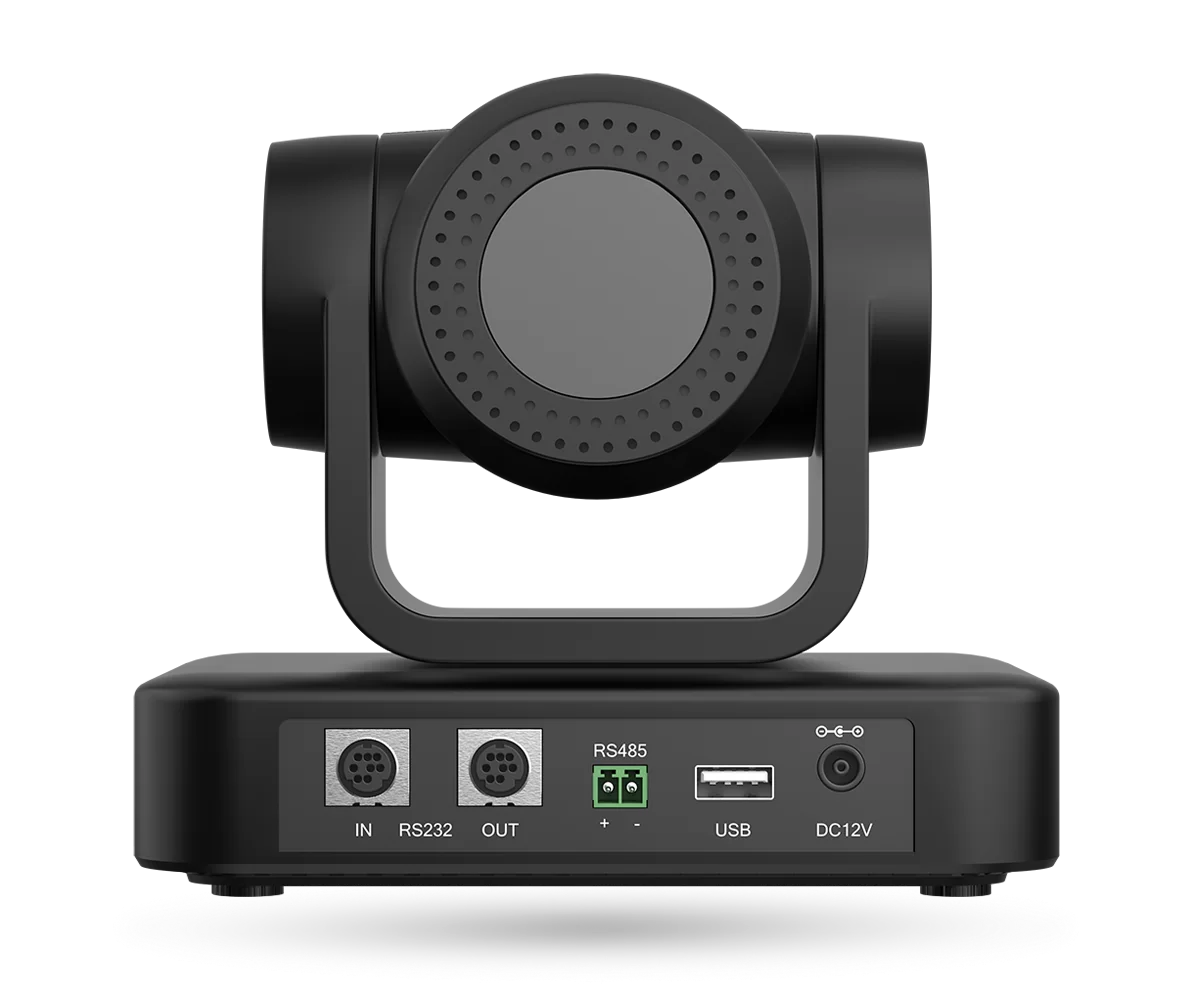

Seamless Control Integration with Cascading RS-232 or RS-485

Integrate seamlessly with cascading RS-232 or RS-485 connections, allowing for easy control of the camera(s) via joystick controllers or control software.

Effortless Plug-and-Play USB Connectivity

Simply connect via USB 2.0 type A cable to your PC for effortless plug-and-play compatibility with any conferencing service, such as MS Teams or Zoom, supporting resolutions up to 1080P@30Hz.

BG-BPTZ-XU-3-features

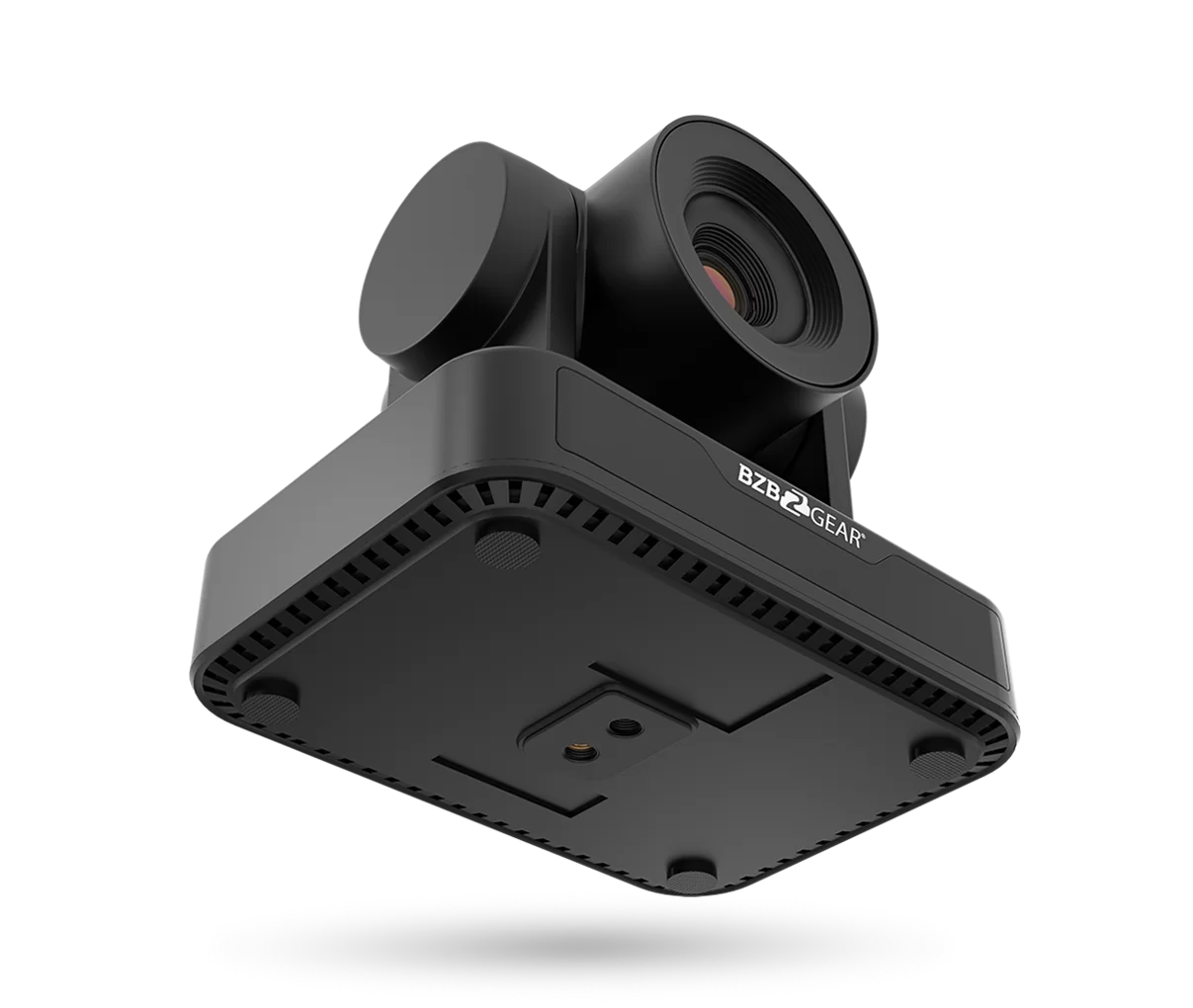

Convenient and Secure Mounting Options

Enjoy hassle-free mounting options onto tripods, walls, or ceilings, ensuring both simplicity and security in installation.

Compatible with:

Videos

A PTZ Camera for Any Meeting Space Video Conference - BZBGEAR BG-BPTZ
A PTZ Camera for Any Meeting Space Video Conference - BZBGEAR BG-BPTZ

Mounting Ideas

Click the image below to watch a video

Tech Specifications

Model Number BG-BPTZ-3XU BG-BPTZ-10XU
View Angle 34.1° ~ 85° 8.8° ~ 66°
F Value f=3.35mm ~ 10.05mm f=4.34mm ~ 41.66mm
AV F1.7 ~ 3.0 F1.85 – F2.43
Optical Zoom 3X 10X
Camera Parameters
Image Sensor 1/2.9 Inch High Quality CMOS Sensor
Effective Pixels 2.07MP, 16:9
Video Format 1920×1080P@30fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps; 960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps
Low Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D&3DDNR
White Balance Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/Manual/One Push
Electronic Shutter Auto/Manual
BLC On/Off
WDR OFF/Dynamic Level Adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Interface and Protocol
Video Output USB 2.0, Type A
Video Compression H.265, H.264, MJPG
Control Port RS232 in & out, RS485
Control Protocol VISCA/Pelco-D/Pelco-P
Power Supply HEC3800 Outlet (DC12V)
USB characteristics
Support operating system Windows 7, Windows8, Windows10, Mac OS, Linux
Video Compression H.265, H.264, MJPG
USB communication protocol UVC
PTZ Parameter
Pan/Tile Rotation -170° ~ +170° / -30° ~ +30°
Pan/Tile Controller Speed 0.1 ~ 60°/Second, 0.1 ~ 30°/Second
Preset Speed Pan: 60°/Second, Tilt: 30°/Second
Preset Numbers 255 Presets (10 presets on IR Remote)
Other Parameter
Working Voltage 12V
Working current 0.25A(max)
Power Consumption 2.5W(max)
Storage Temperature 14°F ~ 140°F / -10°C ~ +60°C, 20% ~ 95%
Working Temperature 14°F ~ 122°F / -10°C ~ +50°C, 20% ~ 80%
Dimension 6.2in x 4.4in x 5.5in [156.8mm x 112.6mm x 139.5mm]
Weight 2.2 lbs [1kg]
Working Environment Indoor Only

PACKAGE CONTENTS

  • 1x Camera
  • 1x 12V/1.5A Power supply
  • 1x Remote Control
  • 1x USB2.0 Cable
  • 1x User Manual

Interfaces

Interfaces image
  1. RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
  2. USB: Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080P@30Hz.
  3. Power: Connect supplied 12V power adapter.
