1080P FHD 20X/30X Zoom HDMI/SDI/IP Streaming Box Camera with Audio Input

Configure the Perfect Solution
Get Started

Overview

The BG-B20SHA/BG-B30SHA 20X/30X optical zoom IP-streaming camera utilizes a high-quality CMOS sensor to deliver crisp HD video signals. Its compact design provides versatile placement options and ease-of-use in a sleek low-profile housing. This camera is well-suited for a wide variety of broadcast and professional A/V applications including lecture streaming, education, room monitoring, studios, and more.

With a 1/2.8” Sony CMOS sensor, the BG-BSHA series provides crystal clear imaging at resolutions up to 1080p@60Hz. The 20X/30X optical zoom lens allows the camera to capture tight close-ups, even at a distance.

The BG-BSHA series features simultaneous 3G-SDI, HDMI, and IP streaming outputs. By utilizing the 3.5mm audio input, audio can be embedded into your livestreams and recordings with ease.

Connectivity and Control

The BG-BSHA series supports multiple streaming protocols and compression formats including ONVIF, RTSP, RTMP, and SRT. This enables users to stream directly to sites like Facebook and YouTube. The combination of outputs provides a high degree of versatility, allowing the BG-BSHA series to be easily integrated into most workflows.

Designed for installation in remote locations, the BG-BSHA series can be operated via serial (RS485) control or web interface. The web interface provides a full suite of image adjustment options. It supports PELCO-D, PELCO-P, VISCA, and IP-VISCA protocols, providing support for compatible joystick controllers.

Features

  • badge-Full-hd | 1080P HD
    Crystal Clear Output
    Full HD output delivers up to 1080p@60Hz video
  • material-symbols_settings-input-component
    Multiple Outputs
    Outputs simultaneously from HDMI/3G-SDI/ IP
  • zoomfeatures
    Zoom
    20X/30X Optical Zoom Lens
  • fluent_slide-microphone-32-regular
    External Audio Input
    Add a microphone or other audio source
  • Power over Ethernet (PoE)
    PoE
    Power and connect to the camera using just one CAT cable
  • fluent_zoom-fit-24-filled
    Multiple Control Protocols
    Supports ONVIF, PELCO-D, PELCO-P, VISCA
  • Multiple output resolutions available
  • Small form factor for tight installations
  • RS-485 & RS-232 serial control options
  • H.265/H.264 encoding
  • 2D / 3D noise reduction
  • Auto white balance, iris, and focus options
BG-BSHA-1-features

Powerful 20X/30X Optical Zoom

Enhanced with a 20X/30X optical zoom lens, this camera empowers you to capture stunning mid-range to close-up shots while maintaining impeccable video quality.

BG-BSHA-2-features

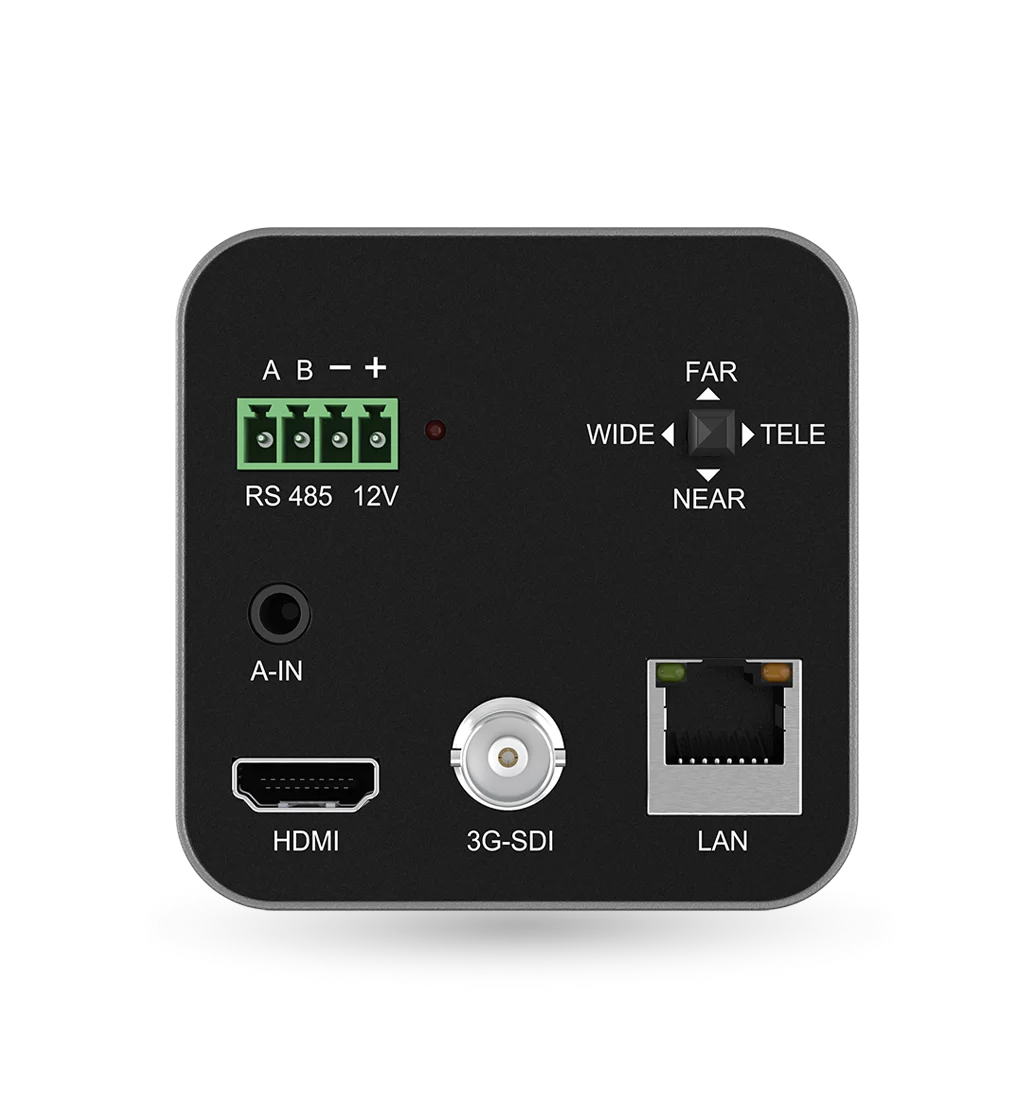

Set Up and Adjust Zoom Levels On the Fly

Effortlessly control zoom levels and focus with convenient buttons located on the camera's rear, facilitating seamless adjustments during live setups or spontaneous shooting sessions.

Audio Embedding

Elevate your livestreams by seamlessly integrating external audio through the dedicated audio input port.

Power Over Ethernet

Streamline your setup process and reduce cable clutter with Power Over Ethernet (PoE) functionality, allowing for simultaneous power and network connectivity through a single ethernet connection.

Video Output Options

Choose from a variety of video output options, including direct HDMI or SDI output, or opt for simultaneous output via HDMI, SDI, and IP ports to suit your specific broadcasting needs.

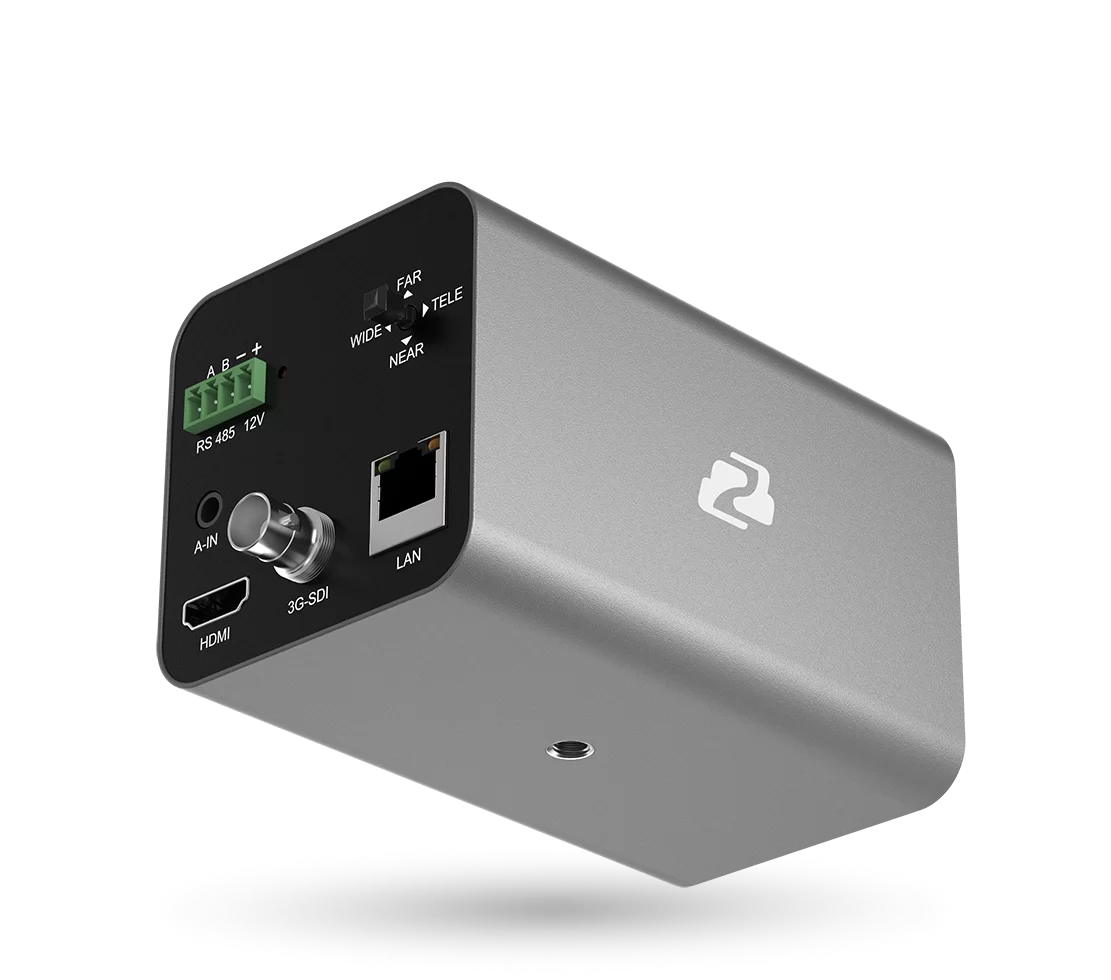

BG-BSHA-3-features

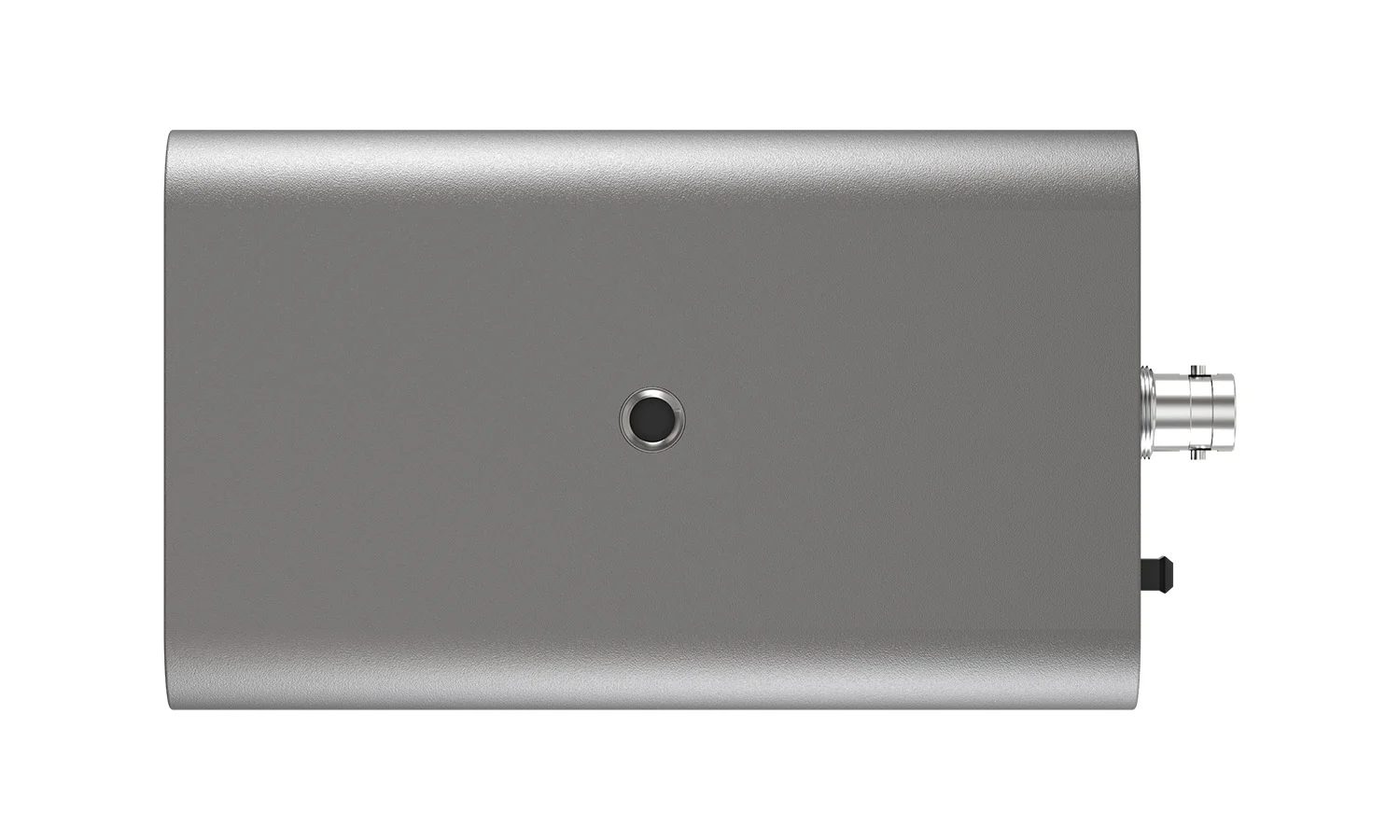

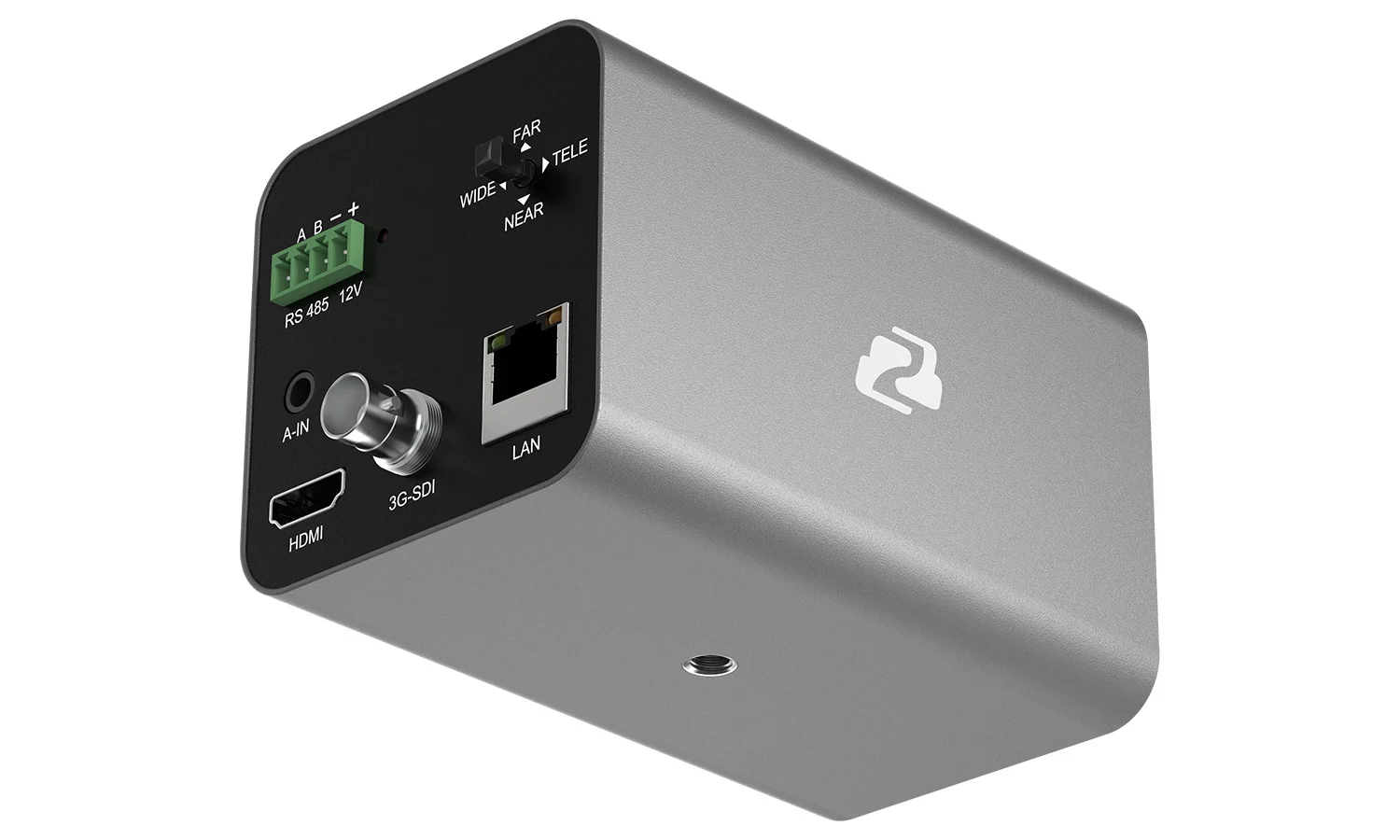

Secure and Intuitive Mounting

Enjoy secure and hassle-free mounting options with the built-in mounting panel, enabling versatile placement on tripods, walls, desks, and more.

Videos

BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom
BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom
How to Livestream on YouTube with BZBGEAR BG-B20SHA 20X Zoom Box Camera - Full Overview and Setup!
How to Livestream on YouTube with BZBGEAR BG-B20SHA 20X Zoom Box Camera - Full Overview and Setup!
BZBGEAR BG-B20SHA Full HD Live Video Streaming Camera via HDMI/3G-SDI/IP and Audio Support
BZBGEAR BG-B20SHA Full HD Live Video Streaming Camera via HDMI/3G-SDI/IP and Audio Support

Mounting Ideas

Click the image below to watch a video

Tech Specifications

Camera Specs
Sensor 1/2.8″ Exmor CMOS Sensor, 2.38MP
Frame Rate 1080p@60Hz/50/30/25, 1080i@60Hz/50/30/25, 720p@60Hz/50
Zoom 20X/30X Optical, 12X Digital Zoom
Focus f=4.7mm-94.0mm
Aperture F=1.6(W)-3.5(T)
Horizontal Field of View 2.9°(T)-65°(W)
Zoom Control VISCA, PELCO D/P
Input/Output Interface
Video Output 3G-SDI / HDMI / IP Streaming
Audio Input 3.5mm Stereo Mini
Power On JEITA type (DC IN 12V)
Communication interface RS485 / RS232
Generic
Dimensions (W x H x L) 2.8 x 2.8 x 4.8in [70 x 70 x 122mm]
Weight 0.44 lbs [0.2kg]
Operating Temperature -10°C ~ 50°C
Max Consumption 12W  DC12V @1A
Working Environment Indoor Only

PACKAGE CONTENTS

  • 1x BG-BSHA Camera
  • 1x User Manual
  • 1x 12V/ 2.0 A DC Power Adapter
  • 1x Power Cable

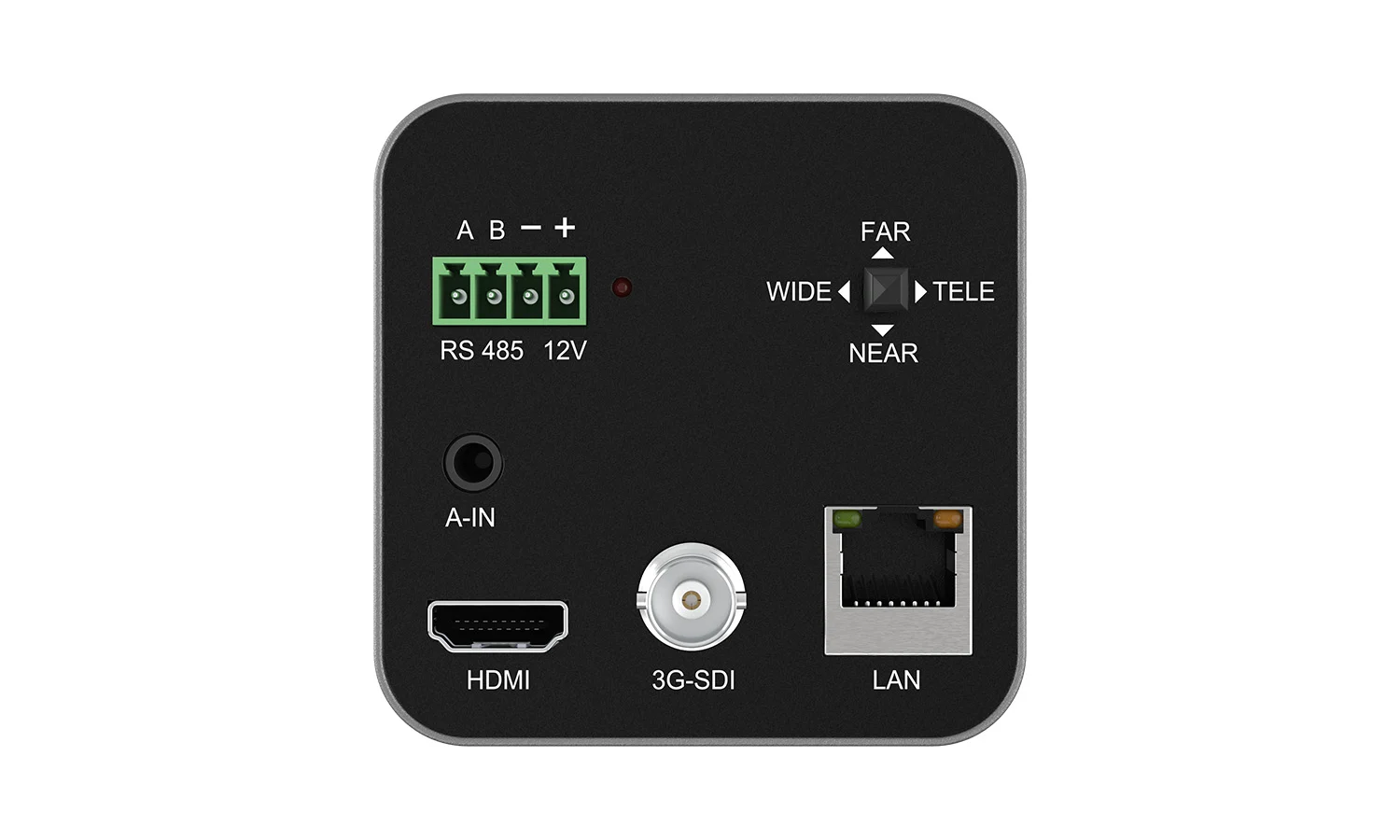

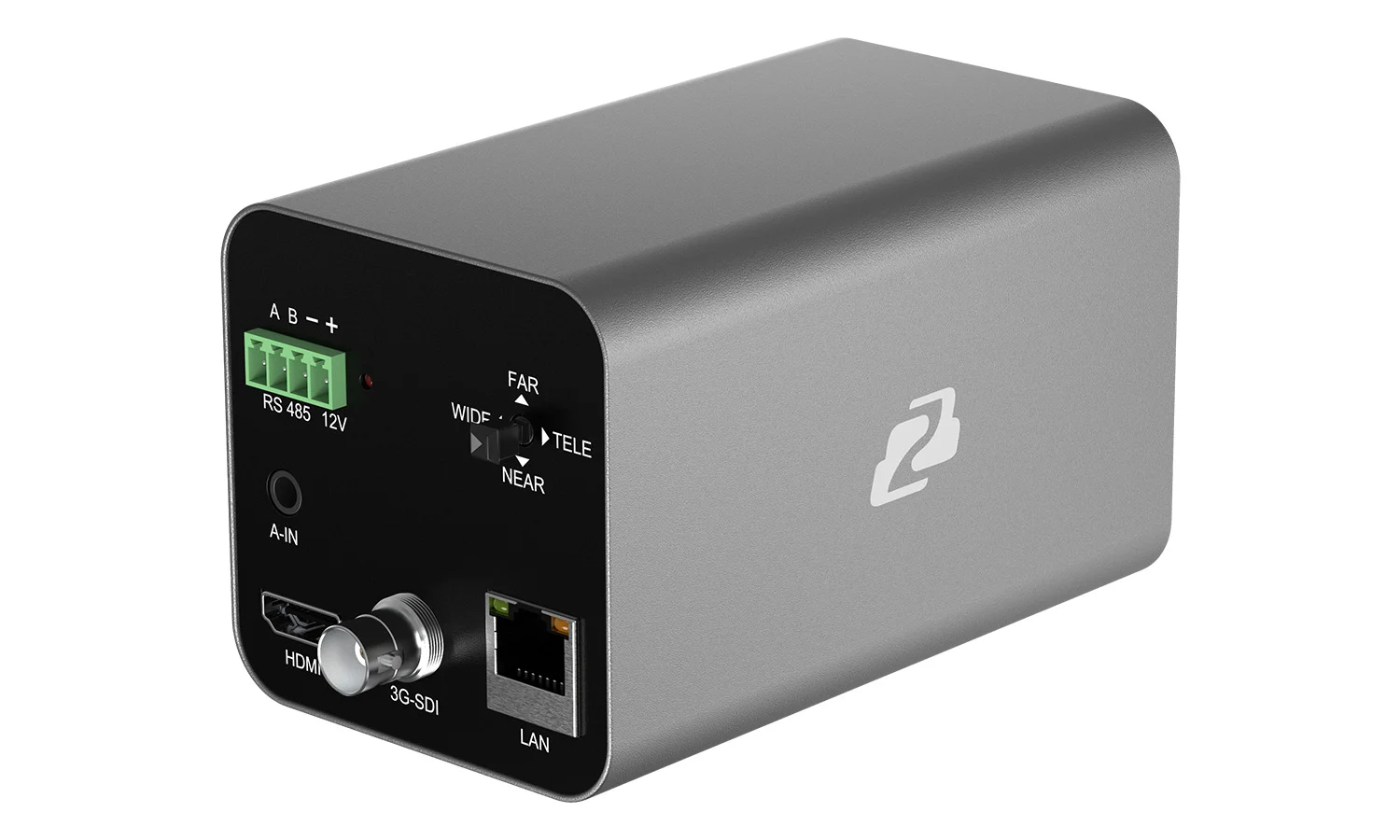

Interfaces

Interfaces image
  1. RS-485: Connect RS-485 to control the camera with a joystick controller or control software.
  2. Audio In: Stereo audio input for connecting mics and embedding local audio into all video output interfaces.
  3. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080@60Hz.
  4. SDI: Connect to an SDI device such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) up to 330ft away over SDI cabling.
  5. Power: Connect supplied 12V power adapter.
  6. LAN: Connect to a network switch via category cable to supply power (PoE), control and stream (TCP/IP or webGUI).
  7. Button: Push this button towards Wide or Tele to zoom in or zoom out. Push towards Far or Near to adjust manual focus.
