1080P FHD 20X/30X Zoom HDMI/SDI/IP/NDI|HX Streaming Box Camera with Audio Input

Configure the Perfect Solution
Get Started

Overview

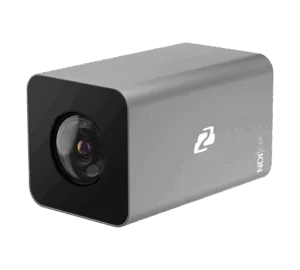

The BG-B20SHAN/BG-B30SHAN 20X/30X optical zoom IP-streaming camera utilizes a high-quality CMOS sensor to deliver crisp HD video signals. Its compact design provides versatile placement options and ease-of-use in a sleek low-profile housing. This camera is well-suited for a wide variety of broadcast and professional A/V applications including lecture streaming, education, room monitoring, studios, and more.

With a 1/2.8” Sony CMOS sensor, the BG-BSHAN series provides crystal clear imaging at resolutions up to 1080p@60Hz. The 20X/30X optical zoom lens allows the camera to capture tight close-ups, even at a distance.

The BG-BSHAN series features simultaneous 3G-SDI, HDMI, and IP streaming outputs. By utilizing the 3.5mm audio input, audio can be embedded into your livestreams and recordings with ease.

WHAT IS NDI AND NDI|HX2?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth, and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a 'cleaner' implementation than HX1 and can potentially be more reliable, provide lower latency, and give a more flexible connection that shares all the usual features of NDI.

NDI Toolkit

The NDI toolkit provides a collection of tools and plugins for NDI (Network Device Interface) video and audio streams. It includes tools for monitoring and displaying NDI video sources, sending test patterns for connectivity and calibration, analyzing network performance, routing NDI sources, integrating audio through plugins, facilitating secure remote connections, extending NDI streams beyond local networks, and offering a comprehensive suite for setup, testing, and management of NDI streams in diverse workflows.

Learn more about NDI technology

Connectivity and Control

The BG-BSHAN series boasts support for a range of streaming protocols and compression formats, including ONVIF, RTSP, RTMP, and SRT. This empowers users with the capability to seamlessly stream content to platforms such as Facebook and YouTube. This array of outputs adds a remarkable level of versatility, making the BG-BSHAN series exceptionally adaptable for integration into diverse workflows.

Tailored for deployment in remote settings, the BG-BSHAN series offers operational control through both serial (RS485) and Ethernet interfaces. Accompanied by a user-friendly web interface, a comprehensive suite of image adjustment functionalities is at your fingertips. Compatibility is further enhanced through support for PELCO-D, PELCO-P, VISCA, and IP-VISCA protocols, ensuring seamless integration with compatible joystick controllers.

Enhanced Positioning Flexibility

With its compact design and an array of versatile mounting choices, the BG-BSHAN offers increased flexibility when it comes to configuring and positioning your setup. This guarantees optimal shot capture and seamless adaptation to various streaming scenarios.



Features

  • badge-Full-hd | 1080P HD
    Crystal Clear Images
    Full HD outputs delivers up to 1080p@60Hz video
  • ndi 1
    NDI
    Power, stream, and control all from 1 CAT 5e/6/7 cable
  • zoomfeatures
    Zoom
    20X/30X Optical Zoom Lens
  • fluent_slide-microphone-32-regular
    External Audio Input
    Add a microphone or other audio source
  • mounts-icon
    Versatile
    Set the perfect shooting angle in Lecture halls, studios, surveillance and more
  • fluent_zoom-fit-24-filled
    Multiple Control Protocols
    Supports ONVIF, PELCO-D, PELCO-P, VISCA
  • Multiple output resolutions available
  • RS-485 & RS-232 serial control options
  • On screen display menu
  • PoE capable for single cable installations
  • 2D / 3D noise reduction
  • H.265/H.264 encoding
  • Newly developed digital signal processor
  • Small form factor for tight installations
  • Auto white balance, iris, and focus options
BG-BSHA-1-features

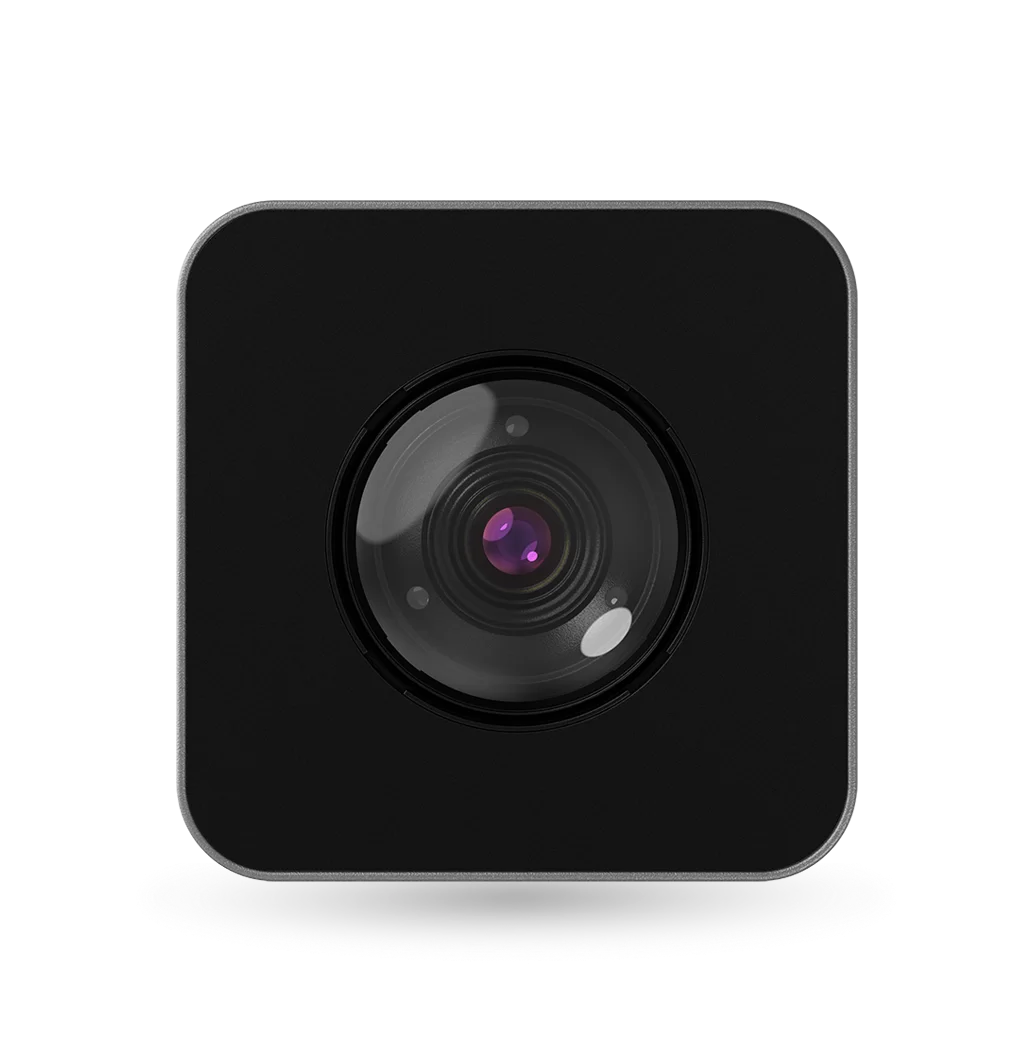

Powerful 20X/30X Optical Zoom

Enhanced with a 20X/30X optical zoom lens, this camera empowers you to capture stunning mid-range to close-up shots while maintaining impeccable video quality.

BG-BSHAN-2-features

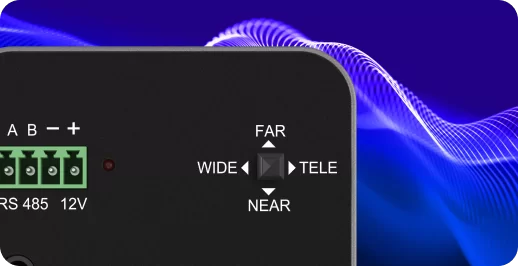

Set Up and Adjust Zoom Levels On the Fly

Effortlessly control zoom levels and focus with convenient buttons located on the camera's rear, facilitating seamless adjustments during live setups or spontaneous shooting sessions.

Audio Embedding

Elevate your livestreams by seamlessly integrating external audio through the dedicated audio input port.

Power Over Ethernet

Streamline your setup process and reduce cable clutter with Power Over Ethernet (PoE) functionality, allowing for simultaneous power and network connectivity through a single ethernet connection.

Video Output Options

Choose from a variety of video output options, including direct HDMI or SDI output, or opt for simultaneous output via HDMI, SDI, and IP ports to suit your specific broadcasting needs.

BG-BSHAN-3-features

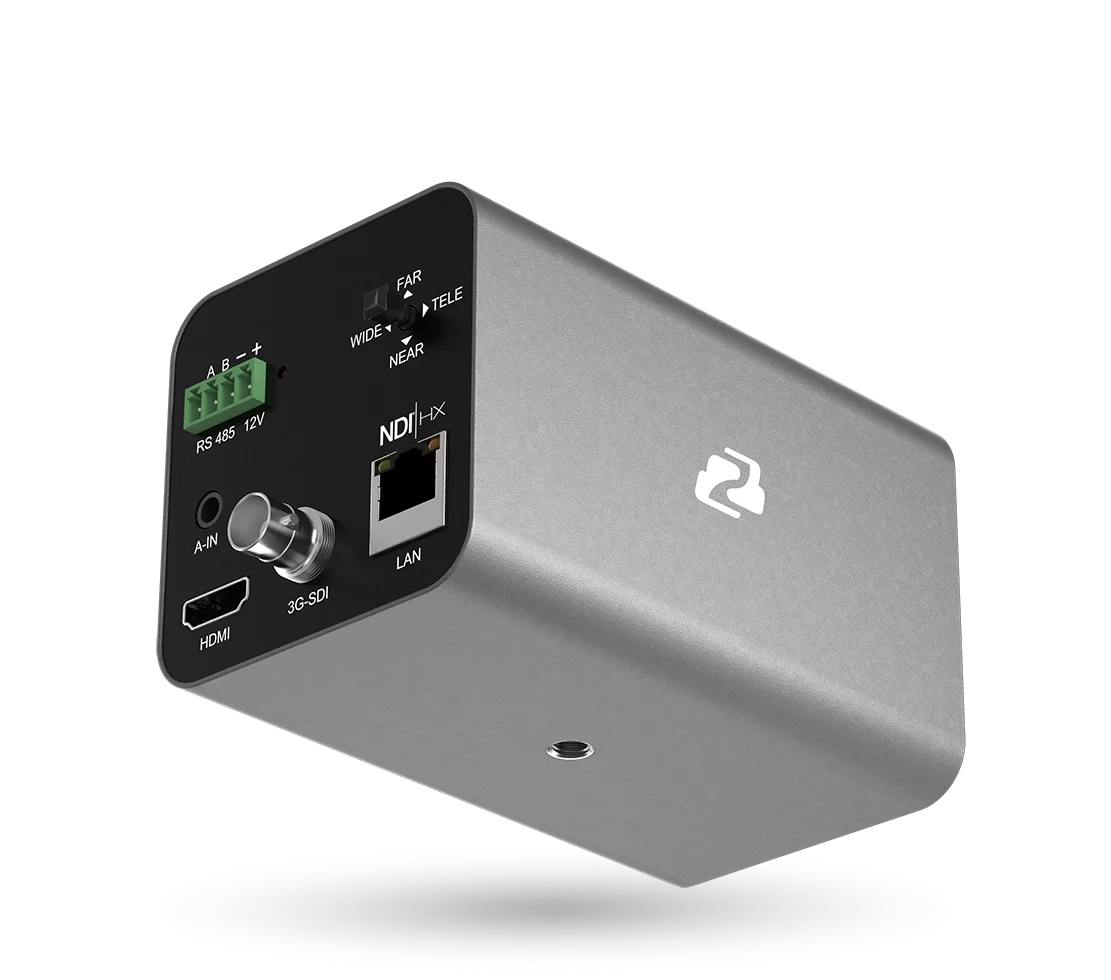

Secure and Intuitive Mounting

Enjoy secure and hassle-free mounting options with the built-in mounting panel, enabling versatile placement on tripods, walls, desks, and more.

Videos

BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom
BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom
How to Livestream on YouTube with BZBGEAR BG-B20SHA 20X Zoom Box Camera - Full Overview and Setup!
How to Livestream on YouTube with BZBGEAR BG-B20SHA 20X Zoom Box Camera - Full Overview and Setup!
BZBGEAR BG-B20SHA Full HD Live Video Streaming Camera via HDMI/3G-SDI/IP and Audio Support
BZBGEAR BG-B20SHA Full HD Live Video Streaming Camera via HDMI/3G-SDI/IP and Audio Support

Mounting Ideas

Click the image below to watch a video

Tech Specifications

  BG-B20SHAN BG-B30SHAN
Camera Specs
Sensor 1/2.8″ Exmor CMOS Sensor, 2.38MP
Zoom 20X Optical, 12X Digital Zoom 30X Optical, 12X Digital Zoom
Focus f=4.7mm-94.0mm f=5.2mm-148.4mm
Aperture F=1.6(W)-3.5(T) F=1.3(W)-4.8(T)
Horizontal Field of View 2.9°(T)-60.2°(W) 2.9°(T)-65°(W)
Frame Rate 1080p@60Hz/50/30/25, 1080i@60Hz/50/30/25, 720p@60Hz/50
Zoom Control VISCA, PELCO D/P
Input/Output Interface
Video Output 3G-SDI / HDMI / IP Streaming / NDI丨HX
Audio Input 3.5mm Stereo Mini
Power On JEITA type (DC IN 12V)
Communication interface RS485 / RS232
Generic
Dimensions (W x H x L) 2.8 x 2.8 x 4.8in [70 x 70 x 122mm]
Weight 0.44 lbs [0.2kg]
Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
Max Comsunption 12W  DC12V @1A
Working Environment Indoor Only

PACKAGE CONTENTS

  • 1x BG-BSHAN Camera
  • 1x User Manual
  • 1x 12V/ 2.0 A DC Power Adapter
  • 1x Power Cable

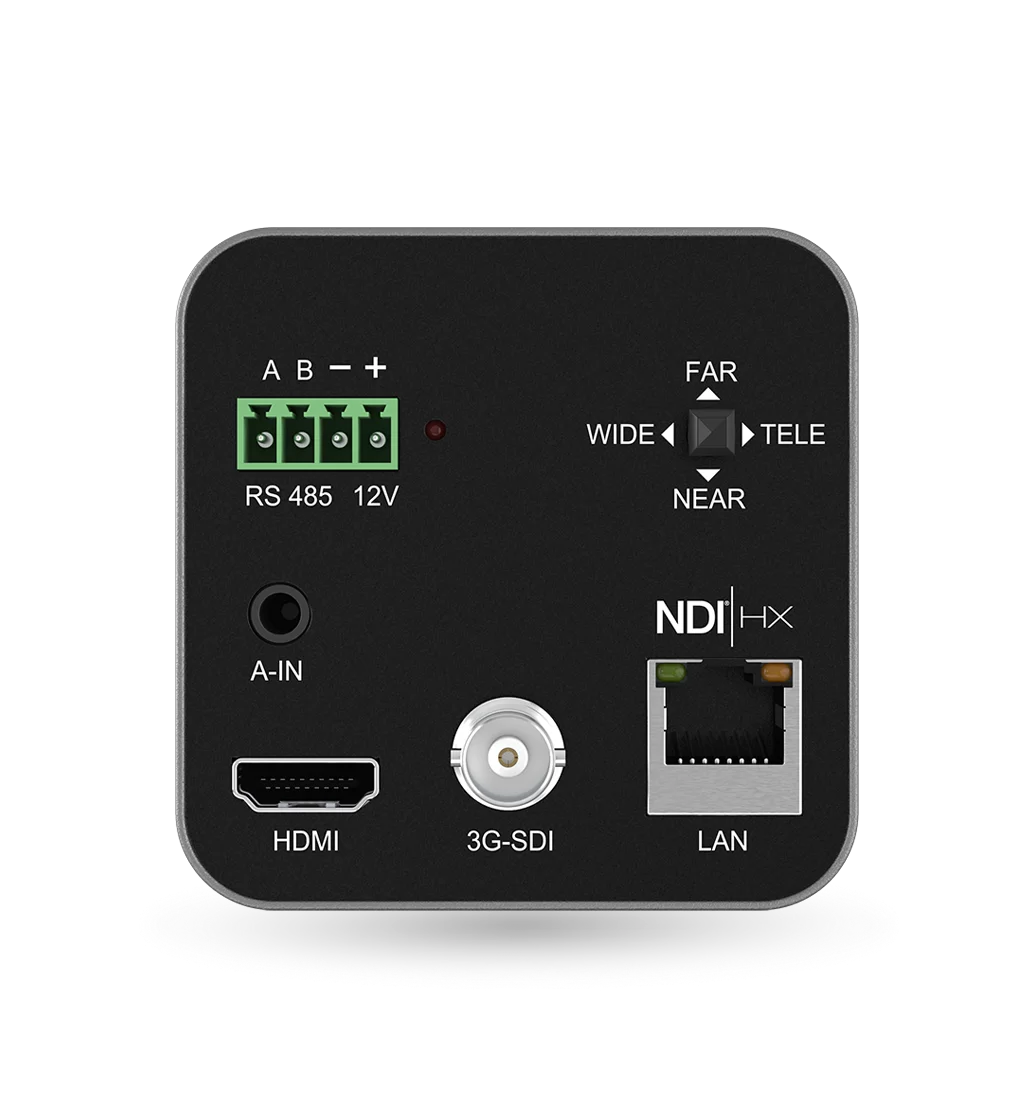

Interfaces

Interfaces image
  1. RS-485: Connect RS-485 to control the camera with a joystick controller or control software.
  2. Audio In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
  3. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
  4. SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080p@60Hz) over SDI cabling.
  5. Power: Connect supplied 12V power adapter.
  6. NDI|HX: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream (NDI|HX).
  7. Button: Push this button towards Wide or Tele to zoom in or zoom out. Push towards Far or Near to adjust manual focus.
