Overview

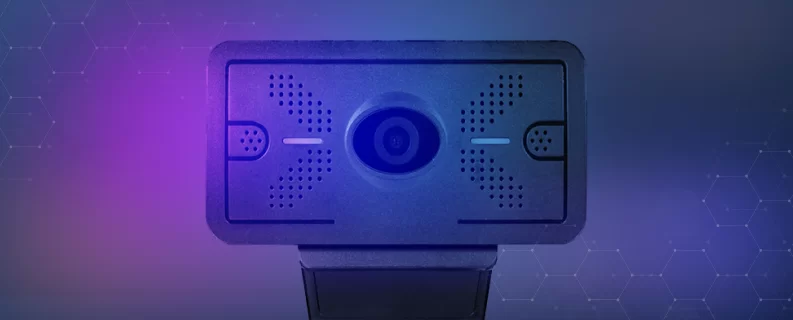

The BG-BWEB-S USB webcam utilizes a 1/2.8", 2.07MP high-quality CMOS sensor to deliver resolutions up to 1080p30Hz with a 10X digital zoom to help capture your ideal image.
The integrated omnidirectional high-sensitivity microphone has a pickup distance of up to 10 feet. This webcam also utilizes auto gain and auto noise reduction functions to provide clear and natural stereo sound while supporting AAC, MP3, and PCM audio encoding.
Simply connect and power the webcam with the included USB 2.0 cable to your computer and you're ready to go for your next video or web conference. The mounting system allows for the unit to be mounted to a TV or monitor, a wall bracket, or directly on your desk.
The 88° viewing angle, and low-noise design, not only ensure a wide field of view but also a high signal-to-noise ratio for broadcast-quality video as well. With all these incredible features, the simple and easy-to-use BG-BWEB-S USB webcam provides everything you need for your next web production or event.
Features
- Low noise & high SNR
- H.264/H.265 and MJPEG video compression
- Easily mount to monitor/desk
- 10X digital zoom helps you get the shot you need
- Built in Mic
- Advanced focus technology
- Easy USB 2.0 plug and play capability
- Supports AAC, MP3 and PCM audio encoding
- 88°(D) /80°(H)/ 50°(V) viewing angle
Videos
Tech Specifications
| Camera Parameters | |
| Sensor | 1/2.8" high quality HD CMOS sensor |
| Effective Pixels | 16:9 2.07MP |
| Video Format | 960x540 / 320x180 / 432x240 / 640x360 / 800x448 / 800x600 / 864x480 960X720 / 1024X576 / 1280X720 / 1600X896 / 1920X1080 / 272X144 / 368X208 / 384X216 / 480X272 / 624X352 / 912X512 / 424X240 / 640X480 / 320X240 / 160X120 / P30 |
| View Angle | BG-BWEB-S 88° (D) / 80° (H) / 50°(V) |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| Aperture | Fixed |
| Backlight contrast | On/off |
| Exposure | Exposure parameter could be adjusted; support auto exposure |
| Video Adjustment | Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, Low brightness compensation, etc. |
| SNR | >50dB |
| Input/Output Interface | |
| Video Interfaces | USB2.0 (power supply, upgrading available) |
| Video Compression Format | H.264, YUV, MJPEG |
| Audio Input Interface | Built in omnidirectional high sensitive digital pickup |
| Other Parameters | |
| Input Voltage | 5V |
| Input Current | 500mA (Max) |
| Power consumption | 2.5W |
| Store Temperature, Humidity | 14°F ~ 140°F / -10°C ~ +60°C, 20%~95% |
| Working Temperature, Humidity | 14°F ~ 122°F / -10°C ~ +50°C, 20%~80% |
| Dimension (WXHXD) | 4.4in x 2.6in x 3.7in [112mm x 65mm x 93mm] |
| Weight (appx.) | 0.55lbs [0.25kg] |
| Working Environment | Indoor Only |
Resources
PACKAGE CONTENTS
- 1x Camera
- 1x User Manual
