USB 3.0 1080P FHD Video Capture Card with HDMI Loop-out & Audio
and engineering support
Overview
The BG-C2HA is an HDMI capture device with input resolutions up to 4K@60Hz. The device can convert this signal to a USB 3.0 output for PC or Mac to use as a video source.
Capture cards are a valuable tool in the arsenal of anyone working with video. With a capture card like the BG-C2HA, applications like Open Broadcaster Software or vMix can recognize any HDMI video input as a video source for recording or streaming. For example, video from a gaming console, a camera or another PC can be recorded using this device.
It features HDMI loop-out port to connect local monitor and 3.5mm stereo audio port to connect external microphone or other audio source to embed into the output video stream.
BG-C2HA is HDCP compliant device and will not capture protected content.
Features
-
1080p/60 SupportCrystal clear image with resolutions up to 1080p@60Hz -
PortableIdeal for recording presentations on the go -
USB Data TransferThe USB 3.0 port transfers data to your connected device at high speeds -
Stereo AudioStereo audio input/output for connecting mics and local audio -
Easy to UseSimple for anyone to learn -
Loop OutConnect a local 4K2K display for pass-through of what is being recorded
- Supports resolution downscaling from 4K2K to 1080P
- Auto-detection for video format ensures plug-play operations
- Recording Video Format: H.264 (Software Compression)
- Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
- Compatible with most 3rd party software such as OBS Studio and AMCap
- Low Latency
Videos
Tech Specifications
| Technical | |
| USB Compliance | 3.0 |
| Max. Data Rate | 350 Mbps |
| Max. Resolution | 1080p@60 |
| Audio Support | 2ch 16bit PCM |
| ESD Protection | 8 KV - Contact Discharge 15KV - Air Discharge |
| Mechanical | |
| Housing Design | Metal |
| Casing Style | Portable |
| Power Connection | Micro-USB Port |
| Power Supply | 5V DC, 2A |
| Power Consumption | 5 watts (Max) |
| Operating Humidity | 20-90% RH (no condensation) |
| Operation temperature | 32~104°F / 0~40°C |
| Product Weight | 0.3 lb [135g] |
| Package Weight | 0.6 lb [270g] |
| Certifications | CE, FCC, RoHS |
Resources
PACKAGE CONTENTS
- 1x BG-C2HA USB 3.0 Full HD Video Capture Device
- 1x USB 3.0 to A Cable (host to device)
- 1x DC 5V Wall Adapter
- 1x User Manual

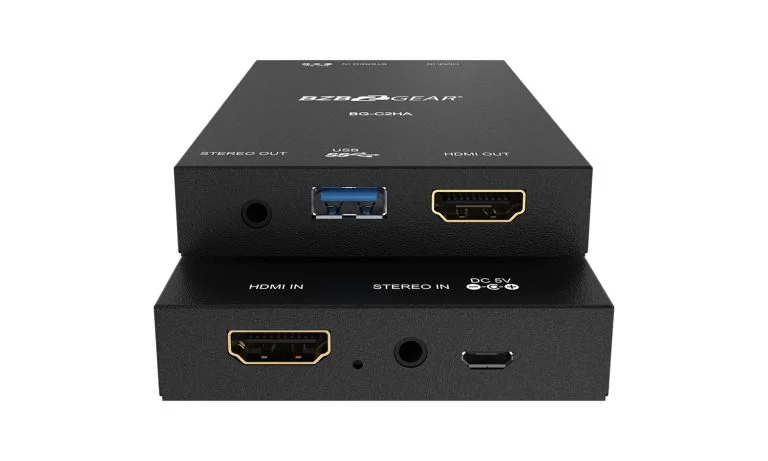

Interfaces
- HDMI IN: Connect to an HDMI source.
- LED INDICATOR: Input signal indicator.
- STEREO AUDIO IN: Embed audio to the HDMI out or USB using a 3.5mm stereo mini cable.
- Micro-USB Port: Connect to the +5V DC power supply unit.

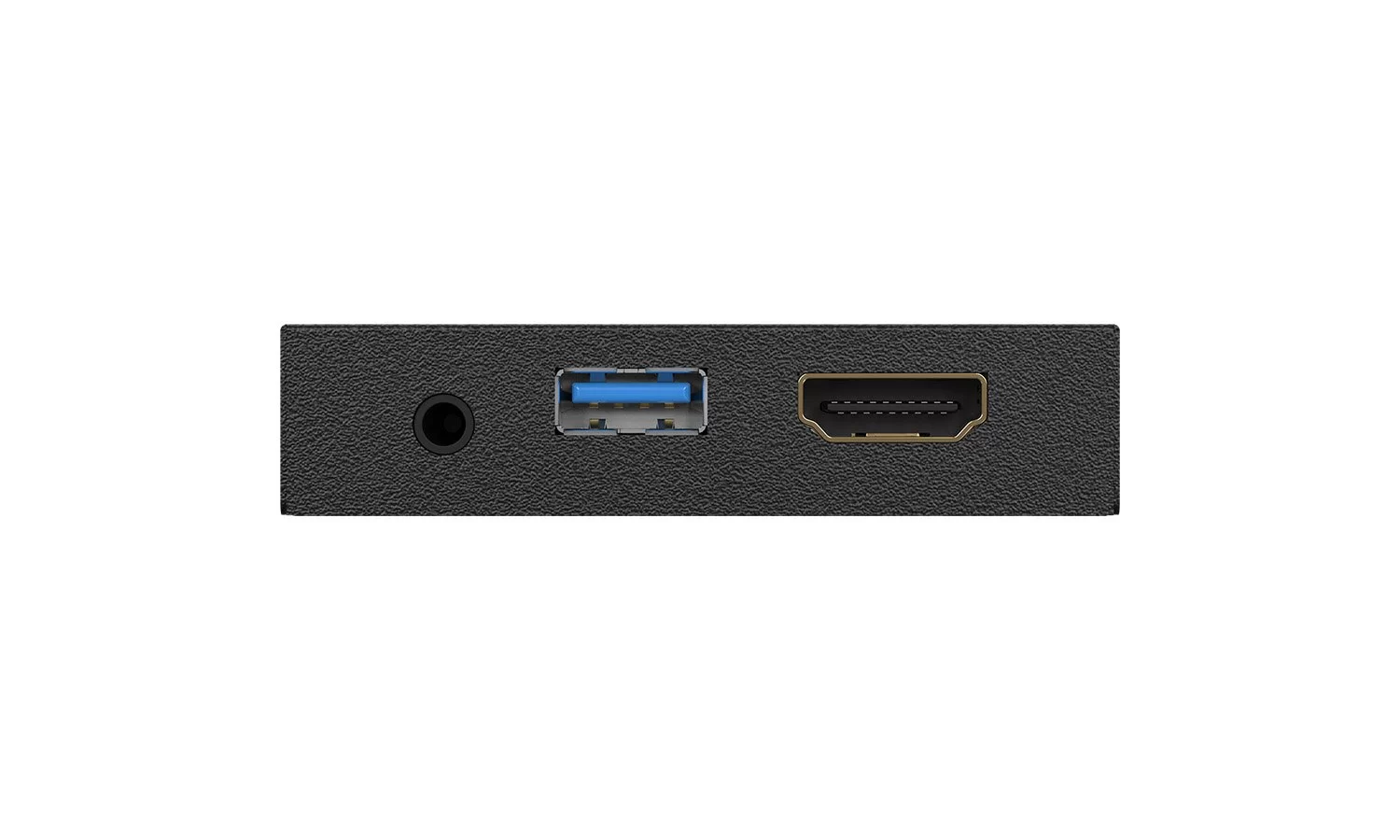

- STEREO AUDIO OUT: Extract audio from HDMI input using a 3.5mm stereo mini cable.
- USB OUT: Connect to a USB host device such as a PC, laptop, or MAC.
- HDMI LOOPOUT: Connect to a HDMI display.
