Wide Angle Fixed Lens 4K Ultra HD Conference Room USB Camera

Configure the Perfect Solution
Get Started

Overview

This super wide-angle Pan, Tilt, and fixed zoom camera has a field of view of 138° with no video distortion. With an eight-megapixel full glass fixed lens, the BG-CAM-USB4K can achieve resolutions up to 4K@30Hz. With superior imaging and simple controls, the BG-CAM-USB4K offers a great deal of performance. With its outstanding viewing angle this camera is able to capture an entire meeting space in crystal clear 4K detail. Flexible control options make this device a great choice for any installation.

Connectivity & Performance

The BG-CAM-USB4K has USB 3.0 plug and play connectivity, making it a great choice for use with video conferencing apps like Skype, Zoom, Google Meet, and more. To achieve its high-quality resolution of 4K@30Hz at fixed focus, this camera utilizes a 1/2.1” HD Color 8.29MP CMOS sensor. This camera utilizes a step drive motor mechanism and precision motor drive controller to ensure that PTZ functions work smoothly and quietly to avoid being disruptive. H.264, H.265, and MJPEG video compression options are also supported by this camera.

Control

There are several control options available for the BG-CAM-USB4K, including the IR remote, RS-232, and RS-485 (VISCA, Pelco-D/P) serial control. There are 255 preset positions available with the camera, nine of which are available to operators when using the IR remote control. Plug and play connectivity makes this camera easy to use with a laptop, desktop, or other device on Windows, MacOS and Linux for use with video conferencing software.

The BG-CAM-USB4K can be mounted to a ceiling, tripod, or on a flat surface, providing multiple installation options.

Features

  • fluent_zoom-fit-24-filled
    Control
    IR and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
  • ph_cube-focus-fill
    Superb Auto Focus
    Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • bi_badge-4k
    Crystal Clear Image
    4K30Hz max resolution
  • mounts-icon
    Versatile
    Can be mounted to wall, ceiling, or tripod
  • bi_usb-symbol
    USB Output
    Fast and Simple setup
  • fluent_sound-wave-circle-20-regular
    Extremely Quiet PT
    Step drive motor mechanism and precision motor drive controller ensure PT works smoothly with no noise
  • Fixed focus pan & tilt camera
  • 2D / 3D noise reduction switch
  • Plug & play USB connectivity
  • Full glass lens
  • 9 presets via IR remote (255 via RS232)
  • Smooth and silent PT movement
  • 138° wide FOV with no video distortion
  • 1/2.1" high quality, 8.29MP CMOS
  • Supports ceiling, wall, and tripod mounts

Compatible with:

Tech Specifications

Image Sensor 1/2.1" HD Color CMOS
Effective pixel 8.29MP (16:9)
Horizontal Resolution 4K (3840x2160), 2K (2560x1080), 1080p (1920x1080)
Signal standard NTSC/PAL
Zoom Fixed focus
Minimum luminance 0.5Lux at F2.0
Focal length F=2.1mm
Horizontal Angle 138°
Gain control Auto
Focus Auto
White balance Auto
SNR ratio ≥50dB
Shutter speed 8 to 1/10000s (auto)
Preset position IR remote control supports 9 presets, PELCO Protocol supports 256 presets
Pan/Tilt movement range Pan: ±175° (max speed 100° /S), Tilt: -35° ~﹢55° (max speed 80° /S)
Control terminal USB, RS-232, RS485
Control Protocol VISCA, PELCO-D, PELCO-P (RS-232, RS485)
Video output USB 3.0
Video Compression Format YUV, MJPG, H.264
Noise Reduction 2D/3D
Work temperature 14°F ~ 122°F / -10°C ~ 50°C
Storage temperature -4°F ~ 140°F / -20°C ~ 60°C
Baud rate 38400/9600bps
Decoder Built-in
Address set 1~256
Installation Support desktop, Tripod, Wall mount and Ceiling mount
Power supply DC12V/2A
Power consumption 12W
Net weight/Gross weight 3.3lbs / 6.3lbs [1.5kg / 2.85kg]
Dimension (LxWxH) 10.2 x 6.9 x 7.1in / 12 x 10 x 8.6in
260 x 175 x 180mm / 296 x 255 x 218mm (before / after packing)
Working Environment Indoor Only

PACKAGE CONTENTS

  • 1x BG-CAM-USB4K Camera
  • 1x DC 12V Power Adaptor
  • 1x IR Remote Control
  • 1x USB 3.0 Cable
  • 1x User Manual

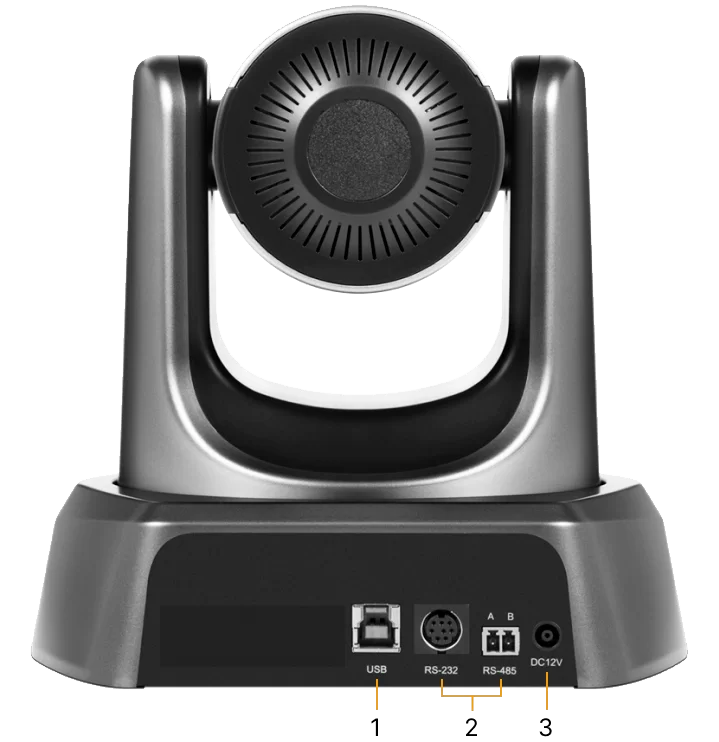

Interfaces

Interfaces image
  1. USB: Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080P@30Hz.
  2. RS-232, RS-485: Connect RS-232 or RS-485 to control the camera with a joystick controller or control software.
  3. Power: Connect supplied 12V power adapter.
