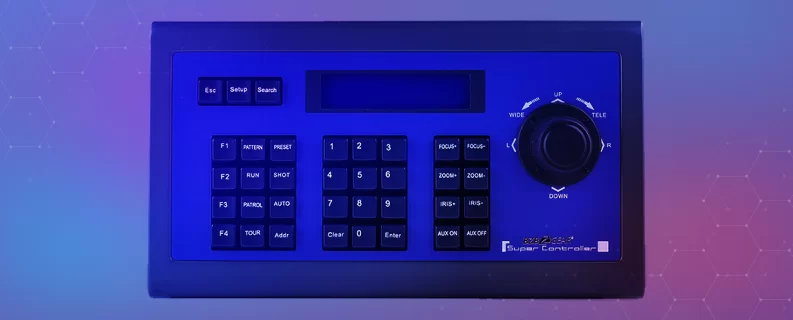

Basic Serial PTZ Joystick Controller (RS-232/422/485)

ProGear
Discontinued
BG-CJ-RS_2-1 BG-CJ-RS_1-1 BG-CJ-RS_3-1

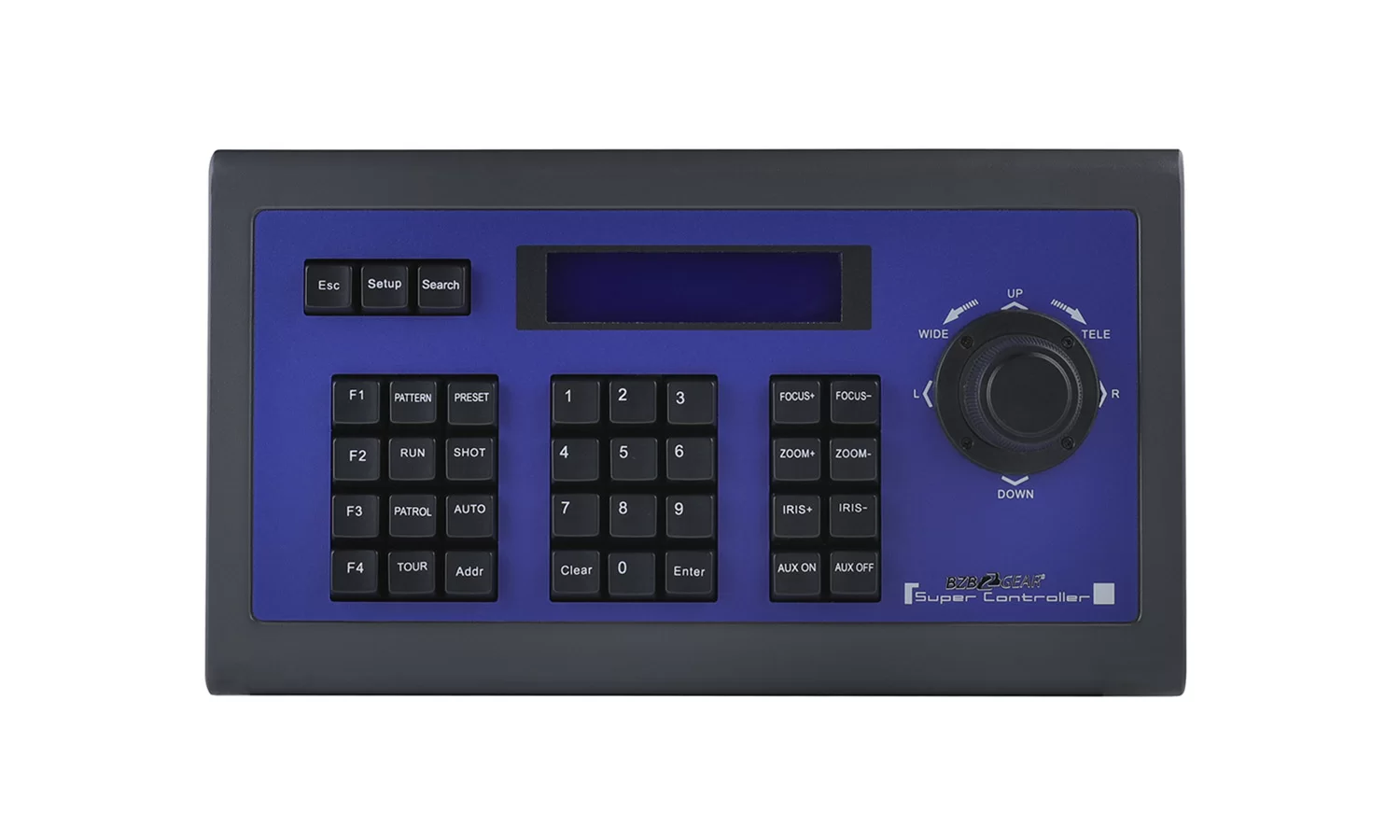

BG-CJ-RS_2-1

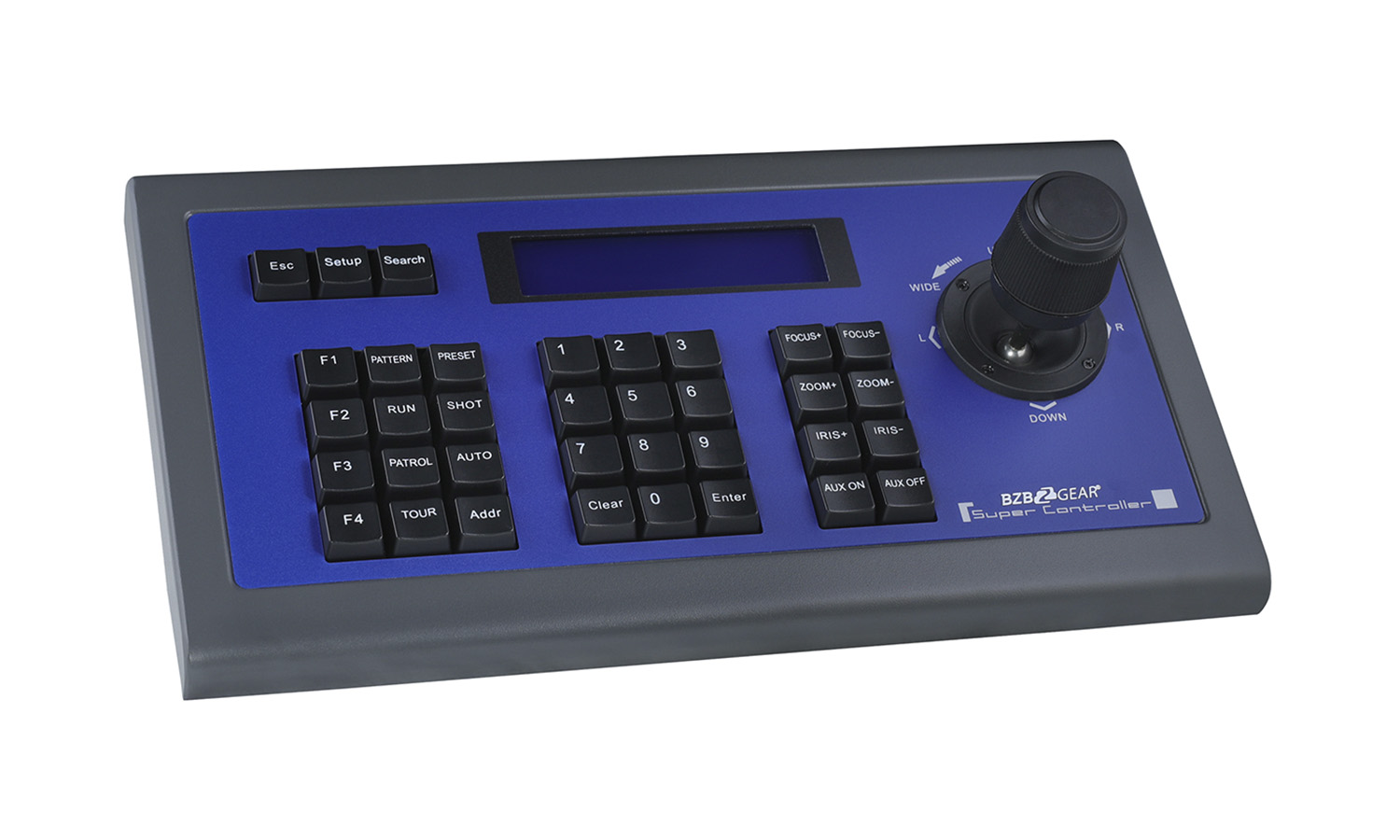

BG-CJ-RS_1-1
BG-CJ-RS_3-1
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents

Overview

This universal serial joystick controller is an excellent choice for users requiring simple, accurate, and reliable serial control for PTZ cameras. With support for VISCA, Pelco-P, and Pelco-D protocols, the BG-CJ-RS is compatible with most PTZ cameras on the market.

Precise Control

The high-quality joystick of the BG-CJ-RS provides accurate PTZ control for live events and video productions. The BG-CJ-RS can control up to 255 cameras and supports up to 255 camera presets. Fine tuning to the image is made easy with manual focus and iris settings.

The high-contrast LCD screen provides access to menu settings for quick and easy setup. The BG-CJ-RS offers a high degree of versatility with support for RS485, RS422, and RS232.

Features

  • iconoir_pc-check
    Easy to Use
    Simple for anyone to learn
  • fluent-mdl2_modeling-view
    Flexible
    Store and recall up to 46 camera presets!
  • ion_hardware-chip-outline
    Powerful
    Control up to 255 cameras via Pelco-D/P
  • material-symbols_settings-input-component
    Stable
    Proven reliability of serial controls
  • material-symbols_safety-check
    High Quality Construction
    Designed to handle years of use
  • LCD Display
    LCD Display
    Review your settings at a glance
  • Manually control focus and iris (VISCA only), or speed
  • 3D joystick with twist control for zoom
  • Designed for SONY VISCA and PELCO-P/D compatible PTZ cameras
  • Multiple communication modes: RS485, RS422, RS232
  • Set the address code of cameras independently
  • Short circuit and overcurrent protections

Videos

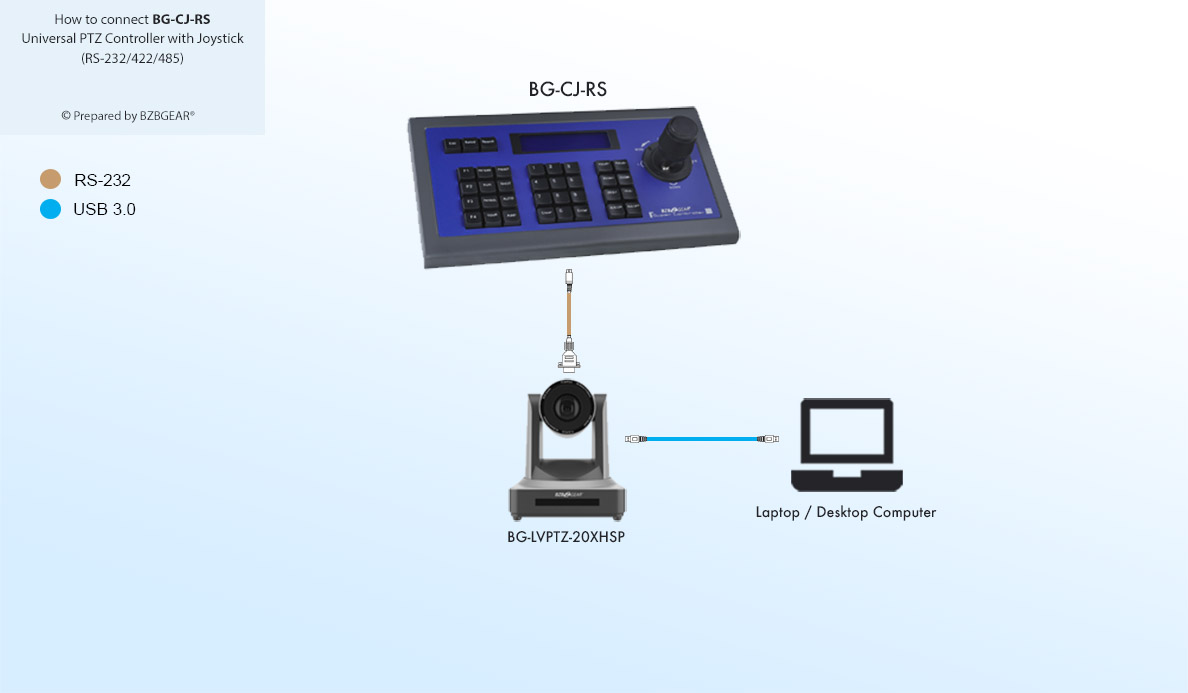

How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How to Choose the Ideal IP PTZ Camera System for Any Live Event
How to Choose the Ideal IP PTZ Camera System for Any Live Event

Tech Specifications

Protocol Pelco-D, Pelco-P, VISCA
Baud rate(bps) 1200bps, 2400bps, 4800bps, 9600bps, 19200bps
Control Address Control 255pcs PTZ at the most, address code: 0-254
Communication Mode RS485 half-duplex, RS422 full-duplex, RS232 serial port
10M internet (select to order), USB (select to order)
Communication Range RS485, RS422: 1200m, RS232: 10m
Cascade connection number 16 sub-control at most, controller ID:0-15
Joystick 3D (control: up, down, left, right, zoom)
Interface Mode 10PIN  pressing line port, DB9 connector
Display Blue LCD
Warning Tone Key-touch beep on/off
Power Supply DC12V±10%
Power Consumption 6W MAX
Working Temperature 32°F - 122°F / 0°C - 50°C
Store Temperature -4°F - 158°F / -20°C - 70°C
Dimension (L x W x H) 13 x 7.1 x 4.3in [320 x 179.3 x 109.9mm]
Weight 6.17 lbs [2.8 Kg]

PACKAGE CONTENTS

  • BG-CJ-RS Universal Controller Joystick
  • Power Supply
  • User Manual

Interfaces

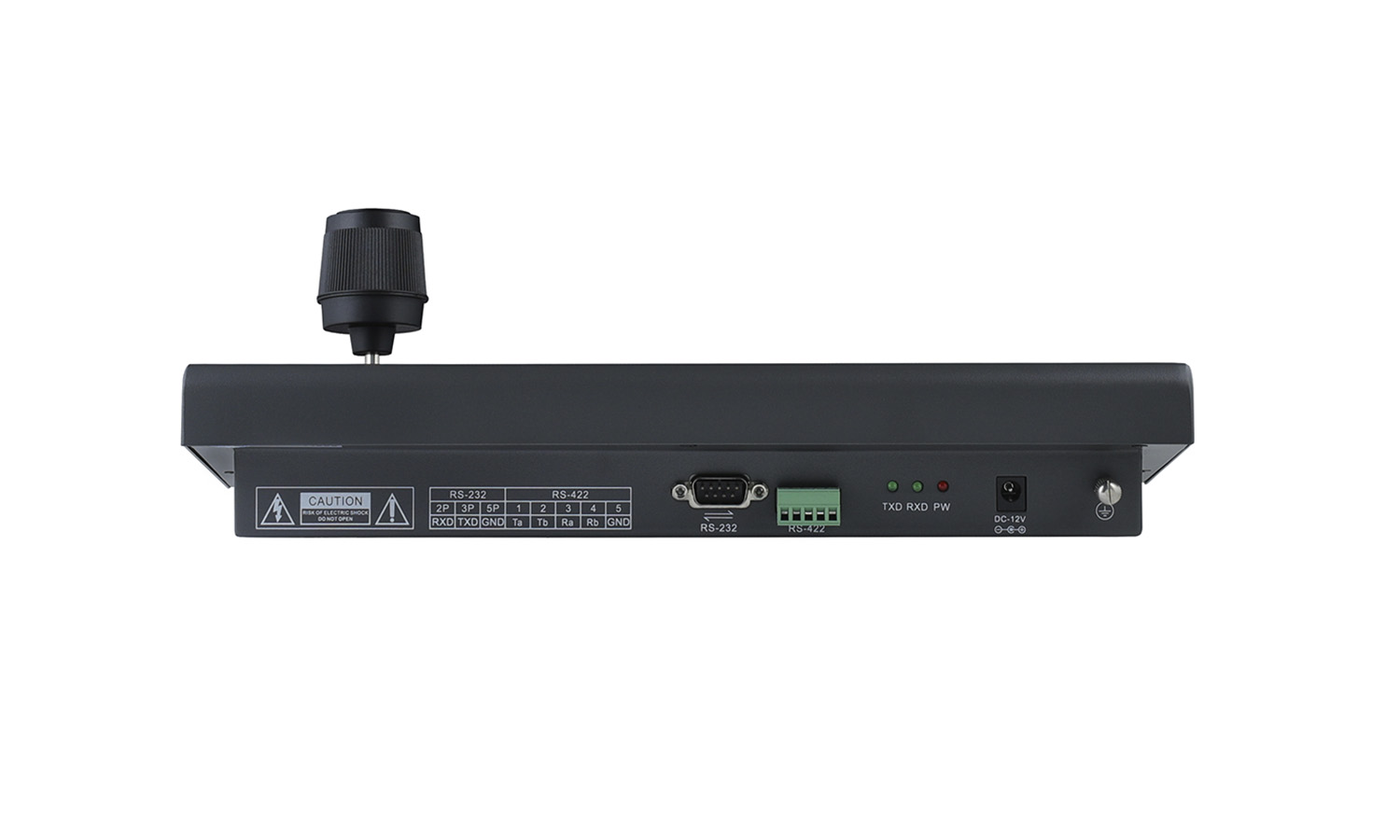

Interfaces image

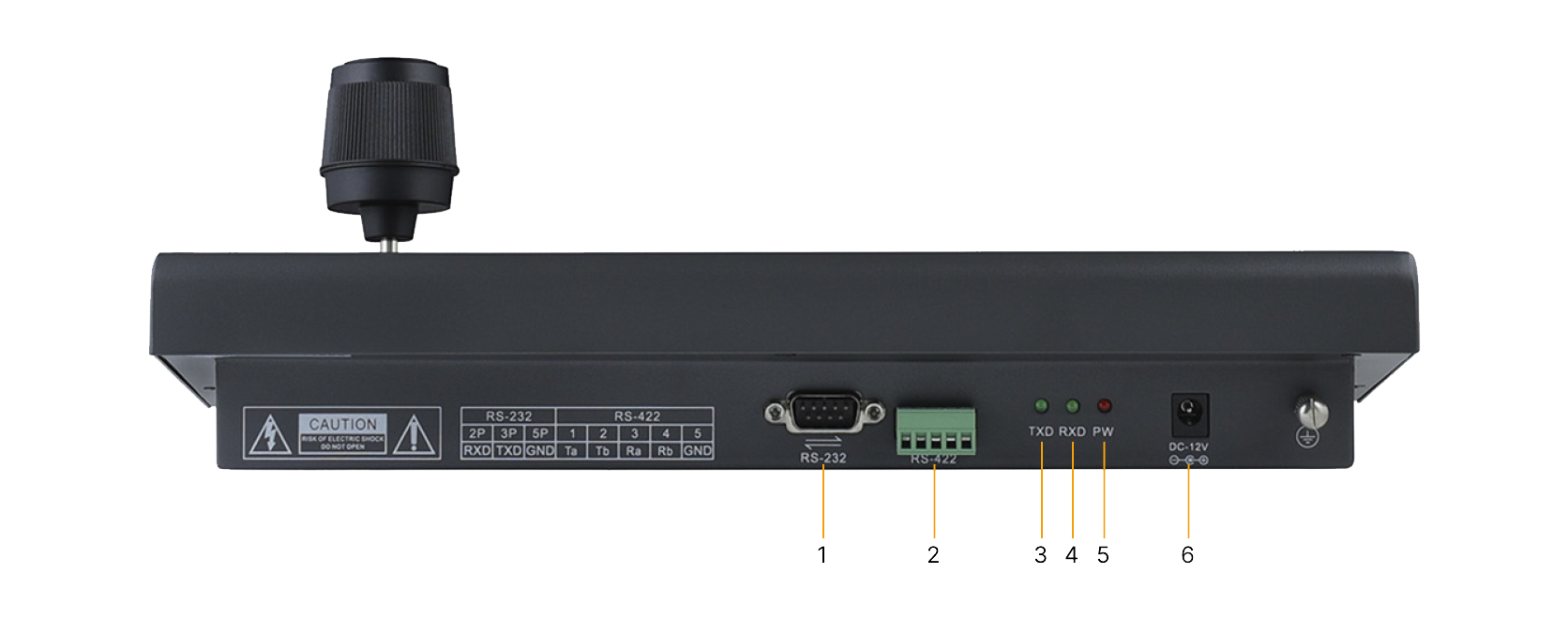

  1. RS-232: Use RS-232 to 8-pin Mini-DIN cable to connect 1st camera and Mini-DIN visca cables for cascadable connections.
  2. RS-422: Use RS-422 port to control your cameras over long distances up to 328ft.
  3. TXD Indicator: Flashes green when the unit is transmitting commands.
  4. RXD Indicator: Flashes green when the unit is receiving responses.
  5. PW Indicator: Illuminates Red when the unit is powered.
  6. Power: Connect supplied 12V power adapter.
