Overview
Introducing the BG-CJ-IPRSPRO, the professional-grade network camera controller that provides seamless compatibility with a variety of IP-capable cameras. Its versatility means that it is the go-to choice for recording studios, live production teams, and houses of worship who demand the highest level of reliability and ease of use in their camera control equipment.
Compatibility is key, and the BG-CJ-IPRSPRO supports a range of protocols, including IP VISCA, ONVIF, VISCA, SONY VISCA, and PELCO P/D, ensuring compatibility with any camera that is compatible with IP or serial control. With the ability to control up to seven cameras, this controller is a perfect fit for any existing ecosystem without requiring operators to go on the hunt for compatible cameras.
The BG-CJ-IPRSPRO supports four control modes, including two IP modes (IP VISCA and ONVIF) and two analog modes (RS-422 and RS-232). The OLED display provides clear visual feedback for operators, making it easy to adjust parameters and add cameras during setup. Up to 46 camera presets can be selected, ensuring that operators have complete control over their cameras.
Push buttons are available for features such as auto focus, auto exposure, and auto white balance, while knobs provide manual control over focus, red/blue gain, and IRIS. Color adjustments can be made with the Color Gain and Color Hue buttons, giving operators the ability to tweak their cameras to perfection. The keypad can also dim when not in use, adjusting to ambient light levels for ease of use and to save power.
Most importantly, the BG-CJ-IPRSPRO is designed with ease of use in mind, making it easy for anyone to learn. Operators will spend less time training and more time capturing the moments that matter most to audiences and organizations. With its professional-grade reliability and ease of use, the BG-CJ-IPRSPRO is the perfect choice for any camera control setup.
Features
-
Easy to UseSimple for anyone to learn -
FlexibleStore and recall up to 46 camera presets! -
Quick SelectFast and easy camera selection -
StableProven reliability of RS232/422/485 -
High Quality ConstructionDesigned to handle years of use -
OLED DisplayReview your settings at a glance
- Control up to 7 compatible IP cameras
- IP VISCA, ONVIF, RS232/422/485 control modes
- Logical button layout for a quick workflow
- Integrated OLED display
- Adjust PTZ speed for the perfect transition
- Keypad dims without use and adjusts to ambient light
Videos
Tech Specifications
| Communication | RS485, RS42, RS23, IP (VISCA OVER IP) & Micro USB (Upgrade) |
| Baud Rate | 2400, 4800, 9600, 19200, 38400bps |
| Display | OLED Display Screen |
| CAM Short key Channel | 7 |
| Rotation Button | 3 |
| Joystick | 1 |
| IP Address | default IP: 192.168.1.162 /163 /164 /165 /166 /167 /168 (from CAM 1 to CAM 7) |
| UDP Port | 08090 |
| Cam ID | 1~7, Others (Max 255) |
| Control Protocol | VISCA, SONY VISCA, PELCO P/D, UDP, IP (VISCA OVER IP) |
| Power adapter | Input AC100V ~ 240V Output DC 12V/2A |
| Voltage | DC 12V |
| Power consumption | 24W |
| Working Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Dimensions (LxWxH) | 13.8 x 6.8 x 3.9 in [350 x 173 x 99 mm] |
| Weight | 5.5 lbs [2.49 kg] |
| Using Environment | Indoor |
Resources
PACKAGE CONTENTS
- 1x BG-CJ-IPRSPRO Controller Joystick Gen2
- 1x Power Supply
- 1x User Manual

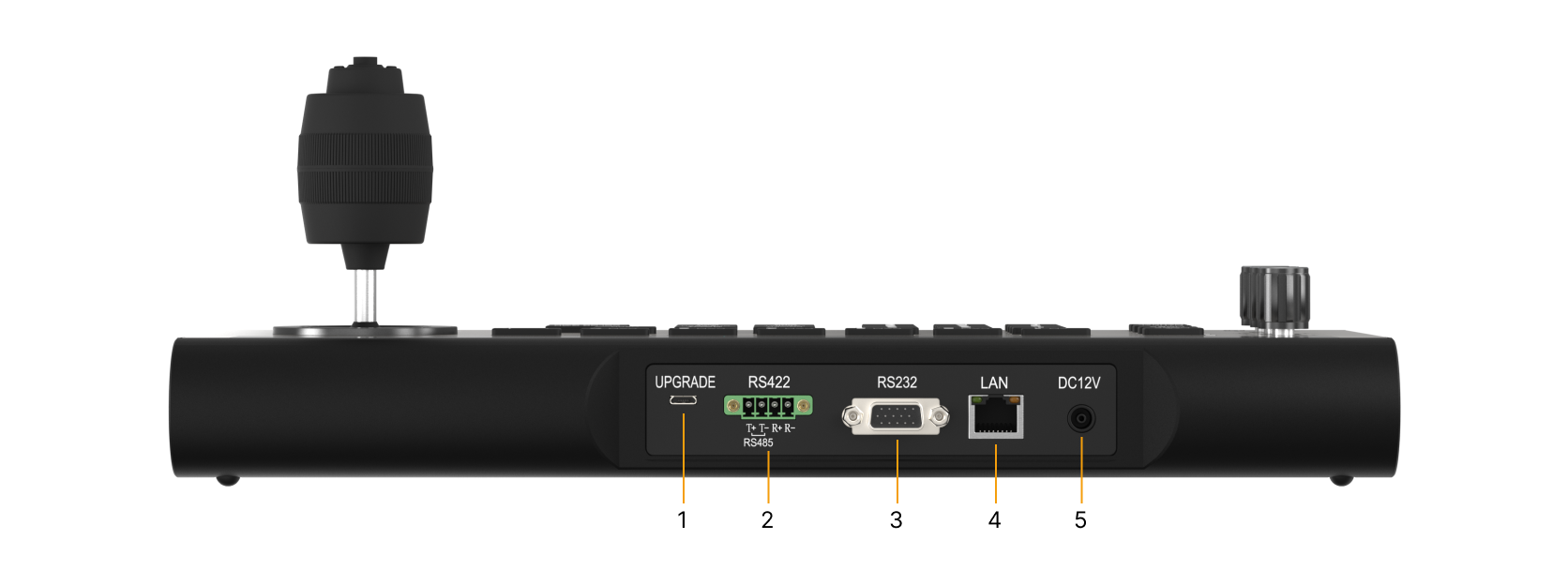

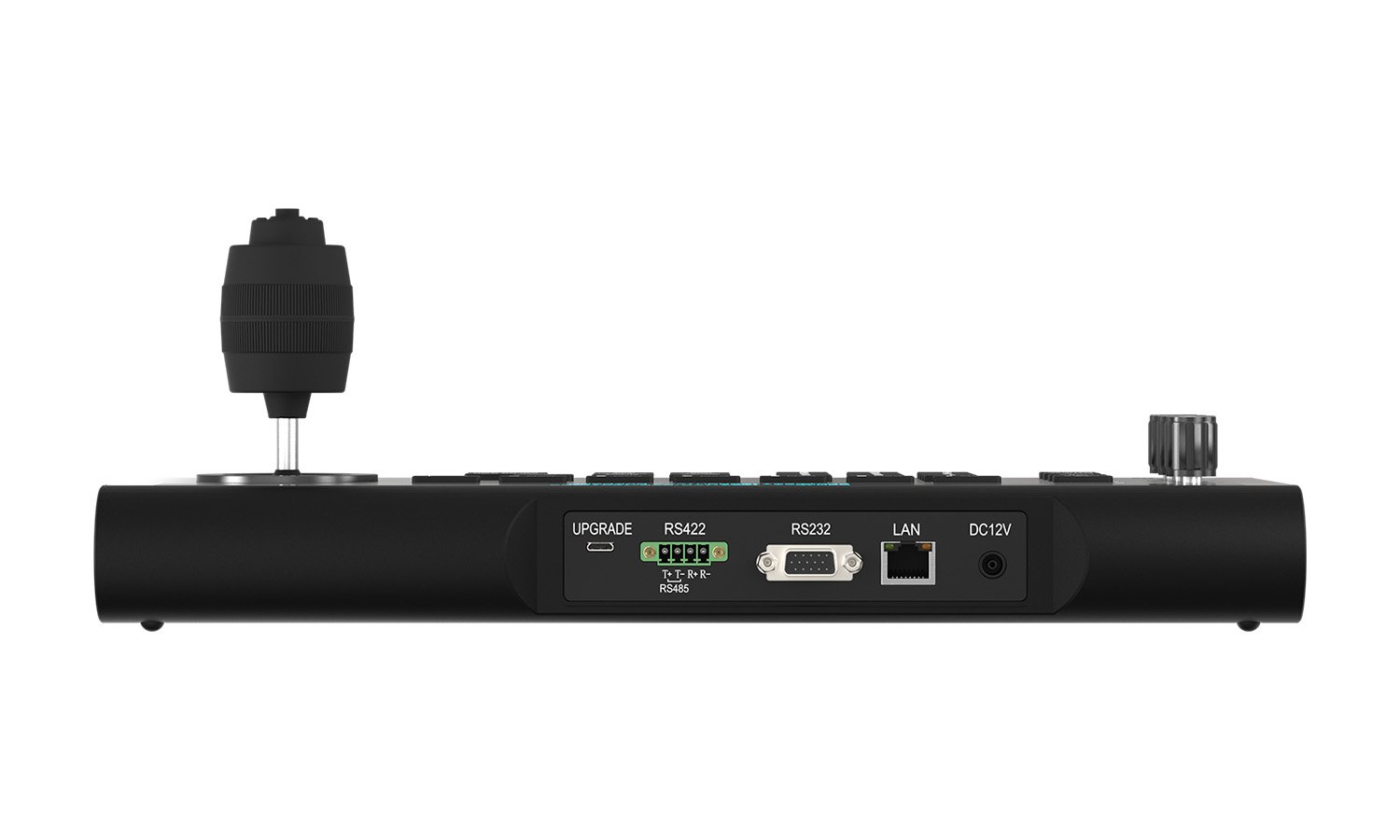

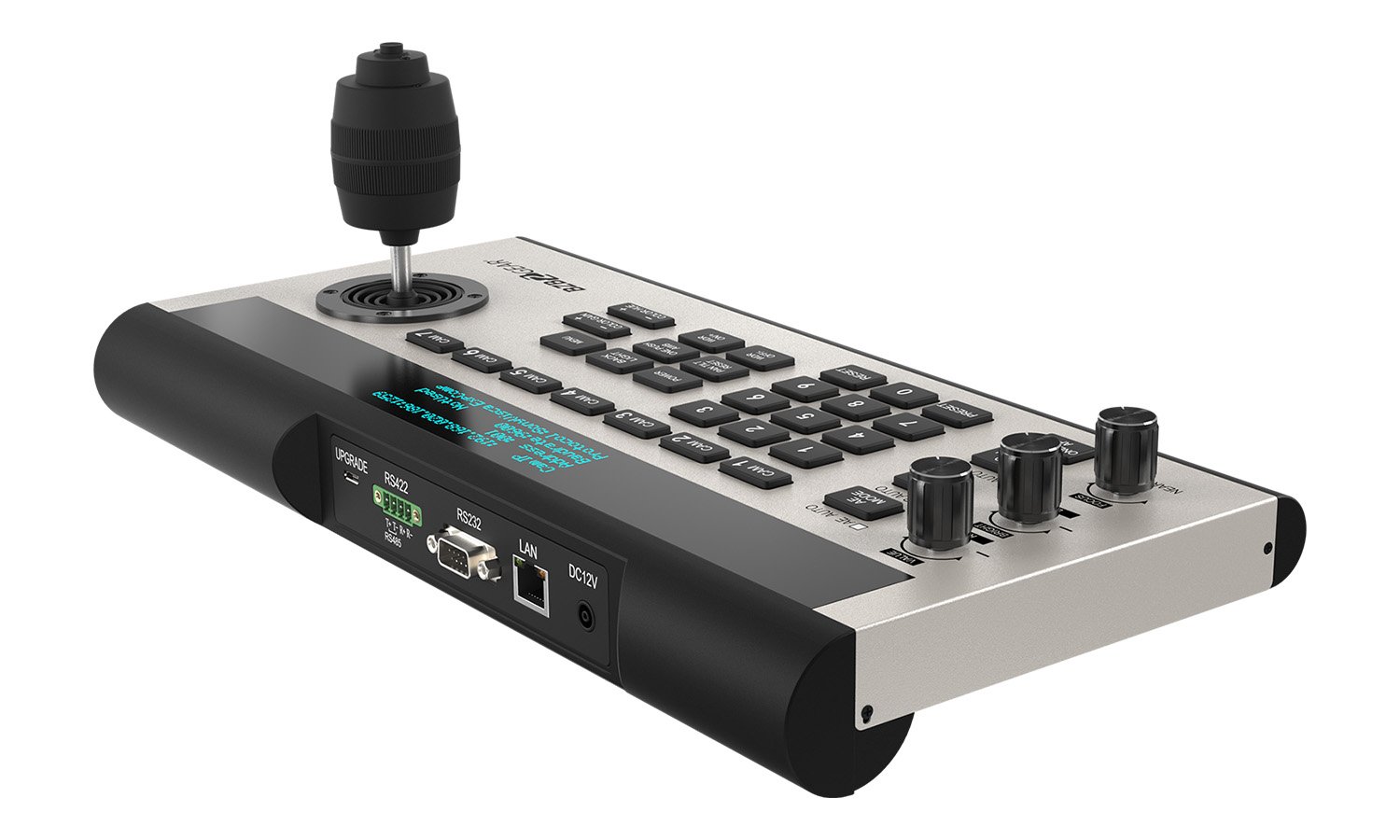

Interfaces
- Micro USB: Connect USB Type-C cable to a PC to upgrade the firmware of your controller.
- RS-422: Use RS-422 port to control your cameras over long distances up to 328ft.
-
RS-232: Use RS-232 to 8-pin Mini-DIN cable to connect 1st camera and Mini-DIN visca cables for cascadable connections.
- LAN: Connect to a network switch via category cable for TCP/IP control.
- Power: Connect supplied 12V power adapter.
