Tech Specifications
Technical Specifications | |
Operating System | Android 11 |
Screen Size | 7” capacitive touchscreen / resolution 1024x600 |
Video Output | HDMI 4K@30Hz |
Video Output Connectors | 1x HDMI Type A, 19-pin, female |
Decoding | 1. Supports H264/H265 2. Max supported H264 4x1080p@30fps 3. Max supported H264 16x720p@30fps 4. Max supported H265 1x4K@60fps |
Protocols | IP VISCA, ONVIF, NDI, VISCA, Pelco-P, Pelco-D |
Power | Standard 5.5/2.1 power interface, DC 12V2A±10% |
Interface Ports | 1x RJ45 (Network) 1x RS232 (RJ45) 1x RS422/485 (RJ45) 1x HDMI output 1x USB 3.0 1x Micro-SD card slot |
Mechanical Specifications | |
Power consumption | <1.5W |
Working Humidity | 10%-90%RH(no frost) |
Working Temperature | 14°F ~ 122°F / -10°C ~ 50°C |
Storage Temperature | -40°F ~ 140°F / -40°C ~ 60°C |
Package dimension | 14 x 9.6 x 6.1in [365 x 245 x 155mm] |
Weight | 3.75 Lbs [1.7kg] |
Resources
Documents
PACKAGE CONTENTS
- 1x BG-Commander-Pro
- 1x Power Adapter (12V DC 2A)
- 1x User Manual

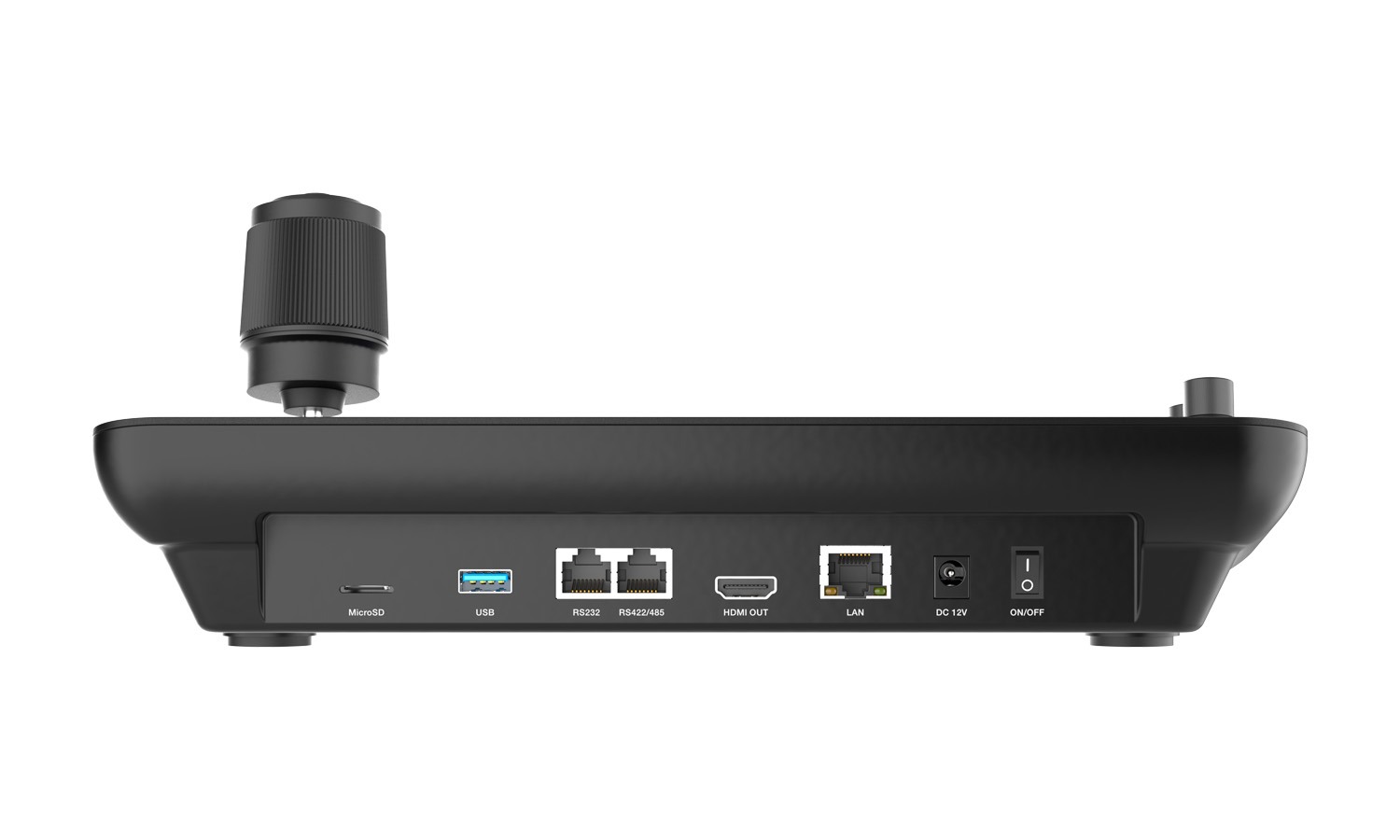

Interfaces
![Interfaces image](https://dev.bzbgear.com/wp-content/uploads/BG-COMMANDER-PRO-int.png)
- MicroSD: Micro-SD card slot
- USB 3.0: USB Type-A female
- RS232: RJ45
- RS422/485: RJ45
- HDMI OUT: HDMI Type A, 19-pin, female
- ETHERNET: RJ45 TCP/IP connection
- DC 12V: 12V 2A power supply port
- POWER: Power toggle switch
