USB 3.1 1080P FHD 3G-SDI Capture Card with Scaler and Audio

EssentialGear
TAA Compliant
EssentialGear info
See More Info

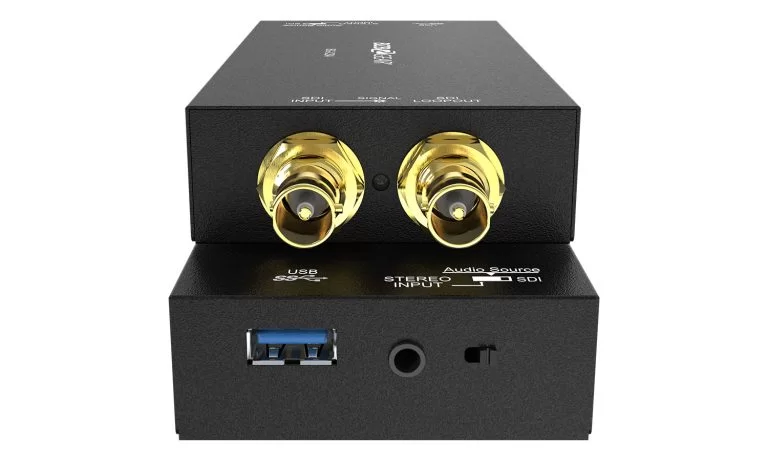

BG-CSA-9 BG-CSA-1 BG-CSA-2 BG-CSA-3 BG-CSA-4 BG-CSA-5 BG-CSA-6 BG-CSA-7 BG-CSA-8
BG-CSA-9
BG-CSA-1
BG-CSA-2
BG-CSA-3

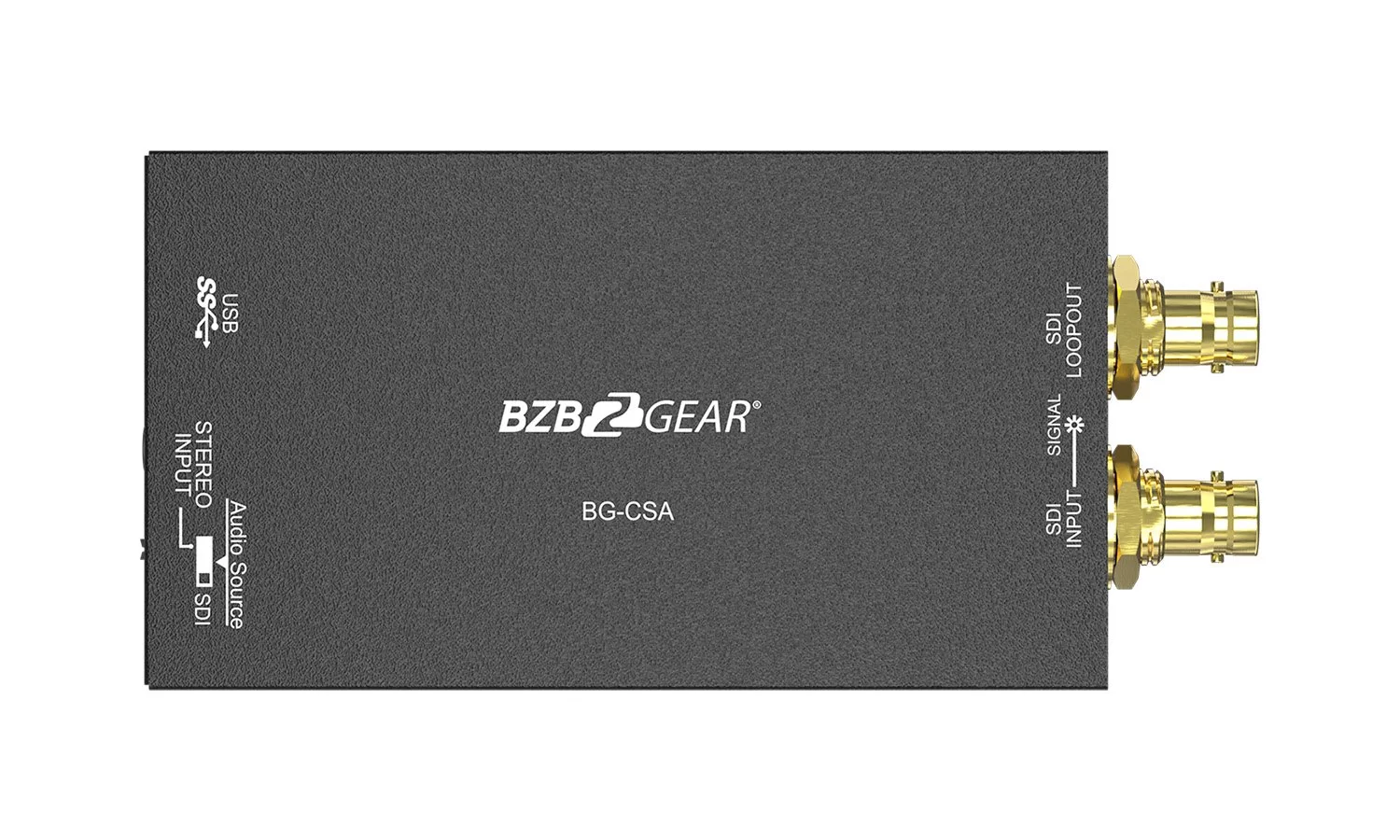

BG-CSA-4

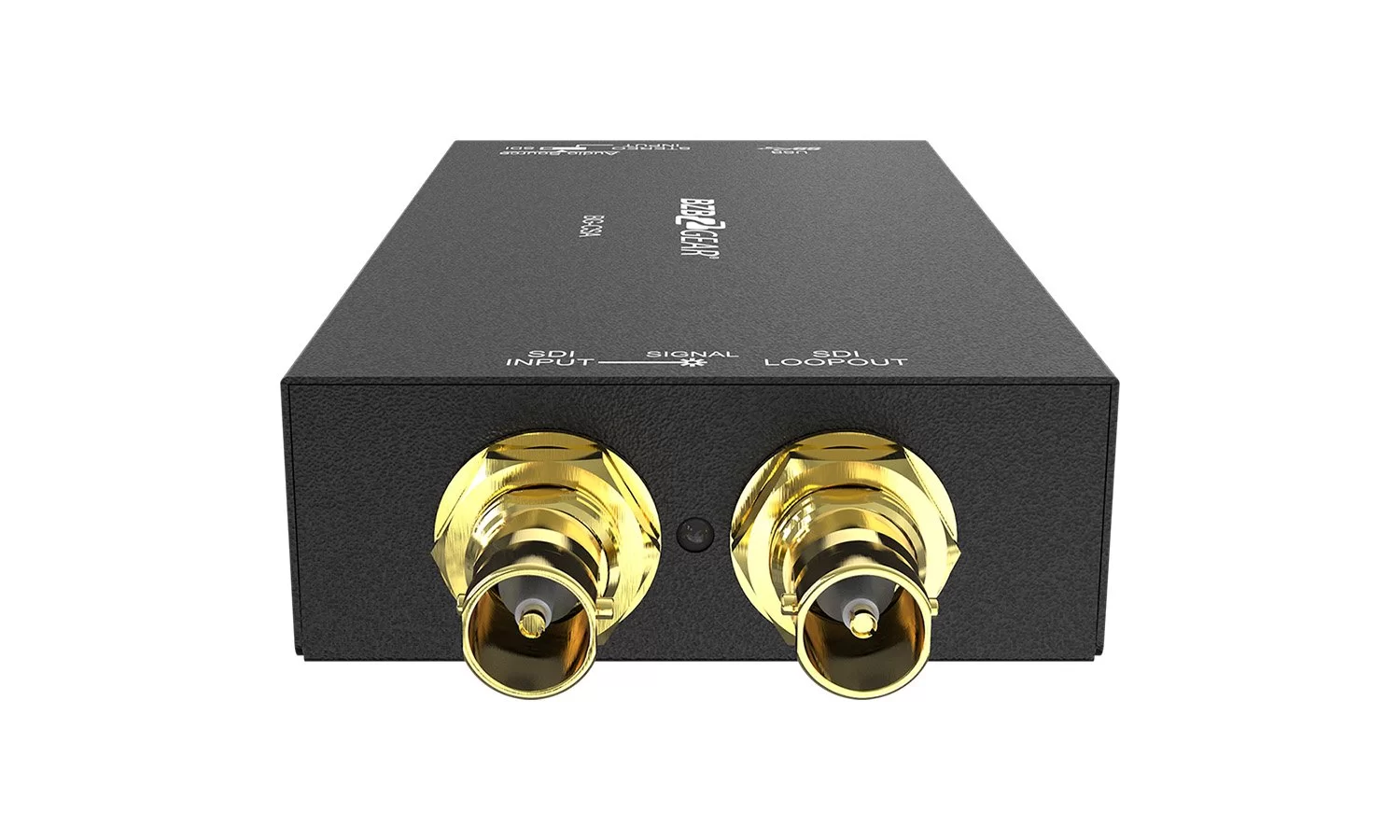

BG-CSA-5
BG-CSA-6
BG-CSA-7
BG-CSA-8
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
3 year warranty
3 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

The BG-CSA is a 3G/HD/SD-SDI capture device. When you need to record or stream any SDI source (like video camera or video mixer output) on your PC – this device will do the job.

It supports any resolutions up to 1080P at 60fps on USB 3.0/3.1 ports. Built-in scaler gives you more flexibility for the capturing video format. Large volume image buffer ensures smooth uninterrupted video capture.

Using 3.5mm stereo audio input you can switch to the external mic or other audio signal and embed it into the video stream. All aluminum housing and power from USB port (no additional power adapter required) adds durability and portability to our setup.

If you need to set up additional local monitor or extend/split input there is an SDI loop-out port which will re-clock and mirror original signal.

 TAA COMPLIANT PRODUCT.
 This product meets the standards of the Trade Agreement Act (TAA).
 You can find all BZBGEAR TAA Compliant Products on this page.

Features

  • sdi
    3G-SDI
    Crystal clear image with resolutions up to 1080p@60Hz
  • COMPACT DESIGN
    Portable
    Ideal for recording in the field or on the go
  • bi_usb-symbol
    USB Data Transfer
    The USB 3.1 port supplies power for the unit and transfers data to the connected device
  • fluent_slide-microphone-32-regular
    Audio Input
    Embed audio from microphone or other source
  • iconoir_pc-check
    Easy to Use
    Simple for anyone to learn
  • ph_devices-light
    Compatibility
    Supports Mac OS, Windows, and a wide array of third-party applications
  • 1080P Resolution – Capture and store Full HD signal
  • Metal Enclosure – Durable metal structure built to withstand years of operation
  • Loop Output – Allows uncompressed signal pass-thru for local displays

Videos

Choose The Right Capture Device for Live Streaming and Gaming - BZBGEAR Capture Cards!
Choose The Right Capture Device for Live Streaming and Gaming - BZBGEAR Capture Cards!
Reliable Capture Cards for HDMI and SDI from BZBGEAR
Reliable Capture Cards for HDMI and SDI from BZBGEAR
What Is a Video Capture Card and Do I NEED It?
What Is a Video Capture Card and Do I NEED It?
Talk Tech Ep. 2 - Professional Live Stream System Employing A Video Mixer
Talk Tech Ep. 2 - Professional Live Stream System Employing A Video Mixer

Tech Specifications

Technical
Max. Data Rate 350 Mbps
UAC Video Output Resolution SMPTE 424M-2.97 Gbps
3G-SDI: 1080p at 50/59.94/60 Hz (4:2:2)
SMPTE 274M-1.485 Gbps
HD-SDI: 1080p at 23.98, 24, 25, 29.97, 30 Hz, 1080i at 50, 59.94, 60 Hz
SMPTE 292M-1.485 Gbps
HD-SDI: 1080i at 30 Hz, 720p at 60 Hz
SMPTE 296M-1.485 Gbps
HD-SDI: 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
SMPTE 259M-270 Mbps
SD-SDI: NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz
UAC Audio Output Format Stereo / 16-bit / 48000Hz
Recording Video Format YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1)
Audio Input SDI Embedded Audio
3.5mm Analog Stereo Audio
Operating System Compatibility Windows 7, 8, 10, Mac OS X 10.9 or above, Linux
3rd-Party Software Compatibility OBS Studio (Windows, Linux)/ AMCap (Windows)
Potplayer (Windows)/ Skype (Windows, OS X)
Hangout (Windows)/ TeamViewer (Windows)
Hardware Requirements Desktop: Intel Core i5-3400+NVIDIA GTX660 or higher
Notebook: Intel Core i7-4810MQ+NVIDIA GTX870M or higher+4GB RAM or higher
ESD Protection 8 KV - Contact Discharge
15KV - Air Discharge
Mechanical
Housing Design Aluminum
Casing Style Portable
Power Connection Micro-USB Port
Power Supply 5V DC, 1A
Power Consumption 4 watts (Max)
Operating Humidity 20-90% RH (no condensation)
Operation temperature 32~104°F / 0~40°C
Product Weight 0.3 lbs [135g]
Package Weight 0.6 lbs [270g]
Certifications CE, FCC, RoHS

PACKAGE CONTENTS

  • 1x BG-CSA USB 3.1 Gen 1 3G-SDI Capture Device
  • 1x USB 3.1 Gen 1 A to A Cable (host to device)
  • 1x User Manual

Interfaces

Interfaces image
  1. USB OUT: Connect to a USB host device such as a PC, laptop, or MAC.
  2. STEREO AUDIO IN: Embed audio using a 3.5mm stereo mini cable.
  3. AUDIO SWITCH: [left] Audio from 3.5mm stereo audio in, [right] Audio from SDI.
  4. SDI IN: Connect to a 3G/HD/SD-SDI source.
  5. LED INDICATOR: SDI input signal indicator LED.
  6. SDI LOOPOUT: Connect to a local 3G/HD/SD-SDI display.
