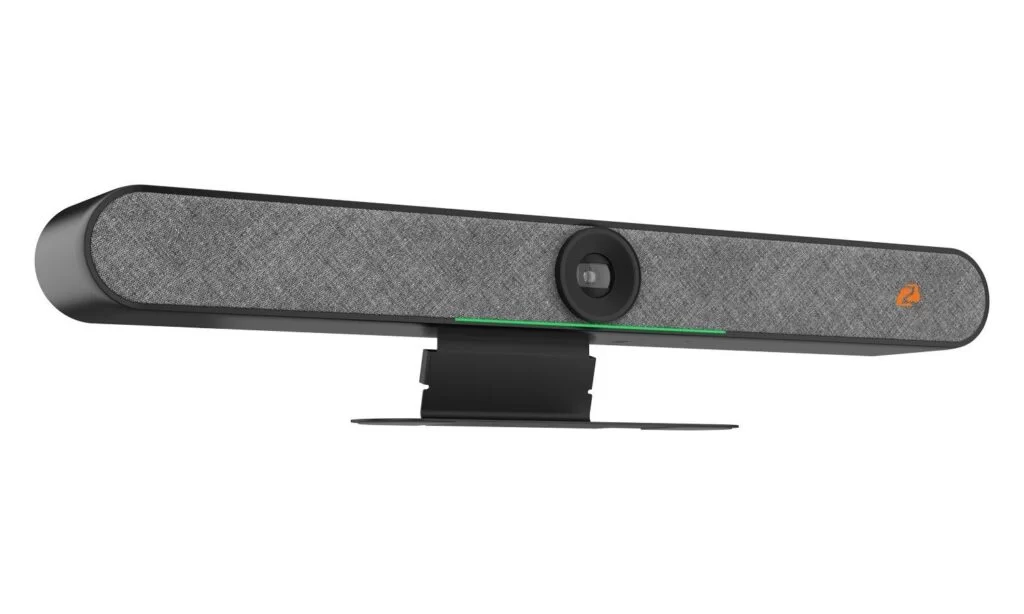

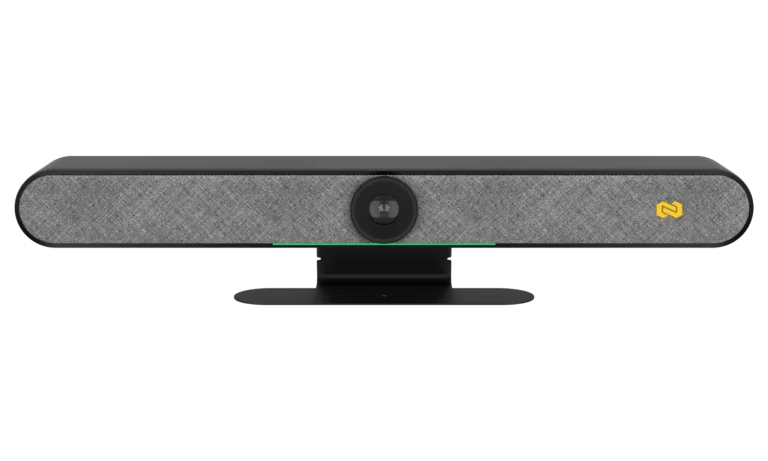

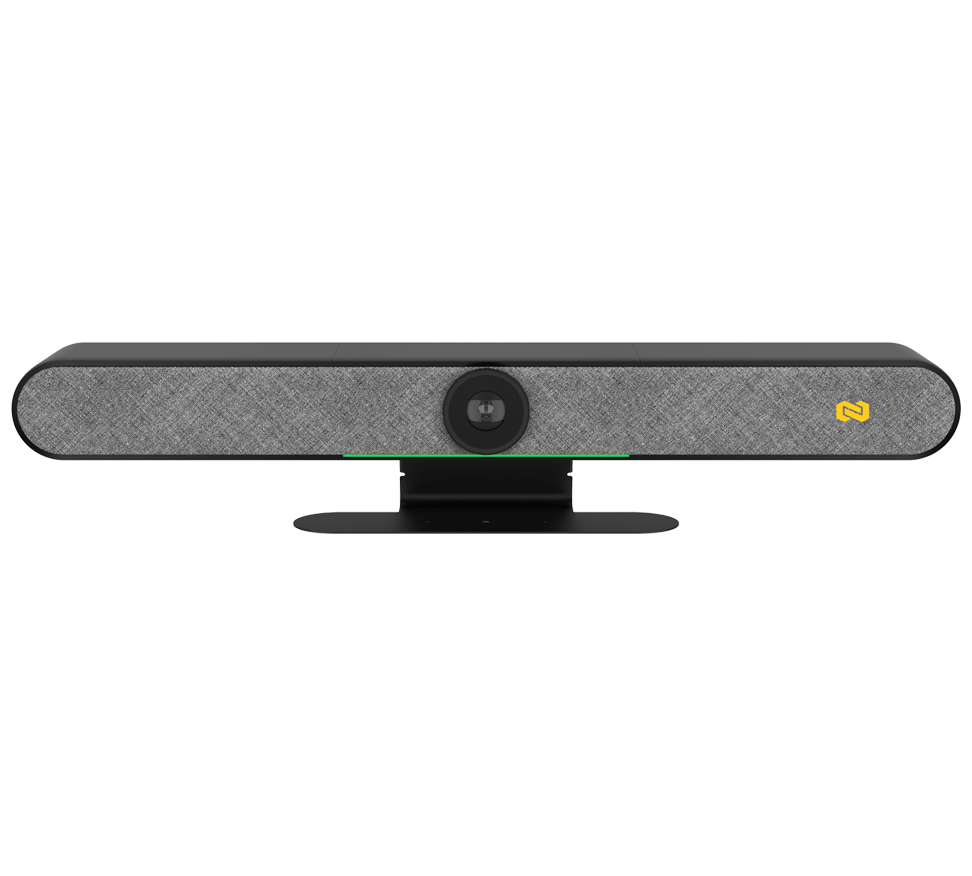

Intelligent 4K UHD All-In-One Auto Tracking Video Bar with HDMI/USB-C and 20W Speakers/6-MEMS Microphones

Configure the Perfect Solution
Get Started

Overview

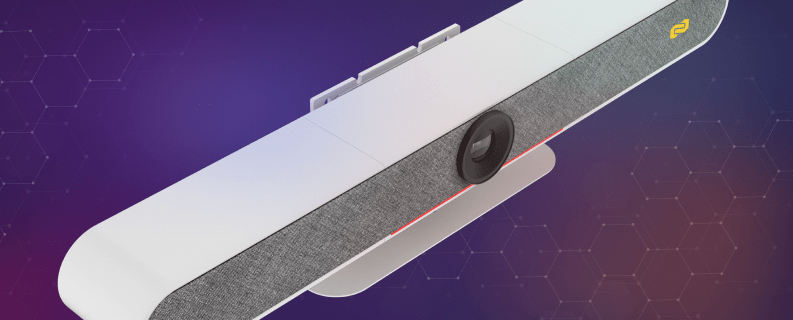

The BG-Cyclops-4K’s all-in-one design consolidates several devices into one streamlined, user-oriented video conferencing solution.

With a powerful 4K UHD camera and high-end 0.8M CMOS sensor, the BG-Cyclops-4K captures pristine lifelike images. The advanced auto-tracking functionality is bolstered by facial recognition software. The distortion-less 120° wide angle lens automatically tailors the image size based on the number of participants in the frame, eliminating the need to manually adjust the camera before each meeting.

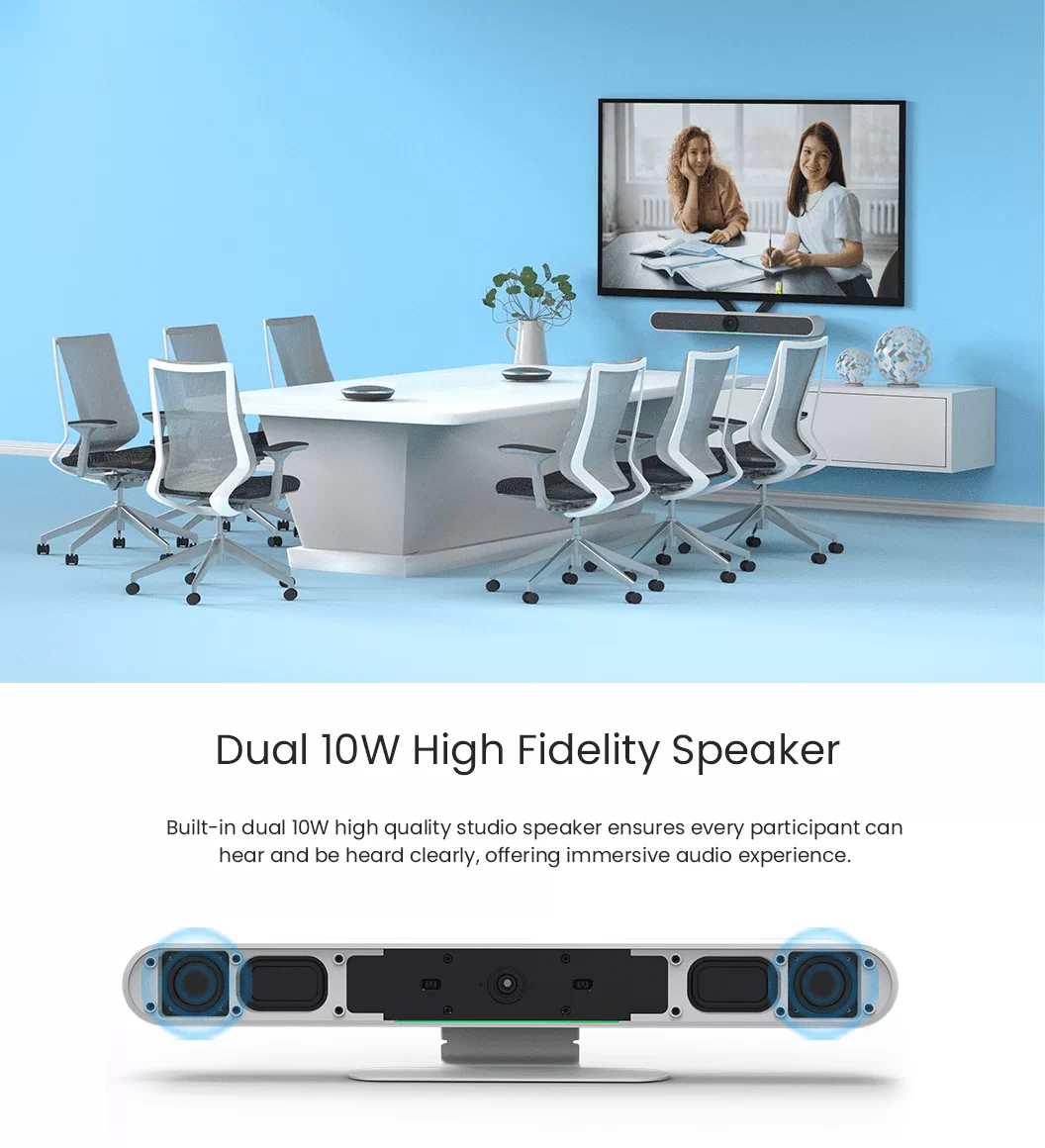

The BG-Cyclops-4K’s built-in dual 10W studio speaker ensures every participant can hear and be heard clearly. The sophisticated 6 MEMS microphone array features voice localization and tracking that detects the presenter’s position in real time and locks in for a focused shot, removing any confusion as to who is currently speaking.

Complete with a privacy cover, the BG-Cyclops-4K automatically shields the lens when no output device or software is detected for and security and comfort.

By simplifying video conferences with its hands-free operation and professional grade image and sound quality, the BG-Cyclops-4K allows meeting members to present topics and focus on the task at hand.

videobar

Features

  • Bzbgear image
    Crystal Clear Images
    Stunning image quality at 4K2K
  • ri_camera-lens-fill
    Automatic Privacy Cover
    Camera lens cover automatically closes when there is no output stream detected
  • Wide-Angle 1
    Wide Angle Lens
    120° wide angle lens ensures every participant is captured in frame
  • material-symbols_auto-detect-voice
    6 Microphones
    Multiple microphones enable the current speaker to be tracked in real time up to 6 meters
  • ph_user-focus-light
    Auto Framing
    Face detection algorithm automatically detects participants to provide the optimal shot
  • ph_devices-light
    Compatible
    Works with Windows, Mac OS, and major conferencing software such as Zoom, Skype, etc.
  • Bluetooth enabled and can be used as a Bluetooth speaker and microphone
  • Low noise CMOS ensures high snr of images
  • Brackets for desktop or wall mounting included

Videos

BZBGEAR Webinar Episode 10: Overview of BZBGEAR Conference Room Solutions.
BZBGEAR Webinar Episode 10: Overview of BZBGEAR Conference Room Solutions.
Take Advantage of 4K Conference Room Solutions With Auto Framing | NAB 2023
Take Advantage of 4K Conference Room Solutions With Auto Framing | NAB 2023
Wireless Video Conference Meeting Room Solutions by BZBGEAR
Wireless Video Conference Meeting Room Solutions by BZBGEAR
Plug and Play All-in-One Conference Room Video Bar - BG-CYCLOPS-4K
Plug and Play All-in-One Conference Room Video Bar - BG-CYCLOPS-4K
IBC2022 | BG-CYCLOPS-4K Auto-Tracking Auto-Framing All in One Conference Solution
IBC2022 | BG-CYCLOPS-4K Auto-Tracking Auto-Framing All in One Conference Solution

Tech Specifications

Camera Lens FOV 120°(D) / 106°(H) / 72°(V)
Iris F2.0
Focal Length 1.89mm
Sensor High quality CMOS sensor, effective pixel 8 million, 16:9
Image Minimum Illumination 0.5Lux
DNR 2D & 3D
Focus Auto/Manual
BLC On/Off
Exposure Parameter can be adjusted, and AE (Auto Exposure) is available
Video Adjustment Brightness, sharpness, saturation, contrast, white balance, gain, anti-flicker, low brightness compensation and other parameters can be adjusted
SNR ≥50dB
Video Format HDMI: 4KP30,1080P60 compatible downward
USB: 4KP30,1080P60 compatible downward
Video Compression Format MJPEG, YUY2, H.264, H.265, NV12
Privacy Cover Automatic privacy cover will close when no image output and open when there are image output.
Audio Microphone Microphone 6 X MEMS Microphones
Pickup Distance 6 meters
Frequency Response 120 Hz - 16 kHz
Speaker Speaker Built in dual speaker
Voltage 2x10W
Output Voice Pressure 80±3 dB 1.0M/1.0W
Frequency Response 100 Hz - 20 KHz
Audio Processing AEC, AGC, ANS
AI Function Group Framing Automatically adjust the screen size according to the number of participants to present the best framing
Speaker Tracking Track each speaker in real time, and ensure that the speaker is in the center of the screen.
Remote Control Remote Control Infrared remote control
Physical Interfaces USB USB3.0 audio video output interface, Type C
Support UVC1.1, UAC1.0 and higher
HDMI HDMI video output interface
HDMI also compatible with HDMI2.0 standard
LINE IN 3.5mm audio line input interface (when an external pickup is connected, the audio input is automatically switched to the external pickup)
LINE OUT 3.5mm line output, can be connected to external speakers (when connecting to external speakers, the audio output will automatically switch to external speakers)
Expansion Mic Interface RJ45 interface, able to connect to expansion microphone.
Power Interface HEC3800 power socket (DC12V), input AC110V-AC220V output DC12V/2.5A
Indicator Bar-shaped Indicator While displaying the working status, it can also be lit where the speaker's voice comes from.
Bluetooth Bluetooth 5.0 Can be connected to a mobile phone or other device via Bluetooth as a Bluetooth microphone and speaker
Compatibility Available System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Power Supply Method   Supply power through power adapter
Working Condition Storage Temperature 14°F~158°F / -10°C~+70°C
Storage Humidity 20%~95%
Working Temperature 14°F~122°F / -10°C~+50°C
Working Humidity 20%~80%
Environment Indoor
Installation Method Walling Mount Comes with walling mount bracket. While mounting, the camera need to be as close to the wall as possible.
Desktop Comes with desktop mounting bracket
Installed on monitor Bracket for monitor installation (optional)

PACKAGE CONTENTS

  • 1x BG-CYCLOPS-4K Video Bar
  • 1x USB Cable
  • 1x Remote Control (cr2032 3 Volt batteries required)
  • 1x Power Adapter
  • 1x User Manual

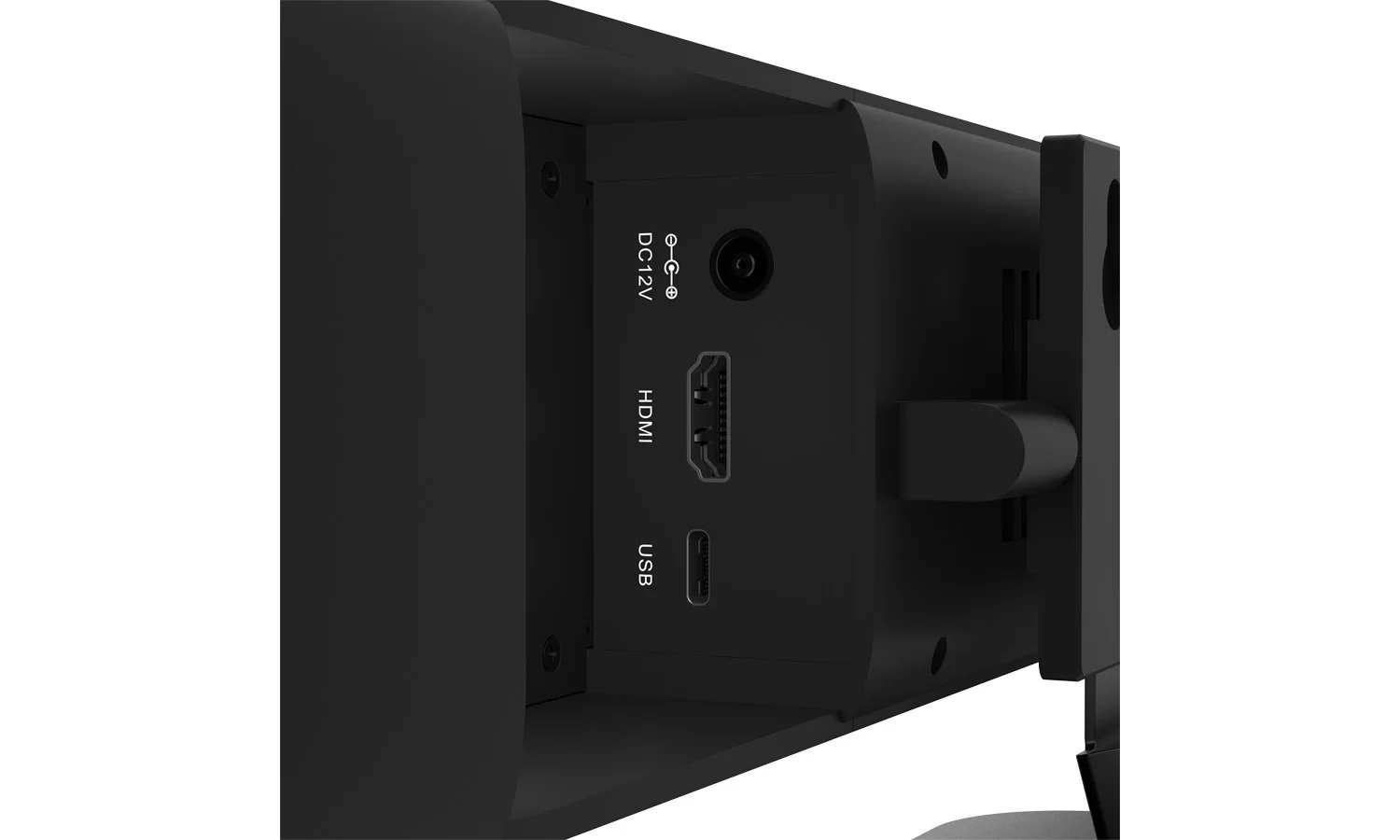

Interfaces

Interfaces image

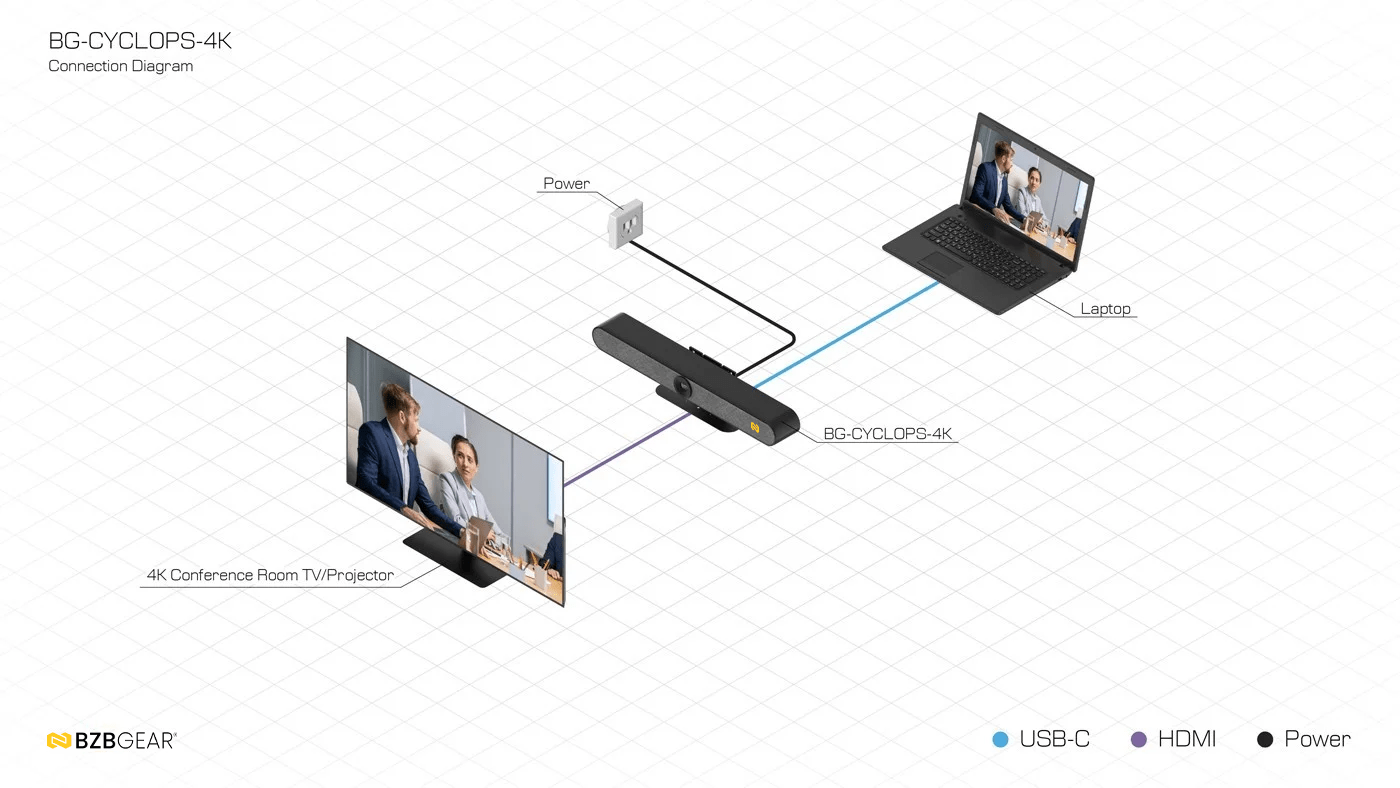

  1. Power: Connect supplied 12V power adapter.
  2. HDMI: Connect to an HDMI device such as a video display or a presentation switcher. Supports resolutions up to 4K@30Hz.
  3. USB: Connect USB Type-C cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom. Supports resolutions up to 4K@30Hz.
  4. Line Out: Use a 3.5mm cable to connect to an external speaker or an audio amplifier to extract the audio signal.
  5. Line In: Use a 3.5mm cable to connect an external microphone or another source of audio.
  6. Mic: Connect RJ45 to optional microphone extension cable.
