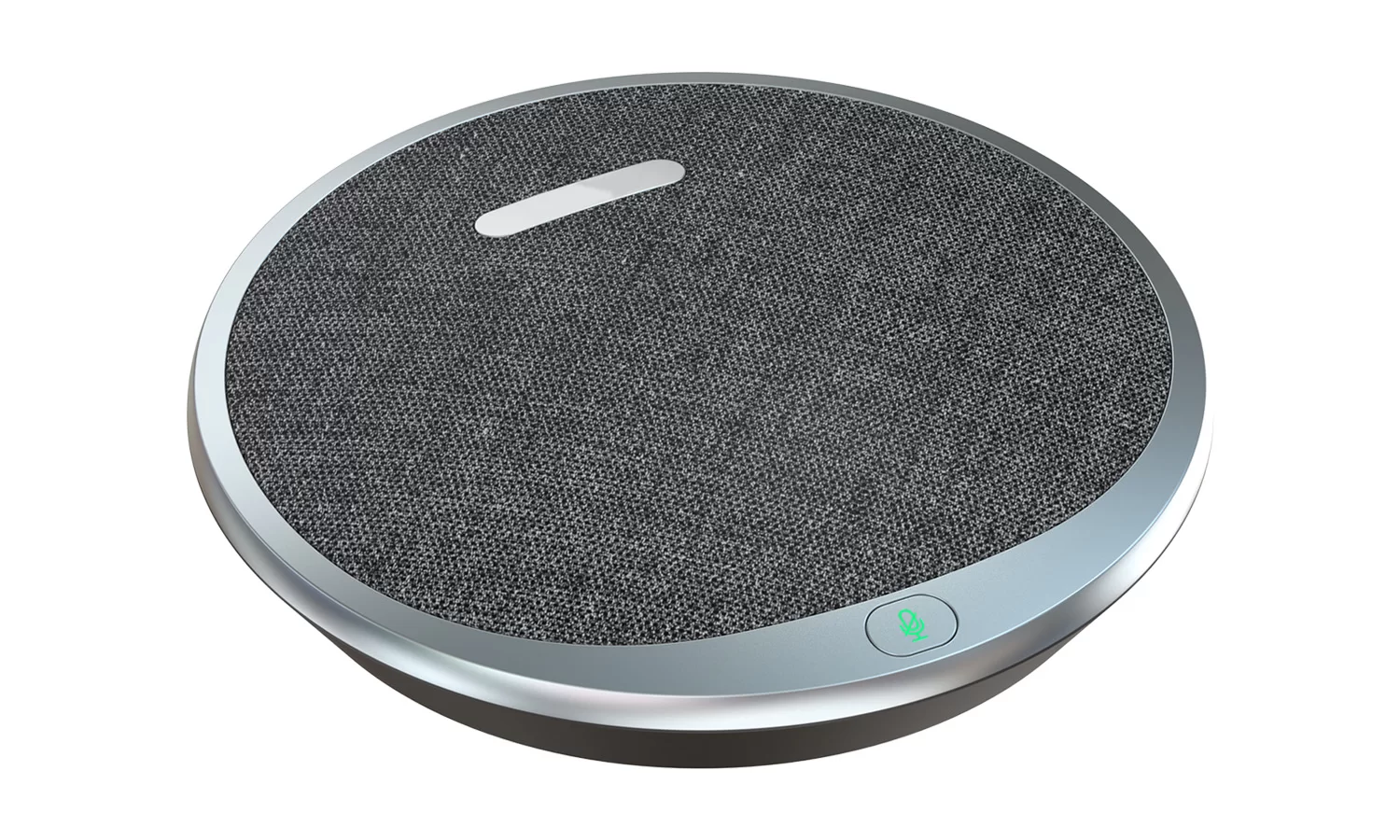

BZBGEAR BG-CYCLOPS Videobar Extension Microphone

Configure the Perfect Solution
Get Started

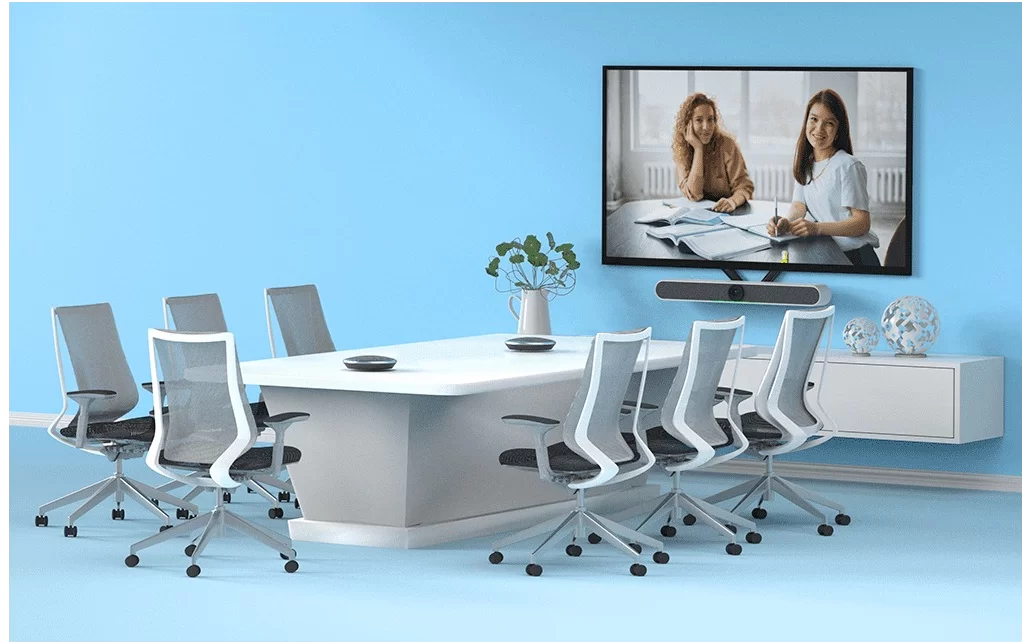

The BG-CYCLOPS Expansion Microphones seamlessly integrate advanced control features, elegant design, and dependable performance, elevating the audio capabilities of the BG-CYCLOPS. This enhancement offers users a versatile and professional audio solution. Featuring a 3-meter extension range and an intuitive interface, these units are perfect for individuals seeking to expand the audio pickup range of their BG-CYCLOPS video bar in large conference spaces and meeting rooms.

Control

The BG-CYCLOPS Expansion Microphones are equipped with intuitive control buttons, and users can refer to the button description for detailed information on their functionalities. Control is facilitated through transparent infrared transmission, allowing seamless command execution.

Connection

For connectivity, the BG-CYCLOPS Expansion Microphones feature an RJ45 output jack for a secure connection, supporting a 10-meter transmission range. Additionally, the cascading jack, also an RJ45 port, allows the connection of up to 2 units of expansion microphones for extended coverage.

Electret Microphone Technology

The microphones utilize Electret Microphone technology, providing a reliable and high-quality audio experience. The pickup range extends up to 10 feet (3 meters), capturing clear audio within its radius. The frequency response spans from 120 Hz to 16 kHz, ensuring a broad spectrum of sound is accurately reproduced.

Button Layout

The expansion microphones include a mute button, enabling users to disable or enable the microphone function as needed. This mute functionality can be synchronized with the microphone disable function for convenient control. An indicator light system is in place, with the button light turning red when the microphones are disabled and green when they are enabled. The logo light turns to a solid green when the microphones are powered on.


BG-CYCLOPS-EXT

Features

  • 10ft (3m) Pickup Range
  • Electret Mic Technology
  • Integrated Indicator Lights

Videos

BZBGEAR Webinar Episode 10: Overview of BZBGEAR Conference Room Solutions.
BZBGEAR Webinar Episode 10: Overview of BZBGEAR Conference Room Solutions.
Take Advantage of 4K Conference Room Solutions With Auto Framing | NAB 2023
Take Advantage of 4K Conference Room Solutions With Auto Framing | NAB 2023
Wireless Video Conference Meeting Room Solutions by BZBGEAR
Wireless Video Conference Meeting Room Solutions by BZBGEAR
Plug and Play All-in-One Conference Room Video Bar - BG-CYCLOPS-4K
Plug and Play All-in-One Conference Room Video Bar - BG-CYCLOPS-4K
IBC2022 | BG-CYCLOPS-4K Auto-Tracking Auto-Framing All in One Conference Solution
IBC2022 | BG-CYCLOPS-4K Auto-Tracking Auto-Framing All in One Conference Solution

Tech Specifications

Control Infrared
Transparent
Transmission
Control through the command from the transparent transmission
Appearance Dimension 5.2in x 5.2in x 1.2in [132mm x 132mm x 31mm]
Mics Mic Type Electret Microphone
Pickup Range 10ft (3m) pickup range
Frequency Response 120 Hz-16 kHz Frequency Response
Connection Output Jack RJ45 port, connecting with support 10-meter transmission
Cascading Jack RJ45 port, allowing up to 8 units of expansion mics to connect
Buttons Mute Button Disable/enable the microphone function, which can be synchronized with the microphone disable function
Indicator Light Button Light The light turns red when mics are disabled and turns green when mics are enabled
Logo Light Light turns to solid green when powered on
