4K UHD 12G-SDI 1x4 Splitter/Distribution Amplifier

Configure the Perfect Solution
Get Started

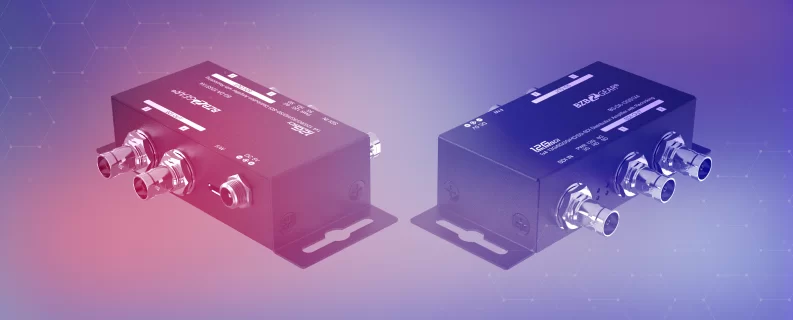

Overview

The BG-DA-12GS1X4 is a 1x4 12G-SDI splitter and distribution amplifier. This device can split an SD, HD, 3G, 6G, or 12G-SDI video source up to four SDI outputs simultaneously. For any situation where range, quality, consistency, and reliability are all factors, this unit is the correct choice. Whether you need to connect additional displays for video feed monitoring, distribute a 4K signal over a long distance, or daisy chain and cascade multiple units to build a large scale video distribution solution - the BG-DA-12GS1X4 will help you get the job done.

Connectivity and Features

Each output from the BG-DA-12GS1X4 is buffered independently and re-clocked eliminating signal disruption and making it possible to extend signal transmission to greater distances. With automatic input cable equalization, 12G-SDI signal can be transmitted up to 70m (230 ft), 6G up to 100m (330 ft), and up to 180m (594 ft) for 3G connections.

The device has a maximum SDI bandwidth of 11.88 Gbps to support high quality video transmission with low latency when splitting video to multiple outputs. Installers can also utilize the device’s LED indicators that show the status of signal lock and current video rate to reduce the amount of time system configuration is needed.

The device’s design is built around quality and durability. With an inter-locking power supply and SDI connectors as well as a metal housing with mounting brackets, this device is built to last while maintaining reliable video transmission.

 TAA COMPLIANT PRODUCT.
 This product meets the standards of the Trade Agreement Act (TAA).
 You can find all BZBGEAR TAA Compliant Products on this page.

Features

  • material-symbols_settings-input-component
    Multiple Outputs
    Split a single SDI source up to 4 different SDI displays or devices
  • Wide-Angle 2
    Buffered and Re-clocked Outputs
    Eliminate jitter and increase transmission distance
  • bi_badge-4k
    Split and Amplify
    Split and extend a 4K signal up to 230ft (12G)
  • lights
    LED Indicators
    Signal lock and video rate at a glance
  • Plug-and-Play Setup
    Interlocked Power Supply
    Ensures power stays connected
  • material-symbols_safety-check
    Rugged Design
    Durable metal structure built to withstand years of operation
  • Locking Connectors – Ensure your video cables do not accidentally come unplugged with locking SDI connectors
  • Long Distance – Send a 3G-SDI signal up to 594ft
  • Portable – Great for use in the field or when you need multiple displays of the same source in different locations

Videos

Bridge Pro AV & Broadcast Solutions with BZBGEAR – NAB Show 2022
Bridge Pro AV & Broadcast Solutions with BZBGEAR – NAB Show 2022
How to Split A 12G-SDI / 6G-SDI / 3G-SDI Signal - BZBGEAR BG-DA-12GS1x2
How to Split A 12G-SDI / 6G-SDI / 3G-SDI Signal - BZBGEAR BG-DA-12GS1x2
BZBGEAR Pro-rated SDI Splitters Support 3G, 6G, and 12G-SDI Signal Delivery
BZBGEAR Pro-rated SDI Splitters Support 3G, 6G, and 12G-SDI Signal Delivery

Tech Specifications

Technical
SDI standard SD/HD/3G/6G/12G-SDI
Multi-Rate Support Auto detection of SD, HD, 3G, 6G or 12G Signals
SDI Compliance SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, DVB-ASI, ST-
2081(6G), ST2082(12G)
SDI Data rates 1.485 / 2.97 / 5.94 / 11.88 Gbps
Video bandwidth 11.88Gpbs & 11.88/1.001Gbps
Output impedance 75Ω
Reclocking Yes
Cable equalization [12G] up to 70m (230ft)
[6G] up to 100m (330ft)
[3G] up to 180m (594ft)
Audio support Yes
RP-198 pathological patterns Immune
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 75Ω]
Input 1x BNC [SDI]
Output 4x BNC [SDI]
BNC connector 75Ω inter-locked socket
Eye pattern characteristics[12G] Amplitude: Within 800mV (<10%) Rise/Fall time: Less than 35ps
Timing jitter: <1.0 UI (10Hz to 1188MHz)
Alignment jitter: <0.3 (100KHz to 1188MHz)
Mechanical
Housing Metal enclosure
Dimensions [L x W x H] Model: 3.6" x 1.7" x 1.1" [92 x 42 x 28 mm]
Package: 7.8" x 5.4" x 2.9" [198 x 137 x 74 mm]
Weight Model: 4.2 oz [119g]
Package: 0.7 lbs [346g]
Fixedness Wall-mounting case
Power supply 5V 2A DC
Power consumption 2.5 Watts [max]
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH [no condensation]


PACKAGE CONTENTS

  • 1x BG-DA-12GS1X4
  • 1x 5V Power Adapter
  • 1x BNC 75 ohm Terminator
  • 1x User Manual

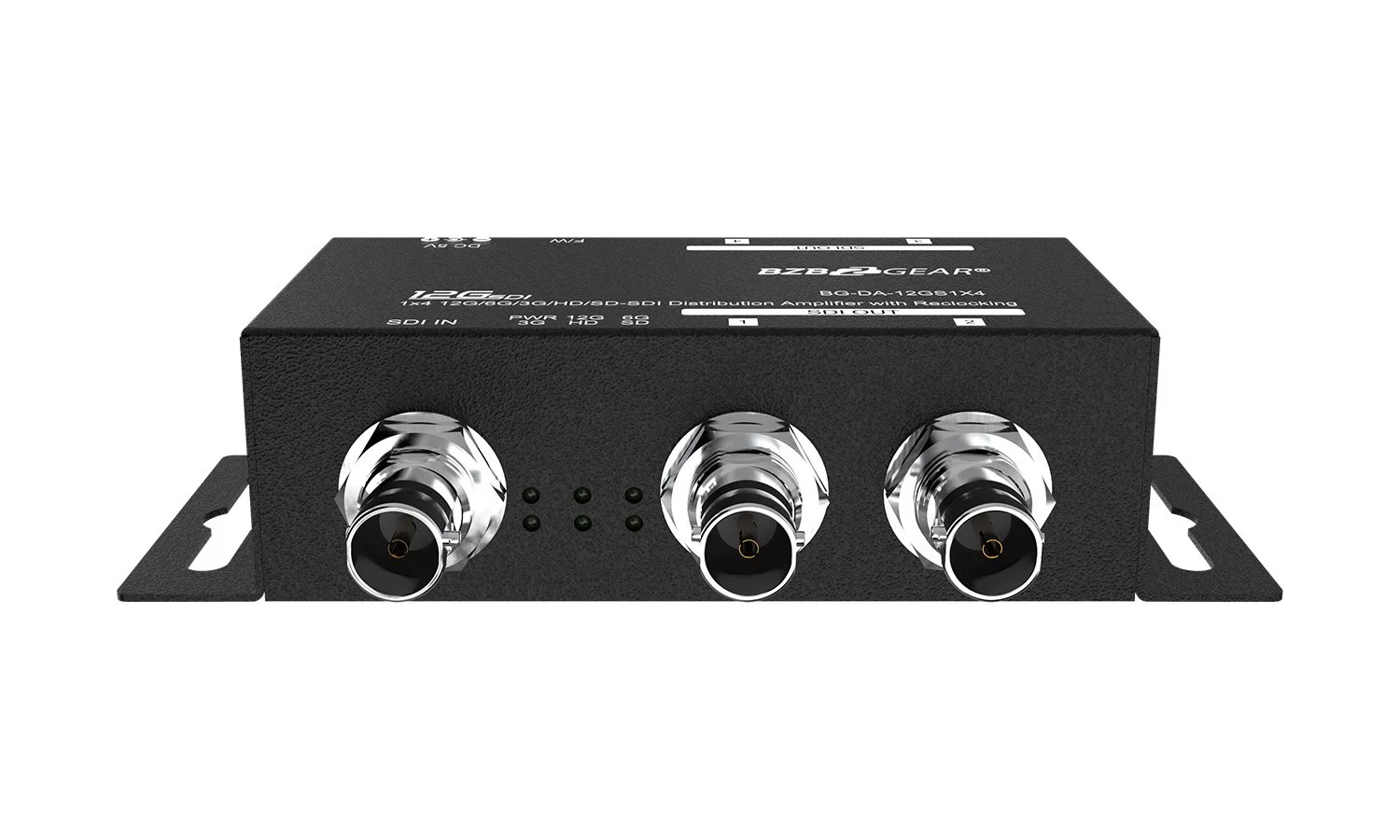

Interfaces

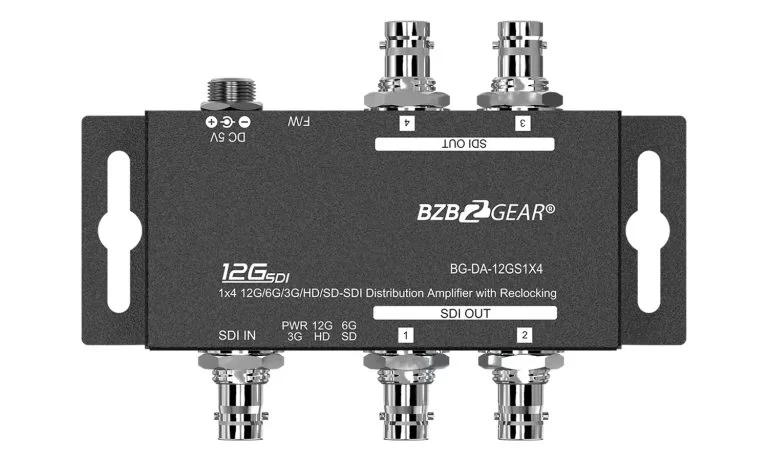

Interfaces image
  1. 12G/6G/3G/HD/SD-SDI Output 3-4: Connect to an SDI display.
  2. Micro-USB: For updating firmware.
  3. 5V DC power jack: Connect to provided power supply.
  4. 12G/6G/3G/HD/SD-SDI input: Connect to an SDI source.
  5. Power LED indicator: Illuminates when connected to power.
  6. 12G Signal LED indicator: Illuminates when connected to a 12G source.
  7. 6G Signal LED indicator: Illuminates when connected to a 6G source.
  8. 3G Signal LED indicator: Illuminates when connected to a 3G source.
  9. HD Signal LED indicator: Illuminates when connected to a HD source.
  10. SD Signal LED indicator: Illuminates when connected to a SD source.
  11. 12G/6G/3G/HD/SD-SDI Output 1-2: Connect to an SDI display.
