1x2 4K UHD HDMI Splitter with Down-Scaler w/Digital and Analog Audio Output

Configure the Perfect Solution
Get Started

Overview

The BG-DA-1X2AS is a high-performance HDMI splitter designed for professional applications. It offers the ability to split one 4K@60Hz input signal into two lossless copies, making it perfect for sharing a single device with two displays. The splitter supports resolutions up to 4K@60Hz 4:4:4 and HDCP 2.2, providing exceptional picture quality and stability.

One of the key features of the BG-DA-1X2AS is its selectable 4K to 1080P downscaler for each output, which allows for compatibility with legacy displays. This feature makes it a versatile choice for installations that require flexible and adaptable video solutions.

The splitter also features EDID settings, which can be easily configured to COPY or AUTO modes, to help ensure more stable and seamless HDMI connections in different display situations.

In addition to its video capabilities, the BG-DA-1X2AS also provides audio extraction via optical and 3.5mm stereo outputs, enabling it to send signals to external audio systems. The splitter supports a variety of audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD, making it an ideal choice for professional audio and video installations.

The BG-DA-1X2AS is built with a durable metal housing, ensuring protection against everyday wear and tear, and providing long-lasting reliability. Its advanced features and robust construction make it a reliable and versatile tool for demanding professional AV installations.

Features

  • bi_badge-4k
    4K Support
    Supports resolutions up to 4K@60Hz 4:4:4
  • bi_soundwave
    Audio Extraction
    HDMI audio extraction via optical and 3.5mm ports
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • carbon_scale
    Downscaling
    Selectable 4K to 1080P downscaling feature
  • ep_connection
    EDID
    EDID dip switches ensure each output maintains a stable connection
  • iconoir_pc-check
    Easy to Use
    Simple for anyone to learn
  • Supports output bypass and 4K->1080P downscaling via dip switches
  • EDID can be selected COPY and AUTO modes via dip switch. (COPY: It copies OUT 1 port EDID settings to all output ports; AUTO: Compares OUT 1 and OUT 2 EDID settings and outputs the best resolution to all outputs)
  • Supports HDMI audio formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Videos

Bridge Pro AV & Broadcast Solutions with BZBGEAR – NAB Show 2022
Bridge Pro AV & Broadcast Solutions with BZBGEAR – NAB Show 2022
BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom
BZBGEAR Equipment for Small to Medium Size Conference Rooms for Skype/Zoom

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18Gbps
Video Resolutions 720P@50/60Hz, 1080P@50/60Hz, 4K2K@24Hz, 4K2K@30Hz, 4K2K@50/60Hz (4:4:4)
Color Depth 4K@60Hz 8-bit, 1080P 12-bit
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats PCM 2.0
Optical Audio Formats LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection Human-body Model:
± 8kV (Air-gap discharge), ± 4kV (Contact discharge)
Connections
Input ports 1x HDMI Type A [19-pin female]
Output ports 2x HDMI Type A [19-pin female]
1x L/R Audio out [3.5mm Stereo Mini-jack]
1x Optical out [S/PDIF]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 4.7”(W) x 2.5"(D) x 0.6”(H) [120mm(W) x 62.5mm(D) x 14mm(H)]
Weight 0.37lbs [166g]
Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 2.8W (max)
Operating
Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

PACKAGE CONTENTS

  • 1x 1X2 HDMI 2.0 Splitter
  • 1x 5V/1A Power Adapter
  • 1x User Manual

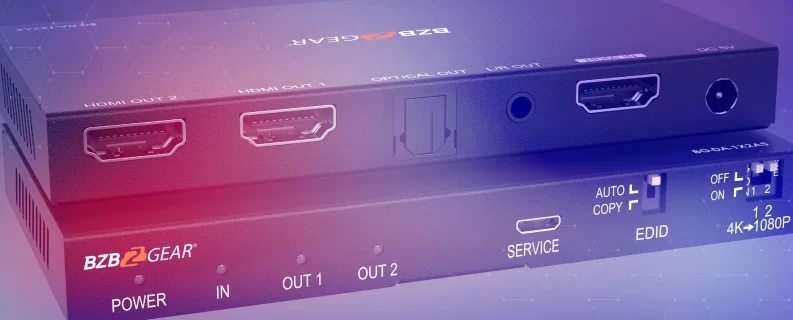

Interfaces

Interfaces image
  1. POWER LED: This blue LED will illuminate when the unit has a connected power supply.
  2. HDMI INPUT LED: This blue LED will illuminate when the HDMI IN has connected an active HDMI source device with an HDMI cable.
  3. HDMI OUTPUT LED: These blue LEDs will illuminate when the HDMI OUT port has been connected to an active display device with an HDMI cable.
  4. SERVICE port: Micro USB firmware update.
  5. EDID: AUTO: Compares OUT 1 and OUT 2 displays EDID settings.
    COPY: Copy the HDMI OUT 1 port EDID settings to the source device.
  6. Dial switch (4K→ 1080P): OFF: signal input and output is in bypass status.
    ON: signal input will downscale 4k to 1080P on toggled output.
  7. HDMI OUTPUT: Connect to an HDMI display device such as TV or monitor.
  8. OPTICAL OUT: SPDIF optical audio output.
  9. L/R OUT: 3.5mm stereo mini audio output.
  10. HDMI IN: Connect to an HDMI source device.
  11. DC 5V: Plug the 5V/1A DC power supply into the unit and connect the adapter to an AC outlet.
