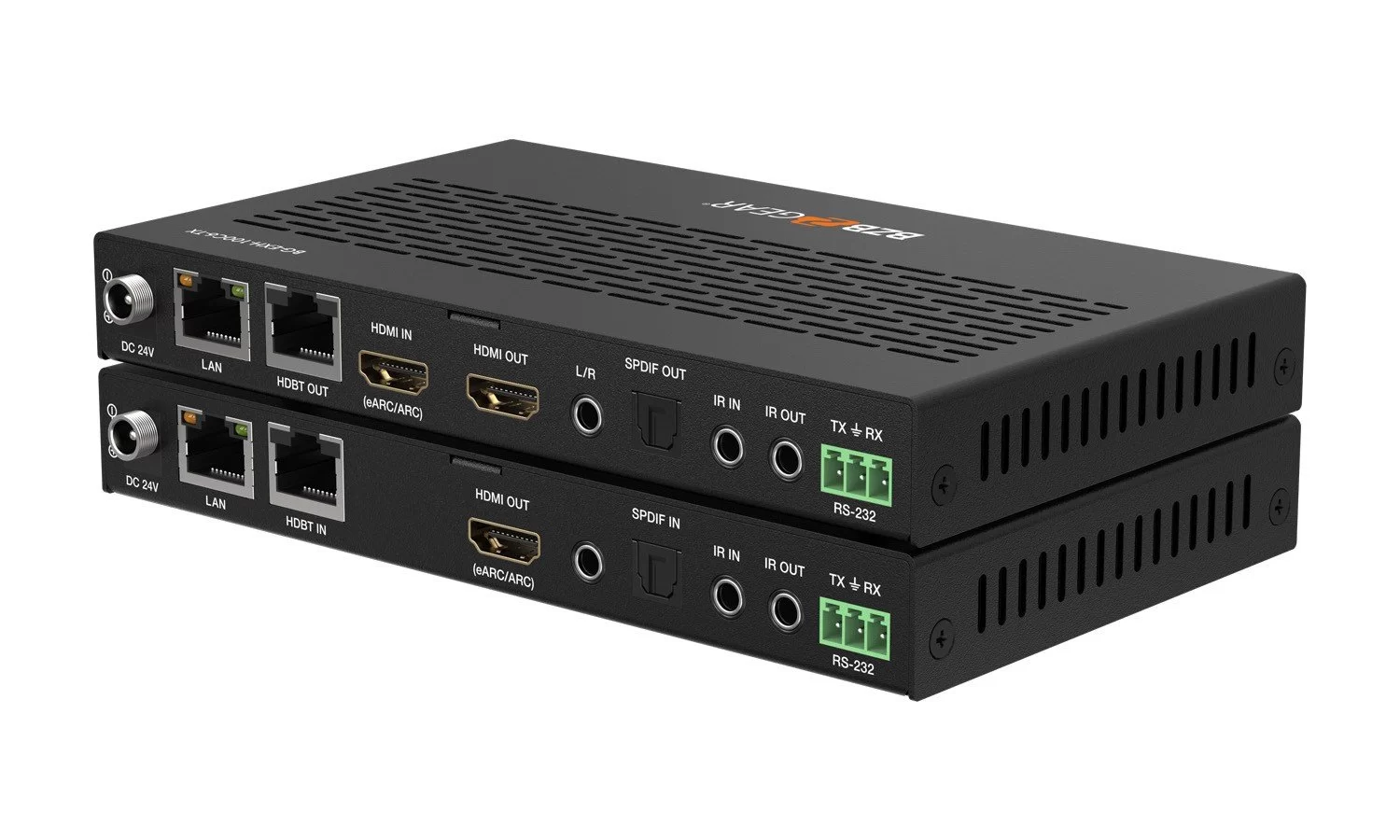

4K UHD HDMI/HDBaseT 3.0 Extender with IR/eARC/ARC/PoC/RS-232/Ethernet/USB and Audio Embedding/De-embedding up to 330ft

Configure the Perfect Solution
Get Started

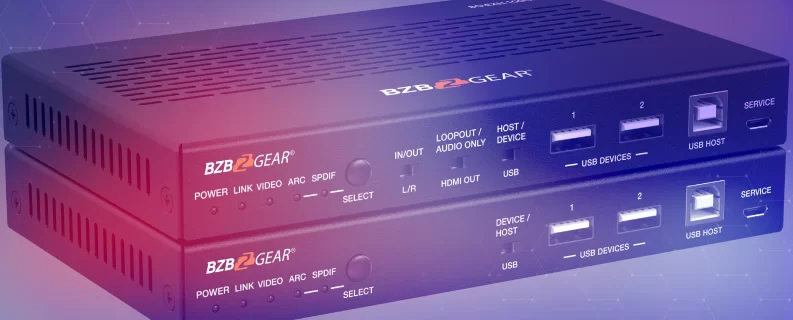

Overview

Experience unparalleled audio and video transmission with the BG-EXH-100C6 HDBaseT 3.0 extender by BZBGEAR. This state-of-the-art device unleashes uncompressed HD/UHD audio and video, along with eARC/ARC, RS-232, bi-directional IR, 1Gb Ethernet, and USB 2.0 signals up to an impressive distance of 328ft(100m) using just a single CAT6A/7 cable. Say goodbye to messy wires and hello to convenience.

With USB 2.0 host/device configurability, the BG-EXH-100C6 offers maximum flexibility and functionality, making it the perfect solution for a KVM setup. And, with bi-directional power over cable (PoC), there's no need for a second power adaptor, saving you time and money.

The BG-EXH-100C6 can support resolutions up to 4K@60Hz 4:4:4, and boasts HDR10, HDR10+, Dolby Vision and HLG technology, ensuring unparalleled picture quality. The transmitter can also embed or de-embed audio, while the receiver supports audio de-embedding. Plus, with eARC/ARC from the receiver's HDMI output, you can enjoy top-notch audio quality on your local audio system, or opt to use the transmitter's HDMI audio only and SPDIF output ports.

BG-EXH-100C6 by BZBGEAR is the ultimate choice for anyone seeking top-of-the-line audio and video extender. With its advanced features and unparalleled performance, it's sure to exceed your expectations.

Features

  • fluent-mdl2_connect-virtual-machine
    HDMI Loop-out
    Loop-out to view content locally at transmitter side
  • solar_remote-controller-2-linear
    Bi-Directional IR
    Control devices via IR either from the receiver or transmitter
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • bi_hdmi
    Rich Color Contrast
    HDR, HDR10, HDR10+, Dolby Vision, and HLG supported
  • bi_badge-4k
    Stunning Image Quality
    Crystal clear images at 4K 60Hz 4:4:4
  • Plug-and-Play Setup
    Power Over Cable
    Power only needs to be supplied to the either transmitter or receiver allowing for easier installation
  • Transmit signals up to 328ft (100m)
  • HDMI ARC from receiver to transmitter
  • Utilize two USB 2.0 ports on both transmitter and receiver
  • LED lights on transmitter and receiver to verify connection status at a glance
  • Audio Embedding and de-embedding through S/PDIF optical port and 3.5mm stereo mini on transmitter
  • 1Gbps LAN ports on receiver and transmitter to connect extra devices to a network

Videos

How to Pick The Perfect HDMI Extender for Any Venue
How to Pick The Perfect HDMI Extender for Any Venue
Modern Tech Features of BZBGEAR's High Quality USB KVM Extender Kits
Modern Tech Features of BZBGEAR's High Quality USB KVM Extender Kits
High Quality HDMI HDBaseT Extender Kits for Long Range - BZBGEAR
High Quality HDMI HDBaseT Extender Kits for Long Range - BZBGEAR

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
HDBaseT Bandwidth 16Gbps on main and 2Gbps on return link
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD, Master Audio, DSD
L/R Audio Formats PCM 2.0
SPDIF Audio Formats LPCM2.0, AC3 5.1, DTS 5.1
IR Level 12Vp-p
IR Bandwidth 20K - 60KHz
USB Bandwidth Up to 350Mbps
Ethernet 1000Mbps
RS-232 Up to 921600bps
Transmission Distance 100m (via a single CAT 6A/7 cable)
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Input: 1 x HDMI IN [Type A, 19-pin female]
Output:
1 x HDMI OUT [Type A, 19-pin female]
1 x HDBT OUT [RJ45, 8-pin female]
1 x SPDIF OUT [S/PDIF]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control:
1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x SERVICE [Mini-USB, Update port]
1 x USB HOST [USB Type B]
2 x USB DEVICES [USB Type A]
1 x LAN [RJ45]
Receiver Input: 1 x HDBT IN [RJ45, 8-pin female] / 1 x SPDIF IN [S/PDIF]
Output:
1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control:
1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x SERVICE [Mini-USB, Update port]
1 x USB HOST [USB Type B]
2 x USB DEVICES [USB Type A]
1 x LAN [RJ45]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 6.7"(W) x 4.0"(D) x 0.87"(H) [170mm (W) x 102mm (D) x 22mm (H)]
Weight Transmitter: 0.94 lbs [425g], Receiver: 0.96 lbs [437g]
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption 15.36W (P0C)
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
Resolution/Cable Length 4K60 - Feet / Meters 4K30 - Feet / Meters 1080P60 - Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
Note: The use of “Premium High-Speed HDMI” cable is highly recommended.

PACKAGE CONTENTS

  • 1 x HDBaseT 3.0 Extender (Transmitter)
  • 1 x HDBaseT 3.0 Extender (Receiver)
  • 1 x IR Blaster Cable (1.5 meters)
  • 1 x IR Receiver Cable (1.5 meters)
  • 2 x 3pin-3.81mm Phoenix Connectors
  • 4 x Mounting Ears
  • 8 x Machine Screws (KM3*4)
  • 1 x 24V/1A Locking Power Supply
  • 1 x User Manual

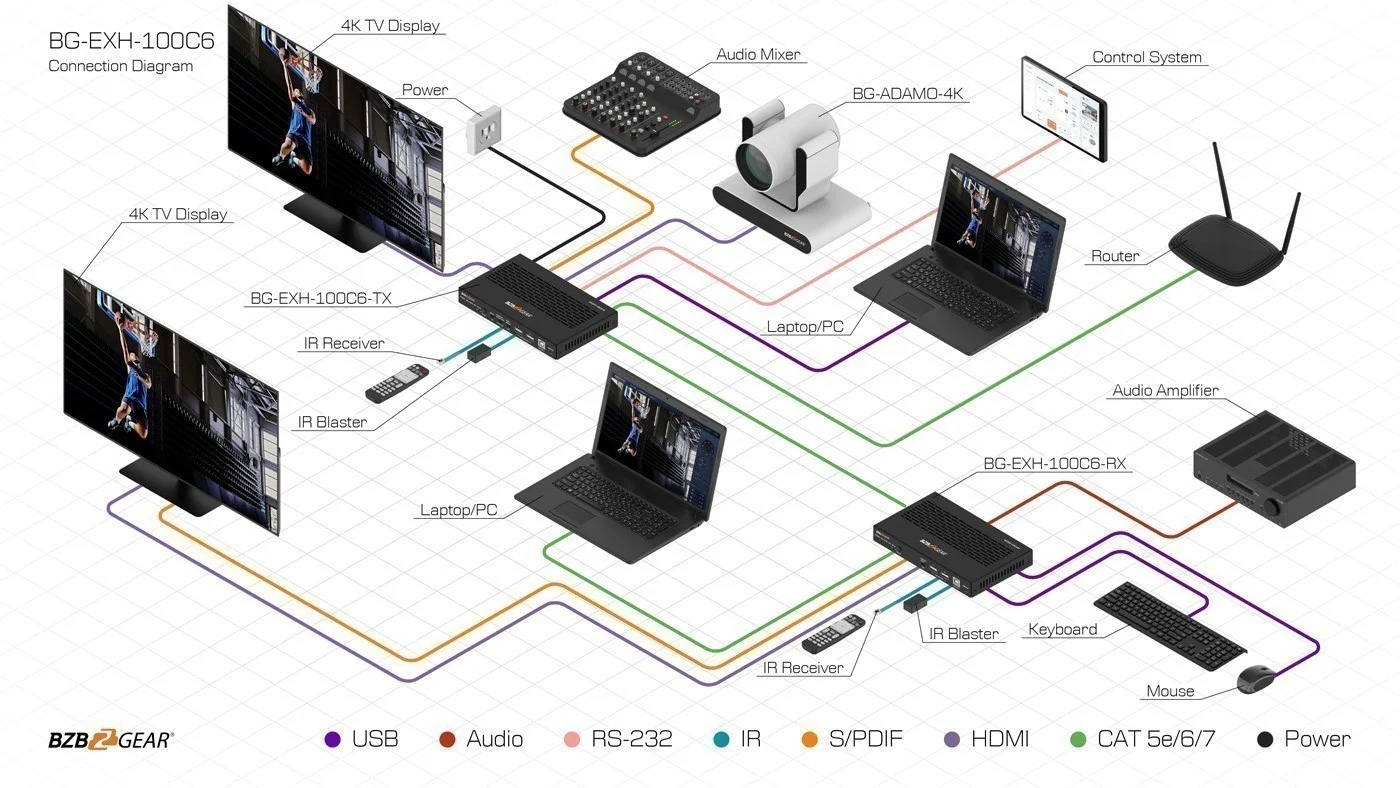

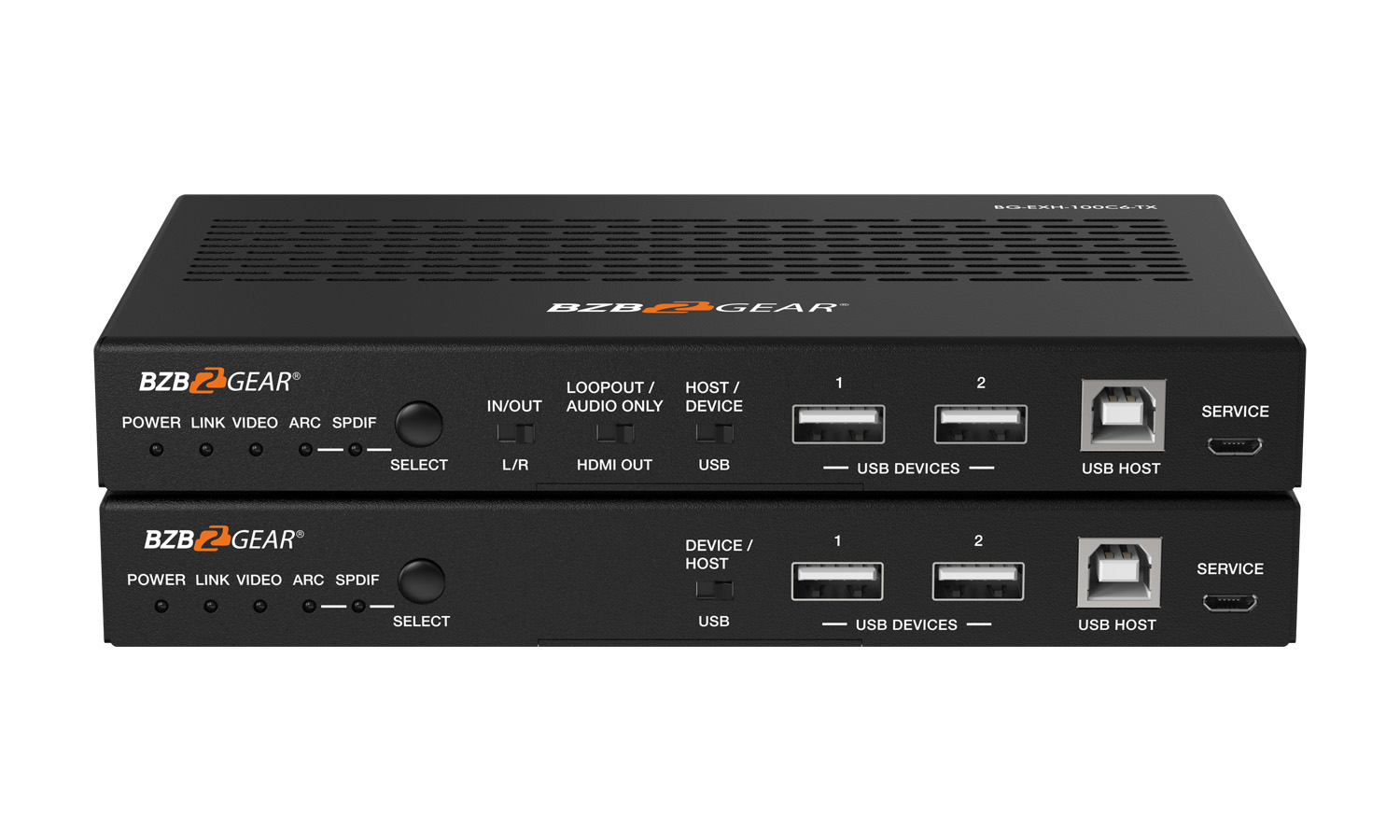

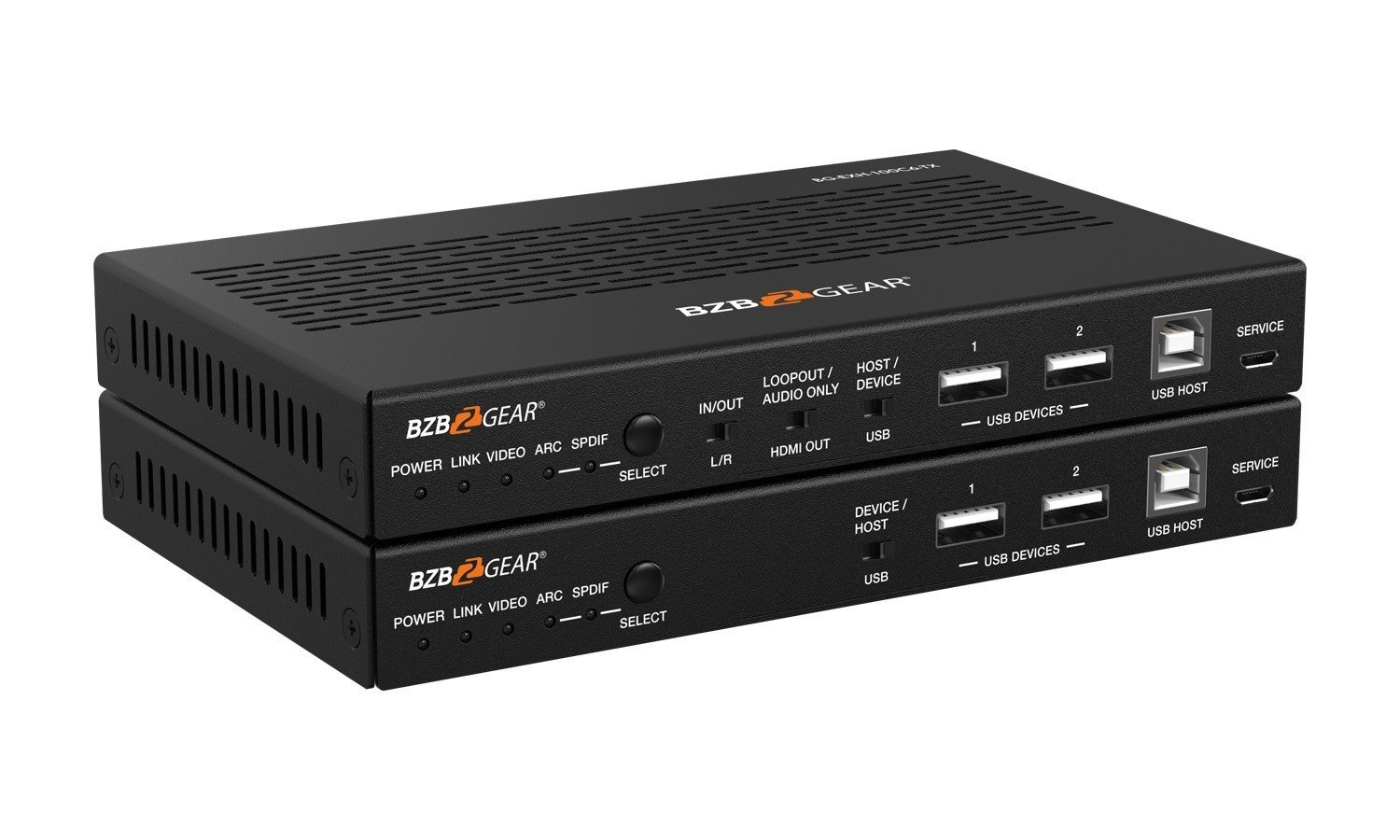

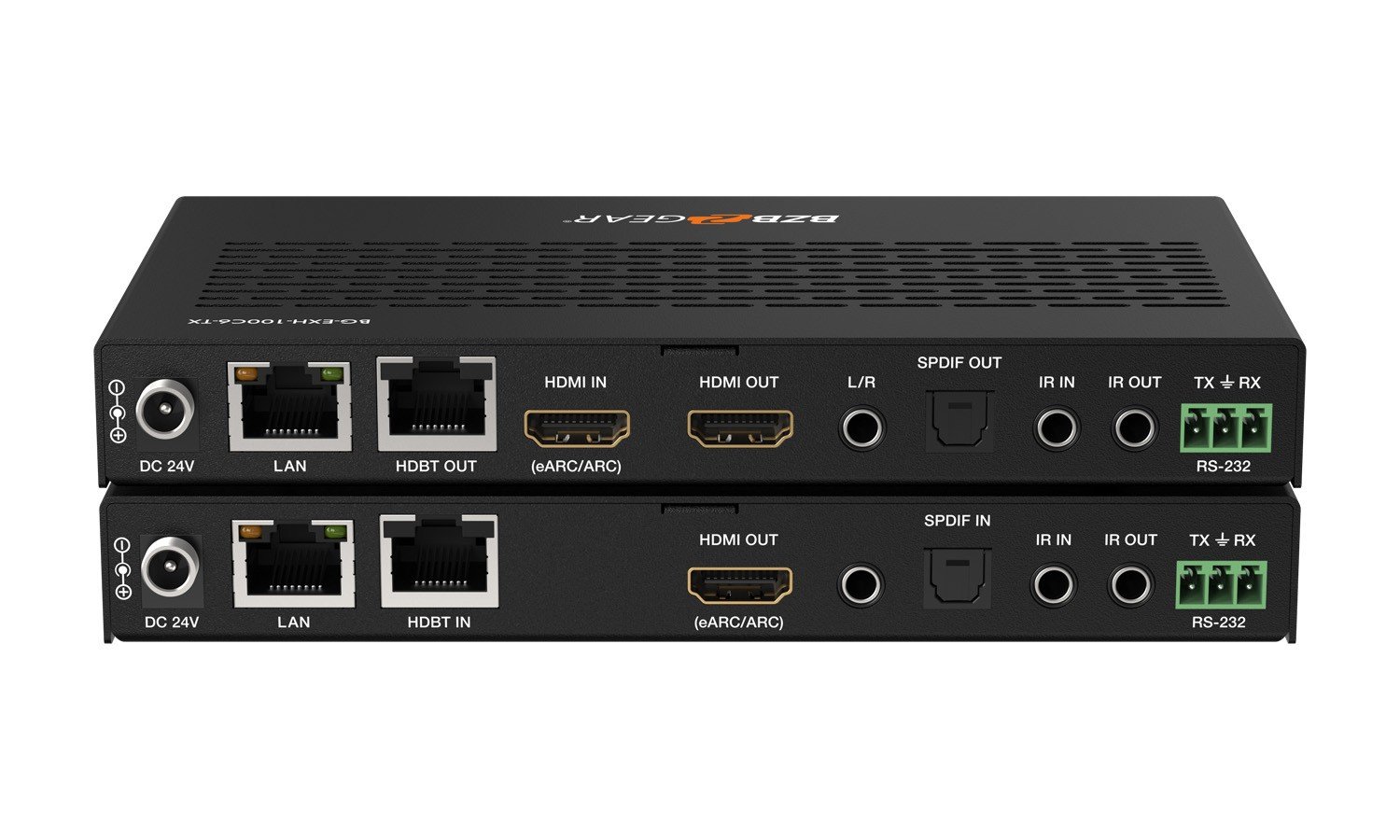

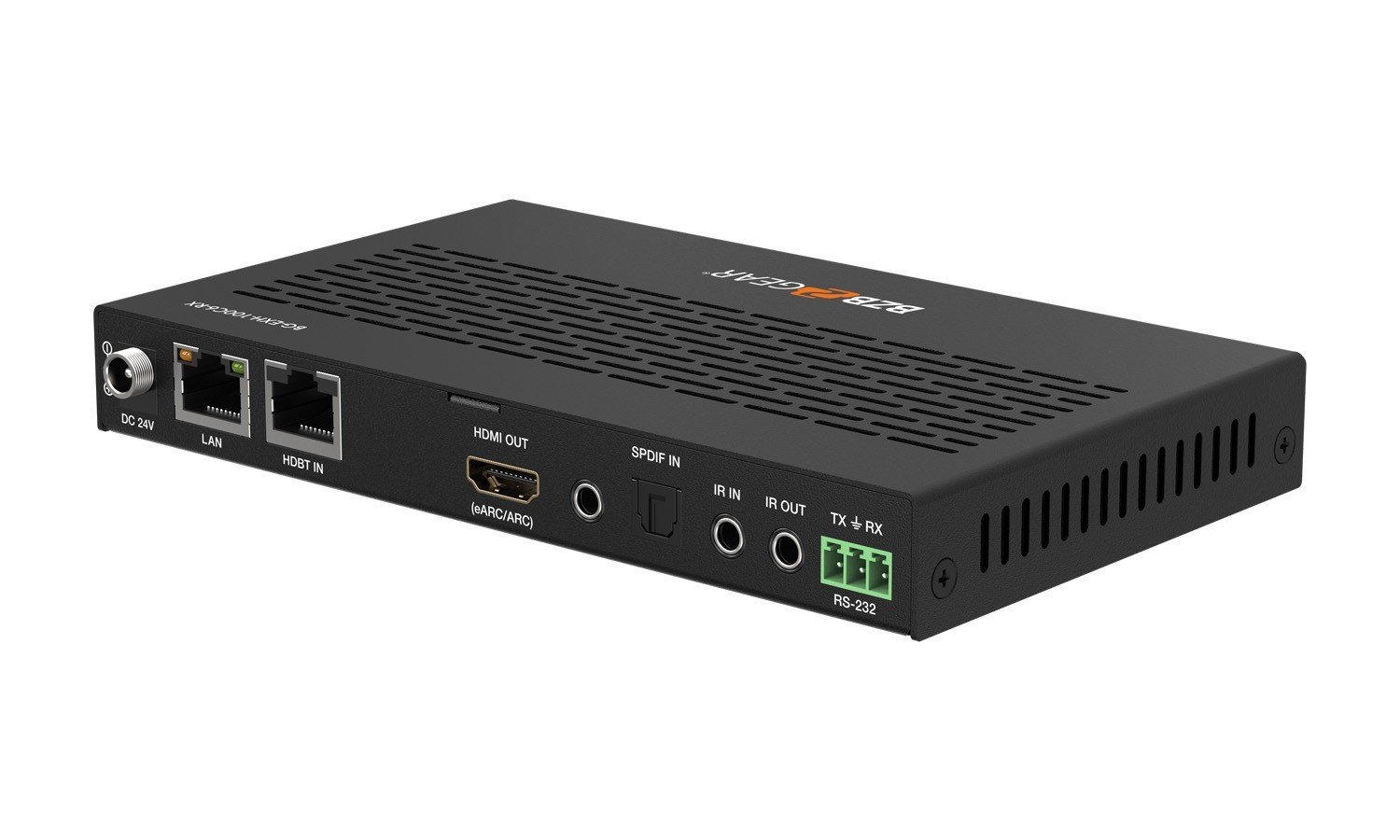

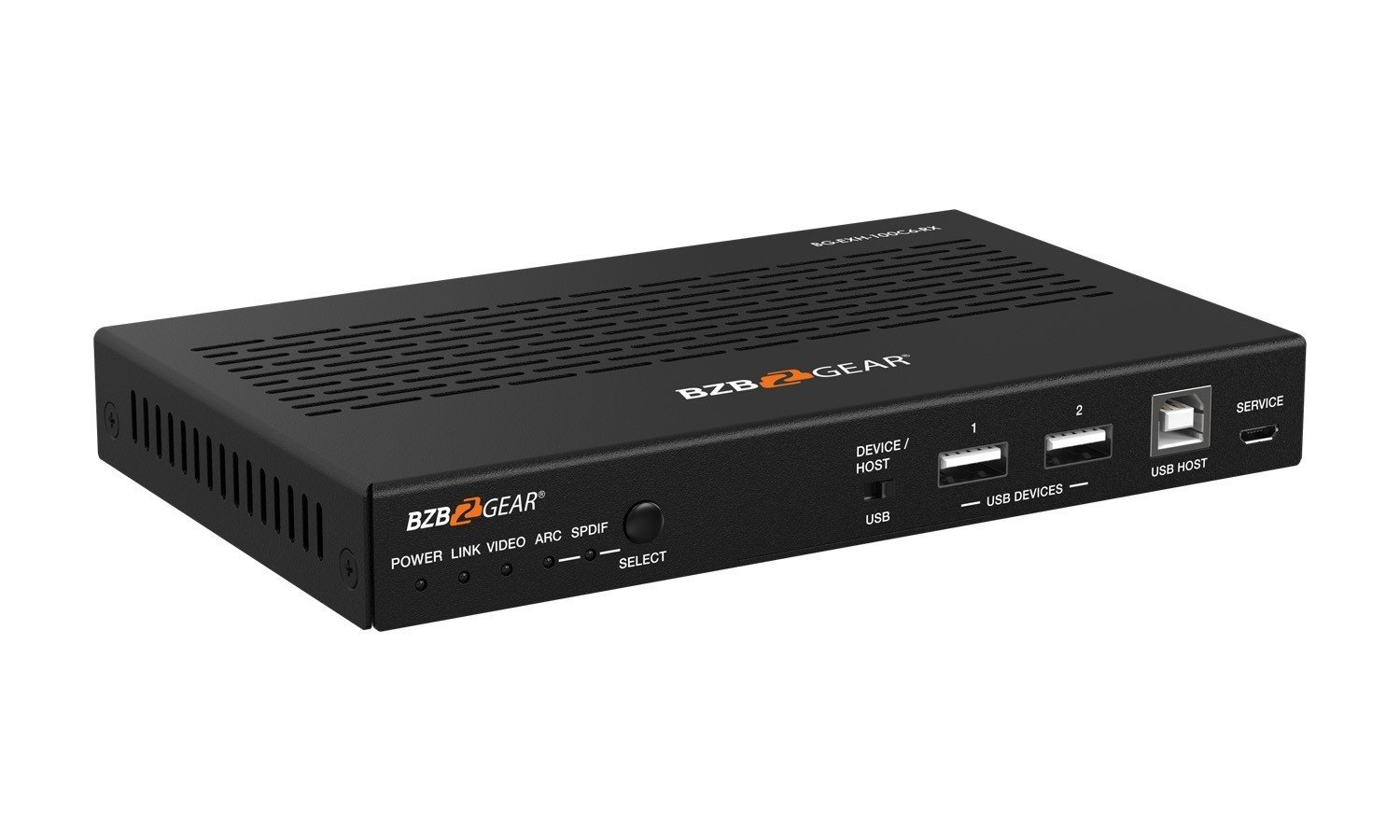

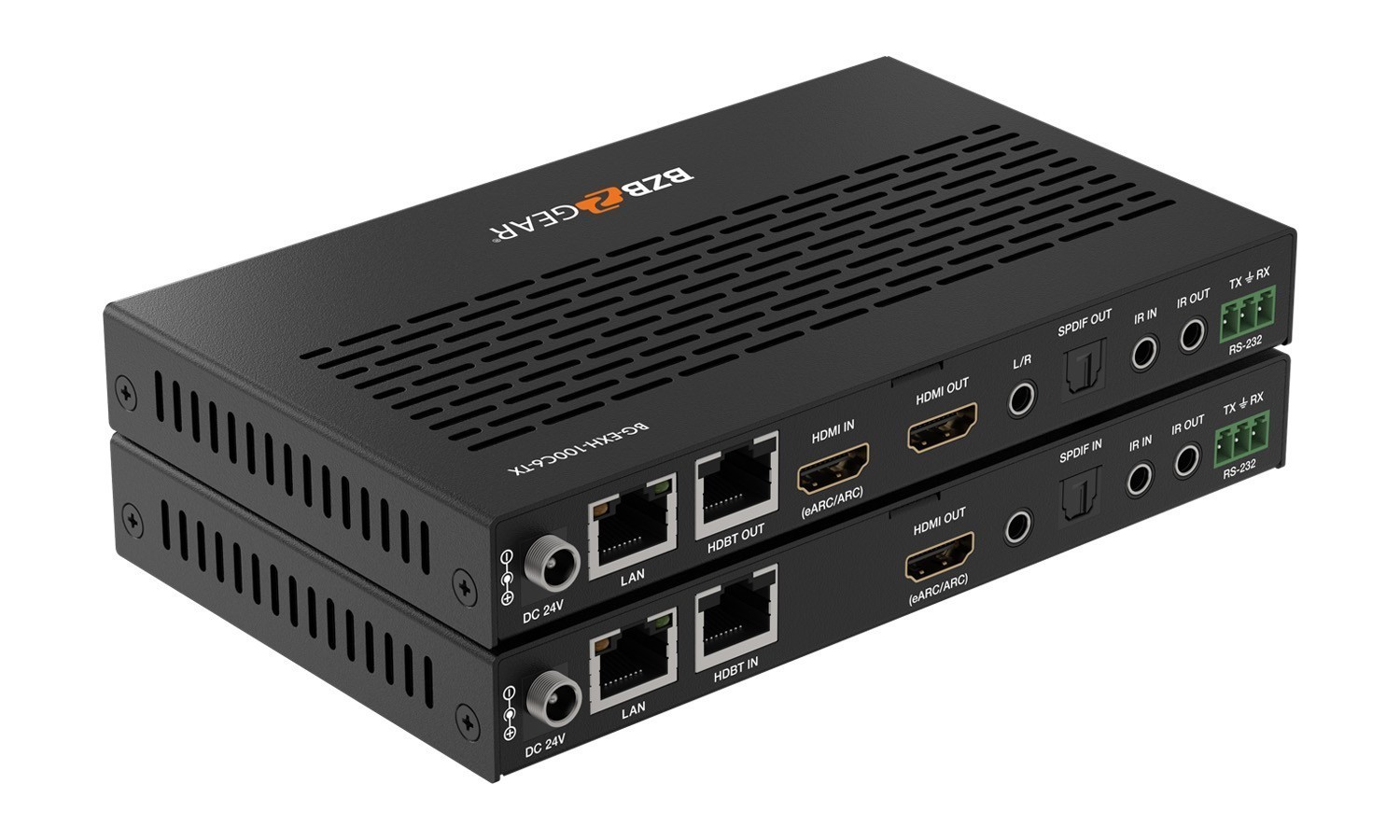

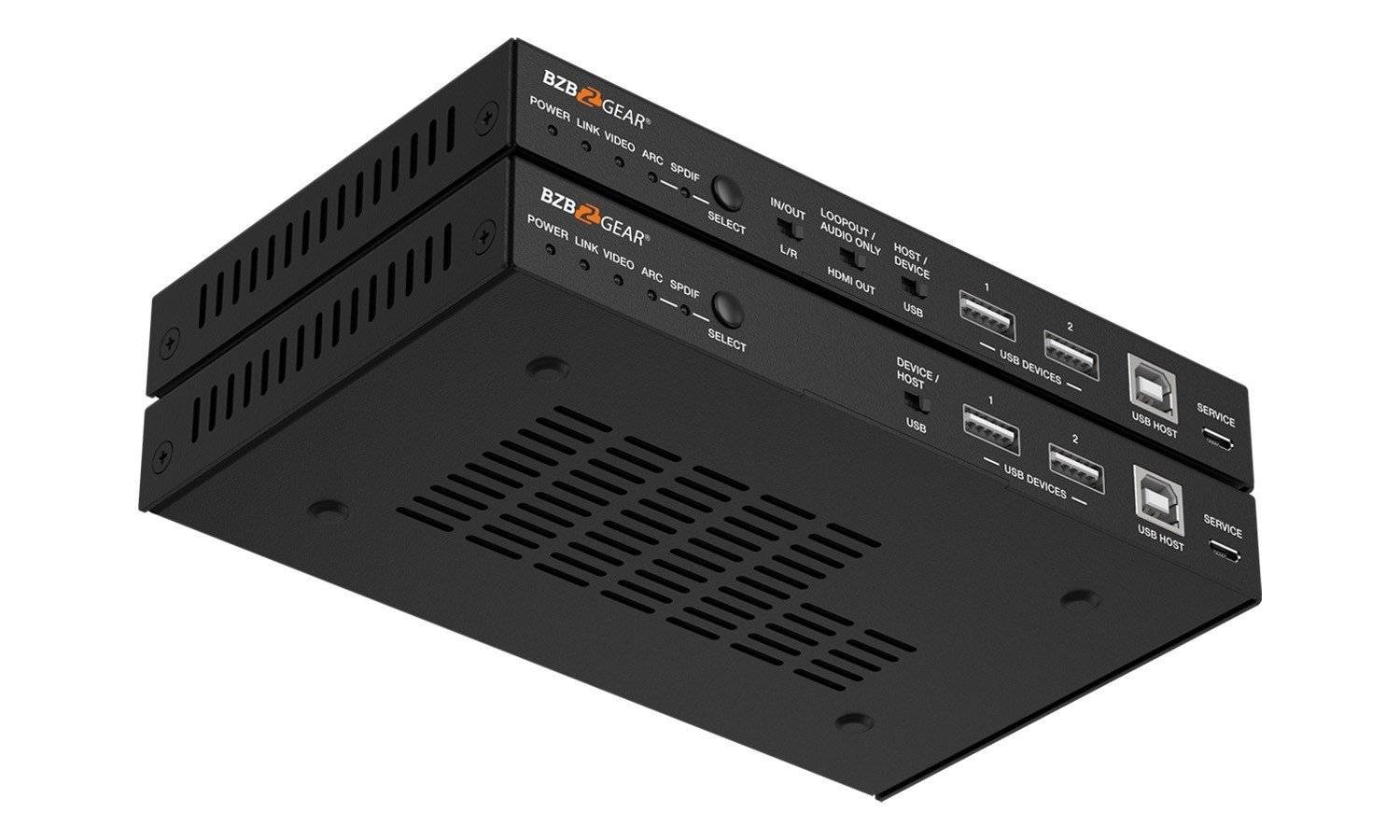

Interfaces

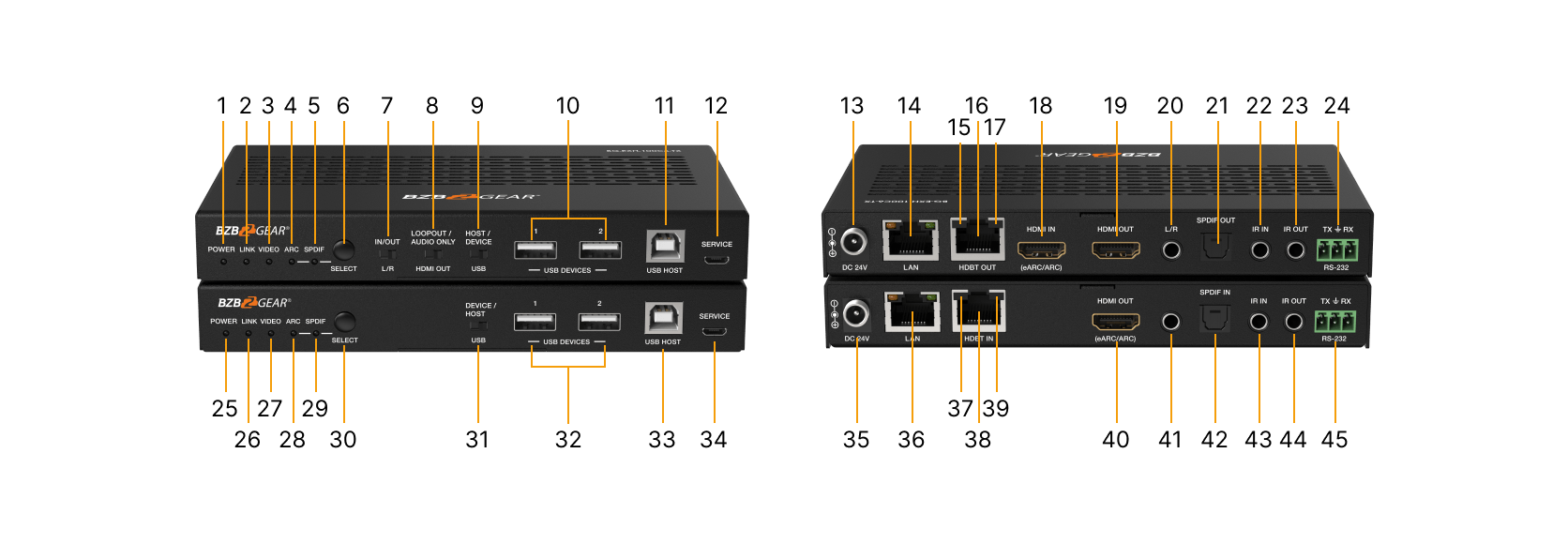

Interfaces image
  1. Power LED: Red LED indicates that the Transmitter is powered on.
  2. LINK LED: Light on: Transmitter and Receiver are in good connection status.
    Light flashing: Transmitter and Receiver are in Low Power Mode.
    Light off: Transmitter and Receiver are not connected.
  3. VIDEO LED: Light on: The video is encrypted.
    Light flashing: The video is not encrypted.
    Light off: No HDMI input.
  4. ARC LED: Light on: The device is switched to the ARC mode
    Light off: The device is switched to the SPDIF mode.
  5. SPDIF LED: Light on: The device is switched to the SPDIF mode.
    Light off: The device is switched to the ARC mode.
  6. SELECT button: Used for switching the ARC mode and SPDIF mode.
  7. L/R IN/OUT switch: Switch to left, the L/R IN/OUT port is the audio embedding port; Switch to right, the L/R IN/OUT port is the audio de-embedding port.
  8. LOOP OUT/ AUDIO ONLY switch: Switch to left (LOOPOUT), the HDMI OUT port is the loopout port for the HDMI IN port; Switch to right (AUDIO ONLY), the HDMI OUT port outputs 720P black screen image, and the audio is from ARC or SPDIF.
  9. HOST/ DEVICE USB switch: Switch to left (HOST), the USB HOST mode is enabled; Switch to right (DEVICE), the USB DEVICE mode is enabled.
  10. USB DEVICES: Two USB device ports, connected to U disk, mouse or keyboard.
  11. USB HOST: USB extension host port, connected to PC.
  12. SERVICE: Firmware update port.
  13. DC 24V: DC 24V/1A power supply input port.
  14. LAN: 1G Network port. When it switches to Gigabit Ethernet, the green indicator lights on; When it switches to 100M Ethernet, the yellow indicator lights on.
  15. Data Signal Indicator (Yellow): Illuminating: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
  16. HDBT OUT: 10G Network port, connected to the HDBT IN port of Receiver with a CAT 6A/7 cable. It is used for various signals pass-through.
  17. Link Signal Indicator (Green): Illuminating: Transmitter and Receiver are in good connection status.
    Flashing: Transmitter and Receiver are in poor connection status.
    Dark: Transmitter and Receiver are not connected.
  18. HDMI IN: HDMI signal input port, connected to signal source device, supporting eARC/ARC amplifier.
  19. HDMI OUT: HDMI signal loopout port. It can choose to be a LOOP OUT or AUDIO ONLY port through the LOOP OUT/AUDIO ONLY switch.
  20. L/R IN/OUT: Audio embedding/de-embedding port. It can be used for audio embedding/de-embedding through the L/R IN/OUT switch.
  21. SPDIF OUT: Optical output port.
  22. IR IN: IR signal input port, connected to IR Receiver cable.
  23. IR OUT: IR signal output port, connected to IR Blaster cable.
  24. RS-232: RS-232 serial port, used for serial port command transmission.
  25. Power LED: Red LED indicates that the Receiver is powered on.
  26. LINK LED: Light on: Transmitter and Receiver are in good connection status.
    Light flashing: Transmitter and Receiver are in Low Power Mode.
    Light off: Transmitter and Receiver are not connected.
  27. VIDEO LED: Light on: The video is encrypted.
    Light flashing: The video is not encrypted.
    Light off: No HDMI input.
  28. ARC LED: Light on: The device is switched to the ARC mode.
    Light off: The device is switched to the SPDIF mode.
  29. SPDIF LED: Light on: The device is switched to the SPDIF mode.
    Light off: The device is switched to the ARC mode.
  30. SELECT button: Used for switching the ARC mode and SPDIF mode.
  31. DEVICE/ HOST USB switch: Switch to right (HOST), the USB HOST mode is enabled; Switch to left (DEVICE), the USB DEVICE mode is enabled.
  32. USB DEVICES: Two USB device ports, connected to U disk, mouse or keyboard.
  33. USB HOST: USB extension host port, connected to PC.
  34. SERVICE: Firmware update port.
  35. DC 24V: DC 24V/1A power supply input port.
  36. LAN: 1G Network port. When it switches to Gigabit Ethernet, the green indicator lights on; When it switches to 100M Ethernet, the yellow indicator lights on.
  37. Data Signal Indicator (Yellow): Solid: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
  38. HDBT IN: 10G Network port, connected to the HDBT OUT port of Transmitter with a CAT 6A/7 cable. It is used for various signals pass-through.
  39. Link Signal Indicator (Green): Solid: Transmitter and Receiver are in good connection status.
    Flashing: Transmitter and Receiver are in poor connection status.
    Dark: Transmitter and Receiver are not connected.
  40. HDMI OUT: HDMI signal output port, supporting eARC/ARC TV.
  41. L/R OUT: Audio de-embedding output port.
  42. SPDIF IN: Optical input port.
  43. IR IN: IR signal input port, connected to IR Receiver cable.
  44. IR OUT: IR signal output port, connected to IR Blaster cable.
  45. RS-232: RS-232 serial port, used for serial port command transmission.
