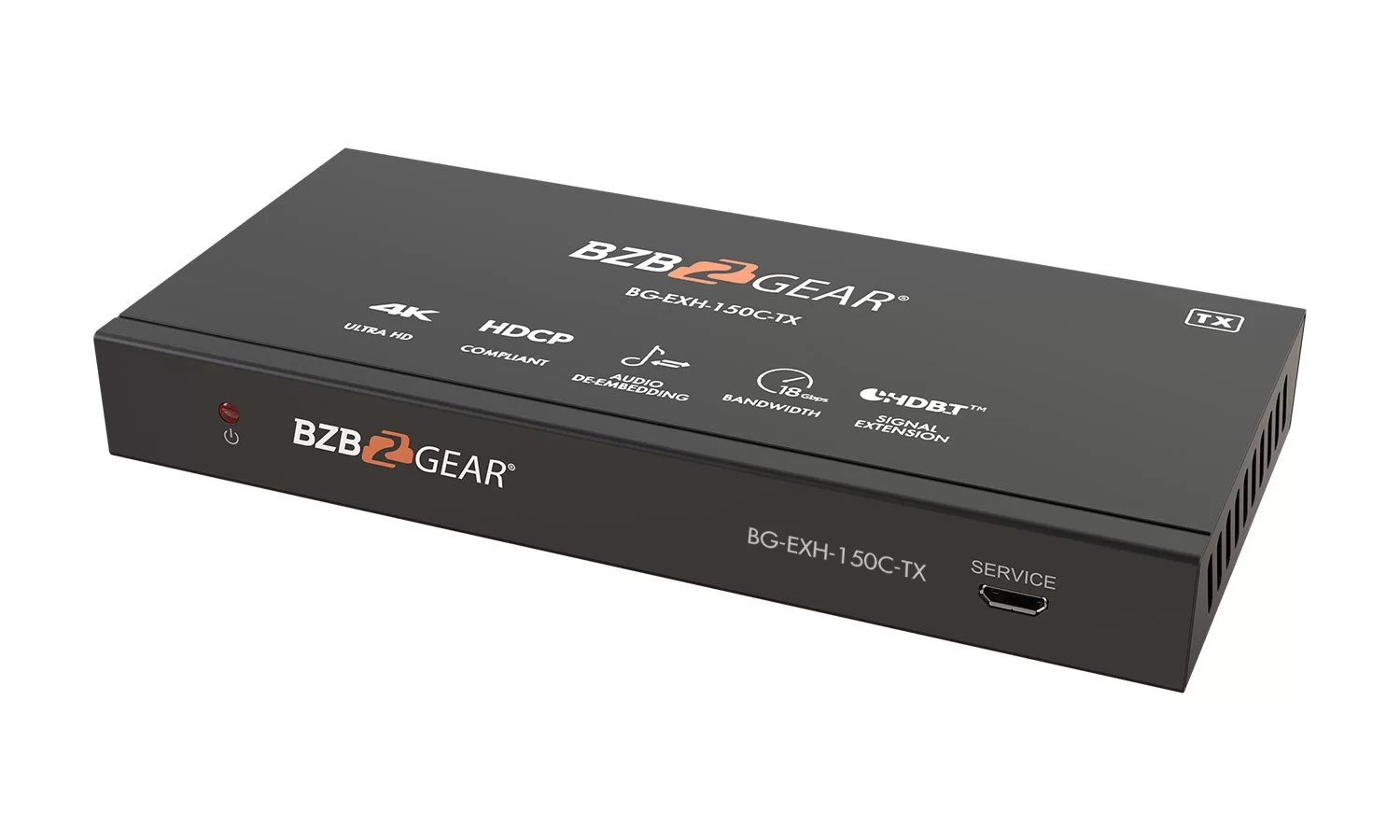

Overview

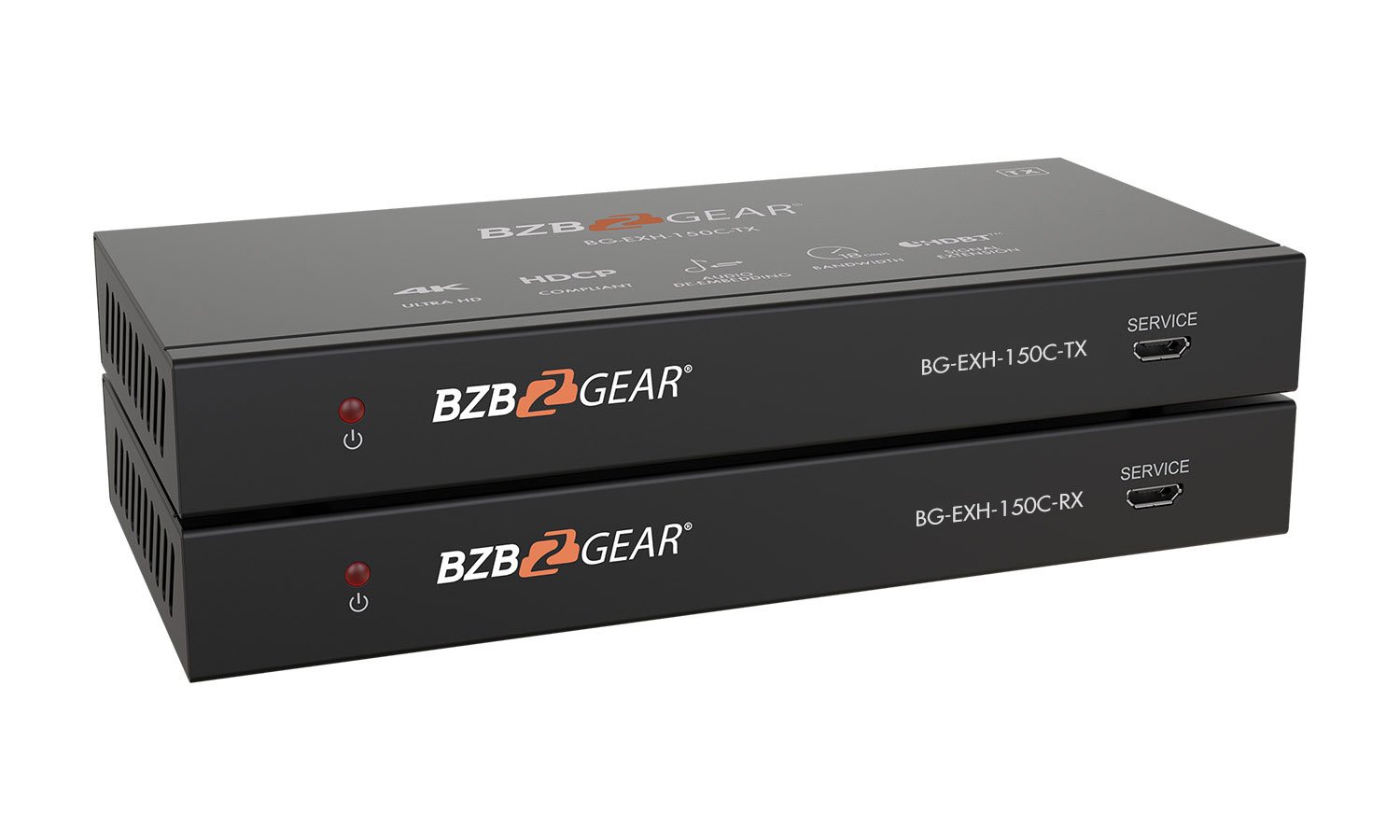

You need to extend HDMI signal and looking for reliable futureproof solution packed with all necessary features? Stop right there and search no more because you already found it – BZBGEAR BG-EXH-150C!

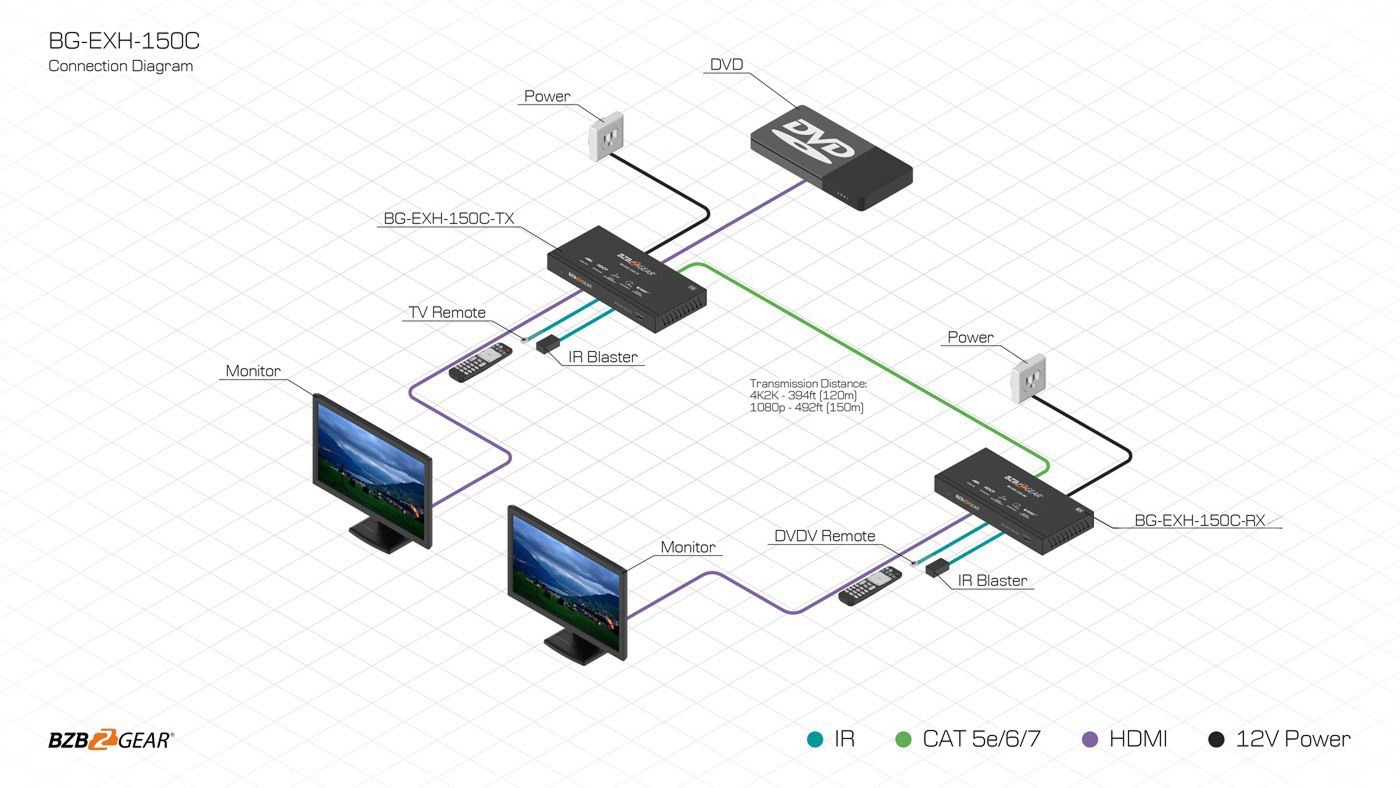

This device with a help of HDBaseT technology will extend HDMI signal for up to 150M (492 ft) with resolutions for up to 4K@60Hz using single CAT6 ethernet cable. But probably this is not the only feature you are looking for. So, it can do much more – along with HDMI it will extend IR and RS-232 signal, so you can control your TV from the source side (for example, when using 3rd party control system) or you can control the source (like your cable box) from the TV side.
If you need to connect local audio system – there is a 3.5mm mini-jack connector on the receiver which provides de-embedding audio from HDMI signal. If you need to duplicate transmitted signal – there is a HDMI loop-out connector, which you can use to connect monitor or another device.
Power over category cable adds more convenience for your setup – only one side (either transmitter or receiver) needs power adapter to be connected to electrical outlet, and to make it secure it has locking connector.
BZBGEAR BG-EXH-150C also supports many modern video technologies (like HDR, HDR10+, Dolby Vision and HLG) and audio formats as well as digital media protection for up to HDCP 2.2.
Features
-
![Wide-Angle 2]()
Extreme RangeTransmit 1080p up to 492ft and 4K up to 394ft -
![bi_badge-4k]()
Stunning Image QualitySupports resolutions up to 4K@60Hz
-
![HDR]()
HDR SupportHDR, HDR10+, Dolby Vision, HLG -
![Plug-and-Play Setup]()
PoCOnly one of the units, TX or RX, needs to be plugged into AC power -
![fluent_zoom-fit-24-filled]()
Multiple Types of ControlControl devices with bi-directional IR, RS-232 and CEC pass-through -
![bi_soundwave]()
Audio De-EmbeddingReceiver provides analog audio output for external audio system
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- With bi-directional IR, RS-232 and CEC pass-through
- 18Gbps video bandwidth
- Compact design for easy and flexible installation
- HDMI loop output on the transmitter
- Durable metal housing
Videos
Tech Specifications
| Technical | |||
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | 4K2K@50/60Hz 4:4:4 4K2K@50/60Hz 4:2:2 4K2K@50/60Hz 4:2:0 4K2K@30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
||
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12-bit (1080p@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4) |
||
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | ||
| L/R Audio Formats | PCM 2.0 | ||
| ESD Protection | Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] |
||
| Receiver | Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver: 5.5" (W) x 2.5" (D) x 0.7" (H) [140mm (W) x 65mm (D) x 18mm (H)] | ||
| Weight | Transmitter: 0.35lbs [160g], Receiver: 0.34lbs [155g] | ||
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector) |
||
| Power Consumption | 9.36 W | ||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (no condensation) | ||
| Resolution / Distance | |||
| 4K2K | 394ft / 120M | ||
| 1080P | 492ft / 150M | ||
| Resolution / Cable Length | 4K@60 - Feet / Meters | 4K@30 - Feet / Meters | 1080P@60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||
Resources
PACKAGE CONTENTS
- 1 x 18Gbps HDMI over HDBaseT Extender (Transmitter)
- 1 x 18Gbps HDMI over HDBaseT Extender (Receiver)
- 1 x IR Blaster cable (1.5 meters)
- 1 x 20~60KHz IR Receiver cable (1.5 meters)
- 4 x Mounting Ear
- 2 x 3-pin Phoenix connector
- 1 x 24V/1A Locking Power adapter
- 1x User Manual
- 1х Quick Start Guide

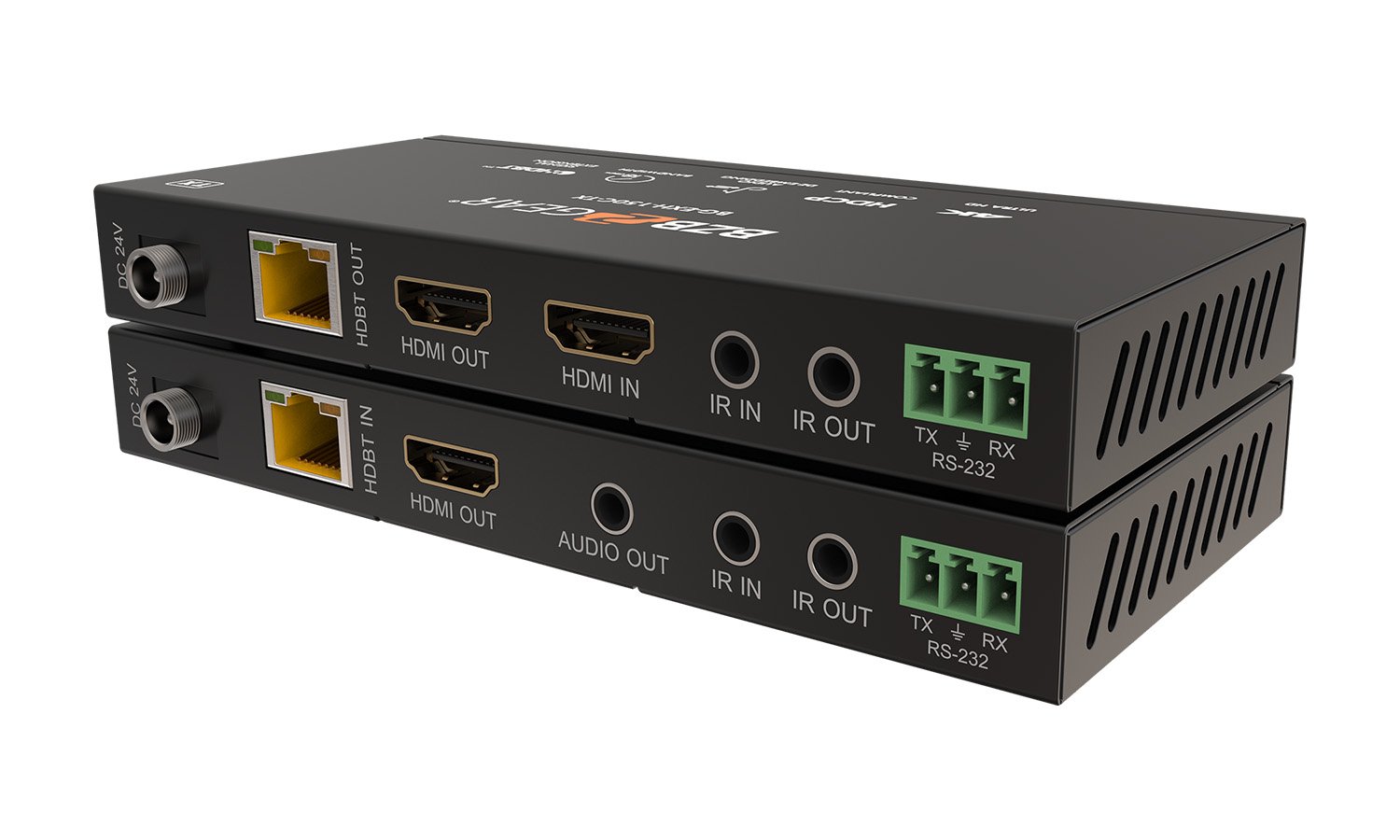

Interfaces
-

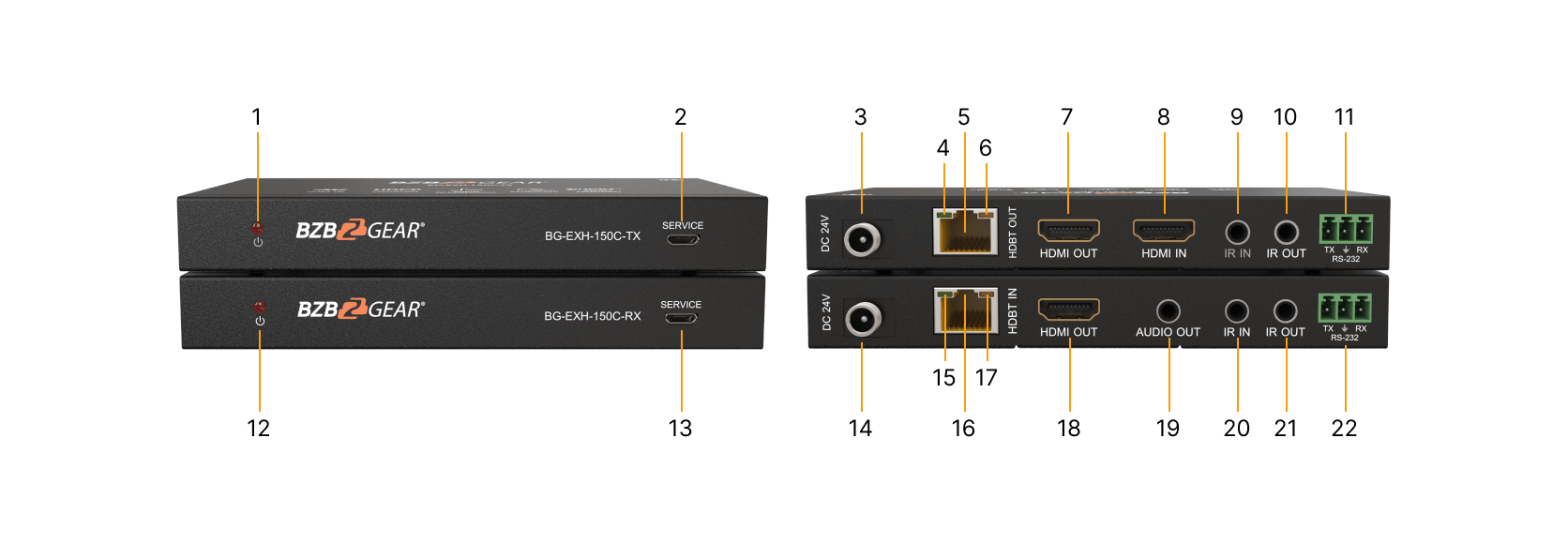

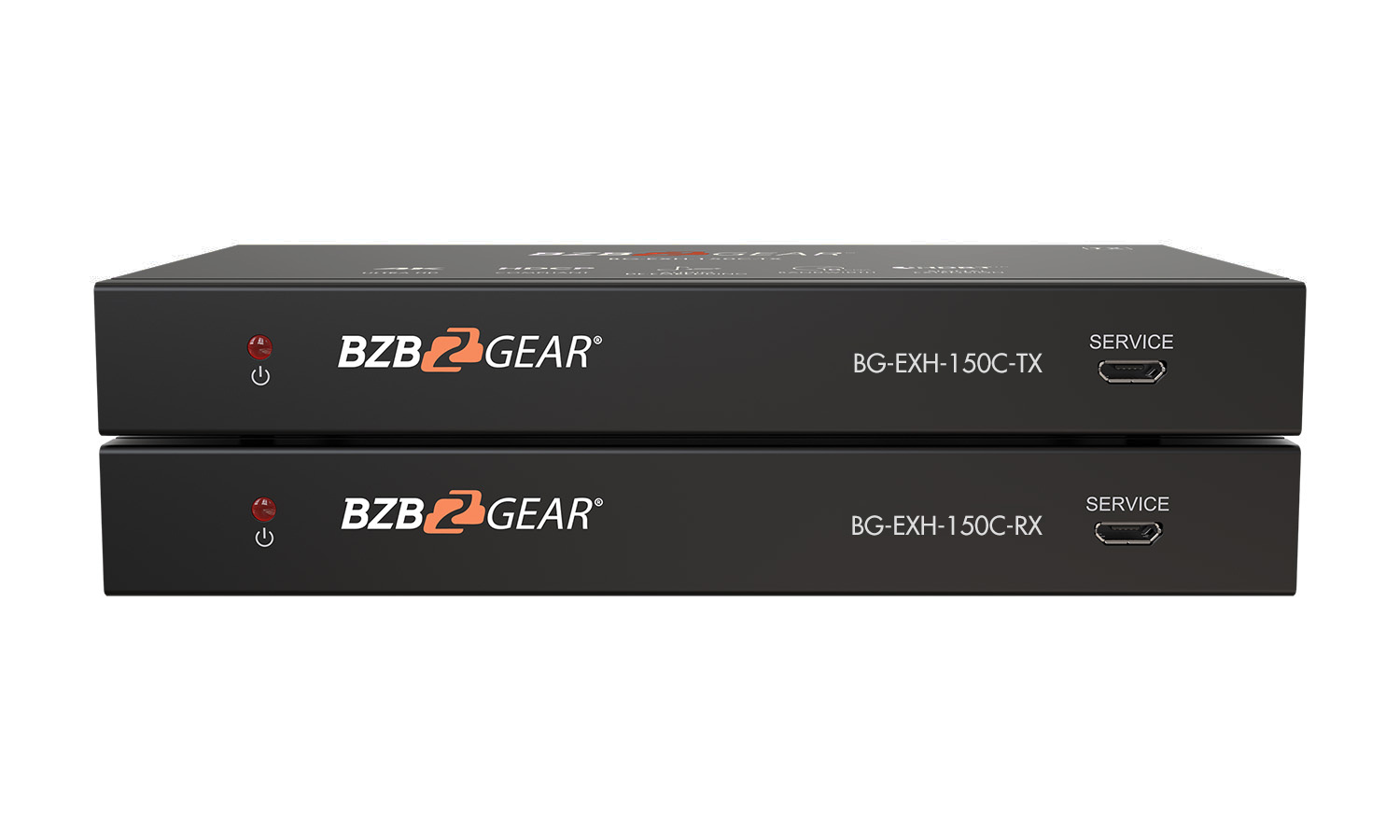

Power LED: Red LED indicates that the transmitter is powered on.
-
SERVICE port: Micro USB firmware update port.
-

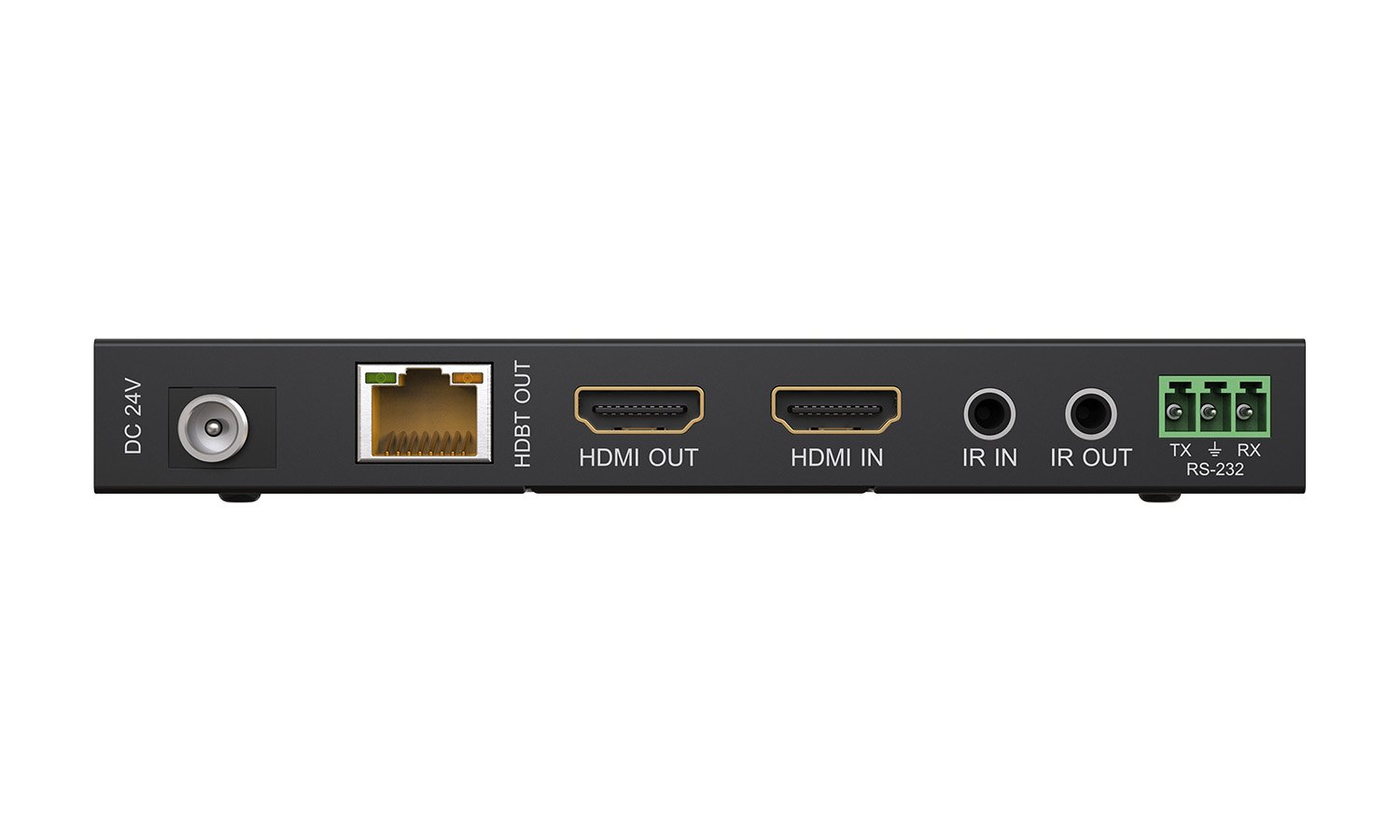

DC 24V: DC 24V/1A power supply input port.
-
Connection Indicator lamp: Solid: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected. -
HDBT OUT: RJ45 connector for connecting the HDBT IN port of the receiver with a CAT 5e/6 cable.
-
Data Indicator lamp: Solid: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal. -
HDMI OUT: HDMI loop output for display.
-
HDMI IN: HDMI source input.
-
IR IN: IR input port for receiving the signal of IR remote.
-
IR OUT: IR output port for control of source device. This IR output signal is from the IR IN port of the receiver.
-
RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
-

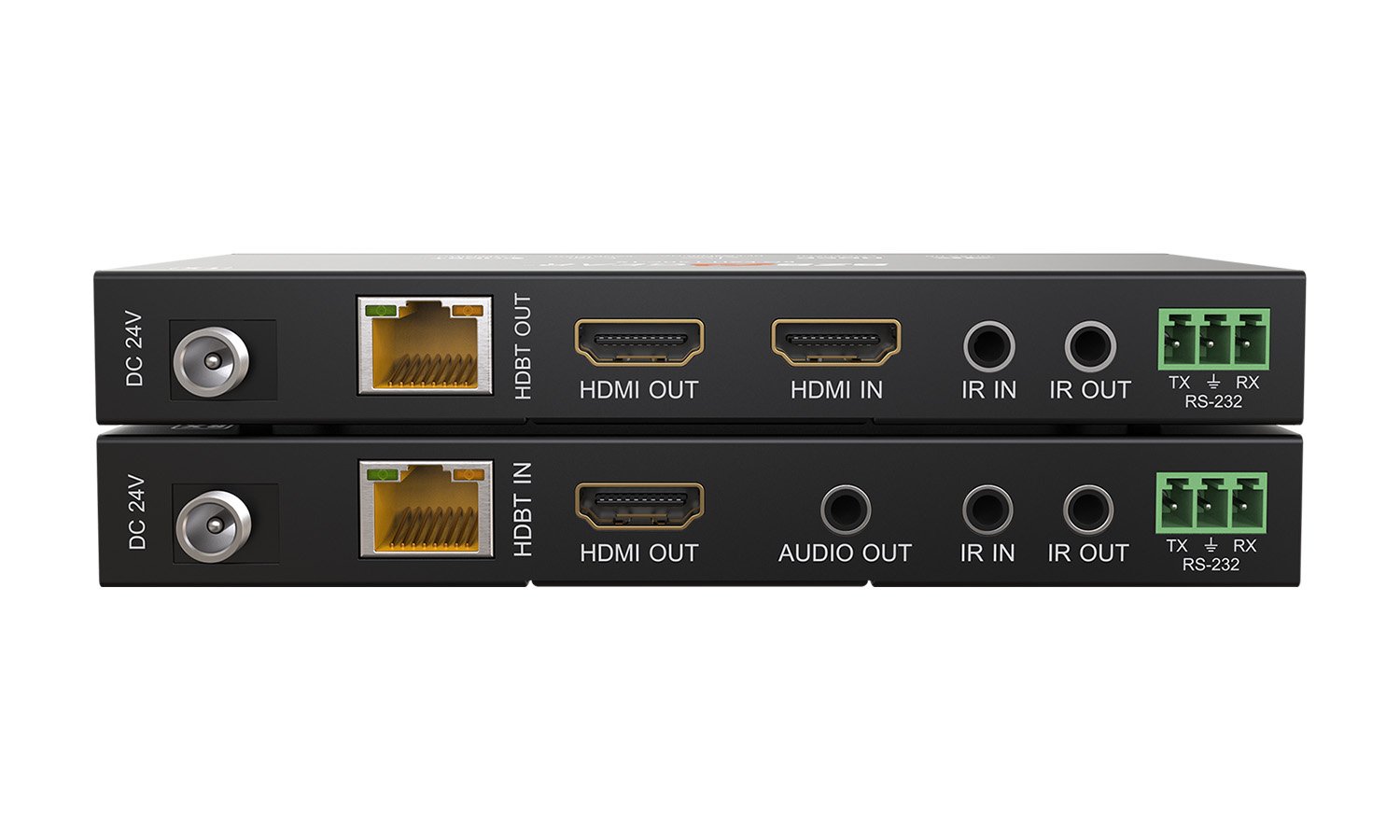

Power LED: Red LED indicates that the receiver is powered on.
-
SERVICE port: Micro USB firmware update port.
-
DC 24V: DC 24V/1A power supply input port.
-
Connection Indicator lamp: Solid: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected. -
HDBT IN: RJ45 connector for connecting the HDBT OUT port of transmitter with a CAT 5e/6 cable.
-
Data Indicator: Solid: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal. -
HDMI OUT: HDMI output for display.
-
AUDIO OUT: 3.5mm stereo connector for analog audio output.
-
IR IN: IR input port for receiving the signal of IR remote.
-
IR OUT: IR output port for control of display device. This IR output signal is from the IR IN port of the transmitter.
-
RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
