4K UHD HDMI Extender with Bi-directional IR over a Single Cat5e/6/7 up to 165ft

Configure the Perfect Solution
Get Started

Overview

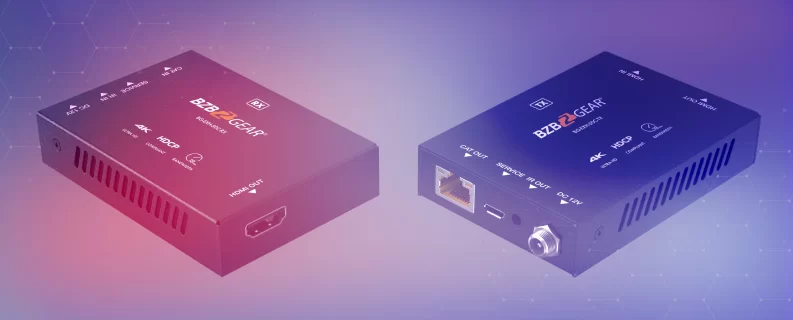

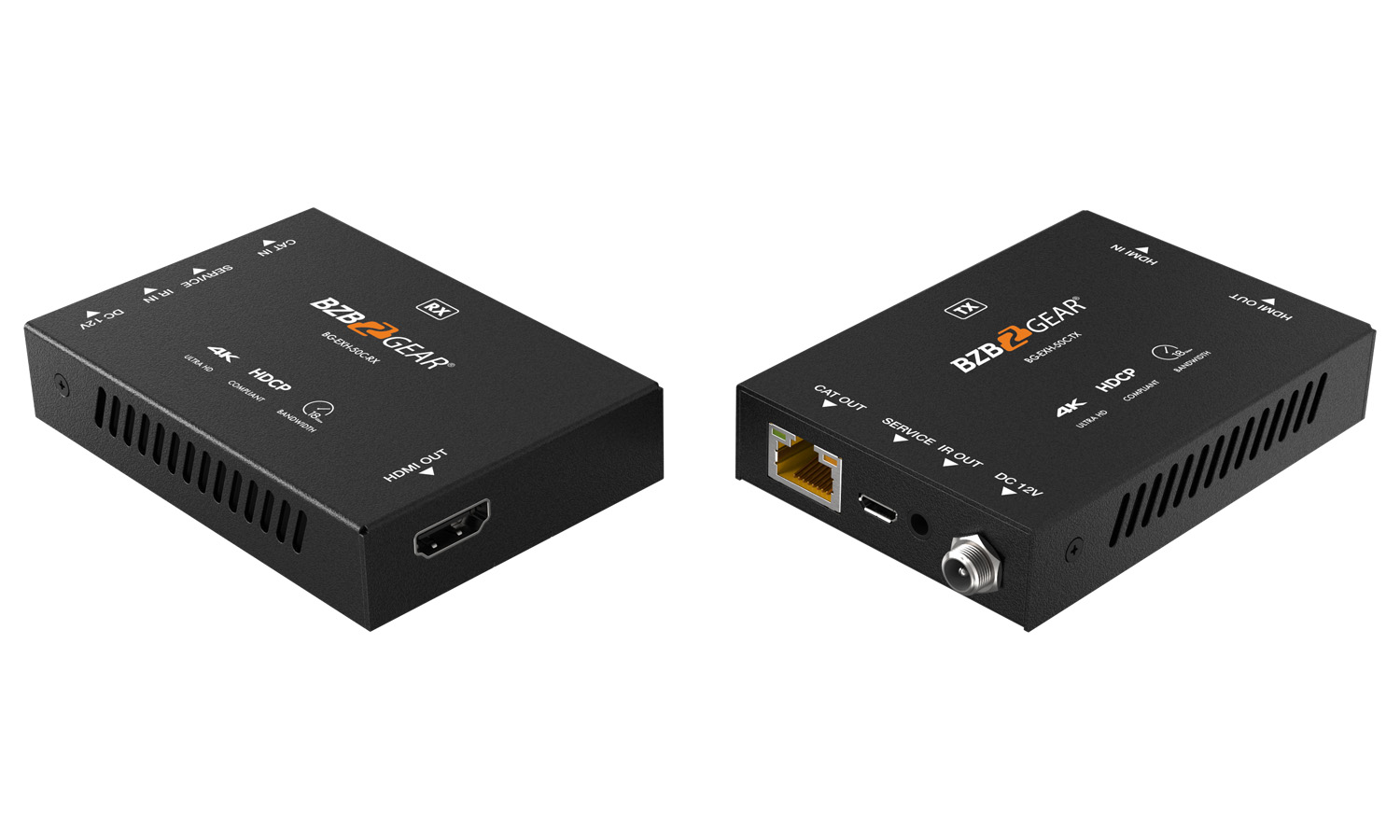

The BG-EXH-50C HDMI 2.0 extender over a single CAT5/6 cable is a versatile and high-quality solution for extending source signals with resolutions up to 4K@60Hz (4:4:4) for distances of up to 165ft (50m). The device is perfect for a wide range of applications, including home entertainment, commercial installations, and digital signage.

One of the standout features of the BG-EXH-50C is its IR transmission feature, which allows users to control the source of the signal from a remote location. This feature provides greater flexibility and convenience for users who need to control their devices from a distance.

The BG-EXH-50C also includes a Power over Category cable feature, which eliminates the need for a second power adapter. Only one side (transmitter or receiver) needs to be connected to a power outlet, making it an efficient and cost-effective solution.

The transmitter unit of the BG-EXH-50C also features an HDMI loop output, which can be used to connect a local monitor or as an input to another extender or any other HDMI equipment. This feature adds to the versatility of the device and ensures that users have multiple output options.

The BG-EXH-50C is HDCP 2.2 compliant, ensuring that it is fully compatible with the latest content protection standards. This feature provides users with peace of mind and ensures that their content is protected.

Overall, the BG-EXH-50C HDMI 2.0 extender over a single CAT5/6 cable is a highly versatile and reliable solution that offers a range of advanced features to cater to all your signal extension needs. Whether you're in the broadcasting industry or require video processing for digital signage or surveillance systems, the BG-EXH-50C is the perfect choice.

Features

  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • Plug-and-Play Setup
    PoC
    Only one of the units, TX or RX, needs to be plugged into AC power
  • HDR
    HDR Support
    HDR, HDR10+, Dolby Vision, and HLG
  • fluent-mdl2_connect-virtual-machine
    Loop-out
    Connect a local display to view content on the transmitter side
  • bi_badge-4k
    Stunning Image Quality
    View crystal clear 4K@60Hz 4:4:4 images up to 164ft
  • material-symbols_safety-check
    Durable Design
    Durable metal structure built to withstand years of operation
  • Supports 18Gbps bandwidth
  • Supports one-way IR pass-through
  • Compact design for easy and flexible installation

Videos

How to Pick The Perfect HDMI Extender for Any Venue
How to Pick The Perfect HDMI Extender for Any Venue
Top 3 BZBGEAR HDMI Extenders That Go The Distance
Top 3 BZBGEAR HDMI Extenders That Go The Distance
BZBGEAR 4K HDMI Splitter Auto Downscales to 1080p | BG-UHD-DA2x8
BZBGEAR 4K HDMI Splitter Auto Downscales to 1080p | BG-UHD-DA2x8
BZBGEAR 4K HDMI HDBaseT Extenders Simplify AV Installs
BZBGEAR 4K HDMI HDBaseT Extenders Simplify AV Installs

Tech Specifications

Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2 / HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth 8/10/12-bit (1080P@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4 )
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
ESD Protection Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
Connections
Transmitter Inputs: 1x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female]
Receiver Inputs:  1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 2.4" (W) x 3.5" (D) x 0.7” (H) [61mm (W) x 88mm (D) x 18mm (H)]
Weight Transmitter: 0.35lbs [160g], Receiver: 0.34lbs [155g]
Power Supply Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A
Power Consumption 3.84 W
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
Resolution / Distance 4K@60 - Feet / Meters 4K@30 / 1080P - Feet / Meters
CAT5e 164ft / 50M 164ft / 50M
CAT6/6a/7 197ft / 60M 230ft / 70M
HDMI IN/OUT 10ft / 3M 30ft / 10M
The use of “Premium High Speed HDMI” cable is highly recommended.

PACKAGE CONTENTS

  • 1x HDMI 18Gbps Extender (Transmitter)
  • 1x HDMI 18Gbps Extender (Receiver)
  • 1x IR Blaster cable (1.5 meters)
  • 1x 20~60KHz IR Receiver cable (1.5 meters)
  • 1x 12V/1A Locking Power adapter

Interfaces

Interfaces image

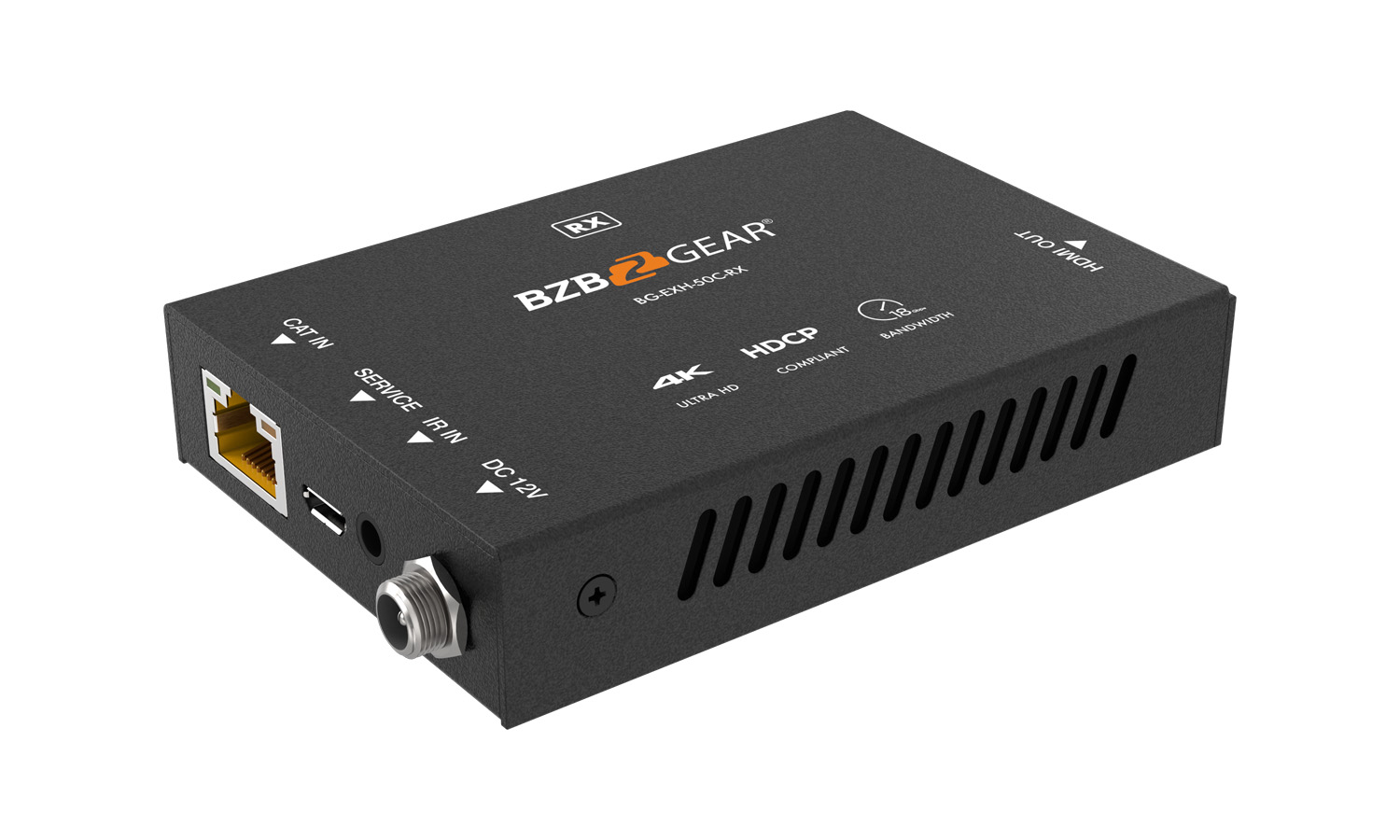

  1. CAT IN: Connect to the CAT OUT port on the transmitter with a CAT6 cable.
  2. Power Indicator Lamp (Green): The lamp will illuminate when the receiver is powered on.
  3. Data signal Indicator Lamp (Orange): The lamp will illuminate when the transmitter and the receiver have signal transmission.
  4. SERVICE: Micro USB used to update device firmware.
  5. IR IN: Connect to wideband IR Receiver cable. The IR signal will be sent to the IR OUT port of the transmitter.
  6. DC 12V: Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.

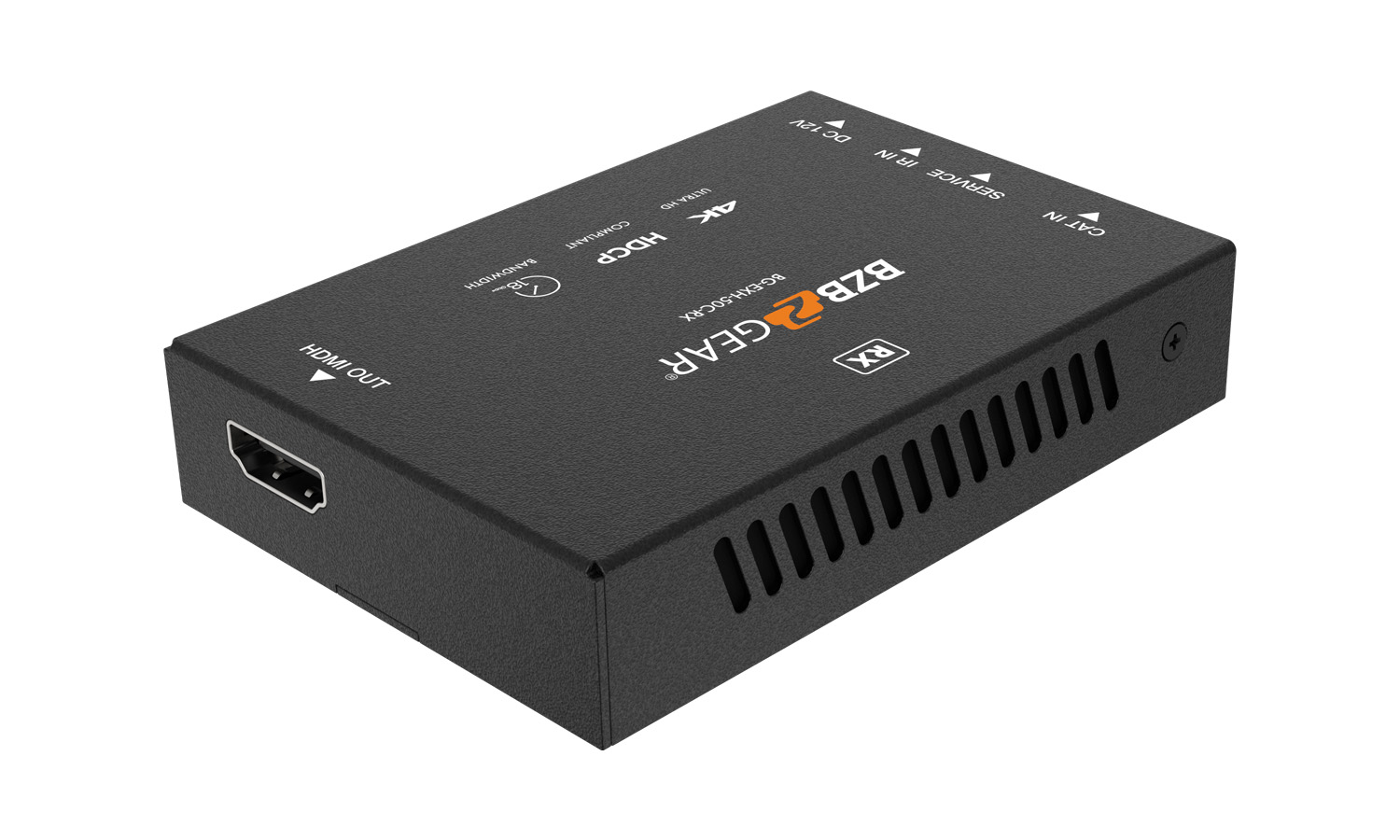

  7. HDMI OUT: HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable.

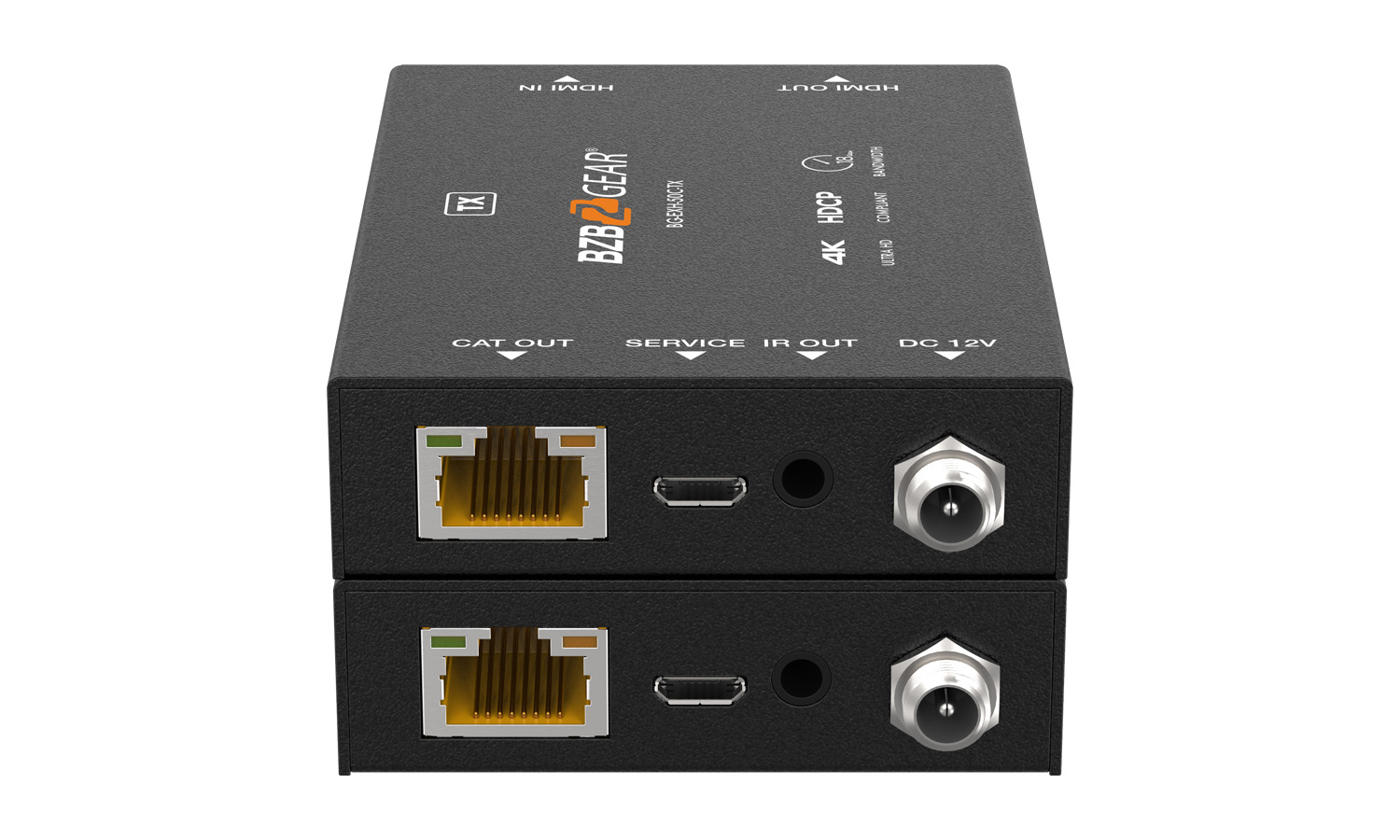

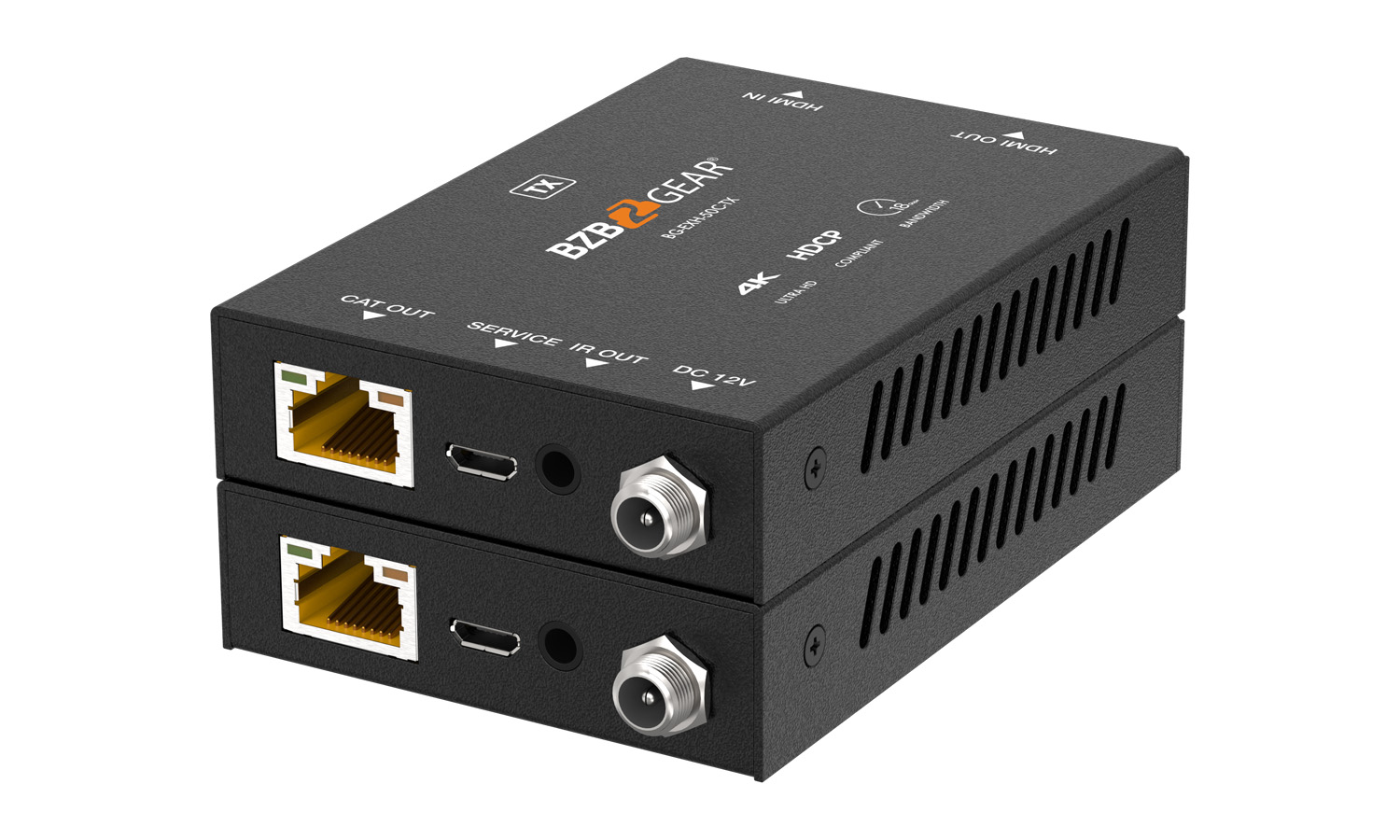

  8. CAT OUT: Connect to the CAT IN port on the receiving unit with a CAT6 cable.
  9. Power Indicator Lamp (Green): The lamp will illuminate when the transmitter is powered on.
  10. Data signal Indicator Lamp (Orange): The lamp will illuminate when the transmitter and the receiver have signal transmission.
  11. SERVICE: Micro USB used to update device firmware.
  12. IR OUT: Connect to wideband IR Blaster cable. The IR signal is from the IR IN port of the receiver.
  13. DC 12V: Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.

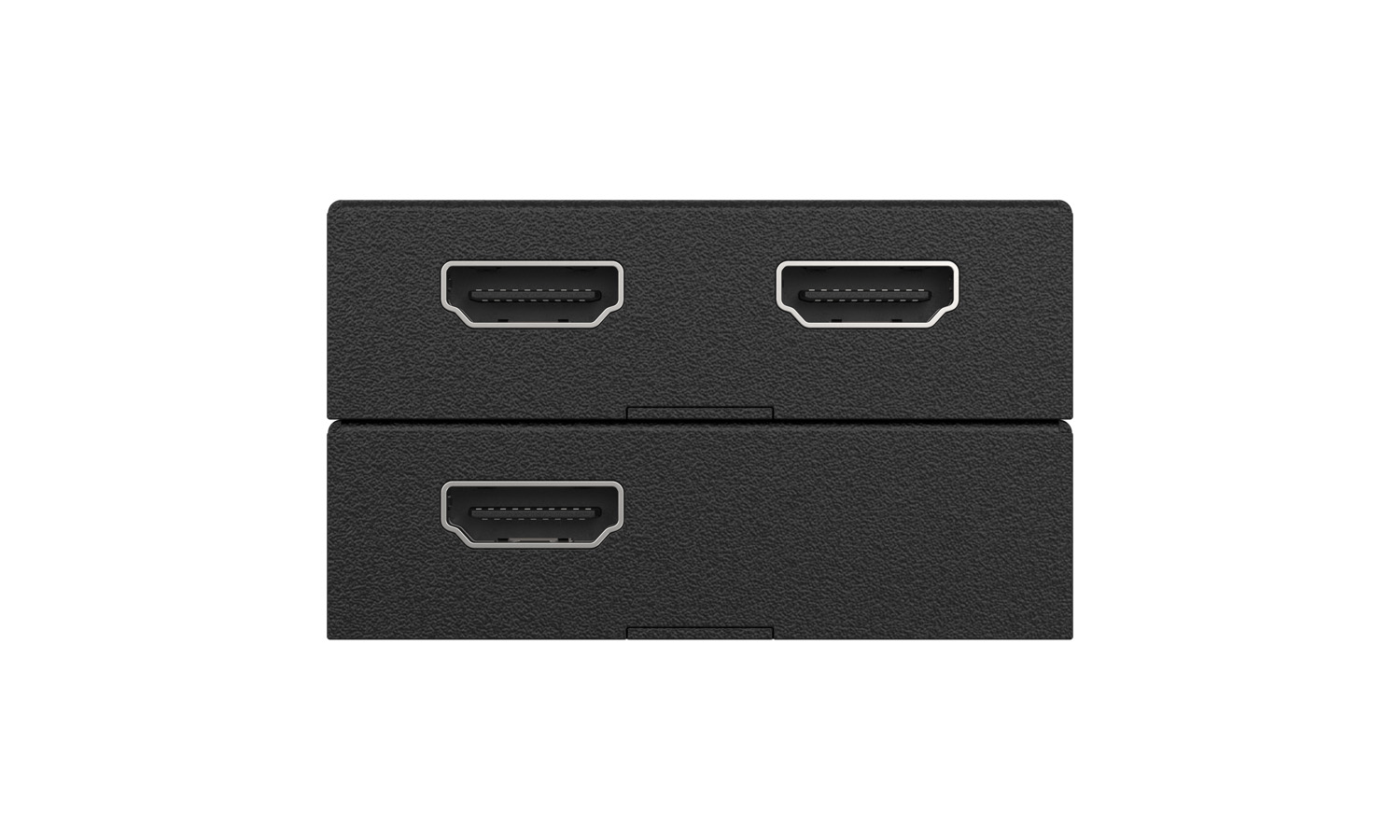

  14. HDMI OUT: HDMI loop output connect to a local display.
  15. HDMI IN: HDMI input port, connect to HDMI source.
