Overview
With a new IPCOLOR technology (a global leading and innovative protocol for UHD video digital transmission with lossless compression) this extender is capable of transmitting HDMI signals with zero latency across distances of up to 70 meters (230 ft) over a single Cat6/6a/7 cable.
With 18Gbps bandwidth it supports many video resolutions up to 4K 60fps 4:4:4 HDR as well as modern audio formats as DTS-HD, Dolby Digital 5.1CH and Dolby TrueHD 7.1CH.
Bidirectional IR passthrough adds a layer of convenience for control – you can control your source (like a cable box or BlueRay player) from the TV side and control your TV from the source side (when using 3rd party control systems).
Another great feature is an audio de-embedding from HDMI signal. Using the S/PDIF output on the receiver you can connect your local audio system. More to that you can switch to use ARC function which will de-embed audio from the TV (when you are using smart-tv functions, not an extended HDMI).
Aluminum housing and integrated surge protection provides more durability for your setup.
Features
-
Stunning Image QualitySupports resolutions up to 4K@60Hz -
Long DistanceTransmit 4K HDR 4:4:4 signals up to 230ft over CAT6/6a/7 -
Multiple Audio FormatsSupports LPCM, DTS-HD, DTS Audio, Dolby Digital, and Dolby TrueHD -
Bi-Directional IRControl devices via IR from either the transmitter or receiver side -
HDMI Loop-OutConnect an additional display to the transmitter -
Surge ProtectionIntegrated surge protection increases reliability
- Audio Extraction – Digital audio can be extracted via the optical audio port
- Plug and Play – Easy setup, no drivers to install
- Zero Latency
Videos
Tech Specifications
| Model No. | BG-EXH-70C | |
| Technical | Transmitter | Receiver |
| Input | HDMI x1, DC2.1 x1, 3.5mm jack x1 (IR) | DC2.1 x1, RJ45 x1, 3.5mm jack x1 (IR) |
| Output | HDMI x1, RJ45 x1, 3.5mm jack x1 (IR) | HDMI x1, RJ45 x1, 3.5mm jack x1 (IR), Optical x1 |
| HDMI compliance | HDMI2.0, compatible HDMI1.4 | |
| HDCP compliance | HDCP2.2, compatible HDCP1.4 | |
| Transmission medium | CAT6/CAT6A/CAT7 | |
| Transmission distance | CAT6/6A/7 Transmission 70 meters | |
| Video bandwidth | 18Gbps | |
| Resolution support | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600 | |
| Audio support | LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 7.1CH | |
| HDR10 (YUV4:4:4) | support | |
| HDMI Loop-out | support | |
| ARC and S/PDIF out | support | |
| EDID through | support | |
| Bi-directional IR passback | support | |
| Input TMDS signal | 0.7~1.2Vp-p | |
| Input DDC signal | 5Vp-p | |
| HDMI connector | Type A 19 Pins, Female | |
| Network cable standard | CAT6/CAT6A/CAT7, follow IEEE-5688 standard | |
| Mechanical | Transmitter | Receiver |
| Housing | Aluminium alloy material+crystal panel | |
| Dimensions (LxWxH mm) | 4.2"(L) x 3.9"(W) x 1.0”(H) [106.0(L) x 99.0(W) x 26.2(H)mm] | |
| Net weight | 0.46lbs [210g] | 0.46lbs [210g] |
| Power supply | 5V/2A | 5V/2A |
| Power consumption | 4W | 4W |
| Operation temperaure | -4~140°F / -20~60°C | |
| Storage temperature | -22~158°F / -30~70°C | |
| Relative humidity | 0~90% (no condensation) | |
Resources
PACKAGE CONTENTS
- 1 x HDMI Extender Transmitter
- 1 x HDMI Extender Receiver
- 1 x User Manual
- 1 x Wideband IR TX
- 1 x Wideband IR RX
- 2 x 5V2A DC Power Supply
- 8 x Mounting brackets
- 18 x Screws

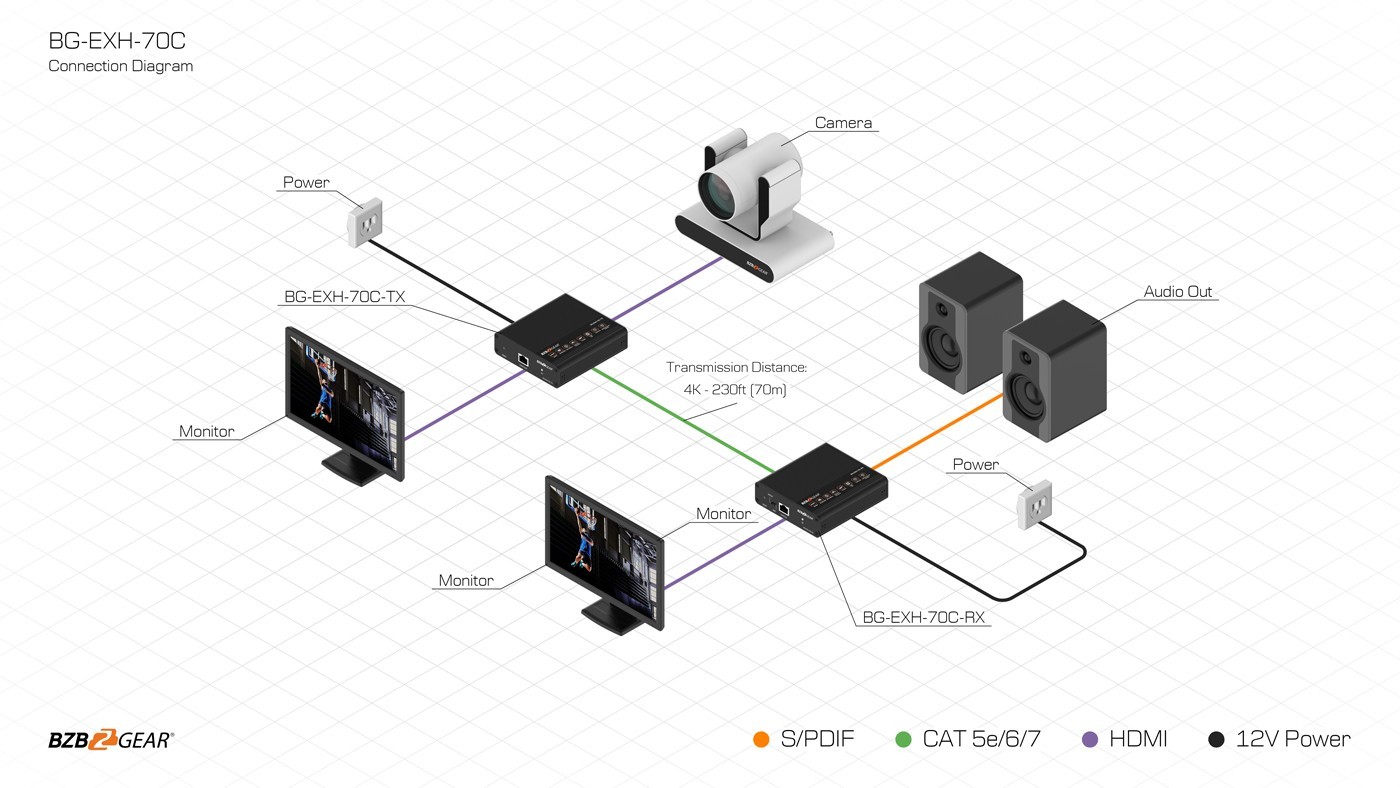

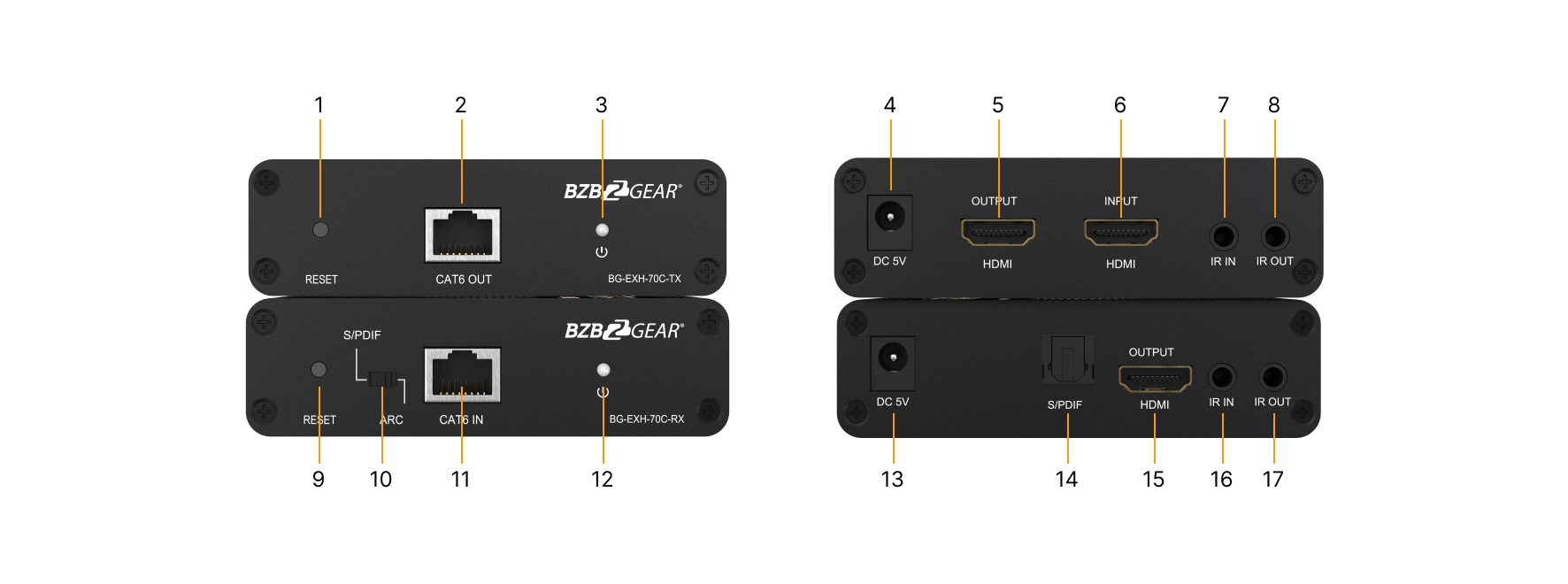

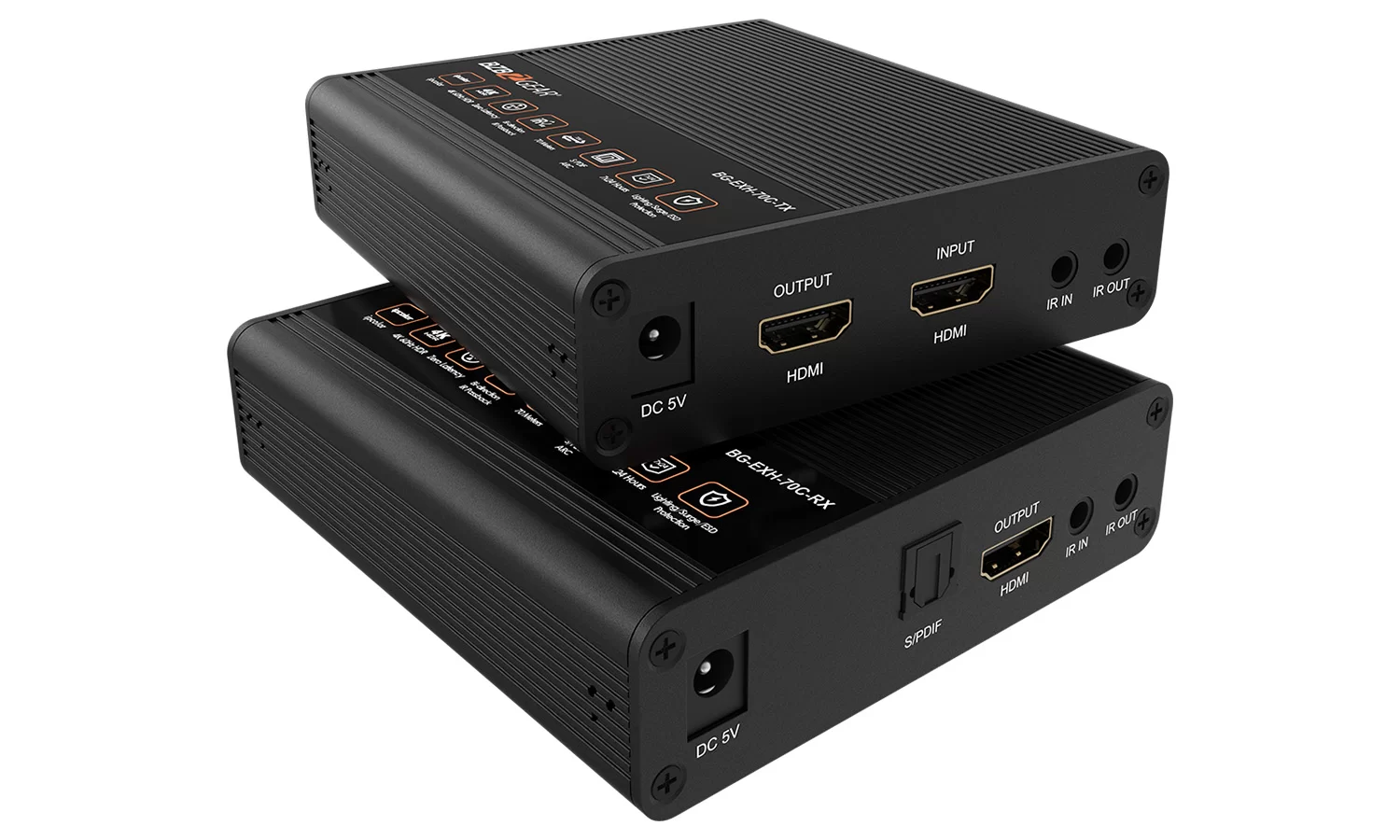

Interfaces
-
Reset button: Press to restart the device.
-
RJ45 signal output: Connect with network cable to receiver.
-
Power/Signal indicator: When there is power and no HDMI signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue.
-
DC5V input: Connect with DC5V/2A power adapter.
-
HDMI output: Connect with an HDMI display device.
-
HDMI input: Connect with the source device.
-
IR in: Connect with IR receiver extension cable, please make sure the remote control used is within the effective range.
-
IR out: Connect with IR blaster extension cable, please get closer to the source device while using.
-
Reset button: Press to restart the device.
-
Audio switch: Choose to decode audio from HDMI or ARC output from fiber optic interface.
-
Rj45 signal input: Connect with network cable.
-
Power/Signal indicator: When there is power and no HDMI signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue.
-
DC5V input: Connect with DC5V/2A power adapter.
-
S/PDIF out: Output digital audio signal.
-
HDMI output: Connect with an HDMI display device.
-
IR in: Connect with IR receiver extension cable, please make sure the remote control used is within the effective range.
-
IR out: Connect with IR blaster extension cable, please get closer to the source device while using.
