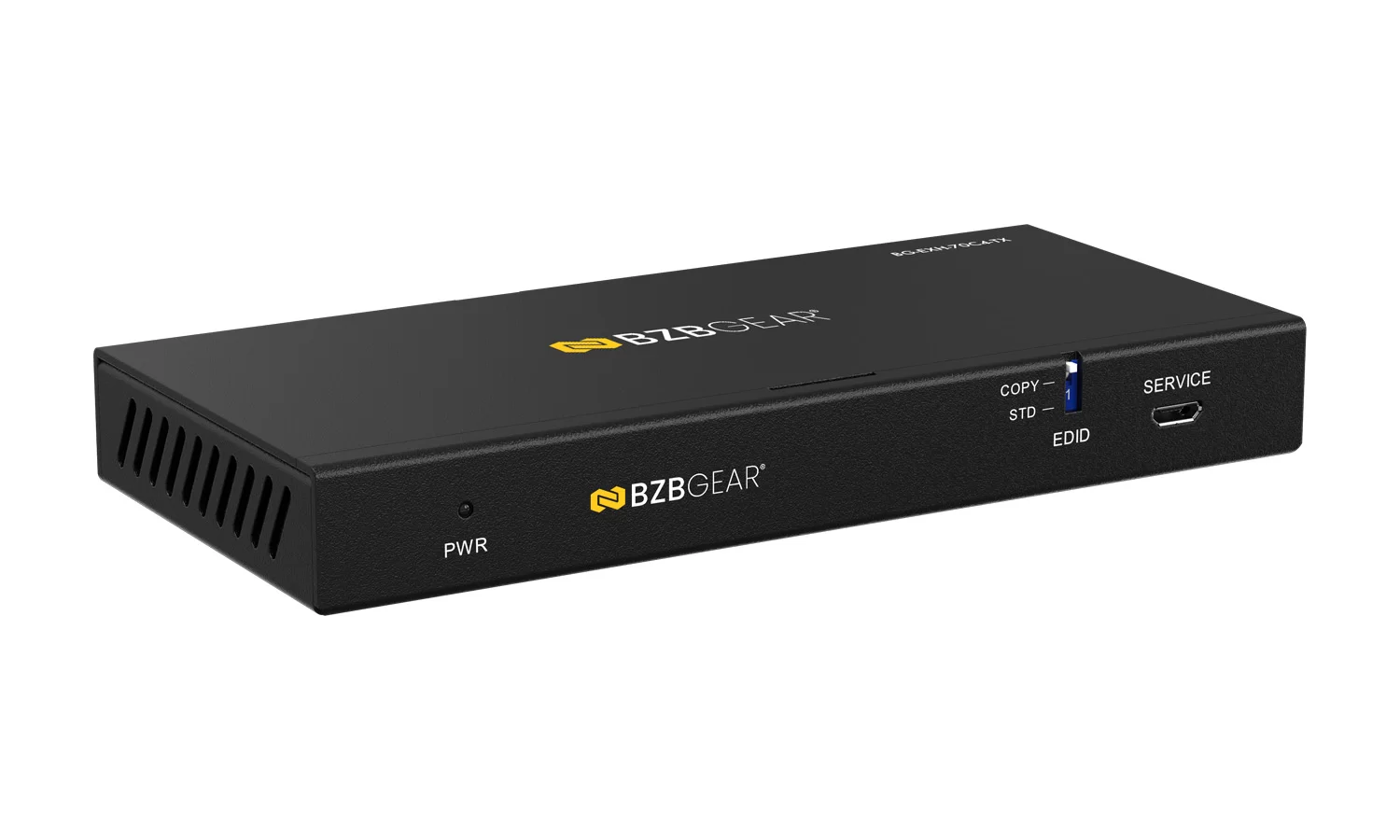

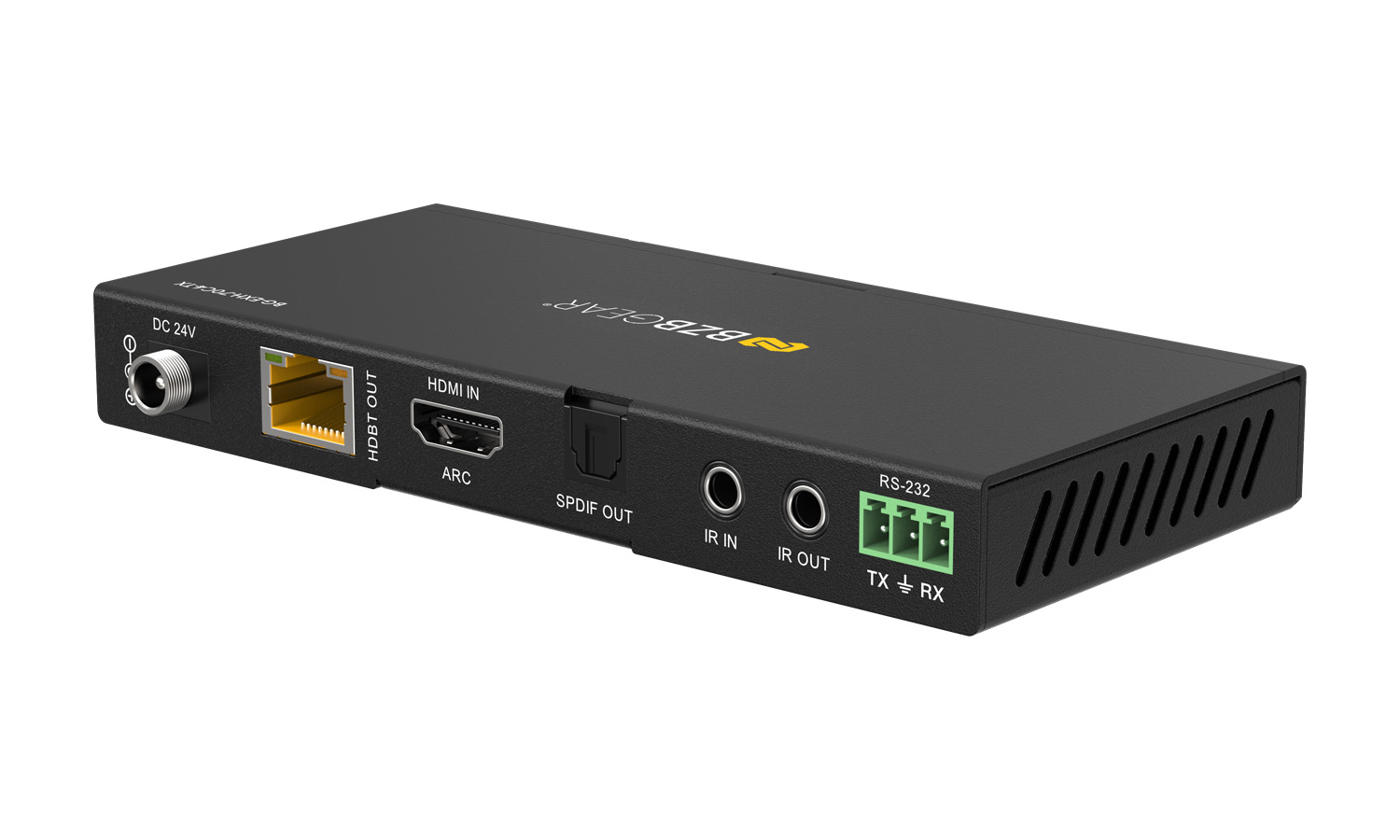

4K UHD HDMI HDBaseT Extender with IR/ARC/PoC/RS-232 and Audio Embedding/De-embedding up to 230ft

Configure the Perfect Solution
Get Started

Overview

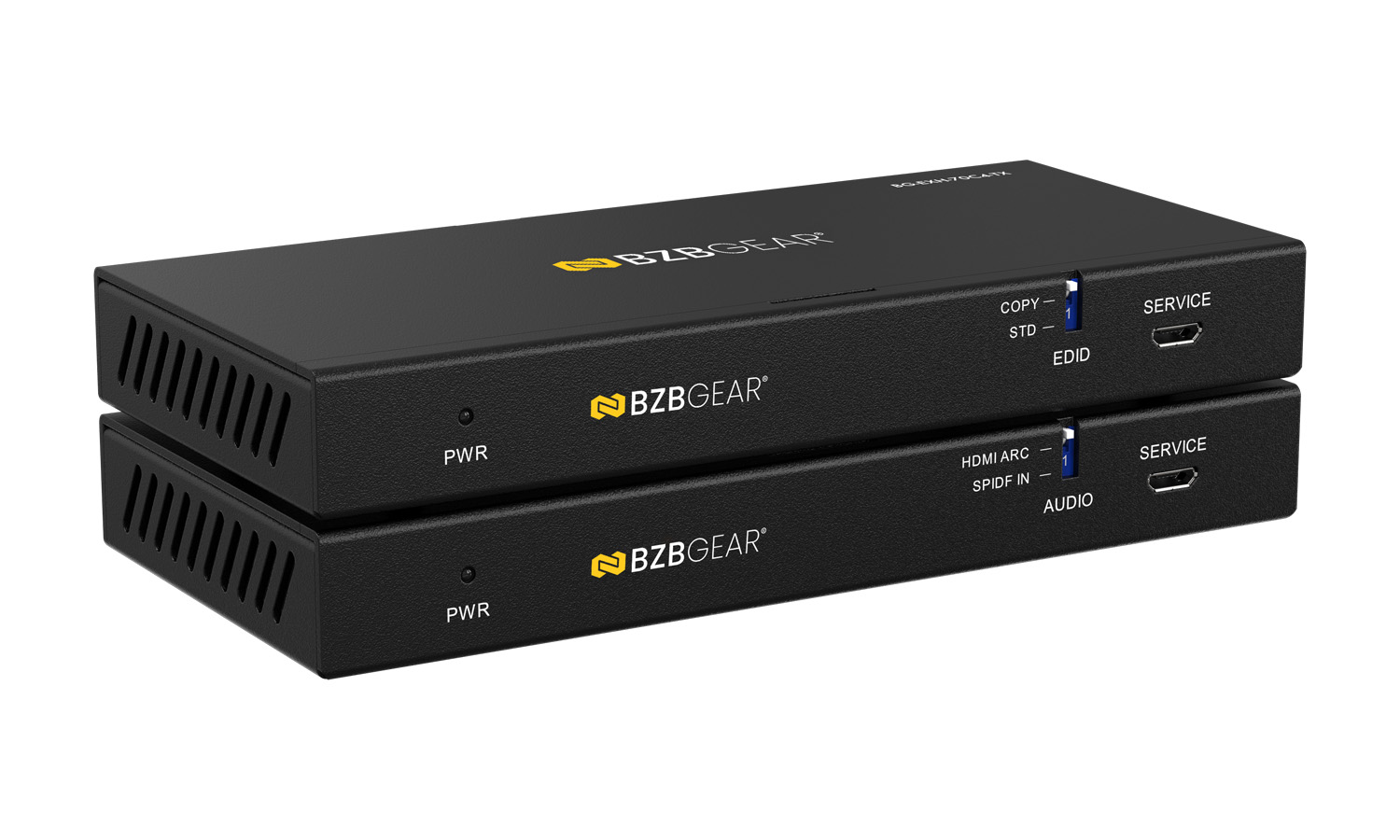

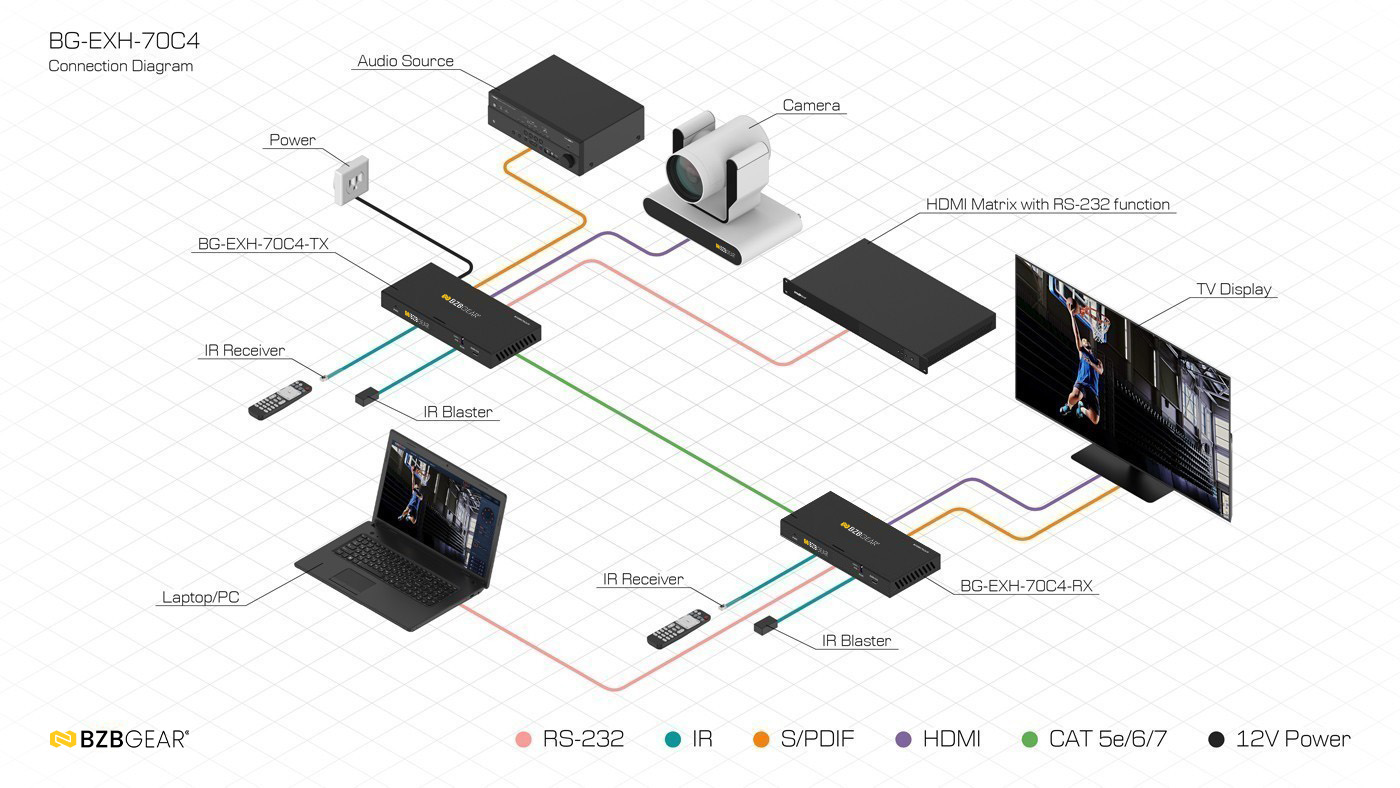

Introducing the BG-EXH-70C4, the ultimate solution for extending your HDMI signals over a long distance of up to 70m / 230ft. This extender is a highly efficient device that converts your HDMI signal to standard HDBaseT and transmits it via single CAT5e/6 ethernet cable.

With a bandwidth of 18Gbps, the device is compliant with HDMI 2.0b and HDCP 2.2 standards. The video resolution that can be achieved using this extender is up to 4K2K@60Hz RGB/YCBCR 4:4:4, which ensures that you enjoy crystal clear images and vibrant colors.

The BG-EXH-70C4 also supports bi-directional IR and RS-232 control signal pass-through, which enables you to easily control signal source or display devices from a remote location. Additionally, the device supports ARC functionality, which makes it possible to transmit audio signals from your TV back to your home theater system without the need for an extra cable.

This extender also supports PoC (Power over Cable) functionality, which means that you need to plug the power source only from one side for the extender kit to work. Moreover, the BG-EXH-70C4 comes equipped with advanced EDID management, which ensures that your video source always communicates with your display device seamlessly.

In terms of audio support, the device can handle various formats, including Dolby 5.1, DTS 5.1, and PCM2.0, etc. Lastly, the compact design of this device ensures that it can be easily and flexibly installed, making it an ideal solution for any home or office.

Features

  • bi_soundwave
    Audio Embedding
    Embed audio through S/PDIF optical
  • solar_remote-controller-2-linear
    Bi-Directional IR
    Control devices via IR either from the receiver or transmitter
  • bi_hdmi
    Compliant
    HDMI 2.0b and HDCP 2.2 supported to ensure content protection
  • Wide-Angle 1
    Long Range
    Send a 4K signal up to 230ft (70m)
  • bi_badge-4k
    Stunning Image Quality
    Crystal clear images at 4K 60Hz 4:4:4
  • Plug-and-Play Setup
    Power Over Cable
    Power only needs to be supplied to the either transmitter or receiver allowing for easier installation
  • Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master. Optical: Dolby 5.1, DTS 5.1, PCM 2.0
  • Rich Colors with HDR, HDR10, HDR10+, Dolby Vision, HLG
  • ARC and audio de-embedding through S/PDIF optical port on receiver

Videos

Extend Your HDMI Sources Up To 230ft With The HDBaseT BG-EXH-70C4
Extend Your HDMI Sources Up To 230ft With The HDBaseT BG-EXH-70C4
High Quality HDMI HDBaseT Extender Kits for Long Range - BZBGEAR
High Quality HDMI HDBaseT Extender Kits for Long Range - BZBGEAR

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@60Hz RGB/YCBCR 4:4:4
IR Level 5Vp-p
IR Frequency Wideband 20K-60KHz
Transmission Distance 70m via a single CAT5e/6 cable
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 8-bit, 10-bit, 12-bit (1080P)
8-bit (4K60)
8-bit, 10-bit, 12-bit (4K24/30)
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0

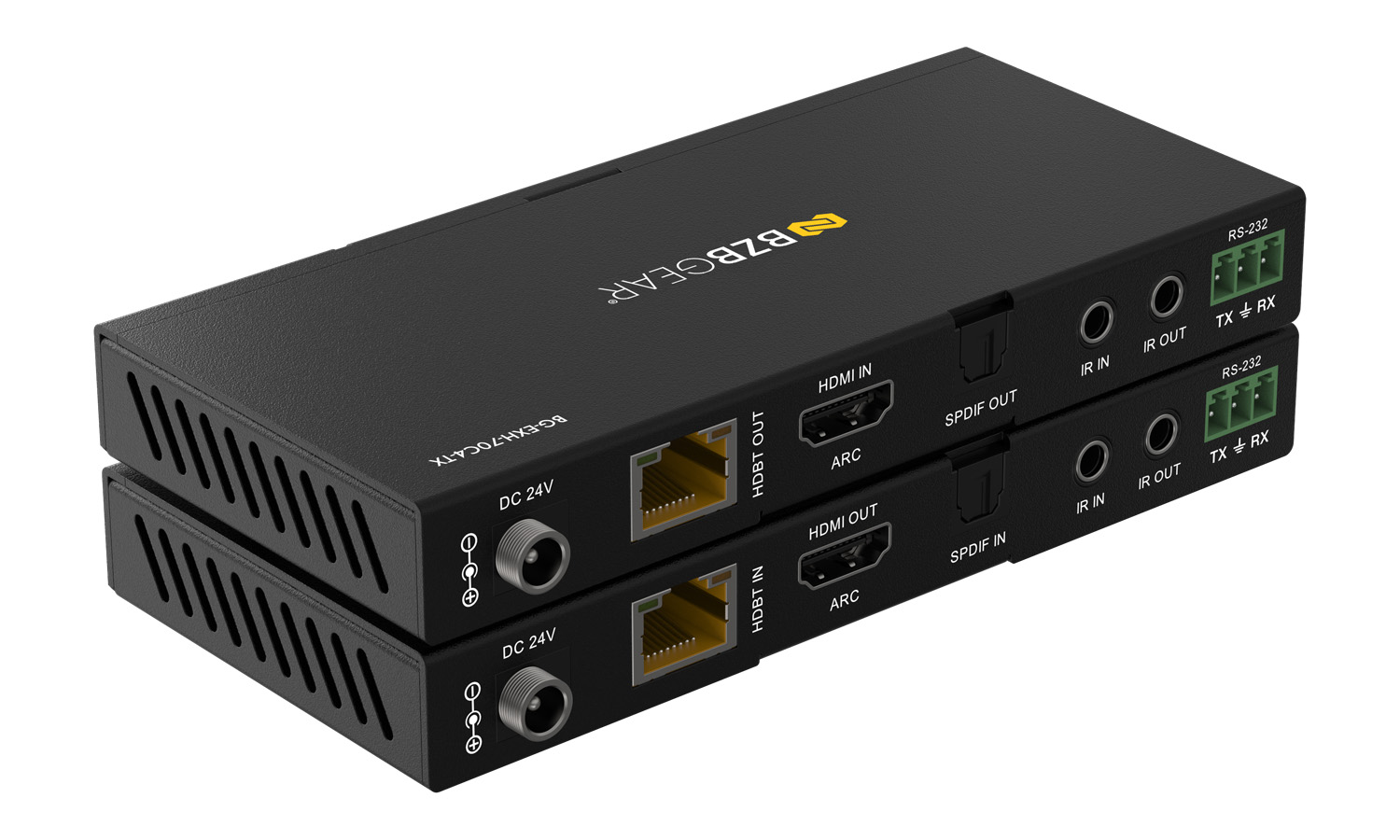

Connection
Transmitter Input: 1× HDMI IN [Type A, 19-pin female]
Output: 1× HDBT OUT [RJ45] / 1×SPDIF OUT
Control:
1× RS-232 [3pin-3.81mm Phoenix connector]
1× SERVICE [Micro-USB jack]
1× IR IN [3.5mm Stereo Mini-jack]
1× IR OUT [3.5mm Stereo Mini-jack]
Receiver Input: 1× HDBT IN [RJ45] / 1×SPDIF IN
Output: 1× HDMI OUT [Type A, 19-pin female]
Control:
1× RS-232 [3pin-3.81mm Phoenix connector]
1× SERVICE [Micro-USB jack]
1× IR IN [3.5mm Stereo Mini-jack]
1× IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 5.5in (W)× 2.6in (D)× 0.7in (H) [140mm (W)×65mm (D)×18mm (H)]
Weight Transmitter: 0.52 lbs [235 g], Receiver: 0.53 lbs [239 g]
Power Supply DC 24V/1A;
Supports bi-directional Power over Cable (PoC) functionality
Power Consumption 9.6 W (max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

PACKAGE CONTENTS

  • 1 x 18Gbps HDMI extender (transmitter)
  • 1 x 18Gbps HDMI extender (receiver)
  • 1 x IR Blaster cable (1.5 meters)
  • 1 x IR Wideband Receiver cable (1.5 meters)
  • 2 x 3pin-3.81mm Phoenix Connectors (male)
  • 4 x Mounting Ears
  • 8 x Machine Screws
  • 1 x 24V/1A Locking Power Adapter
  • 1 x User Manual

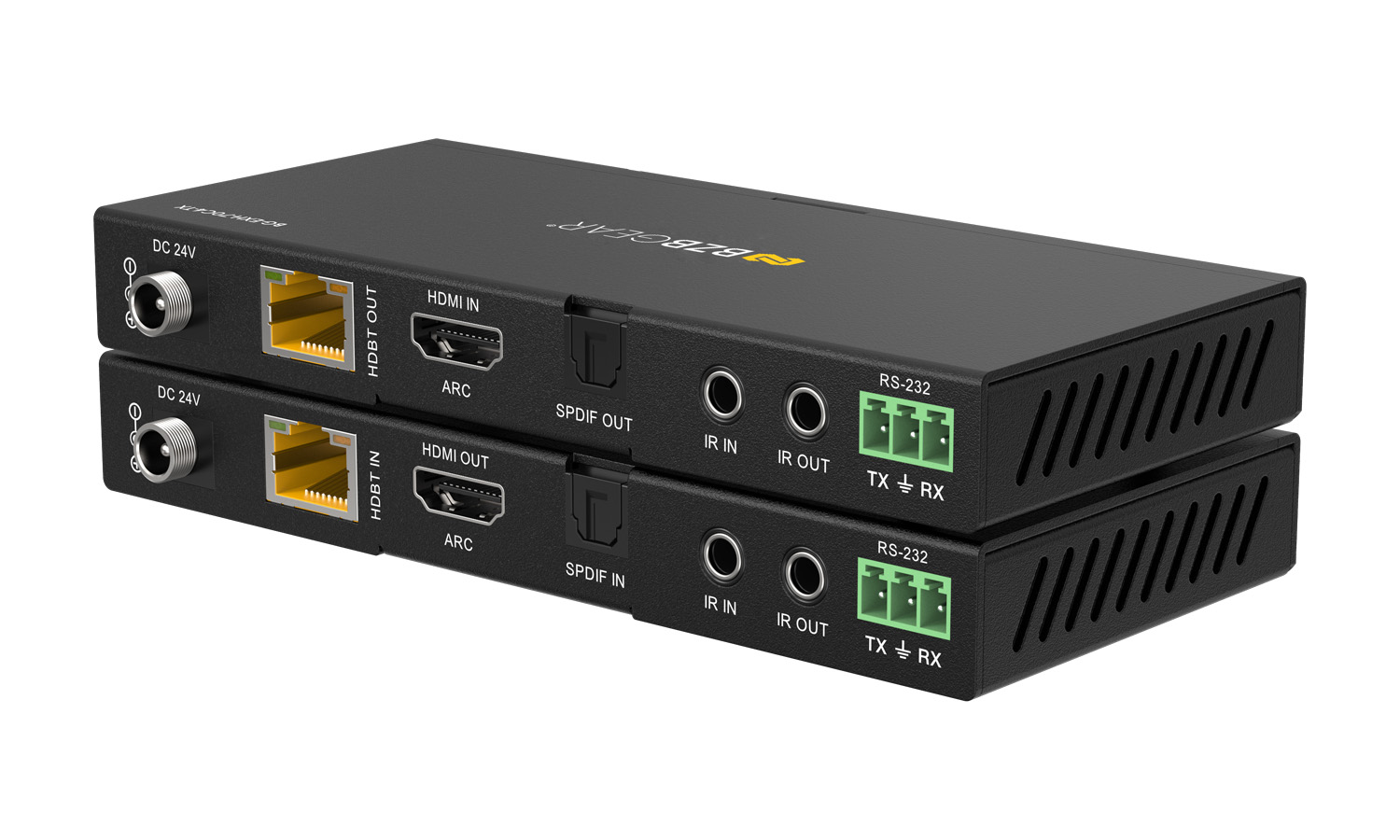

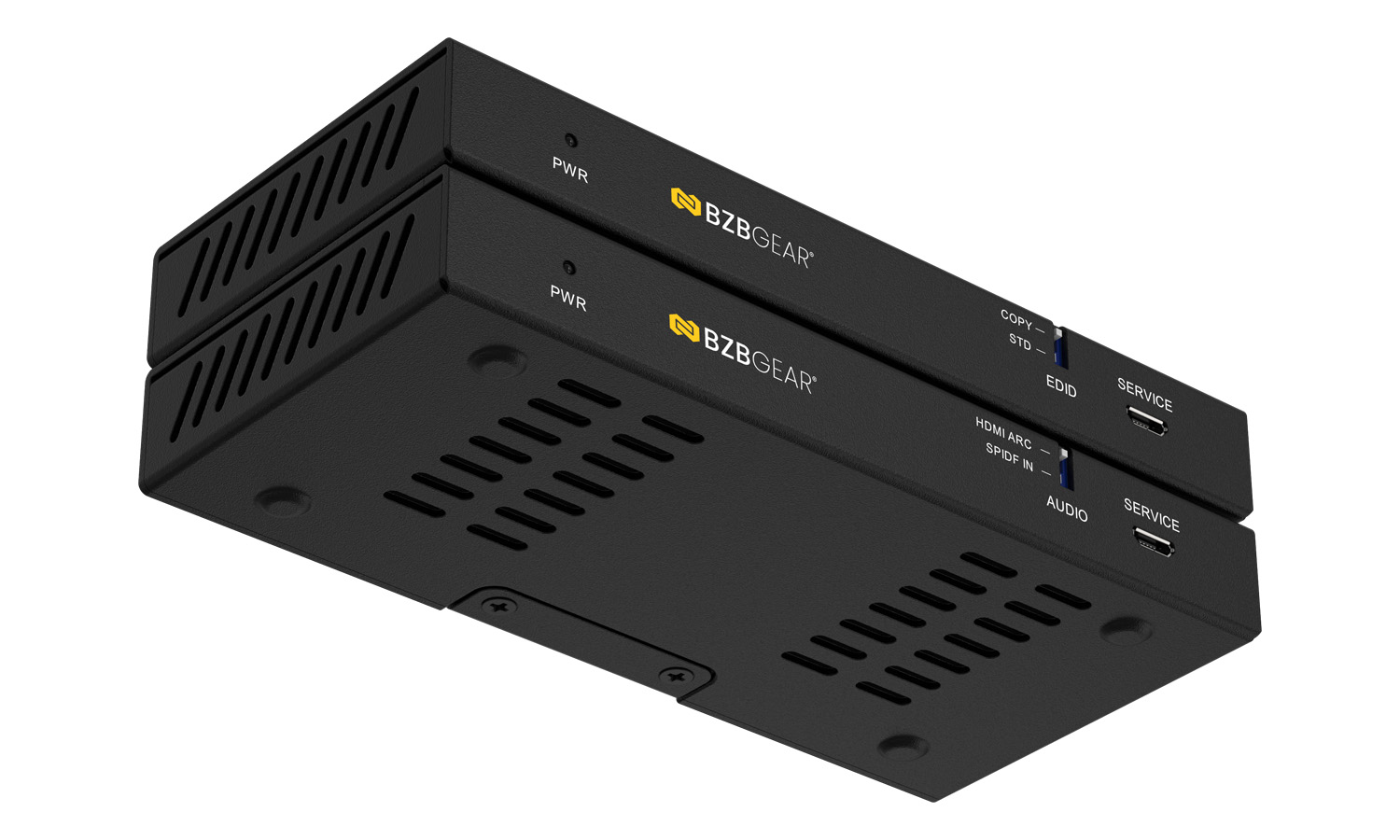

Interfaces

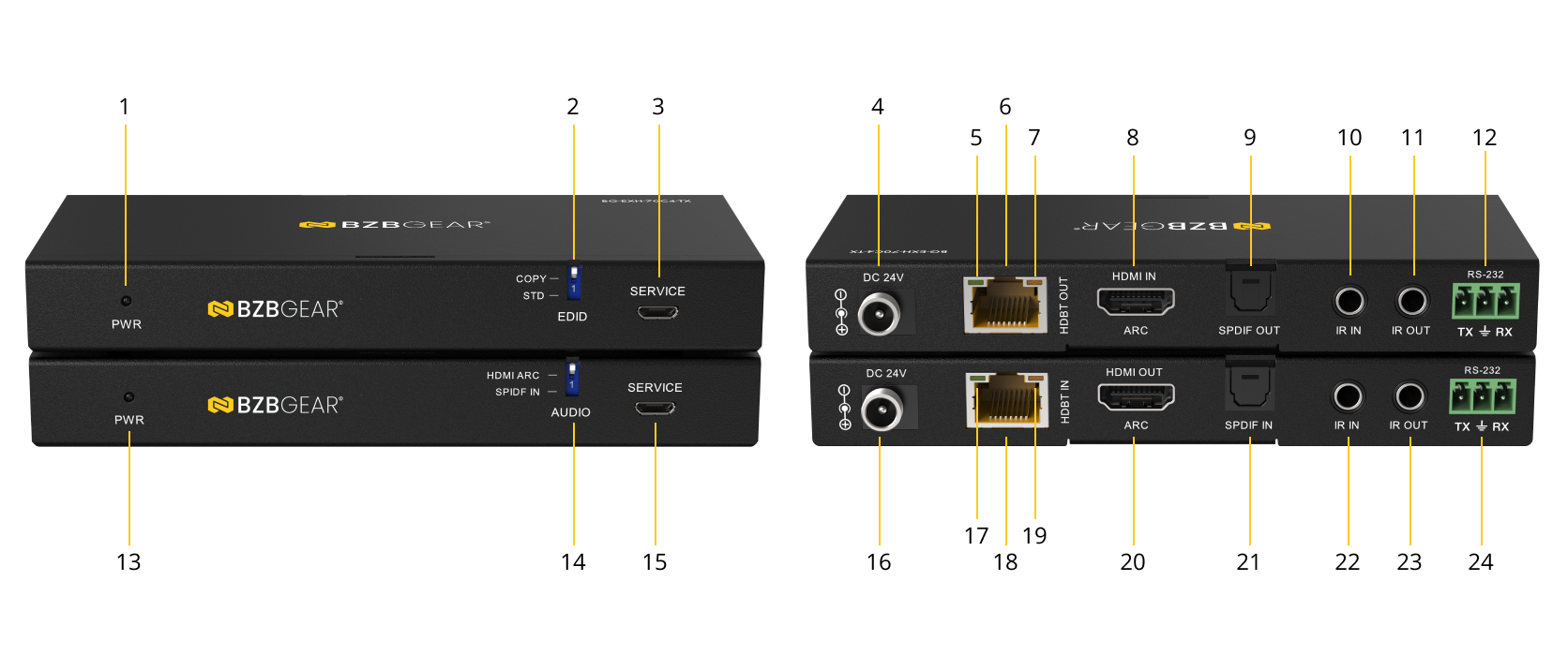

Interfaces image

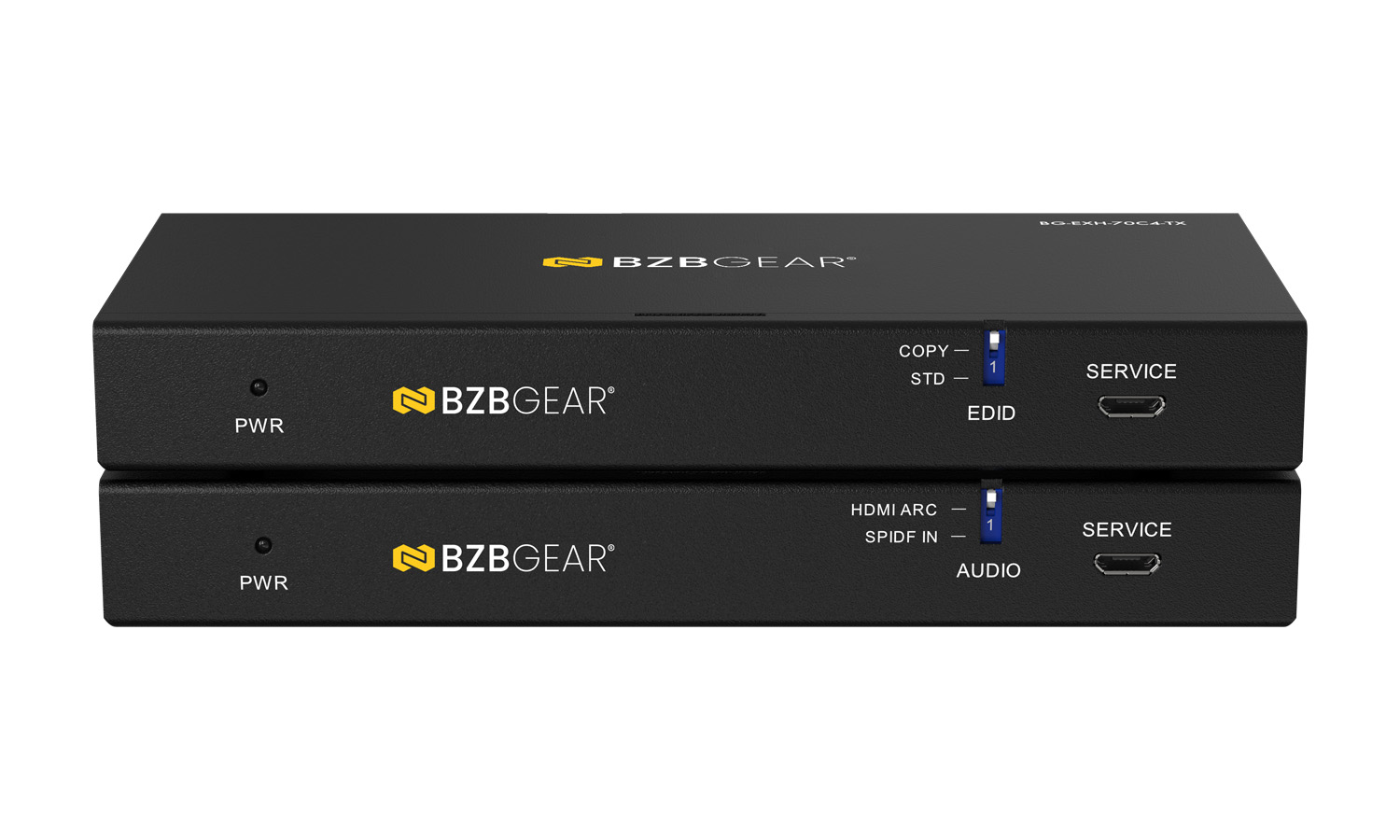

  1. Power LED: The LED is illuminated red when the Transmitter is powered on.
  2. EDID DIP switch: Copy: Copy the EDID of the HDMI OUT port of the receiver.
    STD: Default 1080P 2 channel.
  3. SERVICE: Micro USB firmware update port.
  4. DC 24V: DC 24V/1A power input port.
  5. Link Indicator (Green): Solid: Transmitter and Receiver are in good connection status.
    Flashing: Transmitter and Receiver are in poor connection status.
    Dark: Transmitter and Receiver are not connected.

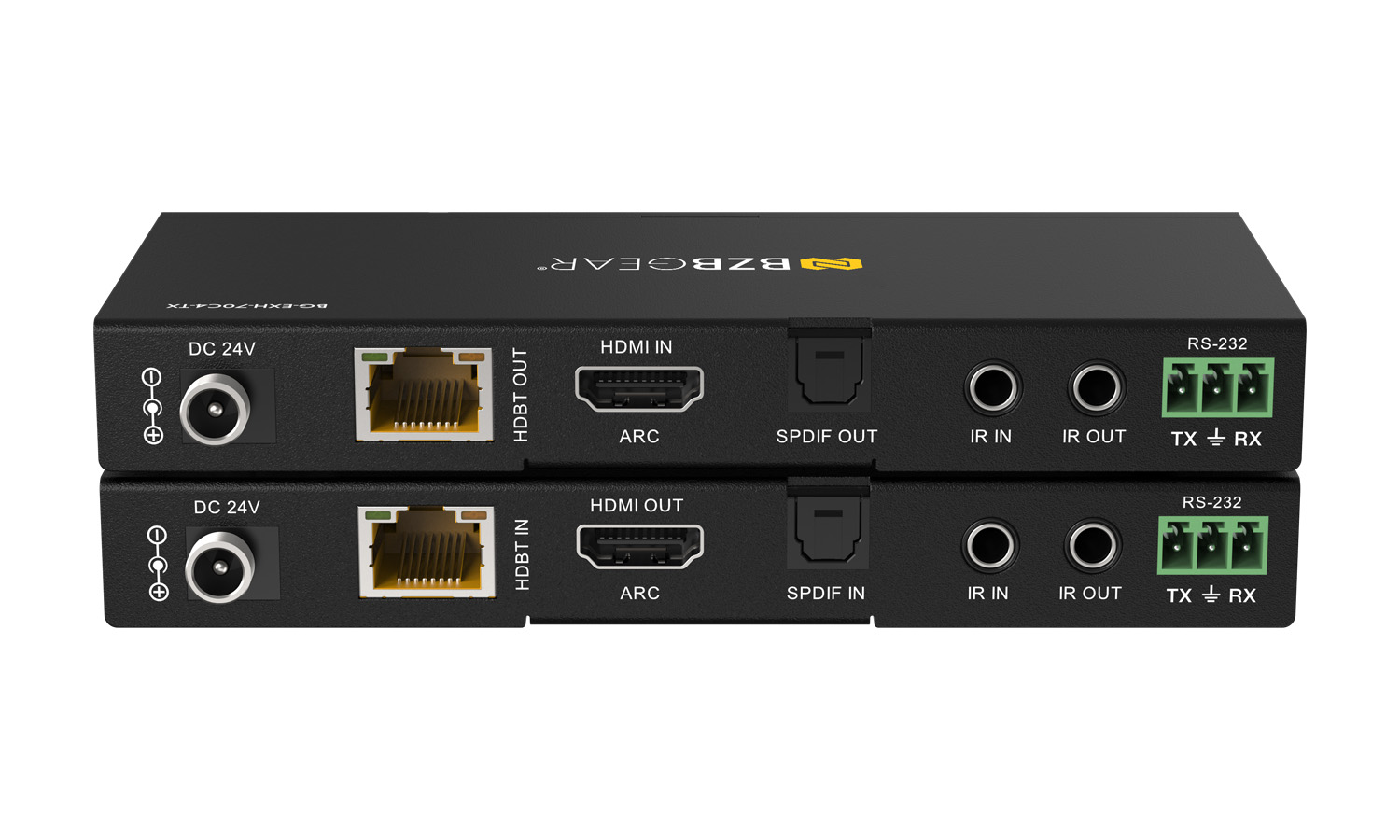

  6. HDBT OUT: RJ45 connector for connecting the HDBT IN port of the Receiver with CAT5e/6 cable.
  7. Data Indicator (Orange): Solid: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
  8. HDMI IN: HDMI signal input port. Connect to an HDMI source device with an HDMI cable.
  9. SPDIF OUT: Optical fiber audio signal output port.
  10. IR IN: Connect to IR receiver cable, the IR receive signal will emit to the IR OUT port of the Receiver.
  11. IR OUT: Connect to IR blaster cable, the IR emit signal is from the IR IN port of the Receiver.
  12. RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through between the Transmitter and Receiver.

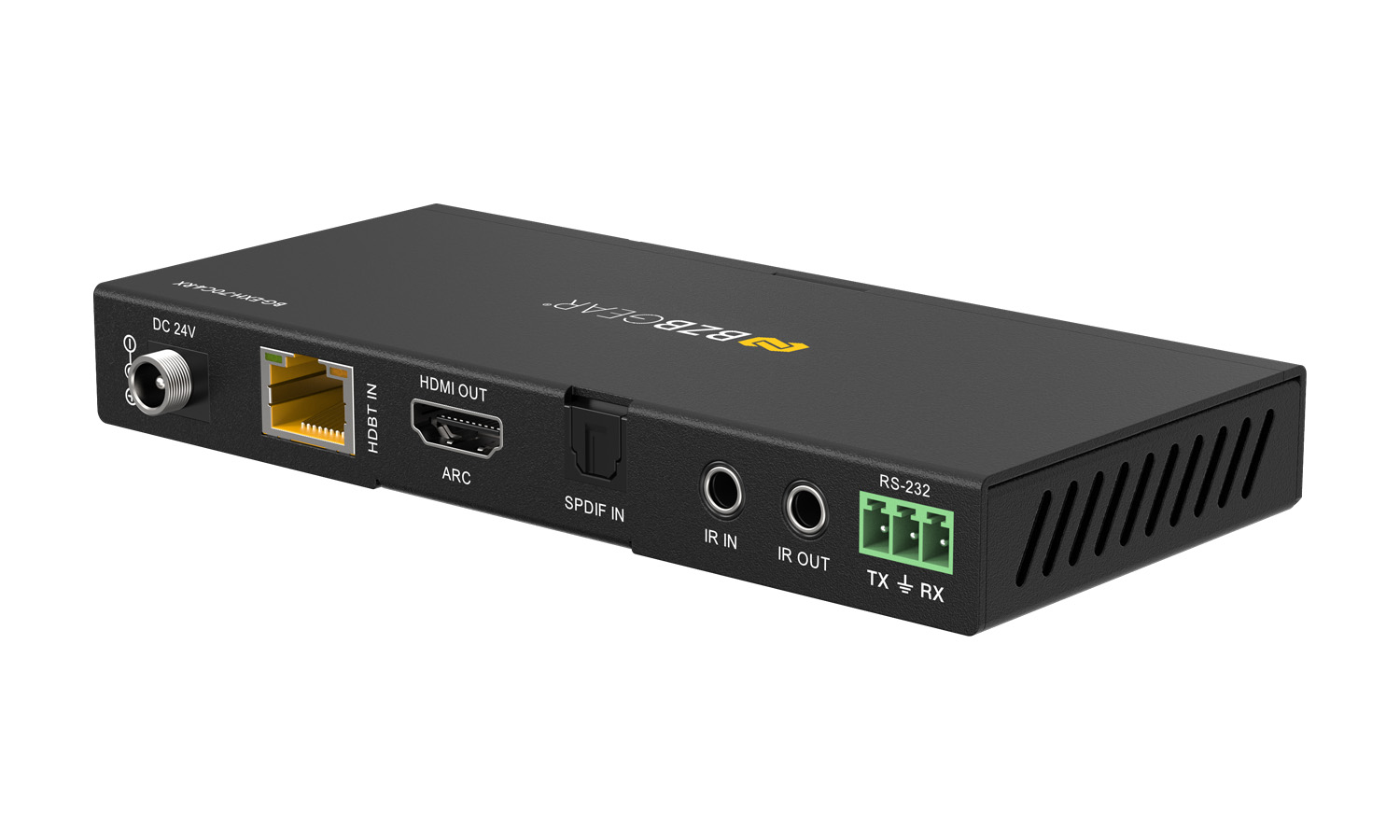

  13. Power LED: The LED is illuminated red when the Receiver is powered on.
  14. AUDIO DIP switch: Select between HDMI ARC or SPIDF IN.
  15. SERVICE: Micro USB firmware update port.
  16. DC 24V: DC 24V/1A power input port.
  17. Link Indicator (Green): Solid: Transmitter and Receiver are in good connection status.
    Flashing: Transmitter and Receiver are in poor connection status.
    Dark: Transmitter and Receiver are not connected.
  18. HDBT IN: RJ45 connector for connecting the HDBT OUT port of Transmitter with CAT6/6a cable.
  19. Data Indicator (Orange): Solid: HDMI signal with HDCP.
    Flash: HDMI signal without HDCP.
    Dark: No HDMI signal.
  20. HDMI OUT: HDMI signal output port. Connect to HDMI display devices with HDMI cable.
  21. SPDIF IN: Fiber optic audio signal input port.
  22. IR IN: Connect to the IR receiver cable. The IR signal will be sent to the IR OUT port of the Transmitter.
  23. IR OUT: Connect to the IR blaster cable, the IR signal is from the IR IN port of the Transmitter.
  24. RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through between the Transmitter and Receiver.
