8K 60fps (4K@120) HDMI Extender with IR/eARC/ARC/PoC/RS-232/Ethernet/USB and Audio Embedding/De-embedding up to 330ft

Configure the Perfect Solution
Get Started

Overview

The BG-EXH-8KC6 is an 8K HDMI and USB over HDBaseT Extender designed to extend the range of uncompressed HD/UHD video and audio signals, including eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet, and USB 2.0 signals, up to 295ft (90m) using a single CAT6A/7 cable.

This extender supports video resolutions up to 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, and 4K@60Hz 4:4:4. Additionally, it incorporates eARC/ARC functionality, allowing the transmission of audio signals from the receiver HDMI output pass-through to the transmitter's HDMI input or audio de-embedding to the transmitter's output port.

The device also facilitates USB 2.0 signal transmission with configurable Host/Device settings per device and bi-directional Power over Cable (POC) functionality. For home or commercial applications requiring long-distance signal transmission, the BG-EXH-8KC6 stands out as the ideal 8K signal solution.

BZBGEAR AWARDS

BZBGEAR has a number of award winning products from past tradeshow events. These award winning products were nominated and judged against other nominees. See what makes our award winning products so extraordinary!

Features

  • Compliant
    Compliant
    HDMI 2.1, HDCP 2.3, and HDBaseT 3.0 compliant
  • 8K@30Hz and 4K@120Hz
    8K@30Hz and 4K@120Hz
    Video resolution is up to 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • 8K Exclusive Features
    8K Exclusive Features
    Variable Refresh Rate (VRR), Fast as Possible V-active (FVA), Auto Low Latency Mode (ALLM) support
  • Smooth Image Processing
    Smooth Image Processing
    HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
  • HDMI audio formats
    HDMI Audio Formats
    Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Advanced EDID
    Advanced EDID
    Management through EDID DIP switches
  • Signal transmission distance up to 295ft (90m) via a single CAT 6A/7 cable
  • HDMI re-clocking on the HDBaseT Receiver to help resolve HDMI HDCP compatibility and handshaking issues with displays
  • Up to 40 Gbps Fixed Rate Link (FRL) and 18Gbps Transition-Minimized Differential Signaling (TMDS) video bandwidth
  • CONFIG DIP switches allow for RS-232 serial port feature control
  • Bi-directional support for Ethernet (1Gb), analog audio, IR, RS-232 signal pass-through, and 24V POC
  • Support for all industry-standard video resolutions including VGA-WUXGA and 480i - 8K30
  • USB 2.0 transmission (with speeds up to 350Mbps)
  • The transmitter or receiver can be configured as either a Host or a Device
  • Support for eARC/ARC (from RX to TX) sound systems

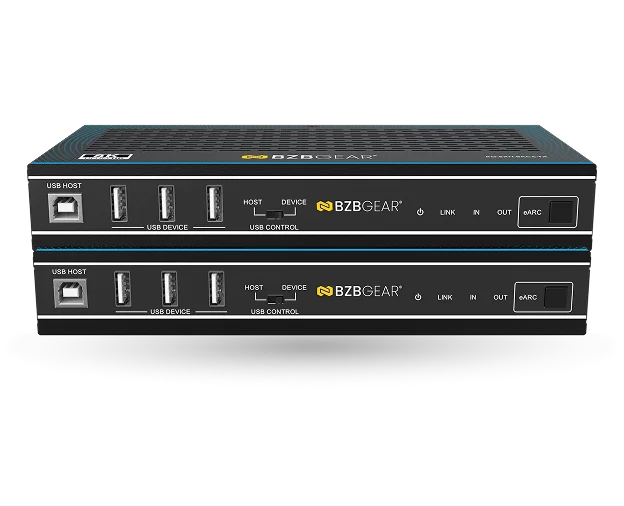

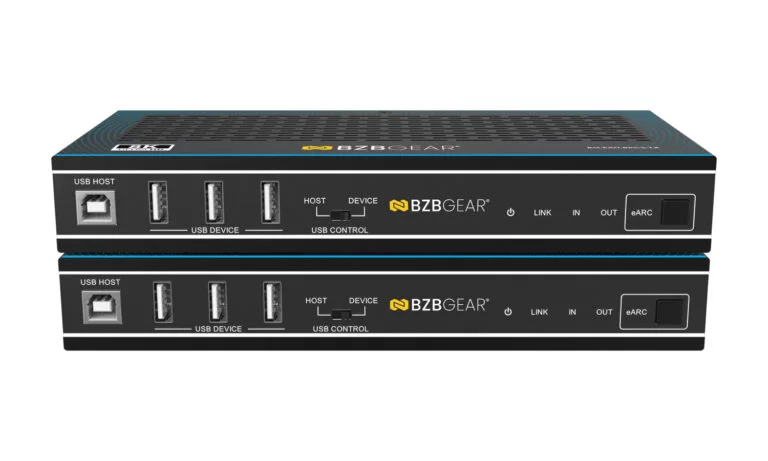

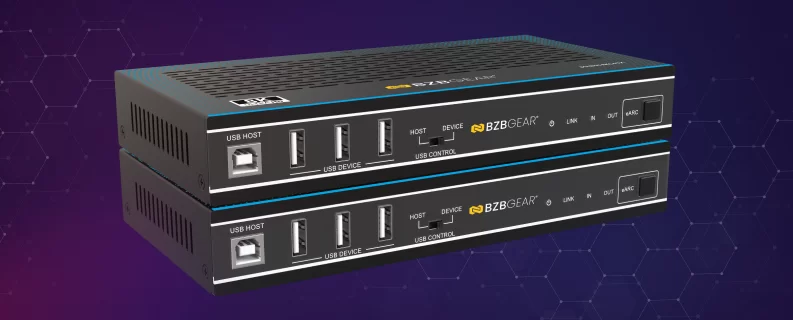

BG-EXH-8KC6-front

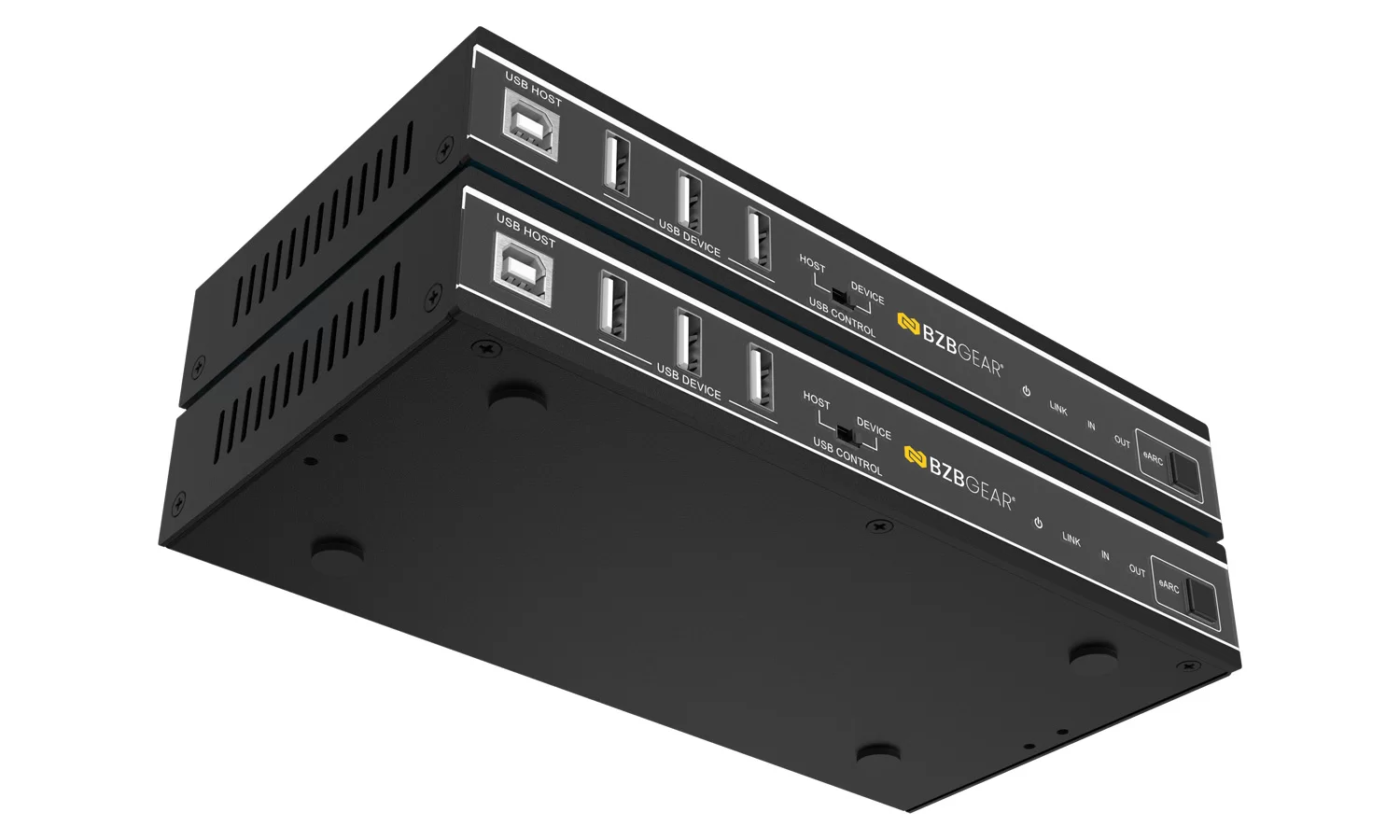

Enhanced KVM Functionality

Effortlessly link up with your PC, ensuring swift and efficient data transfers via the USB Host. Revel in the convenience of three additional USB extension ports, catering to a range of peripherals like flash drives, mice, and keyboards.

Intuitive eARC Management

Effortlessly toggle the eARC/ARC function with the dedicated button and receive clear status indications through the eARC LED, distinguishing between normal and abnormal operation.

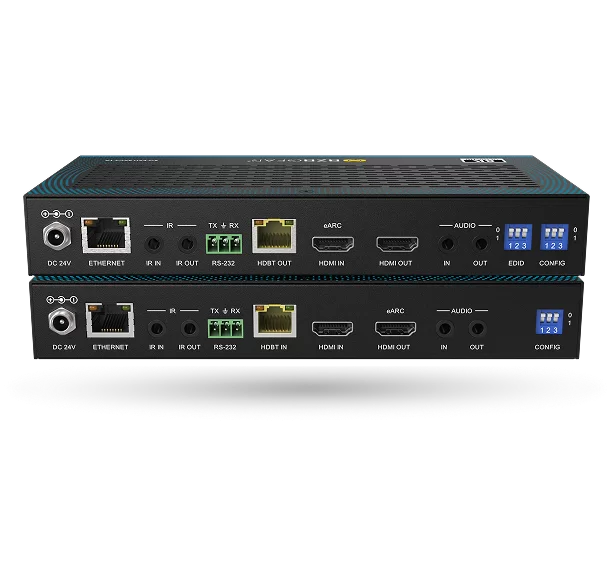

BG-EXH-8KC6-back

HDBaseT In/Out Ports

The Transmitter's HDBT IN port effortlessly links with the Receiver's HDBT OUT port using a high-quality CAT 6A/7 cable. These ports are crucial for seamless transmission, enabling convergence and long-distance distribution of uncompressed UHD audio and video, Ethernet, USB, controls, and power with zero-latency.

Easy Audio In and Audio Out Interface

Streamline your setup with the analog audio input port and experience flexibility with the analog audio output port, allowing for direct output from the AUDIO IN port of the receiver.

Videos

Award Winning 8K HDMI Extender Utilizing HDBaseT Technology From BZBGEAR | ISE 2024
Award Winning 8K HDMI Extender Utilizing HDBaseT Technology From BZBGEAR | ISE 2024
Extend Your 8K HDMI Signals up to 330Ft! The BG-EXH-8KC6 HDMI Extender Over Ethernet!
Extend Your 8K HDMI Signals up to 330Ft! The BG-EXH-8KC6 HDMI Extender Over Ethernet!
See Every Detail - Extending 8K & 4K 120hz Video Over 330ft
See Every Detail - Extending 8K & 4K 120hz Video Over 330ft
Extending Your 8K Signals with Award-Winning Devices from BZBGEAR | InfoComm 2024
Extending Your 8K Signals with Award-Winning Devices from BZBGEAR | InfoComm 2024

Tech Specifications

Technical Specifications
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth Up to 40Gbps FRL and 18Gbps TMDS
Video Resolution Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
USB Bandwidth Up to 350Mbps
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
Audio Formats HDMI: PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24);
Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos;
DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X
Analog: PCM 2.0 48K
IR Level 5Vp-p/12Vp-p
IR Bandwidth 20K - 60KHz
Transmission Distance MAX: CAT6 = 197ft (60m) / CAT6A/7 = 295ft (90m)
ESD Protection Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connections
Transmitter Input: 1 x HDMI IN [Type A, 19-pin female]
1 x AUDIO IN [3.5mm Stereo Mini-jack]
Output: 1 x HDMI OUT [Type A, 19-pin female]
1 x HDBT OUT [RJ45, 8-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3 pin-3.81mm Phoenix jack]
1 x USB HOST [USB Type B]
3 x USB DEVICE [USB Type A]
1 x ETHERNET [RJ45]
Receiver Input: 1 x HDMI IN [Type A, 19-pin female]
1 x HDBT IN [RJ45, 8-pin female]
1 x AUDIO IN [3.5mm Stereo Mini-jack]
Output: 1 x HDMI OUT [Type A, 19-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3 pin-3.81mm Phoenix jack]
1 x USB HOST [USB Type B]
3 x USB DEVICE [USB Type A]
1 x ETHERNET [RJ45]
Mechanical
Housing Front Panel - Aluminium / Enclosure - Metal Composite
Color Black
Dimensions (L x W x H) 7.9in x 3.9in x 1.2in [200mm x 100mm x 30mm]
Weight 1.25 lbs (20oz) [1.1kg]
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
Power Consumption Total power consumption: 20.4w (POC)
TX/RX Full Load: 9.36w/9.84w;
TX/RX No Load: 2.46w/3.36w
Operating Temperature 32° - 104°F / 0° - 40°C
Storage Temperature -4° - 140°F / -20° - 60°C
Relative Humidity 20 - 90% RH (no condensation)
Resolution 8K30 4K60 4K24 1080P60
Cable Length 9.8ft / 3m 16ft / 5m 32ft / 10m 66ft / 20m
NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended.

Resources

PACKAGE CONTENTS

  • 1x BG-EXH-8KC6 Transmitter
  • 1x BG-EXH-8KC6 Receiver
  • 1x 24V / 2.7A Locking Power Supply
  • 1x IR Blaster Cable (1.5m)
  • 1x IR Receiver Cable (1.5m)
  • 2x 3-pin 3.81mm phoenix connectors
  • 4x Mounting ears
  • 8x KM3*4 Machine Screws
  • 8x Rubber feet
  • 1x User Manual

Interfaces

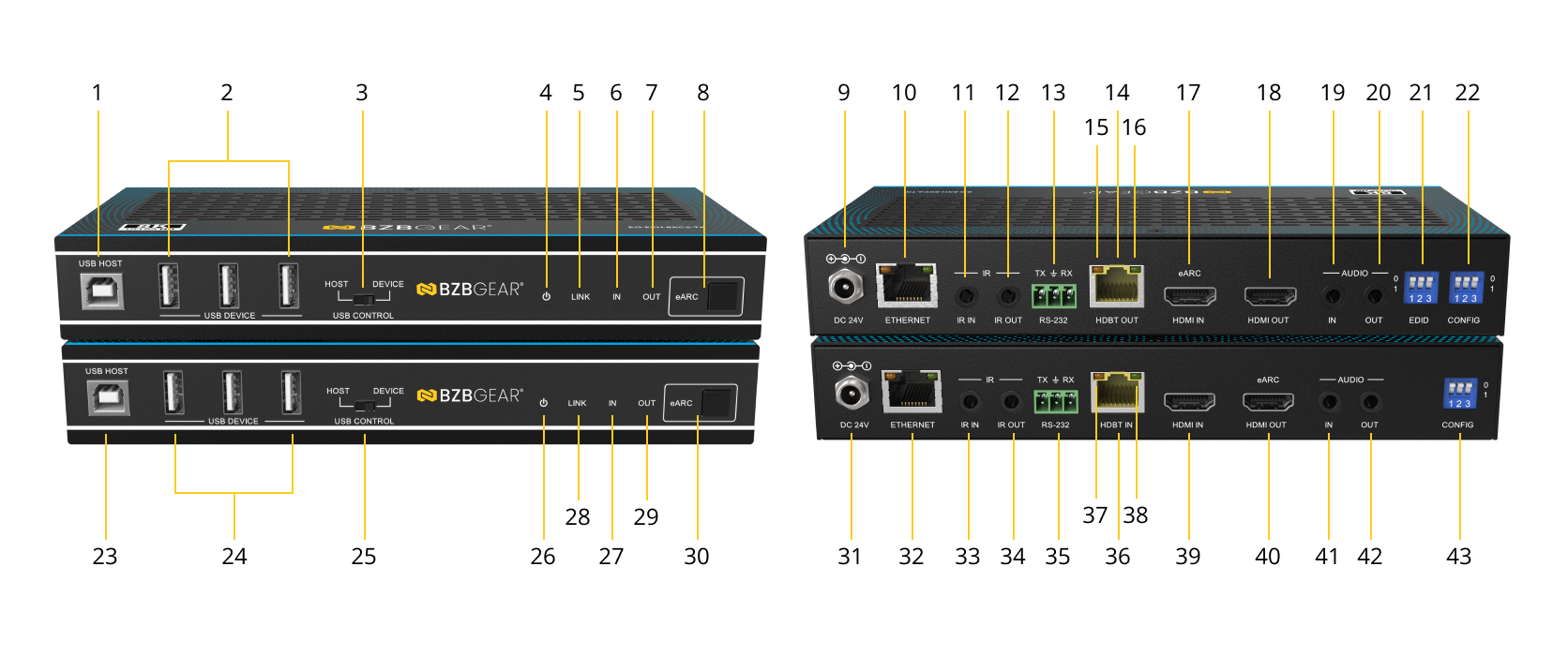

Interfaces image
  1. USB Host: Connect to a PC.
  2. USB Device: 3 USB extension ports; connect a flash drive, mouse, or keyboard.
  3. Host/Device USB Control Switch: Switch to left (HOST), the USB HOST mode is enabled;
    Switch to right (DEVICE), the USB DEVICE mode is enabled.
    Note: If the transmitter is set to USB HOST mode, the receiver must be set to USB DEVICE mode.
  4. Power LED: Light on: The transmitter is powered on.
    Light off: The transmitter is powered off.
  5. Link LED: Light on: Transmitter and receiver are in good connection status.
    Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
    Light off: Transmitter and receiver are not connected.
  6. In LED: Video signal input indicator.
    Light on: There is HDMI signal input.
    Light off: There is no HDMI input or the system is powered off.
  7. Out LED: Video signal output indicator.
    Light on: There is HDMI signal output.
    Light off: There is no HDMI output or the system is powered off.
  8. eARC LED & Button: Press the eARC button to enable/disable the eARC/ARC function, and the eARC LED will indicate the status as following:
    Light on: The eARC/ARC mode is enabled, and the device is working normally.
    Light flashing: The eARC/ARC mode is enabled, but the device is working abnormally.
    Light off: The eARC/ARC mode is disabled.
  9. DC 24V: DC 24V/2.7A power supply input port.
    Note The extenders support POC functionality which means that either the transmitter or receiver is powered on by the 24V/2.7A power adapter, the other one does not need a power supply.
  10. Ethernet Indicators: Ethernet port with adaptive broadband rate. For example, if the transmitter is connected to a PC
    with a 100Mbps, and the receiver is connected to a Gigabit router, the device can automatically switch the 100Mbps of the transmitter to Gigabit rate. (Note: If the connected device only supports 100Mbps, the extender cannot switch to Gigabit.)
    Light in green: the Ethernet rate is 1000 Mbps.
    Light in yellow: the Ethernet rate is 100 Mbps.
  11. IR In: IR signal input port, connect to IR Receiver cable.
  12. IR Out: IR signal output port, connect to IR Blaster cable.
  13. RS-232: The RS-232 serial port features different functions by setting the CONFIG DIP switch:
    1. RS-232 signal pass-through
    2. Control & FW upgrade
    3. VS3000 FW upgrade
    4. Debug.
  14. HDBT Out: HDBaseT Network port, connect to the HDBT IN port of the receiver with a CAT 6A/7 cable. It is used for various signals pass-through.
  15. Data Signal Indicator (Yellow): Light on: HDMI signal with HDCP.
    Light flashing: HDMI signal without HDCP.
    Light off: No HDMI signal
  16. Link Signal Indicator (Green): Light on: Transmitter and receiver are in good connection status.
    Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
    Light off: Transmitter and receiver are not connected.
  17. eARC/HDMI In: This port features two functions:
    1. HDMI signal input port, connect to HDMI source device.
    2. eARC/ARC audio port, connect to eARC/ARC amplifier/sound system.
  18. HDMI Out: HDMI video signal output port. It can loop out the local video signal or output the video signal returned from the receiver.
  19. Audio In: Analog audio input port. The audio from this port can be output through the AUDIO OUT port of the receiver.
  20. Audio Out: Analog audio output port. It can output the audio from the AUDIO IN port of the receiver.
  21. EDID DIP Switch: The DIP switch is used for EDID settings.
  22. CONFIG DIP Switch: The DIP switch is used to set IR level and serial port access.
  23. USB Host: Connect to a PC.
  24. USB Device: 3 USB extension ports; connect a flash drive, mouse, or keyboard.
  25. Host/Device USB Control Switch: Switch to left (HOST), the USB HOST mode is enabled; Switch to right (DEVICE), the USB DEVICE mode is enabled.
    Note: If the transmitter is set to USB HOST mode, the receiver must be set to USB DEVICE mode.
  26. Power LED: Light on: The transmitter is powered on.
    Light off: The transmitter is powered off.
  27. Link LED: Light on: Transmitter and receiver are in good connection status.
    Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
    Light off: Transmitter and receiver are not connected.
  28. In LED: Video signal input indicator.
    Light on: There is HDMI signal input.
    Light off: There is no HDMI input or the system is powered off.
  29. Out LED: Video signal output indicator.
    Light on: There is HDMI signal output.
    Light off: There is no HDMI output or the system is powered off.
  30. eARC LED & Button: Press the eARC button to enable/disable the eARC/ARC function, and the eARC LED will indicate the status as following:
    Light on: The eARC/ARC mode is enabled, and the device is working normally.
    Light flashing: The eARC/ARC mode is enabled, but the device is working abnormally.
    Light off: The eARC/ARC mode is disabled.
  31. DC 24V: DC 24V/2.7A power supply input port.
    Note The extenders support POC functionality which means that either the transmitter or receiver is powered on by the 24V/2.7A power adapter, the other one does not need a power supply.
  32. Ethernet Indicators: Ethernet port with adaptive broadband rate. For example, if the transmitter is connected to a PC with a 100Mbps, and the receiver is connected to a Gigabit router, the device can automatically switch the 100Mbps of the transmitter to Gigabit rate. (Note: If the connected device only supports 100Mbps, the extender cannot switch to Gigabit.)
    Light in green: the Ethernet rate is 1000 Mbps.
    Light in yellow: the Ethernet rate is 100 Mbps.
  33. IR In: IR signal input port, connect to IR Receiver cable.
  34. IR Out: IR signal output port, connect to IR Blaster cable.
  35. RS-232: The RS-232 serial port features different functions by setting the CONFIG DIP switch:
    1. RS-232 signal pass-through
    2. Control & FW upgrade
    3. VS3000 FW upgrade
    4. Debug.
  36. HDBT In: HDBaseT Network port, connect to the HDBT OUT port of the transmitter with a CAT 6A/7 cable. It is used for
    various signals pass-through.
  37. Data Signal Indicator (Yellow): Light on: HDMI signal with HDCP.
    Light flashing: HDMI signal without HDCP.
    Light off: No HDMI signal.
  38. Link Signal Indicator (Green): Light on: Transmitter and receiver are in good connection status.
    Light flashing: Transmitter and receiver are in poor connection status or connected to the same device.
    Light off: Transmitter and receiver are not connected.
  39. HDMI In: HDMI Signal input port, connect to HDMI source device. IT can transmit video with resolutions of 1080p@24Hz in
    reverse to the HDMI OUT port of the transmitter.
    Note:This port is reserved and closed by default. Before using this port, users will need to turn it on through RS232 commands and ensure that the eARC function is disabled.
  40. eARC/HDMI Out: This port features two functions:
    1. HDMI signal output port, connect to HDMI display device.
    2. eARC/ARC audio port, connect to TV with eARC/ARC function.
  41. Audio In: Analog audio input port. The audio from this port can be output through the AUDIO OUT port of the transmitter.
  42. Audio Out: Analog audio output port. It can output the audio from the AUDIO IN port of the transmitter.
  43. CONFIG DIP Switch: The DIP switch is used to set IR level and serial port access.
