8K HDMI 2.1 Fiber Extender - 8K60/4K120Hz, with IR, RS232, EDID Manager, Audio Embedder/De-Embedder

Configure the Perfect Solution
Get Started

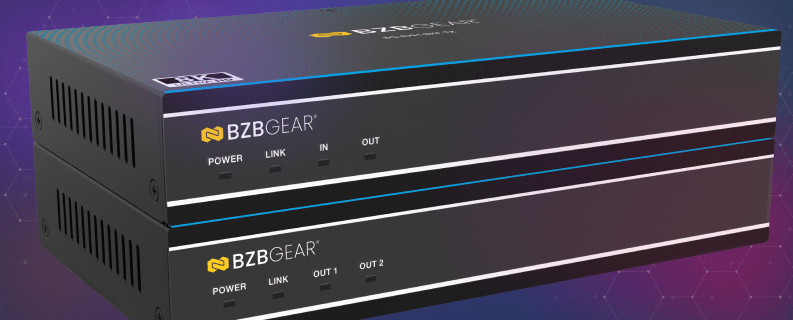

Introducing the BG-EXH-8KF, a cutting-edge HDMI over Fiber extender that redefines your audiovisual experience. This advanced extender is HDMI 2.1 and HDCP 2.3 compliant, ensuring seamless connectivity and support for the latest technologies.

The BG-EXH-8KF HDMI over Fiber extender is a cutting-edge solution that caters to gamers, home theater enthusiasts, and professional integrators alike. With support for advanced gaming features like VRR, ALLM, QMS, QFT, and SBTM, gamers can enjoy a seamless and immersive experience. Home theater enthusiasts benefit from unparalleled video quality, including 8K@60 4:2:0 12bit and 4K@120Hz 4:4:4 12bit video transmission, along with comprehensive HDR support for vivid visuals.

Professional integrators appreciate its flexibility with compatibility across multimode fiber grades, auto-downscaling features, and versatile audio format support. Designed for hassle-free installation, the extender allows HDMI signal extension up to 300 meters, ensuring uncompromised quality and reliability.



Features in Depth

Experience unparalleled video quality with up to 48Gbps FRL and 18Gbps TMDS support, enabling 8K@60 4:2:0 12bit and 4K@120Hz 4:4:4 12bit video transmission. Take advantage of VRR, ALLM, QMS, QFT, and SBTM support for a smoother gaming experience. The extender also boasts comprehensive HDR support, including HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through, delivering vivid and lifelike visuals.

Designed for flexibility, the BG-EXH-8KF is compatible with multimode fiber grades OM2/3/4 and offers HDMI audio format support, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission.

Enjoy hassle-free installation with features such as 8K to 4K or 8K/4K to 1080P auto downscaling on TX loop out and RX OUT2. The extender supports LINE IN audio embedded on TX and provides analog audio breakout on RX. With bi-directional IR and RS-232 pass-through, as well as EDID management, control your devices with ease.

Whether you're a gaming enthusiast, home theater buff, or professional integrator, the BG-EXH-8KF HDMI over Fiber extender offers a versatile and high-performance solution, extending your HDMI signals up to 300 meters with uncompromised quality and reliability. Elevate your audiovisual setup with the BG-EXH-8KF for an immersive and seamless multimedia experience.



BZBGEAR AWARDS

BZBGEAR has a number of award winning products from past tradeshow events. These award winning products were nominated and judged against other nominees. See what makes our award winning products so extraordinary!

Features

  • Compliant
    Compliant
    HDMI 2.1, HDCP 2.3 compliant
  • 8K@30Hz and 4K@120Hz
    8K and 4K@120Hz
    Supports 8K@60 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
  • Audio Formats
    Multiple Audio Formats
    Supports HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby
  • 8K Exclusive Features
    HDMI 2.1 Exclusive Features
    VRR, ALLM, QMS, QFT, and SBTM are supported
  • Control Options
    Control Options
    Bi-directional IR & RS-232 pass-through, EDID management
  • Wide-Angle 1
    Long Distance
    Extend your 8K or 4K@120Hz signal up to 300M
  • Up to 48Gbps FRL and 18Gbps TMDS support
  • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
  • Multimode fiber grade OM2/3/4 compatible
  • 8K to 4K or 8K/4K to 1080P auto downscaling on TX loop out and RX OUT2
  • Supports LINE IN audio embedded on TX and analog audio break out on RX

Videos

Unleash the Ultimate 8K60 & 4K120 Solution - 8K Fiber Extender
Unleash the Ultimate 8K60 & 4K120 Solution - 8K Fiber Extender
Extending Your 8K Signals with Award-Winning Devices from BZBGEAR | InfoComm 2024
Extending Your 8K Signals with Award-Winning Devices from BZBGEAR | InfoComm 2024
See Every Detail - Extending 8K & 4K 120hz Video Over 330ft
See Every Detail - Extending 8K & 4K 120hz Video Over 330ft

Tech Specifications

Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth 48Gbps FRL and 18Gbps TMDS
Video Resolution Up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit
Color Space RGB 4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth 8/10/12-bit
Audio Formats HDMI IN/OUT:
PCM 2.0, LPCM 5.1, LPCM 7.1,
(32K/44.1K/48K/88.2K/96K/176.4K/192K)
(16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD,
Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD
HRA, DTS HD Master, DTS:X; AUDIO BREAKOUT:
L/R OUT: PCM 2.0CH
Optical Fiber Transmission
Distance
OM2: 40m/131ft
OM3: 200m/656ft
OM4: 300m/985ft
(over 850nm OM2/3/4 multi-mode fiber optic cable)
IR Level IR IN: 12V; Level: 3.2.04.00219
IR OUT: 5V; Level: 3.2.04.00093
IR Frequency Wideband 20K-60KHz
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection
Transmitter Input: 1x HDMI IN [Type A, 19-pin female] 1x IR IN [3.5mm audio jack]
Output: 1x HDMI OUT [Type A, 19-pin female] 1x IR OUT [3.5mm audio jack] 1x FIBER [LC]
Control: 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C, update port]
Receiver Input: 1x FIBER [LC] 1x IR IN [3.5mm audio jack]
Output: 2x HDMI OUT [Type A, 19-pin female] 1x IR OUT [3.5mm audio jack] 1x AUDIO OUT [3.5mm audio jack]
Control: 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C, update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions (W x D x H) Transmitter / Receiver: 6.9in x 3.9in x 1.2in [175mm x 100mm x 30mm]
Weight Transmitter: 1.09 lbs [496g]; Receiver: 1.08 lbs [492g]
Power Supply Input: AC 100~240V 50/60Hz; Output: DC 12V/1A
Power Consumption Transmitter: 6.7W (Max); Receiver: 4.5W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution 8K 4K60 4K24 1080P
HDMI Cable Length
(HDMI in / out)
3m/10ft
(Ultra HDMI 2.1)
8m/26ft 12m/39ft 15m/49ft
The use of “Premium High-Speed HDMI” cables is highly recommended.

Resources

PACKAGE CONTENTS

  • 1× 48Gbps HDMI over FIBER Extender (TX)
  • 1× 48Gbps HDMI over FIBER Extender (RX)
  • 1× IR Wideband Blaster Cable (1.5m)
  • 1× IR Wideband Receiver Cable (1.5m)
  • 2× 12V/1A Multinational Power Supply
  • 2× Power Adapter
  • 4× Mounting Ear
  • 8× Machine Screw (KM3*4)
  • 2× 3pin-3.5mm Phoenix Connector (male)
  • 1× User Manua

Interfaces

Interfaces image

Transmitter

    1. POWER LED: The red LED is on when the transmitter is powered on.
    2. LINK LED: Connection signal indicator
      ● On: Transmitter and Receiver are connected and the signal is detected.
      ● Blinking: The transmitter and Receiver are connected but no signal is detected.
      ● Off: Transmitter and Receiver are not connected.
    3. IN LED: The green LED is on when an input source is detected.
    4. OUT LED: The green LED is on when a display device is connected.
    5. FIBER: Input multi-mode and single-core fiber optical signals, including video, audio, and communication signals.
    6. HDMI OUT: HDMI signal output port, connected to HDMI display devices such as TVs or monitors with HDMI cable.
    7. HDMI IN: HDMI input port, connected to HDMI source devices such as media players or gaming consoles with HDMI cable.
    8. IR IN: IR signal input port, connected to 12V IR wideband receiver.
    9. IR OUT: IR signal output port, connected to 5V IR wideband blaster.
    10. RS-232: 3pin-3.5mm Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
    11. SERVICE: Firmware update and debug port.
    12. EDID: Used for EDID setting.
    13. DC 12V: DC 12V/1A power input port.

      Receiver

    14. POWER LED: The red LED is on when the transmitter is powered on.
    15. LINK LED: Connection signal indicator
      ● On: Transmitter and Receiver are connected and the signal is detected.
      ● Blinking: The transmitter and Receiver are connected but no signal is detected.
      ● Off: Transmitter and Receiver are not connected.
    16. OUT LED 1/2: The green LED 1 is on when display 1 device is connected. The green LED 2 is on when display 2 device is connected.
    17. FIBER: Input multi-mode and single-core fiber optical signals, including video, audio, and communication signals.
    18. HDMI OUT 1/2: HDMI signal output ports, connected to HDMI display devices such as TVs or monitors with HDMI cable.
    19. AUDIO OUT: Analog audio output port.
    20. IR IN: IR signal input port, connected to 12V IR wideband receiver.
    21. IR OUT: IR signal output port, connected to 5V IR wideband blaster.
    22. RS-232: 3pin-3.5mm Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
    23. SERVICE: Firmware update and debug port.
    24. DC 12V: DC 12V/1A power input port.
