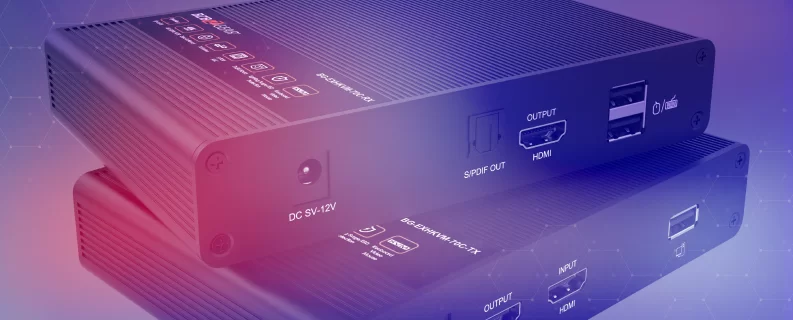

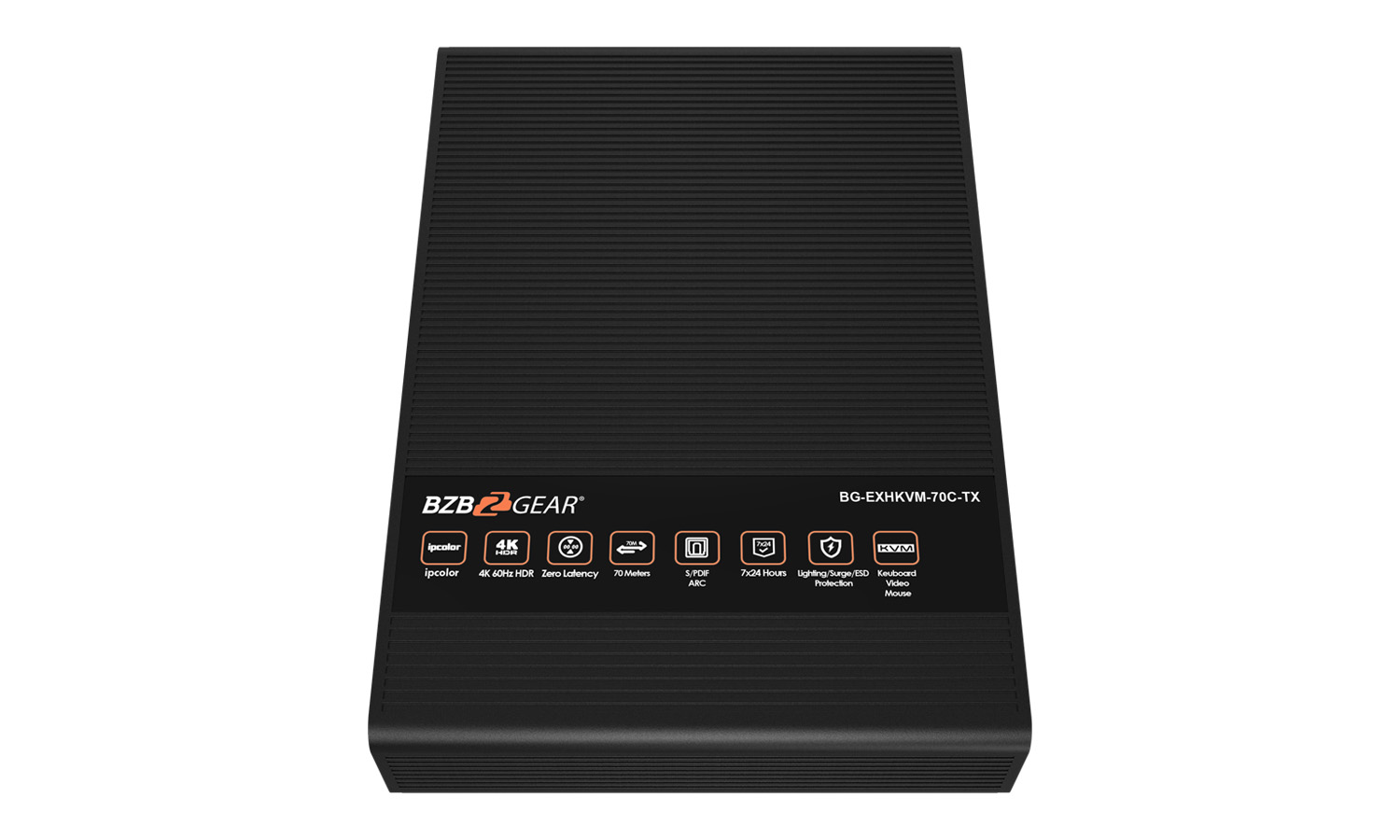

Overview

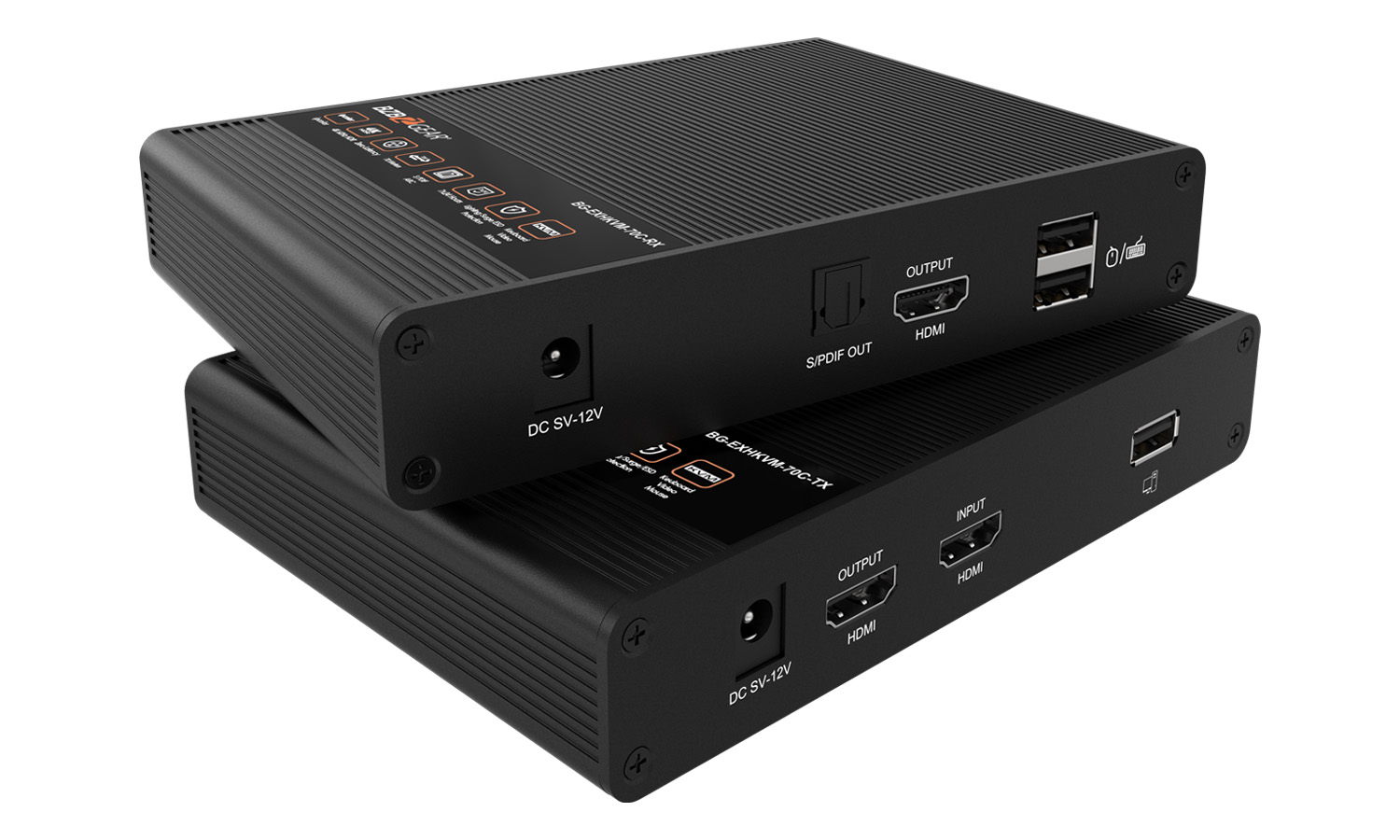

With a new IPCOLOR technology (a global leading and innovative protocol for UHD video digital transmission with lossless compression) this extender is capable of transmitting HDMI and USB signals with zero latency (gamers loved it) across distances of up to 70 meters (230 ft) over a single Cat6/6a/7 cable.
If your computer makes uncomfortable level of noise and you want to send it away to the basement and work peacefully in your office, or if your company policies require your workstation to be locked in server room – these are exactly why KVM extender was created. When you need to separate your PC and your Display/Keyboard&Mouse for a long distance this device will serve you well.
You can use USB connectors on the receiver not only for your mouse and keyboard, but also for other USB 2.0 devices like storage drives. S/PDIF connector on the receiver will de-embed audio signal from HDMI, so you can connect your local audio system.
BG-EXHKVM-70C supports resolutions up to 4K 60fps HDR10 as well as many audio formats like LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH.
Aluminum housing and integrated surge protection provides more durability for your setup.

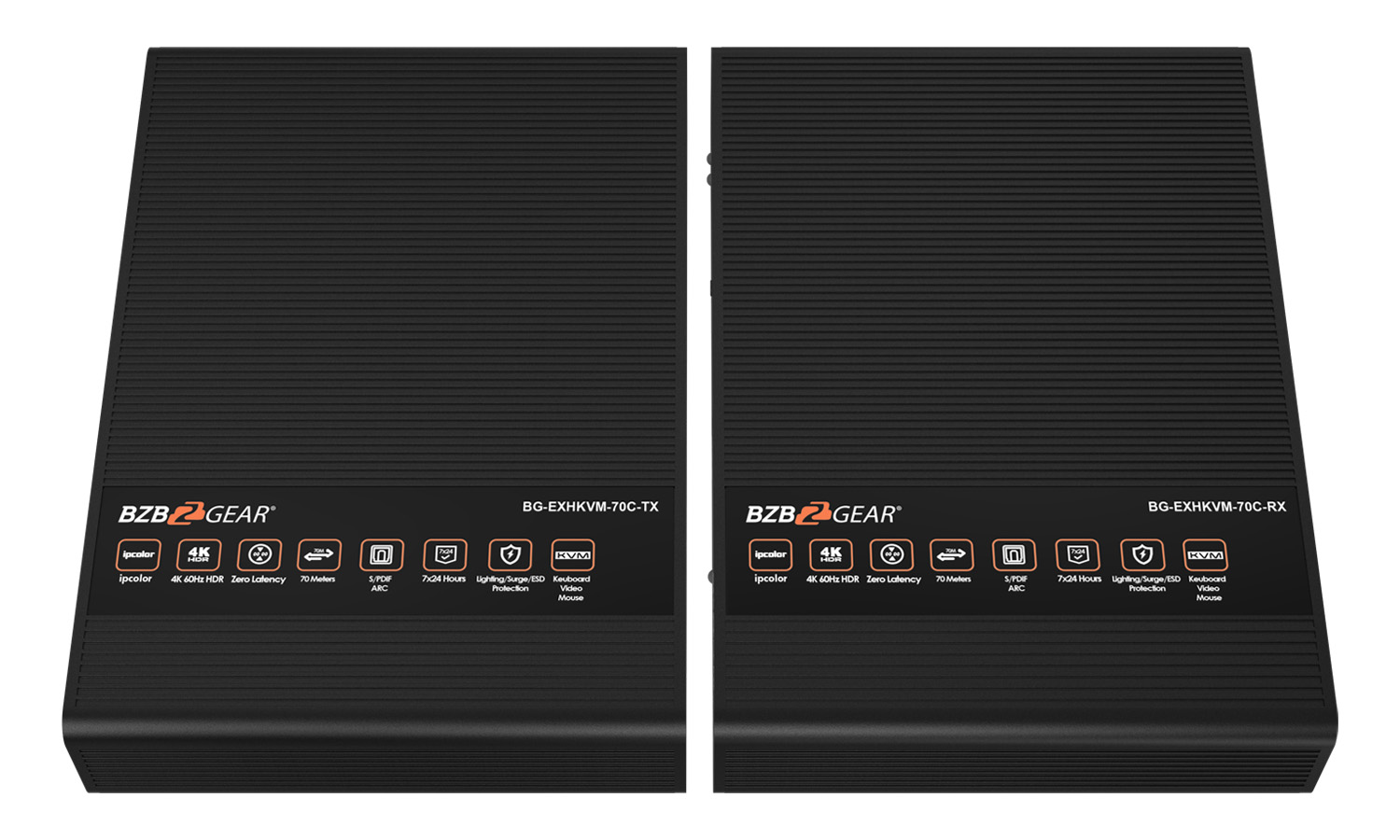

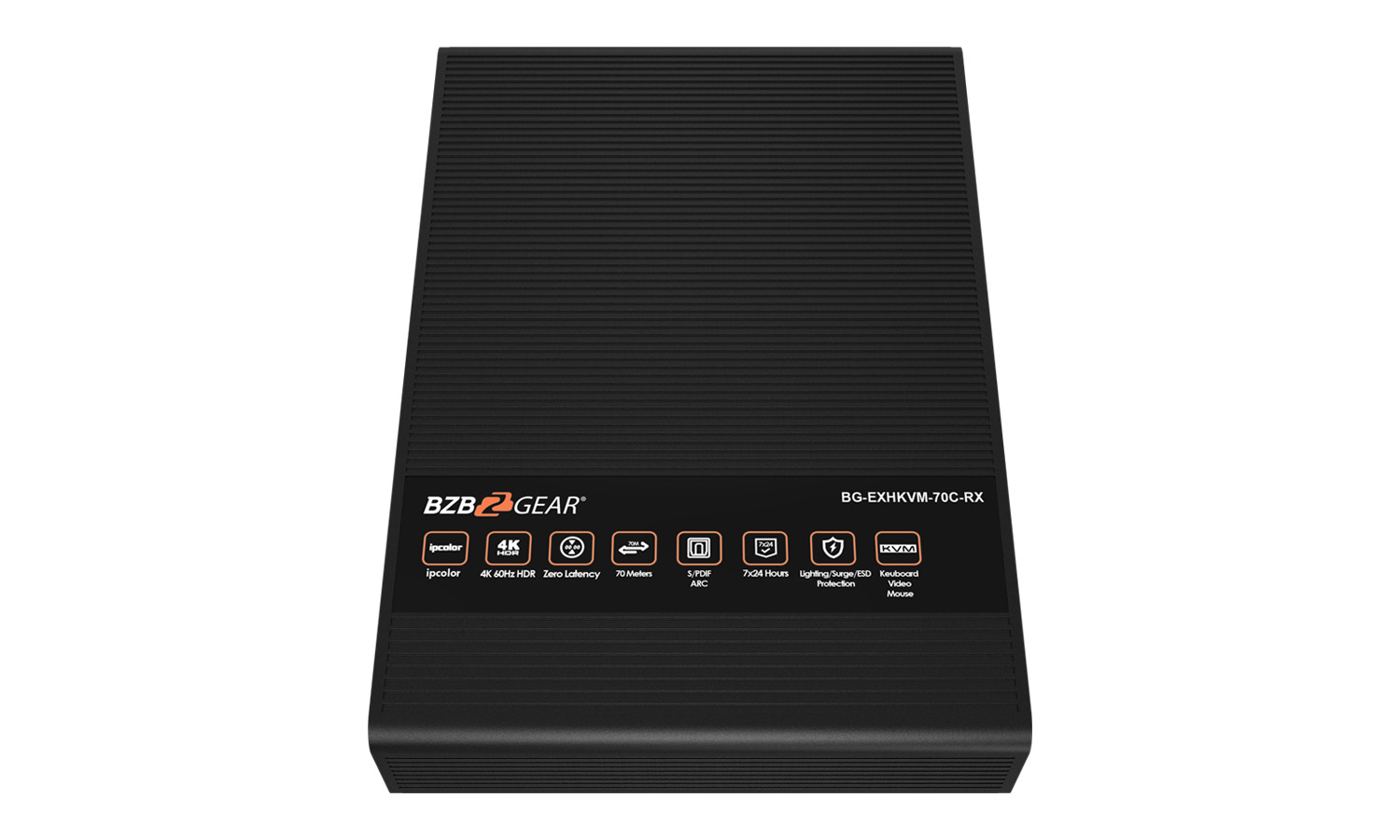

Features
-
Stunning Image QualitySupports resolutions up to 4K@60Hz -
Audio ExtractionDigital audio can be extracted via the optical audio port -
KVMRemotely control a PC from the display side with a keyboard and mouse -
Plug and PlayEasy setup, no drivers to install -
HDMI Loop-OutConnect an additional display to the transmitter -
Surge ProtectionIntegrated surge protection increases reliability
- Supports HDMI 2.0a, compatible with HDCP 2.2 and HDCP 1.4
- Supports auto down-scaling to match display resolution
- Supports uncompressed 4K@60Hz 4:4:4 with HDR10 and zero latency
Videos
Tech Specifications
| Model No. | BG-EXHKVM-70C | |
| Technical | Transmitter | Receiver |
| Input | HDMI IN x1, DC2.1 x1, USB-A x1 | DC2.1 x1, RJ45 x1, USB-A x2 |
| Output | HDMI OUT x1, RJ45 x1 | HDMI OUT x1, S/PDIF OUT x1 |
| HDMI compliance | HDMI2.0, compatible HDMI1.4 | |
| HDCP compliance | HDCP2.2, compatible HDCP1.4 | |
| Transmission meduim | CAT6/CAT6A/CAT7 | |
| Transmission distance | ≤70 meters | |
| Video bandwidth | 18Gbps | |
| Video support | 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz |
|
| Audio formats | LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH | |
| HDR10 (YUV4:4:4) | Supported | |
| HDMI Loop-out | Supported | |
| S/PDIF out | Supported | |
| EDID through | Supported | |
| KVM function | Supported | |
| Input TMDS signal | 0.7~1.2Vp-p | |
| Input DDC signal | 5Vp-p | |
| HDMI connector | Type A 19 Pins, Female | |
| Network cable standard | CAT6/CAT6A/CAT7, follow IEEE-5688 standard | |
| Mechanical | Transmitter | Receiver |
| Net weight | 0.57lbs [260g] | 0.57lbs [260g] |
| Power supply | 5V/2A | 5V/2A |
| Power consumption | 4W | 4W |
| Material | Aluminium alloy material+crystal panel | |
| Dimensions (LxWxH) | 5.9 x 4.2 x 1.1in [150.0 x 107.0 x 28.4mm] | |
| Operation temperaure | -4 ~ 140°F / -20 ~ 60°C | |
| Storage temperature | -22 ~ 158°F /-30 ~ 70°C | |
| Relative humidity | 0～90% (no condensation) | |
Resources
PACKAGE CONTENTS
- 1 x HDMI Extender Transmitter
- 1 x HDMI Extender Receiver
- 1 x User Manual
- 1 x USB cable
- 2 x 5V2A DC Power Supply
- 8 x Mounting brackets
- 18 x Screws

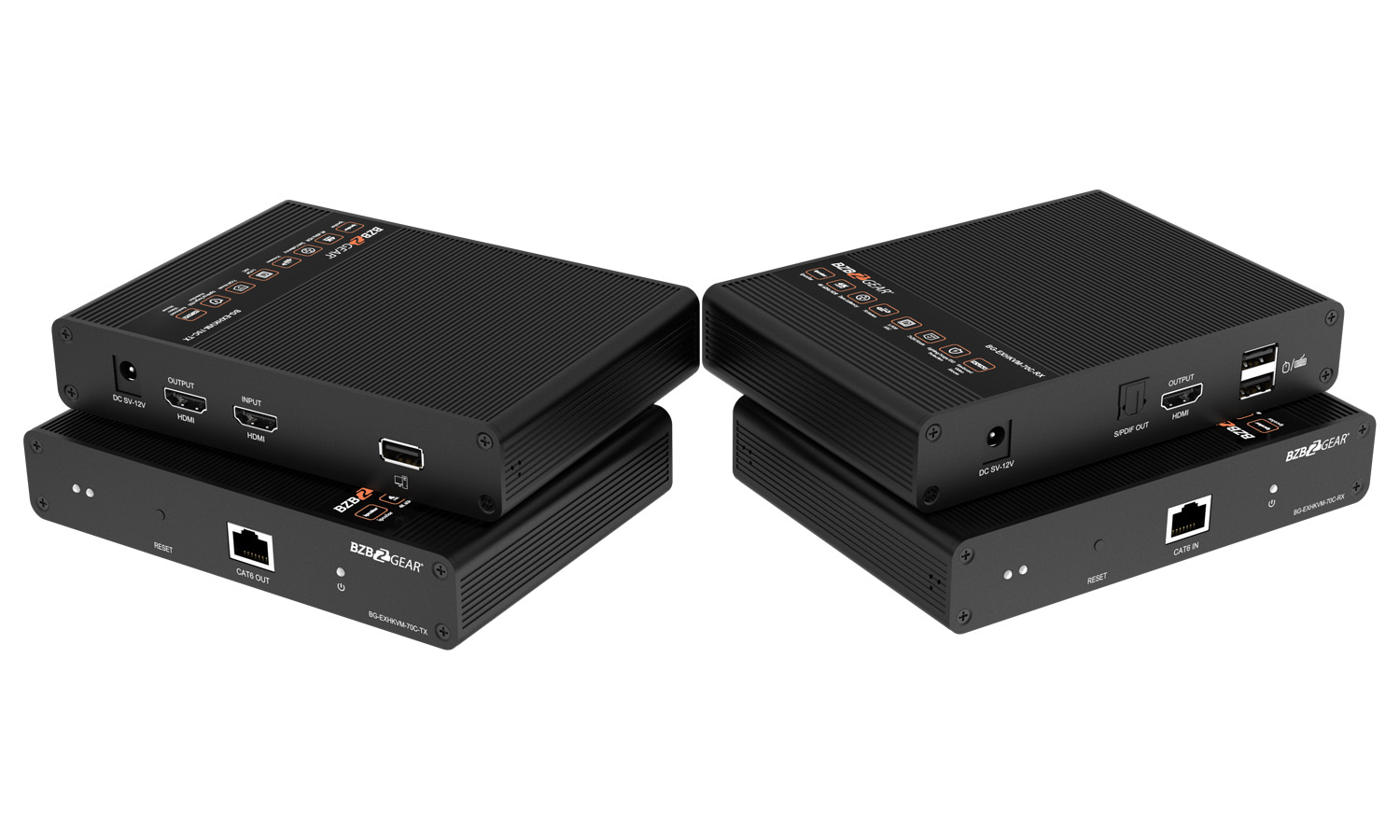

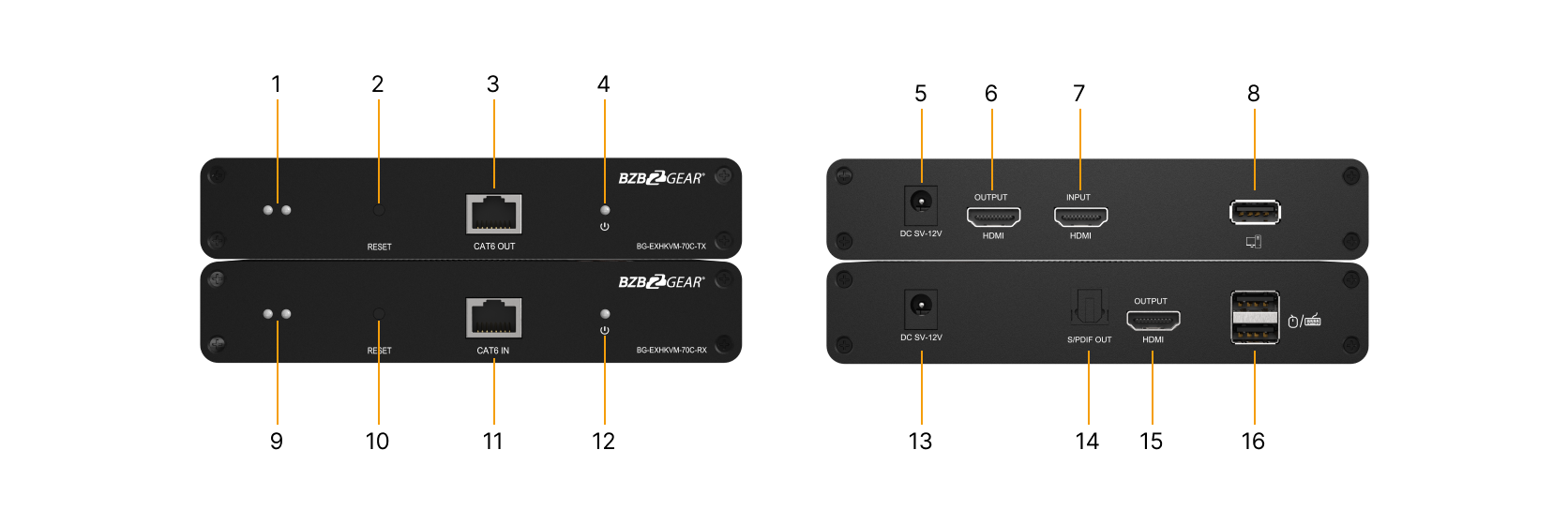

Interfaces

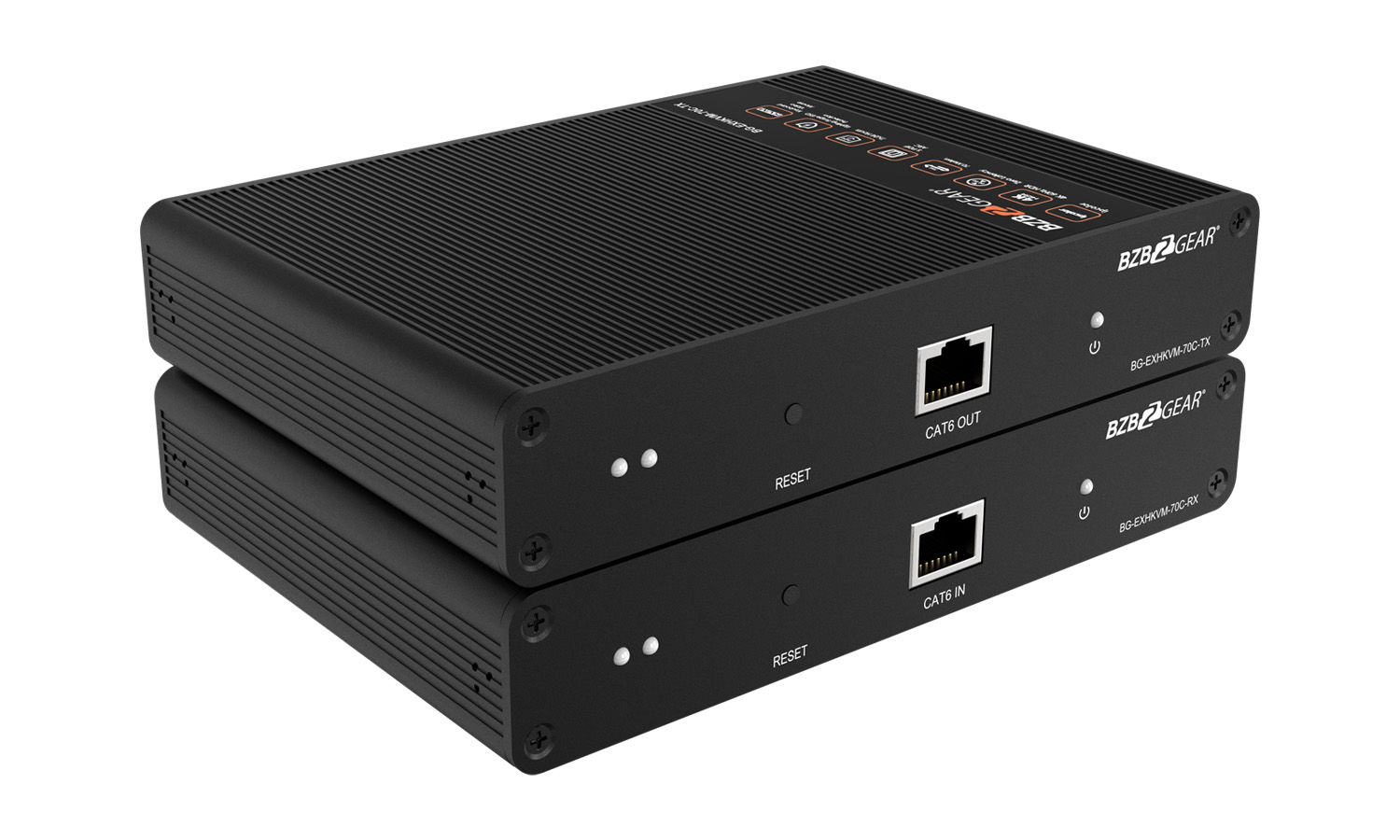

- KVM Light: If connected to a computer, the indicator light is on.
If there is no signal transmission, the indicator light is off.
If there is a signal transmission, the indicator light flashes. - Reset button: Press to restart the device.

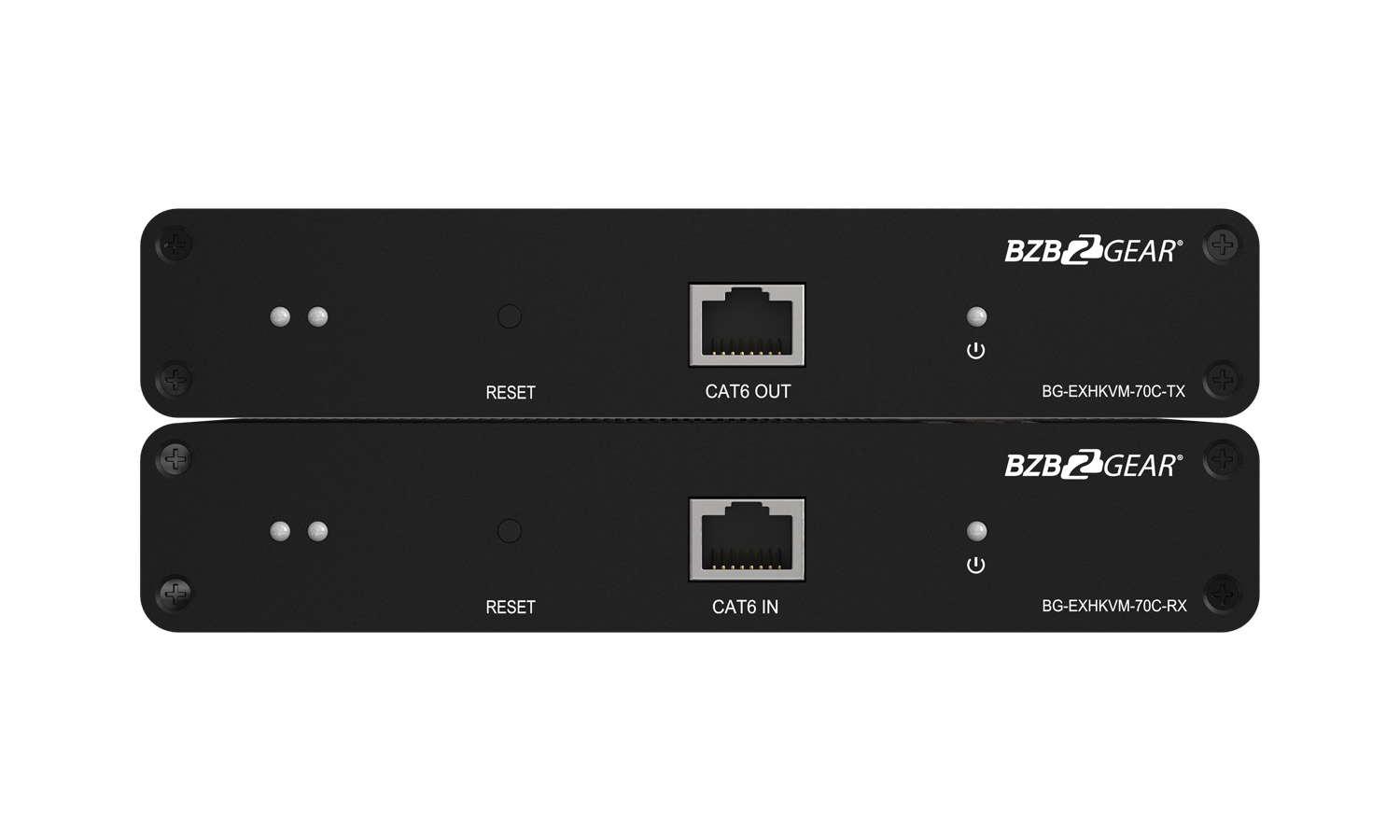

- RJ45 signal output: Connect with network cable.
- Power signal indicator: When there is power and no HDMI signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue.

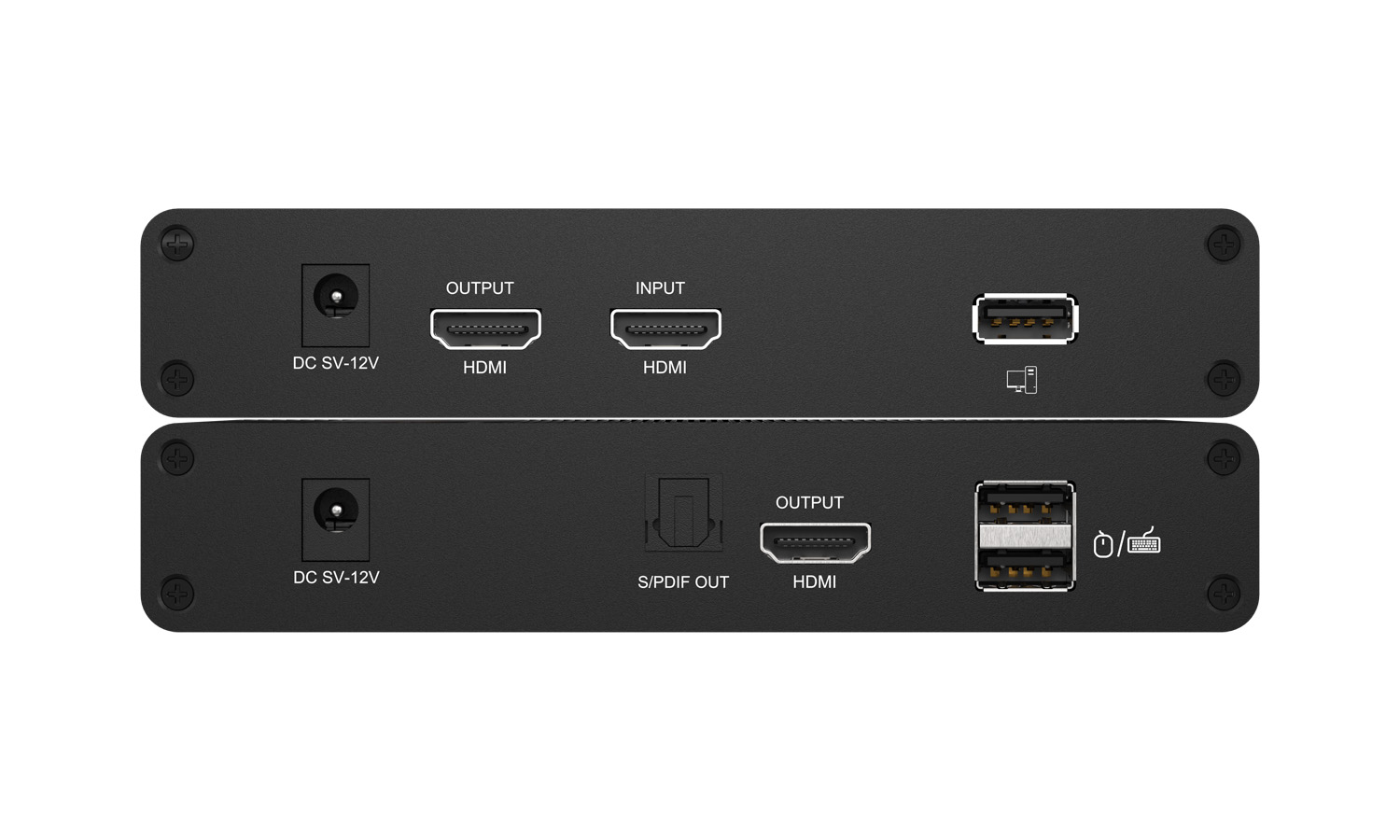

- DCSV-12V input: Connect with DCSV-12V power adapter.
- HDMI output: Connect with an HDMI display device.

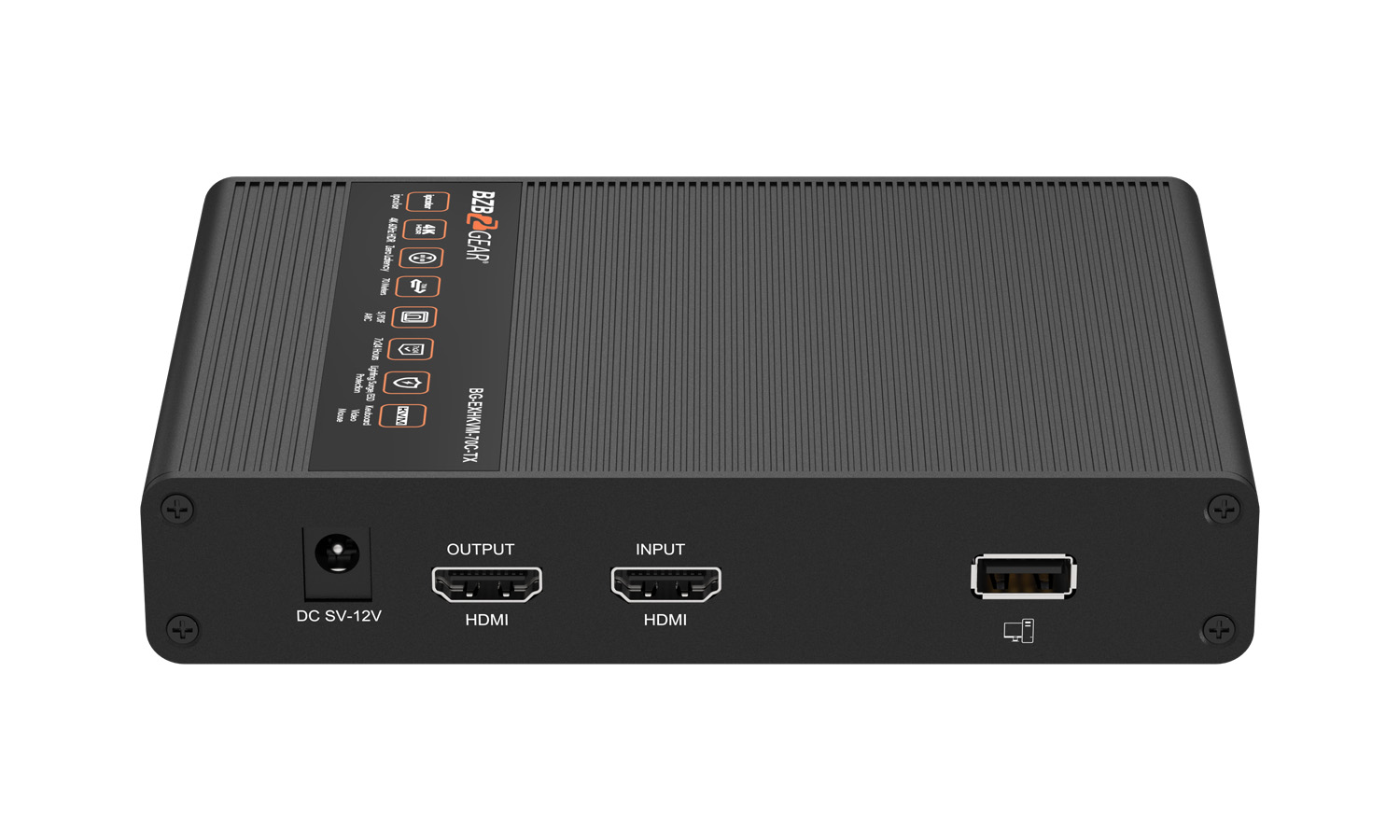

- HDMI input: Connect with the source device.
- USB-A port: Connect with the computer.
- KVM Light: If a mouse/keyboard is connected to the USB port, the indicator light will illuminate.
- Reset button: Press to restart the device.
- RJ45 signal input: Connect with network cable.
- Power signal indicator: When there is power and no HDMI signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue.
- DCSV-12V input: Connect with DCSV-12V power adapter

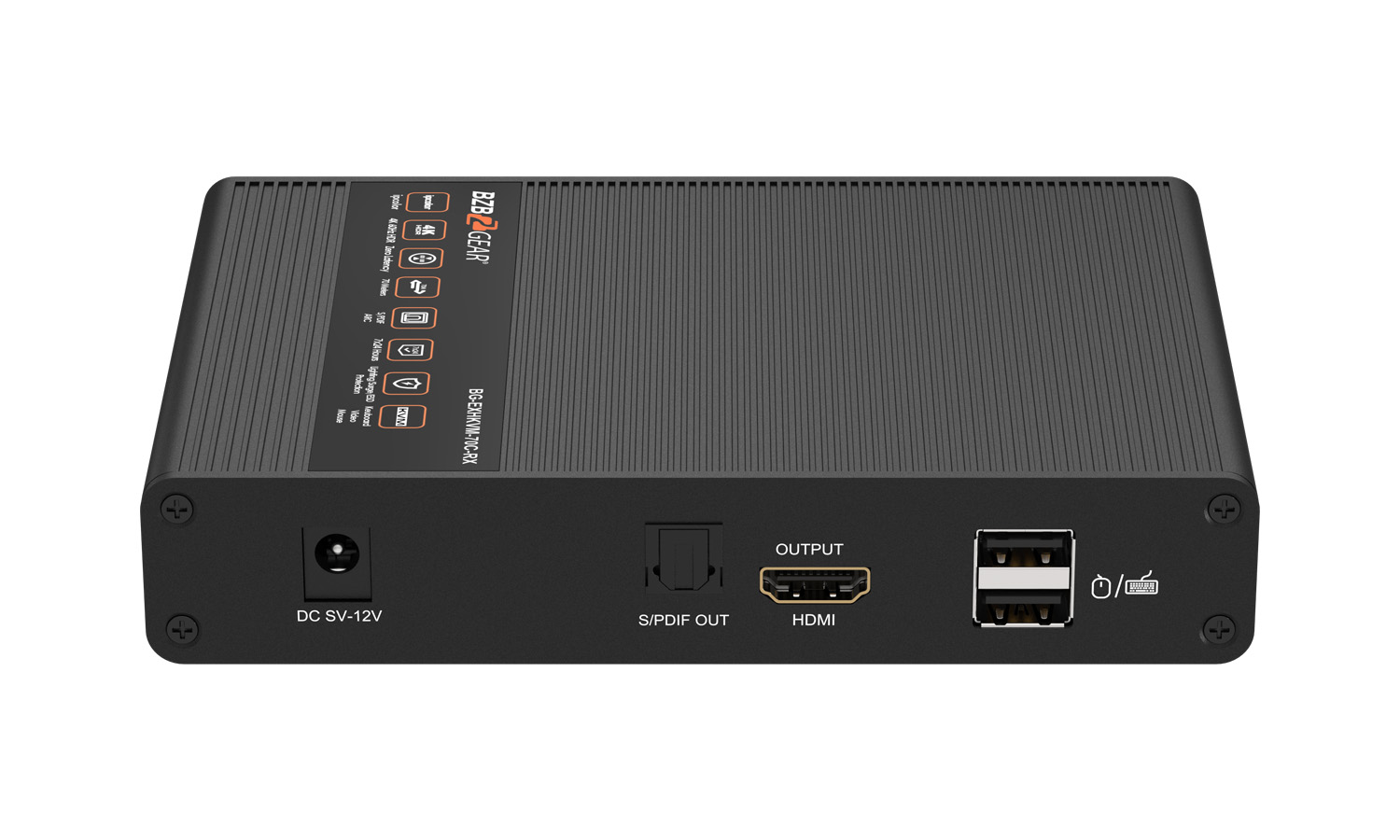

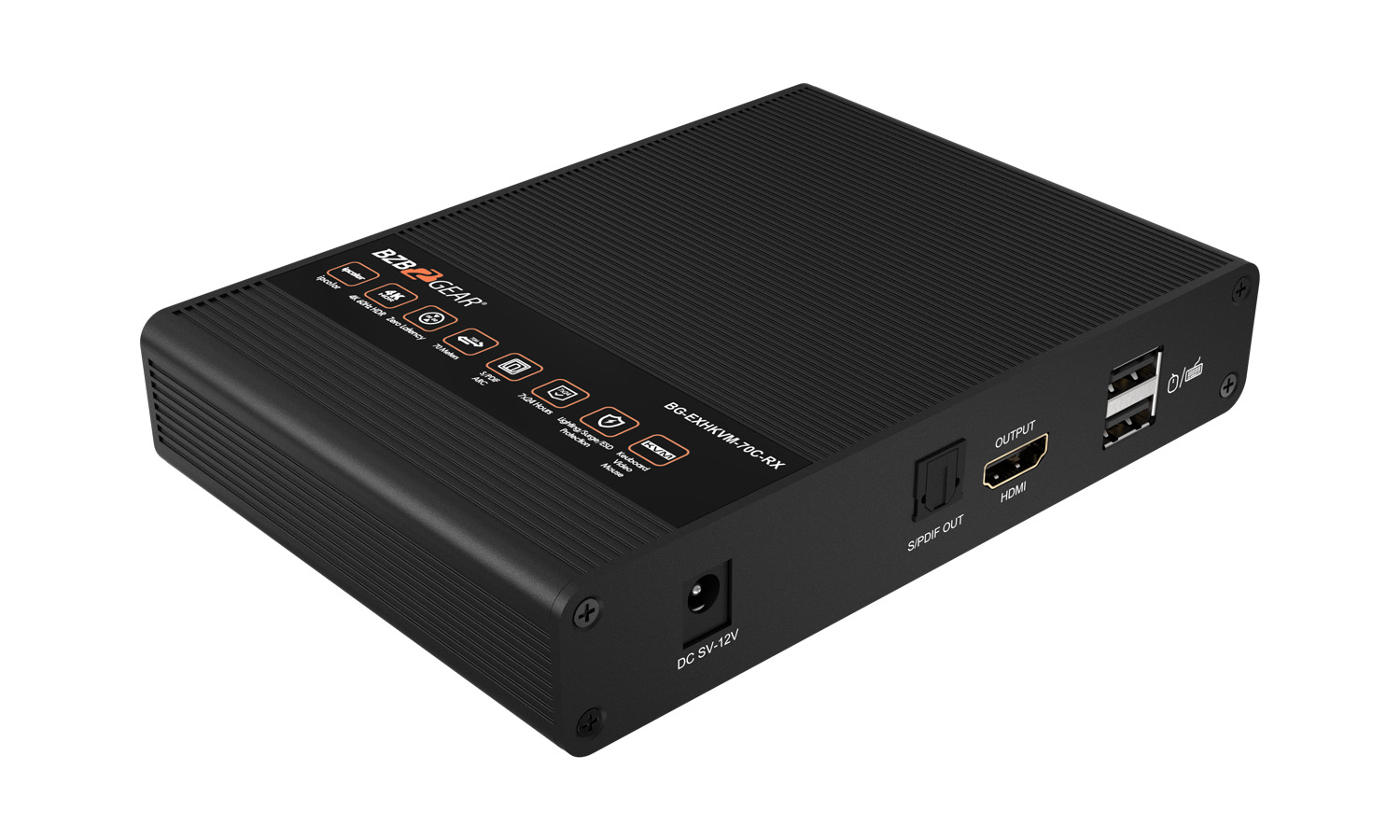

- S/PDIF out: Output digital audio signal.
- HDMI output: Connect with an HDMI display device.
- USB-A port: Connect with keyboard and mouse.
