4-Port USB3.1/2.0/1.1 SuperSpeed Fiber Extender up to 1000ft

Configure the Perfect Solution
Get Started

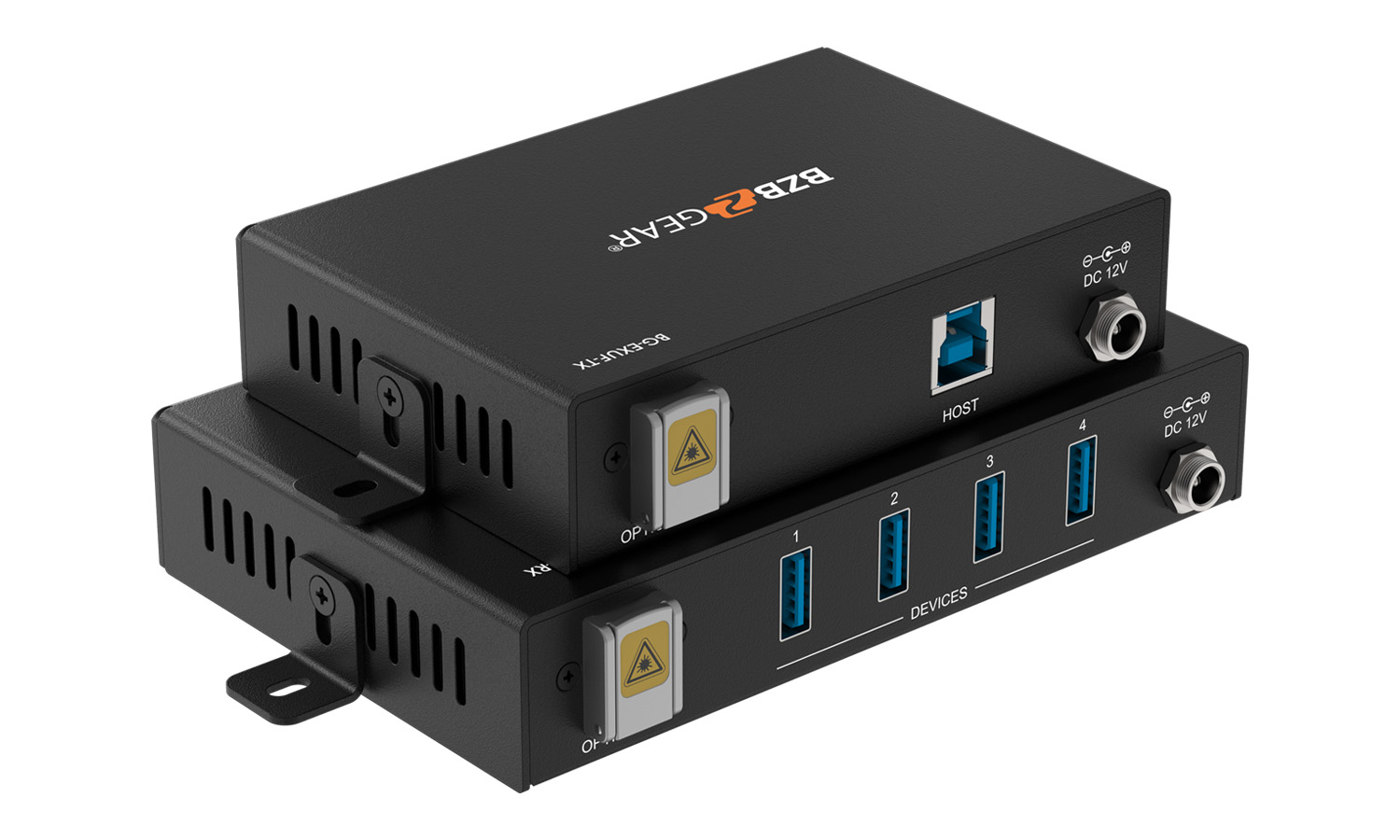

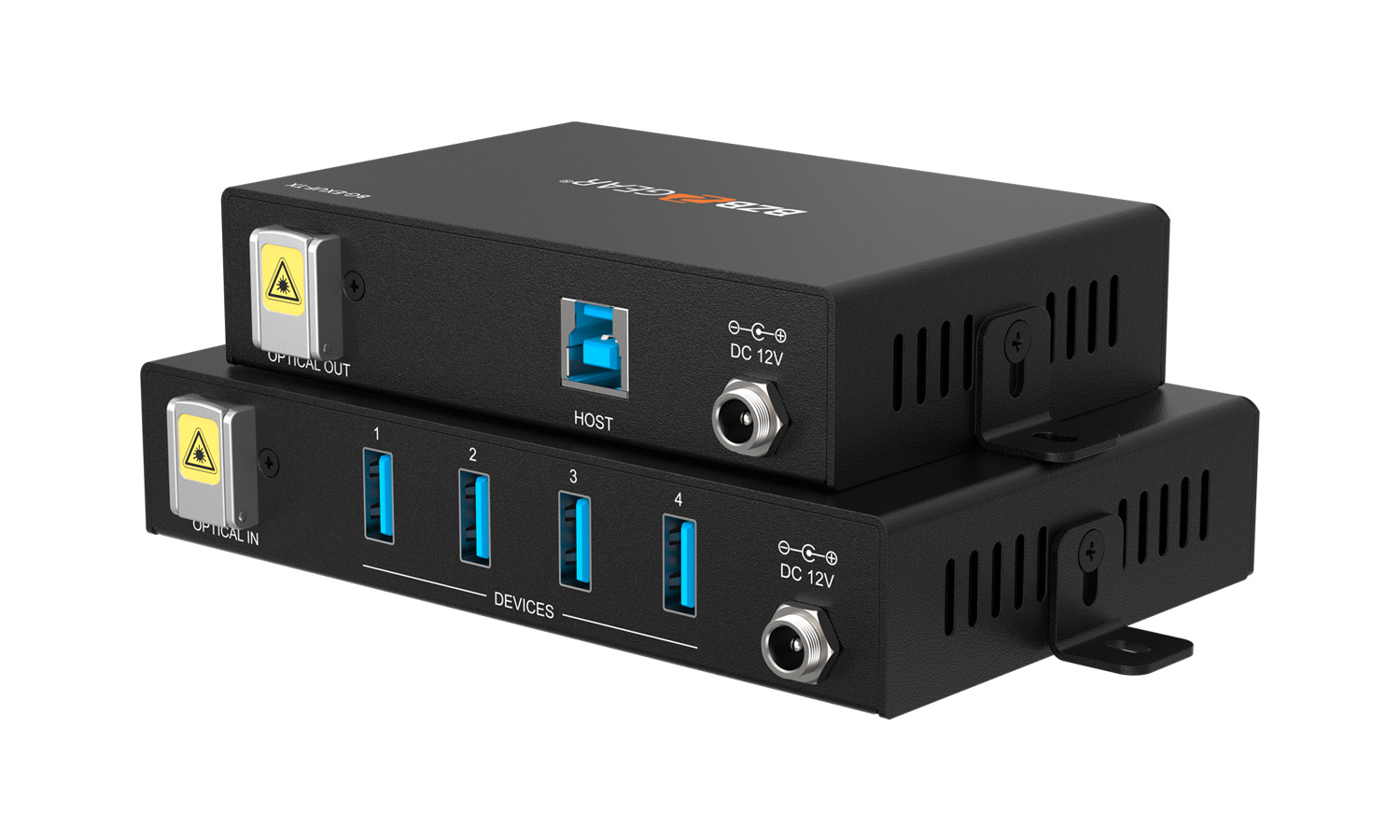

The BZBGEAR BG-EXUF is a 4-port fiber optic USB 3.1/2.0/1.1 extender that extends USB 3.1 up to 328ft (100m) and USB 2.0/1.1 up to 6.2mi (10Km) over single-mode or multi-mode fiber optic cabling. Designed with a four-port hub to extend up to four USB devices without the need for an additional device. Each port supports data transfer speeds up to 5Gbps (USB 3.1).

Installation and use of the BG-EXUF is effortless with four mounting holes built into its sturdy metal chassis and no requirements for drivers. The advanced optical fiber transmission technology eliminates electromagnetic interference.

Enhanced Efficiency and Management

Locking Power Connectors: One of the most significant features of the BG-EXUF is its locking power connectors. These connectors ensure that the power cable remains securely connected to the device, preventing accidental disconnections. This feature is especially important in industrial or high-traffic environments where the device may be frequently moved or unplugged.

LED Status Lights: The BG-EXUF features LED status lights that provide users with real-time feedback on the device's operational status. The LEDs indicate when the device is powered on, connected to a fiber optic cable, and transmitting data, making it easy to troubleshoot issues and ensure optimal performance.

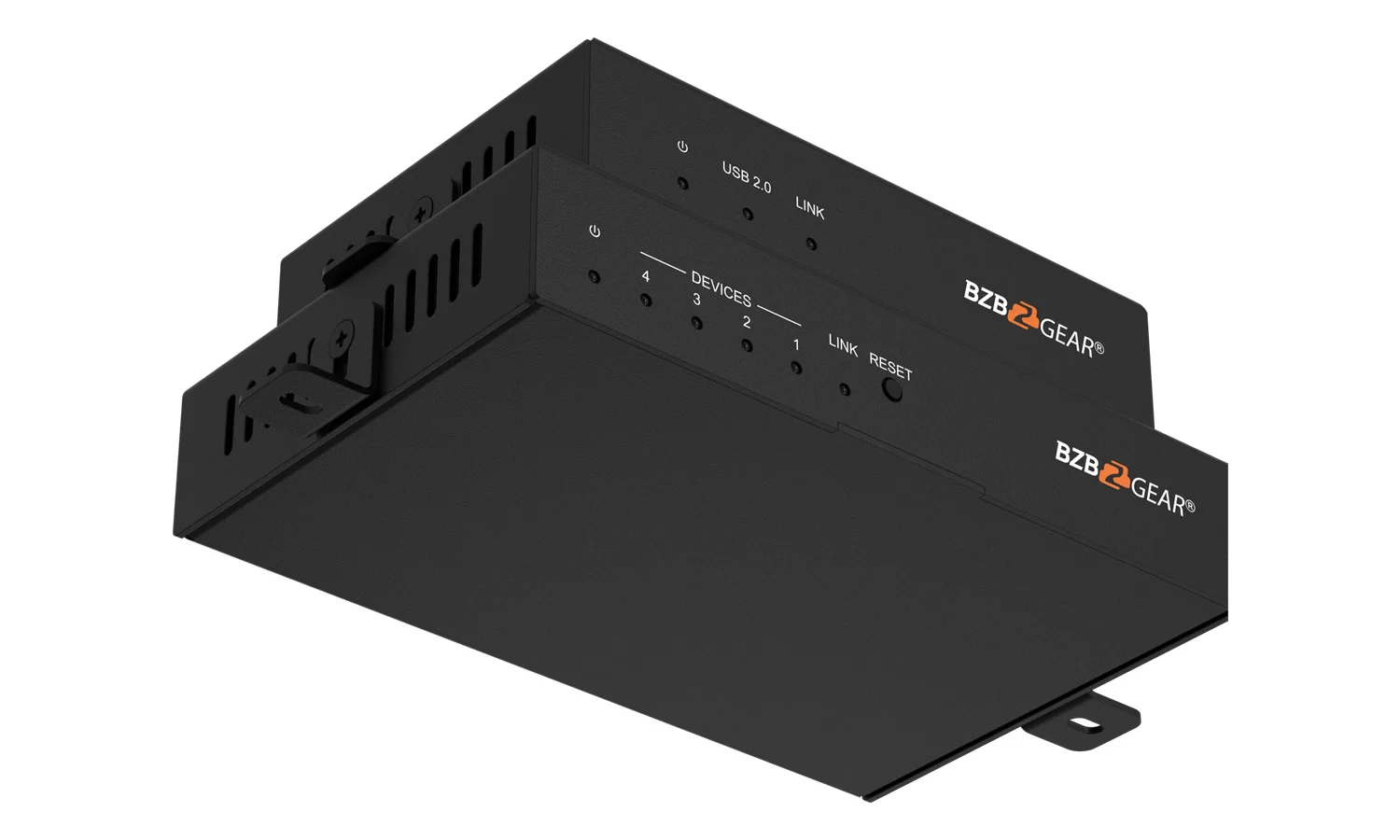

Easy to Mount and Unmount: The BZBGEAR BG-EXUF is designed to make installation and use effortlessly with four mounting holes built into its sturdy metal chassis, ensuring secure and straightforward mounting on walls or racks. This feature not only saves time and effort during installation but also ensures that the device stays securely in place during operation, preventing damage or disruption to its connection and ensuring uninterrupted data transmission. Moreover, the easy-to-mount feature makes it easy to relocate or reposition the device if needed.

Features

  • Plug-and-Play Setup
    Locking Power Connector
    Prevents power from accidentally coming unplugged
  • bi_usb-symbol
    USB 3.1
    4 USB 3.1 ports
  • fluent_top-speed-24-filled
    Fast Transfer Speeds
    Up to 5Gbps using USB 3.1
  • lights
    LED Status Lights
    Easily see system link status at a glance
  • material-symbols_safety-check
    Durable Enclosure
    Metal housing designed to last for years
  • Wide-Angle 2
    Extreme Range
    Send USB 3.1 up to 100m (328ft) and USB 2.0/1.1 up to 6.2mi (10km)
  • Compatible with USB 3.1/2.0/1.1
  • Converts USB 3.1 to optical fiber without latency
  • USB 2.0 data transfer rate: 480Mbps
  • Transmits audio and video signals over single-mode or OM3 multi-mode fiber
  • USB 1.1 data transfer rate: 12Mbps
  • Anti-electromagnetic interference

Videos

Go LONG!!! USB 3.1 Fiber Extender with Super Fast Transfer Speeds - BG-EXUF
Go LONG!!! USB 3.1 Fiber Extender with Super Fast Transfer Speeds - BG-EXUF

Tech Specifications

Distance
USB 3.1 Gen1 Single-mode fiber or OM3 multi-mode fiber:
Non-real-time transmission: 984ft (300m)
Real-time transmission: 328ft (100m)
USB 2.0/1.1 Single-mode fiber:
Non-real-time transmission: 6.2mi (10km)
Real-time transmission: 3.7mi (6km)
OM3 multi-mode fiber: 1640ft (500m)
Data Rate
USB 3.1 GEN1 5Gbps
USB 2.0 480Mbps
USB 1.1 12Mbps
Transmitter (BG-EXUF-TX)
USB Interface 1x USB 3.0 type-B male connector
Fiber Interface 1x LC
Dimensions 5.3in x 3in x 1in [135mm x 75mm x 26mm]
Installation 4 mounting holes for fixing
Enclosure Material: Metal
Power Supply External DC 12V

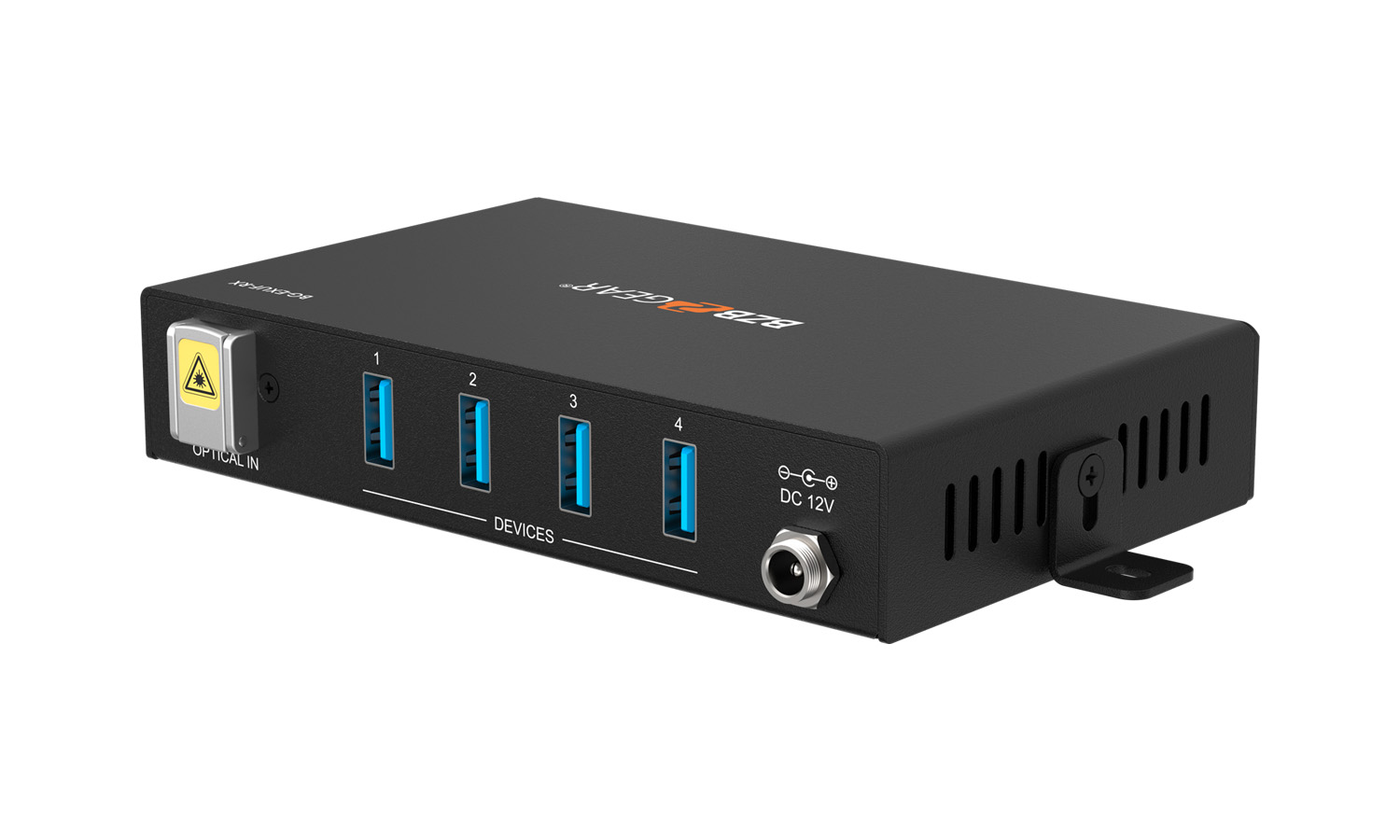

Receiver (BG-EXUF-RX)
USB Interface 4x USB 3.0 type-A female connector
Fiber Interface 1x LC
Dimensions 6.3in x 3.3in x 1in [160mm x 85mm x 26mm]
Installation 4 mounting holes for fixing
Enclosure Material: Metal
Power Supply External DC 12V
Environment
Operating Temperature +50 to +140°F / -10 to +60°C
Storage Temperature -49 to +185°F / -45 to +85°C
Operating Humidity 20% to 80% relative humidity, non-condensing
Storage Humidity 10% to 80% relative humidity

PACKAGE CONTENTS

  • 1 x Transmitter
  • 1 x Receiver
  • 2 x Power Adapter (12V DC 1A)
  • 4 x Mounting Ears
  • 4 x Mounting Screws
  • 8 x Silicone Cushions
  • 1 x User Manual

Interfaces

Interfaces image

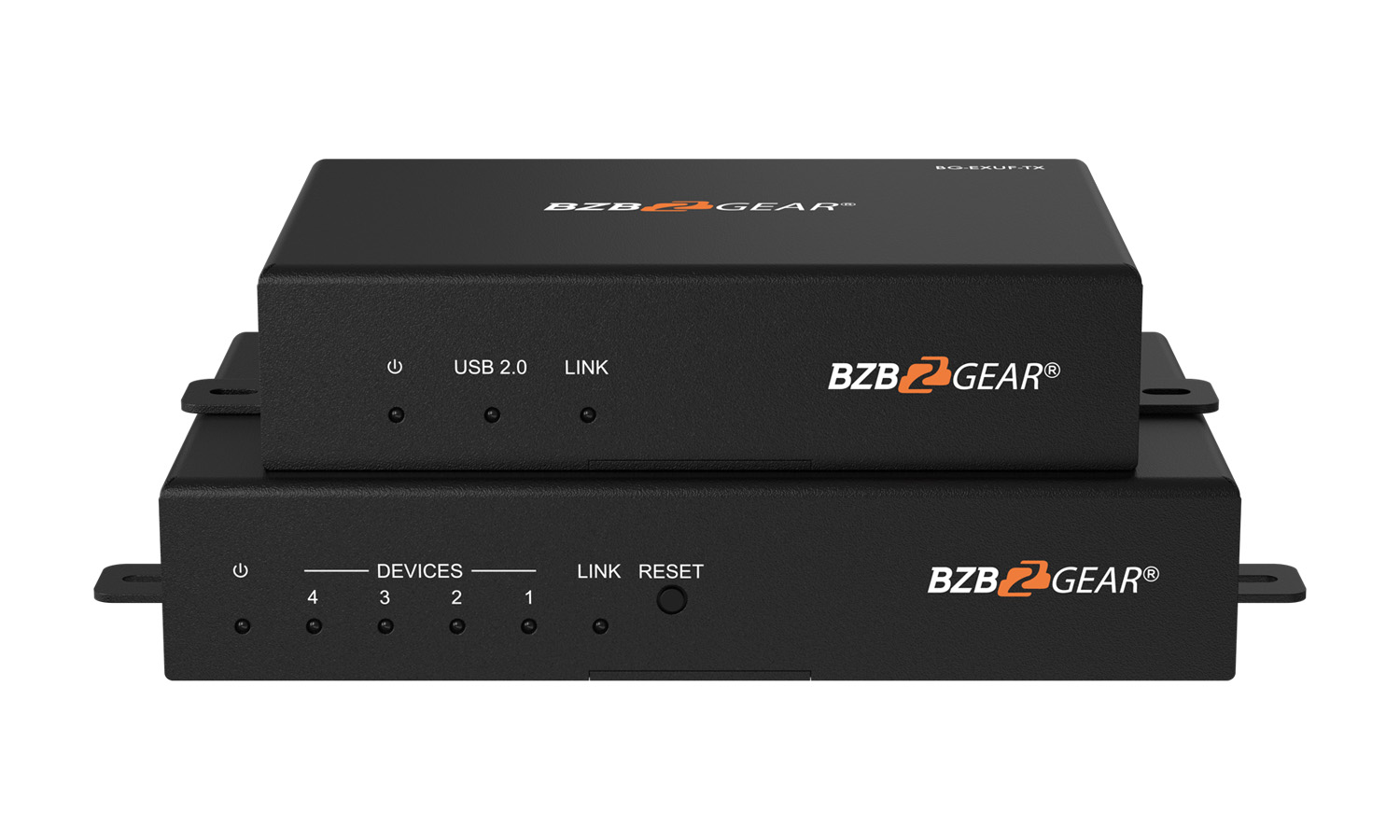

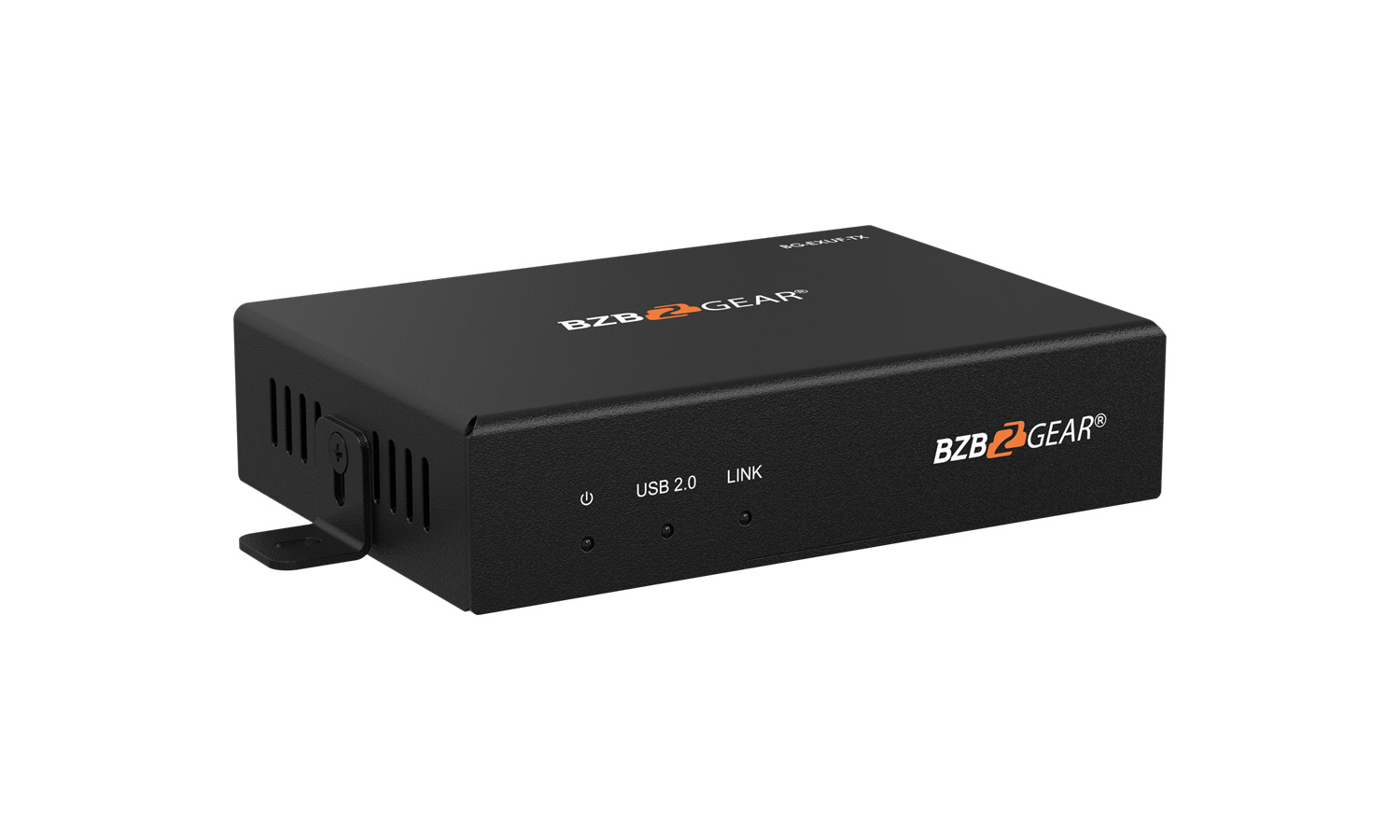

  1. Power LED: The LED will illuminate green when connected to DC power.
  2. USB 2.0: The light will illuminate when the transmitter is connected to a USB 2.0 KVM device.
  3. LINK: The LED will Illuminate green when the transmitter and receiver have a good connection status.

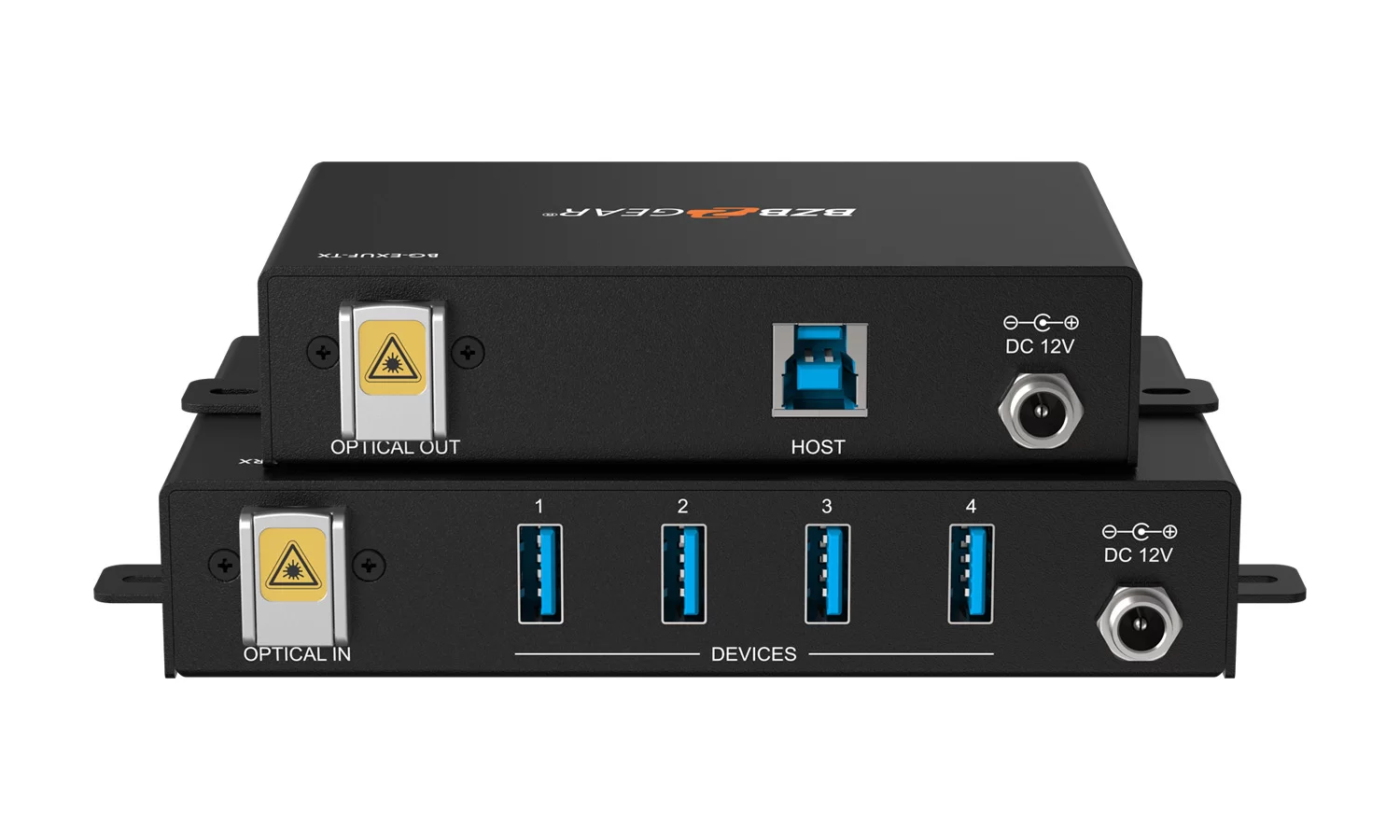

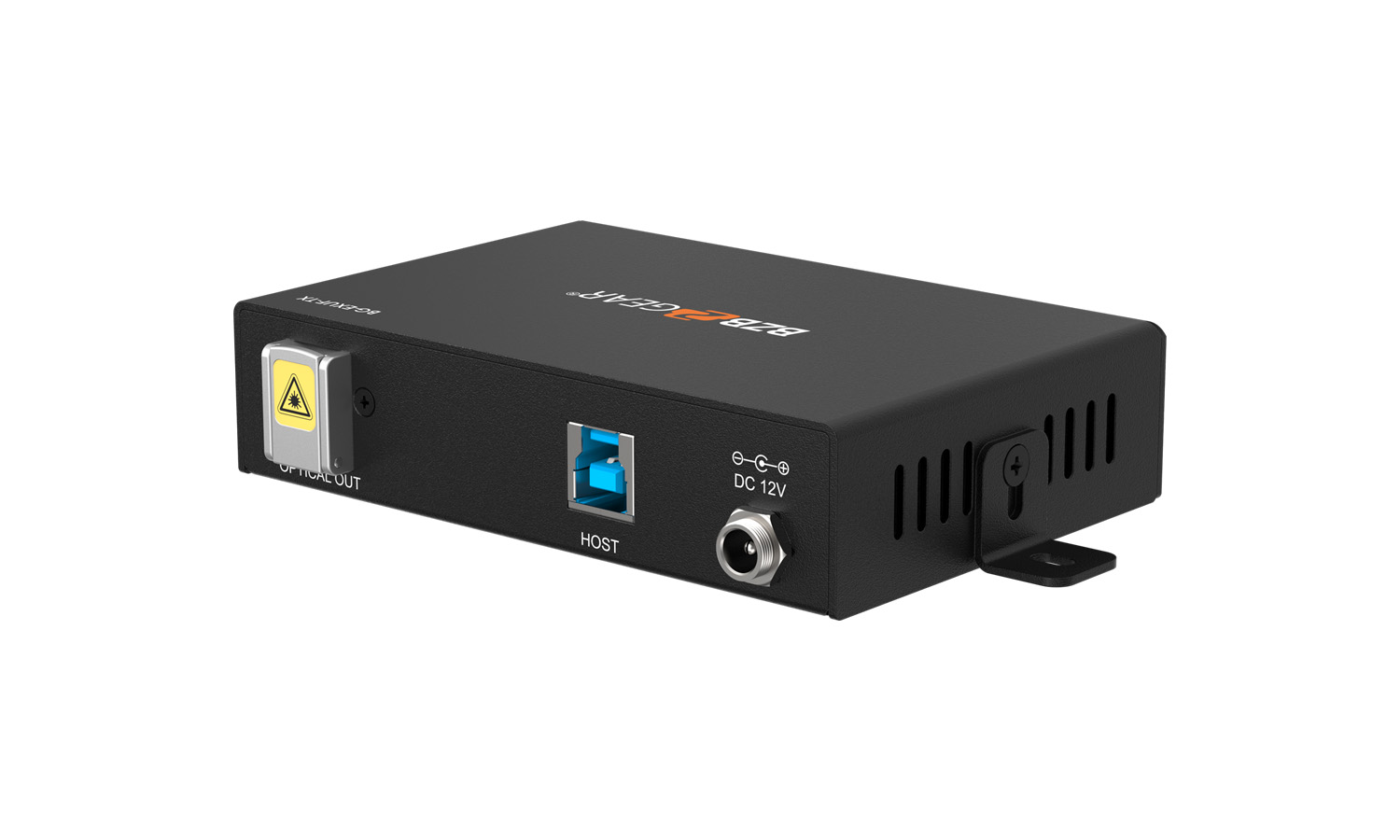

  4. Optical OUT: Connect to “OPTICAL IN” port on receiver via fiber cable.
  5. HOST: Connect to the host computer device.
  6. DC 12V: Connect to the DC12V power adapter.

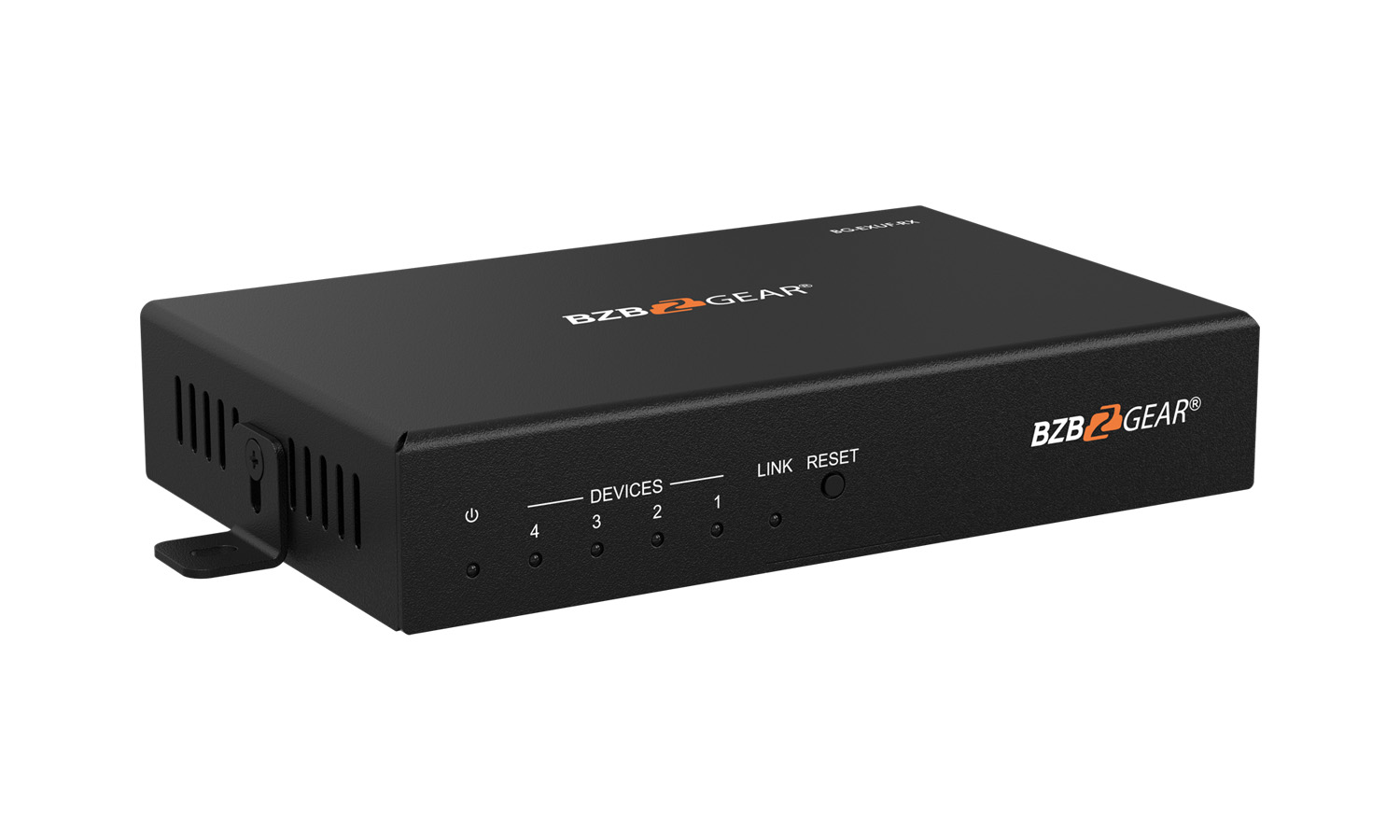

  7. Power LED: The LED will illuminate green when connected to DC power.
  8. Devices: The LED will Illuminate green when connected to a USB device.
  9. LINK: The green LED will Illuminate when the transmitter and receiver have a good connection status.
  10. RESET: Press and hold this button for 3 seconds to restore factory defaults.
  11. Optical IN: Connect to the “OPTICAL OUT” on the transmitter using a fiber cable.
  12. Devices: Connect to KVM devices.
  13. DC 12V: Connect to the DC12V power adapter.
