Overview

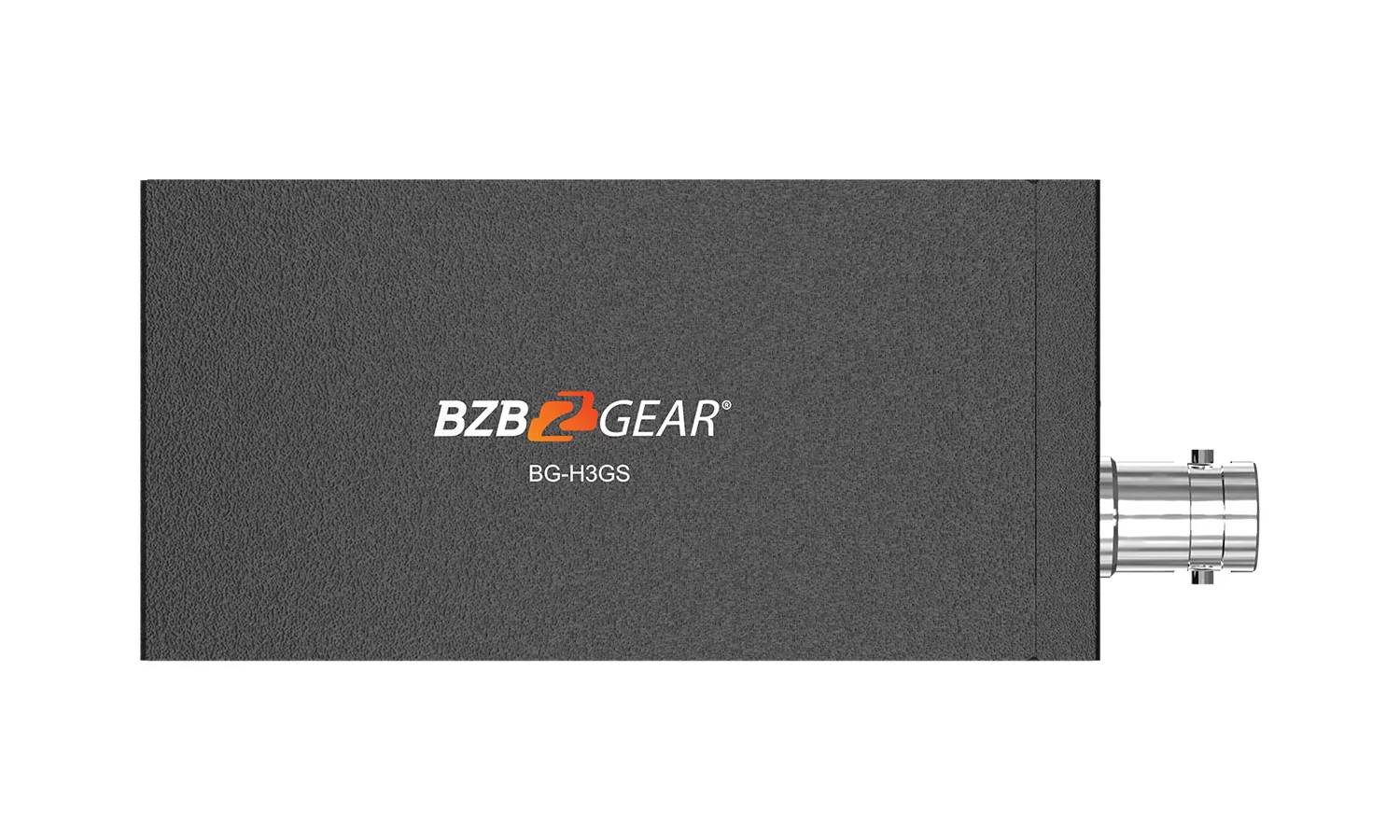

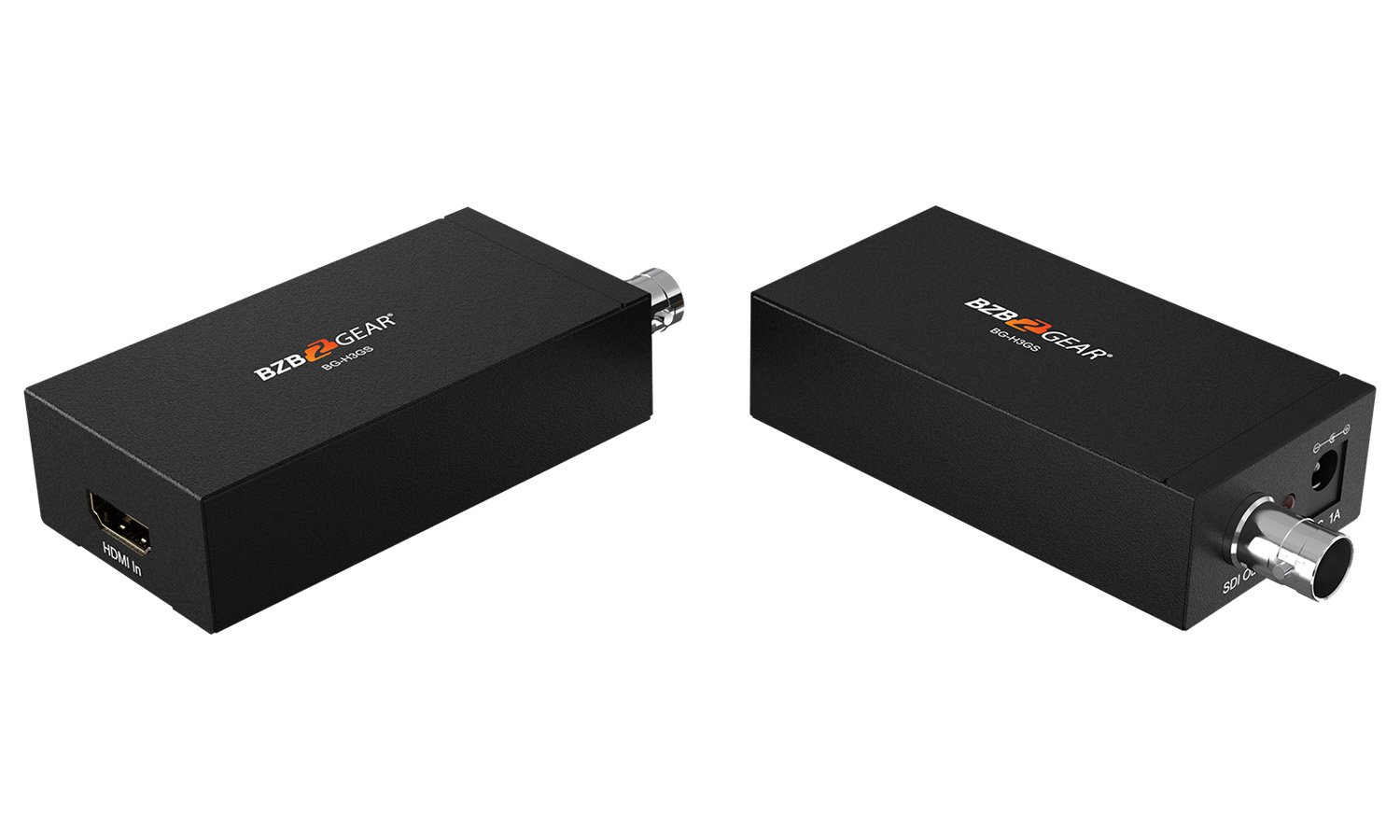

The BG-H3GS allows HDMI signals to be shown on SDI displays while ensuring a high bit rate of 2.970 Gbit/s to provide a high-resolution signal without any loss. For professionals this means that it is now easier to convert your high-definition HDMI signal with audio to SDI for long distance transmissions and display your work on SDI displays.
The BG-H3GS supports multiple input resolutions such as 480i, 720p, 1080i, and up to 1080p60. A 1080p60 HDMI signal will convert to 3G-SDI for transmission up to 100m (328ft). For even longer range transmissions 480i will convert to SD-SDI and can be transmitted up to 300m (984ft).
Features
-
1080p/60 SupportCrystal clear images with resolutions up to 1080p@60Hz -
PortableIdeal for any on-the-go kit -
Rigid DesignDurable metal structure built to withstand years of operation
- 3G-SDI - Up to 100 meters, HD-SDI - Up to 200 meters, SD-SDI - Up to 300 meters
- HDMI input timings: [email protected], 576i, 720p@50/59.94/60, 1080i@50/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60
- SDI Transmission Rate - 2.970 Gbit/s and 2.970/1.001 Gbit/s
Videos
Go the Distance with BZBGEAR's Compact SDI / HDMI Converters
Talk Tech Ep. 2 - Professional Live Stream System Employing A Video Mixer
Tech Specifications
| Input Port | 1 x HDMI |
| Output Port | 1 x BNC (SDI/HD-SDI/3G-SDI) |
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution | 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60,[email protected]/24/25/29.97/30/50/59.94/60 |
| Power Supply | DC 5V -12V |
| ESD Protection Human body model |
±8kV (air-gap discharge) ±4kV (contact discharge) |
| Dimension | 3.1in x 1.6in x 0.98in [80mm x 41mm x 25mm] |
| Weight | 0.33 lbs [150g] |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 5W |
Resources
Documents
PACKAGE CONTENTS
- 1x BG-H3GS HDMI to 3G SDI Converter
- 1x 5V1A DC Power Supply Adaptor
- 1x User Manual

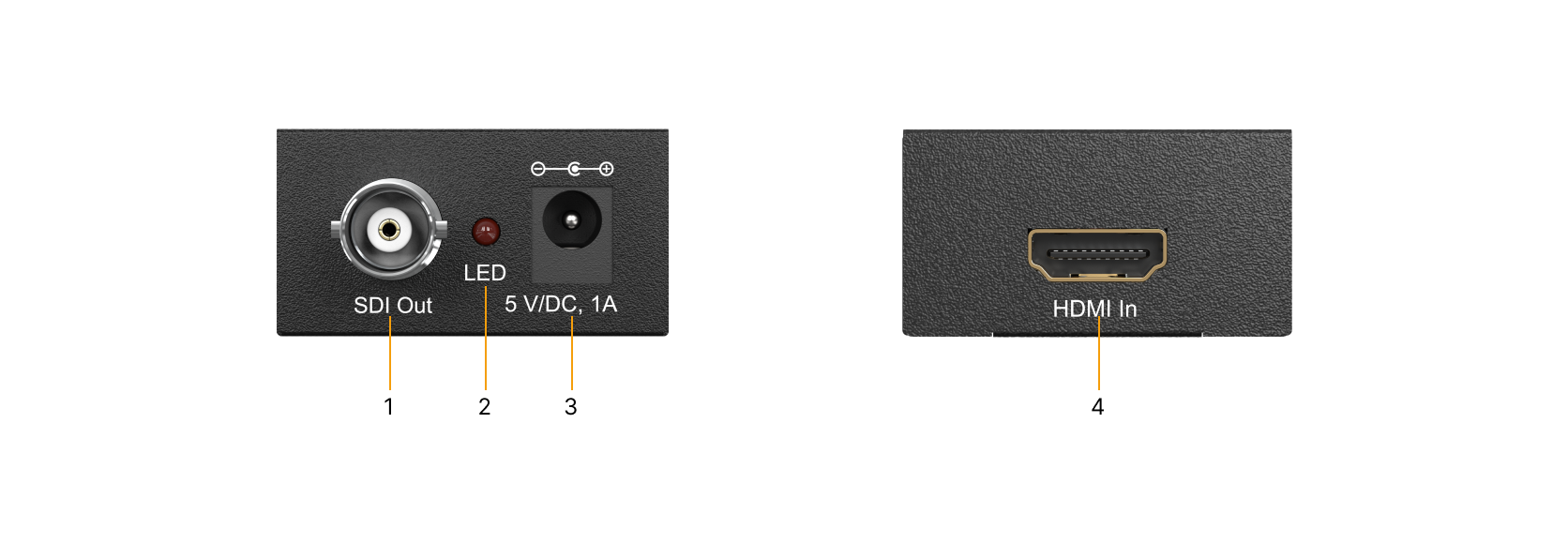

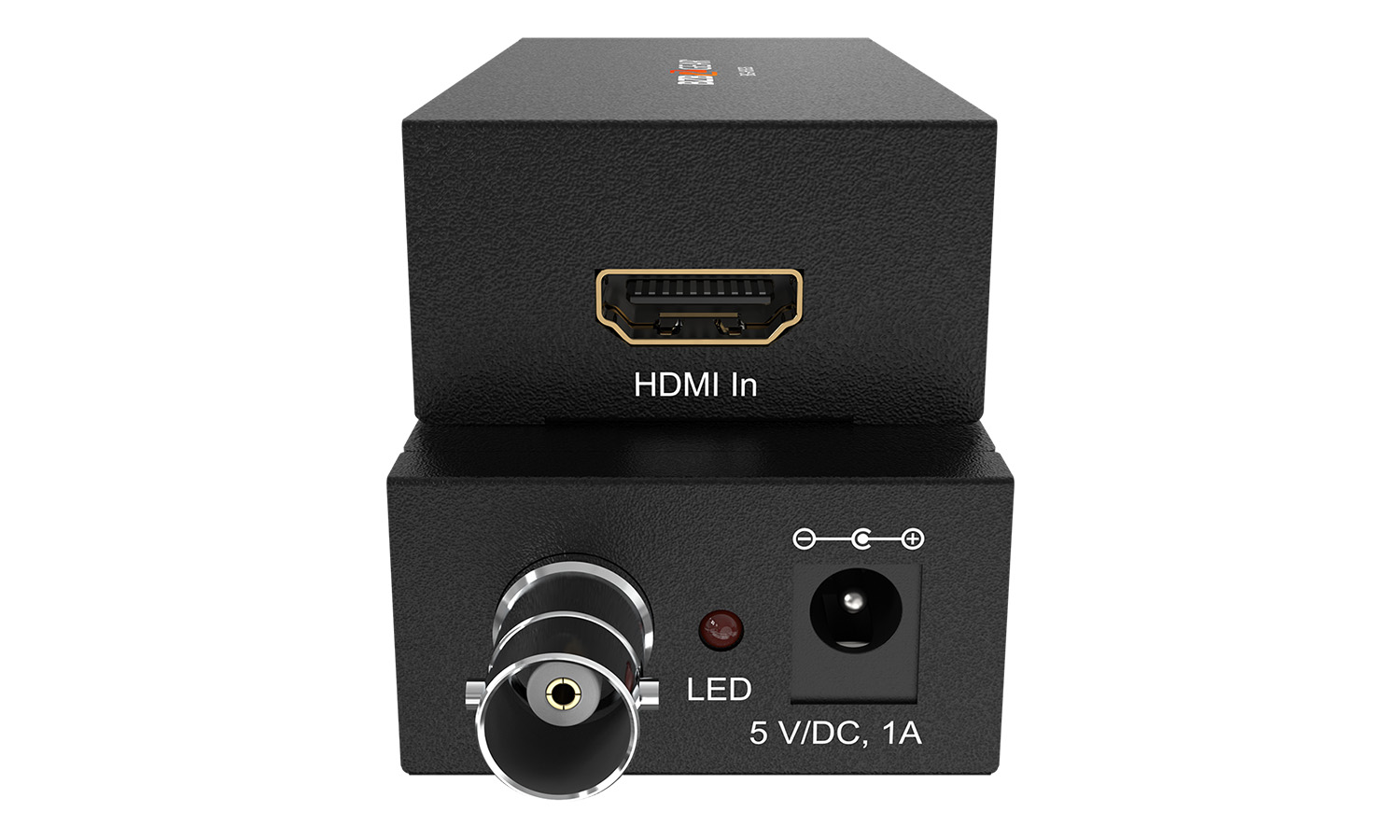

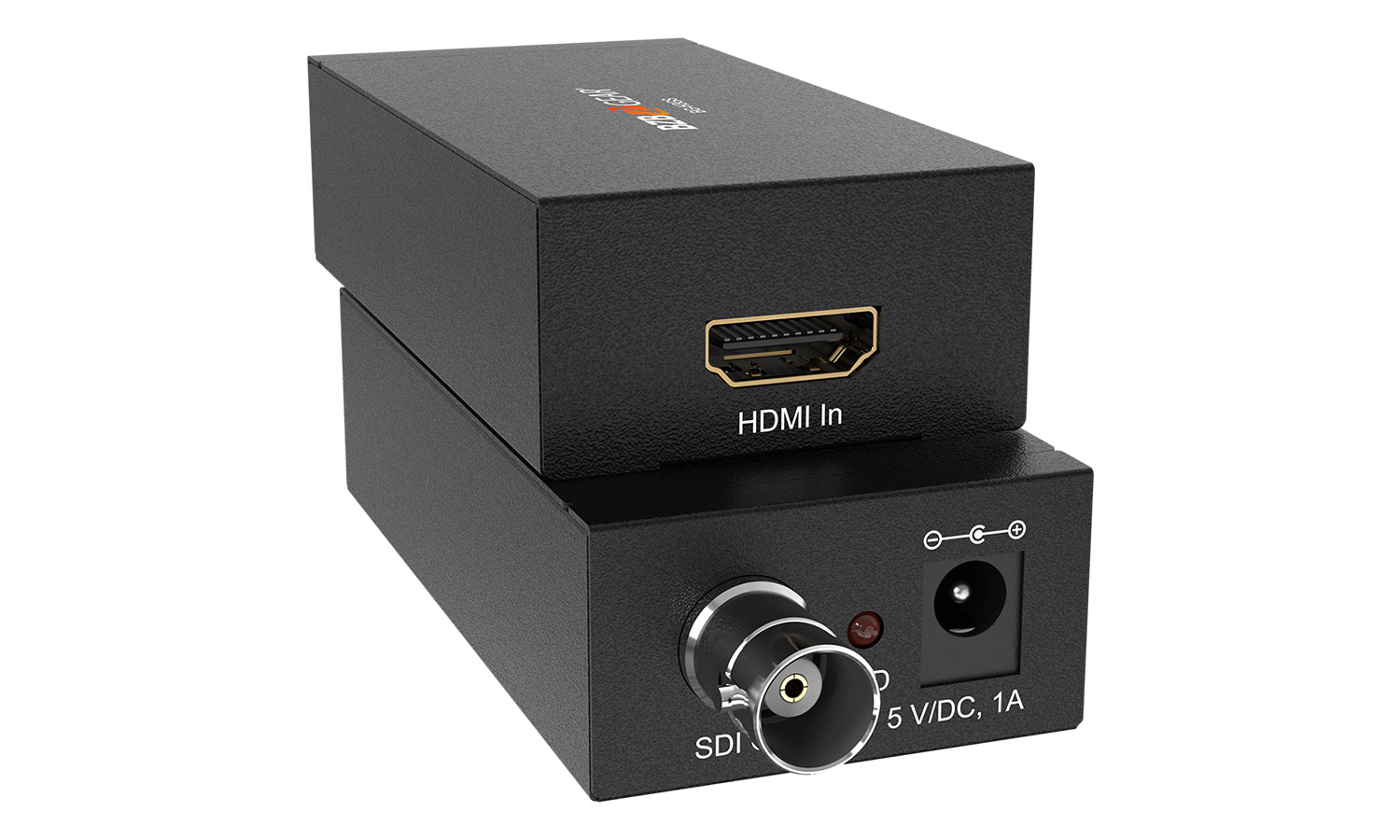

Interfaces

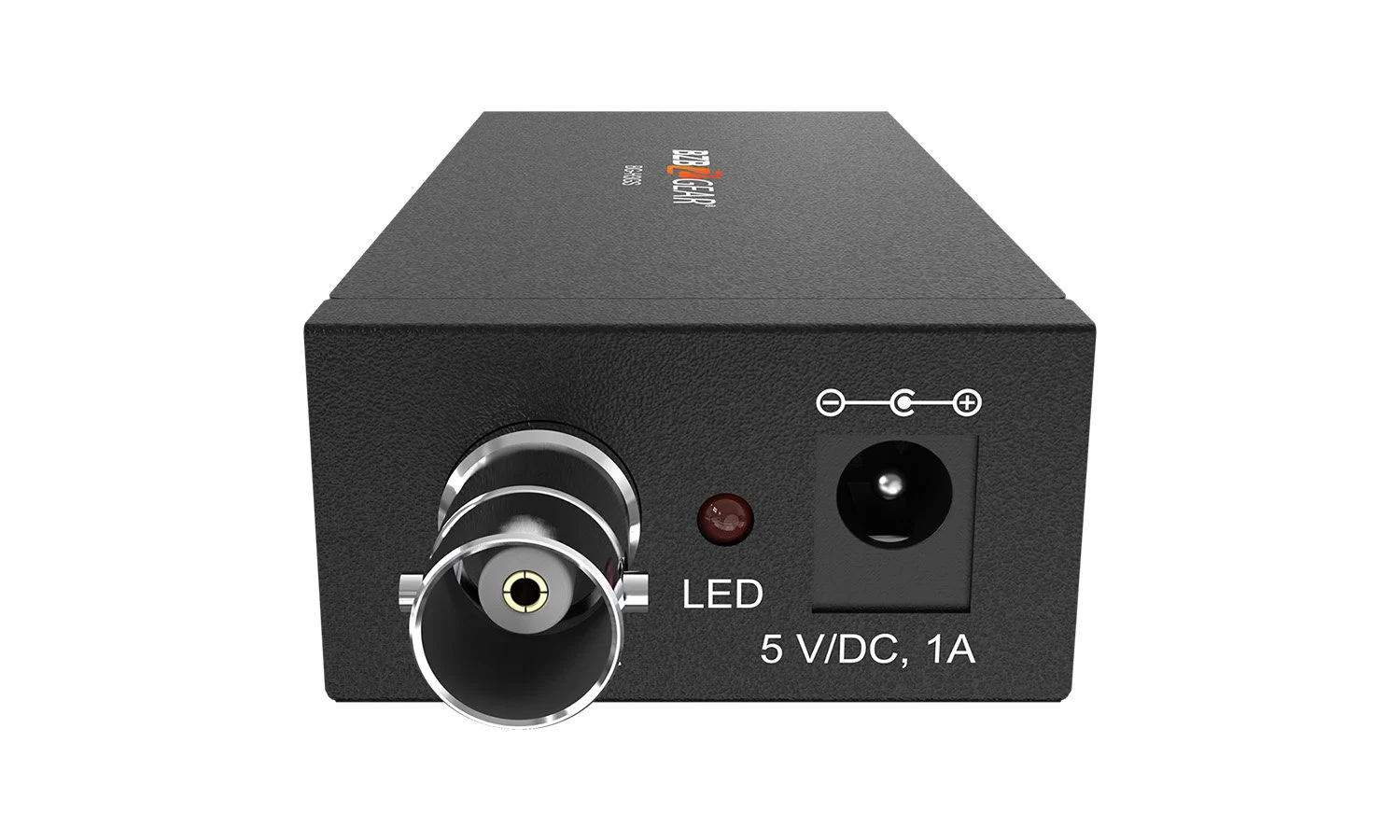

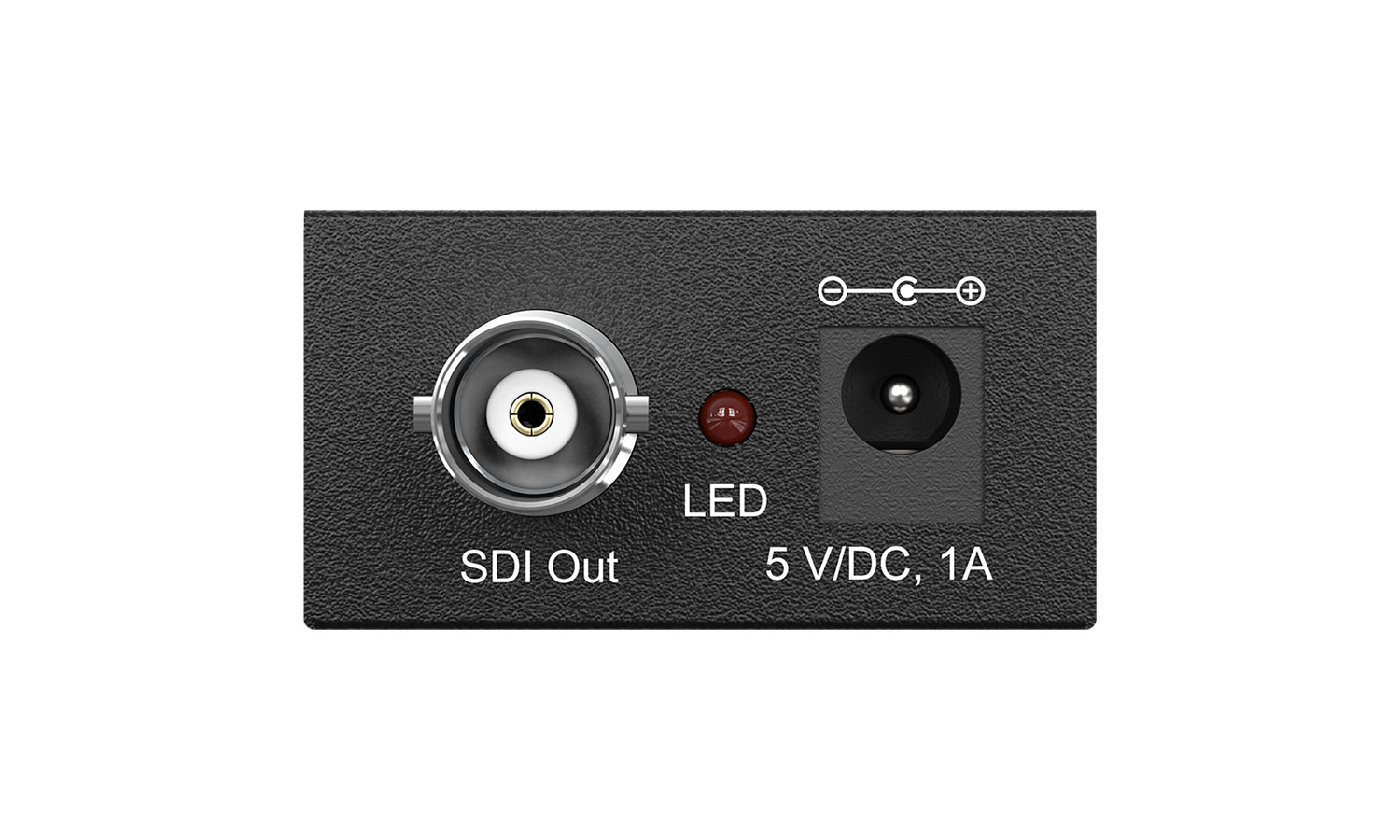

- SDI-OUT: Connect to a SDI display.
- POWER LED: LED illuminates red when the device is connected with the power supply.
- DC IN: Port for the 5V-12V DC power supply.

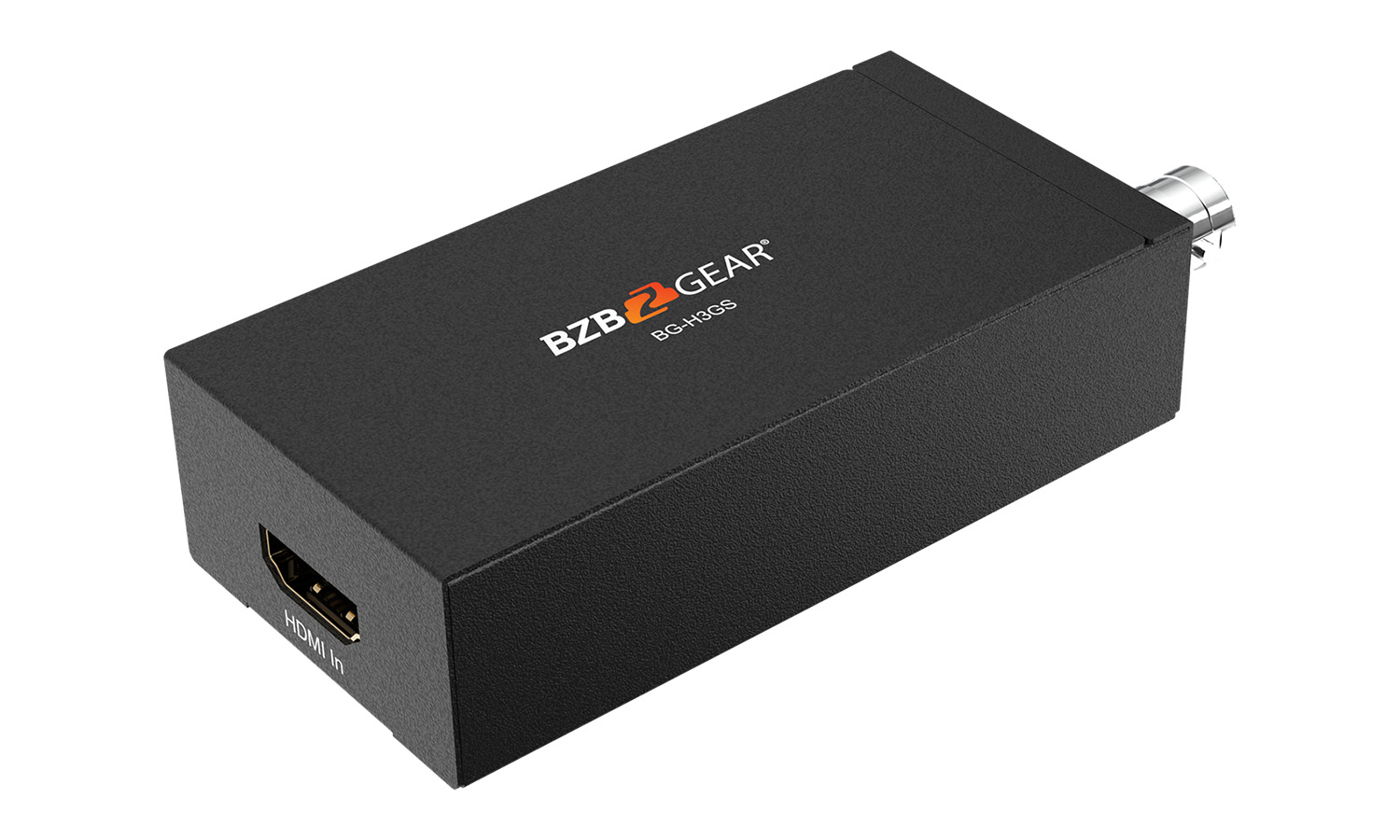

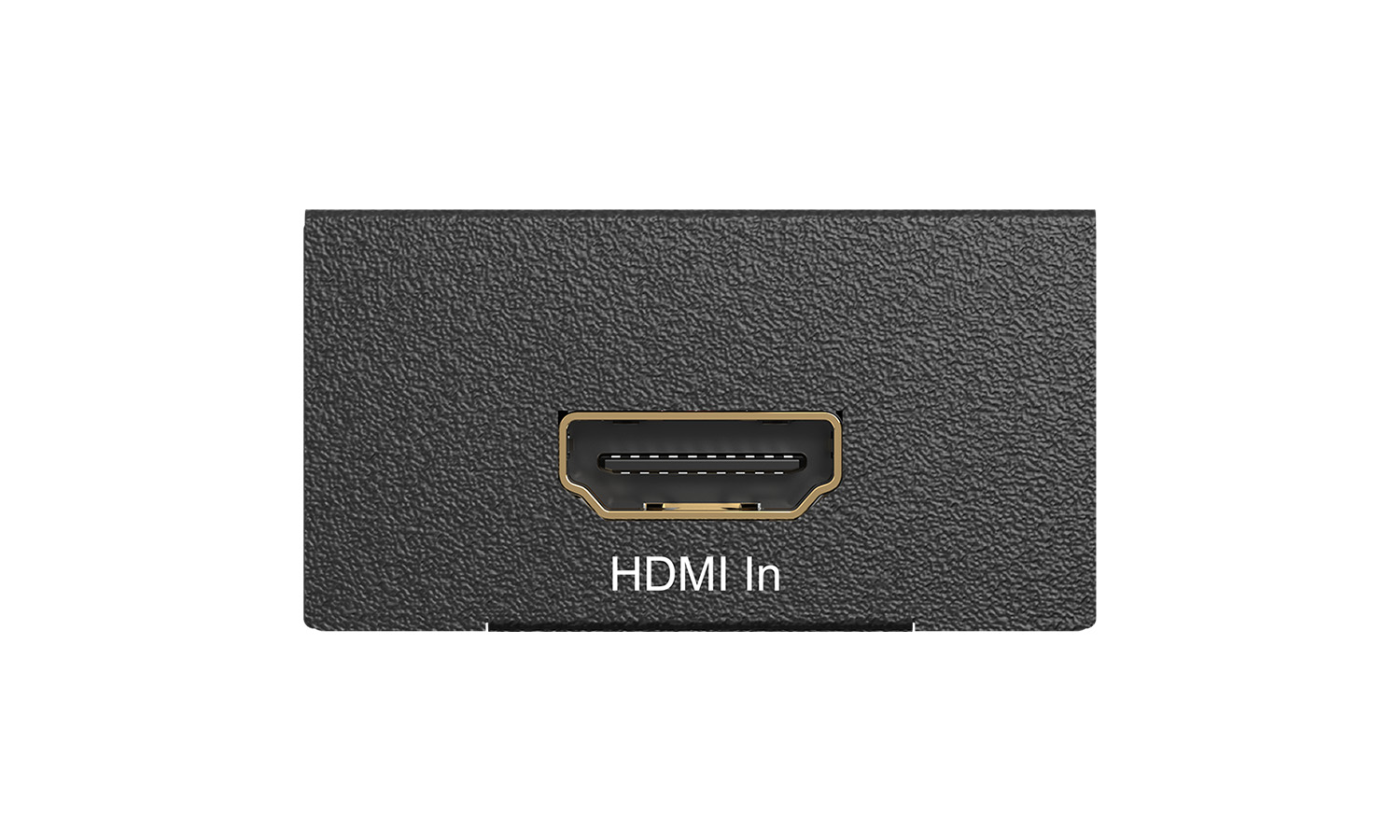

- HDMI IN: Connect to a HDMI source.
