1080P FHD H.264/265 HDMI Video and Audio Streaming Encoder

Name: 1080P FHD H.264/265 HDMI Video and Audio Streaming Encoder
Brand: Bzbgear
SKU: BG-HAVS
Price: 549.00 USD

ProGear

EOL

TAA Compliant

See More Info

U.S.-based Company

Complimentary design services<br> and engineering support

Complimentary design services
and engineering support

5 year warranty

Click here to learn more about BZBGEAR Fundamentals

Configure the Perfect Solution

Get Started

Overview Specifications Interfaces Resources Package contents

Overview

Overview

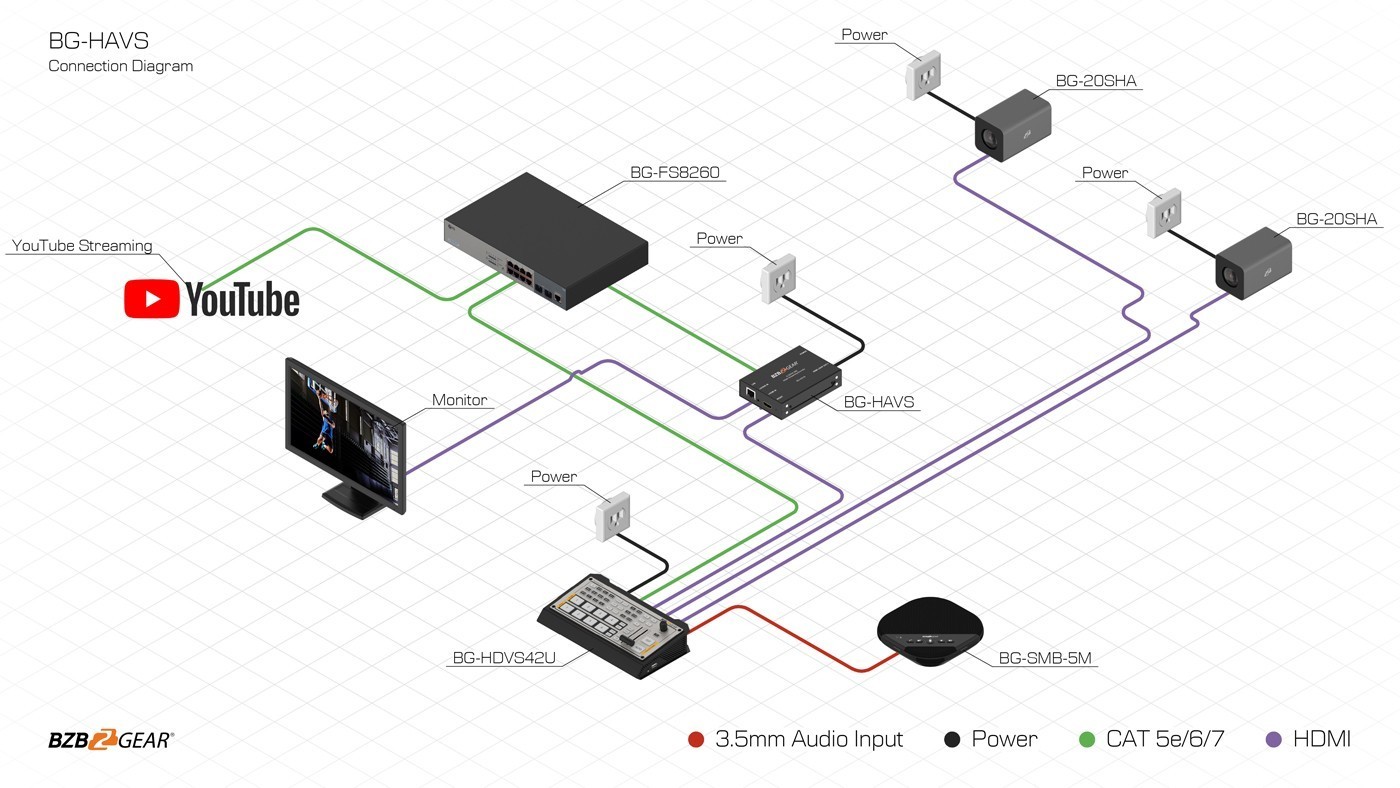

The BG-HAVS is a single-channel stream encoder that takes a HDMI input/source and converts it to an IP video stream that can be recorded to a NVR, PC, or broadcast to streaming platforms like YouTube, Twitch, or Facebook.

CONNECTIVITY

The BG-HAVS can transmit a maximum resolution of 1080p@60Hz. It simultaneously transmits a sub-stream with a maximum resolution of 720p. This allows a second low-bandwidth stream to be transmitted, providing the ability to stream to multiple platforms at once to reach a broader audience.

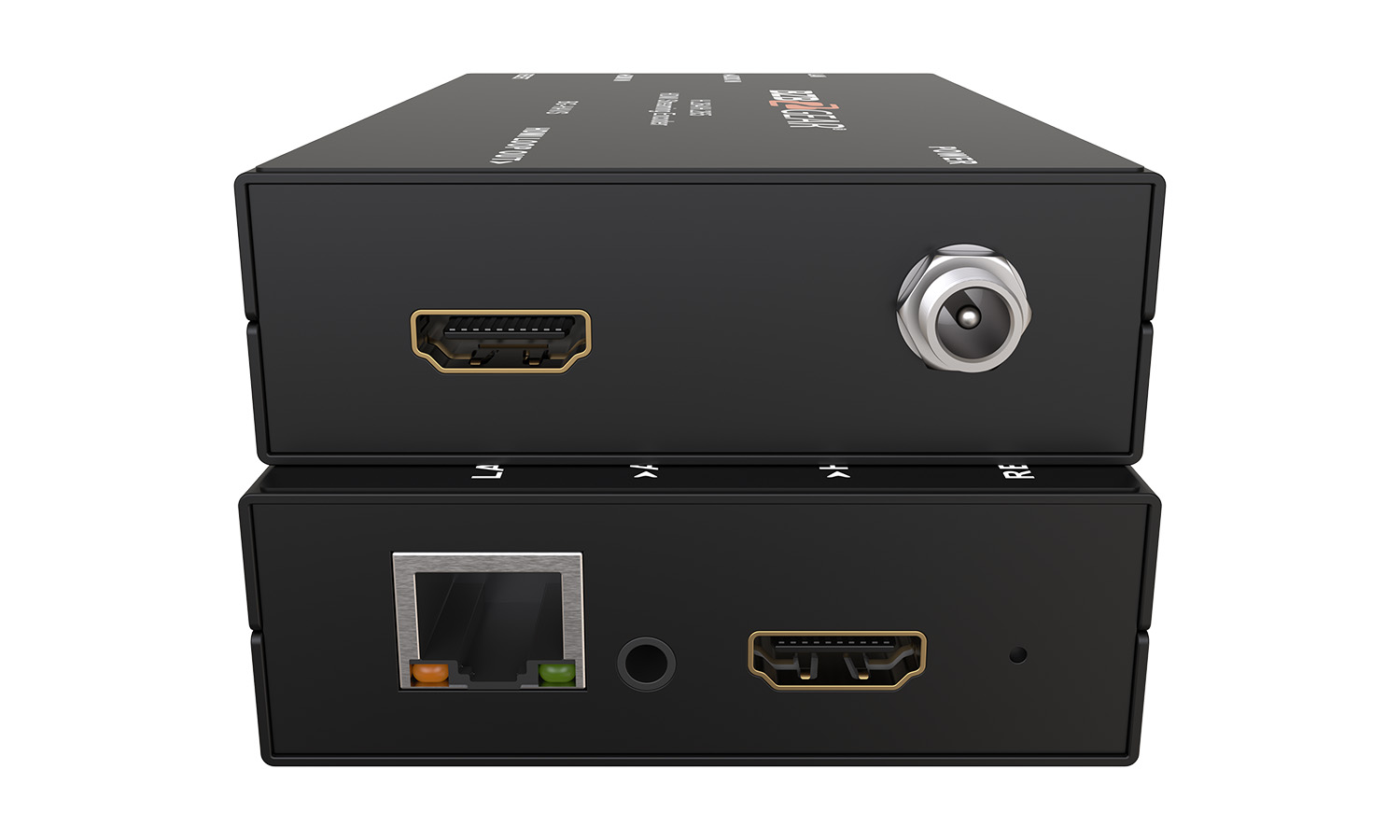

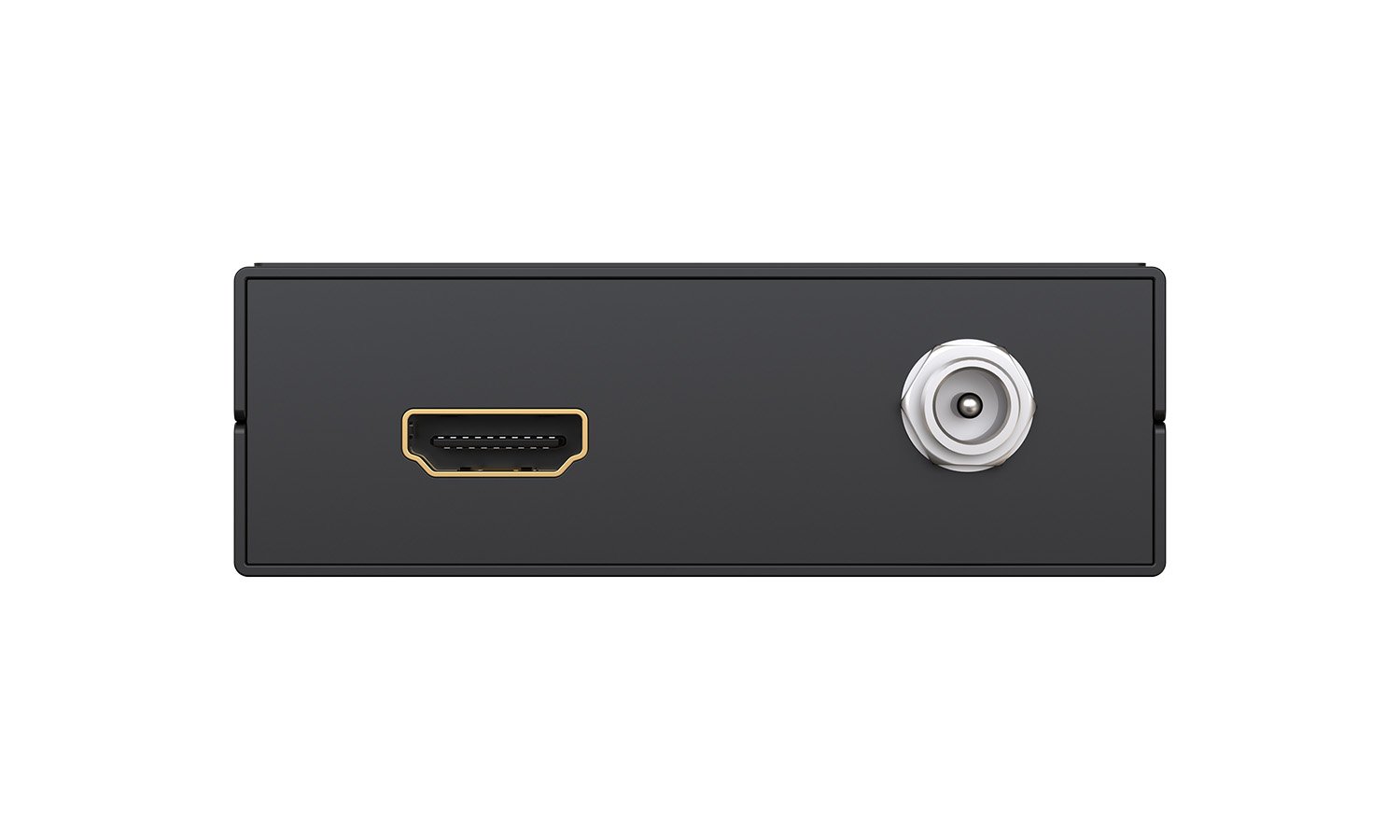

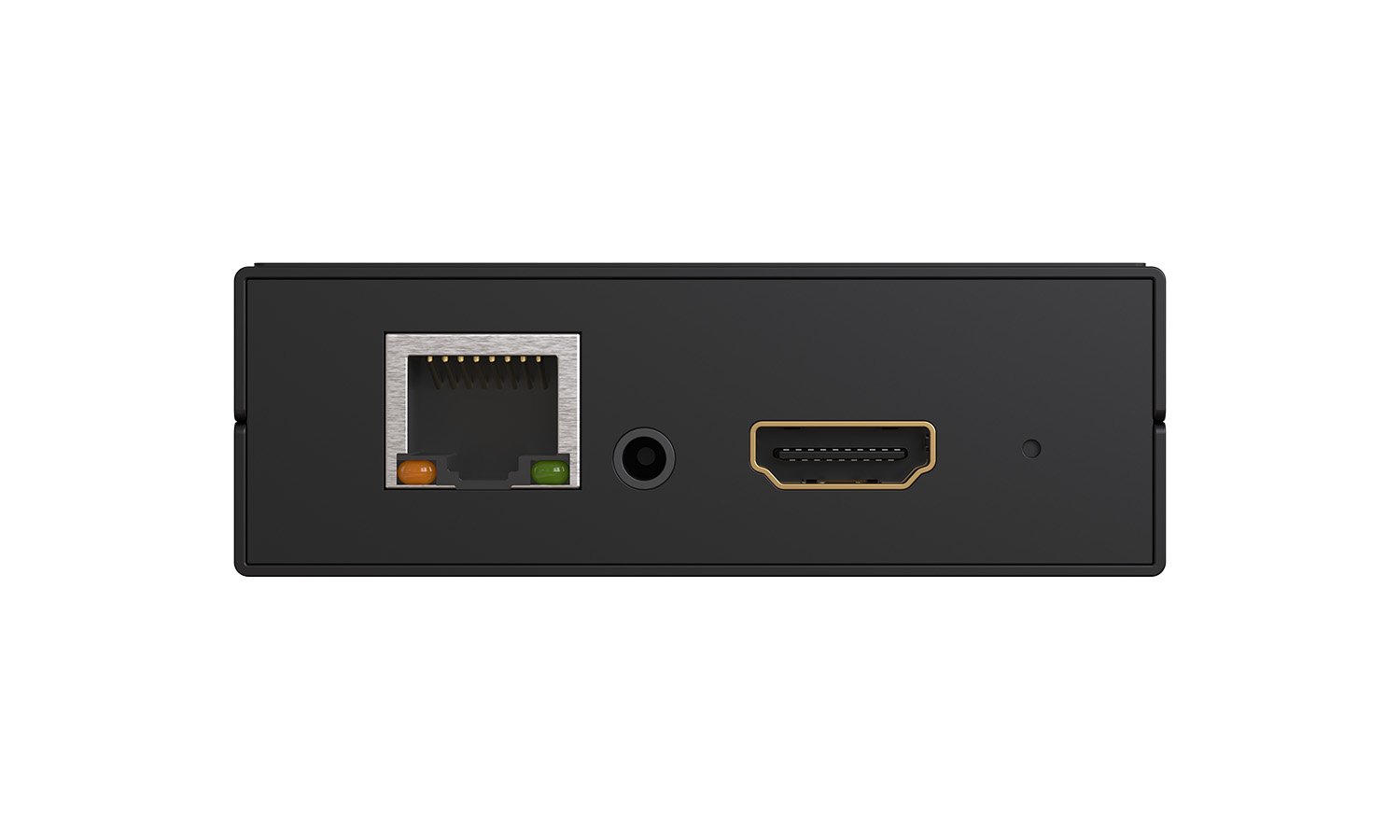

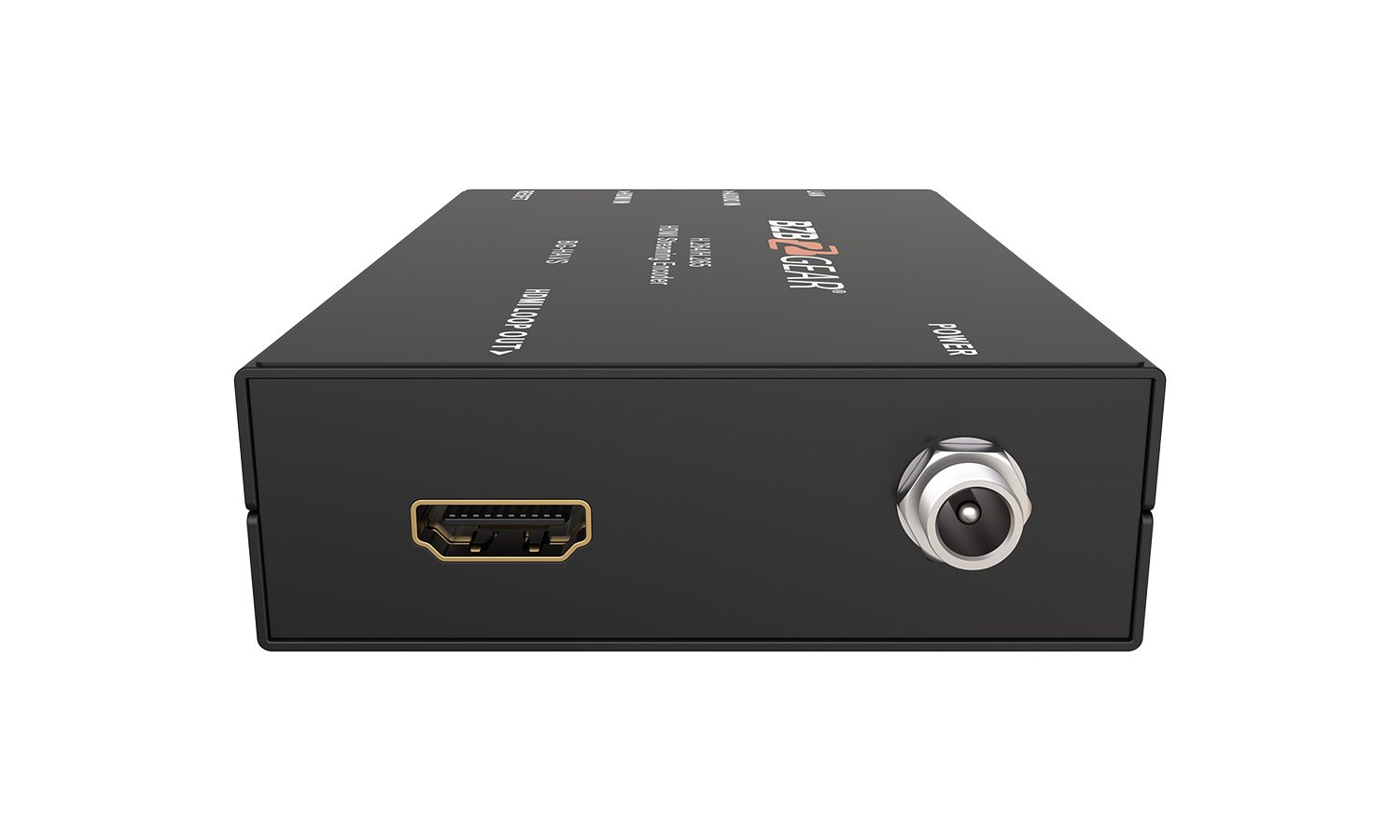

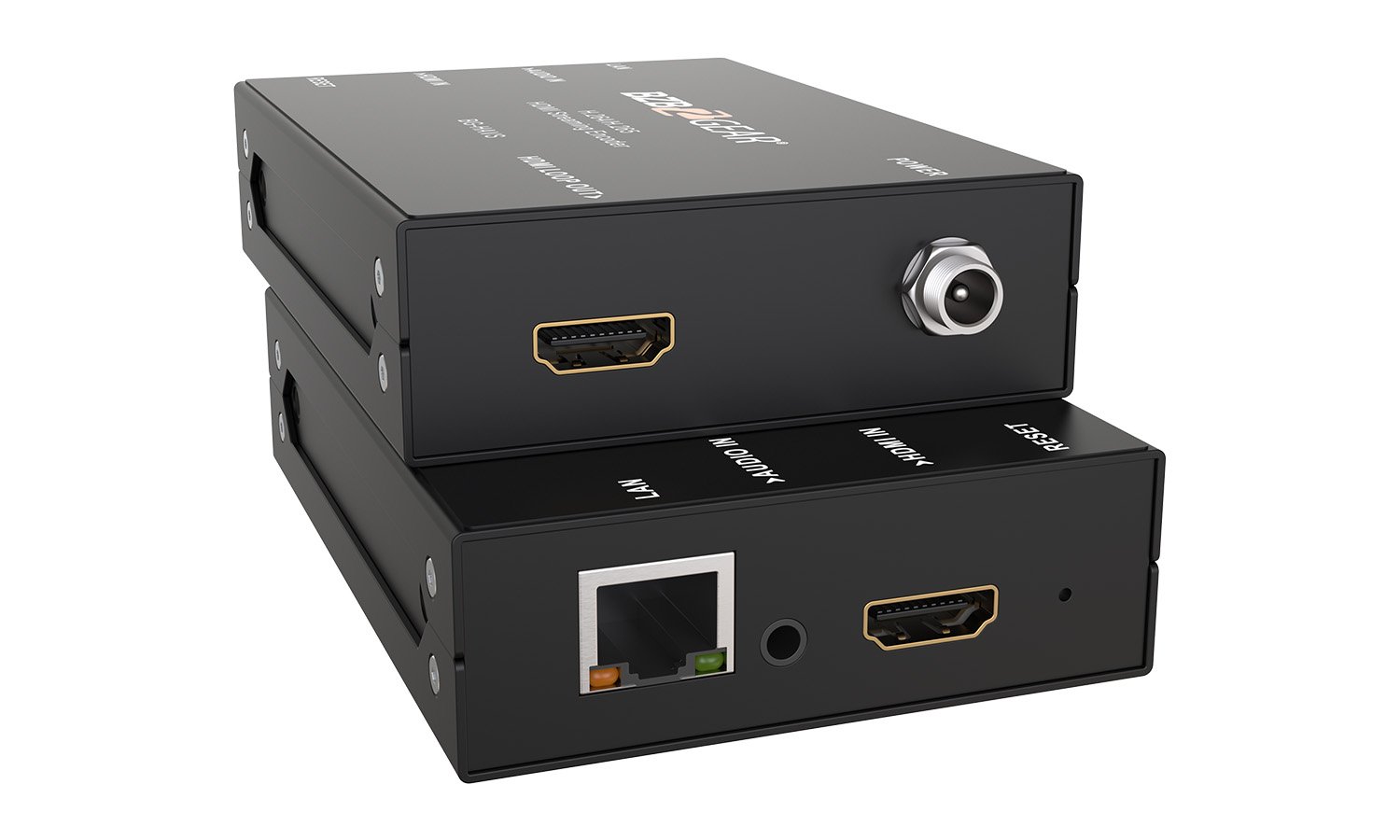

The BG-HAVS is equipped with one HDMI input as well as an HDMI loop out. The loop output allows broadcasters to monitor the input source on a separate display. Stereo audio can be embedded into the stream via the 3.5 mm input.

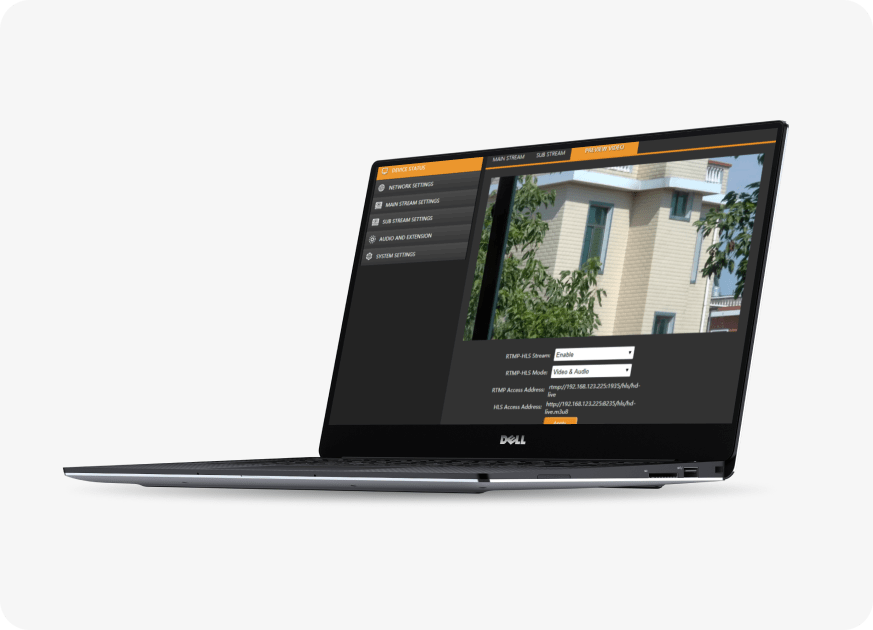

By utilizing the integrated logo and text overlay features, users can customize and brand their streams. A full suite of video, audio, and streaming settings are available from the intuitive web interface. The BG-HAVS utilizes H.265 and H.264 encoding, and supports RTSP, RTP, TMPS, HTTP, UDP, and SRT streaming formats.

Features

HDMI

1 x HDMI input, 1 x HDMI loop out
Audio

1 x 3.5 mm analog audio input
Direct Streaming

Stream directly from the device without the need of hooking up a computer
Image overlay

Image and text overlay to brand your streams
Crystal Clear Images

Supports resolutions up to 1080p@60fps
Durable

Strong metal enclosure designed to last for years of use

Supports H.265/H.264 stream encoding
Dual-Stream encoding (main stream and sub stream)
RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast, and multicast formats

Videos

HDMI and SDI Video and Audio Streaming Encoders | BG-HAVS and BG-SAVS

Setting Up BZBGEAR H.264/265 HDMI/SDI Video & Audio Streaming Encoder For Effortless Live Streaming

Stream On Any Video Device Including DSLRs, Game Consoles, & Video Mixers using BZBGEAR BG-HAVS

Tech Specifications

CONNECTIONS
Video Input	HDMI Type A x 1
Video Loop Out	HDMI Type A x 1
Analog Audio	3.5mm (line in) x 1
Network	RJ-45 x 1 (100/1000Mbps self-adaptive Ethernet)
STANDARDS
HDMI In Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
Video Coding	H.265/ H.264
Video Bitrate	16Kbps ~ 12MKbps
Audio Coding	ACC/ MP3/ MP2/ G711
Audio Bitrate	24Kbps ~ 320Kbps
Encoding Resolution	1920×1080, 1680×1056, 1280×720, 1024×576, 960×540, 850×480, 720×576, 720×540, 720×480, 720×404, 720×400, 704×576, 640×480, 640×360
Encoding Frame Rate	5-60fps
SYSTEMS
Network Protocols	HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
Configuration Management	Web configuration, Remote upgrade
OTHERS
Consumption	5W
Temperature	Working temp: 14°F ~ 140°F / -10°C ~ 60°C , Storage temp: -4°F ~ 158°F / -20°C ~ 70°C
Dimension (LxWxD)	4.1 x 3 x 1in [104 x 76 x 25mm]
Weight	Net weight: 0.7 lbs [310g], Gross weight: 1.5 lbs [690g]
