1x8 1080P/4K30 HDMI Splitter/Distribution Amplifier up to 230ft over Category Cable

Configure the Perfect Solution
Get Started

Overview

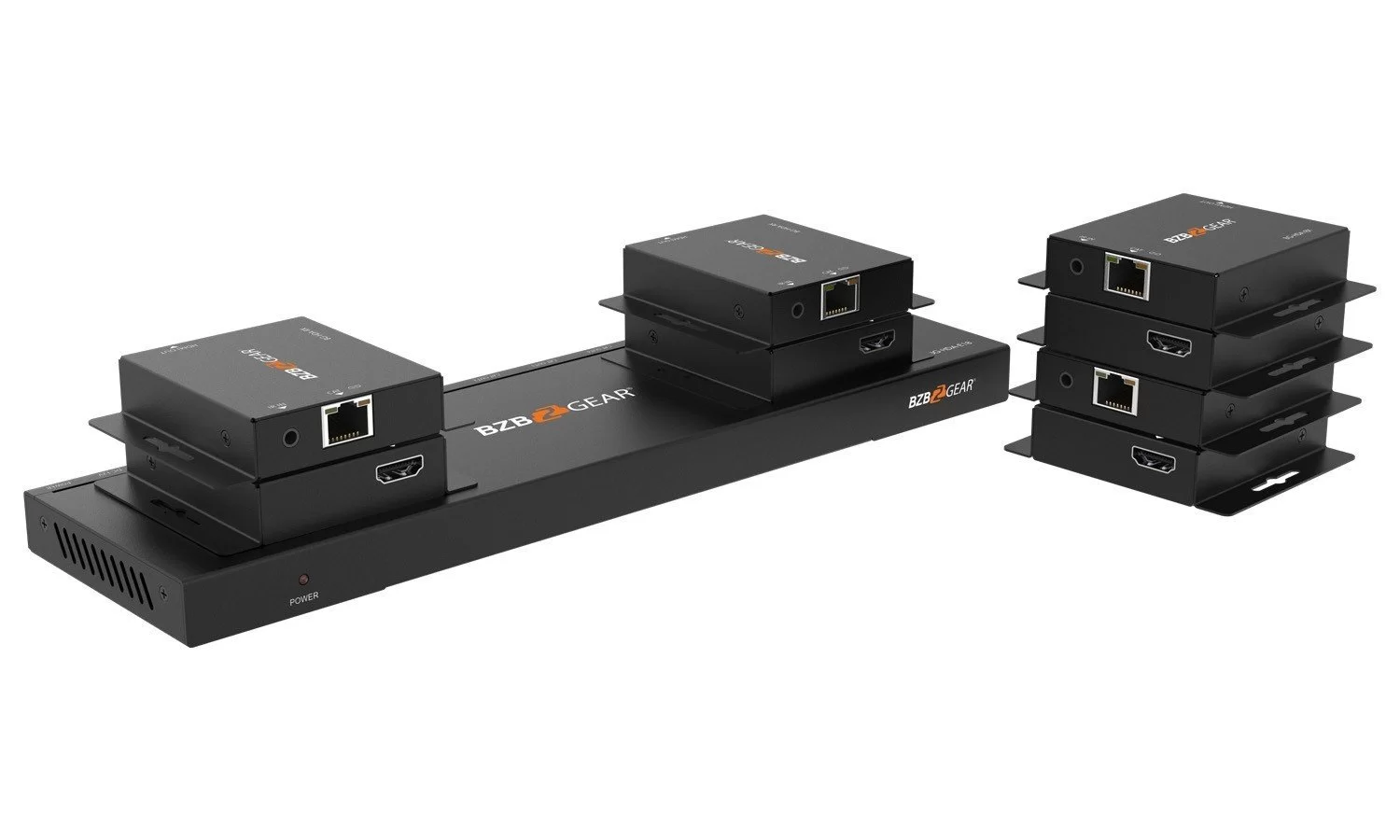

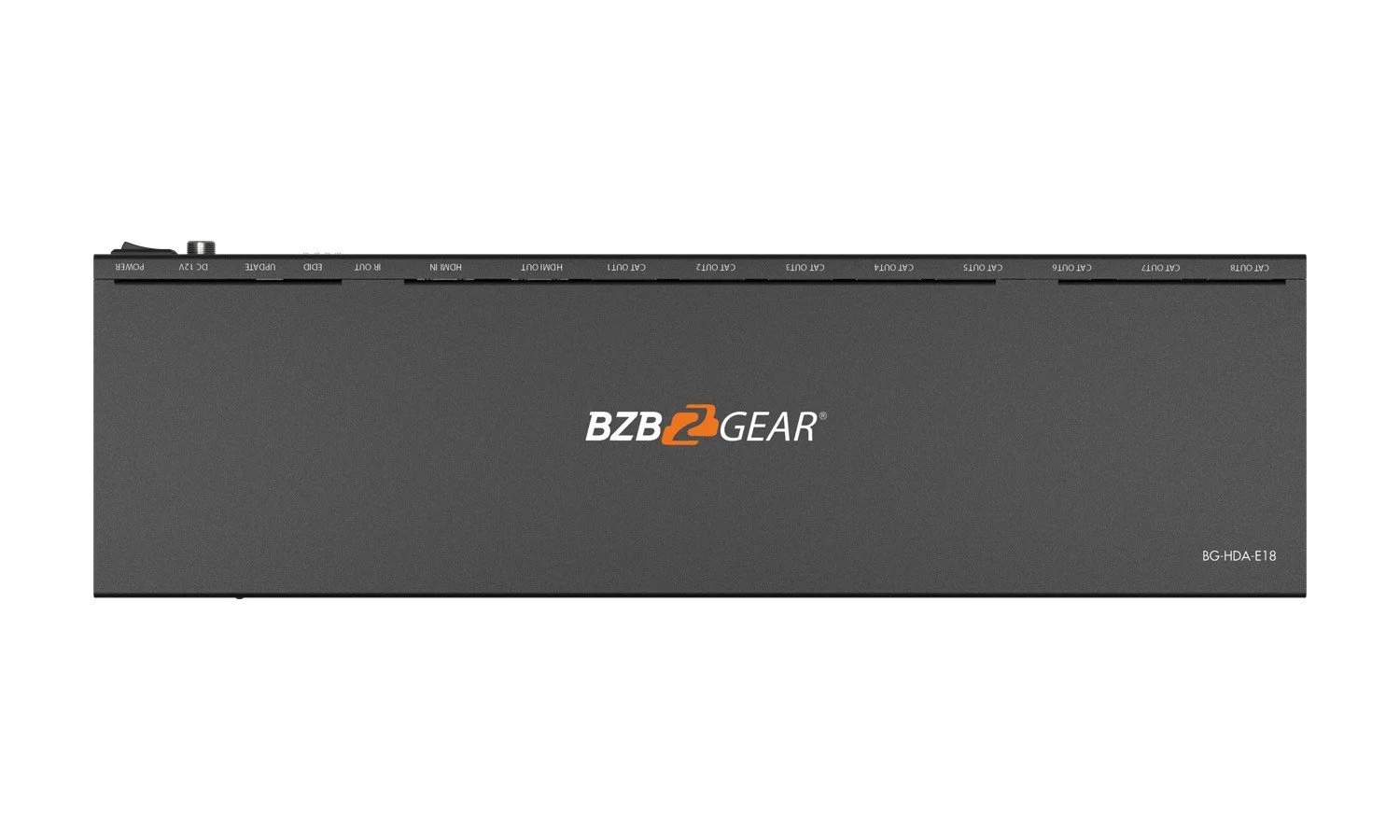

The BG-HDA-E18 is a 4K 1x8 HDMI splitter that can split a single HDMI source signal to eight displays at distances up to 70 meters over CAT6 networking cable. This splitter is a great choice for users that need to output a single video source like a Blu-ray player, computer, game console, or streaming media player to multiple displays.

Connectivity and Quality

Ease of installation and high quality video are hallmarks of the BG-HDA-E18. The splitter supports resolutions as high as 4K2K@30Hz 4:4:4, ensuring no quality is lost when your input is split between the eight outputs. The splitter has one HDMI input, one HDMI loop output, and eight CAT outputs. The signal can be extended at distances up to 50m/164ft at 4K@30Hz resolution or up to 70m/230ft at 1080p@60Hz.

This splitter also supports power over cable (POC) from the transmitter to receiver, eliminating the need for an external power supply at the receiver. The device is also HDMI 1.4 and HDCP 1.4 compliant. The BG-HDA-E18 has the ability to handle multiple audio formats, including LPCM 7.1CH, Dolby True HD, and DTS-HD. Link lights on the RJ45 ports provide a visual indication of connection status for at-a-glance troubleshooting.

Control

A set of DIP switches on the transmitter provide access to advanced EDID management for the BG-HDA-E18. One-way IR control signal pass-through provides source control from the receivers. The IR receivers can accept and transmit a signal from up to 8 meters away.

Features

  • bi_badge-4k
    Crystal Clear Images
    Supports resolutions up to 4K@30Hz
  • Power over Ethernet (PoE)
    Power over Cable (PoC)
    Receivers require no power supply
  • material-symbols_shield-lock-outline
    HDCP 1.4
    High-Bandwidth Digital Content Protection Supported
  • fluent-mdl2_connect-virtual-machine
    HDMI Loop-Out
    Connect a local display
  • wpf_audio-wave
    Multi-Channel Audio Support
    Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1
  • solar_remote-controller-2-linear
    Control
    IR Passthrough
  • Extend the signal transmission distance up to 164 ft / 50 m at the resolution of 4K@30Hz, or 230 ft / 70 m at 1080P@60Hz via a single CAT6 cable
  • Support 1 HDMI input, 1 HDMI loop output and 8 CAT outputs
  • Advanced EDID management

Videos

Split up to 8 BZBGEAR Super Long-range 4K HDMI Splitters Comparison
Split up to 8 BZBGEAR Super Long-range 4K HDMI Splitters Comparison
Send a 4K UHD Source to Eight Outputs 230ft Away!  | BG-UDAIC-E18
Send a 4K UHD Source to Eight Outputs 230ft Away! | BG-UDAIC-E18
Split A Single HDMI Output Into Up To 8 Outputs | BG-HDA Series Overview
Split A Single HDMI Output Into Up To 8 Outputs | BG-HDA Series Overview

Tech Specifications

Technical
HDMI Compliance HDMI 1.4
HDCP Compliance HDCP 1.4
Video Bandwidth 297MHz/10.2Gbps
Video Resolution 480i ~1080p@50/60Hz, 4Kx2K@30Hz (4:4:4)
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz)
Color Space RGB, YCbCr_4:4:4/4:2:2, YUV_4:2:0
Audio Formats LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Transmission Distance 1080P@60 - 70M, 4K@30 - 50M
ESD Protection Human body model:
±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Input:
1x HDMI IN [Type A, 19-pin female]
Outputs:
1x HDMI OUT [Type A, 19-pin female]
8x CAT OUT [RJ45]
Controls:
1x IR OUT [3.5mm Stereo Mini-jack]
1x EDID DIP switch [4-pin]
1x Update [Micro USB]
Receiver Inputs:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
Output:
1x HDMI OUT [Type A, 19-pin female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter: 11.6” (W) x 3.2” (D) x 0.7” (H) [295mm (W) x 82mm (D) x 18mm (H)]
Receiver: 3.1” (W) x 2.7” (D) x 0.7” (H) [79.5mm (W) x 69mm (D) x 16.5mm (H)]
Weight Transmitter: 1.4lbs [628g]; Receiver: 0.3lbs [130g]
Power Supply 12V/2.5A DC Power
(US/EU standards, CE/FCC/RoHs certificated)
Power Consumption 19.2W
Operation Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

PACKAGE CONTENTS

  • 1 x HDMI 1x8 Splitter
  • 8 x CAT Receiver
  • 1 x IR Blaster Cable (1.5 meters)
  • 8 x IR Receiver Cable (1.5 meters)
  • 2 x Mounting Ear
  • 1 x 12V/2.5A DC Locking Power Adapter
  • 8 x Machine Screw (KM3*4)
  • 1 x User Manual

Interfaces

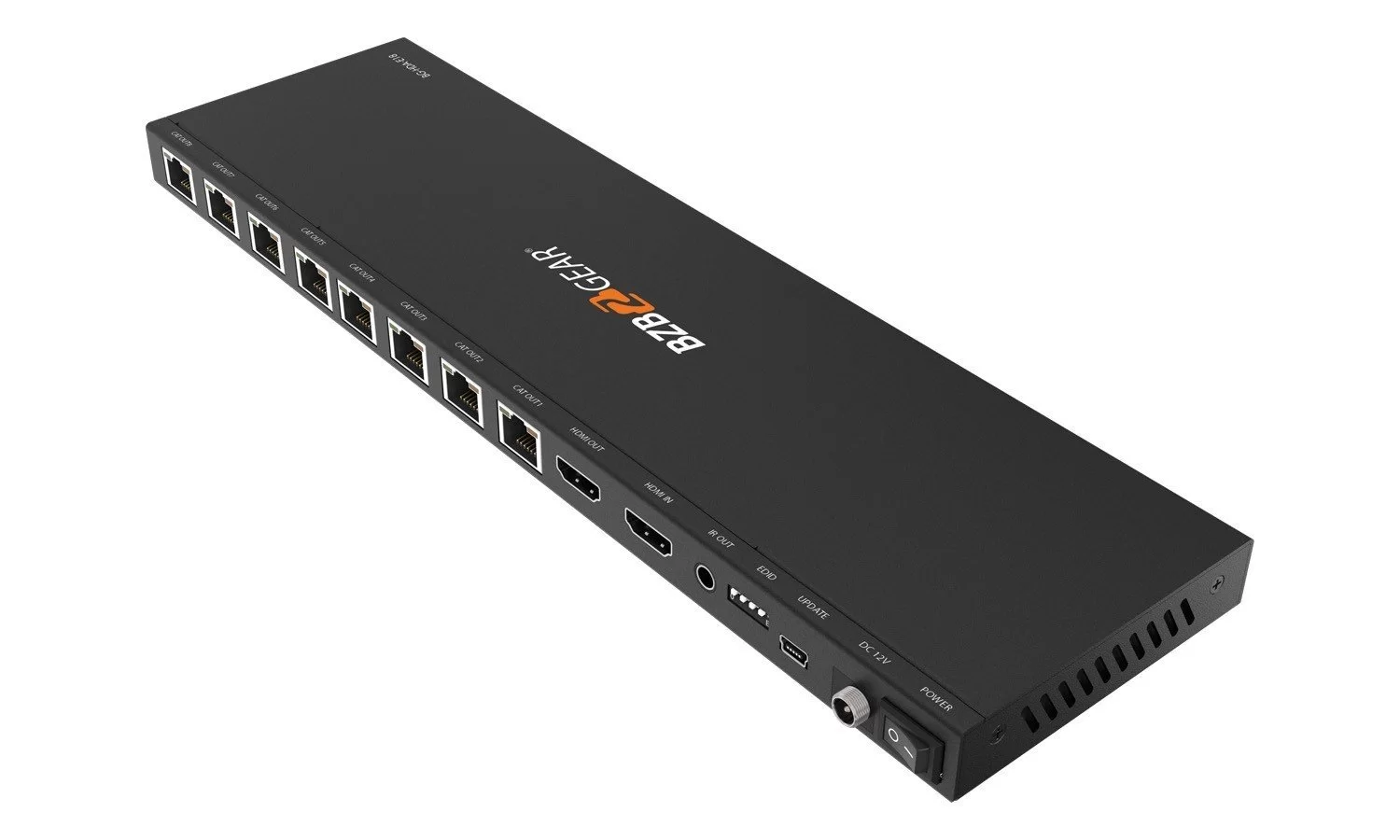

Interfaces image
  1. POWER LED: When the transmitter is powered on, the red power LED will illuminate.
  2. CAT OUT 1-8: Connect to the CAT port of the receiver.
  3. Power LED (Green): The transmitter supports a one-way POC function. When it supplies power to the receiver through a CAT cable, the power LED will illuminate.
  4. Data Signal Indicator (Yellow): Solid: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
  5. HDMI OUT: HDMI loop output port, Connects to a local HDMI display device.
  6. HDMI IN: Connect to an HDMI source device.
  7. IR OUT: Connect to IR blaster cable, the IR signal is from the “IR IN” port of the Receiver.
  8. EDID DIP Switch: EDID management.
  9. UPDATE: Mini USB firmware update.
  10. DC 12V: Power input port.
  11. POWER Switch: Press the switch to power on/off the device (“-” for on, “o” for off).
Interfaces image
  1. HDMI OUT: Connect to an HDMI display device.
  2. IR IN: Connect to the IR receiver cable, the IR signal will emit to the IR OUT port of the transmitter.
  3. CAT: Connect to the CAT output port of the transmitter.
  4. Power LED (Green): When the receiver is powered on, the LED will illuminate.
  5. Data Signal Indicator (Yellow): Solid: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
