HDMI 2.0 4K 60Hz up/down Scaler with Analog & Optical Audio Extractor
SKU: BG-HDMI4K-SC
MSRP: $199.00
Status: Out of Stock
Discontinued
Configure the Perfect Solution
Get Started
Overview

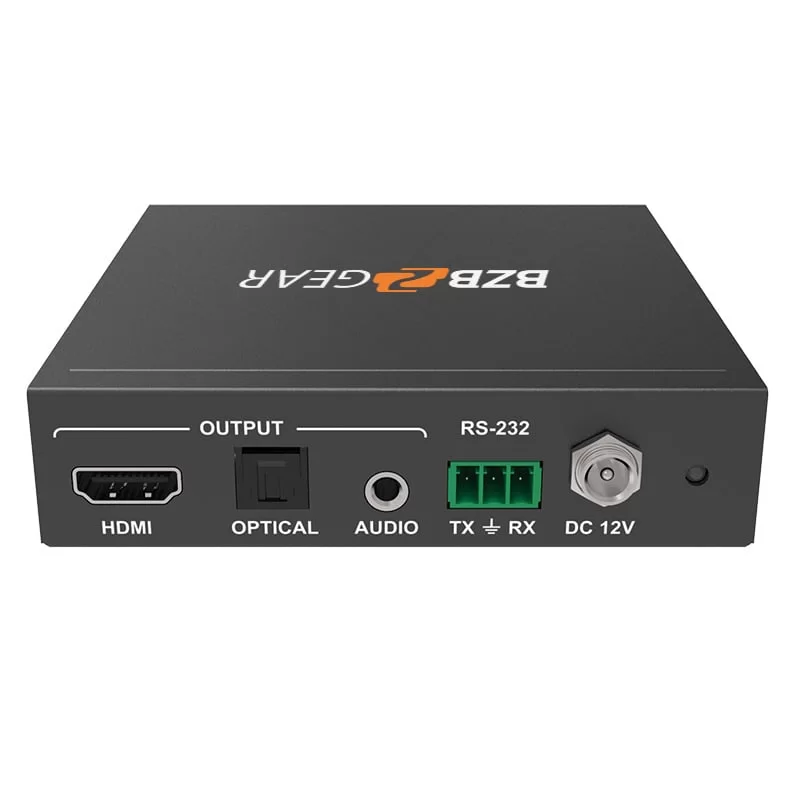

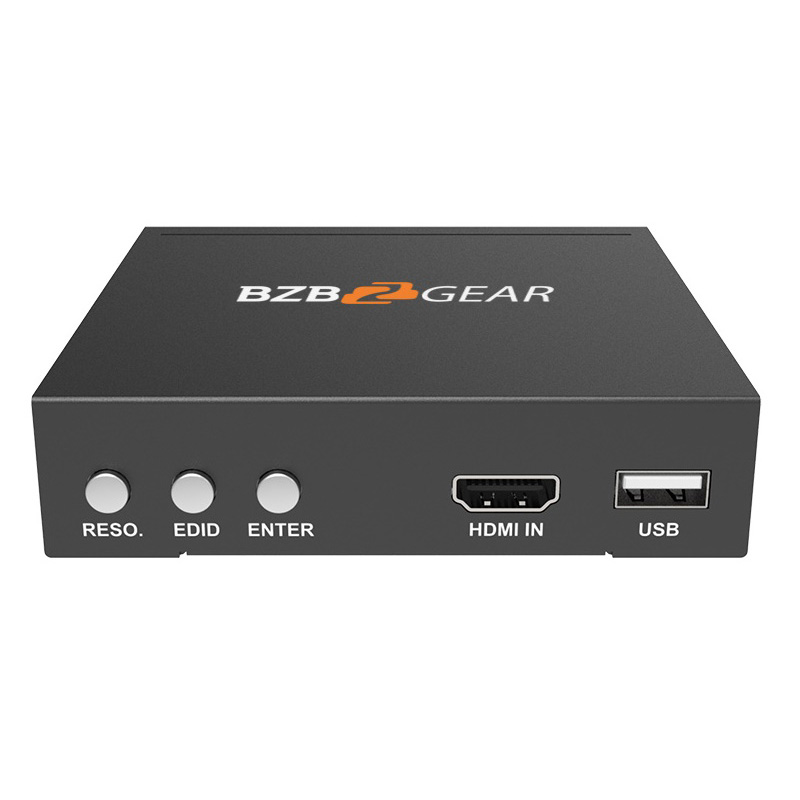

The BG-HDMI4K-SC is a compact 4K video scaler. It features HDMI 2.0 and HDCP2.2, and supports resolutions up to 4K@60Hz 4:4:4. This simple to use device automatically up or down scales Ultra HD/4K, Full HD, and HD resolutions with frame changing options. This unit will also help solve resolution and EDID conflicts. Offering a broad scope of display resolutions from 480i up to 4K@60Hz 4:4:4 at 18Gbps. Audio extraction is supported via the 3.5mm output. Operation is achieved via 3 simple front panel buttons and the OSD. Additionally, scaler settings are available via RS-232. (on-screen show) menu, or RS-232 control for scaler settings.
If you have HDMI, HDCP, or resolution compatibility issues with your display this device is made for you!
Features
- HDMI 2.0b (18Gbps), HDCP 2.2 compliant
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- Front panel buttons, OSD and RS-232 Control
- Up scaling video resolutions up to 4K2K@50/60Hz (YUV444) and downscaling video resolutions to 1024x768@60Hz
- Supports Dolby True HD, Dolby Digital Plus and DTS -HD Master Audio plus LPCM (up to 192kHz)
- Adaptive de-interlacing support
- Supports CEC bypass
