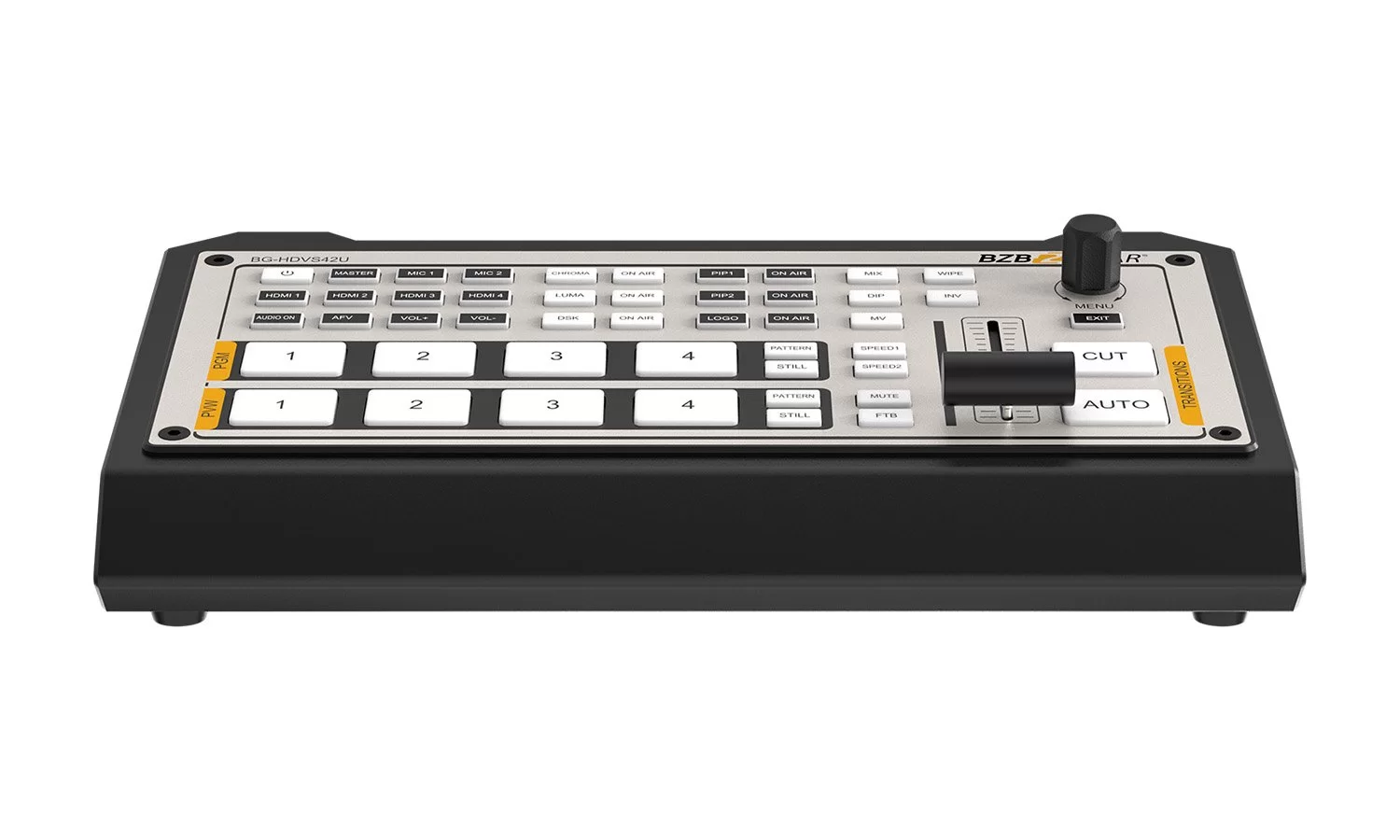

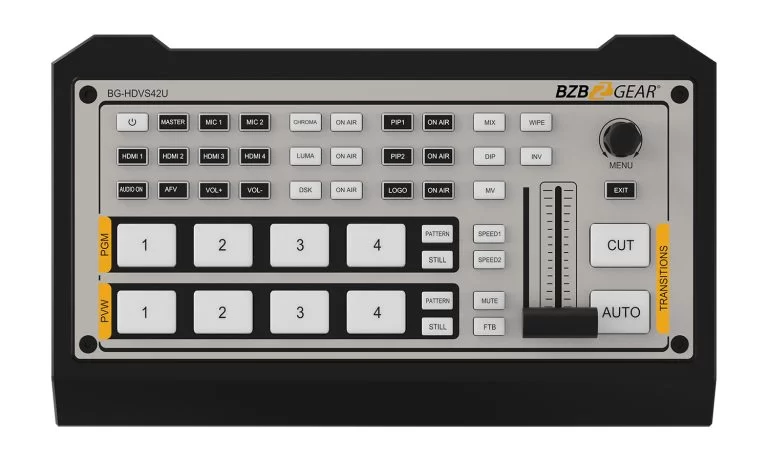

4-Channel 1080P FHD Live Streaming HDMI Mini Switcher Mixer with HDMI/USB-C Output

Configure the Perfect Solution
Get Started

Overview

Compact and versatile, the BG-HDVS42U HDMI production switcher provides users with a powerful set of features designed to deliver professional-quality results. With full audio mixing capabilities, multiple transition options, graphic overlays, PC software utility, and USB-C program output, the BG-HDVS42U provides high-performance and tremendous value.

Connectivity and Features

The BG-HDVS42U’s four HDMI inputs support resolutions up to 1080p@60Hz. Video outputs include one HDMI program output, one HDMI multiview output, and one USB type-C output. Audio can be de-embedded from all four HDMI sources and mixed with the two 3.5mm analog inputs. Each audio channel can be delayed to ensure proper sync with the video signal. The mixed audio is embedded to the HDMI and USB-C program outputs. The DB-15 Tally connection provides support for compatible systems.

Control

The BG-HDVS42U includes a full-featured PC control utility, offering enhanced access to all functions including switching, mixing, luma and chroma key, PIP, and POP. DSK and Logo overlays can also be controlled.

A variety of transition effects include such as wipe, mix, and dip. The integrated media library comes with 49 default patterns, 16 imported images, 16 captured images, and two-color generators. Graphics can be imported and overlayed using this library, enabling operators to utilize their own custom logos and overlays for video output.

Features

  • bi_hdmi
    HDMI
    4 inputs, 1 PGM out, 1 multiview out
  • bi_usb-c
    Integrated Capture
    USB-C output for recording or streaming via PC
  • Monitor
    Media Library
    Import graphics for custom logos and overlays
  • mdi_audio-input-stereo-minijack
    Audio Inputs
    2 x 3.5mm inputs for microphones or external audio feeds
  • material-symbols_auto-detect-voice
    Audio Mixer
    Mix HDMI embedded audio, analog inputs, supports audio delay function
  • t-bar-icon
    T-bar/Auto/Cut
    T-bar/Auto/Cut transitions; various effects: WIPE (9x2 patterns)/MIX/DIP
  • Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
  • LAN port for PC software remote control
  • FTB/ MUTE/ STILL/ GPIO for tally customer configuration import and export

Videos

How to Create a Multi-Camera Setup Using BG-COMMANDER-JR IP Joystick Controller
How to Create a Multi-Camera Setup Using BG-COMMANDER-JR IP Joystick Controller
Command Any PTZ Camera with Precision Control for IP & Serial - InfoComm 2022
Command Any PTZ Camera with Precision Control for IP & Serial - InfoComm 2022
HDMI & SDI Video Production Switchers & Audio Mixers by BZBGEAR for Live Streaming | NAB Show 2022
HDMI & SDI Video Production Switchers & Audio Mixers by BZBGEAR for Live Streaming | NAB Show 2022
How to Connect and Network BZBGEAR PTZ Camera, Video Switcher and Joystick Controller
How to Connect and Network BZBGEAR PTZ Camera, Video Switcher and Joystick Controller
Ultra Compact 4-Channel HDMI Switch for Live Stream Production - BZBGEAR BG-HDVS42U
Ultra Compact 4-Channel HDMI Switch for Live Stream Production - BZBGEAR BG-HDVS42U
Compact 4-Port HDMI Switch for Live Stream Production - BZBGEAR BG-HDVS42U
Compact 4-Port HDMI Switch for Live Stream Production - BZBGEAR BG-HDVS42U

Tech Specifications

CONNECTION
Video In HDMI type-A x4
Video Out HDMI type-A PGM x1
HDMI type-A Multiview x1
USB 2.0 type C x1 (Streaming on PC)
Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview
Audio In MIC/ Line level (3.5mm stereo audio) x2
PC Control Port LAN x1
Media Library USB type-A x1 (USB disk port for image import and firmware upgrade)
Tally Port DB-15 x1
Power In DC 12V x1
FUNCTIONS
Transitions T-Bar/ AUTO/ CUT
Effects Wipe (9x2 patterns)/ Mix/ DIP/ Pattern/ Still (freeze)/ MUTE/ FTB
Layouts 2 styles of Multiview layout (6 windows and status)
Keys Upstream Key: Luma Key x1/ Chroma Key x1/ PiP x2/ POP
Downstream Key: DSK x1/ Logo x1
Audio Mixer HDMI x4 and MIC/ Line level x2;
Audio delay: 0-500ms
Media Default image: 49 preset patterns
Local image: up to 16 imported images
Capture image: up to 16 captured images
Generators Pattern generator x1
Color generators x2
STANDARDS
HDMI In Format
Support
1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
1080i 50/ 59.94/ 60
720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98
576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
HDMI PGM Out 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Multiview Out 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Color Space RGB/ YUV
USB Capture Out MJPG, Up to 1080p@60
Media Format USB disk format support: FAT32, Ext3, Ext4, up to 256GB
Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
Logo size support: 10×10 pixel to 600×600 pixel
OTHERS
Power Wide voltage: 7~24V; Operating power: 12W (12V 1A)
Dimension (L×W×D) 9.65 x 5.63 x 1.77in [245 x 143 x 45mm]
Weight Net: 2.3 lbs [1030g]; Gross: 3.3 lbs [1500g]
Temperature Working: -4°F~140°F / -20°C~60°C, Storage: -22°F~158°F / -30°C~70°C

PACKAGE CONTENTS

  • 1x BG-HDVS42U
  • 1x Power supply (12V 2A)
  • 1x USB cable (type A-C)
  • 1x Tally connector (DB-15)

Interfaces

Interfaces image
  1. 2x MIC/Line level IN: 3.5mm stereo mini line in microphone.
  2. 4x HDMI IN: Connect to HDMI sources.
  3. MULTIVIEW (AUX) OUT: HDMI to display to simultaneous show all 4 inputs.
  4. PGM (AUX) OUT: HDMI to display, capture device, etc for selected output.
  5. USB OUT: Connect to a PC to view the PGM out image.
  6. LAN port: Connect to PC for access to control software.
  7. GPIO (for tally): Connects to a tally light control system (not included).
  8. DC 12V IN: Connect to provided power supply.
  9. Earphone OUT: 3.5mm stereo mini line out.
  10. USB type-A: Insert a usb disk to import images and LOGOs; firmware upgrades.
