Overview

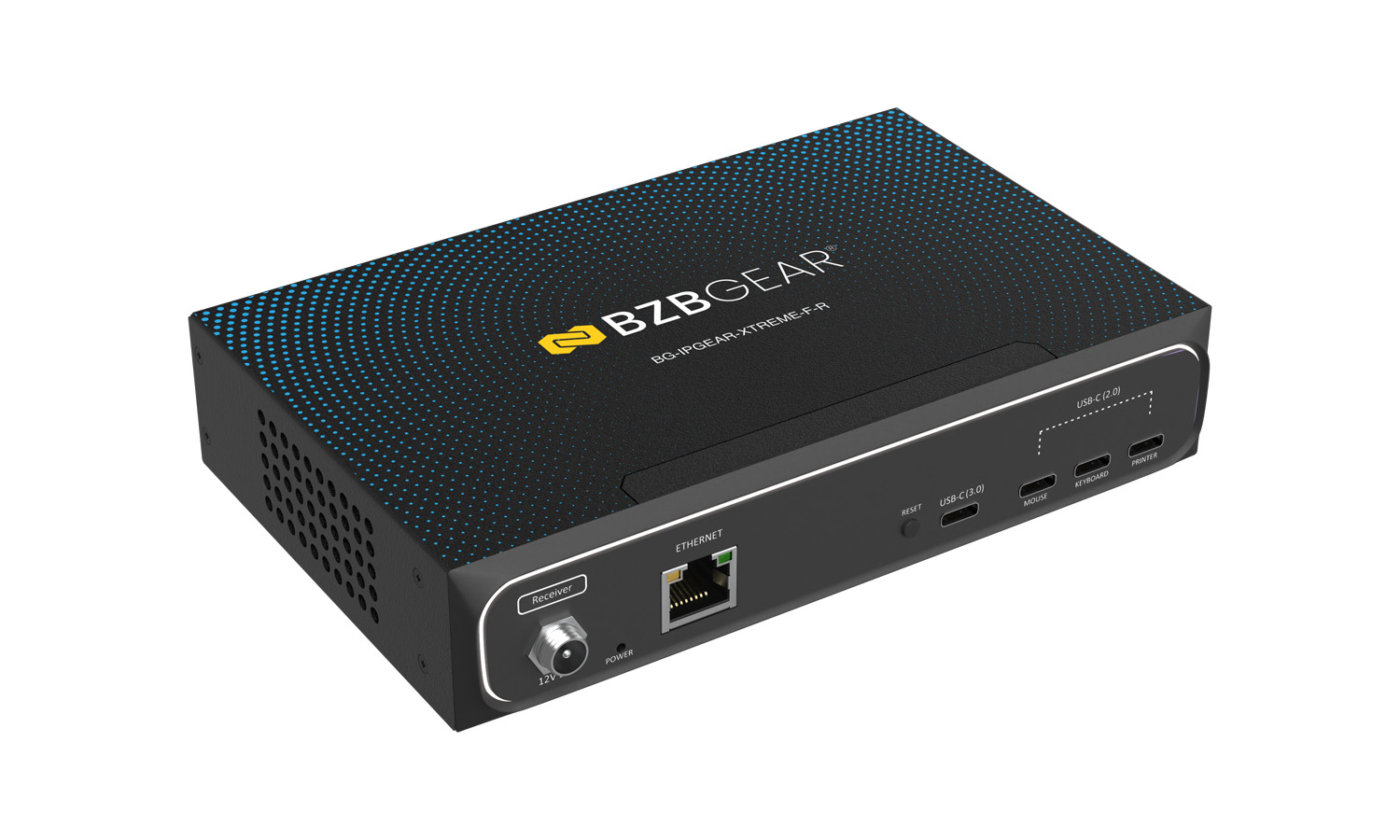

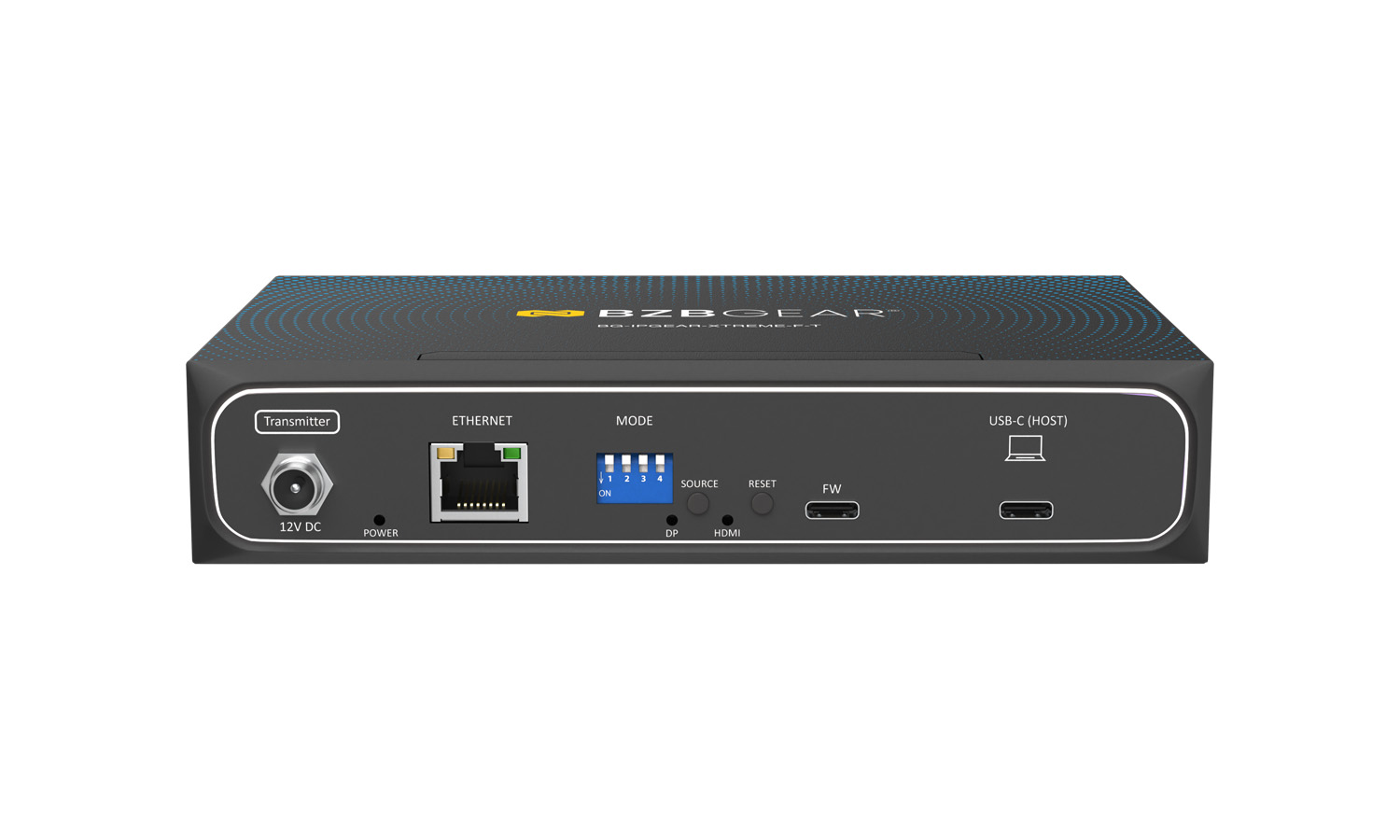

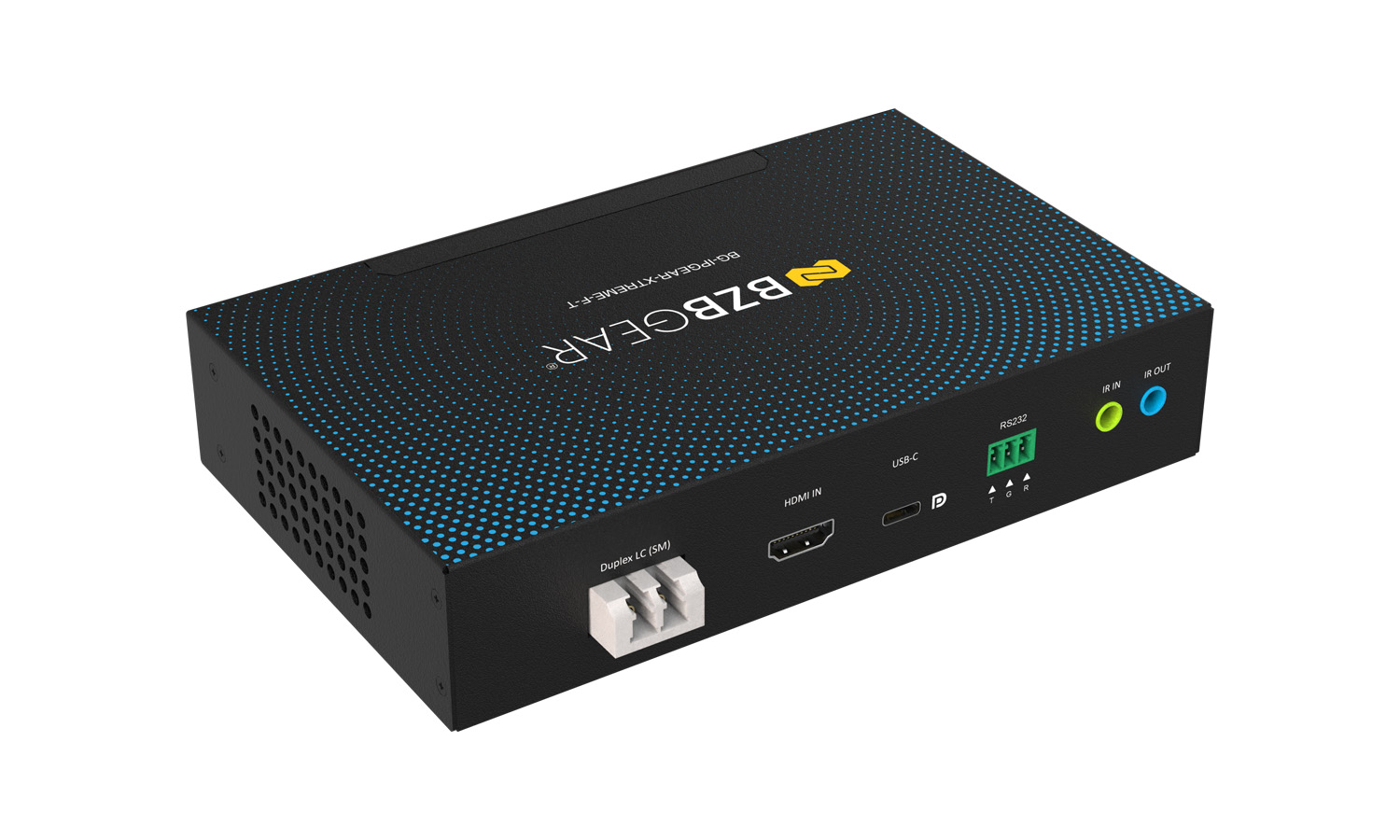

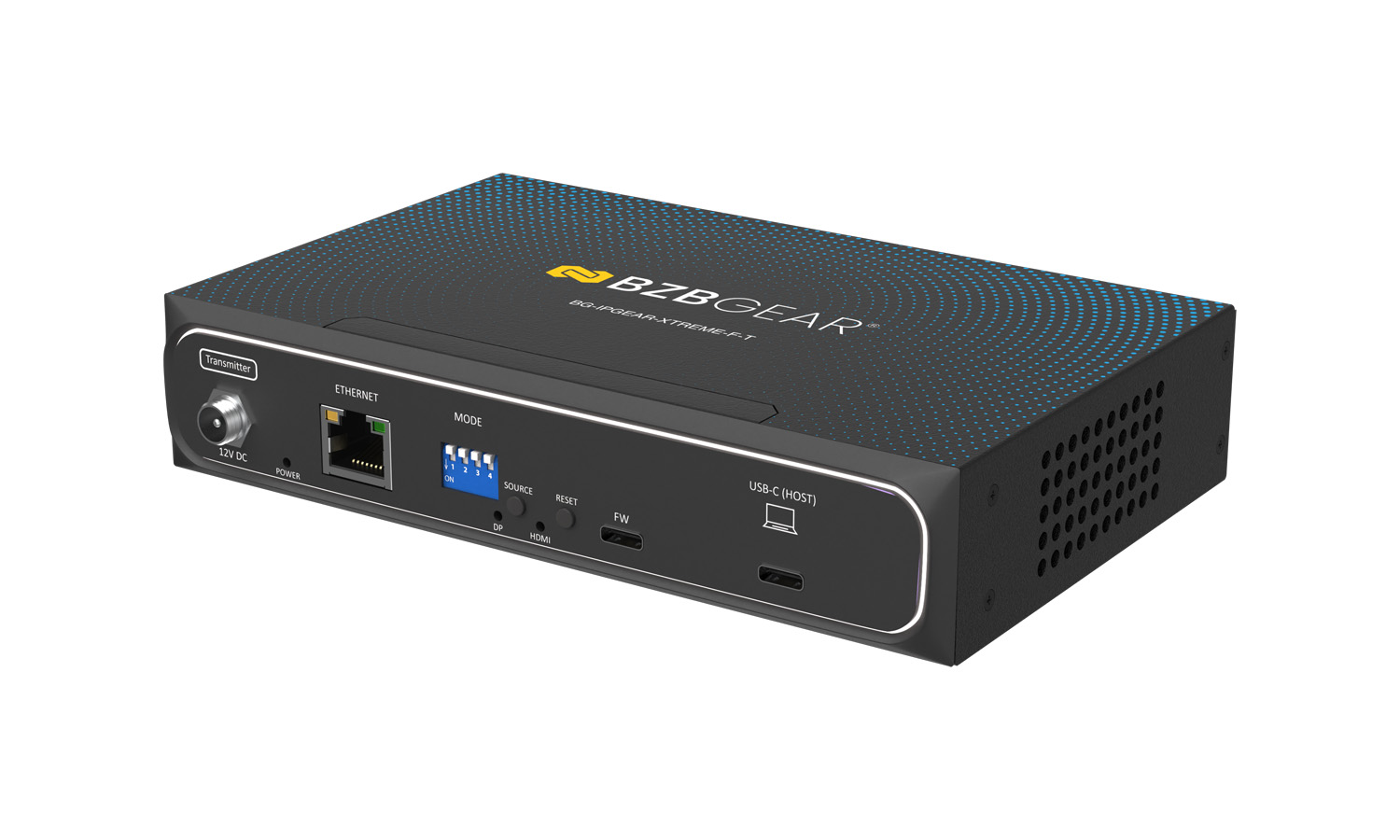

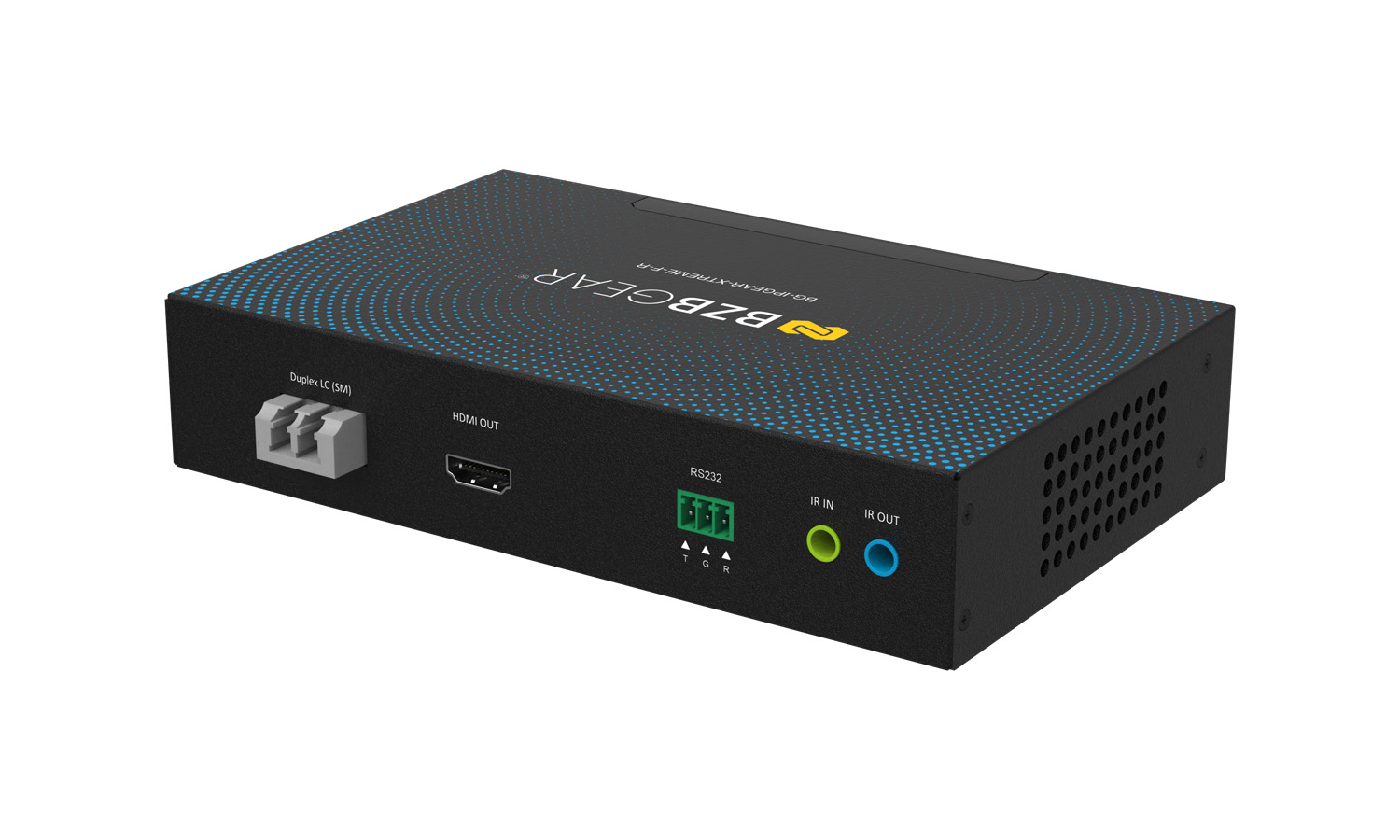

The BG-IPGEAR-XTREME-F is a cutting-edge HDMI 2.1 over fiber extender designed for mission-critical AV transmission in broadcast, medical imaging, eSports, control rooms, and high-end home theater applications. With support for uncompressed 4K60 4:4:4 and visually lossless 4K144 4:4:4, it also enables 8K@60Hz 4:4:4 DSC transmission, ensuring next-generation video performance with zero-frame latency over distances up to 10km (6.25 miles) via single-mode fiber optic cable.

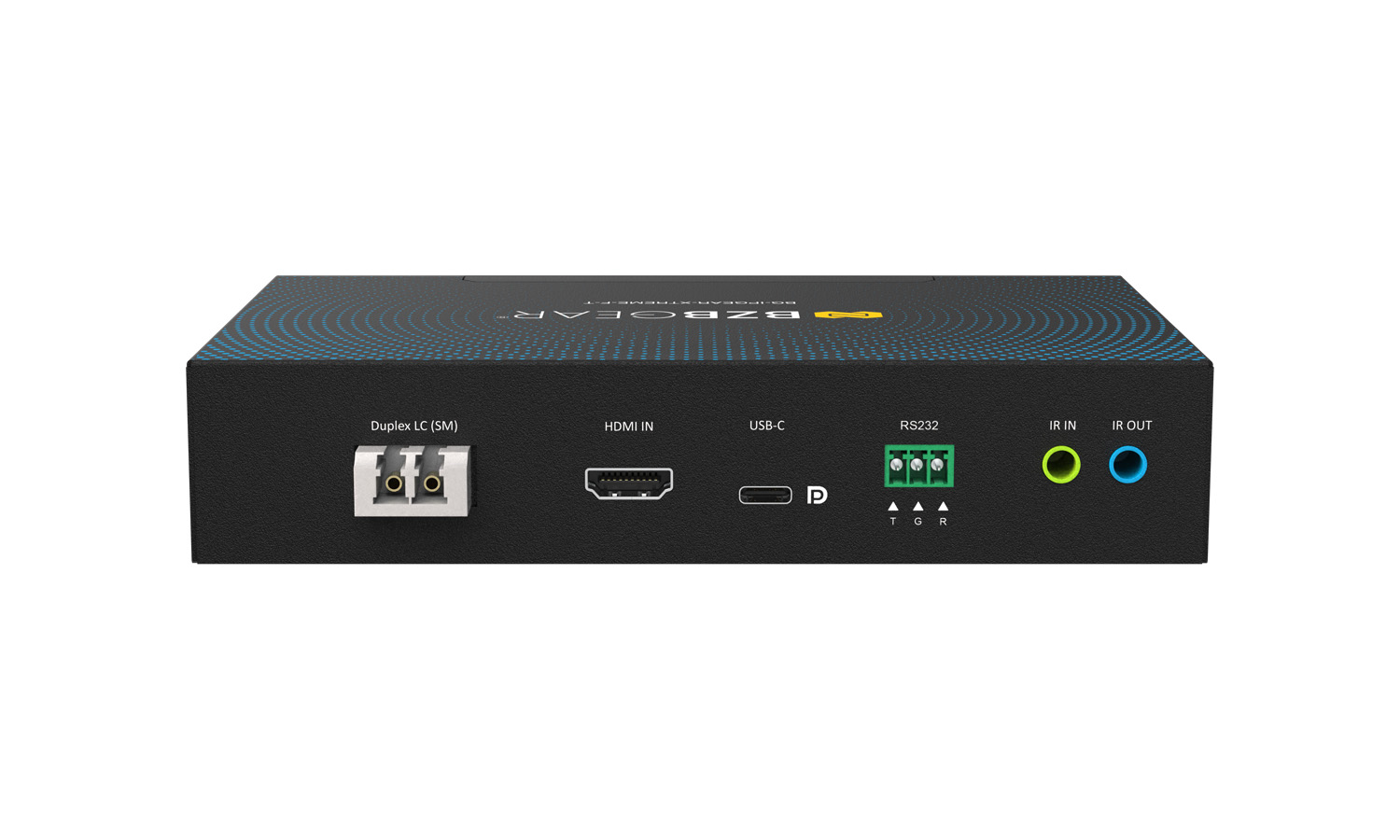

Beyond video, this extender provides full-featured connectivity with bi-directional IR, full-duplex RS-232, USB 3.1 KVM, eARC/ARC, and 1Gb Ethernet pass-through. With its interference-free fiber optic transmission, the BG-IPGEAR-XTREME-F is engineered to deliver the ultimate in high-resolution video, data, and control extension over long distances.
Features In-Depth
The BG-IPGEAR-XTREME-F is built for high-performance AV transmission, supporting 8K@60Hz 4:4:4 DSC, uncompressed 4K60 4:4:4, and visually lossless 4K144 4:4:4 over single-mode fiber. With 48Gbps bandwidth (FRL 6), this extender ensures flawless signal integrity while maintaining compatibility with HDMI 2.1, HDCP 2.3, and DisplayPort 1.4 (USB-C Alt Mode) sources.
For next-generation gaming and media applications, the BG-IPGEAR-XTREME-F supports Variable Refresh Rate (VRR) for smooth, tear-free motion, Auto Low Latency Mode (ALLM) for instant response, and eARC/ARC pass-through for lossless Dolby Atmos and DTS:X audio transmission. Its USB 3.1 KVM function enables remote control of peripherals, while 1Gb Ethernet pass-through facilitates seamless IP communication. Transparent EDID and HDCP handling optimize device compatibility, and CEC pass-through ensures integrated control across connected AV components.

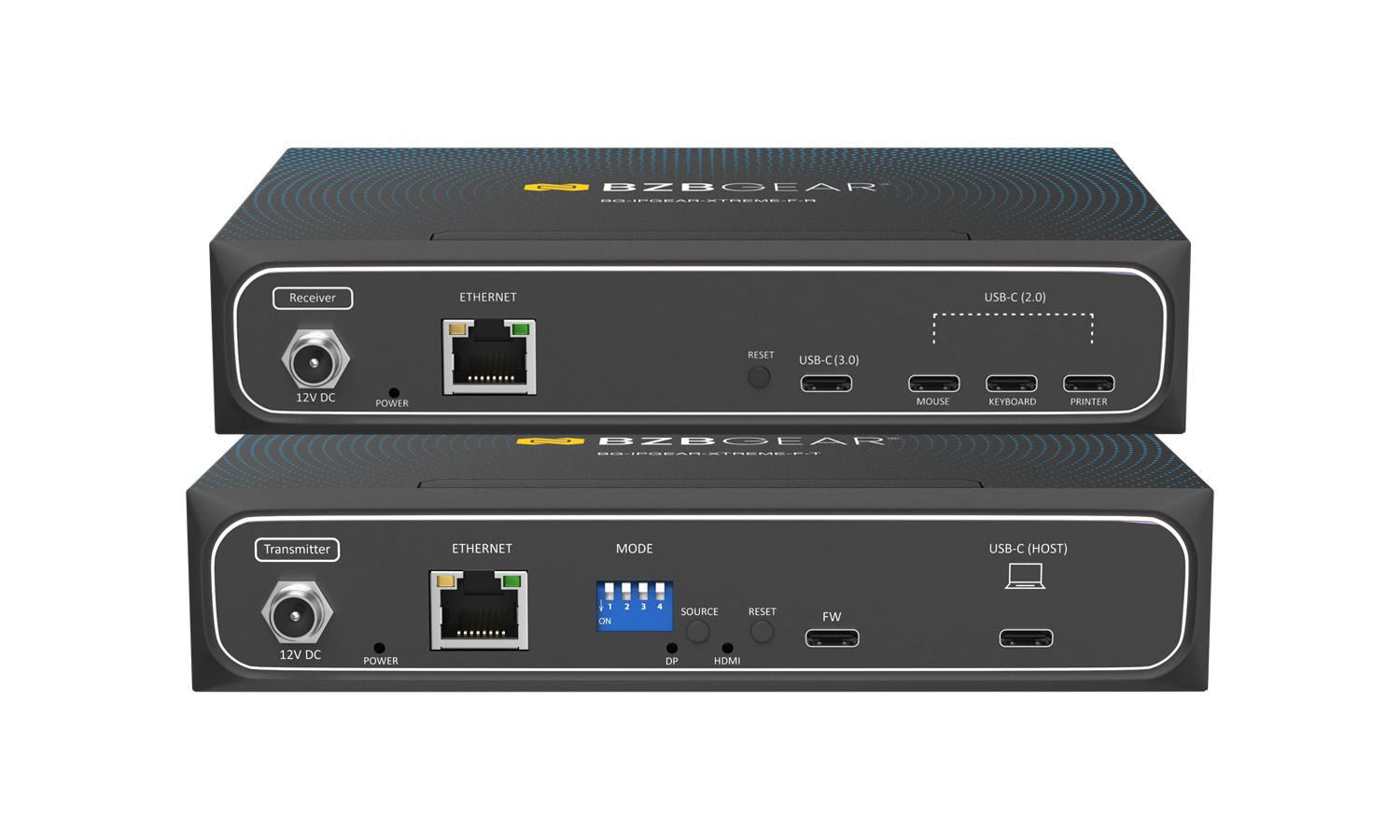

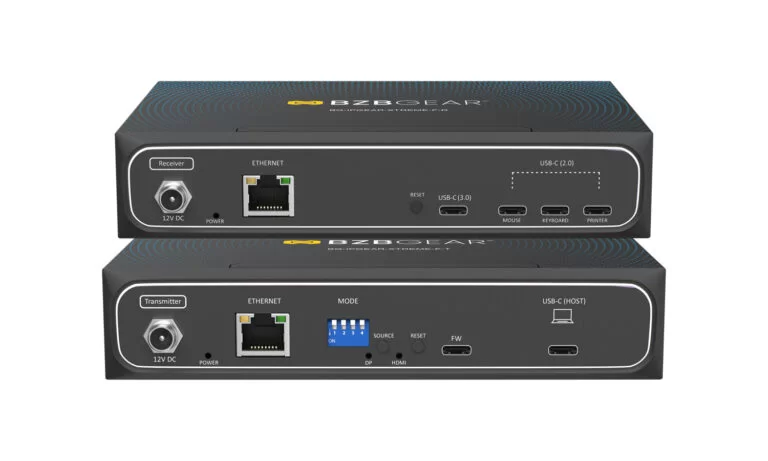

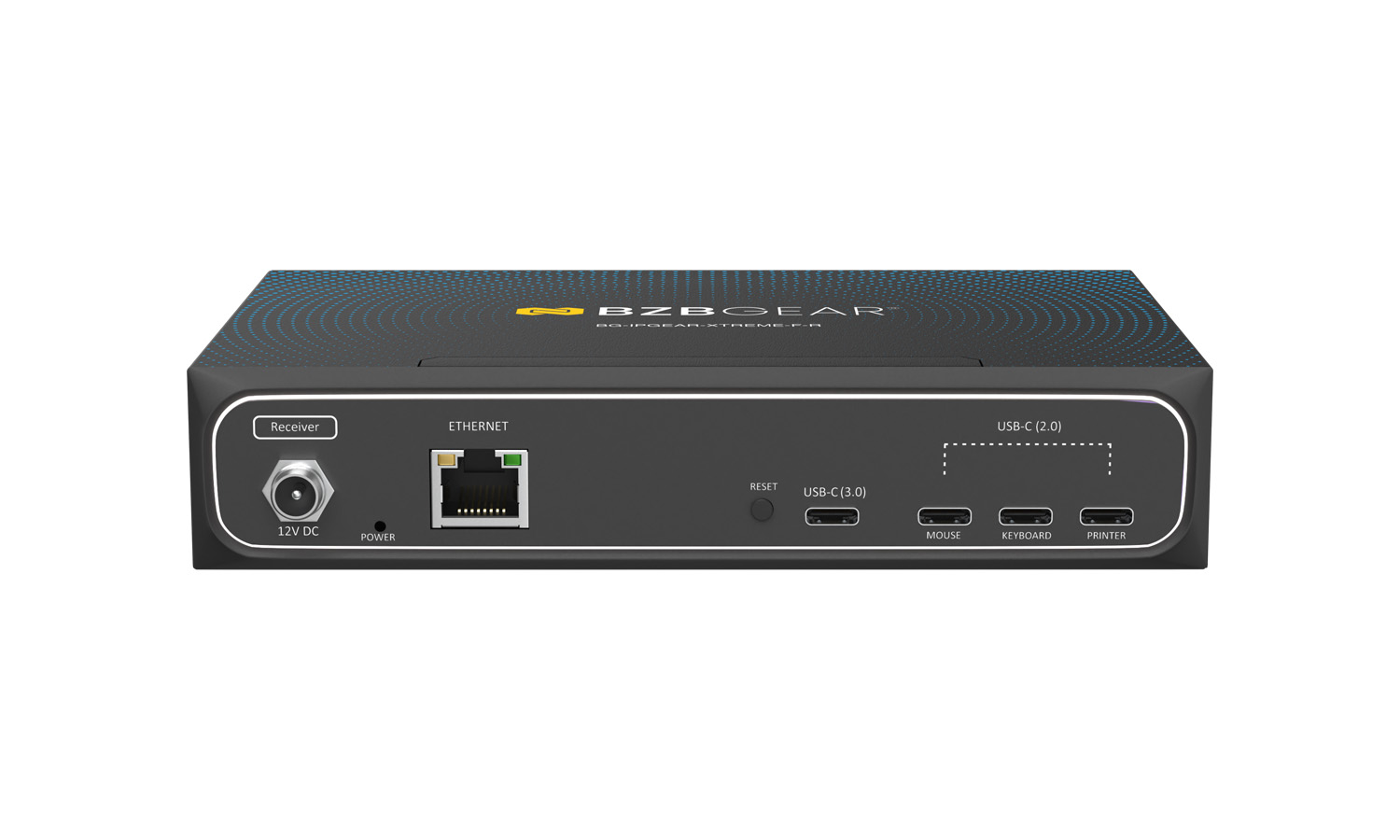

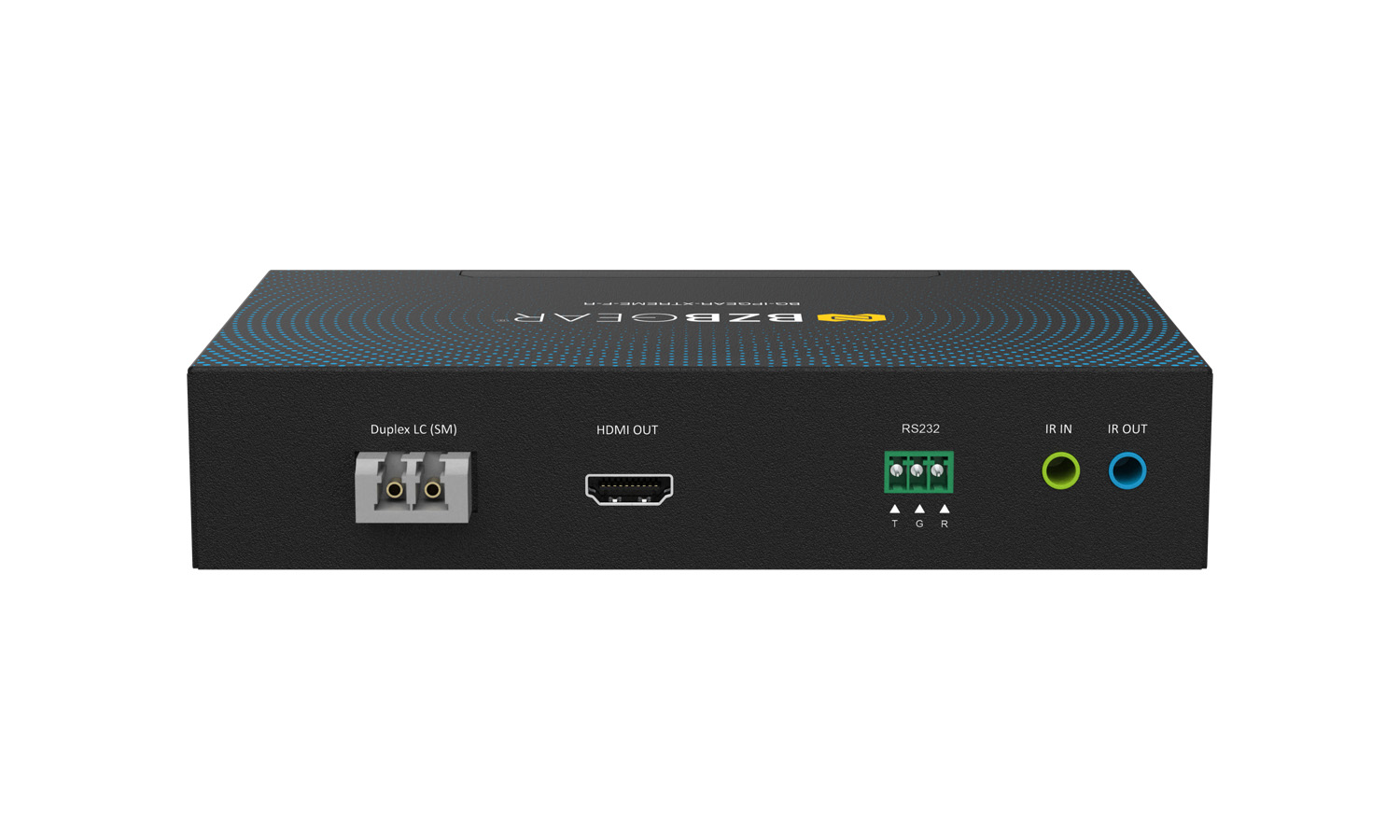

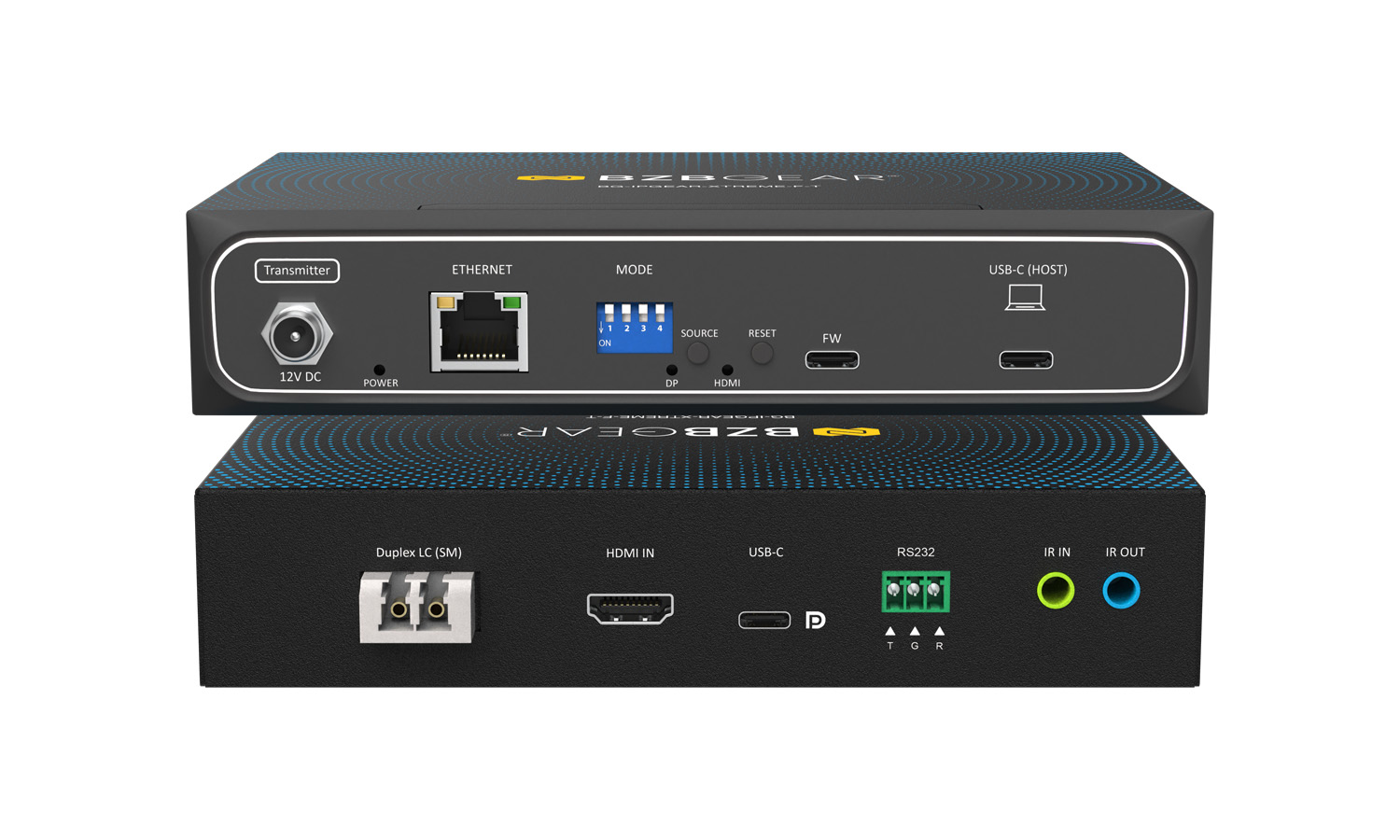

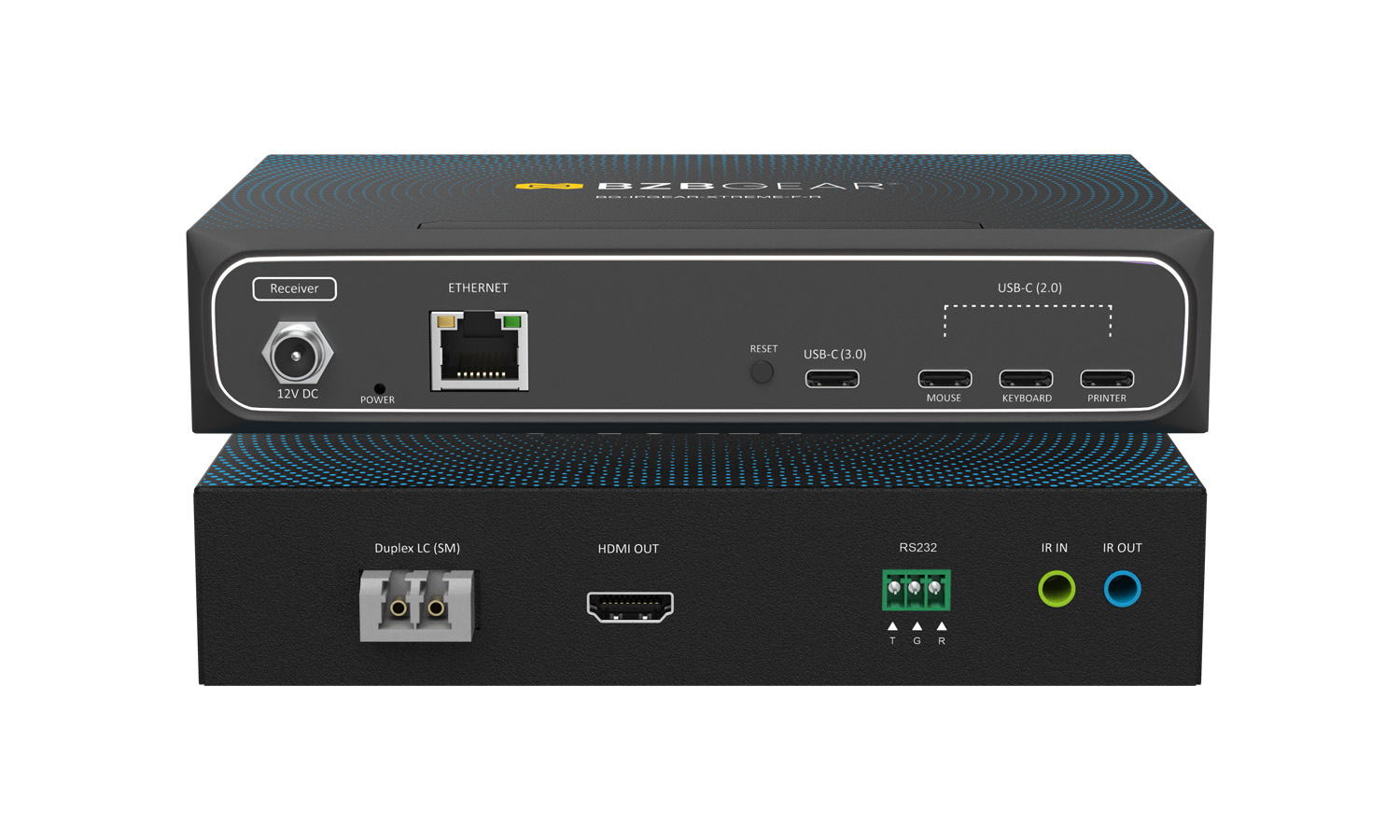

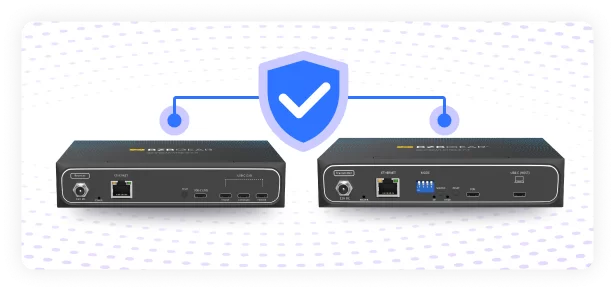

Encased in a rugged metal housing, this extender includes both transmitter and receiver units, single-mode fiber modules, IR blaster/receiver, and DC 12V power adapters. Designed for environments demanding ultra-high-definition, long-range AV distribution, the BG-IPGEAR-XTREME-F delivers unparalleled performance and connectivity for professional AV, gaming, and cinematic applications.
BZBGEAR AWARDS
Features
-
![8K@30Hz and 4K@120Hz]()
8K & 4K HDR SupportTransmits up to 8K@60Hz 4:4:4 DSC, 4K@144Hz 4:4:4, and 4K@60Hz 4:4:4 uncompressed for pristine image quality -
![bi_hdmi]()
HDMI 2.1 & HDCP 2.3 ComplianceEnsures compatibility with gaming consoles, media servers, professional video switchers, and AV processors -
![img10-1]()
48Gbps Video Bandwidth (FRL 6)Provides high-speed, zero-latency transmission for next-generation AV applications -
![bi_usb-c]()
DisplayPort 1.4 (USB-C Alt Mode) Input SupportConnects directly to USB-C-enabled laptops, tablets, and workstations -
![HDMI audio formats]()
Uncompressed 7.1ch HDMI AudioSupports Dolby TrueHD, DTS-HD Master Audio, and LPCM formats -
![BRIDGEABLE]()
eARC/ARC Pass-ThroughEnables lossless Dolby Atmos and DTS:X audio transmission from displays to AV receivers
- 10km (6.25 miles) Transmission Over Single-Mode Fiber: Ideal for large-scale AV applications requiring interference-free signal extension
- Fully Transparent EDID & HDCP Handling: Ensures seamless communication between sources and displays
- CEC Pass-Through: Enables centralized device control for home automation and AV systems
- Variable Refresh Rate (VRR) Support: Reduces screen tearing and stuttering for gaming and real-time rendering
- Auto Low Latency Mode (ALLM): Automatically switches to low-latency mode for fast response times
- Zero Latency, No Frame Drops: Fiber optic transmission eliminates traditional signal degradation issues
- USB 3.1 Gen1/Gen2 KVM Support: Allows remote access to UVC cameras, storage devices, touchscreens, and input peripherals
- Full-Duplex RS-232 Serial Control (115,200bps): Enables seamless integration with automation systems and AV matrix switchers
- 1G Ethernet Pass-Through: Provides a dedicated network link for AV-over-IP solutions, reducing cabling complexity
- Bi-Directional Wideband IR (20kHz–60kHz): Ensures remote control signal extension for IR-enabled devices
- Advanced Compression Technology (DSC 1.2a): Delivers visually lossless video at ultra-high refresh rates without compromising detail
True 48Gbps HDMI 2.1 Performance
- Supports 8K@60Hz 4:4:4 (DSC), uncompressed 4K@60Hz 4:4:4, and visually lossless 4K@144Hz 4:4:4 with zero-frame latency.
Advanced Gaming & Motion Features
- VRR, ALLM, HDR, and HDCP 2.3 ensure ultra-smooth, tear-free visuals for esports, simulation, and real-time rendering.
Pristine Audio Pass-Through
- Uncompressed 7.1-channel audio with eARC/ARC support for Dolby Atmos and DTS:X from source to display or AVR.
Up to 10km (6.25 Miles) Over Single-Mode Fiber
- Interference-free signal transmission ideal for campuses, stadiums, broadcast facilities, and medical imaging environments.
Zero Latency, No Compression Artifacts
- Fiber-based transport eliminates EMI, signal loss, and frame drops common with copper-based extenders.
Mission-Critical Signal Integrity
- Transparent EDID & HDCP handling ensures flawless compatibility with professional AV sources and displays.
USB 3.1 KVM Extension
- Remotely control keyboards, mice, touchscreens, storage devices, and UVC cameras with high-speed USB support.
Comprehensive Control Options
- Bi-directional IR, full-duplex RS-232, and CEC pass-through enable seamless integration with automation and control systems.
Built-In Gigabit Ethernet Pass-Through
- Dedicated 1G network channel simplifies system design while supporting AV, control, and data traffic over fiber.
