BG-LVUPTZ-HUS

The BG-LVUPTZ-HUS helps presenters create engaging video content as they move around a classroom, platform, or stage. This powerful PTZ camera captures details in crisp 1080p HD. With set and forget programming, the BG-LVUPTZ-HUS lets presenters focus on what they do best without the worry of capturing the right camera angle.

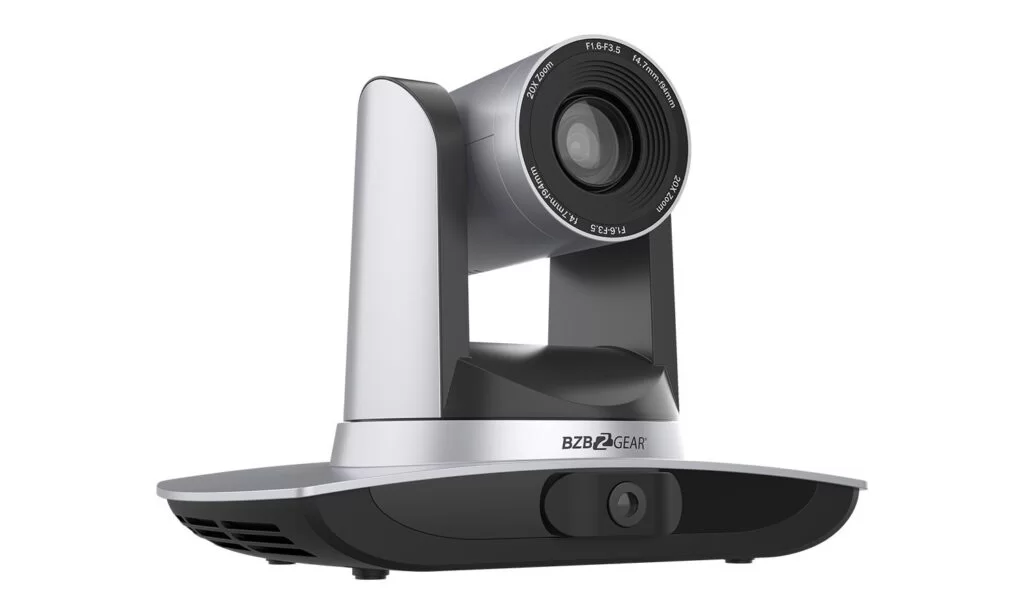

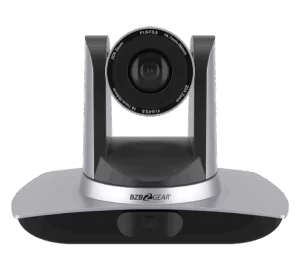

The chassis of the BG-LVUPTZ-HUS contains two separate cameras. In addition to the moving PTZ head, there is a wide-angle panoramic camera with a separate output. This provides users with two simultaneous Full HD video signals. Each camera is equipped with simultaneous HDMI, USB 3.0, and IP streaming outputs.

Available in 12X and 20X zoom levels, this versatile camera gives a single user access to both widescreen and close-up angles, enabling them to create dynamic content without the assistance of a dedicated camera operator.

ONVIF, RTSP, and RTMP protocols enable operators to stream the video output directly from the BG-LVUPTZ-HUS to online streaming services like Facebook and YouTube. The 3.5mm audio input allows stereo sound to be embedded into the video signals.

Configuration

Configuration is a breeze with BZBGEAR’s wizard-based setup utility, BG-Autotrak. Customizable options allow users to fine tune the camera’s performance to suit their environment. When tracking mode is disabled, the BG-LVUPTZ-HUS can also be controlled by RS232, RS485, IP commands, and IR remote.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

Features

  • uil_focus-target
    Auto Tracking
    Fully automatic PTZ control follows movement
  • badge-Full-hd | 1080P HD
    Full HD
    Both cameras output up to 1080p@60Hz resolutions
  • dual output
    Dual Outputs
    Completely independent dual output signals from each camera
  • fluent_task-list-square-settings-20-regular
    Set-and-Forget
    Camera works automatically after initial setup
  • material-symbols_settings-input-component
    Multiple Outputs
    Includes HDMI, USB 3.0, and IP streaming outputs
  • zoomfeatures
    12X and 20X Zoom
    Perfect for medium to large sized rooms
  • Resistant to signal interference
  • Advanced focusing technique
  • Wide dynamic exposure
  • 3.5mm audio input connection
  • Full HD image through 1/2.8" CMOS
  • Quiet operation

Videos

Complete Setup Process for BZBGEAR BG-LVUPTZ Auto Tracking Camera (Full Overview Guide)
Complete Setup Process for BZBGEAR BG-LVUPTZ Auto Tracking Camera (Full Overview Guide)
How BZBGEAR PTZ Camera Picture Quality Stacks Up
How BZBGEAR PTZ Camera Picture Quality Stacks Up
BZBGEAR Auto Tracking PTZ Camera Simplifies Video Conferencing & Live Streaming
BZBGEAR Auto Tracking PTZ Camera Simplifies Video Conferencing & Live Streaming
How to Choose the Ideal IP PTZ Camera System for Any Live Event
How to Choose the Ideal IP PTZ Camera System for Any Live Event

Mounting Ideas

Click the image below to watch a video

Tech Specifications

Tracking camera, lens parameters
Image sensor 1/2.8" high quality CMOS sensor
Effective pixels 2,070,000 16:9
Video signal 1080p@60/50/30/25/59.94/29.97, 1080i@60/50/59.94, 720p@60/50/30/25 /59.94/29.97
Lens optics zoom 20X optical zoom  f=4.7~94mm
Visual angle 2.9° (narrow angle) ~ 55.4° (wide angle)
Aperture coefficient F1.6 ~ F3.5
Digital zoom 10X
Minimum illumination 0.5Lux (F1.8, AGC ON)
Digital noise reduction 2D & 3D digital noise reduction
White balance Manual/auto/one-key white balance /3000K/ 4000K/5000K/6500K
Focus Auto/manual
Aperture Auto/manual
Electronic shutter Auto/manual
Backlight compensation On/off
Wide dynamic Off/dynamic grade adjustment
Video regulation Brightness, hue, saturation, contrast ratio, sharpness, Gamma
Signal to noise ratio >55dB
Panoramic lens
Image sensor 1/2.8" high quality CMOS sensor
Effective pixels 2,100,000
Lens Manual focus
Output port Network port, HDMI, USB
Field angle (D/H/V) 112°/82°/57.6°
Input/output port and support protocol
Video port HDMI
Network port 100M internet access (10/100BASE-TX) 5GWiFi (optional), support network VISCA control protocol
Network protocol RTSP, RTMP, ONVIF, GB/T28181
Compression image code stream Dual stream output
Video compression format H.265, H.264
Control signal port RS-232/485
Control protocol VISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps
Audio input port Dual track 3.5mm linear input
Audio compression format AAC, MP3, PCM
Power port HEC3800 power socket (DC12V)
Holder parameters
Horizontal rotation -170°~+170°
Vertical rotation -30°~+90°
Horizontal control speed 0.1~100°/s
Vertical control speed 0.1~45°/s
Preset speed Horizontal: 100°/s, vertical: 45°/s
Preset quantity User can set 255 presets at most (10 pcs of mobile control)
Other parameters
Power adapter Input AC110V-AC220V output DC12V/2.5A
Input voltage DC12V±10%
Input current 1.5A (maximum)
Power consumption 18W (maximum)
Storage temperature 14°F ~ 140°F / -10°C ~ +60°C
Storage humidity 20%~95%
Operating temperature 14°F ~ 122°F / -10°C ~ +50°C
Operating humidity 20%~80%
Dimension (WxHxD) 10in x 5.7in x 6.9in [254mm x 144mm x 174mm]
Weight (approx.) 3.3 lbs [1.50kg]
Operating environment Indoor only
Remote maintenance (network port) Remote upgrade, restart and reset

PACKAGE CONTENTS

  • 1x Camera
  • 1x 12V/1.5A Power supply
  • 1x RS232 control line
  • 1x Remote control
  • 1x User Manual

Interfaces

Interfaces image
  1. USB (CAM2): Connect to an USB3.0 type A device such as a PC at resolutions up to 1080@60Hz over USB cabling to view close-up lens.
  2. HDMI (CAM2): Connect to an HDMI device such as a video production switcher or a video display at resolutions up to 1080@60Hz over HDMI cabling to view close-up lens.
  3. LAN (Cam-2): Connect Camera-2 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
  4. USB (CAM1): Connect to an USB3.0 type A device such as a PC at resolutions up to 1080@60Hz over USB cabling to view panorama lens.
  5. HDMI (CAM1): Connect to an HDMI device such as a video production switcher or a video display at resolutions up to 1080@60Hz over HDMI cabling to view panorama lens.
  6. RS-232: Connect RS-232 to control the camera with a joystick controller or control software.
  7. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
  8. LAN (Cam-1): Connect Camera-1 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
  9. Power: Connect supplied 12V power adapter.
