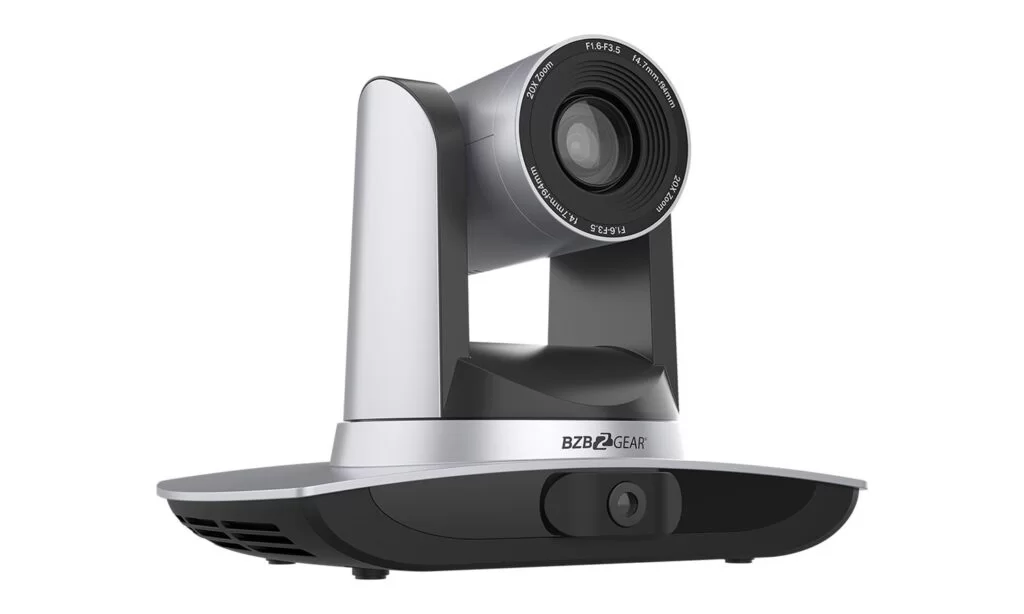

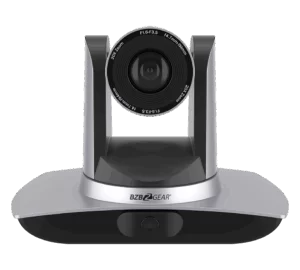

PTZ 12X/20X Zoom 1080P FHD with SDI Auto Trackable Live Streaming Camera
BG-LVUPTZ-SD
The BG-LVUPTZ-SD helps presenters create engaging video content as they move around a classroom, platform, or stage. This powerful PTZ camera captures details in crisp 1080p HD images. With set and forget programming, the BG-LVUPTZ-SD lets presenters focus on what they do best without the worry of capturing the right camera angle.
The chassis of the BG-LVUPTZ-SD contains two separate cameras. In addition to the moving PTZ head, there is a wide-angle panoramic camera with a separate output. This provides users with two simultaneous Full HD video signals. Each camera is equipped with simultaneous 3G-SDI and IP streaming outputs.
Available in 12X and 20X zoom levels, this versatile camera gives a single user access to both widescreen and close-up angles, enabling them to create dynamic content without the assistance of a dedicated camera operator.
ONVIF, RTSP, and RTMP protocols enable operators to stream the video output directly from the BG-LVUPTZ-SD to online streaming services like Facebook and YouTube. The 3.5mm audio input allows stereo sound to be embedded into the video signals.
Configuration
Configuration is a breeze with BZBGEAR’s wizard-based setup utility, BG-Autotrak. Customizable options allow users to fine tune the camera’s performance to suit their environment. When tracking mode is disabled, the BG-LVUPTZ-SD can also be controlled by RS232, RS485, IP commands, and IR remote.
This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.
Features
-
Auto TrackingFully automatic PTZ control follows movement -
Full HDCameras output up to 1080p@60Hz resolution -
Dual OutputsBoth cameras have completely independent output signals -
Locking ConnectorsSDI locking connectors ensure your cables do not accidentally come unplugged -
Multi-FormatAvailable with 3G-SDI and IP streaming outputs -
12X and 20X ZoomPerfect for medium to large sized rooms
- Wide dynamic exposure
- Advanced focusing technology
- 3.5mm audio input connection
Videos
Mounting Ideas
Tech Specifications
| Tracking camera, lens parameters | |
| Image sensor | 1/2.8" high quality CMOS sensor |
| Effective pixels | 2,070,000 16:9 |
| Video signal | 1080p@60/50/30/25/59.94/29.97, 1080i@60/50/59.94, 720p@60/50/30/25 /59.94/29.97 |
| Lens optics zoom | 20X optical zoom f＝4.7~94mm |
| Visual angle | 2.9° (narrow angle) ~ 55.4° (wide angle) |
| Aperture coefficient | F1.6 ~ F3.5 |
| Digital zoom | 10X |
| Minimum illumination | 0.5Lux (F1.8, AGC ON) |
| Digital noise reduction | 2D & 3D digital noise reduction |
| White balance | Manual/auto/one-key white balance /3000K/4000K/5000K/6500K |
| Focus | Auto/manual |
| Aperture | Auto/manual |
| Electronic shutter | Auto/manual |
| Backlight compensation | On/off |
| Wide dynamic | Off/dynamic grade adjustment |
| Video regulation | Brightness, hue, saturation, contrast ratio, sharpness, Gamma |
| Signal to noise ratio | >55dB |
| Panoramic lens | |
| Image sensor | 1/2.8" high quality CMOS sensor |
| Effective pixels | 2,100,000 |
| Lens | Manual focus |
| Output port | Network port, 3G-SDI |
| Field angle (D/H/V) | 112°/82°/57.6° |
| Input/output port and support protocol | |
| Video port | SDI |
| Network port | 100M internet access (10/100BASE-TX) 5GWiFi (optional), support network VISCA control protocol |
| Network protocol | RTSP, RTMP, ONVIF, GB/T28181 |
| Compression image code stream | Dual stream output |
| Video compression format | H.265, H.264 |
| Control signal port | RS-232/485 |
| Control protocol | VISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps |
| Audio input port | Dual track 3.5mm linear input |
| Audio compression format | AAC, MP3, PCM |
| Power port | HEC3800 power socket (DC12V) |
| Holder parameters | |
| Horizontal rotation | -170°~+170° |
| Vertical rotation | -30°~+90° |
| Horizontal control speed | 0.1 ~ 100°/s |
| Vertical control speed | 0.1 ~ 45°/s |
| Preset speed | Horizontal: 100°/s, vertical: 45°/s |
| Preset quantity | User can set 255 presets at most (10 pcs of mobile control) |
| Other parameters | |
| Power adapter | Input AC110V-AC220V output DC12V/2.5A |
| Input voltage | DC12V±10% |
| Input current | 1.5A (maximum) |
| Power consumption | 18W (maximum) |
| Storage temperature | 14° ~ 140°F / -10°C ~ +60°C |
| Storage humidity | 20%~95% |
| Operating temperature | 14° ~ 122°F / -10°C~+50°C |
| Operating humidity | 20%~80% |
| Dimension (WxHxD) | 10in x 5.7in x 6.9in [254mm x 144mm x 174mm] |
| Weight (approx.) | 3.3 lbs [1.50kg] |
| Operating environment | Indoor only |
| Remote maintenance (network port) | Remote upgrade, restart and reset |
Resources
PACKAGE CONTENTS
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x RS232 control line
- 1x Remote control
- 1x User Manual

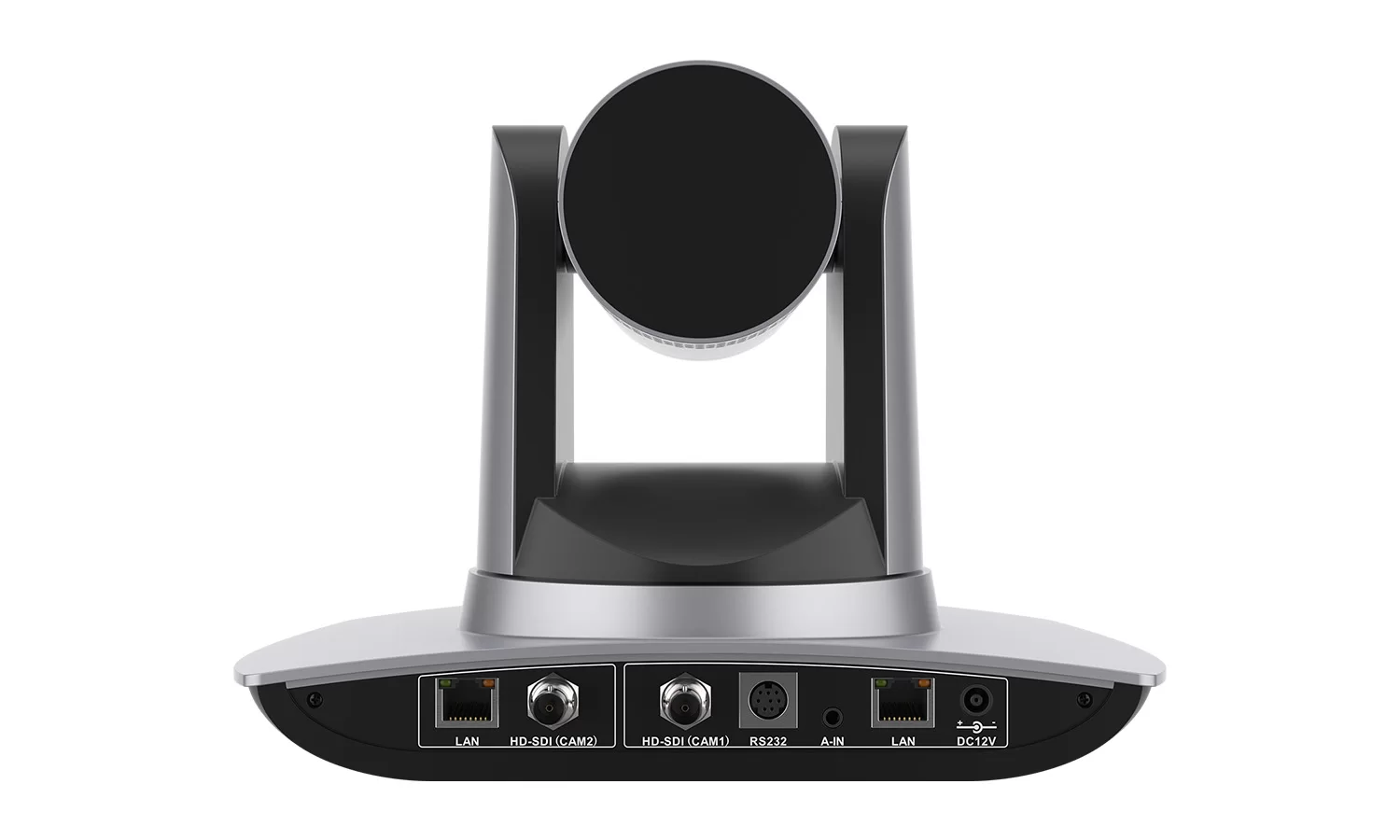

Interfaces
- LAN (Cam-2): Connect Camera-2 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
- HD-SDI (CAM2): Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view close-up lens.
- HD-SDI (CAM1): Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view (panorama lens.
- RS-232: Connect RS-232 to control the camera with a joystick controller or control software.
- A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- LAN (Cam-1): Connect Camera-1 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
- Power: Connect supplied 12V power adapter.
