8X8 HDMI2.0 18Gps 4K@60Hz 4:4:4 HDBT Video And Audio Matrix Switcher with 8 Receivers

Overview

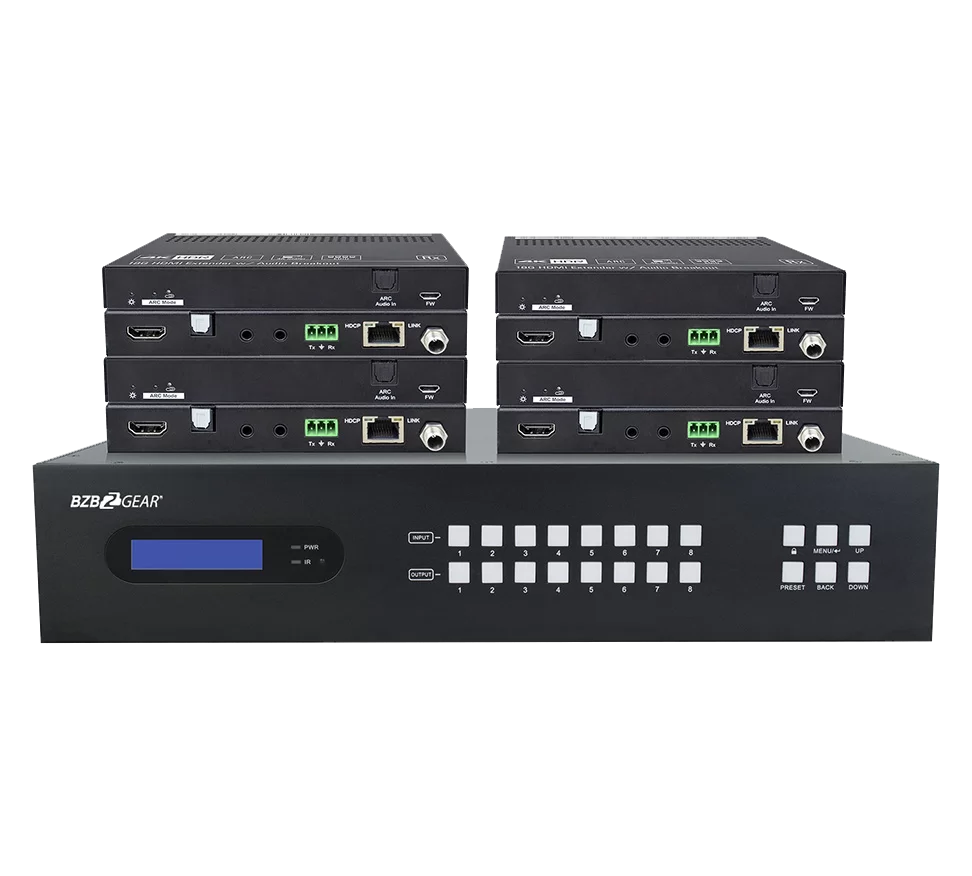

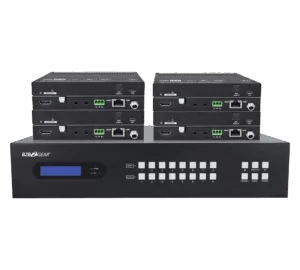

The BZBGEAR BG-M88S-H2A-KIT is an eight-input by eight-output HDBaseT and HDMI matrix with HDCP 2.2 and up to 4K/UHD@60Hz video support. It transmits 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 230 feet (70 meters) over a single CATx Ethernet cable. The eight HDBaseT outputs support 24V power over Cat5e/6/7 feature, allowing the receivers to draw their power from the matrix over the HDBaseT cable. BZBGear BG-M88S-H2A-KIT matrix switcher features comprehensive EDID management and advanced HDCP handing to ensure maximum functionality with a wide range of video sources.
The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options. BZBGear BG-M88S-H2A-KIT provides performance in control and transmission, which could be used in several different installation scenarios, for example, with computers, for monitoring purposes, large screen displays, conference systems, television education, bank security institutions, etc.
