Overview

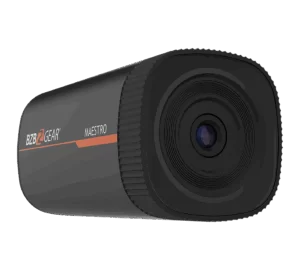

The BG-MAESTRO is a compact ePTZ auto-tracking camera that delivers extremely accurate tracking throughout its coverage area. Designed to be easily configurable, the Maestro requires no additional software to set the auto-tracking parameters which is completed through the web based interface. With electronic pan, tilt, and zoom (ePTZ) capabilities, tracking is accomplished with a fixed lens and maintains a very compact form factor. Power over ethernet (PoE) technology further simplifies installation, requiring only one cable for power and internet connectivity.
This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.
Connectivity & Performance
The BG-MAESTRO can simultaneously output USB 3.0, 3G-SDI / HDMI, and IP streaming in resolutions up to 1080p@30Hz. The Maestro also utilizes a 1/2.8” high quality 4K CMOS sensor to provide low noise and a high SNR for the clearest image possible. The camera is capable of up to a 3x digital zoom and ePTZ controls automatically track subjects in its field of view. It can accomplish this task between distances of 15ft to 50ft from the camera.
With 5 simultaneous output streams the BG-Maestro allows multiple angles to be broadcast at once. This camera is ideally suited for educational purposes, lectures, fitness instructors, and hobbyists. The Maestro has smooth tracking that is not affected by minor movements of subjects and it is also resistant to acquisition of interfering subjects.
This camera is further equipped with a 3.5mm stereo input for the connection of an external microphone. It also supports several protocols such as ONVIF, RTSP, and RTMP which enable operators to stream video directly from the camera to streaming and video service platforms like YouTube, Facebook, and Twitch. H.264 and H.265 video compression options are also available helping to reduce bandwidth.
Control
The intuitive web interface enables users to optimize the camera’s auto tracking abilities as well as video parameters for particular situations and environments. The BG-MAESTRO further supports control through RS232 and RS485. The camera can also be mounted to a ceiling, wall, or tripod for additional flexibility in installation.
BZBGEAR AWARDS
Features
-
Crystal Clear ImagesBroadcast in 1080p@30Hz -
Auto-TrackingSetup auto-tracking easily from the web interface -
Power over EthernetOnly one cable needed to power and stream from the camera -
Audio EmbeddingConnect your microphone to the 3.5mm mini jack to embed audio -
Stream ReadyStream directly from the camera to platforms such as YouTube, Facebook and Twitch -
Multiple OutputsConnect and stream via USB 3.0, HDMI/SDI (depending on model), or over IP
- 3x digital zoom and ePTZ control
- 5 simultaneous streams
- Versatile mounting options
Advanced Digital Zoom and ePTZ Capabilities
Experience enhanced control with the Maestro's 3X digital zoom technology, facilitating smooth pan, tilt, and zoom functions during operation.
Effortless Mounting Options
Easily secure the Maestro onto a wall or tripod with its simple yet robust integrated mounting panel, ensuring stability and convenience.
Audio Embedding
Enhance your multimedia experience with Audio Embedding functionality, seamlessly integrating external audio sources like microphones or compact mixers. Immerse your audience in high-quality sound synchronized across all video output interfaces for an enhanced viewing experience.
Flexible Video Output Selection
Tailor your connectivity options with the choice between (HDMI/SDI) or USB 3.0 outputs, or enjoy the flexibility of simultaneously outputting video through both interfaces for enhanced versatility.
Streamlined Setup with Power Over Ethernet
Simplify your installation process by utilizing the PoE function, allowing seamless provision of power and ethernet connectivity through a single ethernet cable, ensuring efficient setup and operation.
Videos
Mounting Ideas
Tech Specifications
| Camera/ Lens Parameters | |||
| Image Sensor | 1/2.8" High Quality 4K CMOS Sensor | ||
| Effective pixels | 8.28 Megapixel, 16:9 | ||
| Video Format | SDI /HDMI output: 1080p@30Hz/25Hz; 720p@60Hz/50Hz/30Hz/25Hz; USB 3.0 output: 1920x1080p@30Hz /25Hz; 1280x720p@60Hz /50Hz /30Hz /25Hz; 960x540p@30Hz; 800x600p@30Hz; 640x360p@30Hz; 640x480p@30Hz; 352x288p@30Hz; USB 3.0 can be compatible with USB 2.0 output |
||
| View Angle | 57.2° (D) /47° (H) /36° (V) | ||
| Focus | f=7.23mm | ||
| Aperture | F2.4+ 5% | ||
| Digital Zoom | 3X | ||
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||
| DNR | 2D & 3D DNR | ||
| White Balance | Auto / Manual/ One Push/ Specified color temperature (2400K-7100K, step length is 100) | ||
| Focus | Manual | ||
| Exposure | Fixed | ||
| BLC | ON/ OFF | ||
| DNR | >50dB | ||
| Input/Output Interface | |||
| Video Interfaces | 1x SDI / HDMI interface 1x USB interface 1x LAN interface: 10M/100M adaptive Ethernet port (support POE) |
||
| Video Compression Format | H.264, H.265, MJPEG, YUY2, NV12 | ||
| Audio Input Interface | Double track 3.5mm linear Input | ||
| Audio Compression Format | AAC, MP3, G.711A | ||
| Network protocol | RTSP, RTMP, ONVIF, GB/T28181 | ||
| Control Interface | RS232, RS485, LAN | ||
| Communication Protocol | VISCA, Pelco-D, Pelco-P, support baud rate 115200/38400/9600/4800/2400; Support VISCA Control Protocols | ||
| Power Interface | HEC3800 power socket (DC12V) | ||
| Other Parameters | |||
| Input Voltage | Power Adapter: 12V | ||
| POE Supply: 48V | |||
| Input Current | Power Adapter: 0.42A (max) | ||
| POE Supply: 0.104A (max) | |||
| Power Consumption | 5W (max) | ||
| Stored Temperature | -10°C ~ +60°C | ||
| Stored Humidity | 20% ~ 95% | ||
| Working Temperature | -10°C ~ +50°C | ||
| Working Humidity | 20% ~ 80% | ||
| Dimension (W x H x D) | 5.9 x 3.1 x 3.1in [149.2 x 78 x 78mm] | ||
| Weight | Approx. 1.17 lbs [0.53kg] | ||
| Working Environment | Indoor Only | ||
PACKAGE CONTENTS
- 1x BG-MAESTRO Camera
- 1x 10' USB 3.0 Cable
- 1x Metal Wall/Ceiling Mount (White)
- 1x User Manual
Interfaces
- A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
- Power: Connect supplied 12V power adapter.
- LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
- 3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080p@30Hz) over SDI cabling.
- HDMI: Connect to an HDMI device such as a video production switcher or a video display at resolutions up to 1080p@30Hz.
- USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@30Hz.
- Reset: Hold Reset button to factory restore.
