4x4 4K UHD HDMI Video Wall Processor and Seamless Matrix Switcher

Configure the Perfect Solution

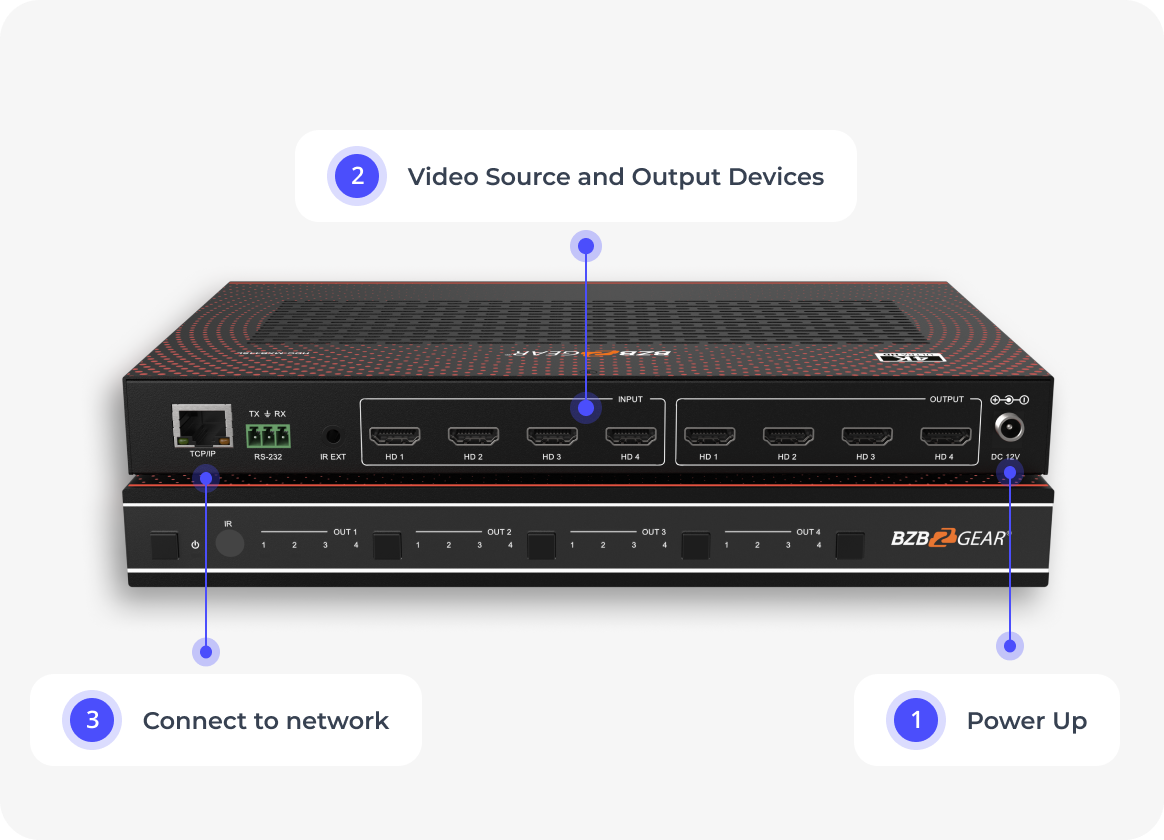

Get Started

Overview

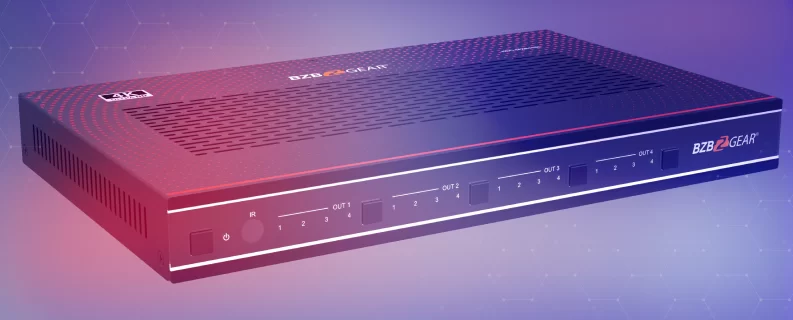

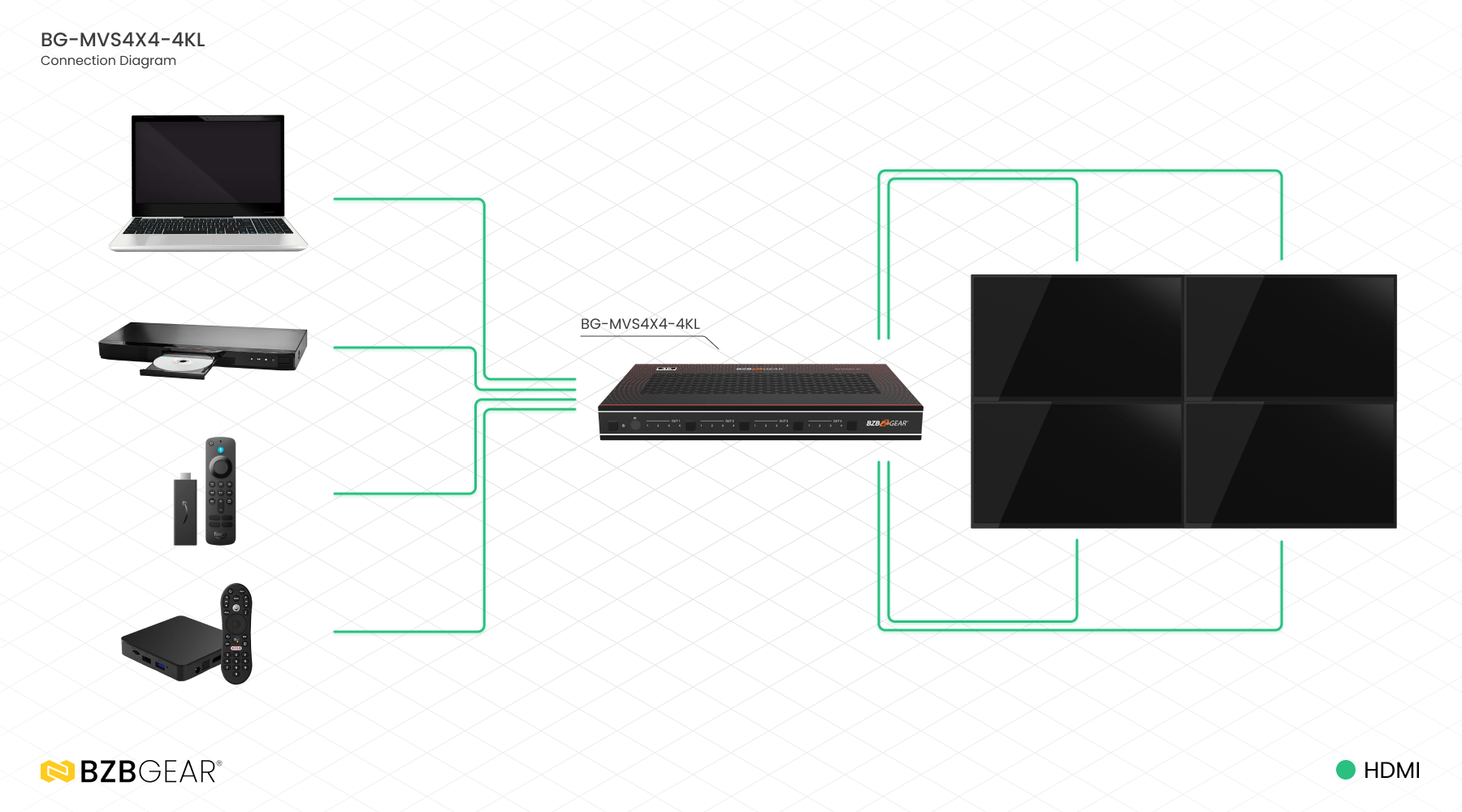

The BG-MVS4X4-4KL 4K60 4:4:4 HDMI matrix is a versatile high-speed matrix switcher and video wall processor with multiple applications. This system can be configured for two different output modes, serving as a 4x4 seamless matrix switcher or as a 2x2, 4x1, or 1x4 video wall solution, among other possibilities.

Additionally, it is equipped with a web browser interface module for convenient control and configuration when used either as a standalone device or in conjunction with a third-party control system. Control options include front-panel push buttons, an IR remote control, RS-232 interface, and TCP/IP connectivity.

Features

  • Compliant
    Compliant
    HDMI 2.0b, HDCP 2.2 and HDCP 1.4
  • 2 Operational Modes
    2 Operational Modes
    4x4 Matrix (seamless switch), Video wall (2x2, 4x1 or 1x4 etc configuration)
  • Audio Formats
    Audio Formats
    Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
  • EDID Management
    Advanced EDID management
    Seamless communication between sources and displays
  • Web Interface Module
    Web Interface Module
    For control and configuration of Matrix
  • Control Options
    Control Options
    Control via front panel, IR, RS-232, and TCP/IP
  • Seamless video switching
  • Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920 x 1200 @60Hz) and 480i-4K (3840 x 2160 @60Hz 4:4:4, 4096 x 2160 @60Hz 4:4:4)
  • HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz 4:4:4
  • 3rd Party drivers are available for all major home control brands
Software background image

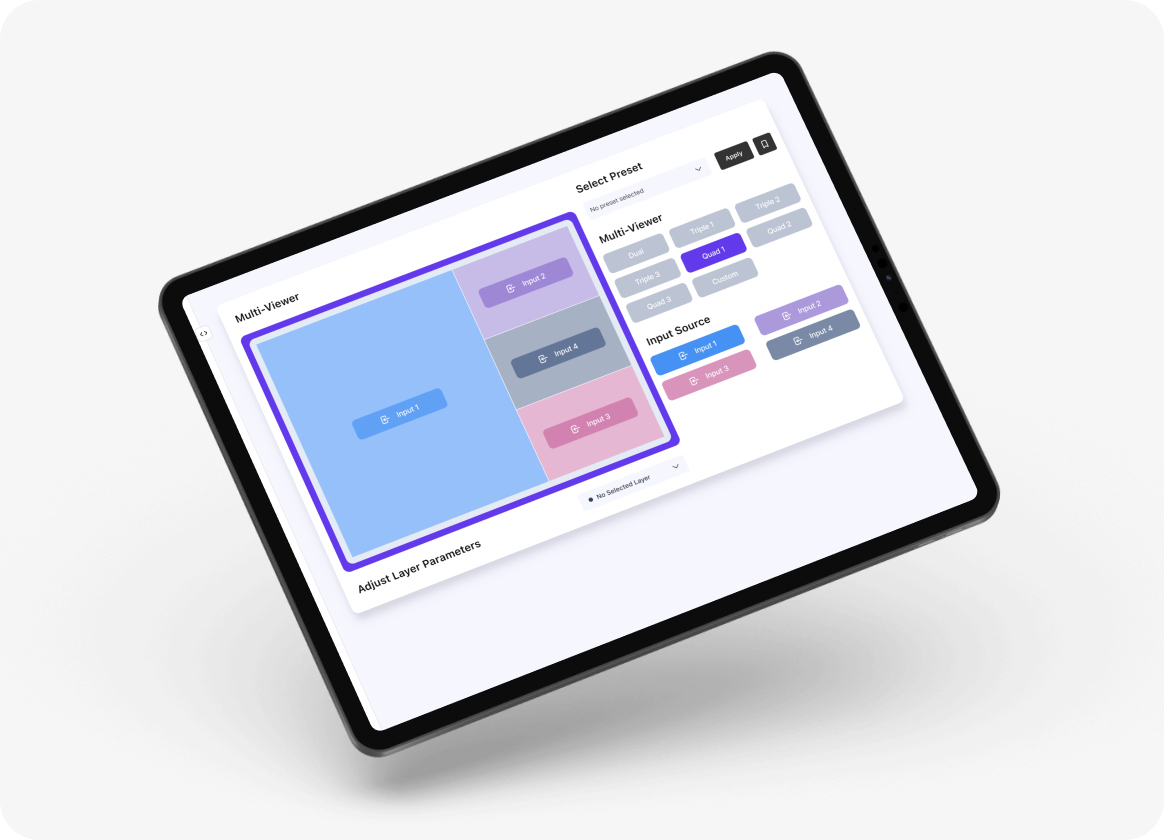

Effortlessly control and
manage your video system
with our user-friendly app!

Available on Windows, macOS, iOS, and Android

Videos

SETUP and DEMO Video Wall and Seamless Matrix Switcher | BG-MVS4x4-4KL
SETUP and DEMO Video Wall and Seamless Matrix Switcher | BG-MVS4x4-4KL
Effortless Setup Video Wall and Seamless 4x4 Matrix Switcher - BG-MVS4X4-4KL
Effortless Setup Video Wall and Seamless 4x4 Matrix Switcher - BG-MVS4X4-4KL

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2/1.4
Video Bandwidth 594MHz/18Gbps
Video Resolutions Input: VGA-WUXGA (up to 1920x1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4)
Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto
Color Space RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
Color Depth 8/10/12-bit
IR Level 12Vp-p
IR Frequency 38KHz
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
Connection
Inputs 4 x HDMI Type A [19-pin female]
Outputs 4 x HDMI Type A [19-pin female]
Control 1 x RS-232 [3pin-3.81mm phoenix connector]
1 x TCP/IP [RJ45]
1 x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 11in (W) x 6.5in (D) x 1.2in (H) [270mm (W) x 166mm (D) x 30mm (H)]
Weight 2.6 lbs [1165g]
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption 19.56W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)

PACKAGE CONTENTS

  • 1 x 18Gbps 4x4 Seamless Matrix

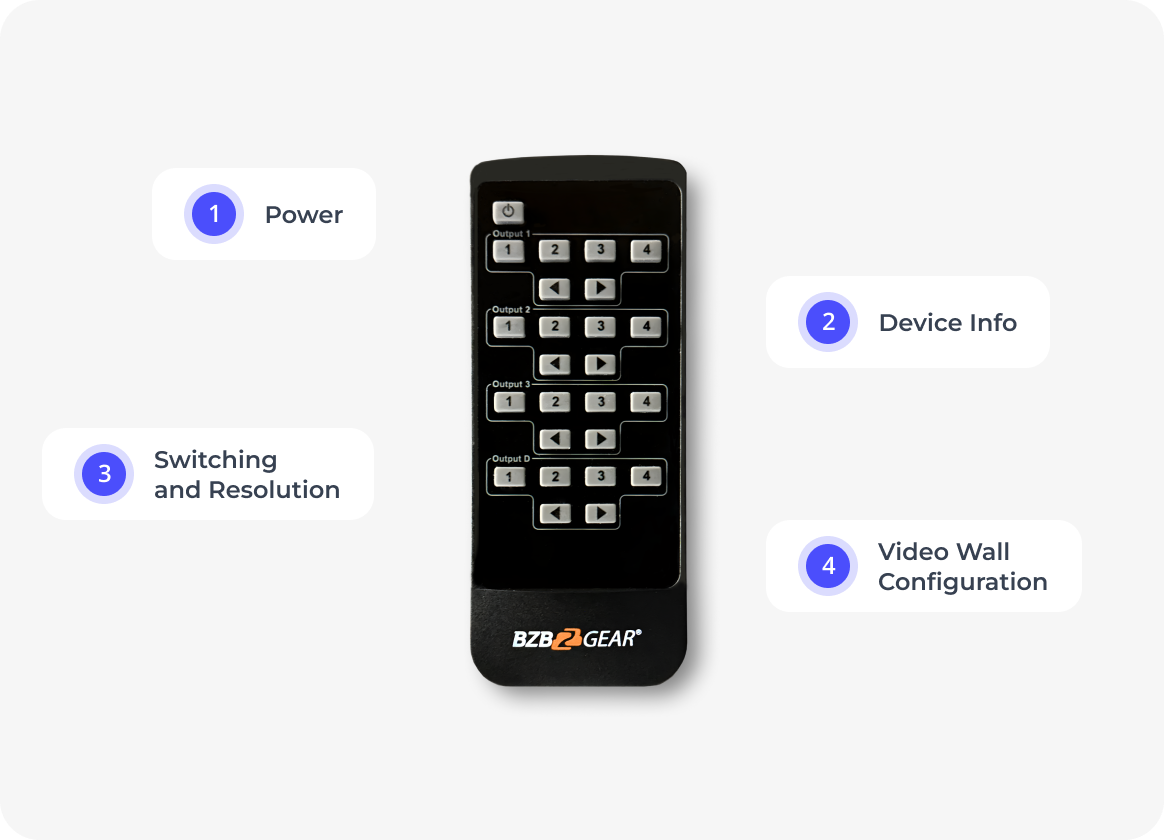

  • 1 x Matrix IR Remote
  • 1 x 3pin-3.81mm Phoenix Connector (male)
  • 1 x 20-60KHz IR Wideband Receiver Cable (1.5 meters)
  • 2 x Mounting Ears
  • 4 x Machine Screws (KM3*4)
  • 1 x 12V/2.5A Locking Power Adapter
  • 1 x User Manual

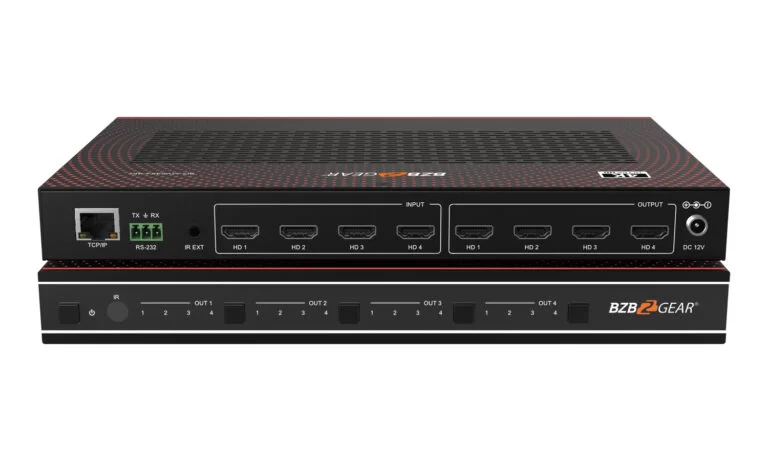

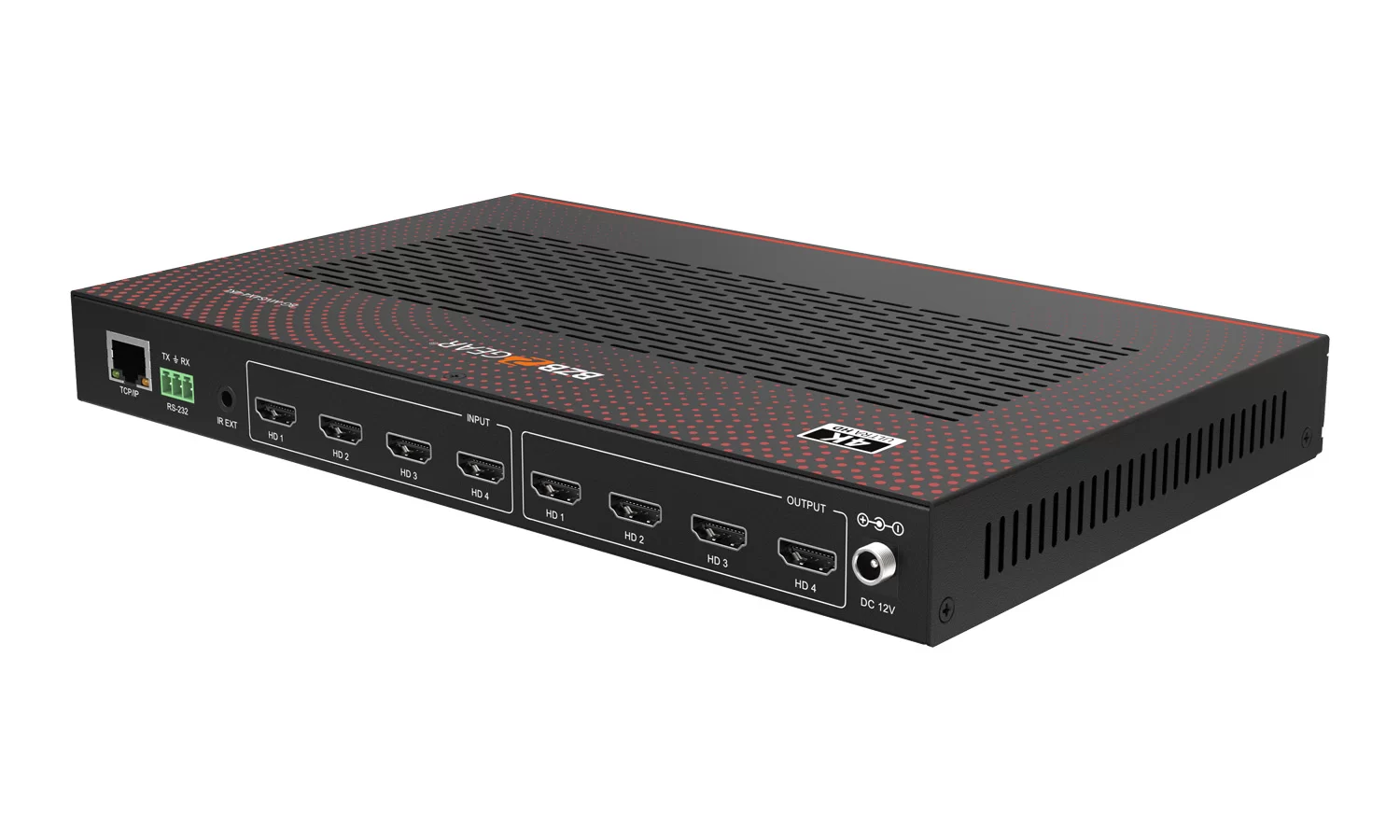

Interfaces

Interfaces image
  1. Power button: Short press this button to power on the device.
    Press this button for 1 seconds to enter the standby mode.
  2. Power LED: The LED will illuminate in green when the product is working normally, and red when the product is on standby.
  3. IR Window: IR receiver window, it only receives the IR remote signal from this product.
  4. Signal source LED: Signal source indicator for the OUT 1 - OUT 4 port.
  5. Input source switching button: Input source switching button for the OUT 1- OUT 4 port.
  6. TCP/IP: The link port for TCP/IP control, connected to an active Ethernet link with an RJ45 cable to control the Matrix via Web.
  7. RS-232: RS-232 serial command control port, connected to a PC or control system to control the Matrix.
  8. IR EXT: If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal.
  9. HDMI INPUT: HDMI signal input port, connected to signal source device.
  10. HDMI OUTPUT: HDMI signal output port, connected to HDMI display device.
  11. DC 12V: DC 12V/2.5A power input port.
