4-Channel 1080p FHD Live Streaming HDMI/DP Switcher Mixer with PIP and USB 3.0 Capture Card

Configure the Perfect Solution
Get Started

Overview

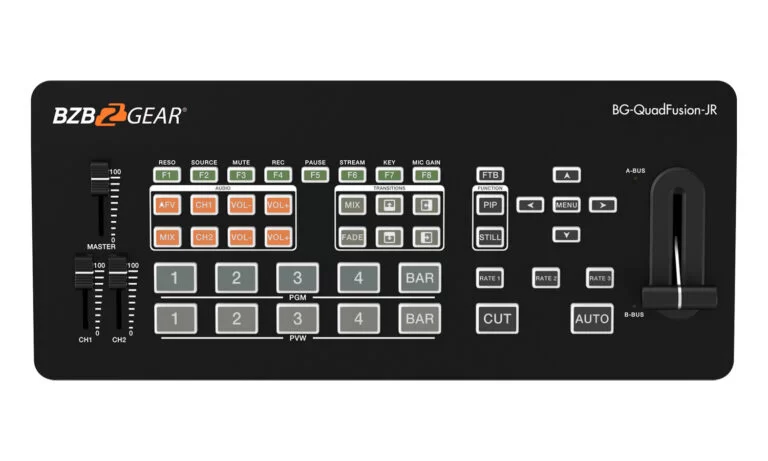

Introducing the BG-QuadFusion-JR: Your Ultimate 1080p FHD Video Switcher Solution. Seamlessly integrating 3 HDMI inputs and 1 dual HDMI/DP input, this cutting-edge switcher redefines video content management for broadcast and TV. Elevate production quality, streamline setup, and embrace the future of visual communication with features including effortless source transition, intuitive control, support for 1080P@60Hz, USB 3.0 capture, SD card slot, versatile effects, durable mobility, immersive audio, and professional-grade quality.

Audio and Visual Excellence

Seamless Integration, Unparalleled Versatility: The BG-QuadFusion-Jr introduces a new level of versatility to your AV setup. By incorporating 3 dedicated HDMI inputs and 1 dual HDMI/DP port, managing multiple video sources becomes effortless and tangle-free. Transition seamlessly between various sources, ensuring smooth content flow without interruptions.

Unleash Creative Potential: Equipped with a built-in format converter, special effect generator, and adaptive front-end video signal inputs, the BG-QuadFusion-Jr empowers you to explore endless creative avenues. Craft captivating visual experiences that elevate your content to unprecedented heights.

Immersive Audio Mastery: Immerse your audience in a captivating auditory journey. Featuring 2-CH MIC inputs and LINE OUT input and output, you possess the tools to fashion rich, immersive soundscapes that seamlessly complement your visuals.

Professional Quality with a Personal Touch: The BG-QuadFusion-Jr strikes the perfect equilibrium between professional-grade quality and a user-friendly interface. Boasting an array of special effect wipes, PIP/POP functionality, and support for MIX, FADE, and other transitions, your production acquires a polished finesse that leaves a lasting impact.

Elevate Every Visual Tale: From 4 HDMI and 1 DP input to the multiview output and PGM output, every facet of your visual narrative receives a boost. With provision for LUMA key, CHROMA key, and color bar output, you're armed to narrate your story in the most impactful manner possible.

Unmatched Management

Mastery at Your Fingertips: Command your production like never before, courtesy of an array of control options. From the convenient RJ45 remote control to the user-friendly backlit buttons and knobs, precision control over settings, effects, and transitions is now at your fingertips.

Sturdy Build, Effortless Portability: Constructed from high-strength aluminum alloy, the BG-QuadFusion-Jr embodies durability without compromising on portability. Its lightweight design facilitates seamless transport between setups, and the distinct PATTERN KEY enables the application of special-shaped patterns with utmost precision.

USB 3.0 Capture: USB 3.0 capture is a crucial feature due to its high data transfer rates, real-time video capture capabilities, and versatility in connecting various video sources like cameras and computers. It offers plug-and-play convenience, multi-platform compatibility, and cost-effectiveness, making it suitable for live events, remote shoots, and compact setups. USB 3.0 capture not only enables seamless switching between sources but also facilitates direct 1080p recording, enhancing its value for archiving and post-production tasks.

Features

  • HDMI Encoder & DP Decoder
    HDMI Encoder & DP Decoder
    Effortlessly handle multiple video sources
  • iconoir_pc-check
    Special Effects
    Unlock your creative potential with inbuilt effects
  • fluent_zoom-fit-24-filled
    Control Options
    Enjoy the convenience of a RJ45 remote, backlit buttons, and knobs for precise adjustments
  • Immersive Audio
    Immersive Audio
    Harness 2-CH MIC inputs and LINE OUT for enriching soundscapes
  • badge-Full-hd | 1080P HD
    1080p Excellence
    Present your content in stunning, clear 1080p resolution
  • Durability in Motion
    Durability in Motion
    Crafted from high-strength aluminum alloy for lasting, portable use
BG-QUADFUSION-JR-1-features

Enhanced Audio Control

Achieve high-quality audio with 3.5mm stereo line output, input, and dual microphone inputs for immersive audio embedding.

Effortless Software Control and Network Accessibility

Connect via RJ45 LAN port for software control and access; enable remote management for seamless control from anywhere.

Streamlined Live Streaming

Utilize Stream USB 3.0 for a hassle-free 1080p60 USB 3.0 PGM output/capture in live streaming setups.

Multiview Monitoring and Settings Management

Experience enhanced monitoring with HDMI multiview output displaying up to four inputs and device menu, simplifying settings management.

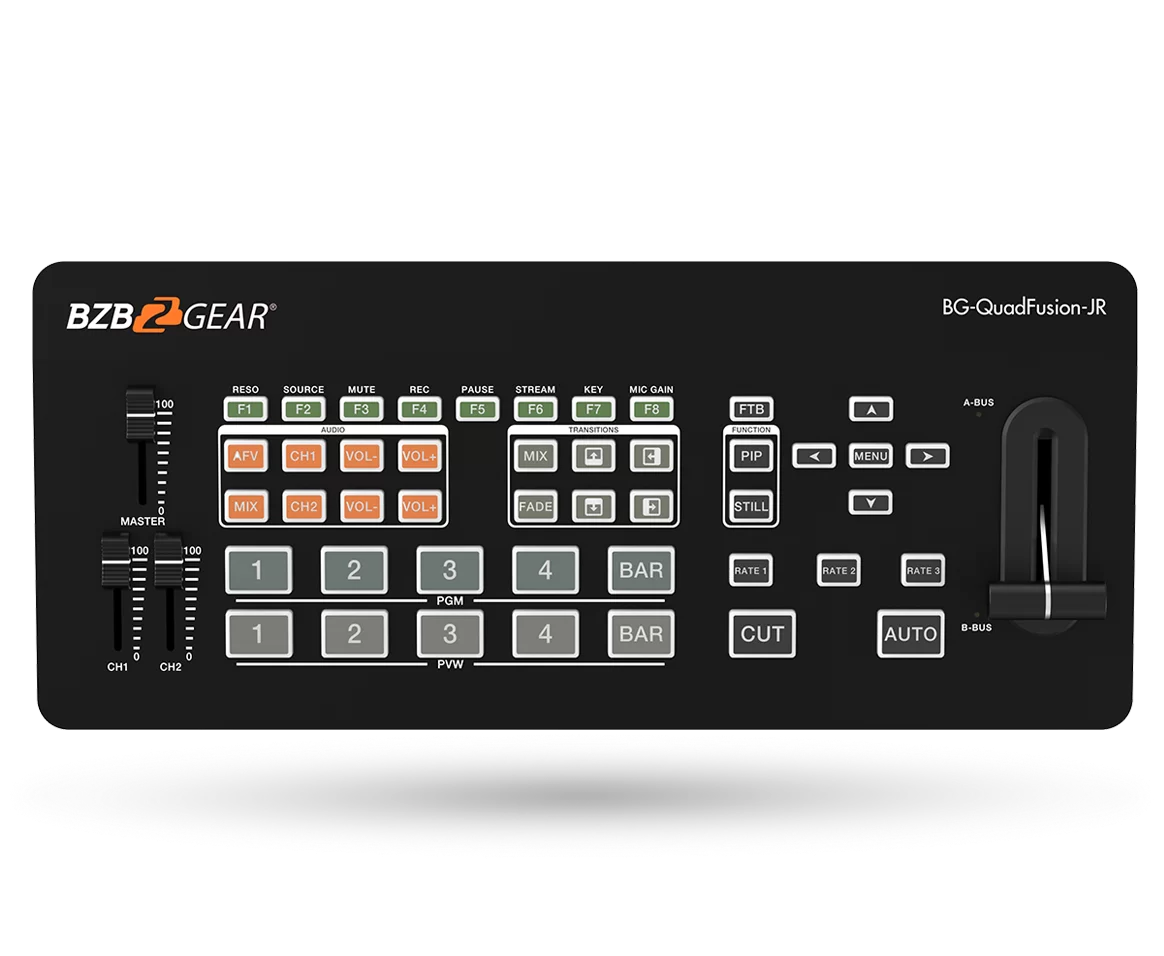

BG-QUADFUSION-JR-2-features

User-Friendly Interface

Navigate easily with an intuitive button layout on the BG-QuadFusion-Jr, featuring backlit buttons for improved visibility in low-light conditions.

Videos

Choose Your Livestream Arsenal: BG-QuadFusion-4K vs BG-QuadFusion-JR Video Production Mixers
Choose Your Livestream Arsenal: BG-QuadFusion-4K vs BG-QuadFusion-JR Video Production Mixers
Taking Your 1080p Broadcasts to the Next Level at the Create Corner at BZBGEAR | NAB Show 2024
Taking Your 1080p Broadcasts to the Next Level at the Create Corner at BZBGEAR | NAB Show 2024
Produce Like a PRO In Crystal Clear 1080P - BG-QuadFusion-JR Video Production Switcher
Produce Like a PRO In Crystal Clear 1080P - BG-QuadFusion-JR Video Production Switcher
Everything You Need To Live Stream - BZBGEAR Broadcast Solutions
Everything You Need To Live Stream - BZBGEAR Broadcast Solutions
Elevate Your Production Quality With An Intuitive Video Switcher - BG-QuadFusion-JR
Elevate Your Production Quality With An Intuitive Video Switcher - BG-QuadFusion-JR
Seamless Video Mastery: BG-QuadFusion-JR | Redefining 1080p FHD Switching!
Seamless Video Mastery: BG-QuadFusion-JR | Redefining 1080p FHD Switching!
BZBGEAR's Brand New QuadFusion Production Switchers at CFX 2023
BZBGEAR's Brand New QuadFusion Production Switchers at CFX 2023
Brand New Lineup of Professional Broadcasting Production Switchers from BZBGEAR | IBC 2023
Brand New Lineup of Professional Broadcasting Production Switchers from BZBGEAR | IBC 2023
Brand New BZBGEAR Production Switcher! The BG-QUADFUSION-JR! IBC 2023
Brand New BZBGEAR Production Switcher! The BG-QUADFUSION-JR! IBC 2023

Tech Specifications

SKU BG-QuadFusion-JR
Video Signal Input Input signal HDMI 1.4 / DP 1.2 video signal
Connector Standard
Reflection loss >15dB 5MHz~3GHz
Signal amplitude 800mV±10% (HDMI)
Impedance 100Q (HDMI)
Balance Adaptive
DVD input HDMI support 480i/576i, 480p/576p, 720p, 1080i, 1080p
Computer HDMI input support 1920x1080, 1680x1050, 1600x900, 1440x1050,
1366x768, 1360x768, 1360x768, 1280x1024,
1280x960, 1280x800, 1280x768, 1280x720,
1280x600, 1152x864, 1024x768, 800x600
Video Signal Output Output signal HDMI video output
Resolution 1080P60Hz / 1080P50Hz / 1080P30Hz / 1080P25Hz /
1080P24Hz / 1080160Hz / 1080150Hz
Connector Standard
Return Loss >15dB 5MHz~3GHz
Signal amplitude 800mV±10% (HDMI)
Impedance 100Q (HDMI)
DC offset 0V±0.5V
Clock recovery Support
Control Parameters Control 9600 baud, 8 bits, 1 stop bit, no parity
Connection 15-pin D-port, 2-RX, 3-TX, 5-GND
Network control RJ45, 100M
General Parameters Power supply 12V/DC
Power rate <25W
Size 11in x 4.3in x 1.4in [280mm x 110mm x 36mm]
Control panel Support on-site production, integration of a variety of buttons
Operating temperature 32°F ~ 122°F / 0°C ~ 50°C, No condensation
Storage temperature -4°F ~ 167°F / -20°C ~ 75°C
Working humidity 20% ~ 70%RH
Storage humidity 0% ~ 90%RH, No condensation

PACKAGE CONTENTS

  • 1 x BG-QuadFusion-JR
  • 1 x Power Adapter (12V DC)
  • 1 x User Manual
  • 1 x USB 3.0 Type-A to Type-B Cable

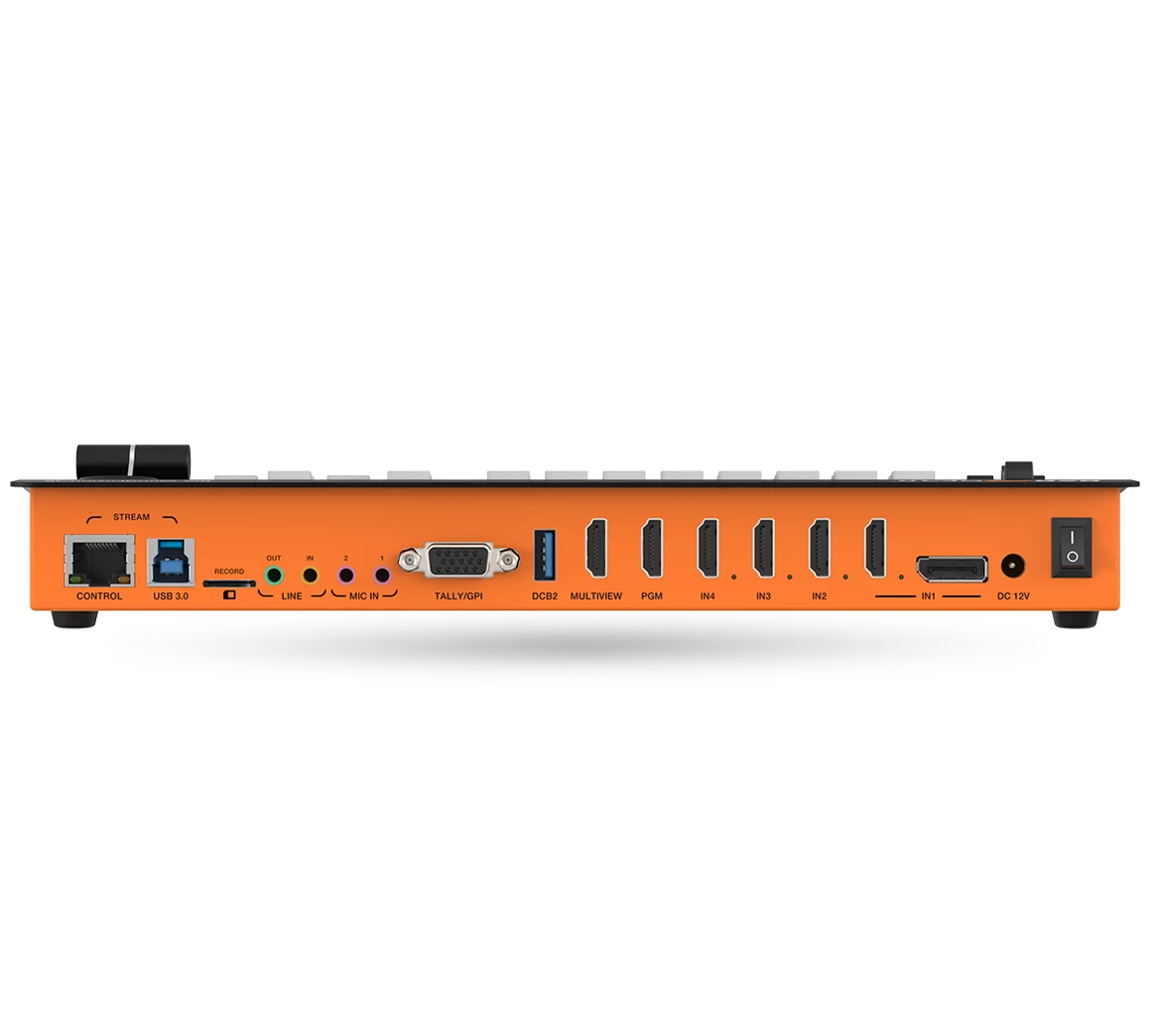

Interfaces

Interfaces image
  1. Control: RJ45 LAN connector for network control and RTMP Stream.
  2. USB 3.0: USB 3.0 Type-B UVC stream capture port.
  3. Micro SDXC: Micro SDXC card port for direct PGM recording.
  4. Line In/Out: 3.5mm Stereo audio input / output.
  5. MIC In: 2x 3.5mm stereo microphone inputs.
  6. Tally/GPI: DB-15 port for serial control or GPI Tally system.
  7. DCB2: External control for keyboard, wireless tally, or device cascade.
  8. Multiview: HDMI 1.4, 19-pin female multiview output.
  9. PGM: HDMI 1.4, 19-pin female program live output.
  10. HDMI Input: 4x HDMI 1.4, 19-pin female video inputs.
  11. DisplayPort Input: DisplayPort video input which can replace HDMI IN1.
  12. DC 12v: Power input.
