Overview

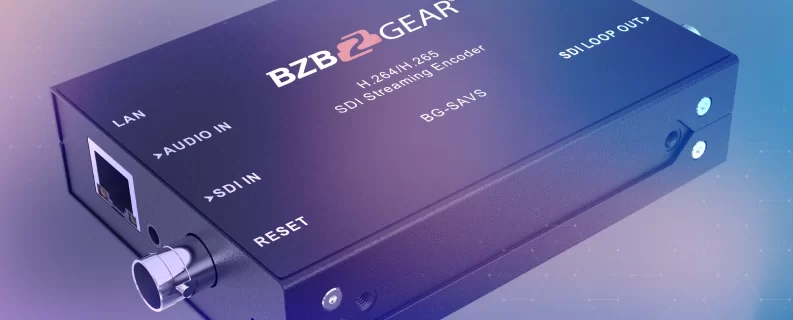

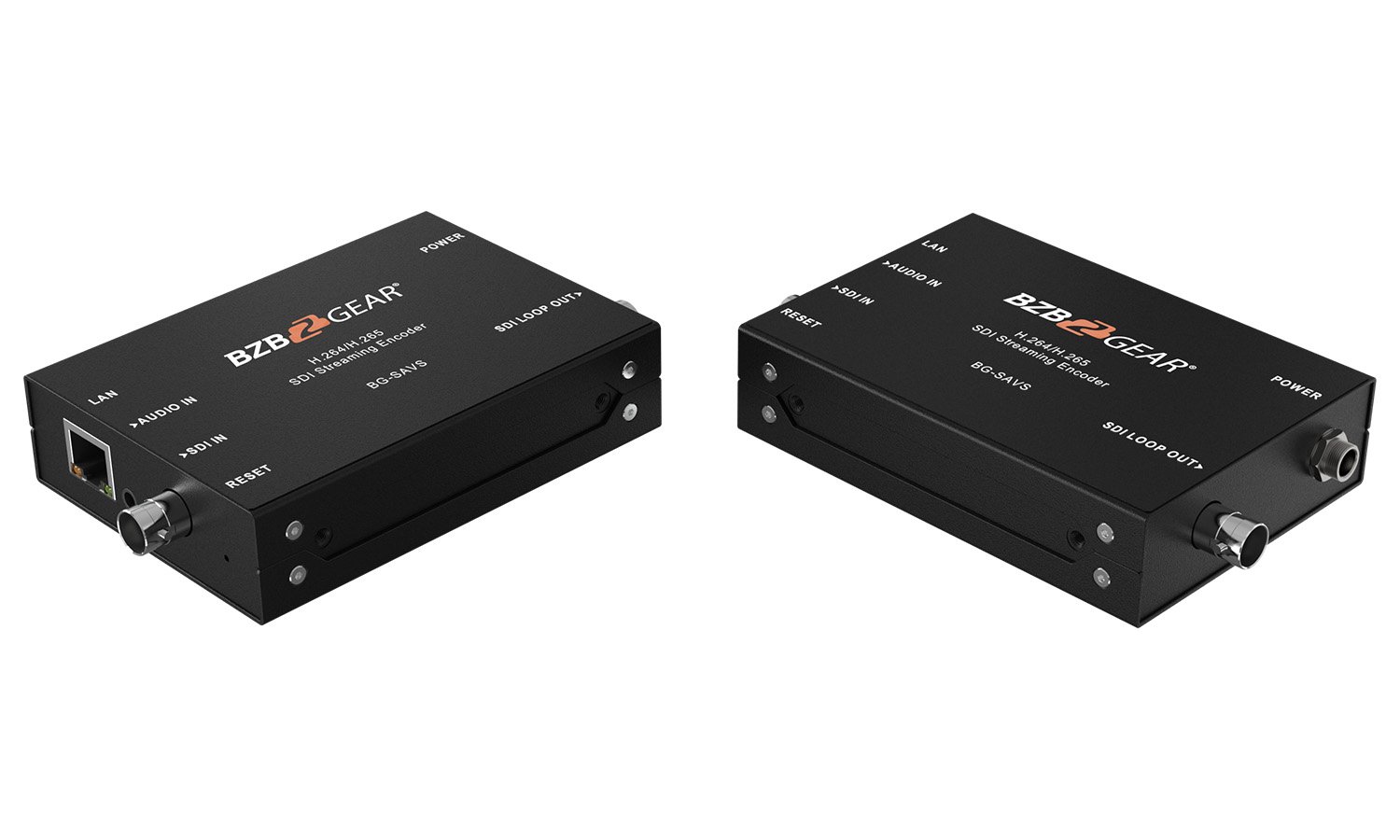

The BG-SAVS is a single-channel streaming encoder that takes an SDI input source and converts it to an IP video stream that can be recorded to an NVR, PC, or broadcast to streaming platforms like YouTube, Twitch, or Facebook.
CONNECTIVITY
The BG-SAVS can transmit a maximum resolution of 1080p@60Hz. It simultaneously transmits a sub-stream with a maximum resolution of 720p. This allows a second low-bandwidth stream to be transmitted, providing the ability to stream to multiple platforms at once to reach a broader audience.
The BG-SAVS is equipped with one SDI input as well as an SDI loop out. The loop output allows broadcasters to monitor the input source on a separate display. Stereo audio can be embedded into the stream via the 3.5 mm input.
By utilizing the integrated logo and text overlay features, users can customize and brand their streams. A full suite of video, audio, and streaming settings are available from the intuitive web interface. The BG-SAVS utilizes H.265 and H.264 encoding, and supports RTSP, RTP, TMPS, HTTP, UDP, and SRT streaming formats.
Features
-
SDI1 x SDI input, 1 x SDI loop out -
Audio1 x 3.5 mm analog audio input -
Direct StreamingStream Directly from the device without the need of hooking up a computer -
Image OverlayImage and text overlay to brand your streams -
Crystal Clear ImagesSupports resolutions up to 1080p@60fps -
DurableStrong metal enclosure designed to last for years of use
- Dual-Stream encoding (main stream and sub stream)
- Video signals are encoded at H.265/H.264
- Output formats: RTSP, RTP, RTMPS, HTTP, UDP, SRT, Unicast, and Multicast
Videos
Tech Specifications
| CONNECTIONS | |
| Video Input | SDI Type A x 1 |
| Video Loop Out | SDI Type A x 1 |
| Analog Audio | 3.5mm (line in) x 1 |
| Network | RJ-45 x 1 (100/1000Mbps self-adaptive Ethernet) |
| STANDARDS | |
| SDI In Format Support | 1080p@60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i@50/59.94/60, 720p@60/59.94/50/30/29.97/25/24/23.98, 576i@50, 576p@50, [email protected]/60, [email protected]/60 |
| Video Coding | H.265/ H.264 |
| Video Bitrate | 16Kbps ~ 12MKbps |
| Audio Coding | ACC/ MP3/ MP2/ G711 |
| Audio Bitrate | 24Kbps ~ 320Kbps |
| Encoding Resolution | 1920×1080, 1680×1056, 1280×720, 1024×576, 960×540, 850×480, 720×576, 720×540, 720×480, 720×404, 720×400, 704×576, 640×480, 640×360 |
| Encoding Frame Rate | 5-60fps |
| SYSTEMS | |
| Network Protocols | HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT |
| Configuration Management | Web configuration, Remote upgrade |
| OTHERS | |
| Consumption | 5W |
| Temperature | Working temp: 14°F ~ 140°F / -10°C ~ 60°C, Storage temp: -4°F ~ 158°F / -20°C ~ 70°C |
| Dimension (LxWxD) | 4.1 x 3 x 1in [104 x 76 x 25mm] |
| Weight | Net weight: 0.7 lbs [310g], Gross weight: 1.5 lbs [690g] |
Resources
PACKAGE CONTENTS
- 1x BG-SAVS Streaming Encoder
- 1x 12V 2A Power supply

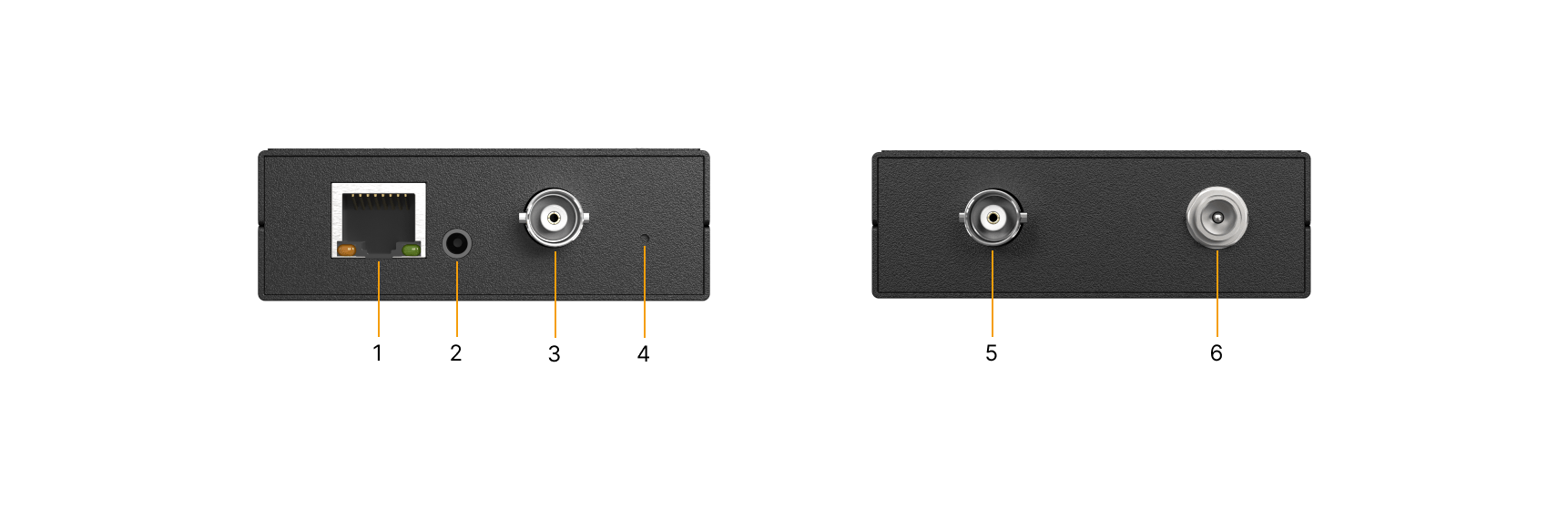

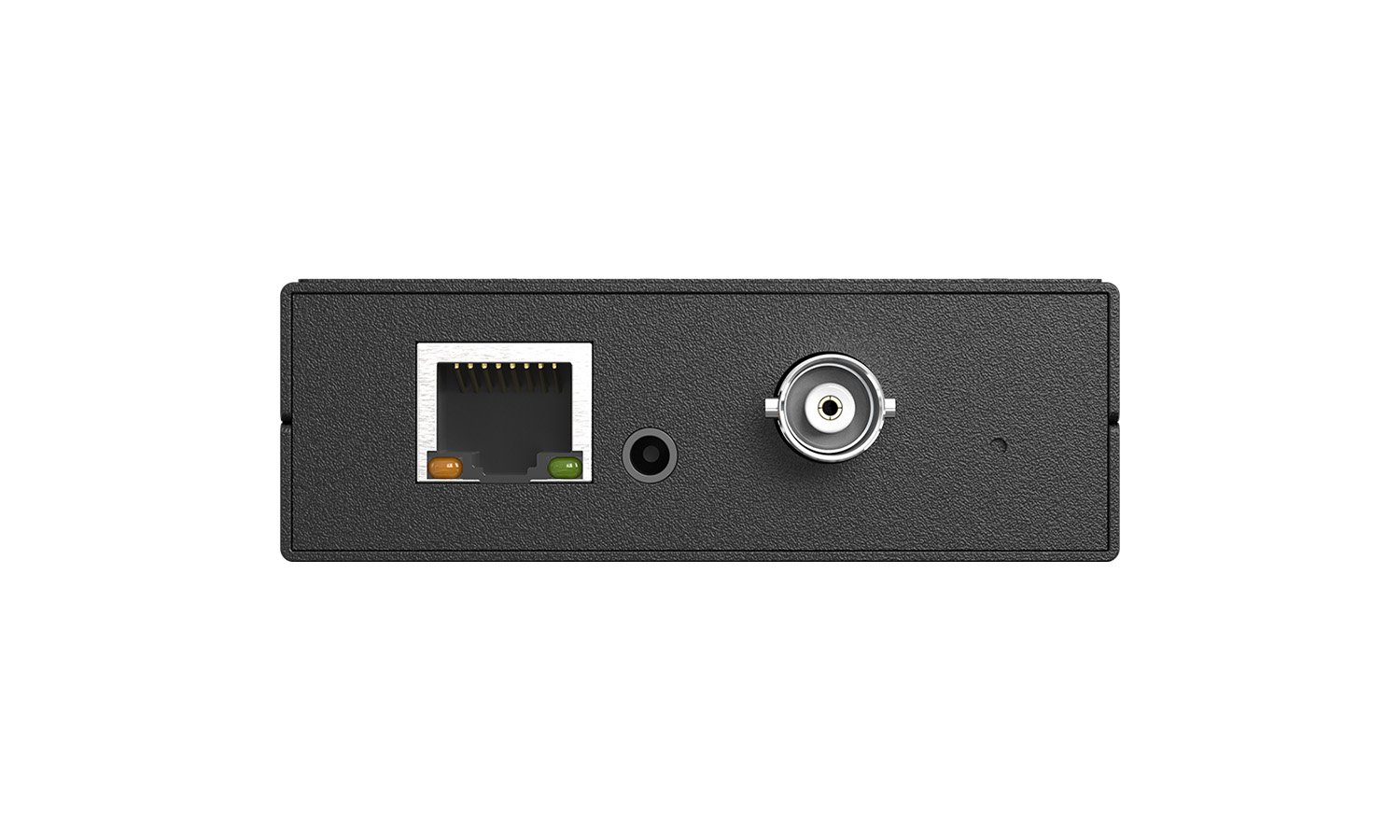

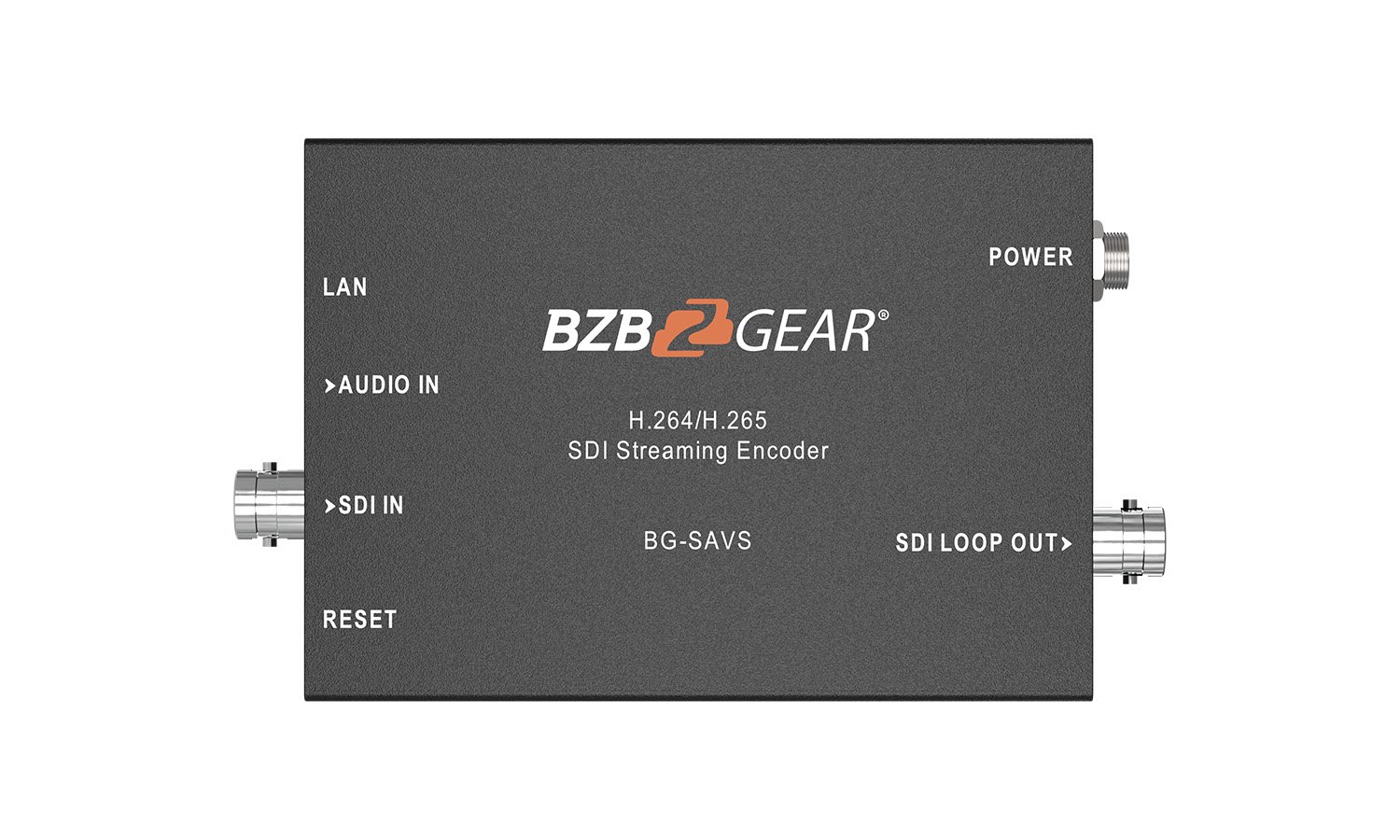

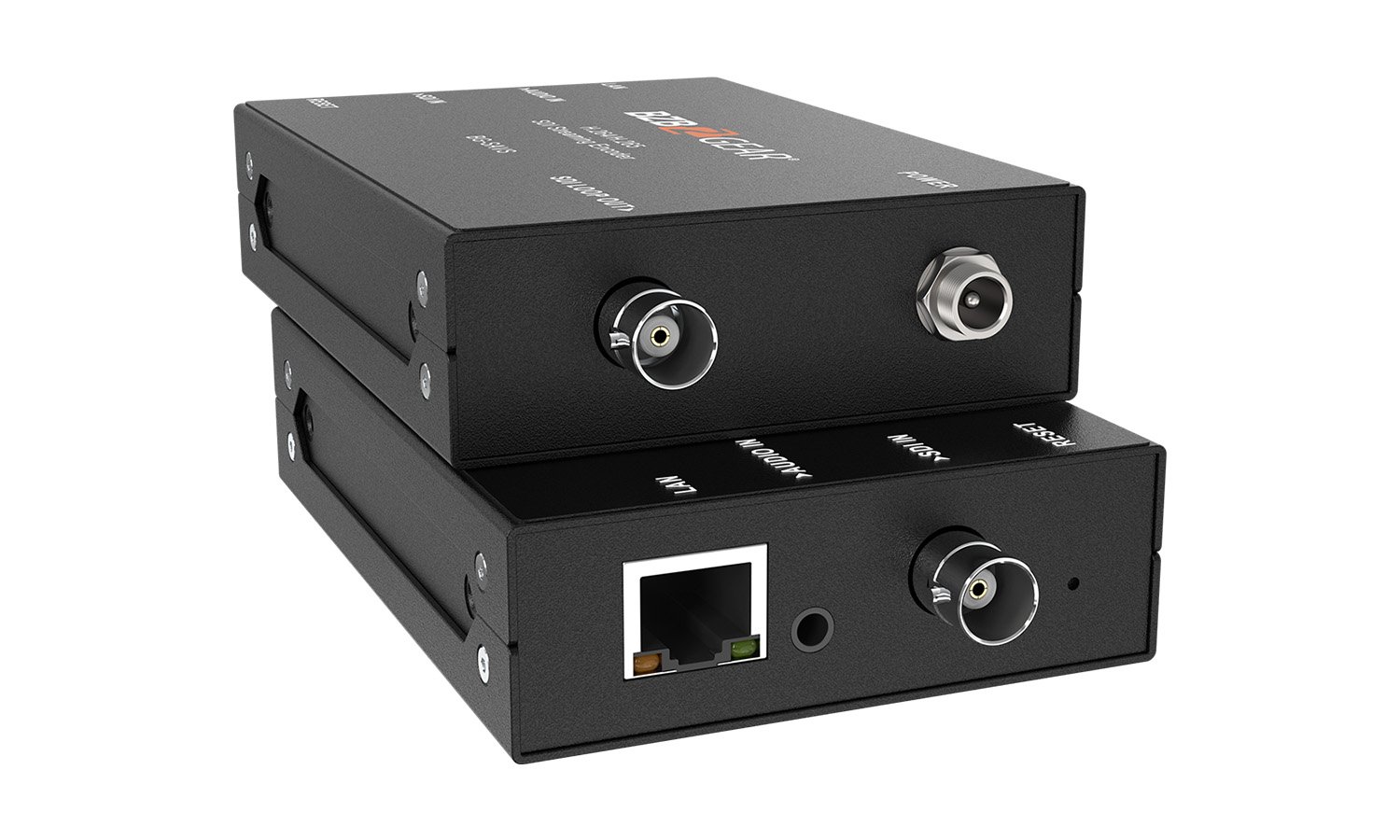

Interfaces
- LAN Port: Connect to Internet for IP Video Streaming.
- AUDIO Input: 3.5mm Stereo mini jack to embed audio.
- SDI Input: Connect to SDI source device.
- Reset: long press for 5s to factory reset device.
- SDI Loopout: Connect to a display to view captured content.
- DC 12V: Connect to the provided power supply.
