USB/Bluetooth Wireless Desktop Conference Speakerphone with 360 Audio Pickup up to 5M

Configure the Perfect Solution
Get Started

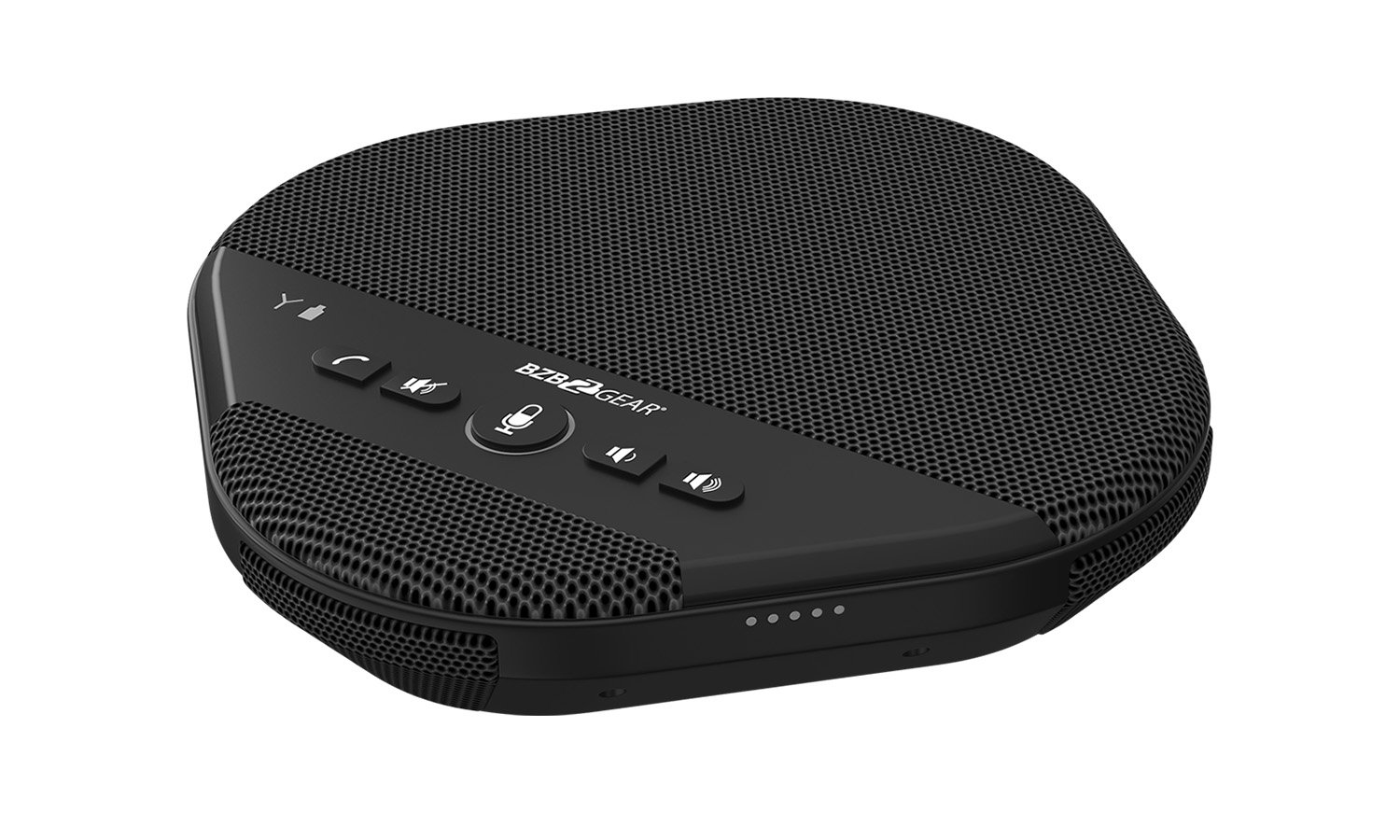

The BG-SMB-5M is a USB/2.4G wireless speakerphone featuring 360° of audio pickup at a range of up to 16 feet. Designed for small to medium-sized meeting spaces and huddle rooms, this unit provides crystal-clear audio pickup and robust sound reproduction. Featuring a rechargeable battery with a four-hour life, this unit easily integrates with most videoconferencing programs.

Connectivity

The BG-SMB-5M features full-duplex echo cancellation to eliminate the feedback commonly experienced when using the built-in microphones on most laptops. In addition to echo cancellation, this unit also utilizes noise reduction and a proprietary wideband HD voice enhancement algorithm to provide high-quality audio in any environment.

The BG-SMB-5M can be connected directly to a PC or Mac with the supplied USB 3.0 cable for charging and easy wired setup. In addition to the USB 3.0 connection, a wireless USB adapter allows for cord-free operation. A 3.5mm audio output provides a convenient headset connection for private conversations.

The BG-SMB-5M is also equipped with two expansion ports. These ports can be used to connect up to two BG-EXM-SM5 extension microphones, allowing users to extend the audio pickup range to 33 feet for larger meeting and conference settings when needed.

Features

  • Plug-and-Play Setup
    Easy to Use
    USB Plug and Play
  • ep_connection
    Flexible
    Connect via USB and WiFi
  • COMPACT DESIGN
    Mobile
    Rechargeable battery allows you to take the speaker on the go
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    Echo Cancellation
    Sounds good in any room
  • material-symbols_safety-check
    Durable
    Designed to handle years of use
  • ph_equalizer-bold
    Powerful Sound
    Works well for voice or music
  • 4 Built-in microphones offer 360° audio pickup over 5m
  • 22KHz full duplex echo cancellation & noise reduction removes ambient room noise
  • Suitable for meeting rooms up to 60 square meters
  • 2 external microphone connections allow expanded pickup range to 8m
  • Advanced DSP technology delivers remarkably rich, crystal-clear audio
  • Support 3.5mm audio playback output, can be external headphones or speakers
  • Connects in seconds to laptop, smart phone and tablet via USB, 2.4G wireless receiver, or line in/out
  • Ideal for voice, music and multimedia
  • Works with most video conferencing and cloud communication apps

Videos

BZBGEAR Webinar Episode 10: Overview of BZBGEAR Conference Room Solutions.
BZBGEAR Webinar Episode 10: Overview of BZBGEAR Conference Room Solutions.
Wireless Video Conference Meeting Room Solutions by BZBGEAR
Wireless Video Conference Meeting Room Solutions by BZBGEAR
Bring Your Own Device (BYOD) Solutions for Offices & Video Conferencing using BZBGEAR Equipment!
Bring Your Own Device (BYOD) Solutions for Offices & Video Conferencing using BZBGEAR Equipment!
BZBGEAR Bluetooth and USB Speakerphones for Any Business Conference
BZBGEAR Bluetooth and USB Speakerphones for Any Business Conference

Tech Specifications

Voice technical parameters Acoustic Echo cancellation (AEC): >65dB
Echo length cancellation: ≥500ms
Bidirectional noise compression (NC): <25dB
Automatic Direction finding Technology of Intelligent microphone (EMI)
Automatic gain control (AGC)
Audio parameters Microphone frequency response: 100Hz-22KHz
Speaker frequency response: 100Hz-22KHz
Speaker volume: 95dB at the most
Microphone sound-pickup diameter: 5m
360 degrees full range (2 external microphones optional for connection makes the sound-pickup diameter up to 8m)
Interface USB interface, RJ45 Ext1, Ext2, I/O line in/out, DIP6 interface
Power supply USB power supply (5V/500m)
Computer environment Windows, Mac OSX, Android
Operating environment Operational environment: 32 ~ 104°F / 0 ~ 40°C
Working humidity: 20 ~ 85% (no frost)
Size 7.1 x 7.1 x 1.7in / 14 x 10 x 4.7in (before/after packaging)
180 x 180 x 42mm / 355 x 265 x 120mm (before/after packaging)
Weight 1.3 lbs / 2.6 lbs [600g/1200g] (Net/Gross weight)

Resources

PACKAGE CONTENTS

  • 1x BG-SMB-5M unit
  • 1x USB Cable
  • 1x 2.4G Wireless Receiver
  • 1x Power adapter
  • 1x 3.5mm Stereo Audio Cable
  • User manual

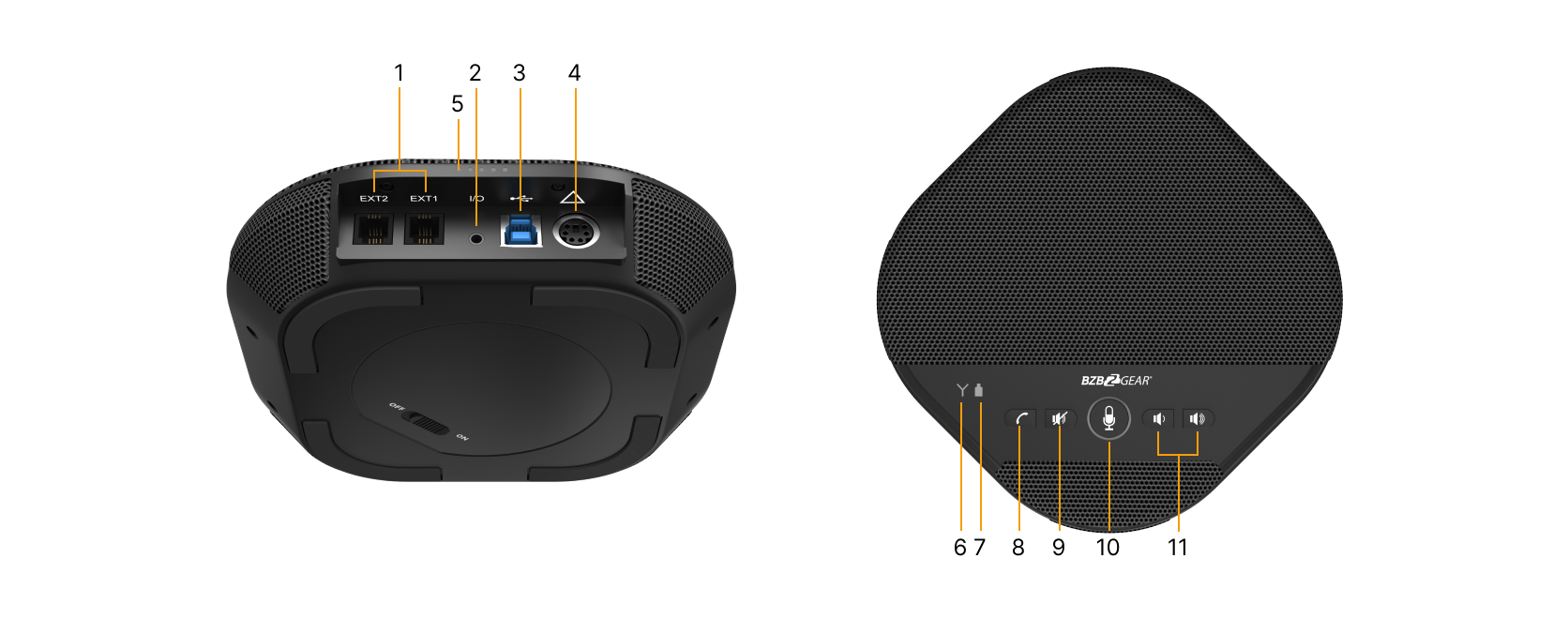

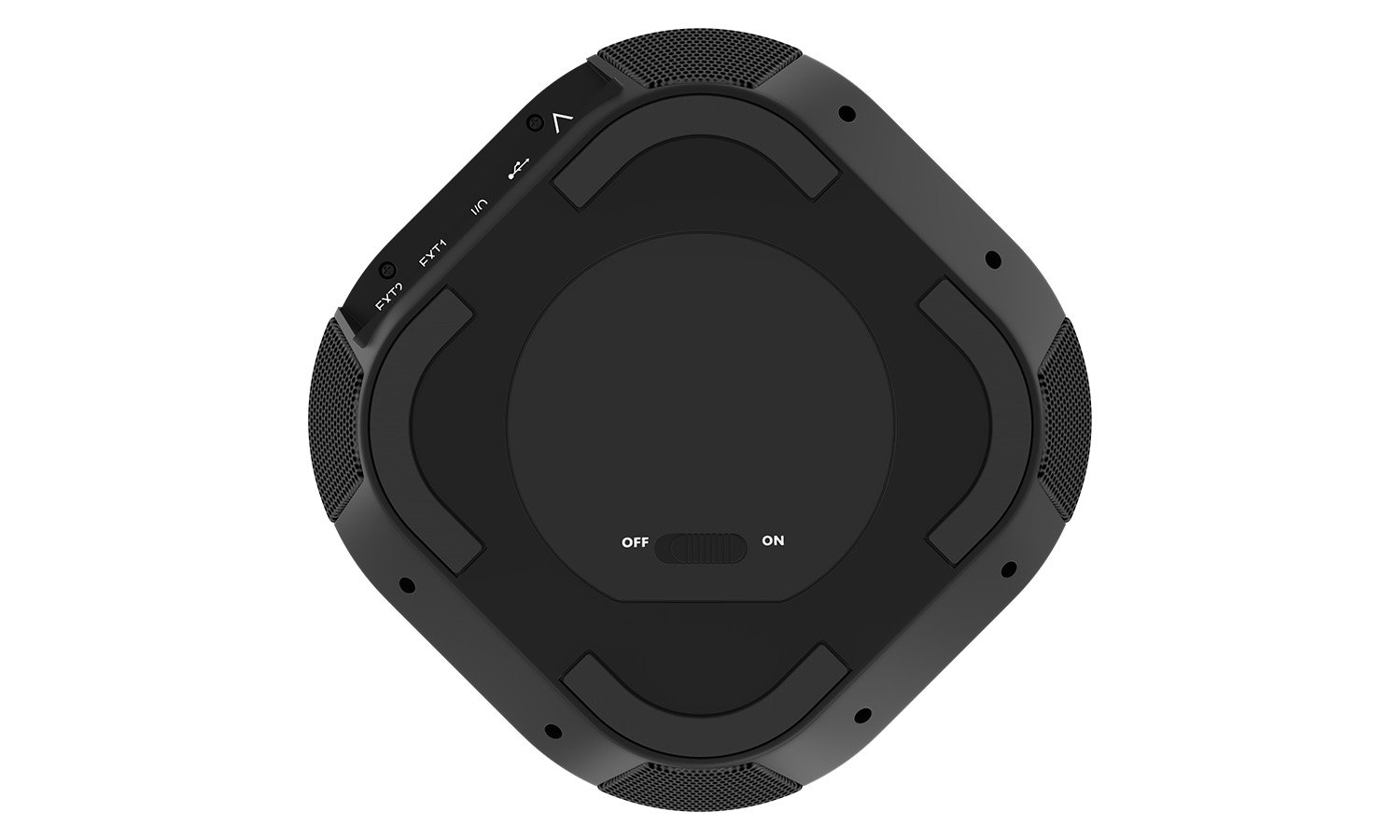

Interfaces

Interfaces image
  1. Ext1 and Ext2: RJ11 connectors for extension mic BG-EXM-SM5 (optional).
  2. In/Out: 3.5mm stereo mini line in/out.
  3. USB interface (rechargeable).
  4. Din6: Not used.
  5. LED status bar indicates volume level.
  6. 2.4G indicator.
  7. Battery indicator.
  8. Answer/hang up: Answer/Hang up call.
  9. Speaker mute: Turn on/off speaker mute function.
  10. Microphone mute: Turn on/off microphone mute function.
  11. Volume up/down: Increase/Reduce the volume.
